2003 LEXUS LS430 Combination

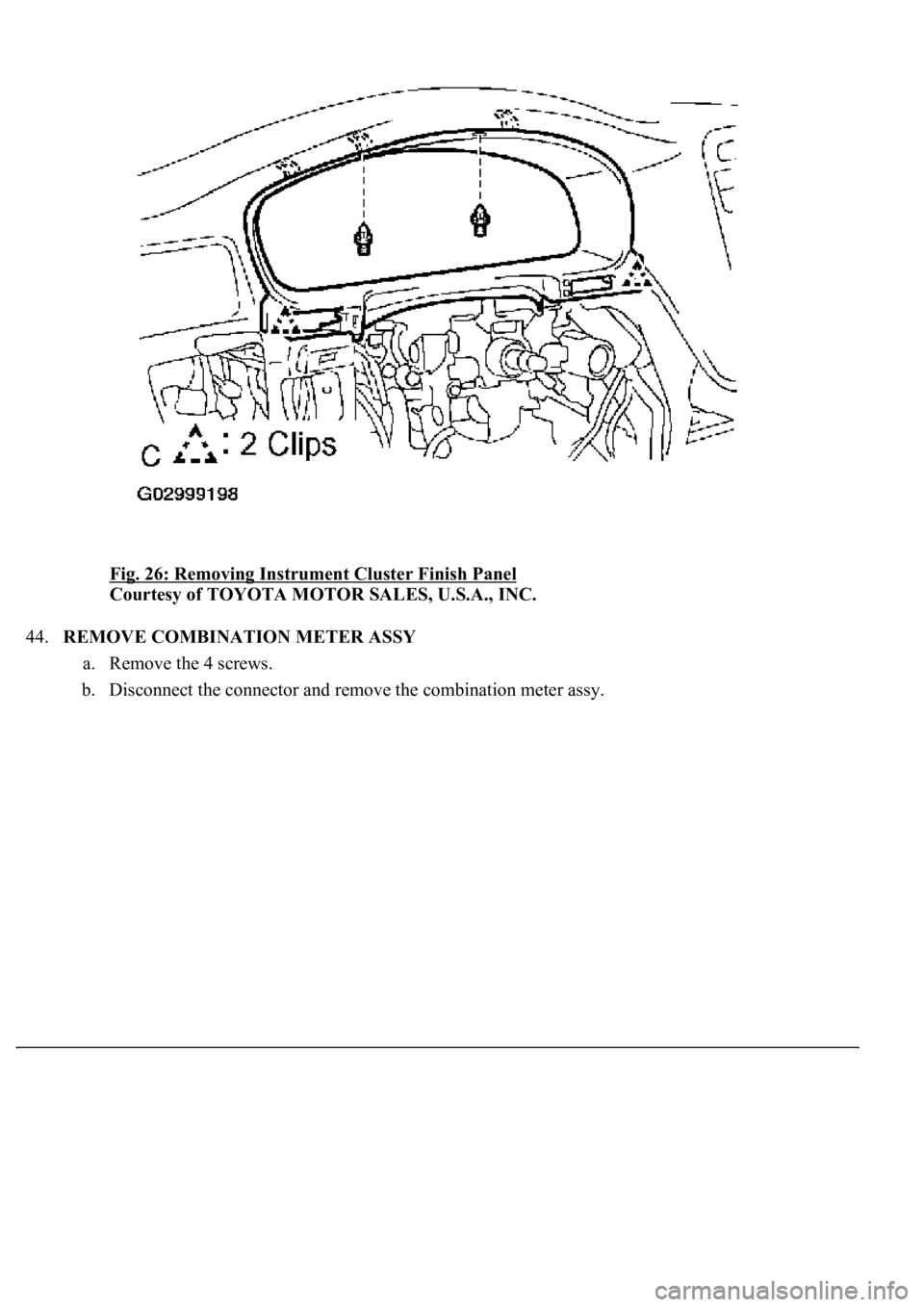

Fig. 26: Removing Instrument Cluster Finish Panel
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
44.REMOVE COMBINATION METER ASSY
a. Remove the 4 screws.
b. Disconnect the connector and remove the combination meter assy.

Fig. 27: Removing Combination Meter Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
45.DISCONNECT STARTER W/SMART SWITCH ASSY (SEE OVERHAUL
)
46.REMOVE STEERING COLUMN ASSY (SEE OVERHAUL
)
SSt 09921-00010
47.DISCONNECT PARKING BRAKE RELEASE CABLE SUB-ASSY (SEE OVERHAUL
)
48.REMOVE INSTRUMENT PANEL PLATE
a. Remove the bolt < D >, the 2 nuts < V > and the instrument panel plate.

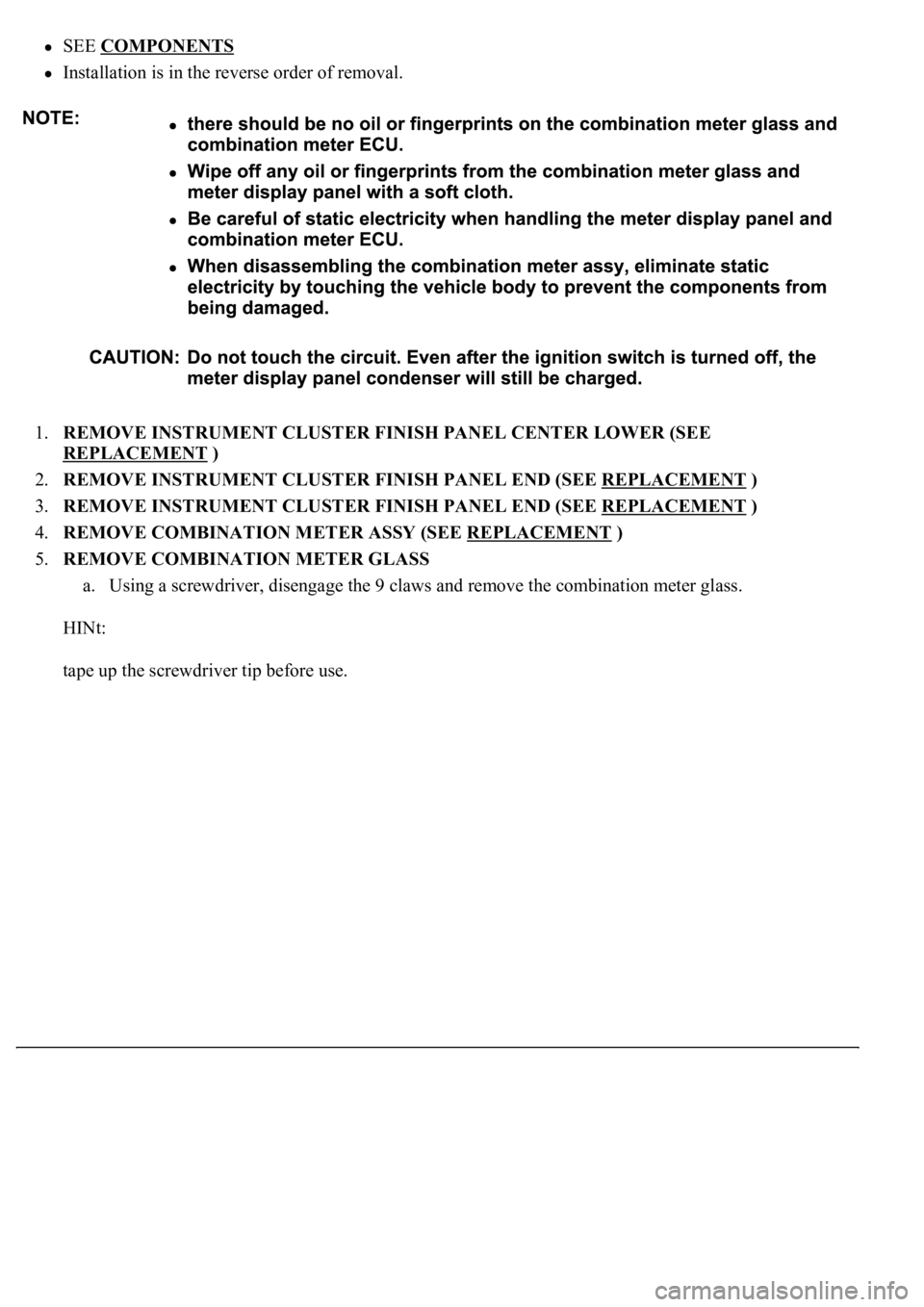

SEE COMPONENTS
Installation is in the reverse order of removal.
1.REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER LOWER (SEE
REPLACEMENT
)
2.REMOVE INSTRUMENT CLUSTER FINISH PANEL END (SEE REPLACEMENT
)
3.REMOVE INSTRUMENT CLUSTER FINISH PANEL END (SEE REPLACEMENT
)
4.REMOVE COMBINATION METER ASSY (SEE REPLACEMENT
)
5.REMOVE COMBINATION METER GLASS
a. Using a screwdriver, disengage the 9 claws and remove the combination meter glass.
HINt:
tape up the screwdriver tip before use.

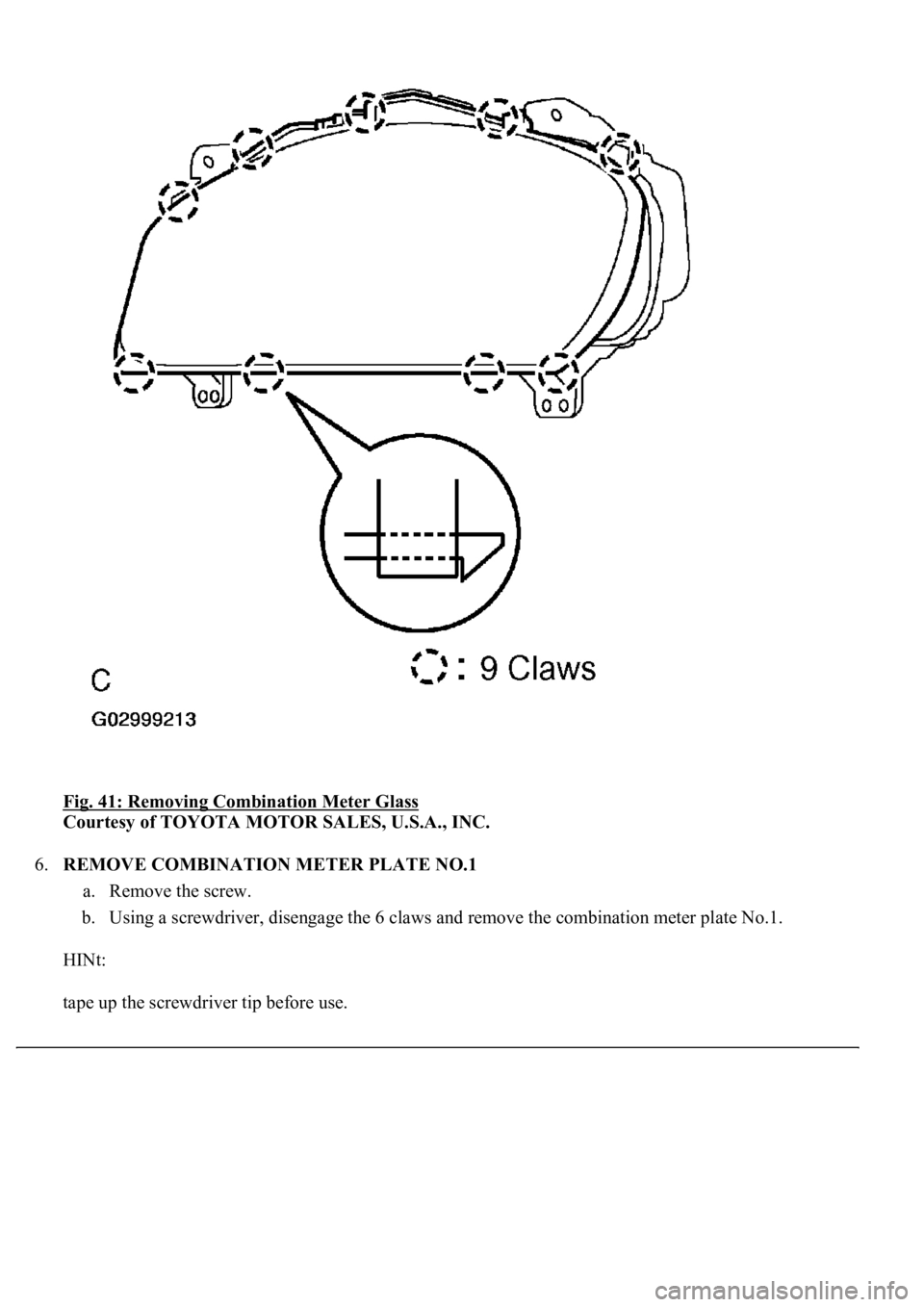

Fig. 41: Removing Combination Meter Glass
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
6.REMOVE COMBINATION METER PLATE NO.1
a. Remove the screw.
b. Using a screwdriver, disengage the 6 claws and remove the combination meter plate No.1.
HINt:
tape up the screwdriver tip before use.

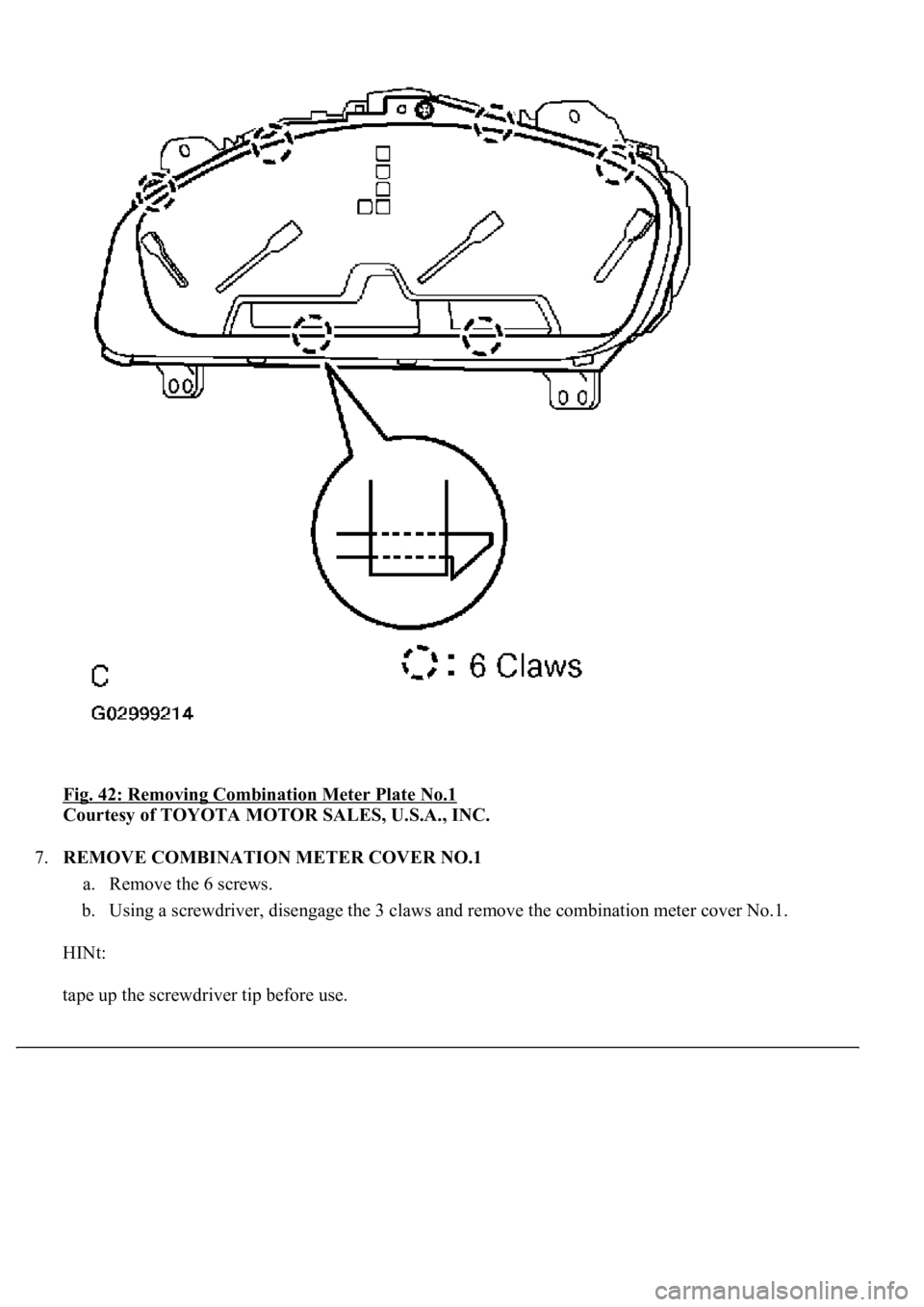

Fig. 42: Removing Combination Meter Plate No.1
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7.REMOVE COMBINATION METER COVER NO.1
a. Remove the 6 screws.
b. Using a screwdriver, disengage the 3 claws and remove the combination meter cover No.1.
HINt:
tape up the screwdriver tip before use.

Fig. 43: Removing Combination Meter Cover No.1
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8.REMOVE METER DISPLAY PANEL
a. Remove the 8 screws.
b. Remove the meter display panel.

Fig. 44: Removing Meter Display Panel
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
9.REMOVE COMBINATION METER ECU
a. Remove the 4 screws.
b. Disconnect the connectors.
c. Using a screwdriver, disengage the claw and remove the combination meter ECU.
HINT:
Tape up the screwdriver tip before use.

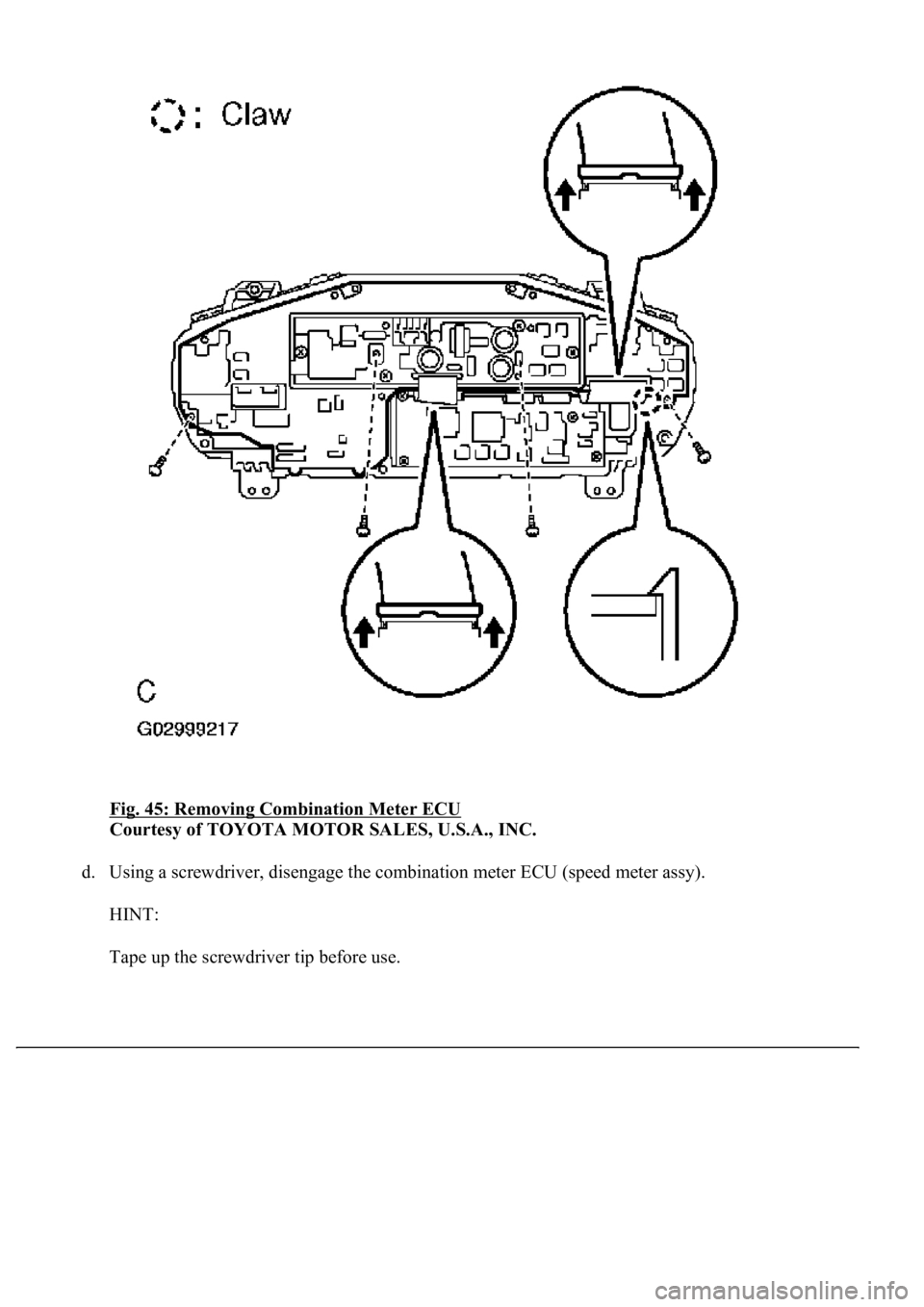

Fig. 45: Removing Combination Meter ECU
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Using a screwdriver, disengage the combination meter ECU (speed meter assy).
HINT:
Tape up the screwdriver tip before use.
