2003 LEXUS LS430 Combination

DTC P0979, P0980: SHIFT SOLENOID "C" CONTROL CIRCUIT LOW/HIGH (SHIFT SOLENOID
VALVE S3)
CIRCUIT DESCRIPTION
Shifting from 1st to 6th is performed in combination with "ON" and "OFF" operation of the shift solenoid
valves SL1, SL2, S1, S2, S3, S4 and SR which is controlled by the ECM. If an open or short circuit occurs in
either of the shift solenoid valves, the ECM controls the remaining normal shift solenoid valve to allow the
vehicle to be operated smoothly. (In case of an open or short circuit, the ECM stops sending current to the
circuit.) Fail safe function (see FAIL
-SAFE CHART ).
Fig. 143: DTC Reference Chart

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
MONITOR DESCRIPTION
These DTCs indicate an open or short in the shift solenoid valve S3 circuit. When there is an open or short
circuit in any shift solenoid valve circuit, the ECM detects the problem and illuminates the MIL and stores the
DTC. When the shift solenoid valve S3 is on, if resistance is 8ohms or less, the ECM determines there is a short
in the shift solenoid valve S3 circuit.
When the shift solenoid valve S3 is off, if resistance is 100 kohms or more, the ECM determines there is an
open in the shift solenoid valve S3 circuit (see FAIL
-SAFE CHART ).
MONITOR STRATEGY
MONITOR STRATEGY TABLE
TYPICAL ENABLING CONDITIONS
Related DTCsP0979: Shift solenoid valve S3/Range check (Low
resistance) P0980: Shift solenoid valve S3/Range
check (High resistance)
Required sensors/ComponentsShift solenoid valve S3
Frequency of operationContinuous
Duration0.064 sec. or more
MIL operationImmediate
Sequence of operationNone

Shifting from 1st to 6th is performed in combination with "ON" and "OFF" operation of the shift solenoid
valves SL1, SL2, S1, S2, S3, S4 and SR which is controlled by the ECM. If an open or short circuit occurs in
either of the shift solenoid valves, the ECM controls the remaining normal shift solenoid valve to allow the
vehicle to be operated smoothly. (In case of an open or short circuit, the ECM stops sending current to the
circuit.) Fail safe function (see FAIL
-SAFE CHART ).
Fig. 148: DTC Reference Chart

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
MONITOR DESCRIPTION
These DTCs indicate an open or short in the shift solenoid valve S4 circuit. When there is an open or short
circuit in any shift solenoid valve circuit, the ECM detects the problem and illuminates the MIL and stores the
DTC. When the shift solenoid valve S4 is on, if resistance is 8 ohms or less, the ECM determines there is a
short in the shift solenoid valve S4 circuit.
When the shift solenoid valve S4 is off, if resistance is 100 kohms or more, the ECM determines there is an
open in the shift solenoid valve S4 circuit (see FAIL
-SAFE CHART )
MONITOR STRATEGY
MONITOR STRATEGY TABLE
TYPICAL ENABLING CONDITIONS
P0982: Range check (Low resistance)
TYPICAL ENABLING CONDITIONS TABLE - P0982
Related DTCsP0982: Shift solenoid valve S4/Range check (Low
resistance) P0983: Shift solenoid valve S4/Range
check (High resistance)
Required sensors/ComponentsShift solenoid valve S4
Frequency of operationContinuous
Duration0.064 sec. or more
MIL operationImmediate
Sequence of operationNone
The monitor will run whenever this DTC is not
present.See LIST OF DISABLE A MONITOR

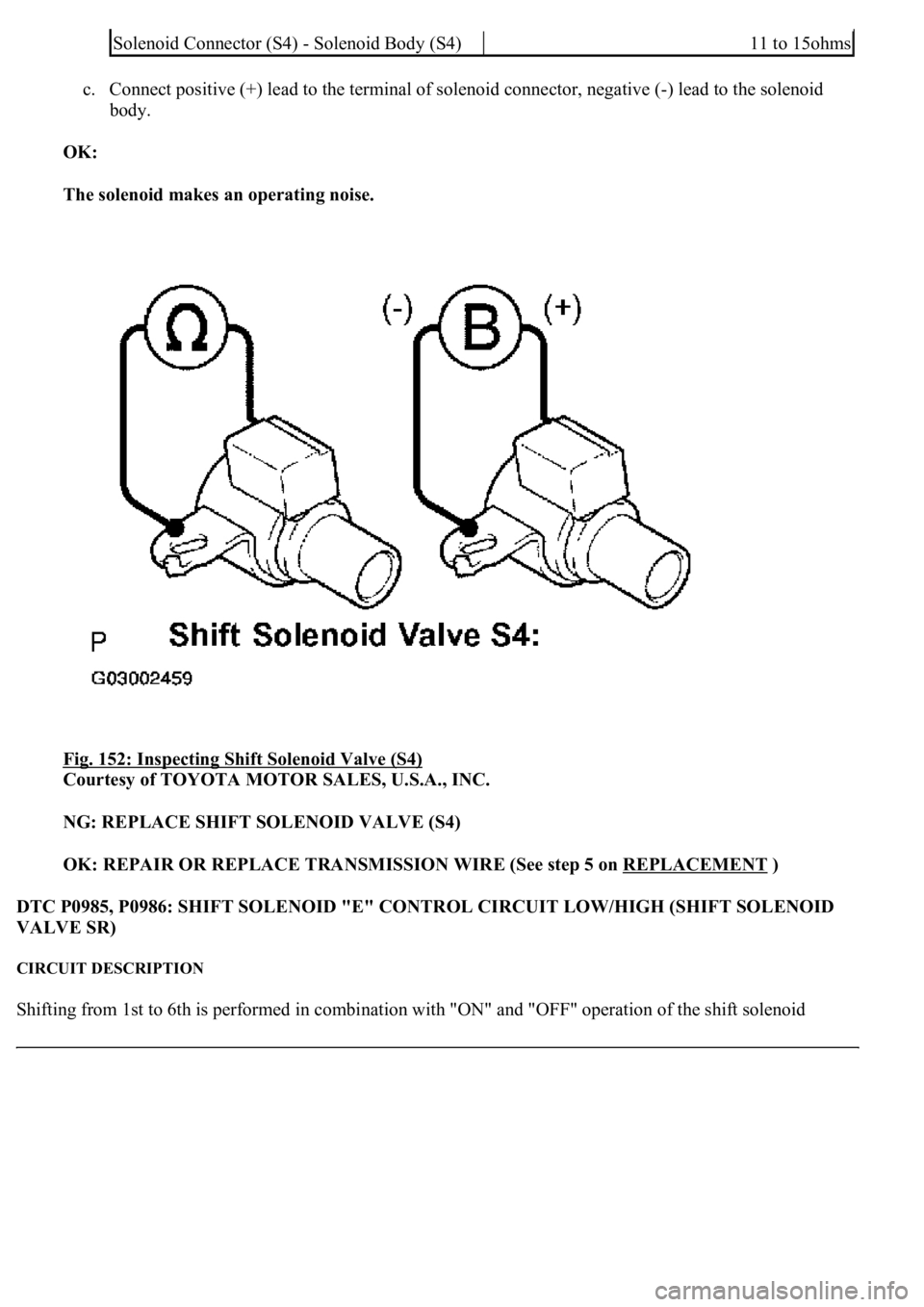

c. Connect positive (+) lead to the terminal of solenoid connector, negative (-) lead to the solenoid
body.
OK:
The solenoid makes an operating noise.
Fig. 152: Inspecting Shift Solenoid Valve (S4)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPLACE SHIFT SOLENOID VALVE (S4)
OK: REPAIR OR REPLACE TRANSMISSION WIRE (See step 5 on REPLACEMENT
)
DTC P0985, P0986: SHIFT SOLENOID "E" CONTROL CIRCUIT LOW/HIGH (SHIFT SOLENOID
VALVE SR)
CIRCUIT DESCRIPTION
Shifting from 1st to 6th is performed in combination with "ON" and "OFF" operation of the shift solenoid
Solenoid Connector (S4) - Solenoid Body (S4)11 to 15ohms

Fig. 143: Removing Rear Floor Finish Plate
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
OVERHAUL
HINT:
The installation procedures are the removal procedures in reverse order. However, only installation
procedures requiring additional information are included.
A bolt without a torque specification is shown in the standard bolt chart (see STANDARD BOLT ).
1.REMOVE REAR COMBINATION LAMP SERVICE COVER LH
a. Using a screwdriver, disengage the 2 clips and remove the cover.
HINT:
Tape the screwdriver tip before use.
2.REMOVE REAR COMBINATION LAMP SERVICE COVER RH
a. Using a screwdriver, disengage the 2 clips and remove the cover.
HINT:

REPLACEMENT
HINT:
The installation procedures are the removal procedures in reverse order.
A bolt without torque specification is a standard bolt (see SPECIFIED TORQUE FOR STANDARD
BOLTS ).
1.REMOVE REAR COMBINATION LAMP SERVICE COVER RH (See OVERHAUL
)
2.REMOVE REAR COMBINATION LAMP SERVICE COVER LH (See OVERHAUL
)
3.REMOVE LUGGAGE COMPARTMENT LAMP ASSY NO. (See step 4 in OVERHAUL
)
4.REMOVE BACK DOOR TRIM COVER (See step 5 in OVERHAUL
)
5.REMOVE LUGGAGE COMPARTMENT DOOR GARNISH SUB-ASSY OUTSIDE
a. Remove the 6 nuts and key cylinder. Then remove the luggage compartment door opener switch.
b.Disengage the 4 clips and remove the garnish from the luggage compartment door.
