CAR MAINTENANCE
The Fiat Palio is new throughout, even in its ser-
vicing schedule.
For instance: the first scheduled servicing coupon
is prescribed at 1,000-1,500 kms or 3 months
whichever is earlier from the date of sale of vehicle.
However, it is useful to remember that the car
needs always ordinary attentions such as systematic
control with possible fluid level refuelling, tyre pres-
sure restoration, etc.
You should nonetheless bear in mind that the
proper maintenance of your car is certainly the best
way to keep it in tip-top conditions for years to
come and safeguard its performance and safety fea-
tures, while respecting the environment and keeping
running costs down.
Remember that the scrupulous compliance with
the servicing rules marked by the symbol ∑
can
constitute the condition necessary for the mainte-
nance of the warranty.
SCHEDULED SERVICING .................................... PAGE 105
SCHEDULED SERVICING
PLAN ............................................................................ PAGE 106
ADDITIONAL INTERVENTIONS ....................... PAGE 108
LEVEL CHECK ........................................................... PAGE 110
AIR CLEANER ............................................................ PAGE 116
BATTERY .................................................................... PAGE 117
ELECTRONIC CONTROL UNITS ..................... PAGE 120
SPARK PLUGS ........................................................... PAGE 121
WHEELS AND TYRES ............................................ PAGE 121
RUBBER PIPES ........................................................... PAGE 123
WINDSCREEN/REAR WINDOW WIPER......... PAGE 123
MANUAL CLIMATE SYSTEM ............................... PAGE 125
BODYWORK ............................................................ PAGE 125
INTERIORS ................................................................. PAGE 127
104
104-127 03/03/2003 06:53 PM Page 104

105

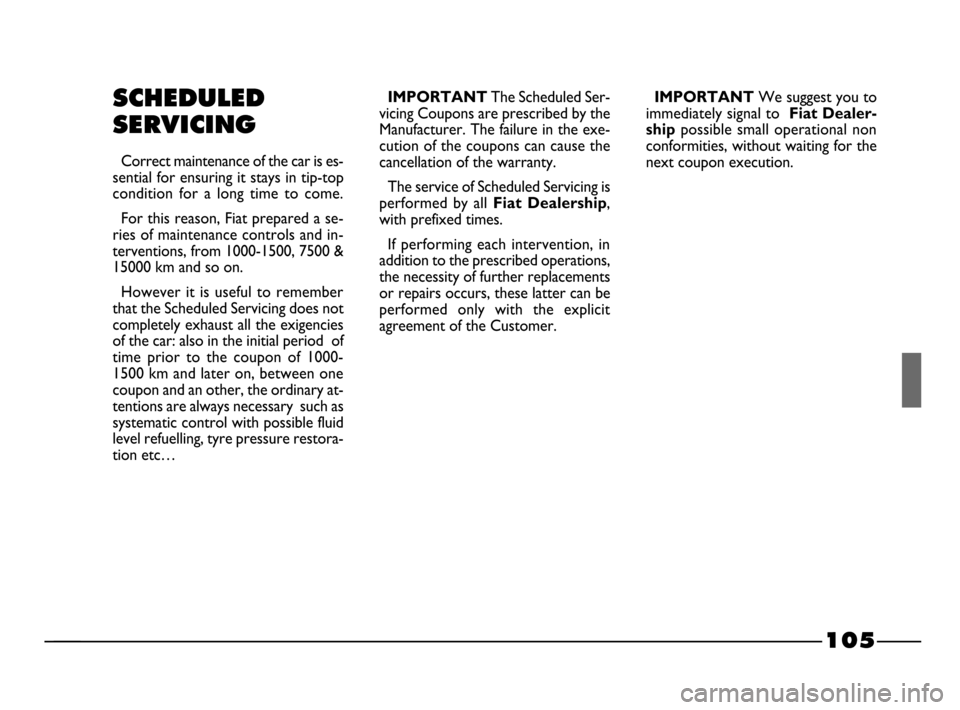

SCHEDULED
SERVICING
Correct maintenance of the car is es-
sential for ensuring it stays in tip-top
condition for a long time to come.
For this reason, Fiat prepared a se-
ries of maintenance controls and in-
terventions, from 1000-1500, 7500 &
15000 km and so on.
However it is useful to remember
that the Scheduled Servicing does not
completely exhaust all the exigencies
of the car: also in the initial period of
time prior to the coupon of 1000-
1500 km and later on, between one
coupon and an other, the ordinary at-
tentions are always necessary such as
systematic control with possible fluid
level refuelling, tyre pressure restora-
tion etc…
IMPORTANTThe Scheduled Ser-
vicing Coupons are prescribed by the
Manufacturer. The failure in the exe-
cution of the coupons can cause the
cancellation of the warranty.
The service of Scheduled Servicing is
performed by all
Fiat Dealership,
with prefixed times.
If performing each intervention, in
addition to the prescribed operations,
the necessity of further replacements
or repairs occurs, these latter can be
performed only with the explicit
agreement of the Customer.
IMPORTANT We suggest you to
immediately signal to
Fiat Dealer-
ship
possible small operational non
conformities, without waiting for the
next coupon execution.
104-127 03/03/2003 06:53 PM Page 105















106

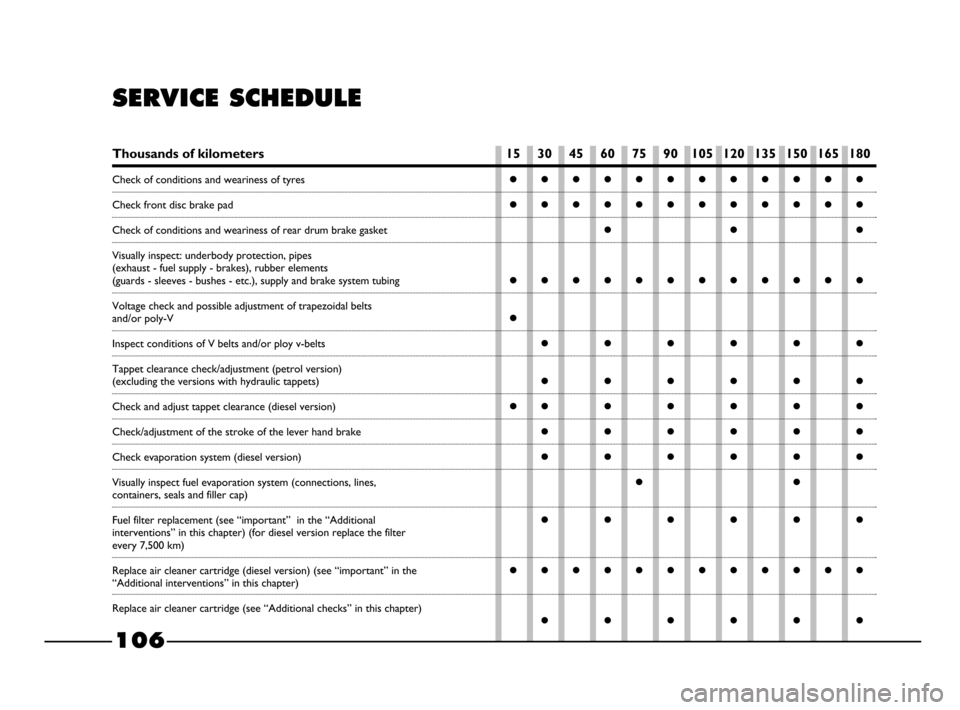

Thousands of kilometers 15 3045 6075 90105 120135 150165 180
SERVICE SCHEDULE
Check of conditions and weariness of tyres
Check front disc brake pad
Check of conditions and weariness of rear drum brake gasket
Visually inspect: underbody protection, pipes
(exhaust - fuel supply - brakes), rubber elements
(guards - sleeves - bushes - etc.), supply and brake system tubing
Voltage check and possible adjustment of trapezoidal belts
and/or poly-V
Inspect conditions of V belts and/or ploy v-belts
Tappet clearance check/adjustment (petrol version)
(excluding the versions with hydraulic tappets)
Check and adjust tappet clearance (diesel version)
Check/adjustment of the stroke of the lever hand brake
Check evaporation system (diesel version)
Visually inspect fuel evaporation system (connections, lines,
containers, seals and filler cap)
Fuel filter replacement (see “important” in the “Additional
interventions” in this chapter) (for diesel version replace the filter
every 7,500 km)
Replace air cleaner cartridge (diesel version) (see “important” in the
“Additional interventions” in this chapter)
Replace air cleaner cartridge (see “Additional checks” in this chapter)
104-127 03/03/2003 06:53 PM Page 106

107
Thousands of Kilometers 15 3045 6075 90105 120135 150165 180









(*) or every 3 years if the car is used in the following harsh conditions:
- Prolonged use in cold/hot climates, sity driving with prolonged lengths of time at idle speed, driving on dusty roads or roads covered with sand/salt.
- or every 5 years regardless of km covered and use conditions.
NOTE: For every 7,500 km service please refer Owner’s Warranty & Service Policy book.
For every 7,500 km or 6 months (whichever is erlier from previous service) replace engine oil and oil filter.
Top up fluids (engine coolant, brakes, power steering, windscreen washer etc.)
Timing command toothed belt check
Timing command toothed belt replacement
Spark plugs replacement, wire control (*)
Engine control system functionality check
(through autodiagnostic socket)
Change gear/differential gear oil level check
Changing engine oil (every 7,500 km or 6 months)
Replace engine oil filter (every 7,500 km or 6 months)
Brake fluid replacement (or every 24 months)
104-127 03/03/2003 06:53 PM Page 107

108
ADDITIONAL
INTERVENTIONS
Every 1000 kmor prior to long
travels, check and possibly restore:
– engine coolant level
– brake - clutch fluid level
– Power steering fluid level
– battery fluid level
– windscreen washer fluid level
– pressure and condition of the tyres.
Every 3000 kmcheck and top up
as necessary: engine oil level.We suggest the use of
FL Group
product expressly recommended,
studied and realized for Fiat cars (see
the “Refuelling” table in the “Techni-
cal Specifications” chapter).
IMPORTANT - Engine oil
Replace the engine oil more fre-
quently than indicated in the Sched-
uled Servicing Plan, in the event that
the car is mainly used in one of the fol-
lowing particularly severe conditions:
– dusty, sandy or muddy roads;
– repeated and short distances (less
than 7-8 km) and with external tem-
perature less than zero;– with engine frequently idling or for
long distances at low speed (e.g. taxi,
door-to-door deliveries or for long
storage).
For any doubt on the engine oil re-
placement, in relation to how the car
is used, contact the
Fiat Dealership.
104-127 03/03/2003 06:53 PM Page 108

109
IMPORTANT - Air cleaner
Using the car on dusty roads, replace
the air cleaner more frequently than
indicated in the Scheduled Servicing
Plan.
For any doubt on the air cleaner re-
placement, in relation to how the car
is used, contact the
Fiat Dealership.
The maintenance of the
car must be committed
to Fiat Dealership. For
those interventions of ordinary
and small maintenance, always
make sure to have the adequate
equipment, Fiat spare parts and
the consumption fluids; in any
event, do not perform such op-
erations, if you do not have any
experience. IMPORTANT - Fuel filter
Check the conditions of the fuel fil-
ter when changes (choking) are no-
ticed in the engine operation.
IMPORTANT - Battery
We suggest you to carry out the
check of the state of battery charge,
preferably at the beginning of the cold
season in order to avoid the possibil-
ity of freezing the electrolyte.
Such check must be carried out
more frequently if the car is mainly
used for short distances, or if it is
equipped with permanent absorption
users with disconnected key, above all
if applied in after market.
Please refer page no. 52 of 24
hours service assistance booklet
for BAT MOBILE service extend-
ed by M/s. Exide Batteries.You should check the battery fluid
(electrolyte) level more frequently
than shown in the service schedulein
this chapter if the car is used in hot cli-
mates or particularly demanding con-
ditions.
24 HOURS SERVICE
CALL - 9628 290 260
This single response num-
ber is available in 9 cities.*
AHMEDABAD - BANGALORE -
KOLKATA - CHENNAI - DELHI -
HYDERABAD - MUMBAI -
PUNE - LUCKNOW
* If you are not in, but near any of the above
cities; Dial city code followed by the single
response numberFor further information about Fiat Service Network please refer 24 Hours Service
AssistanceBooklet provided.
104-127 03/03/2003 06:53 PM Page 109

The jack, with which the
car is equipped, is pre-
scribed only when the
wheel must be replaced. For ex-
igencies different from this latter,
the lifting of the car must re-
spect particular modalities.
Therefore, we recommend you
to perform the operation at Fiat
Dealership.
110fig. 1 - Versions 1.2
P4E02275CHECKING
FLUID LEVELS
1.Engine oil - 2.Battery -3. Brake-
clutch fluid -
4.Windscreen/rear mir-
ror washer fluid -
5. Engine coolant -
6.Power steering fluid.
Pay attention, during
refilling operations, not to
confuse the different
types of fluids: they are all in-
compatible and the car could be
seriously damaged if there is
wrong usage.
Pay attention to scarves,
ties and clothes which are
not tight: they could get
entangled in the moving parts.Never smoke during the
interventions in the en-
gine compartment: flam-
mable gas and vapours could be
present, with the risk of a fire.
104-127 03/03/2003 06:53 PM Page 110

111
fig. 3 - 1.9 D versions
P4E02674
1.Engine oil- 2.Battery -3.Brake-
clutch fluid -
4.Windscreen/rear mir-
ror washer fluid -
5. Engine coolant -
6.Power steering fluid.
fig. 2 - Versions 1.6
P4E02276
1.Engine oil- 2.Battery -3.Brake-
clutch fluid -
4.Windscreen/rear mir-
ror washer fluid -
5. Engine coolant -
6.Power steering fluid
104-127 03/03/2003 06:53 PM Page 111
