2003 FIAT PALIO India Version Owners Manual

136
Max speed index
Q
= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
W= up to 270 km/h.
Y= up to 300 km/h.
Load index (capacity)
60
= 250 kg
61 = 257 kg
62= 265 kg
63= 272 kg
64= 280 kg
65= 290 kg
66= 300 kg
67= 307 kg
68= 315 kg
69= 325 kg
70 = 335 kg
71= 345 kg
72= 355 kg
73= 365 kg
74= 375 kg
75= 387 kg
76= 400 kg
77= 412 kg
78= 425 kg
79= 437 kg
80= 450 kg
81= 462 kg
82= 475 kg
83= 487 kg
84= 500 kg
85= 515 kg
86= 530 kg
87= 545 kg
88= 560 kg
89= 580 kg
90= 600 kg
91= 615 kg
92= 630 kg
93= 650 kg
94= 670 kg
95= 690 kg
96 = 710 kg
97= 730 kg
98= 750 kg
99= 775 kg
100= 800 kg
101= 825 kg
102= 850 kg
103= 875 kg
104= 900 kg
1CORRECT READING
OF THE RIM fig. 6
The indications, necessary to know
the meaning of the identification ini-
tials printed on the rim, are listed be-
low.
CORRECT READING
OF THE TYRE fig. 6
The indications, necessary to know
the meaning of the identification ini-
tials printed on the tyre, are listed be-
low.
175= Nominal (S, distance in mm
between the sides).
65= height/width ratio (H/S) in per-
centage.
R= Radial tyre.
14= Diameter of the rim in inches
(Ø).
82= Load index (capacity).
T= Max speed index. Example
175/65 R 14 82 S
IMPORTANTThe light alloy
wheels are fixed with specific bolt in-
compatible with any printed steel
wheels, excluding the specific spare
wheel.
SNOW TYRES
Use reduced dimension winter tyres,
see “Snow Chains” chapter.
WHEEL GEOMETRY
Convergence of the front wheel mea-
sured between the rims: –1±1(Power
Steering), +1mm (Mechnical Steering).
The values refer to a car after running in.
WHEELS AND
TYRES
Pressed steel or alloy (as provided)
wheel rims; specific fixing bolts (di-
mensionally different and respective-
ly incompatible) for each of the two
types of rim.
IMPORTANTIn the event of dis-
crepancies between the information in
the Owner Handbook and the Log
Book, consider the specifications giv-
en in the Log Book only.
To ensure safety of the vehicle in
movement, it must be fitted with tyres
of specified size and of the same make
and type on all wheels.
Versions Rim Tyre
1.2 EL-ELX-SPORT5.00Bx13 165/80 R13
1.6 16V GTX51/2 Jx14C(*) 175/65 R14
1.9 D EL-ELX5.00Bx13 165/80 R13
(*) Alloy rims
128-143 03/03/2003 07:39 PM Page 136

Delivered power
1.20.8 kW
1.61.3 kW
1.9 D1.4 kW
137
ALTERNATOR
Rectifier bridge and built-in elec-
tronic voltage regulator. Battery be-
gins recharging as soon as the engine
starts.
STARTER MOTOR Modifications or repairs
to the electrical system
carried out incorrectly
and without bearing the features
of the system in mind can cause
malfunctions with the risk of fire.
ELECTRIC SYSTEM
Supply voltage: 12 Volt.
BATTERY
With negative earth.
Discharge capacity Discharge current 20 hour fast cold (–18°C)
1.250 Ah 250A
1.650 Ah 250A
1.9 D60 Ah 320A
Max supplied nominalcurrent
1.290A
1.690A
1.9 D90A
128-143 03/03/2003 07:39 PM Page 137

1015 1085
375 375
800 850
800 800
50 50
138
WEIGHTS
(*) If special equipment is fitted, the unloaded
car weight increases thus reducing the spec-
ified payload , respecting the max allowable
loads.
(**) Loads not to be exceeded. The driver is
responsible for arranging the loads so that
they comply with these limits.
PERFORMANCE
Top speeds allowable after running in, km/h.
1140
375
850
800
50 Kerb weight
(including fuel, spare wheel, tools and accessories):
Payload (*) including driver :
Maximum allowable loads (**)
– front axle:
– rear axle:
Maximum load on the roof:
Weights (kg) 1.2 1.6 1.9
1.2 1.6 1.9
in 1st
gear43 40 32
in 2nd
gear78 73 58
in 3rd
gear125 117 85
in 4th
gear167 161 112
in 5th
gear165 185 155
reverse gear46 42 -
128-143 03/03/2003 07:39 PM Page 138

139
P4E02266
DIMENSIONS
Dimensions in mm.
1.2 1.6/1.9 D
A765 765
B2373 2373
C625 625
D3763 3763
E1440 1440
F1415 1415
G1378 1378
H1620 1620
Boot volume (standard VDA):
– normal conditions: 260 dm
3
– extended with load up to side win-
dows: 650 dm3
– extended to second folding upto
front seat : 950 dm3
fig. 7
I170 170
128-143 03/03/2003 07:39 PM Page 139

1.2
litres kg
47 –
5.5-7.5 –
5.9 6.1
3.05 2.75
1.8 1.5
0.68 0.54
– 0.075
0.40
0.50
2.3 –
1.6
litre kg
47 –
5.5-7.5 –
6.6 6.8
3.88 3.5
1.8 1.5
0.68 0.54
– 0.075
0.40
0.50
2.3 –
140
Prescribed fuels
Recommended products
Super unleaded petrol 87 R.O.N.
Mixture composed by 70% distilled water
and 30% fluid
PARAFLU11
VS MAX PETROL(*)
ZC 80/S
GI/A
MRM 2
TOP 4
TOP 4
Mixture of distilled water and 10% of fluid DPI
CAPACITIES
(*) Do not top up with oil having specifications different from the oil present in the car.
47 –
5.5-7.5 –
4.8 3.9
43.3
2.0 1.73
0.68 0.54
– 0.075
0.40 –
0.50
2.3 –
1.9
litre kg
Fuel tank:
including a reserve of:
Engine cooling system:
– with manual climate control system
ngine sump:
Engine sump and filter:
Transaxle:
Hydraulic power steering:
CV joint cavities and boots :
Front and rear hydraulic brake circuit:
Hydraulic brake circuit with
ABS antilock device:
Windscreen/rear window washer
fluid reservoir:
128-143 03/03/2003 07:39 PM Page 140

141
FLUIDS AND LUBRICANTS
PRODUCTS WHICH MAY BE USED AND THEIR SPECIFICATIONS
Specifications of fluids and lubricants to use
for best car operation
SAE 15W40 grade mineral multigrade oils that exceed the API
SG and CCMC G4 specifications
SAE 15W40 multi grade synthetic based oil exceeding
API CD CC MCPDZ
SAE 80W EP oil exceeding API GL4 and
MIL-L-2105 specifications
“ATF DEXRON II D LEV” oil
Molybdenum disulphide, lithium-soap based grease.
water resistant N.L.G.I. consistency = 2 Transmission lubri-
cants and greases
Recommended lu-
bricants and fluids
VS MAX
PETROL
VS MAX
DIESEL
ZC 80/S
GI/A
MRM 2
CV jointsUse temperatures
from –15°C to 40°C
7,500 kms or 6 months
whichever is earlier
from previous change
Use temperatures
from –15°C to 40°C
7,500 kms or 6 months
whichever is earlier
from previous change
Manual transmissions
and differentials
Hydraulic power steer-
ing
Applications Use
Lubricants for
petrol engines
Lubricants for
Diesel engines
128-143 03/03/2003 07:39 PM Page 141

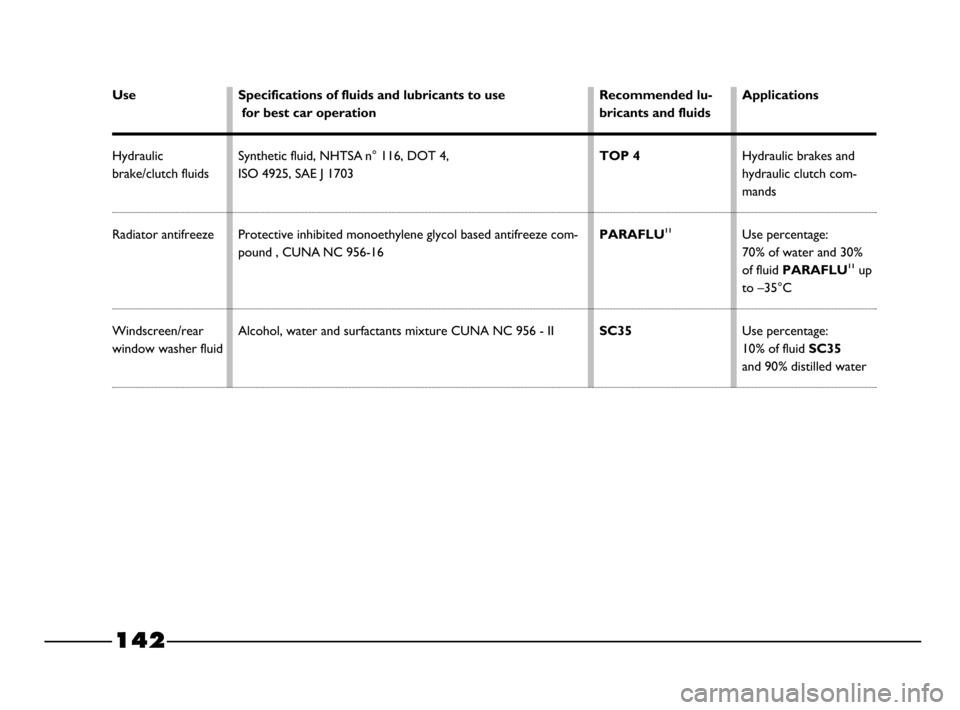

142
Use
Hydraulic
brake/clutch fluids
Radiator antifreeze
Windscreen/rear
window washer fluid
Specifications of fluids and lubricants to use
for best car operation
Synthetic fluid, NHTSA n° 116, DOT 4,
ISO 4925, SAE J 1703
Protective inhibited monoethylene glycol based antifreeze com-
pound , CUNA NC 956-16
Alcohol, water and surfactants mixture CUNA NC 956 - II
Recommended lu-
bricants and fluids
TOP 4
PARAFLU
11
SC35Applications
Hydraulic brakes and
hydraulic clutch com-
mands
Use percentage:
70% of water and 30%
of fluid
PARAFLU11up
to –35°C
Use percentage:
10% of fluid
SC35
and 90% distilled water
128-143 03/03/2003 07:39 PM Page 142

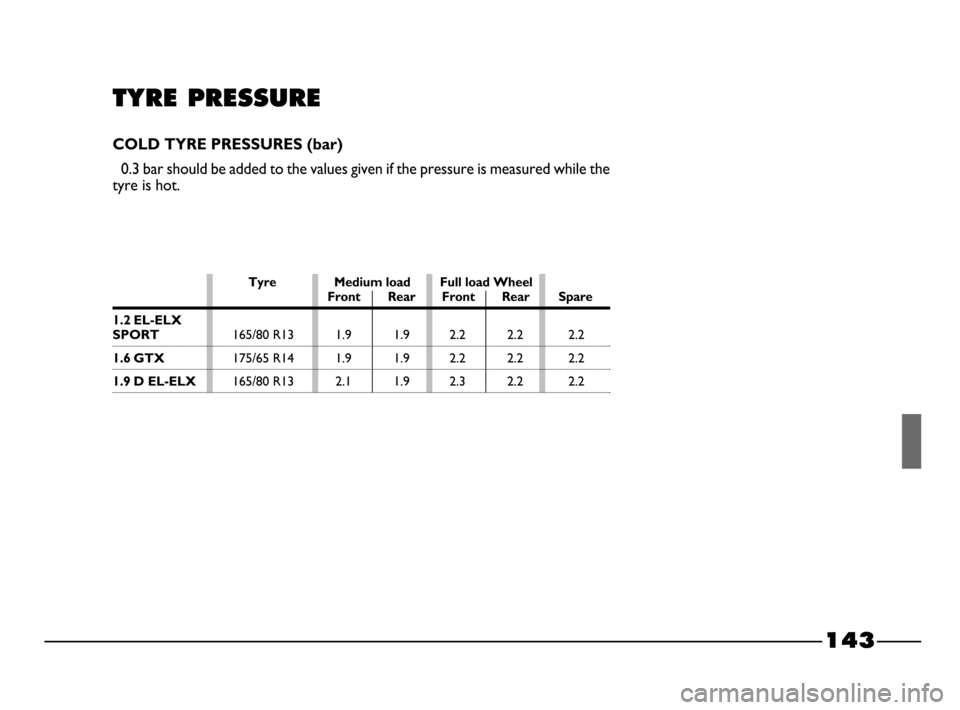

143
TYRE PRESSURE
COLD TYRE PRESSURES (bar)
0.3 bar should be added to the values given if the pressure is measured while the
tyre is hot.
Tyre Medium load Full load WheelFront Rear Front Rear Spare
1.2 EL-ELX SPORT165/80 R13 1.9 1.9 2.2 2.2 2.2
1.6 GTX175/65 R14 1.9 1.9 2.2 2.2 2.2
1.9 D EL-ELX165/80 R13 2.1 1.9 2.3 2.2 2.2
128-143 03/03/2003 07:39 PM Page 143
