2002.5 PEUGEOT 807 Owners Manual

The contextual menu associated with
the "Navigation Guidance" applica
tion appears as a superimposed display,
when this is the application currently in
use in the main screen window.
This menu is limited to the following
functions:
changing of the initial route (entering of a diversion),
switching to "Selection Movement on map" mode*,
storing of the current location (postal address if available or, if it is not, the
GPS coordinates),
changing of the route calculation criteria,
stopping or resuming of guidance (displaying of the message which
changes depending on the previous
status).
General notes on the "Map"
application*
The map guidance can be displayed
in two ways:
full screen map,
reduced size map on the righthand side and zoom image of the
junction on the lefthand side.
To switch from one to the other,
press the dial for more than two sec
onds.
The "Map" application has two oper
ating modes: "Selection Movement on
map"** mode,
"Vehicle following on map"
mode.
A "Zoom" function enables you to
enlarge the map around the selected
point, in accordance with the eleven
preset levels relating to the following
scales:
100 m/cm, 200 m/cm, 500 m/cm,
1 km/cm, 2 km/cm, 5 km/cm,
10 km/cm, 20 km/cm, 50 km/cm,
100 km/cm, 200 km/cm.
This is achieved by turning the dial. This mode permits:
selection of any point on the map
to obtain guidance towards it or to
obtain information about it (postal
address if available or, if it is not,
GPS coordinates),
lateral movement on the map by means of the four directional
arrows, representing the four cardi
nal points (North, East, South,
West),
zooming in on the map in accor dance with the eleven preset
levels,
displaying of the "Map" contextual
menu.
YOUR 807 IN DETAIL
82
"Navigation Guidance"
contextual menu
"Selection Movement on map"
mode**
18-11-2002

The contextual menu associated with
the "Navigation Guidance" applica
tion appears as a superimposed display,
when this is the application currently in
use in the main screen window.
This menu is limited to the following
functions:
changing of the initial route (entering of a diversion),
switching to "Selection Movement on map" mode*,
storing of the current location (postal address if available or, if it is not, the
GPS coordinates),
changing of the route calculation criteria,
stopping or resuming of guidance (displaying of the message which
changes depending on the previous
status).
General notes on the "Map"
application*
The map guidance can be displayed
in two ways:
full screen map,
reduced size map on the righthand side and zoom image of the
junction on the lefthand side.
To switch from one to the other,
press the dial for more than two sec
onds.
The "Map" application has two oper
ating modes: "Selection Movement on
map"** mode,
"Vehicle following on map"
mode.
A "Zoom" function enables you to
enlarge the map around the selected
point, in accordance with the eleven
preset levels relating to the following
scales:
100 m/cm, 200 m/cm, 500 m/cm,
1 km/cm, 2 km/cm, 5 km/cm,
10 km/cm, 20 km/cm, 50 km/cm,
100 km/cm, 200 km/cm.
This is achieved by turning the dial. This mode permits:
selection of any point on the map
to obtain guidance towards it or to
obtain information about it (postal
address if available or, if it is not,
GPS coordinates),
lateral movement on the map by means of the four directional
arrows, representing the four cardi
nal points (North, East, South,
West),
zooming in on the map in accor dance with the eleven preset
levels,
displaying of the "Map" contextual
menu.
YOUR 807 IN DETAIL
82
"Navigation Guidance"
contextual menu
"Selection Movement on map"
mode**
18-11-2002

YOUR 807 IN DETAIL83
This mode permits:
displaying of the vehicle on the map with the route proposed by
the navigation if the guidance is
active,
zooming in on the map in accor dance with the eleven preset
levels,
displaying of the "Navigation
Guidance" contextual menu.
"Vehicle following on map" mode
From the
general menu , the main
"Map" menu offers various options
for guidance management:
switching to "Selection Movement on map" mode**,
direction of the map towards the North or in the direction of the
vehicle,
recentering of the map around the vehicle when it has disappeared **,
opening of the services selection window visible on the map,
displaying of the window for enter ing the description for recording
the current position of the vehicle
in a directory file.
Map*The contextual menu associated
with the
"Map"application and with
the "Selection Movement on
map" mode appears as a superim
posed display, when these are in use
in the main screen window.
This menu is limited to the following
functions:
displaying of the information on the location selected on the map,
selection of a location on the map as a destination,
storing of the location selected (postal address if available or, if it
is not, GPS coordinates, so that
they can be recorded in a directory
file),
switching to "Vehicle following on map" mode.
* DT colour screen only.
** During the year.
"Map" contextual menu**
18-11-2002

YOUR 807 IN DETAIL
84
18-11-2002

YOUR 807 IN DETAIL85

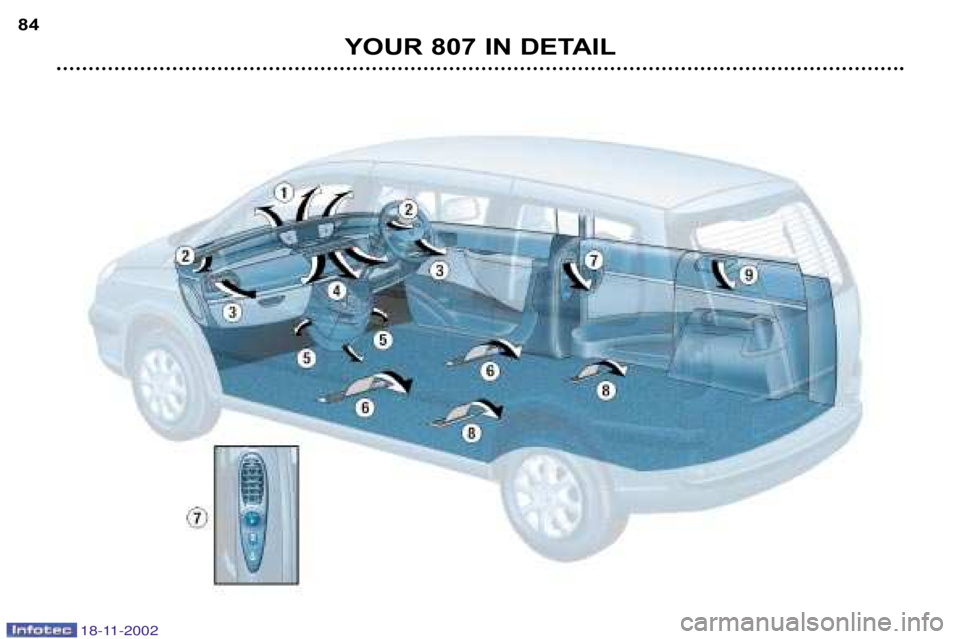

VENTILATION
1 Windscreen deicing or demisting vents
2 Front window deicing or demisting vents
3 Side vents
4 Centre vents
5 Air outlets to the front passengers' feet
6 Air outlets to the 2 nd
row rear passengers' feet
7 Side vents for the 2 nd
row rear passengers
8 Air outlets to the 3 rd
row rear passengers' feet
9 Side vents for the 3 rd
row rear passengers
Note : The 2nd
row side vents are fitted with knobs for adjustment of the ai r flow to the rear seats. Additional blowers provide
improved diffusion of the air to the 2 nd
and 3 rd
row passengers.
Recommendations for use
For an even air distribution, make sure that you do not block t he air inlet grille at the base of the windscreen, the air outlets
on the floor and the air extractor at the tailgate pillars.
18-11-2002

The driver and front passenger can
each adjust the air temperature to
suit their requirements.
They can also activate or disarm the
rear ventilation adjustment controls.
Do not cover the passenger com
partment temperature sensor,
located on the right upright of the
centre console. It helps to regu
late the air conditioning.1 Air conditioning on/off  Pressing this button
activates the automatic
operation of the air con
ditioning.
The symbol and the indicator light 1
are displayed.  Pressing this button again switches
the air conditioning off.
The symbol and the indicator light 1
go out.
2 Passenger's sideadjustment
3 Driver's side adjustment
The required value is displayed
(from 14 to 28; comfort value = 21;
maximum driver/passenger differ
ence = 5).  Press the corresponding "+" and
"–" buttons to change it.
YOUR 807 IN DETAIL
86
AUTOMATIC AIR CONDITIONING WITH SEPARATE ADJUSTMENTS
Located on the centre console, the control panel is to the
right of the gear lever.
18-11-2002

To make the setting on the passenger
side the same as that on the driver's
side :
– air conditioning with "MONO" but ton, press button A.
– air conditioning with "REAR" button, press button 2 or 3for more
than two seconds.
4 Adjustment of the airdistribution
 Pressing the correspond
ing button(s) 4directs the
flow of air to:
– the windscreen,
– the side vents and the central vents,
– the side vents, the central vents and the feet,
– the windscreen and the feet,
– the feet.
The indicator light corresponding to
the required direction 4comes on.
5 Adjustment of the rear ventilation
To enable the rear passengers to
YOUR 807 IN DETAIL 87
8 Demisting the rear
screen
 Press button 8, with the engine
running, to demist the rear screen
and the mirrors.
The demisting indicator light 8
comes on.
It switches off automatically after
approximately twelve minutes.  Pressing the button again switch
es it on again. If the engine is
switched off before the twelve
minutes have elapsed, demisting
will resume when the engine is
switched on again.
Note: it is possible to switch off the
demisting before it is switched off
automatically by pressing this button
again.
9 Comfort programme
This is the normal air condi
tioning system operating
mode.
 Press the "AUTO"button.
The system adjusts automatically to
the required value by switching on
the air conditioning.
It also controls the air distribution,
flow and intake so that there is suffi
cient air circulation in the passenger
compartment.
The "AUTO" symbol is displayed.
adjust the rear ventilation, press button
B
.
The rear ventilation symbol 5is
displayed.
The air flow adjustment controls 5for
the 2 nd
row side vents are operational.
To disarm the rear ventilation
controls, press button Bagain.
The rear ventilation symbol Bgoes
out.
6 Adjustment of the air flow
 Turn the adjument con
trol 6respectively to the
right or to the left to
increase or reduce the
flow of air.
The air flow symbol 6is filled in
according to the required value.
7 Air recirculation
Press this button to
recirculate the interior air.
The air recirculation symbol and
indicator light 7are displayed.
The recirculation isolates the passenger com
partment from outside smells and smoke.
Avoid prolonged operation in interior air
reciculation mode (risk of condensation
and deterioration of the air quality).  Pressing this button again returns the
system to automatic control of the air
intake.
18-11-2002

Important precaution
Operate the air conditioning system
for 5 to 10 minutes, once or twice a
month, to keep it in perfect working
order.
If the system does not produce cold
air, do not use it and contact your
PEUGEOT dealer.
Note: the condensation created by
the air conditioning system causes a
flow of water under the vehicle when
stationary, which is perfectly normal.
10 Visibility programme
The comfort programme
may prove inadequate to
demist or deice the windows
quickly (humidity, many passengers,
ice).  In this situation, select the visibility
programme.
The visibility programme indicator
light 10comes on.
It manages the air conditioning, air
flow, the rear screen demisting and
distributes the ventilation to the
windscreen and side windows as
effectively as possible.
It switches off the air recirculation.
Note: for your comfort, between two
starting operations the settings are
retained if the temperature of the
passenger compartment has not var
ied a great deal. If it has, operation
will resume in automatic mode.
11 Switching the system off  Turn the air flow adjustment control
6 to the left until the display is
switched off.
This action switches off all of the
system's functions, with the excep
tion of the rear screen demisting.  Turning the control 6again, or
pressing button 10 or the "AUTO"
button again, switches the system
on again with the same settings
as before. Flashing of the points in
the temperature setting
values indicates that
there is a malfunction of
the air conditioning.
Contact your PEUGEOT dealer.
YOUR 807 IN DETAIL
88
18-11-2002
