2002.5 PEUGEOT 807 Owners Manual

YOUR 807 IN DETAIL89
THE SEATS
Front seats with manual adjustment
1 Forwards/backwards adjustment
Lift the bar and slide the seat forwards or backwards.
2 Seat back angle adjustment Pull the lever upwards.
3 Driver's seat height adjustment Manoeuvre the handle upwards or downwards until the
desired position is reached.
4 Driver's seat lumbar adjustment Move the lever up or down to obtain the required posi
tion.
5 Head restraint height and angle adjustment To raise or lower the restraint, push it forwards, at the
same time sliding it.
The adjustment is correct when the upper edge
of the head restraint is level with the top of the
head.
To remove it, set it in the high position, lift the tab using
a coin and pull upwards and forwards at the same time.
To reinstall, engage the head restraint rods in the
holes, making sure they are aligned with the seat back.
Never drive with the head restraints removed; they
must be in place and correctly adjusted.
6 Rotating of seats Place the seat back in the upright position and move
the steering wheel forward. Place the seat in the middle position on the runner and at maximum height.
On the driver's side, apply the handbrake, then release,
pulling on the end.
Pull the control upwards and rotate the seat inwards.
This rotating operation must be carried out with the
engine switched off.
The passenger must not be facing the rear when the
vehicle is being driven.
18-11-2002

YOUR 807 IN DETAIL91
Memorising using the buttons M,
1 and 2
T
o memorise using the buttons located
on the side of the seat: Place the ignition key in the 'running'
position (2 nd
notch),
 Adjust your seat and mirrors,
 Press button M,then button 1
(first driving position) or button 2
(second driving position) within
four seconds.
An audible signal confirms that a
position has been memorised.
Memorising a new position cancels
the previous one.
Recalling a memorised position
Engine off Briefly press button 1 or 2to recall
the corresponding memorised
position.
Note: after recalling a memorised
position five times in succession, the
function will be cancelled until the
engine is started.
Engine running Keep button 1 or 2pressed down
until the end of setting of the cor
responding memorised position.
Memorising seat and mirror
positions
Four driving positions can be memo
rised:
– two, using
two remote control
keys (two users),
– two, using buttons M/1 and M/2.
Driving positions memorised by
the remote control key
When locking the doors, the remote
control key memorises the position
of the driver's seat and the exterior
mirrors.
When unlocking the doors, the dri
ver's seat and the exterior mirrors
resume the position memorised by
the remote control key if this has
changed in the meantime.
Each remote control key can
memorise a specific setting. Front heated seat controls
The front seats can be heated sepa
rately.
Use the adjustment controls located
on the side of each seat to select the
level of heating required :
0:
Off.
1: Low.
2: Medium.
3: High.
The seat temperature is controlled
automatically.
Note: the heated seats only operate
with the engine running.
18-11-2002

YOUR 807 IN DETAIL
90

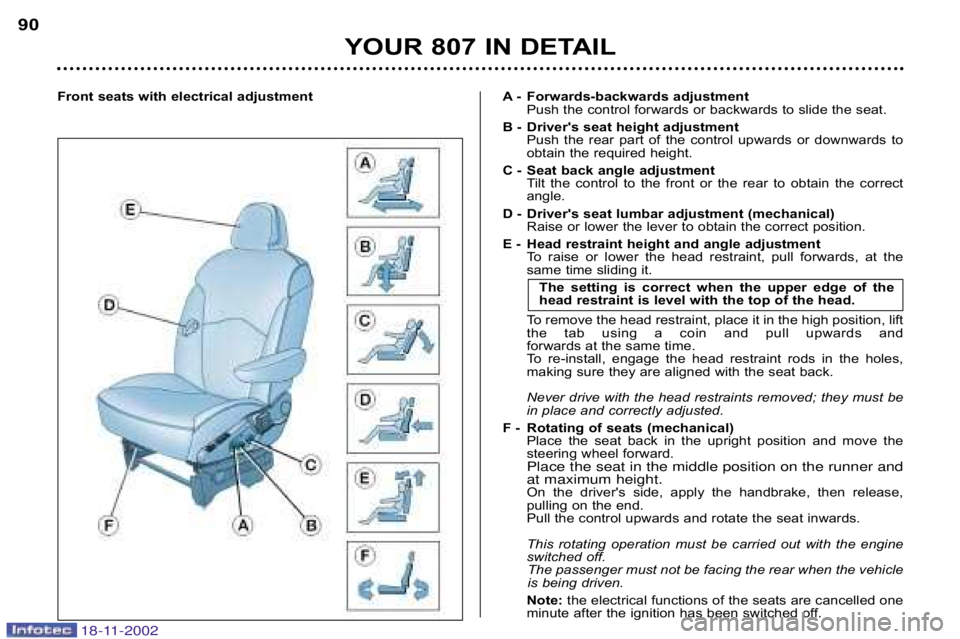

Front seats with electrical adjustment A Forwardsbackward
s adjustment
Push the control forwards or backwards to slide the seat.
B Driver's seat height adjustment Push the rear part of the control upwards or downwards to
obtain the required height.
C Seat back angle adjustment Tilt the control to the front or the rear to obtain the co rrect
angle.
D Driver's seat lumbar adjustment (mechanical) Raise or lower the lever to obtain the correct position.
E Head restraint height and angle adjustment To raise or lower the head restraint, pull forwards, at the
same time sliding it.
The setting is correct when the upper edge of the
head restraint is level with the top of the head.
To remove the head restraint, place it in the high position , lift
the tab using a coin and pull upwards and
forwards at the same time.
To reinstall, engage the head restraint rods in the holes,
making sure they are aligned with the seat back.
Never drive with the head restraints removed; they must be
in place and correctly adjusted.
F Rotating of seats (mechanical) Place the seat back in the upright position and move the
steering wheel forward.
Place the seat in the middle position on the runner andat maximum height.
On the driver's side, apply the handbrake, then release,
pulling on the end.
Pull the control upwards and rotate the seat inwards.
This rotating operation must be carried out with the engine
switched off.The passenger must not be facing the rear when the vehicle
is being driven.
Note: the electrical functions of the seats are cancelled one
minute after the ignition has been switched off.
18-11-2002

YOUR 807 IN DETAIL91
Memorising using the buttons M,
1 and 2
T
o memorise using the buttons located
on the side of the seat: Place the ignition key in the 'running'
position (2 nd
notch),
 Adjust your seat and mirrors,
 Press button M,then button 1
(first driving position) or button 2
(second driving position) within
four seconds.
An audible signal confirms that a
position has been memorised.
Memorising a new position cancels
the previous one.
Recalling a memorised position
Engine off Briefly press button 1 or 2to recall
the corresponding memorised
position.
Note: after recalling a memorised
position five times in succession, the
function will be cancelled until the
engine is started.
Engine running Keep button 1 or 2pressed down
until the end of setting of the cor
responding memorised position.
Memorising seat and mirror
positions
Four driving positions can be memo
rised:
– two, using
two remote control
keys (two users),
– two, using buttons M/1 and M/2.
Driving positions memorised by
the remote control key
When locking the doors, the remote
control key memorises the position
of the driver's seat and the exterior
mirrors.
When unlocking the doors, the dri
ver's seat and the exterior mirrors
resume the position memorised by
the remote control key if this has
changed in the meantime.
Each remote control key can
memorise a specific setting. Front heated seat controls
The front seats can be heated sepa
rately.
Use the adjustment controls located
on the side of each seat to select the
level of heating required :
0:
Off.
1: Low.
2: Medium.
3: High.
The seat temperature is controlled
automatically.
Note: the heated seats only operate
with the engine running.
18-11-2002

YOUR 807 IN DETAIL
92
4 12V socket
You have a 12V accessory socket at
the foot of the driver's seat, which is
accessible to passengers in the
2
nd
row.
5 Front and rear armrests
To place the armrest in its rest
position:
– Lift the armrest until it is is aligned with the seat back.
To place the armrest in the position
in which it is used:
– Push it towards the rear.
– Fold it down completely.
– Raise it slowly to the required position.
– If you lift it past the required position, restart the above operations.
To remove it occasionally:
– Lift the armrest, going past the idle position.
– press its securing pin firmly and tilt it fully.
– Pull towards you to remove it from its fixing.
To put it back in place:
– place it in its removal position.
– Push as far as the fixing allows.
FRONT SEAT LAYOUT
1 Storage drawers
There is a storage drawer under
each front seat.
– To open it, lift and pull.
– To take it out, open it to its full
extent, press the ends of the slides
and lift it, then remove it complete
ly.
Note: under the seat on the passen
ger side, if the vehicle has an ampli
fier, it will not be possible to use the
storage drawer. 2 Retaining elastic straps
There is an elastic retaining strap on
each front seat, on the centre side.
– In the side position (elastic strap
on your own seat), this can be
used as a magazine holder.
– In the transverse position (elastic straps hooked between the two
seats), it can hold a bag.
3 'Aviation' type table
You have an 'aviation' type table fitted
with a can holder, fitted to each front
seat.
Do not forget to fold this before
pivoting the seat.
Note: each front seat also has a
pocket for money on the seat back
18-11-2002

YOUR 807 IN DETAIL93
THE REAR SEATS
Forwards/backwards
adjustment
Lift bar Aand slide the seat towards
the front or the rear.
From the third row you can pull on
strap B and slide the seat towards
the front.
This makes it easier for passengers
to exit the 3rd row of seats, when
folding down the second row seat.
Adjusting the angle of the seat
back
Push lever Cupwards and adjust the
angle as required.
Release the lever to lock.
Folding a side seat
Access to the third row:
Place the head restraint in the low
position.
Push control Cupwards as far as
possible.
Tilt the seat back towards the front
until the rear anchorages are
unlocked.
Fold the seat back onto the seat
cushion.
Place the seat in the closed position.
Exiting the third row:
Place the head restraint in the low
position.
Push control Dupwards as far as
possible.
Tilt the seat back towards the front
until the rear anchorages are
unlocked.
Fold the seat back onto the seat cushion.
Place the seat in the closed position. Table position of a side seat
Fold the corresponding seat.
Tilt the fold seat rearwards, until the
rear anchorages lock.
You now have a shelf with two cup
holders.
Folding a side seat from the table
position
Lift the seat back.
Fold as described opposite.
18-11-2002

Removing a seat
Fold the corresponding seat.
Grasp the two bars Gunder the seat
and tighten them securely.
The front anchorages unlock.
Lift the seat and carry it using the
carrying handle H.
Refitting a seat
Check that there is no obstacle
obstructing the slides or preventing
correct locking of the seat.
Locate the front anchorages in the
slides (if necessary tighten the two
bars Gsecurely).
Tilt the folded seat towards the rear.
The rear anchorages lock.
Lift the seat back (for the centre seat,
move control E) Turning a seat round
The rear seats can be placed in the
'rearwards facing' position.
For this, after the seat has been fold
ed, carry out the removal and replac
ing operations for the seat and turn it
round.
YOUR 807 IN DETAIL
94
Table position of the centre seat
Place the head restraint in the low
position.
Push control Eupwards.
Tilt the seat back forwards.
You now have a table with two cup
holders.
Folding the centre seat
Place the seat in the table position.
Lift control F
Place the seat in the closed position. This turning operation
must be carried out with
the engine switched off.
It is prohibited to sit facing
the rear when the vehicle
is being driven.
Never use the adjusting straps to
remove, refit or transport a seat.
When the vehicle is being driven,
it is prohibited to place a side seat
in the closed position, when a
passenger is sitting in the 3rd row.
18-11-2002

THE REAR SEAT
Forwards/backwards
adjustment
Lift bar Aand slide the seat towards
the front or the rear.
Note: to make it easier to load the
vehicle through the tailgate, you can
pull on strap B and slide the seat for
wards. Rear parcel shelf position
Place the head restraints in the low
position.
Push control
Cupwards, from the
tailgate.
Tilt the seat back on the seat
cushion.
Folding the seat
Place the head restraints in the low
position.
Push control Cupwards, from the
tailgate.
Fold the seat back onto the seat
cushion.
Pull on strap Dto unlock the rear
anchorages.
Place the seat in the closed position.
When driving, attach the retaining
straps to the handles. Removing the seat
Fold down the seat.
Grasp the two bars
Eunderneath the
seat.
The front anchorages unlock.
Note: for removal and refitting, pass
the rear seat, in the "folded" position,
through the sliding side doors.
Refitting the seat
Check that there is nothing block
ing the runners which could pre
vet corrrect locking of the seat
anchorages.
Position the front anchorages at the
front stop of the runners.
Tilt the folded seat rearwards.
The rear anchorages then lock.
Unlock the seat back using control C
and pull it up using the strap.
YOUR 807 IN DETAIL 95
Never use the adjustment
straps to remove, refit or
transport the seat.
18-11-2002
