2002.5 PEUGEOT 807 Owners Manual

PRACTICAL INFORMATION
148
Battery compartment fuses
Fuse box
To access the fuse box in the battery
compartment (floor in front of the dri
ver's seat):
 unclip the cover.
Carefully close the cover when
you have finished.
Fuse N° Rating Functions
1* 40 A Right electric sliding side door.
2* 40 A Left electric sliding side door.
3* 30 A HIFI amplifier.
4* 30 A Not used or Additional heating (Diesel).
* The maxifuses provide
additional protection for
the electrical systems. All
work must be carried out
by a PEUGEOT dealer.
18-11-2002

PRACTICAL INFORMATION149
Fuse N° Rating
Functions
29 — Not used.
30 — Not used.
31 — Not used.
32 25 A Driver's electric seat.
33 25 A Passenger electric seat.
34 20 A 3rd
row sunroof.
35 20 A 2nd
row sunroof.
36 10 A Passenger heated seat.
37 10 A Driver's heated seat.
38 15 A Electric child lock.
39 20 A 3rd
row 12V accessories socket.
40 20 A 2nd
row 12V accessories socket.
18-11-2002

PRACTICAL INFORMATION
150
Engine compartment fuses
Fuse box
To access the fuse box in the engine
compartment (to the left of the
coolant reservoir):
 unclip the cover.
Carefully close the cover when
you have finished. The electrical system of
your vehicle is designed
to operate with standard
or optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dea
ler.
PEUGEOT will not accept respon
sibility for the cost incurred in
repairing your vehicle or for recti
fying the malfunctions resulting
from the installation of accesso
ries not supplied and not recom
mended by PEUGEOT and not
installed in accordance with its
instructions, in particular where
the equipment in question
consumes more than 10 milliam
peres.
* The maxifuses provide additio
nal protection for the electrical
systems. All work must be carried
out by a PEUGEOT dealer.
Fuse N° Rating Functions
1* 50 A Fan unit (high speed).
2* 50 A ABS control unit or ESP control unit.
3* 30 A Not used or ESP solenoid valve or Additional
heating (Diesel).
4* 60 A Builtin Systems Interface supply 1.
5* 70 A Builtin Systems Interface supply 2.
6* 30 A Fan unit (low speed).
7* 40 A Electronic immobiliser.
8* 50 A Air conditioning blowers.
18-11-2002

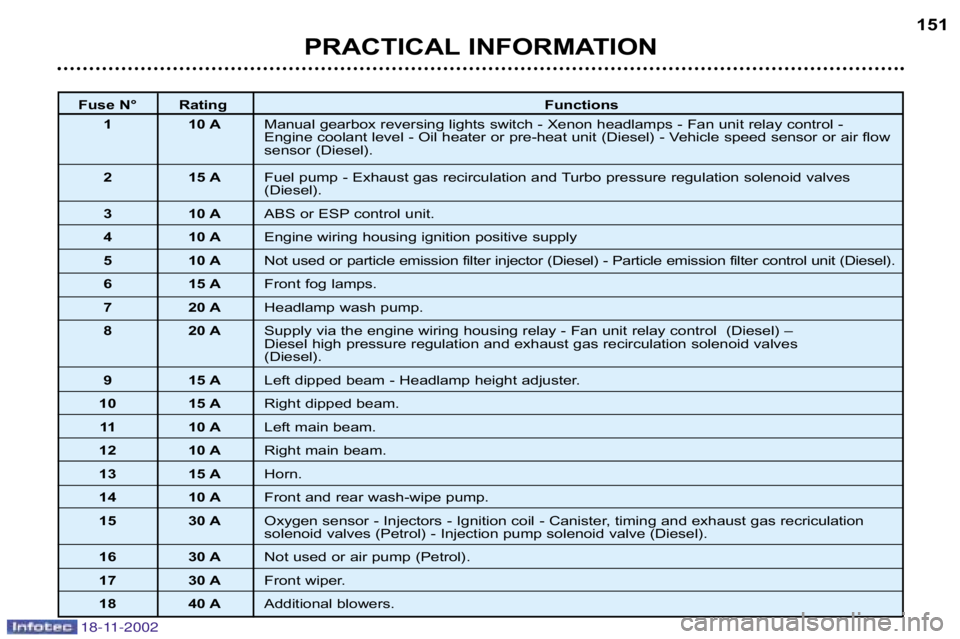

PRACTICAL INFORMATION151
Fuse N° Rating
Functions
1 10 A Manual gearbox reversing lights switch Xenon headlamps Fan uni t relay control
Engine coolant level Oil heater or preheat unit (Diesel) V ehicle speed sensor or air flow
sensor (Diesel).
2 15 A Fuel pump Exhaust gas recirculation and Turbo pressure regulation solenoid valves
(Diesel).
3 10 A ABS or ESP control unit.
4 10 A Engine wiring housing ignition positive supply
5 10 A Not used or particle emission filter injector (Diesel) Particle emi ssion filter control unit (Diesel).
6 15 A Front fog lamps.
7 20 A Headlamp wash pump.
8 20 A Supply via the engine wiring housing relay Fan unit relay co ntrol (Diesel) –
Diesel high pressure regulation and exhaust gas recirculation sol enoid valves
(Diesel).
9 15 A Left dipped beam Headlamp height adjuster.
10 15 A Right dipped beam.
11 10 A Left main beam.
12 10 A Right main beam.
13 15 A Horn.
14 10 A Front and rear washwipe pump.
15 30 A Oxygen sensor Injectors Ignition coil Canister, timing and exhaust gas recriculation
solenoid valves (Petrol) Injection pump solenoid valve (Diesel).
16 30 A Not used or air pump (Petrol).
17 30 A Front wiper.
18 40 A Additional blowers.
18-11-2002

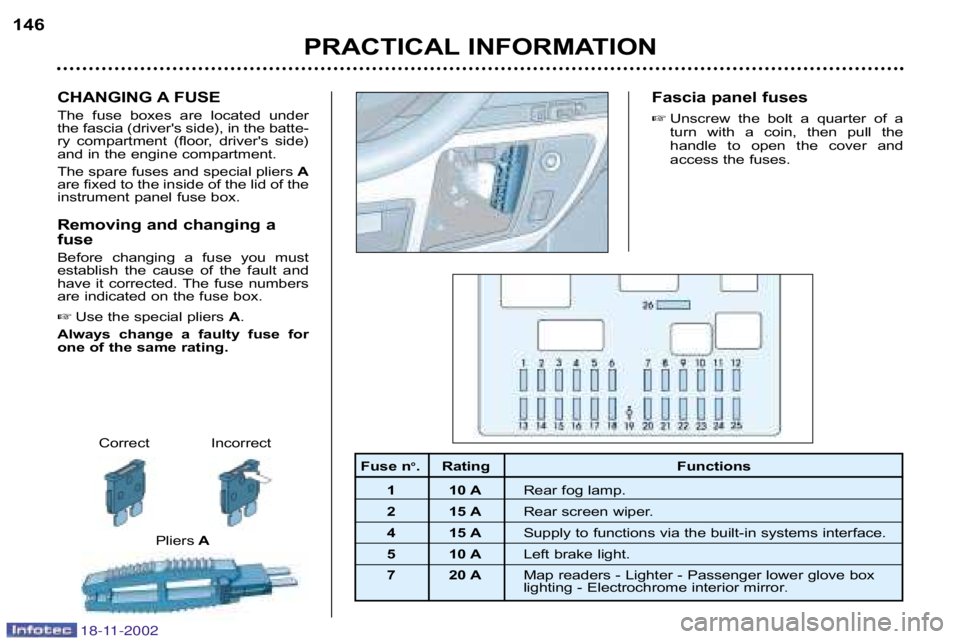

PRACTICAL INFORMATION
146
Fuse n
o
. Rating Functions
1 10 A Rear fog lamp.
2 15 A Rear screen wiper.
4 15 A Supply to functions via the builtin systems interface.
5 10 A Left brake light.
7 20 A Map readers Lighter Passenger lower glove box
lighting Electrochrome interior mirror .
Fascia panel fuses
 Unscrew the bolt a quarter of a
turn with a coin, then pull the
handle to open the cover and
access the fuses.CHANGING A FUSE
The fuse boxes are located under
the fascia (driver's side), in the batte
ry compartment (floor, driver's side)
and in the engine compartment.
The spare fuses and special pliers A
are fixed to the inside of the lid of the
instrument panel fuse box.
Removing and changing a
fuse
Before changing a fuse you must
establish the cause of the fault and
have it corrected. The fuse numbers
are indicated on the fuse box.
 Use the special pliers A.
Always change a faulty fuse for
one of the same rating.
Correct Incorrect
Pliers A
18-11-2002

PRACTICAL INFORMATION147
Fuse n
o
. Rating Functions
9 30 A Front electric windows Front sunroof.
10 20 A Diagnostic socket Trailer socket.
11 15 A Alarm Telematics Audio equipment Multifunction displays Steeri ng wheel controls
Particle emission filter.
12 10 A Right side lights Number plate lighting
Air conditioning panel light Courtesy lights.
14 30 A Central locking Deadlocking.
15 30 A Rear windows.
16 5 A Air bags control unit supply via the builtin systems interface
17 15 A Right brake light, 3rd
brake light Trailer brake lights.
18 10 A Diagnostic socket supply – Brake and clutch pedal switches.
19 40 A PARC shunt.
20 10 A Audio equipment supply via the builtin systems interface.
22 10 A Left side lights Trailer side lights.
23 15 A Alarm siren Automatic gearbox control unit.
24 15 A Rear parking assistance supply via the builtin systems interface.
26 40 A Heated rear screen.
18-11-2002

PRACTICAL INFORMATION
152
CHANGING A WINDSCREEN
WIPER BLADE
Placing the wiper blades in the
maintenance position Less than a minute after switching
off the ignition, operate the wipers
stalk to position the wiper blades
along the windscreen uprights
(maintenance position).
Changing a front wiper blade  Lift the wiper arm, then disconnect
the windscreenwash pipe.
 Unclip the blade and remove it.
 Fit the new blade.
 Reconnect the windscreenwash
pipe and push back the wiper arm.
To return the windscreen wipers
to their normal position, switch on
the ignition and operate the
wipers stalk.
Changing the rear wiper blade  Lift the wiper arm, then unclip the
blade and remove it.
 Fit the new blade and push back
the wiper arm. ECONOMY MODE FUNCTION
After the engine has stopped, certain
functions (windscreen wiper, electric
windows, sunroof, courtesy lights,
audio equipment etc.) can only be
used for thirty minutes, to prevent
discharging the battery.
After thirty minutes, the message
"Economy mode active"
appears
on the multifunction display and the
active functions are put on standby.
To resume use of these functions,
start the engine and let it run for a
few seconds.
Aflat battery will pre
vent the engine from
starting.
18-11-2002

BATTERY
To charge the battery using a battery charger:– Disconnect the battery,
– Follow the instructions for use given by the battery charger man ufacturer,
– Reconnect starting with the negative (–) terminal,
– Check that the terminals and connectors are clean. If they are covered with
sulphate (white or greenish deposit), disconnect them and clean them.
To start the vehicle from another battery: – Connect the red cable to the positive (+) terminals of the tw o batteries,
– Connect one end of the green or black cable to the negat ive (–) terminal of the
slave battery,
– Connect the other end of the green or black cable to an e arth point on the bro
ken down vehicle as far as possible from the battery,
Operate the starter, let the engine run.
Wait for the engine to return to idle, then disconnect th e cables.
It is advisable to disconnect the battery if the vehicle is not to be used for
a period of more than one month.
PRACTICAL INFORMATION 153
Before disconnecting
the battery, you must
wait for 2 minutes after
switching off the igni
tion.
Never disconnect a terminal when the engine is running.
Never charge a battery without first disconnecting the terminals.
Close the windows and sun roofs before disconnecting the
battery. If they do not operate
normally following reconnection
of the battery, they must be rein
tialised (see sections "Electric
windows Safety autoreverse"
and "Sunroofs Safety auto
reverse".
After every reconnection of the battery, switch on the ignition
and wait 1 minute before start
ing to allow the electronic sys
tems to be initialised. If slight
difficulties are experienced after
this, please contact a
PEUGEOT dealer.
