2002.5 PEUGEOT 807 Owners Manual

YOUR 807 IN DETAIL
48
RDS
Using the RDS (Radio Data System) function on FM
Radio Data System allows you to continue listening to the sa me station, whatever frequency it is using for the region you a re
going through.
Briefly press the "RDS"button to switch the function on or off.
The multi–function display wil show: "RDS" if the function is selected.
"(RDS)" if the function is selected but not available.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best
reception and which is transmitting the same programme.
Traffic information programme
Press the "TA"button to switch the function on or off.
The multi–function display will show:
"TA" if the function is selected,
"(TA)" if the function is selected but not available.
Any traffic information flash will be given priority, whatever source you are listening to (radio, cassette or CD
changer).
If you wish to interrupt a message, press the "TA"button; this switches the function off.
Note: the volume of traffic information announcements is inde pendent of the volume of normal radio listening. You
can adjust it using the volume button. The setting will be stored and will be used when the next messages are
broadcast.
Regional following mode (REG)
When they are part of a network, certain stations broadcast regi onal programmes in the various areas they serve. With
regional following mode you can keep listening to the same programme.
Press the "RDS"button for more than two seconds to switch the function on o r off.
18-11-2002

YOUR 807 IN DETAIL49
PTY function: Audio RD3
This allows you to listen to stations broadcasting a specific t ype of programme (news, culture, sport, rock etc.).
With FMselected, press the "TA"button for two seconds to switch this function on or off.
To search for a PTYprogramme:
select the PTYfunction,
briefly press button Ior Jto scroll down the list of the various types of programmes offered .
when the programme of your choice is displayed, keep button Ior Jpressed for two seconds
to carry out an automatic search (after an automatic search the PTYfunction is switched off).
In PTY mode the different types of programmes can be stored in the memory . To do this, press
the preselection buttons "1"to "6" for two seconds.
Briefly press the corresponding button to recall the type of prog ramme stored in the memory.
EON system: Audio RD3
This connects stations which are part of the same network. It en ables the broadcast of traffic information, by a station that
is part of the same network as the station to which you are li stening.
This service is available when you have selected the TAtraffic information programme or the PTYfunction.
18-11-2002

YOUR 807 IN DETAIL51
COMPACT DISC: AUDIO RD3
Selecting CD mode After insertion of a disc, printed face upwards, the player start s automatically.
If a disc is already inserted, press button Q.
Ejection of a disc Press button Sto eject the disc from the player.
Selecting a track Press button Ito select the next track.
Press button Jto return to the start of the current track or to select the previ ous track.
Accelerated play
Keep button Ior Jpressed for forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released.
Shuffle
When the CD player is selected, keep button Q pressed for two seconds. The tracks will be played in random seque nce.
Pressing the button again for two seconds returns you to normal p lay.
Shuffle mode is deactivated each time the audio system is switche d off.
The use of copied compact discs may cause faults.
Insert circular compact discs only.
18-11-2002

YOUR 807 IN DETAIL53

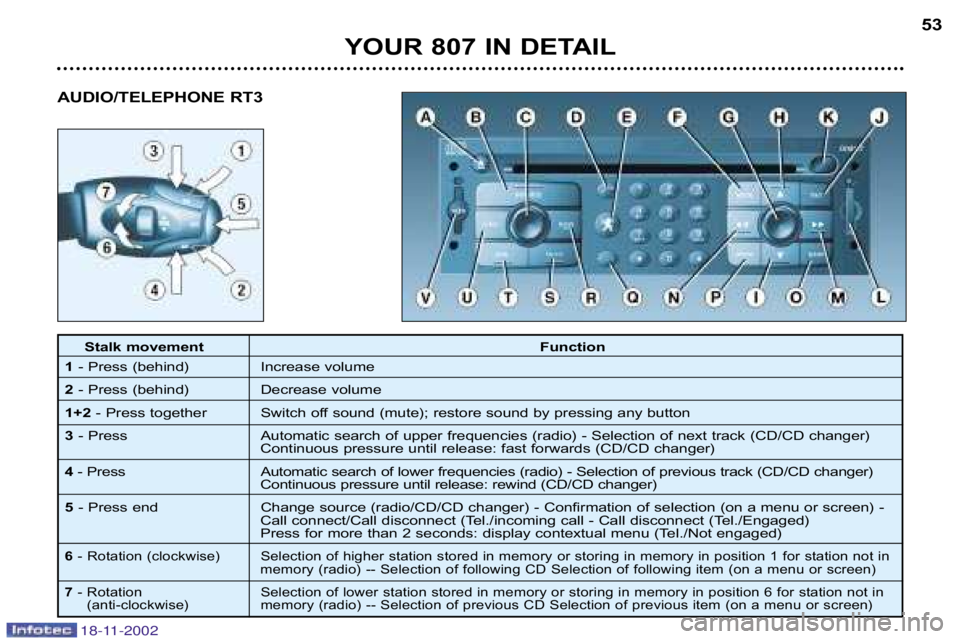

Stalk movement
Function
1 Press (behind) Increase volume
2 Press (behind) Decrease volume
1+2 Press together Switch off sound (mute); restore sound by pressing any button
3 Press Automatic search of upper frequencies (radio) Selection of next track (CD/CD changer)
Continuous pressure until release: fast forwards (CD/CD changer)
4 Press Automatic search of lower frequencies (radio) Selection of previ ous track (CD/CD changer)
Continuous pressure until release: rewind (CD/CD changer)
5 Press end Change source (radio/CD/CD changer) Confirmation of se lection (on a menu or screen)
Call connect/Call disconnect (Tel./incoming call Call disconn ect (Tel./Engaged)
Press for more than 2 seconds: display contextual menu (Tel./Not en gaged)
6 Rotation (clockwise) Selection of higher station stored in memory or storing in memory in position 1 for station not in
memory (radio) Selection of following CD Selection of followi ng item (on a menu or screen)
7 Rotation Selection of lower station stored in memory or storing in memory in position 6 for station not in
(anticlockwise) memory (radio) Selection of previous CD Selection of p revious item (on a menu or screen)
AUDIO/TELEPHONE RT3
18-11-2002

YOUR 807 IN DETAIL
54
Stalk movement
Function
A
Ejection of CD.
B SOURCE Selection of source: radio, CD or CD changer.
Press for more than 2 seconds: mute / cancel mute for current audio so urce being used
C Press: telephone on/off. Rotation: Adjusting the volume Audio adjustment: bass, trebl e, loudness, fader (FR/RR balance),
balance (L/R balance), automatic volume.
D Call connect (Tel/Incoming call) –
Display contextual menu (Tel/Not engaged).
E Access "PEUGEOT" services menu.
Press for more than 2 seconds: call "PEUGEOT" breakdown direct.
F MODE Change display.
Press for more than 2 seconds: display general information.
G Press: display contextual menu of display Confirm inputting or a djustment Cancel.
Rotation: move within a menu Select function / parameter Ad just.
H Adjust higher frequency, step by step or continuous (long press).
Select previous CD (CD changer).
I Adjust lower frequency, step by step or continuous (long press).
Select following CD (CD changer).
J ESC Cancel current operation.
Press for more than 2 seconds: clear all superimposed displays and retu rn to permanent application.
K Infrared window*.
L SIM card cover.
M kkAutomatic search of higher frequency Selection of following CD track.
Double press : change from LO mode to DX mode.
Press for more than 2 seconds: CD fast forward.
18-11-2002

YOUR 807 IN DETAIL55

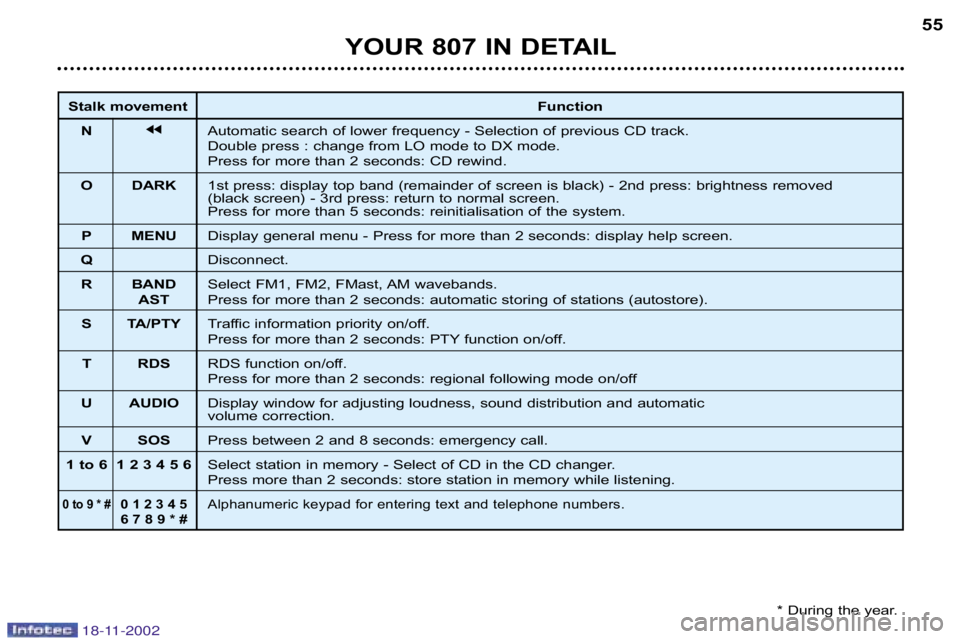

Stalk movement
Function
N jjAutomatic search of lower frequency Selection of previous CD track.
Double press : change from LO mode to DX mode.
Press for more than 2 seconds: CD rewind.
O DARK 1st press: display top band (remainder of screen is black) 2nd press: brightness removed
(black screen) 3rd press: return to normal screen.
Press for more than 5 seconds: reinitialisation of the system.
P MENU Display general menu Press for more than 2 seconds: display help scre en.
Q Disconnect.
R BAND Select FM1, FM2, FMast, AM wavebands.
AST Press for more than 2 seconds: automatic storing of stations (autosto re).
S TA/PTY Traffic information priority on/off.
Press for more than 2 seconds: PTY function on/off.
T RDS RDS function on/off.
Press for more than 2 seconds: regional following mode on/off
U AUDIO Display window for adjusting loudness, sound distribution an d automatic
volume correction.
V SOS Press between 2 and 8 seconds: emergency call.
1 to 6 1 2 3 4 5 6 Select station in memory Select of CD in the CD changer.
Press more than 2 seconds: store station in memory while listening.
0 to 9 * #0 1 2 3 4 5Alphanumeric keypad for entering text and telephone numbers.
6 7 8 9 * #
* During the year.
18-11-2002

YOUR 807 IN DETAIL
56
GENERAL FUNCTIONS On/off
With the ignition switch in the accessories position or with the ignition on, press button C to switch the audio
function of the RT3 audio/telephone on or off.
Note: in the absence of an ignition key, press button C to switch the telematics system on or off.
The RT3 telephone can operate for 30 minutes without switc hing the vehicle ignition on.
Notes:
– the SIM card must be removed only after the audio/telephone h as been switched off,
– following automatic switching off of the audio/telepho ne after 30 minutes, it is possible to make a telephone call by pressing
button D,
– after the ignition has been switched off, the audio/te lephone can be switched on again by pressing buttons D, E, V or by
inserting a CD in the player.
Antitheft system
The RT3 audio/telephone is coded in such a way that it ca n operate only on your vehicle. If fitting it to another vehicle,
consult your PEUGEOT dealer for configuration of the system.
The system is automatic and requires no action on your part.
ADJUSTING THE VOLUME
Turn button Cclockwise to increase the volume of the audio/telephone or an ticlockwise to decrease it.
Note: the volume setting is specific to each source. It is possible to have different settings for radio, CD or CD changer.
AUDIO SETTINGS Press buttonUto access Bass,Treble ,Loudness ,Fader (front/rear balance), Balance(left/. right balance)
and Automatic volume adjustment settings.
Exit from audio mode is automatic after a few seconds without a ny action, or by pressing button J.
Note: bass and treble settings are specific to each source. It is possibl e to have different settings for radio,
CD or CD changer.
18-11-2002

YOUR 807 IN DETAIL
57
Adjusting the Bass When"Bass "is displayed, turn button Cto vary the setting.
"–9 "for minimum bass setting
"0 " for normal bass setting
"+9 "for maximum bass setting
Adjusting the Treble
When "Treble "is displayed, turn button Cto vary the setting.
"–9 "for minimum treble setting
"0 " for normal setting
"+9 "for maximum treble setting
Adjusting the loudness
This function automatically emphasises bass and treble tones whe n the volume is low.
Rotate button Cto switch the function on or off.
Setting the front/rear sound distribution (Fader)
When "Fader "is displayed:
Turn button Cclockwise to increase the volume in the front.
Turn button Canticlockwise to increase the volume in the rear.
Setting the right/left sound distribution (Balance)
When "Balance" is displayed:
Turn button Cclockwise to increase the volume on the right.
Turn button Canticlockwise to increase the volume on the left.
Automatic volume adjustment "CAV"
This function allows the volume to be adjusted automaticall y depending on the level of noise produced by the speed of the
vehicle.
Press button Cto switch the function on or off.
