2001 NISSAN ALMERA TINO warning

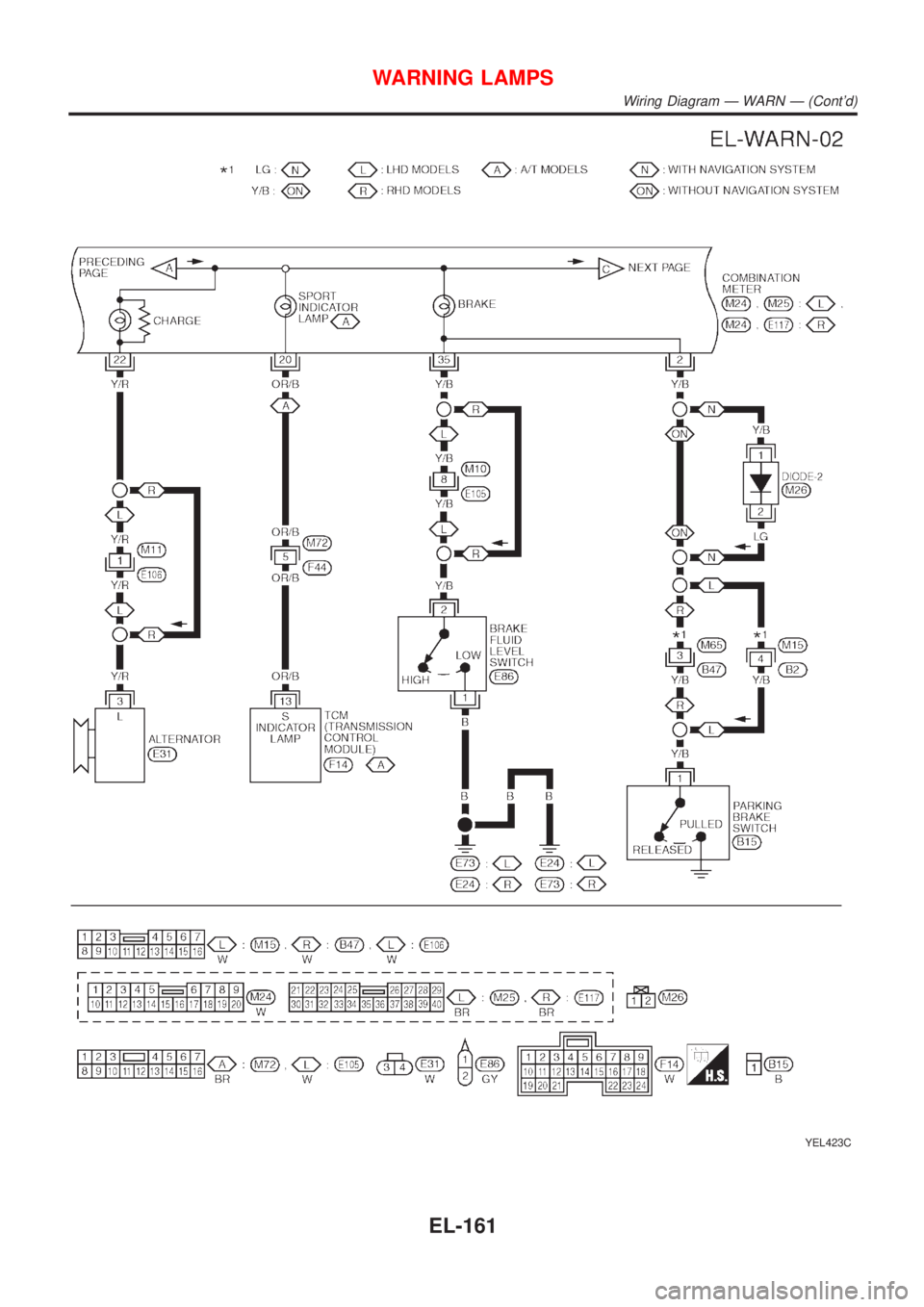

YEL423C
WARNING LAMPS
Wiring Diagram Ð WARN Ð (Cont'd)
EL-161

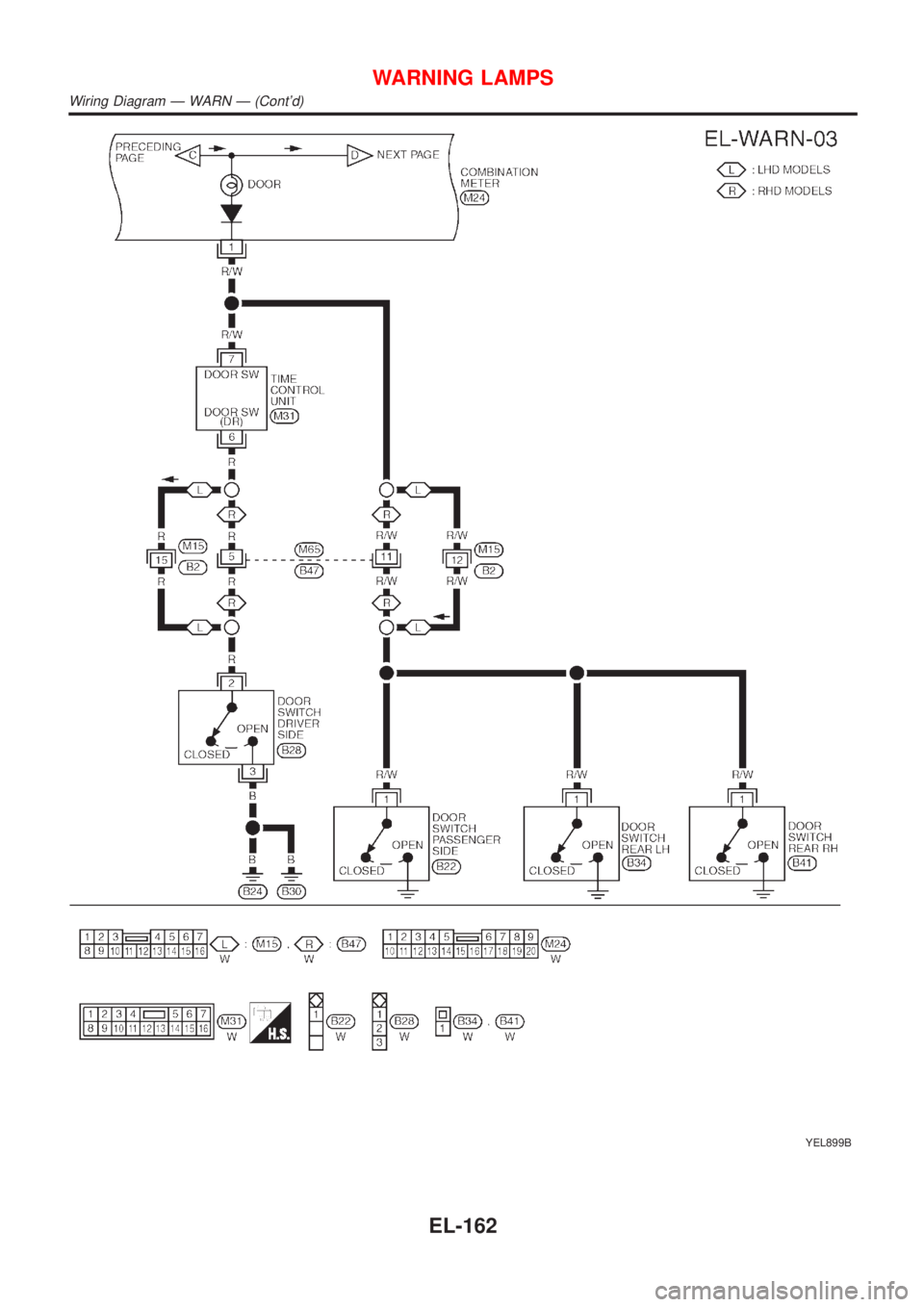

YEL899B
WARNING LAMPS
Wiring Diagram Ð WARN Ð (Cont'd)
EL-162

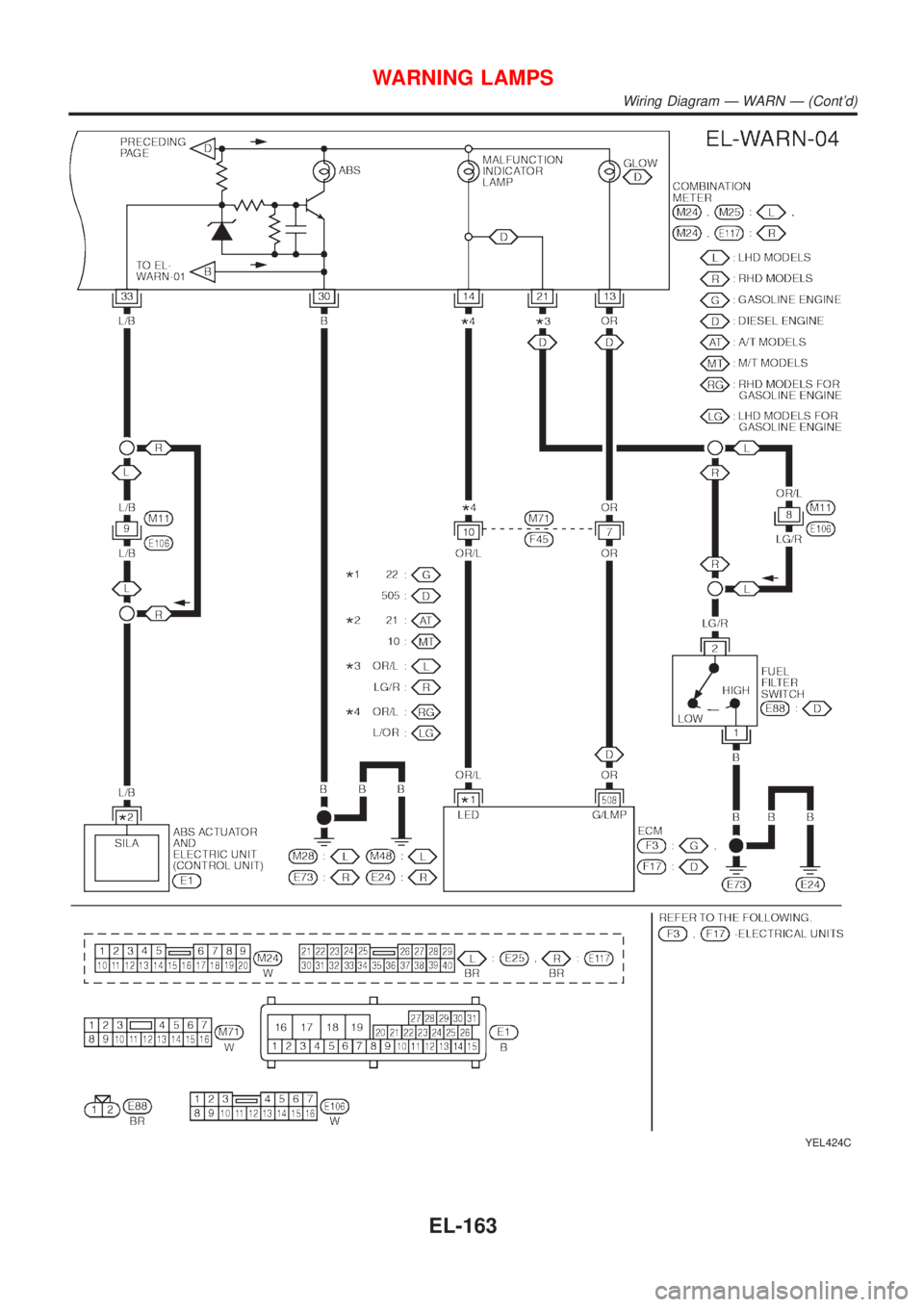

YEL424C
WARNING LAMPS
Wiring Diagram Ð WARN Ð (Cont'd)
EL-163

NEL664

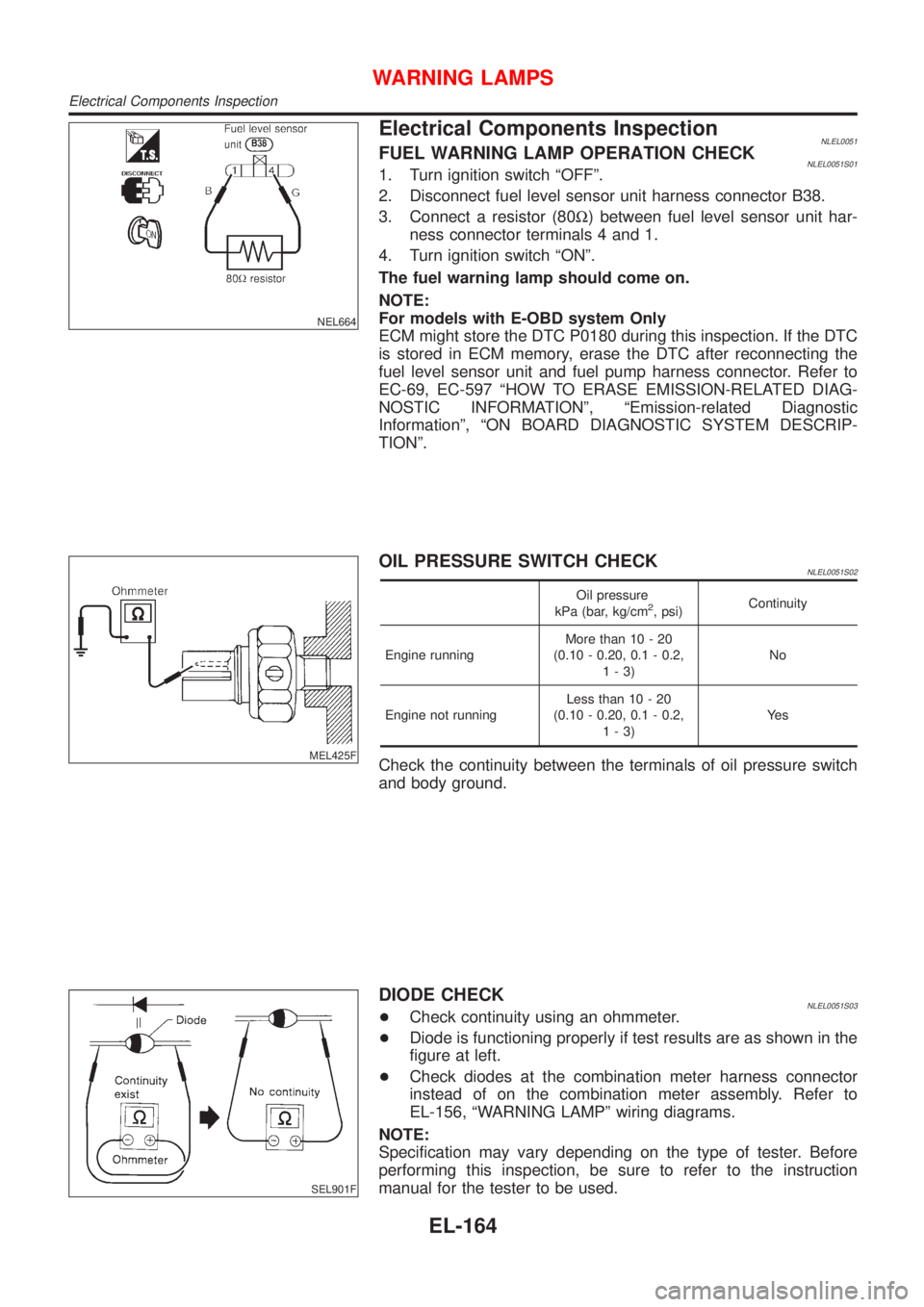

Electrical Components InspectionNLEL0051FUEL WARNING LAMP OPERATION CHECKNLEL0051S011. Turn ignition switch ªOFFº.
2. Disconnect fuel level sensor unit harness connector B38.
3. Connect a resistor (80W) between fuel level sensor unit har-
ness connector terminals 4 and 1.
4. Turn ignition switch ªONº.
The fuel warning lamp should come on.
NOTE:
For models with E-OBD system Only
ECM might store the DTC P0180 during this inspection. If the DTC
is stored in ECM memory, erase the DTC after reconnecting the
fuel level sensor unit and fuel pump harness connector. Refer to
EC-69, EC-597 ªHOW TO ERASE EMISSION-RELATED DIAG-
NOSTIC INFORMATIONº, ªEmission-related Diagnostic
Informationº, ªON BOARD DIAGNOSTIC SYSTEM DESCRIP-
TIONº.
MEL425F
OIL PRESSURE SWITCH CHECKNLEL0051S02
Oil pressure
kPa (bar, kg/cm2, psi)Continuity
Engine runningMore than 10 - 20
(0.10 - 0.20, 0.1 - 0.2,
1-3)No
Engine not runningLess than 10 - 20
(0.10 - 0.20, 0.1 - 0.2,
1-3)Ye s
Check the continuity between the terminals of oil pressure switch
and body ground.
SEL901F
DIODE CHECKNLEL0051S03+Check continuity using an ohmmeter.
+Diode is functioning properly if test results are as shown in the
figure at left.
+Check diodes at the combination meter harness connector
instead of on the combination meter assembly. Refer to
EL-156, ªWARNING LAMPº wiring diagrams.
NOTE:
Specification may vary depending on the type of tester. Before
performing this inspection, be sure to refer to the instruction
manual for the tester to be used.
WARNING LAMPS
Electrical Components Inspection
EL-164

Component Parts and Harness Connector
Location
NLEL0452For details, refer to ªELECTRICAL UNIT LOCATIONº (EL-442) and ªHARNESS LAYOUTº (EL-452).
System DescriptionNLEL0453The warning chime is controlled by the time control unit.
The warning chime is located in the time control unit.
Power is supplied at all times
+through 15A fuse [No. 5, located in fuse block (J/B)]
+to time control unit terminal 9.
+through 10A fuse [No. 12, located in the fuse block (J/B)]
+to key switch terminal 1.
+through 10A fuse (No. 38, located in the fuse and fusible link box)
+to lighting switch terminal 11.
With the ignition switch in the ON or START position, power is supplied
+through 10A fuse [No. 10, located in the fuse block (J/B)]
+to time control unit terminal 1.
Ground is supplied to time control unit terminal 16 through body grounds M28 and M48.
When a signal, or combination of signals, is received by the time control unit, the warning chime will sound.
IGNITION KEY WARNING CHIMENLEL0453S01With the key in the ignition switch in the OFF position, the driver's door open and driver's door locked, the
warning chime will sound. Power is supplied
+from key switch terminal 2
+to time control unit terminal 22.
Ground is supplied
+from body grounds B24 and B30
+through front door switch (driver side) terminals 3 and 2
+to time control unit terminal 6, and
Ground is interrupted,
+from body grounds M28 and M48
+to time control unit terminal 35
LIGHT WARNING CHIMENLEL0453S02With ignition switch OFF, driver's door open, and lighting switch in 1ST or 2ND position, warning chime will
sound. Power is supplied.
+from lighting switch terminal 12
+to time control unit terminal 10
Ground is supplied
+from front door switch (driver side) terminal 2
+to time control unit terminal 6.
Front door switch (driver side) terminal 3 is grounded through body grounds B24 and B30.
TRAILER DIRECTION INDICATOR WARNING CHIMENLEL0453S04This warning chime will be sounded while the direction indicator (turn signal lamp) is in operation with towing
the trailer.
This is an audible feedback (warning chime) to the driver.
If no audible feedback is heard while towing the trailer and operating the turn signal, this indicates the bulb
failure of the trailer.
Time control unit will detect the additional electrical load of a turn signal lamp for trailer automatically. Then
the chime will be sounded by the time control unit internally with the operation of the turn signal.
WARNING CHIME
Component Parts and Harness Connector Location
EL-165

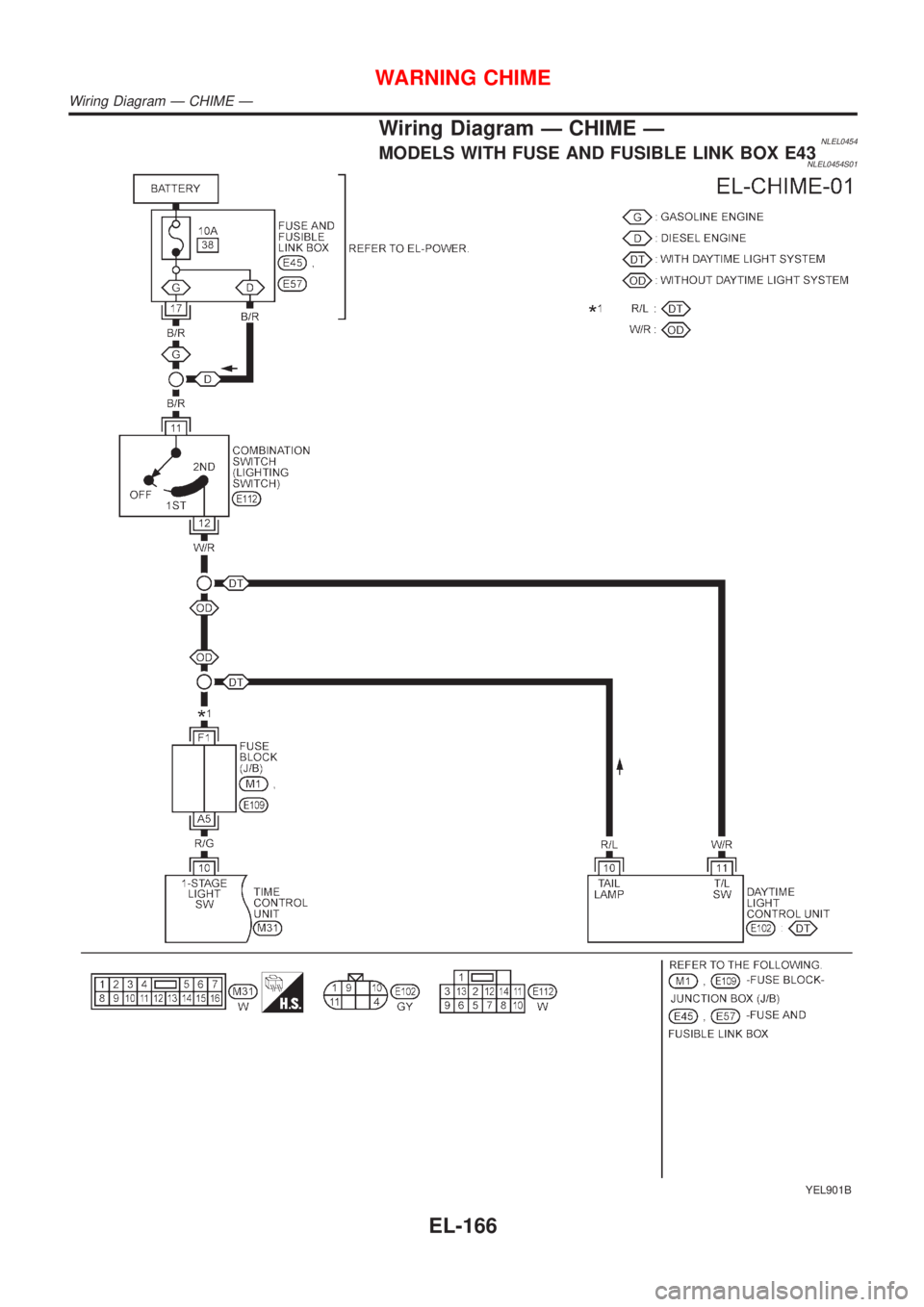

Wiring Diagram Ð CHIME ÐNLEL0454MODELS WITH FUSE AND FUSIBLE LINK BOX E43NLEL0454S01
YEL901B
WARNING CHIME
Wiring Diagram Ð CHIME Ð
EL-166

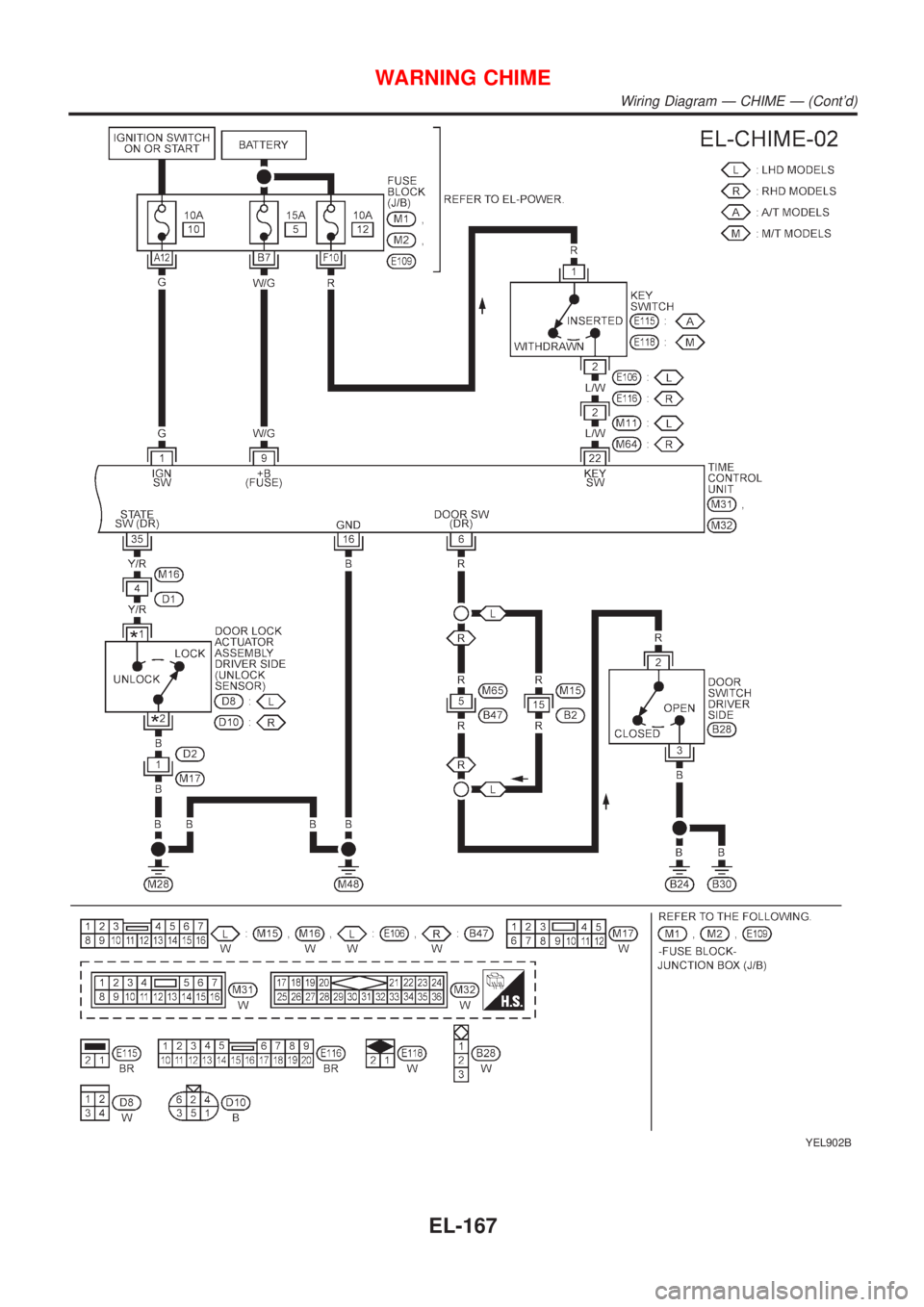

YEL902B
WARNING CHIME
Wiring Diagram Ð CHIME Ð (Cont'd)
EL-167

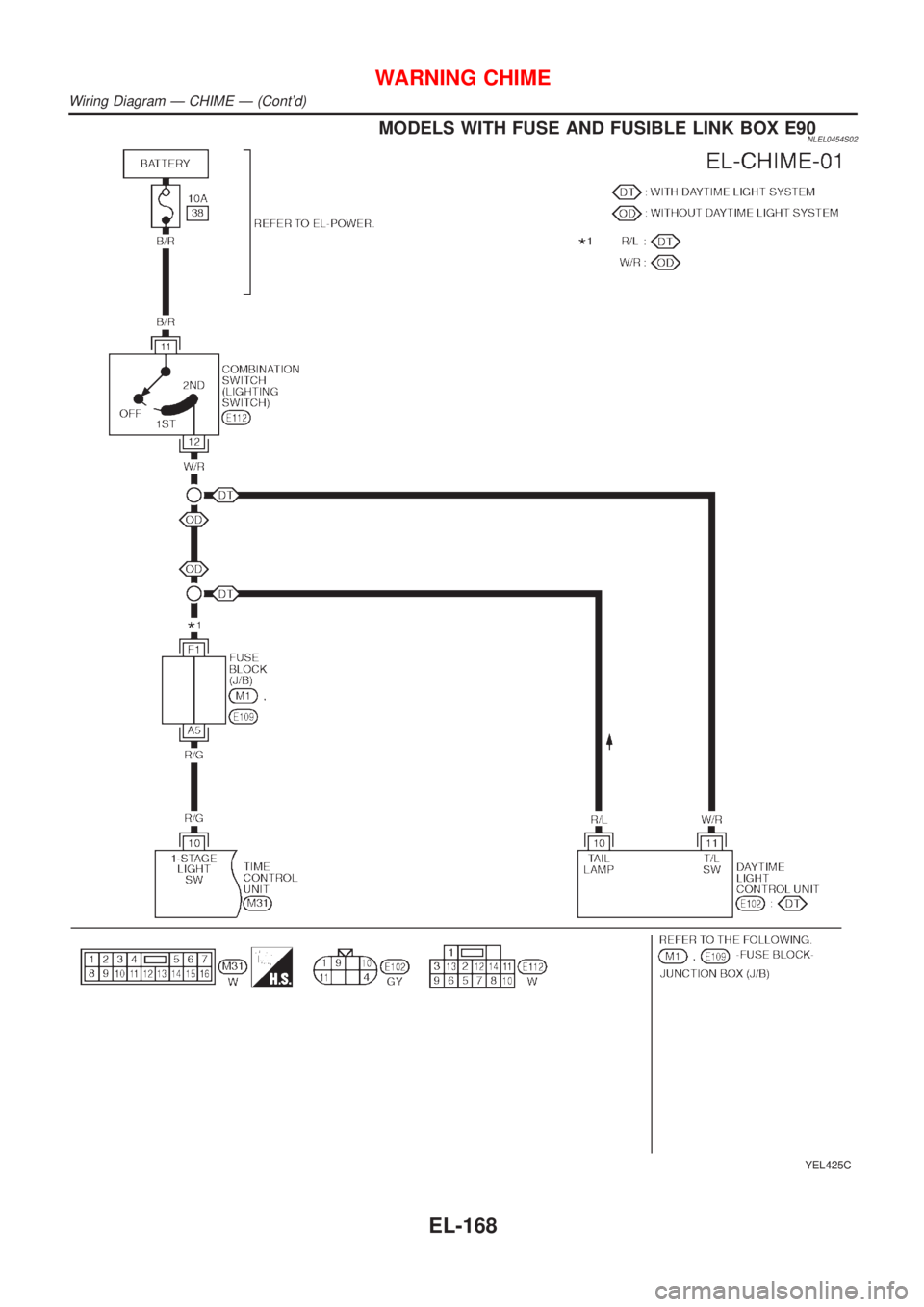

MODELS WITH FUSE AND FUSIBLE LINK BOX E90NLEL0454S02
YEL425C
WARNING CHIME
Wiring Diagram Ð CHIME Ð (Cont'd)
EL-168
