2000 YAMAHA TDR 125 Owners Manual

1
2
3
4
5
6
7
8
9
7-4
Storage
Short-term
Always store your motorcycle in a
cool, dry place and, if necessary, pro-
tect it against dust with a porous
cover.
ECA00014
cC
8
8
Storing the motorcycle in a
poorly ventilated room or cov-
ering it with a tarp while it is
still wet will allow water and
humidity to seep in and cause
rust.
8 8
To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
Long-term
Before storing your motorcycle for
several months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Drain the carburetor float cham-
ber by loosening the drain bolt;
this will prevent fuel deposits
from building up. Pour the
drained fuel into the fuel tank.
3. Only for motorcycles equipped
with a fuel cock which has an
“OFF” position: Turn the fuel
cock to “OFF”.
4. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
5. Perform the following steps to
protect the cylinder, piston rings,
etc. from corrosion.a. Remove the spark plug cap and
spark plug.
b. Pour a teaspoonful of engine oil
into the spark plug bore.
c. Install the spark plug cap onto
the spark plug and place the
spark plug on the cylinder head
so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap from
the spark plug, install the spark
plug and then the spark plug
cap.
EWA00003
w
When turning the engine over, be
sure to ground the spark plug elec-
trodes to prevent damage or injury
from sparking.
MOTORCYCLE CARE AND STORAGE
7
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 87

1
2
3
4
5
6
7
8
9
7-5
6. Lubricate all control cables and
the pivoting points of all levers
and pedals as well as of the
sidestand/centerstand.
7. Check and, if necessary, correct
the tire air pressure, then raise
the motorcycle so that both of its
wheels are off the ground.
Alternatively, turn the wheels a
little every month in order to pre-
vent the tires from becoming
degraded in one spot.
8. Cover up the muffler outlet with a
plastic bag to prevent moisture
from entering.9. Remove the battery and fully
charge it. Store it in a cool, dry
place and recharge it once a
month. Do not store the battery
in an excessively cold or warm
place (less than 0°C or more
than 30°C). For more informa-
tion, see “Battery storage” in the
chapter “PERIODIC MAINTE-
NANCE AND MINOR
REPAIRS”.
NOTE:
Make any necessary repairs before
storing the motorcycle.
MOTORCYCLE CARE AND STORAGE
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 88

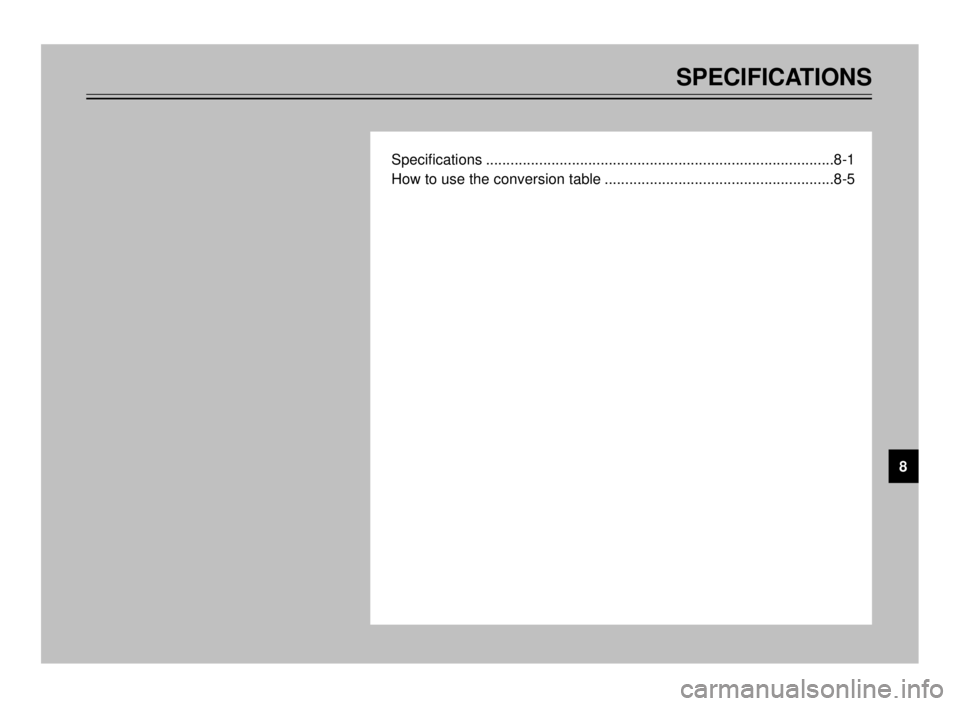

SPECIFICATIONS
Specifications .....................................................................................8-1
How to use the conversion table ........................................................8-5
8
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 89

SPECIFICATIONS
1
2
3
4
5
6
7
8
9
Specifications
Model TDR125
Dimensions
Overall length 2,120 mm
(F, GB, IRL, B, P, GR, E)
2,185 mm (S, SF, D, CH, A)
Overall width 840 mm
Overall height 1,295 mm
Seat height 850 mm
Wheel base 1,405 mm
Ground clearance 270 mm
Minimum turning radius 2,200 mm
Basic weight (with oil and full
fuel tank)135 kg
136 kg (CH, A)
Engine
Engine type Liquid cooled 2-stroke,
gasoline
Cylinder arrangement Forward inclined single
cylinder
Displacement 125 cm
3
Bore ´Stroke 56.0 ´50.7 mm
Compression ratio 6.6:1
Starting system Electric starter
Lubrication system Separate lubrication
(Yamaha Autolube)Engine oil (2-cycle)
Type Yamaha oil 2T or equivalent
2-stroke engine oil
Capacity
Total amount 1.2 L
Transmission oil
Type SAE 10W30 SE motor oil
Capacity
Periodic oil change 0.75 L
Total amount 0.8 L
Radiator capacity
(Including all routes) 1.05 L
Air filterWet type element
Fuel
Type Regular unleaded gasoline
Fuel tank capacity 11 L
Reserve amount 2.2 L
Carburetor
Type/quantity TM28SS/1
Manufacturer MIKUNI
EAU01038
SPECIFICATIONS
8-1
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 90

SPECIFICATIONS
1
2
3
4
5
6
7
8
9
8-2 Spark plug
Type/Manufacturer BR9ES/NGK
Spark plug gap 0.7 ~ 0.8 mm
Clutch typeWet, multiple-disc
Transmission
Primary reduction system Helical gear
Primary reduction ratio 71/22 (3.227)
Secondary reduction system Chain drive
Secondary reduction ratio 57/16 (3.563)
Transmission type Constant mesh 6-speed
Operation Left foot operation
Gear ratio 1st 2.833
2nd 1.875
3rd 1.412
4th 1.143
5th 0.957
6th 0.818
Chassis
Frame type Semi double cradle
Caster angle 26°
Trail 116 mmTire
Type Tubeless
Front
Size 100/90-18 56P
Manufacturer/ BRIDGESTONE/TW53
model DUNLOP/D602F
Rear
Size 130/80-17 65P
Manufacturer/ BRIDGESTONE/TW54
model DUNLOP/D602
Maximum load* 180 kg
179 kg (CH, A)
Air pressure (cold tire)
up to 90 kg load*
Front 175 kPa (1.75 kg/cm
2, 1.75 bar)
Rear 200 kPa (2.00 kg/cm
2, 2.00 bar)
90 kg load ~ Maximum
load*
Front 175 kPa (1.75 kg/cm
2, 1.75 bar)
Rear 225 kPa (2.25 kg/cm
2, 2.25 bar)
* Load is total weight of cargo, rider, passenger and
accessories.
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 91

SPECIFICATIONS
1
2
3
4
5
6
7
8
9
Wheels
Front
Type Cast wheel
Size 18 ´MT2.15
Rear
Type Cast wheel
Size 17 ´MT2.50
Brakes
Front
Type Single disc brake
Operation Right hand operation
Fluid DOT 3 or DOT 4
Rear
Type Single disc brake
Operation Right foot operation
Fluid DOT 4
Suspension
Front
Type Telescopic fork
Rear
Type Swingarm (Monocross)Shock absorber
Front
Type Coil spring/oil damper
Rear
Type Coil-gas spring/oil damper
Wheel travel
Front 180 mm
Rear 180 mm
Electrical
Ignition system C.D.I.
Charging system
Type C.D.I. magneto
Standard output 14 V, 12A @5,000 r/min
Battery
Type YTX5L-BS
Voltage, capacity 12 V, 4 AH
Headlight bulb typeHalogen bulb
Bulb voltage, wattage ´quantity
Headlight 12 V, 60/55W ´2
12 V, 35/35W ´2 (GB, IRL only)
8-3
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 92

SPECIFICATIONS
1
2
3
4
5
6
7
8
9
8-4 Stop/tail light 12 V, 21/5W ´2
Front flasher light 12 V, 21W ´2
Rear flasher light 12 V, 21W ´2
Auxiliary light 12 V, 4W ´2
12 V, 3.4W ´2 (GB, IRL only)
Meter light 12 V, 3.4W ´3
Neutral indicator light 12 V, 3.4W ´1
High beam indicator light 12 V, 3.4W ´1
Oil level indicator light 12 V, 3.4W ´1
Turn indicator light 12 V, 3.4W ´1
Fuse
Main 20A
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 93

SPECIFICATIONS
1
2
3
4
5
6
7
8
9
8-5
EAU01064
HOW TO USE THE CONVERSION TABLE
All specification data in this manual are listed in SI and
METRIC UNITS.
Use this table to convert METRIC unit data to
IMPERIAL unit data.
Ex.
METRIC MULTIPLIER IMPERIAL
** mm´0.03937 = ** in
2 mm´0.03937 = 0.08 inMETRIC TO IMPERIAL
Metric unit Multiplier Imperial unit
m • kg 7.233 ft• lb
Torquem • kg 86.794 in• lb
cm • kg 0.0723 ft • lb
cm • kg 0.8679 in • lb
Weightkg 2.205 lb
g 0.03527 oz
Speed km/hr 0.6214 mph
km 0.6214 mi
m 3.281 ft
Distance m 1.094 yd
cm 0.3937 in
mm 0.03937 in
cc (cm3) 0.03527 oz (IMP liq.)
Volume/ cc (cm3) 0.06102 cu • in
Capacity lt (liter) 0.8799 qt (IMP liq.)
lt (liter) 0.2199 gal (IMP liq.)
kg/mm 55.997 lb/in
Misc. kg/cm2 14.2234 psi (lb/in2)
Centigrade(°C)9/5 + 32Fahrenheit(°F)
CONVERSION TABLE
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 94
