5-4
EAU01258Starting a warm engine
The starter (choke) is not required
when the engine is warm.
EC000046
cC
See the “Engine break-in” section
prior to operating the motorcycle
for the first time.
EAU00423Shifting
The transmission lets you control the
amount of power you have available
at a given speed for starting, acceler-
ating, climbing hills, etc. The use of
the shift pedal is shown in the illustra-
tion.
To shift into neutral, depress the shift
pedal repeatedly until it reaches the
end of its travel, then raise the pedal
slightly.
EC000048
cC
8
8
Do not coast for long periods
with the engine off, and do not
tow the motorcycle a long dis-
tance. Even with gears in neu-
tral, the transmission is only
properly lubricated when the
engine is running. Inadequate
lubrication may damage the
transmission.
8 8
Always use the clutch when
changing gears. The engine,
transmission, and driveline are
not designed to withstand the
shock of forced shifting and
can be damaged by shifting
without using the clutch.
OPERATION AND IMPORTANT RIDING POINTS
1
2
3
4
5
6
7
8
9
6
5
4
3
2
1 N1
1. Shift pedal
N. Neutral
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 39

5-5
EAU00424
Tips for reducing fuel
consumption
Your motorcycle’s fuel consumption
depends to a large extent on your rid-
ing style. The following tips can help
reduce fuel consumption:
8Warm up the engine before rid-
ing.
8Turn off the starter (choke) as
soon as possible.
8Shift up swiftly and avoid high
engine speeds during accelera-
tion.
8Do not double-clutch or rev the
engine while shifting down and
avoid high engine speeds with
no load on the engine.
8Turn off the engine instead of let-
ting it idle for an extended length
of time, i.e. in traffic jams, at traf-
fic lights or railroad crossings.
EAU00436Engine break-in
There is never a more important peri-
od in the life of your motorcycle than
the period between zero and 1,000
km. For this reason we ask that you
carefully read the following material.
Because the engine is brand new,
you must not put an excessive load
on it for the first 1,000 km. The vari-
ous parts in the engine wear and pol-
ish themselves to the correct operat-
ing clearances. During this period,
prolonged full throttle operation, or
any condition which might result in
excessive heating of the engine,
must be avoided.
OPERATION AND IMPORTANT RIDING POINTS
1
2
3
4
5
6
7
8
9
EAU02937
Recommended shift points
(for Switzerland only)
The recommended shift points are
shown in the table below.
Acceleration shift point
km/h
1st ®2nd 20
2nd ®3rd 30
3rd ®4th 40
4th ®5th 50
5th ®6th 60
NOTE:
When shifting two gears down from
5th to 3rd, bring your motorcycle to a
speed of 35 km/h.
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 40

5-6
EAU00453
0 ~ 500 km
Avoid operation above 6,000 r/min.
Stop the engine and let it cool for 5 to
10 minutes after every hour of opera-
tion. Vary the speed of the motorcy-
cle from time to time. Do not operate
it at one set throttle position.
500 ~ 1,000 km
Avoid prolonged operation above
7,000 r/min. Rev the motorcycle
freely through the gears, but do not
use full throttle at any time.
EC000060
cC
After 1,000 km of operation, be
sure to replace the transmission
oil.
1,000 km and beyond
Full throttle can be used.
EC000053
cC
8
8
Never let engine speeds enter
the red zone.
8 8
If any engine trouble should
occur during the break-in peri-
od, consult a Yamaha dealer
immediately.
EAU00458
Parking
When parking the motorcycle, stop
the engine and remove the ignition
key. Turn the fuel cock to “OFF”
whenever stopping the engine.
EW000058
w
The exhaust system is hot. Park
the motorcycle in a place where
pedestrians or children are not
likely to touch the motorcycle. Do
not park the motorcycle on a slope
or soft ground; the motorcycle
may overturn.
EC000062
cC
Never park this motorcycle in an
area that would cause a fire hazard
such as grass or other materials
that may easily burn.
OPERATION AND IMPORTANT RIDING POINTS
1
2
3
4
5
6
7
8
9
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 41

1
2
3
4
5
6
7
8
9
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 42

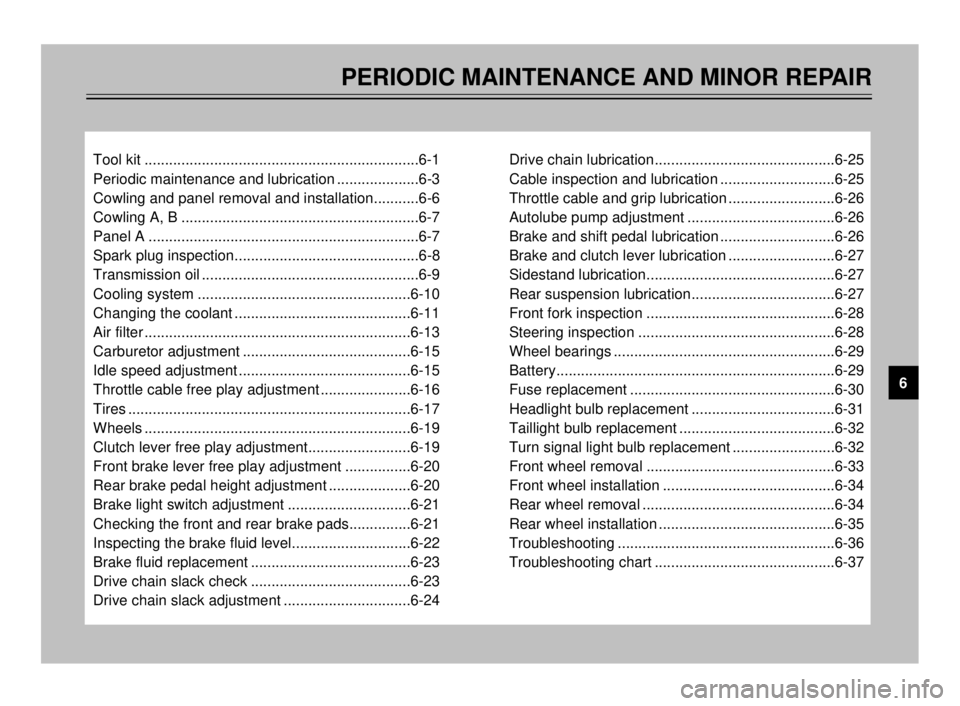

PERIODIC MAINTENANCE AND MINOR REPAIR

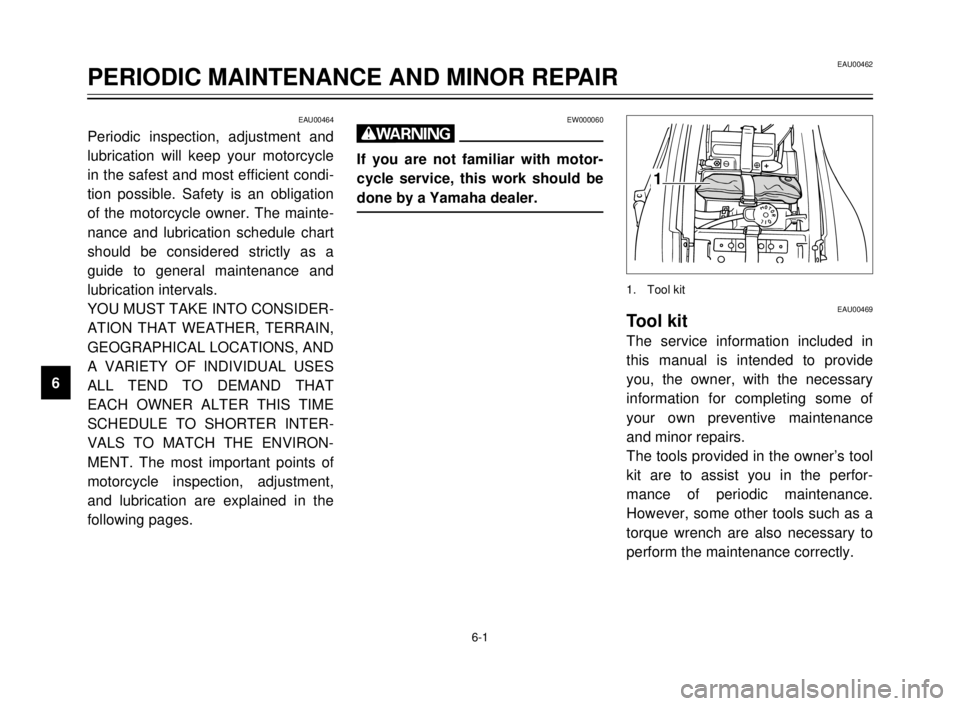

Tool kit ...................................................................6-1
Periodic maintenance and lubrication ....................6-3
Cowling and panel removal and installation...........6-6
Cowling A, B ..........................................................6-7
Panel A ..................................................................6-7
Spark plug inspection.............................................6-8
Transmission oil .....................................................6-9
Cooling system ....................................................6-10
Changing the coolant ...........................................6-11
Air filter .................................................................6-13
Carburetor adjustment .........................................6-15
Idle speed adjustment ..........................................6-15
Throttle cable free play adjustment ......................6-16
Tires .....................................................................6-17
Wheels .................................................................6-19
Clutch lever free play adjustment.........................6-19
Front brake lever free play adjustment ................6-20
Rear brake pedal height adjustment ....................6-20
Brake light switch adjustment ..............................6-21
Checking the front and rear brake pads...............6-21
Inspecting the brake fluid level.............................6-22
Brake fluid replacement .......................................6-23
Drive chain slack check .......................................6-23
Drive chain slack adjustment ...............................6-24Drive chain lubrication............................................6-25
Cable inspection and lubrication ............................6-25
Throttle cable and grip lubrication ..........................6-26
Autolube pump adjustment ....................................6-26
Brake and shift pedal lubrication ............................6-26
Brake and clutch lever lubrication ..........................6-27
Sidestand lubrication..............................................6-27
Rear suspension lubrication...................................6-27
Front fork inspection ..............................................6-28
Steering inspection ................................................6-28
Wheel bearings ......................................................6-29
Battery....................................................................6-29
Fuse replacement ..................................................6-30
Headlight bulb replacement ...................................6-31
Taillight bulb replacement ......................................6-32
Turn signal light bulb replacement .........................6-32
Front wheel removal ..............................................6-33
Front wheel installation ..........................................6-34
Rear wheel removal ...............................................6-34
Rear wheel installation ...........................................6-35
Troubleshooting .....................................................6-36
Troubleshooting chart ............................................6-37
