2000 YAMAHA TDR 125 Owners Manual

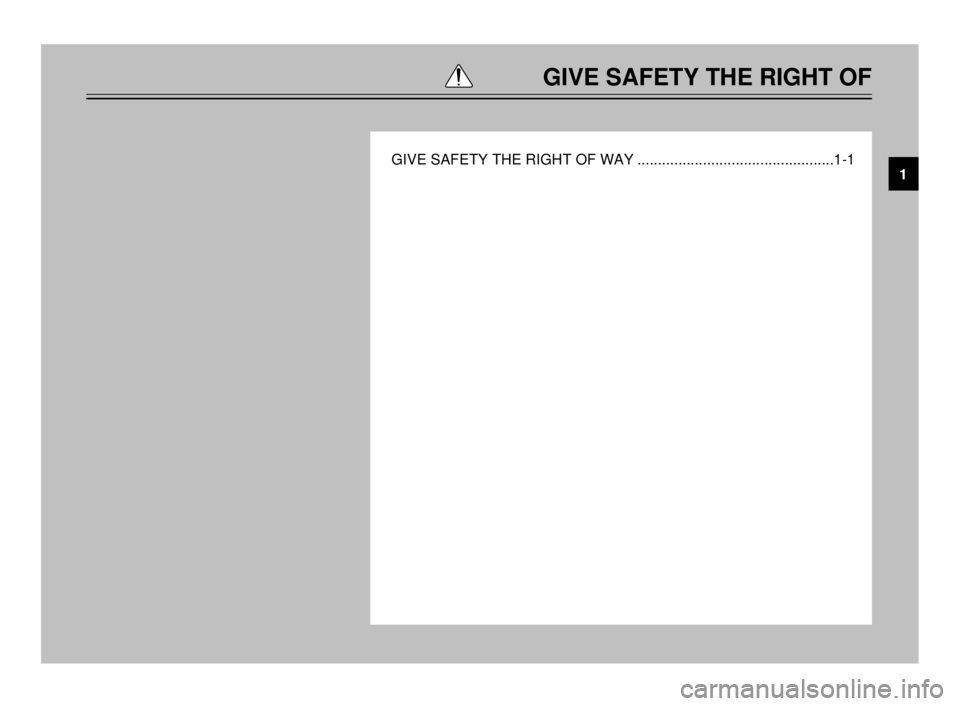

GIVE SAFETY THE RIGHT OF
GIVE SAFETY THE RIGHT OF WAY ................................................1-11
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 7

1-1
Motorcycles are fascinating vehicles, which can give you an unsurpassed feeling of power and free-
dom. However, they also impose certain limits, which you must accept; even the best motorcycle
does not ignore the laws of physics.
Regular care and maintenance are essential for preserving your motorcycle’s value and operating
condition. Moreover, what is true for the motorcycle is also true for the rider: good performance
depends on being in good shape. Riding under the influence of medication, drugs and alcohol is, of
course, out of the question. Motorcycle riders more than car drivers must always be at their mental
and physical best. Under the influence of even small amounts of alcohol, there is a tendency to take
dangerous risks.
Protective clothing is as essential for the motorcycle rider as seat belts are for car drivers and passen-
gers. Always wear a complete motorcycle suit (whether made of leather or tear-resistant synthetic
materials with protectors), sturdy boots, motorcycle gloves and a properly fitting helmet. Optimum pro-
tective wear, however, should not encourage carelessness. Though full-coverage helmets and suits,
in particular, create an illusion of total safety and protection, motorcyclists will always be vulnerable.
Riders who lack critical self-control run the risk of going too fast and are apt to take chances. This is
even more dangerous in wet weather. The good motorcyclist rides safely, predictably and defensively
avoiding all dangers, including those caused by others.
Enjoy your ride!
EAU00021
QGIVE SAFETY THE RIGHT OF WAY
1
2
3
4
5
6
7
8
9
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 8

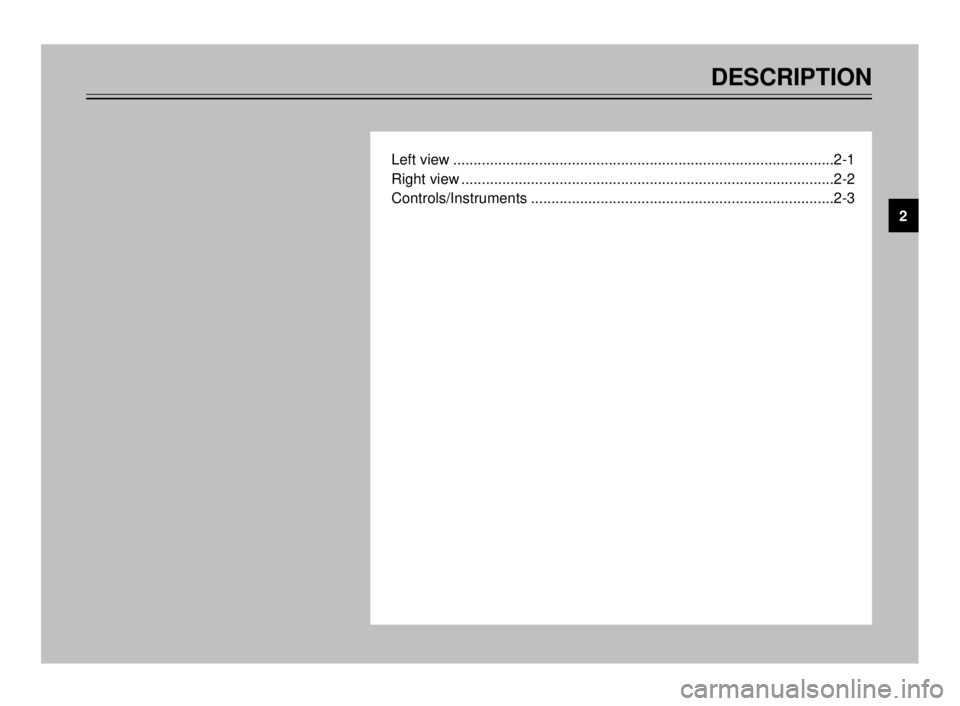

DESCRIPTION
Left view .............................................................................................2-1
Right view ...........................................................................................2-2
Controls/Instruments ..........................................................................2-3
2
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 9

EAU00026
DESCRIPTION
1
2
3
4
5
6
7
8
9

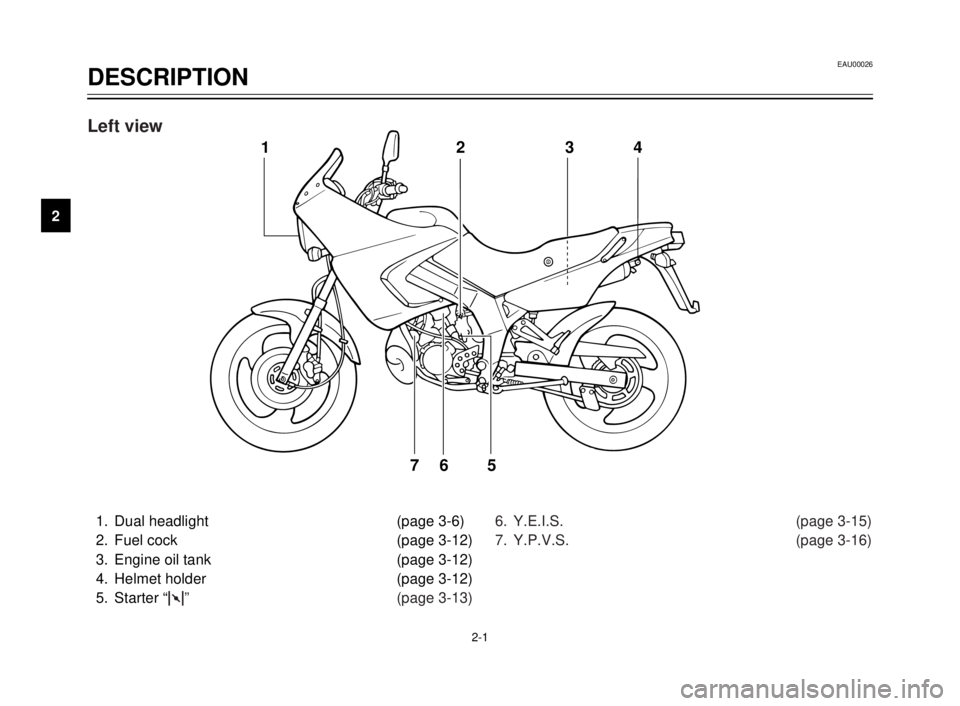

2-1
1. Dual headlight (page 3-6)
2. Fuel cock (page 3-12)
3. Engine oil tank (page 3-12)
4. Helmet holder (page 3-12)
5. Starter “1” (page 3-13)6. Y.E.I.S. (page 3-15)
7. Y.P.V.S. (page 3-16)
1234
5
6 7
Left view
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 10

DESCRIPTION
1
2
3
4
5
6
7
8
9

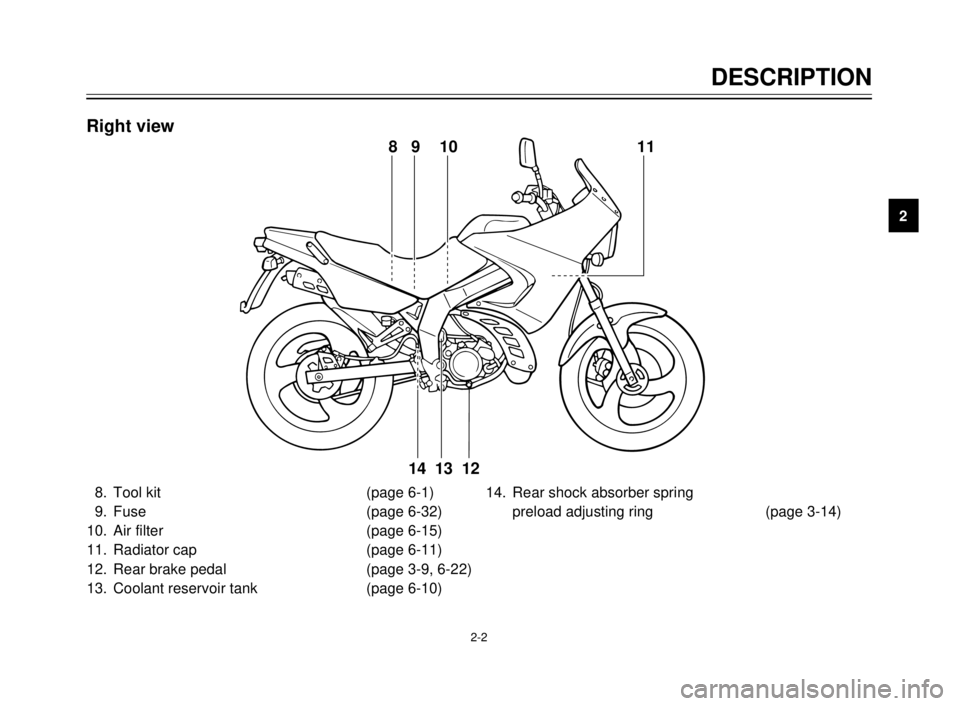

2-2
8. Tool kit (page 6-1)
9. Fuse (page 6-32)
10. Air filter (page 6-15)
11. Radiator cap (page 6-11)
12. Rear brake pedal (page 3-9, 6-22)
13. Coolant reservoir tank (page 6-10)14. Rear shock absorber spring
preload adjusting ring (page 3-14)
8 9 10 11
12
13 14
Right view
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 11

1
2
3
4
5
6
7
8
9
DESCRIPTION

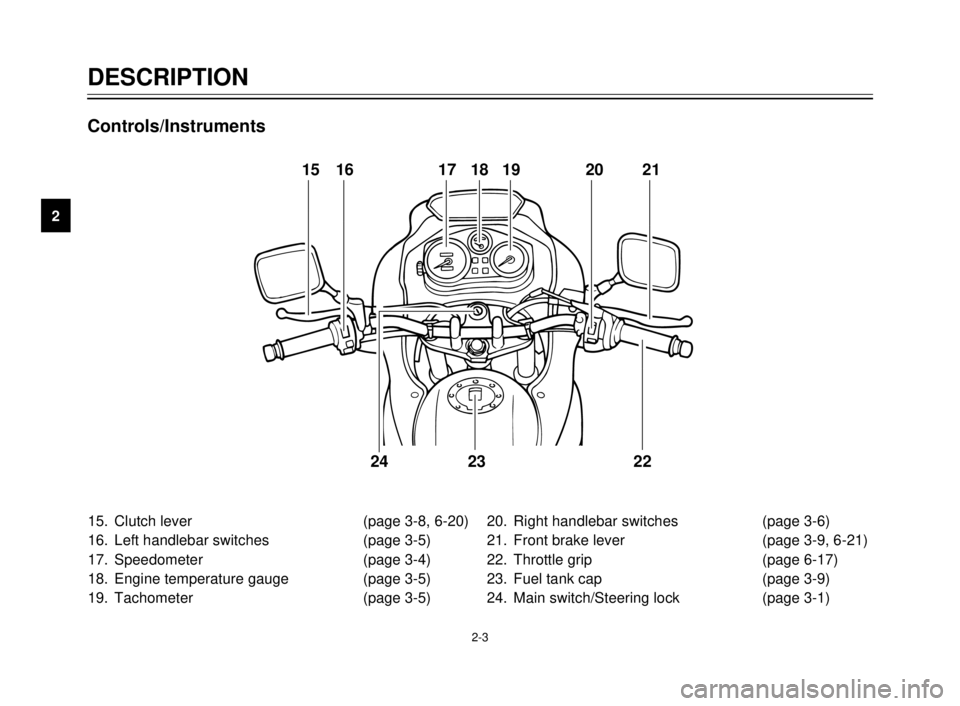

2-3
15. Clutch lever (page 3-8, 6-20)
16. Left handlebar switches (page 3-5)
17. Speedometer (page 3-4)
18. Engine temperature gauge (page 3-5)
19. Tachometer (page 3-5)20. Right handlebar switches (page 3-6)
21. Front brake lever (page 3-9, 6-21)
22. Throttle grip (page 6-17)
23. Fuel tank cap (page 3-9)
24. Main switch/Steering lock (page 3-1)
15 16 17 18 19 20 21
22 23 24
Controls/Instruments
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 12

INSTRUMENT AND CONTROL FUNCTIONS
Main switch/steering lock........................................3-1
Indicator lights ........................................................3-2
Oil level indicator circuit check ...............................3-3
Speedometer ..........................................................3-4
Tachometer ............................................................3-4
Engine temperature gauge .....................................3-5
Handlebar switches ................................................3-5
Headlight beam variation ........................................3-6
Clutch lever.............................................................3-8
Shift pedal...............................................................3-8
Front brake lever ....................................................3-8
Rear brake pedal ....................................................3-9
Fuel tank cap ..........................................................3-9
Fuel.......................................................................3-10
Catalyzer (for Switzerland and Austria) ................3-11
Two-stroke engine oil ...........................................3-12
Fuel cock ..............................................................3-12
Starter (choke) “1” ..............................................3-13
Seat ......................................................................3-13
Helmet holder .......................................................3-14
Rear shock absorber adjustment..........................3-14
Note on handling of the Yamaha Energy
Induction System (Y.E.I.S.) ..................................3-15Y.P.V.S. (Yamaha Power Valve System) .............3-16
Sidestand..............................................................3-16
Sidestand/clutch switch operation check ..............3-17
3
5AE-9-E3 (ENG) 4/11/0 11:06 AM Page 13

3-1
OFFON
LOCKP
PUSH
YM-8
IGNITION
ON
OFF
LOCK
PARKING
EAU00029
Main switch/Steering lock
The main switch controls the ignition
and lighting systems. Its operation is
described below.
EAU00036
ON
Electrical circuits are switched on.
The engine can be started. The key
cannot be removed in this position.
EAU00038
OFF
All electrical circuits are switched off.
The key can be removed in this posi-
tion.
EAU00042
LOCK
The steering is locked in this position
and all electrical circuits are switched
off.
The key can be removed in this posi-
tion.
To lock the steering, turn the handle-
bars all the way to the left. With the
key at “OFF”, push it into the main
switch and release it, turn it counter-
clockwise to “LOCK” and remove it.
To release the lock, turn the key to
“OFF”.
EW000016
w
Never turn the key to “OFF” or
“LOCK” when the motorcycle is
moving. The electrical circuits will
be switched off which may result
in loss of control or an accident.
Be sure the motorcycle is stopped
before turning the key to “OFF” or
“LOCK”.
EAU00048*
. .(Parking)
The steering is locked in this position,
and the taillight and auxiliary light
come on but all other circuits are off.
The key can be removed in this posi-
tion.
To use the parking position, first lock
the steering, then turn the key to “
.”.
Do not use this position for an
extended length of time as the bat-
tery may discharge.
EAU00027
INSTRUMENT AND CONTROL FUNCTIONS
1
2
3
4
5
6
7
8
9
12
1. Push 2. Turn
