2000 MITSUBISHI CARISMA Owners Manual

FOR PLEASANT DRIVING

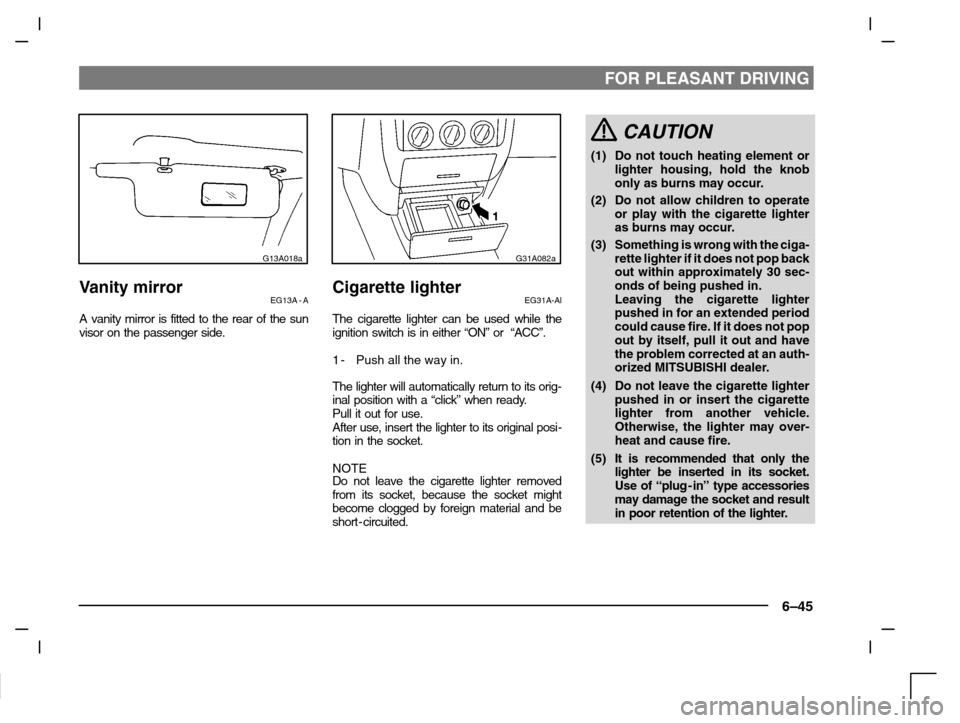

6–45
G13A018a
Vanity mirrorEG13A - A
A vanity mirror is fitted to the rear of the sun
visor on the passenger side.
G31A082a
Cigarette lighterEG31A-Al
The cigarette lighter can be used while the
ignition switch is in either “ON” or “ACC”.
1-Push all the way in.
The lighter will automatically return to its orig-
inal position with a “click” when ready.
Pull it out for use.
After use, insert the lighter to its original posi-
tion in the socket.
NOTE
Do not leave the cigarette lighter removed
from its socket, because the socket might
become clogged by foreign material and be
short - circuited.
CAUTION
(1) Do not touch heating element or
lighter housing, hold the knob
only as burns may occur.
(2) Do not allow children to operate
or play with the cigarette lighter
as burns may occur.
(3) Something is wrong with the ciga-
rette lighter if it does not pop back
out within approximately 30 sec-
onds of being pushed in.
Leaving the cigarette lighter
pushed in for an extended period
could cause fire. If it does not pop
out by itself, pull it out and have
the problem corrected at an auth-
orized MITSUBISHI dealer.
(4) Do not leave the cigarette lighter
pushed in or insert the cigarette
lighter from another vehicle.
Otherwise, the lighter may over-
heat and cause fire.
(5) It is recommended that only the
lighter be inserted in its socket.
Use of “plug - in” type accessories
may damage the socket and result
in poor retention of the lighter.

FOR PLEASANT DRIVING

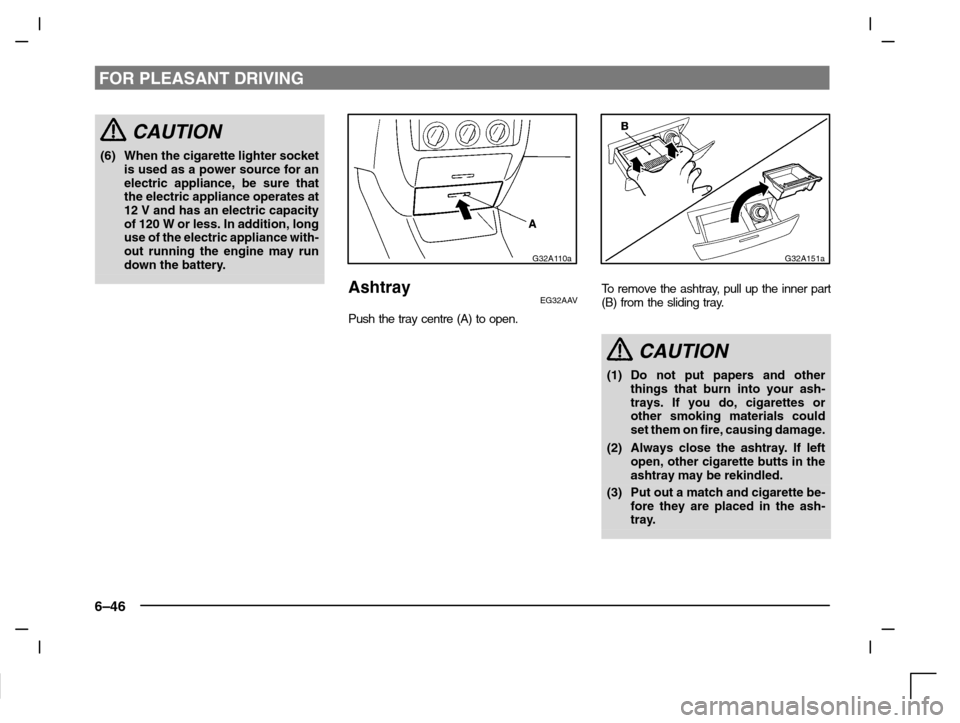

6–46
CAUTION
(6) When the cigarette lighter socket
is used as a power source for an
electric appliance, be sure that
the electric appliance operates at
12 V and has an electric capacity
of 120 W or less. In addition, long
use of the electric appliance with-
out running the engine may run
down the battery.
G32A110a
AshtrayEG32AAV
Push the tray centre (A) to open.
G32A151a
To remove the ashtray, pull up the inner part
(B) from the sliding tray.
CAUTION
(1) Do not put papers and other
things that burn into your ash-
trays. If you do, cigarettes or
other smoking materials could
set them on fire, causing damage.
(2) Always close the ashtray. If left
open, other cigarette butts in the
ashtray may be rekindled.
(3) Put out a match and cigarette be-
fore they are placed in the ash-
tray.

FOR PLEASANT DRIVING

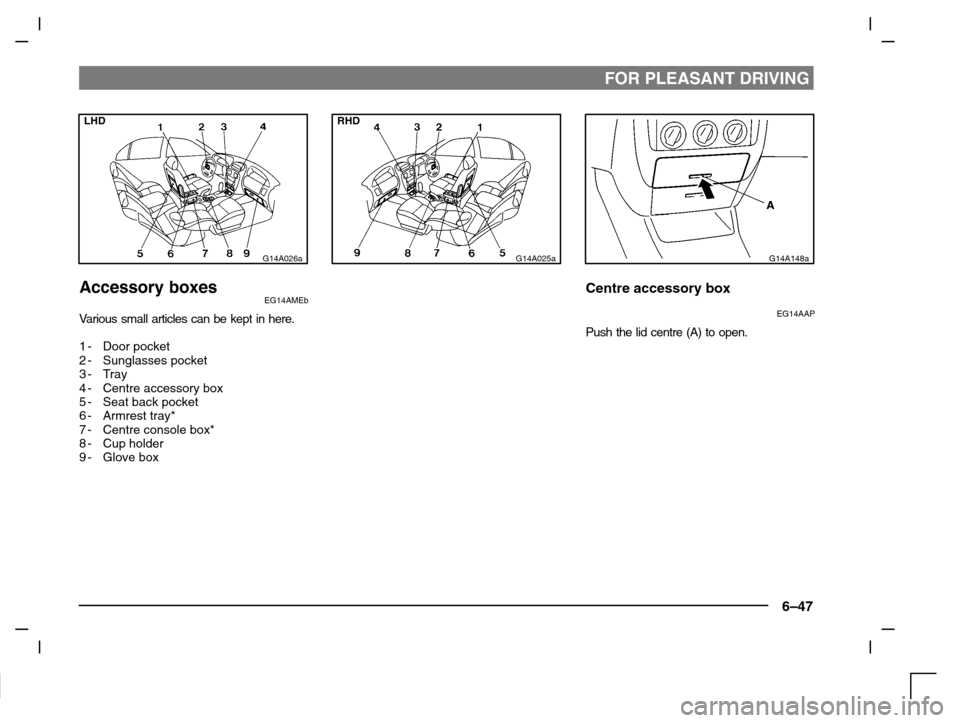

6–47
LHD
G14A026a
Accessory boxesEG14AMEb
Various small articles can be kept in here.
1-Door pocket
2-Sunglasses pocket
3- Tray
4-Centre accessory box
5-Seat back pocket
6-Armrest tray*
7-Centre console box*
8-Cup holder
9-Glove box
RHD
G14A025aG14A148a
Centre accessory box
EG14AAP
Push the lid centre (A) to open.

FOR PLEASANT DRIVING

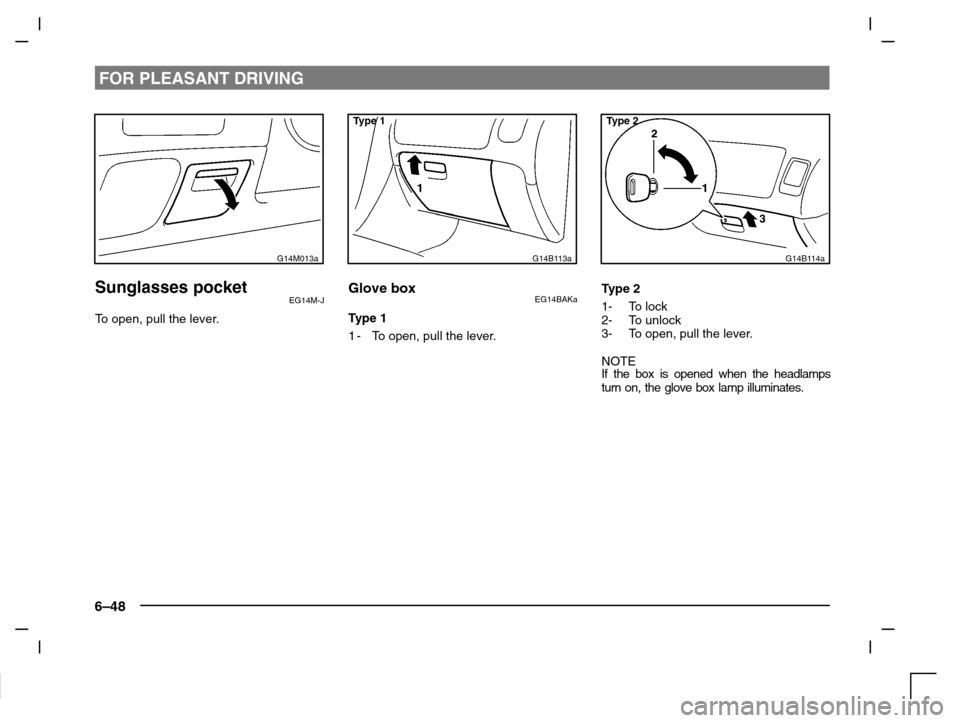

6–48
G14M013a
Sunglasses pocketEG14M-J
To open, pull the lever.
Type 1
G14B113a
Glove boxEG14BAKa
Type 1
1-To open, pull the lever.
Type 2
G14B114a
Type 2
1- To lock
2- To unlock
3- To open, pull the lever.
NOTE
If the box is opened when the headlamps
turn on, the glove box lamp illuminates.

FOR PLEASANT DRIVING

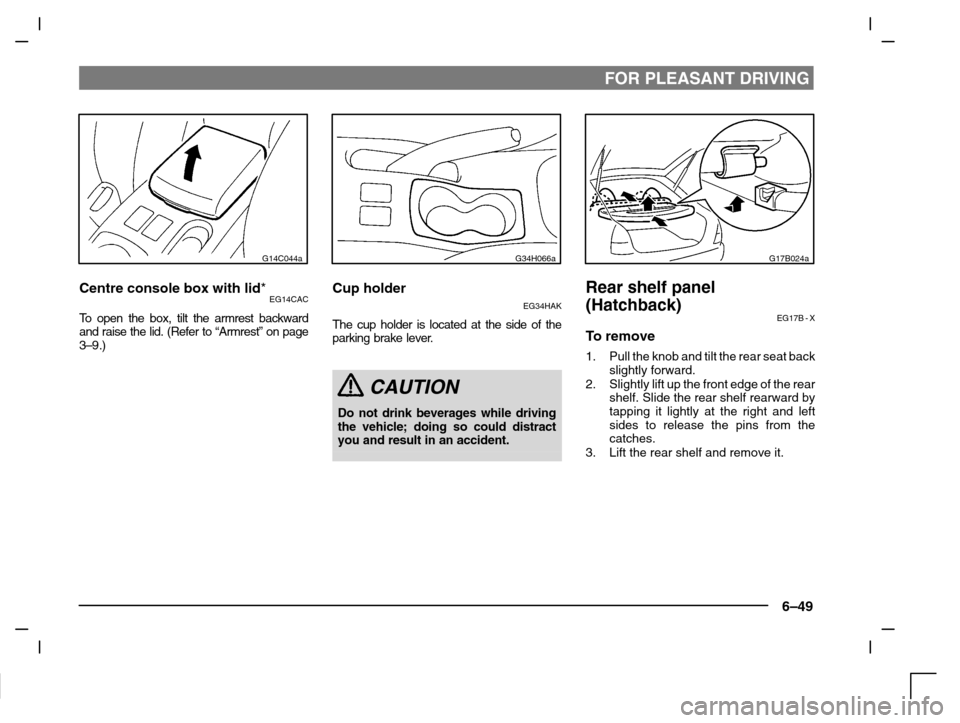

6–49
G14C044a
Centre console box with lid*EG14CAC
To open the box, tilt the armrest backward
and raise the lid. (Refer to “Armrest” on page
3–9.)
G34H066a
Cup holder
EG34HAK
The cup holder is located at the side of the
parking brake lever.
CAUTION
Do not drink beverages while driving
the vehicle; doing so could distract
you and result in an accident.
G17B024a
Rear shelf panel
(Hatchback)
EG17B - X
To remove
1. Pull the knob and tilt the rear seat back
slightly forward.
2. Slightly lift up the front edge of the rear
shelf. Slide the rear shelf rearward by
tapping it lightly at the right and left
sides to release the pins from the
catches.
3. Lift the rear shelf and remove it.

FOR PLEASANT DRIVING

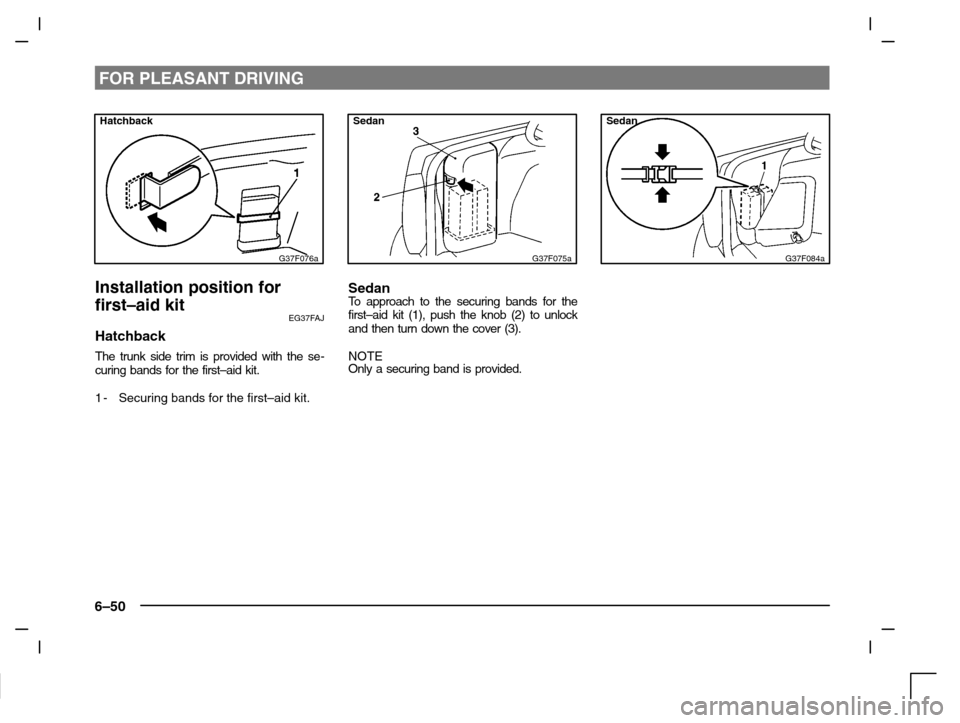

6–50
Hatchback
G37F076a
Installation position for
first–aid kit
EG37FAJ
Hatchback
The trunk side trim is provided with the se-
curing bands for the first–aid kit.
1-Securing bands for the first–aid kit.
Sedan
G37F075a
SedanTo approach to the securing bands for the
first–aid kit (1), push the knob (2) to unlock
and then turn down the cover (3).
NOTE
Only a securing band is provided.
Sedan
G37F084a

FOR PLEASANT DRIVING

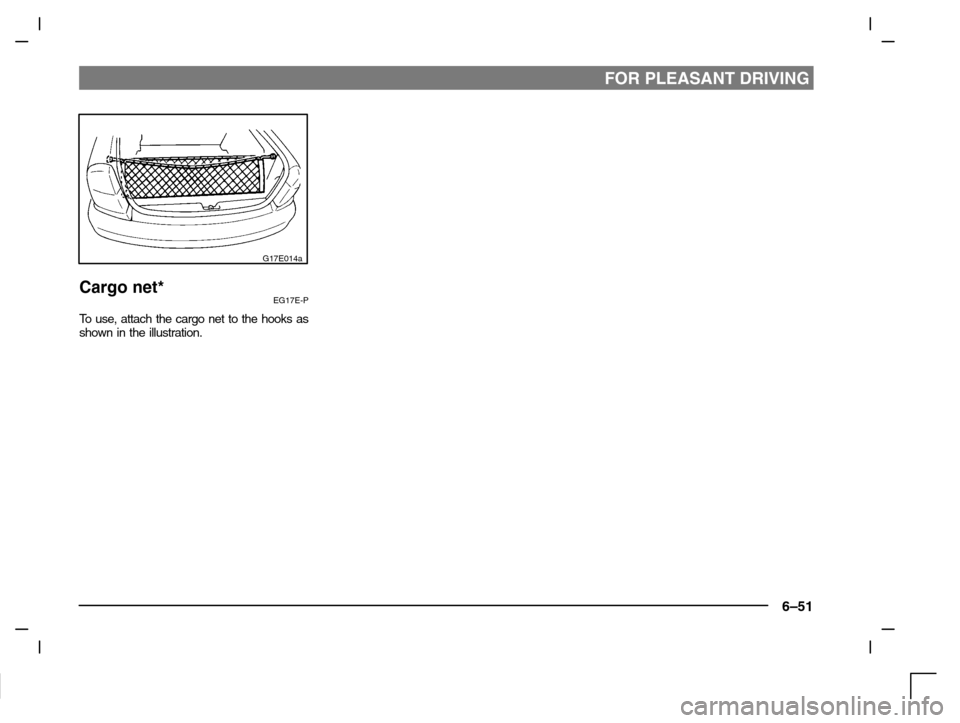

6–51
G17E014a
Cargo net*EG17E-P
To use, attach the cargo net to the hooks as
shown in the illustration.
