2000 MITSUBISHI CARISMA Owners Manual

SPECIFICATIONS
10–7

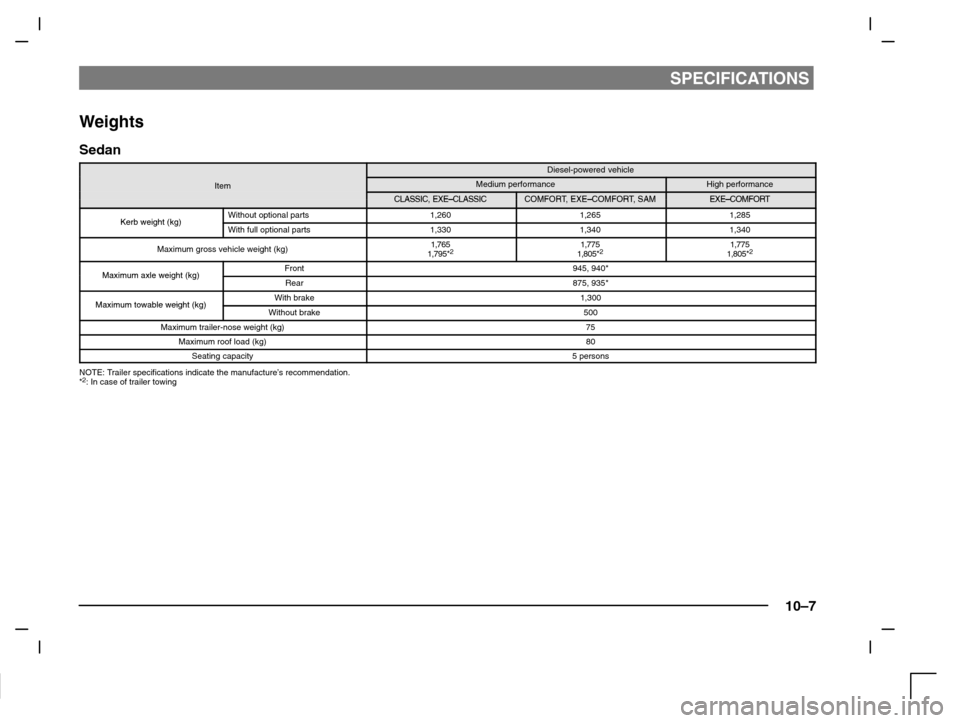

Weights
Sedan
Diesel-powered vehicle
ItemMedium performanceHigh performance
CLASSIC EXE–CLASSICCOMFORT EXE–COMFORT SAMEXE–COMFORTCLASSIC, EXE–CLASSICCOMFORT, EXE–COMFORT, SAMEXE–COMFORT
Kerb weight (kg)Without optional parts1,2601,2651,285Kerb weight (kg)With full optional parts1,3301,3401,340
Maximum gross vehicle weight (kg)1,765
1,795*21,775
1,805*21,775
1,805*2
Maximum axle weight (kg)Front945, 940*Maximum axle weight (kg)Rear875, 935*
Maximum towable weight (kg)With brake1,300Maximum towable weight (kg)Without brake500
Maximum trailer-nose weight (kg)75
Maximum roof load (kg)80
Seating capacity5 persons
NOTE: Trailer specifications indicate the manufacture’s recommendation.
*2: In case of trailer towing

SPECIFICATIONS
10–8

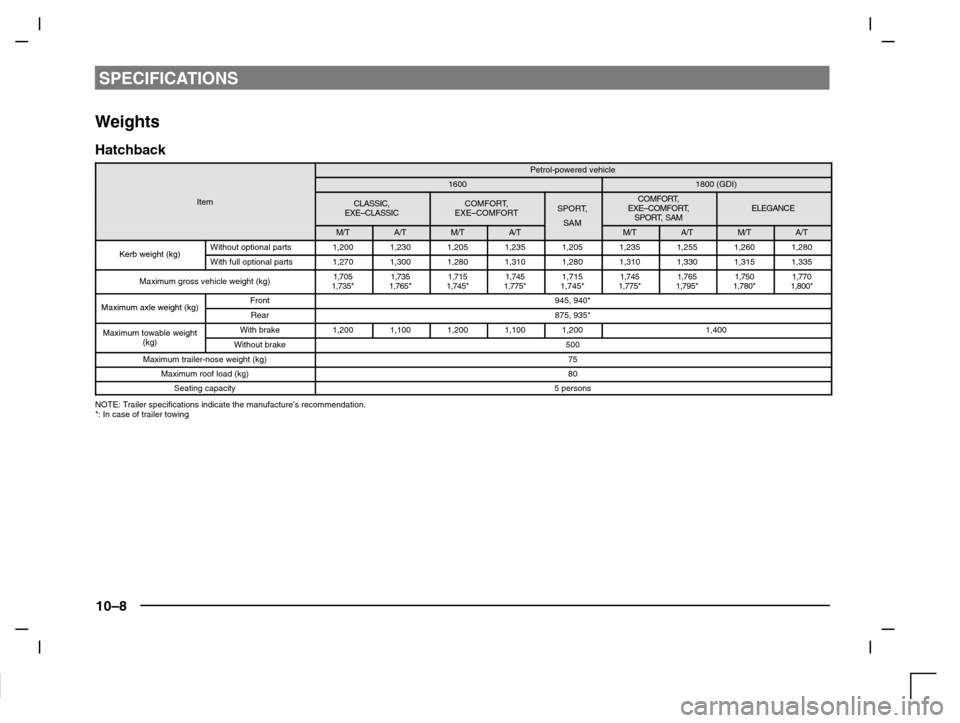

Weights
Hatchback
Petrol-powered vehicle
16001800 (GDI)
ItemCLASSIC,
EXE–CLASSICCOMFORT,
EXE–COMFORTSPORT,
SAM
COMFORT,
EXE–COMFORT,
SPORT, SAMELEGANCE
M/TA/TM/TA/TSAMM/TA/TM/TA/T
Kerb weight (kg)Without optional parts1,2001,2301,2051,2351,2051,2351,2551,2601,280Kerb weight (kg)With full optional parts1,2701,3001,2801,3101,2801,3101,3301,3151,335
Maximum gross vehicle weight (kg)1,705
1,735*1,735
1,765*1,715
1,745*1,745
1,775*1,715
1,745*1,745
1,775*1,765
1,795*1,750
1,780*1,770
1,800*
Maximum axle weight (kg)Front945, 940*Maximum axle weight (kg)Rear875, 935*
Maximum towable weightWith brake1,2001,1001,2001,1001,2001,400g(kg)Without brake500
Maximum trailer-nose weight (kg)75
Maximum roof load (kg)80
Seating capacity5 persons
NOTE: Trailer specifications indicate the manufacture’s recommendation.
*: In case of trailer towing

SPECIFICATIONS
10–9

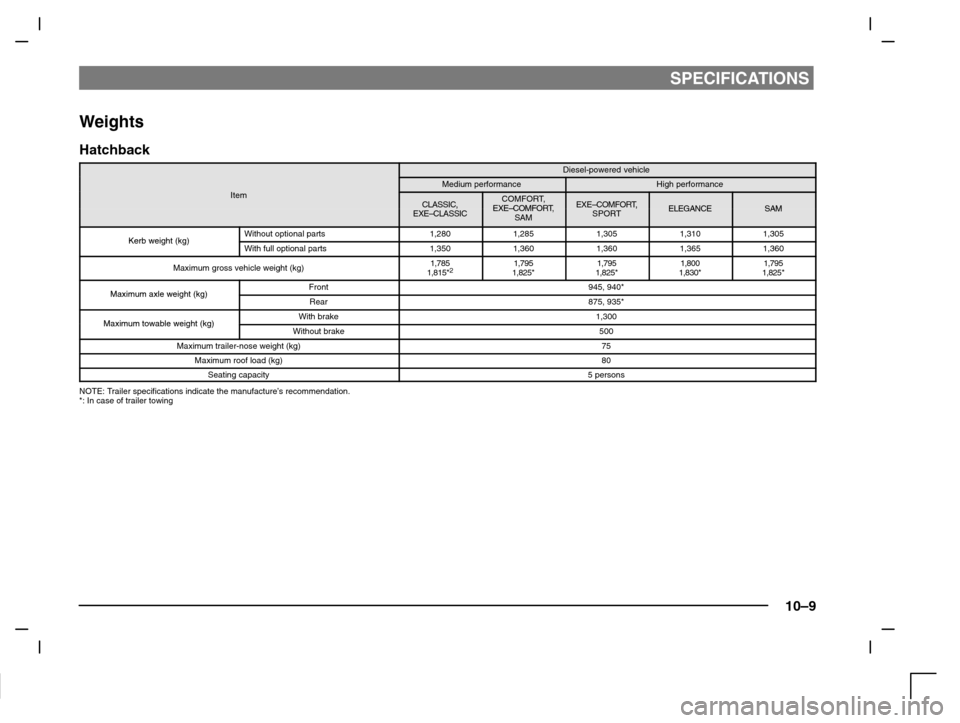

Weights
Hatchback
Diesel-powered vehicle
Medium performanceHigh performanceItemCLASSIC,COMFORT,EXE–COMFORTEXE–COMFORT,ELEGANCESAM,EXE–CLASSICEXE–COMFORT,
SAM,SPORTELEGANCESAM
Kerb weight (kg)Without optional parts1,2801,2851,3051,3101,305Kerb weight (kg)With full optional parts1,3501,3601,3601,3651,360
Maximum gross vehicle weight (kg)1,785
1,815*21,795
1,825*1,795
1,825*1,800
1,830*1,795
1,825*
Maximum axle weight (kg)Front945, 940*Maximum axle weight (kg)Rear875, 935*
Maximum towable weight (kg)With brake1,300Maximum towable weight (kg)Without brake500
Maximum trailer-nose weight (kg)75
Maximum roof load (kg)80
Seating capacity5 persons
NOTE: Trailer specifications indicate the manufacture’s recommendation.
*: In case of trailer towing

SPECIFICATIONS
10–10

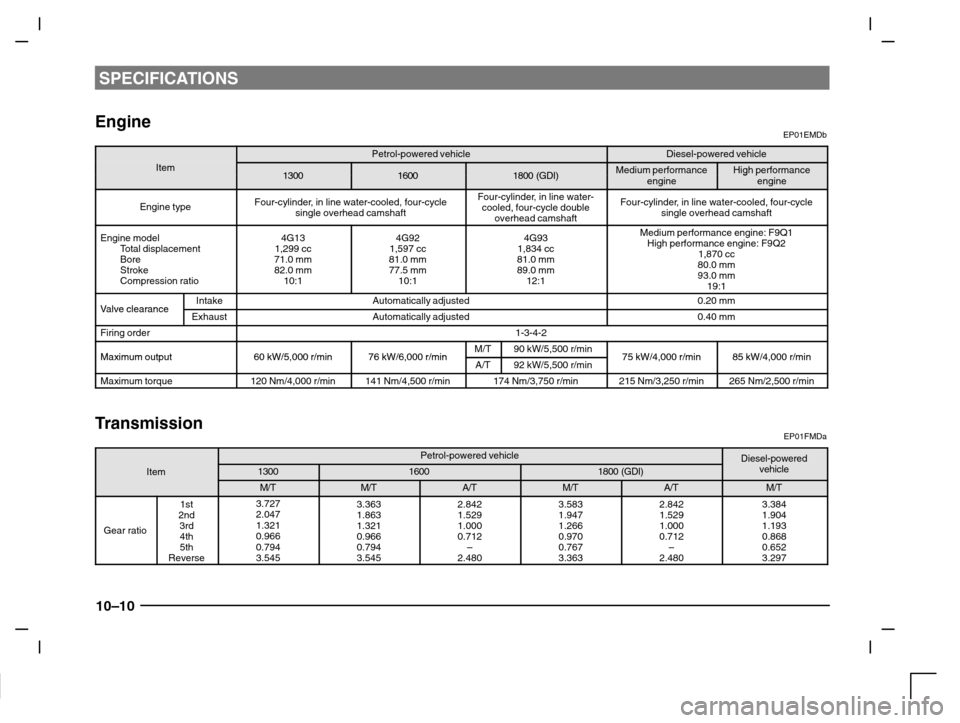

EngineEP01EMDb
Petrol-powered vehicleDiesel-powered vehicleItem130016001800 (GDI)Medium performanceHigh performance130016001800 (GDI)penginegpengine
Engine typeFour-cylinder, in line water-cooled, four-cycle
single overhead camshaftFour-cylinder, in line water-
cooled, four-cycle double
overhead camshaftFour-cylinder, in line water-cooled, four-cycle
single overhead camshaft
Engine model
Total displacement
Bore
Stroke
Compression ratio4G13
1,299 cc
71.0 mm
82.0 mm
10:14G92
1,597 cc
81.0 mm
77.5 mm
10:14G93
1,834 cc
81.0 mm
89.0 mm
12:1Medium performance engine: F9Q1
High performance engine: F9Q2
1,870 cc
80.0 mm
93.0 mm
19:1
Valve clearanceIntakeAutomatically adjusted0.20 mmValve clearanceExhaustAutomatically adjusted0.40 mm
Firing order1-3-4-2
Maximum output60 kW/5 000 r/min76 kW/6 000 r/minM/T90 kW/5,500 r/min75 kW/4 000 r/min85 kW/4 000 r/minMaximum output60 kW/5,000 r/min76 kW/6,000 r/minA/T92 kW/5,500 r/min75 kW/4,000 r/min85 kW/4,000 r/min
Maximum torque120 Nm/4,000 r/min141 Nm/4,500 r/min174 Nm/3,750 r/min215 Nm/3,250 r/min265 Nm/2,500 r/min
TransmissionEP01FMDa
Petrol-powered vehicleDiesel-poweredItem130016001800 (GDI)pvehicle
M/TM/TA/TM/TA/TM/T
Gear ratio
1st
2nd
3rd
4th
5th
Reverse3.727
2.047
1.321
0.966
0.794
3.5453.363
1.863
1.321
0.966
0.794
3.5452.842
1.529
1.000
0.712
–
2.4803.583
1.947
1.266
0.970
0.767
3.3632.842
1.529
1.000
0.712
–
2.4803.384
1.904
1.193
0.868
0.652
3.297

SPECIFICATIONS
10–11

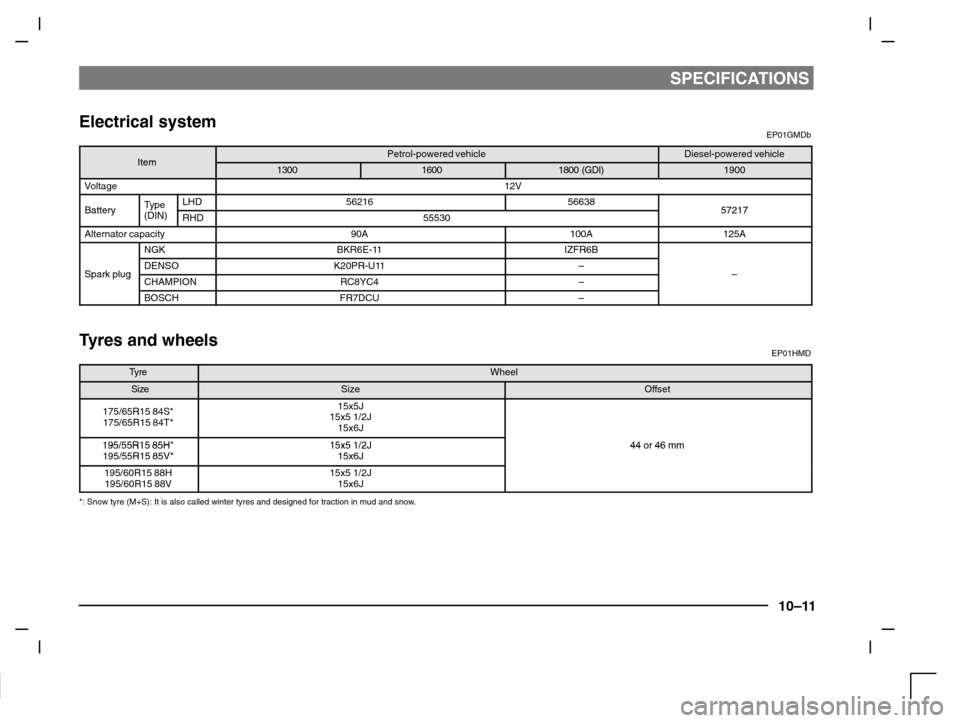

Electrical systemEP01GMDb
ItemPetrol-powered vehicleDiesel-powered vehicleItem130016001800 (GDI)1900
Voltage12V
BatteryTypeLHD562165663857217Batteryyp(DIN)RHD5553057217
Alternator capacity90A100A125A
NGKBKR6E-11IZFR6B
Spark plugDENSOK20PR-U11–Spark plugCHAMPIONRC8YC4––
BOSCHFR7DCU–
Tyres and wheelsEP01HMD
Ty r eWheel
SizeSizeOffset
175/65R15 84S*
175/65R15 84T*15x5J
15x5 1/2J
15x6J
195/55R15 85H*15x5 1/2J44 or 46 mm195/55R15 85H
195/55R15 85V*15x5 1/2J
15x6J44 or 46 mm195/55R15 85V*15x6J
195/60R15 88H
195/60R15 88V15x5 1/2J
15x6J
*: Snow tyre (M+S): It is also called winter tyres and designed for traction in mud and snow.

SPECIFICATIONS
10–12

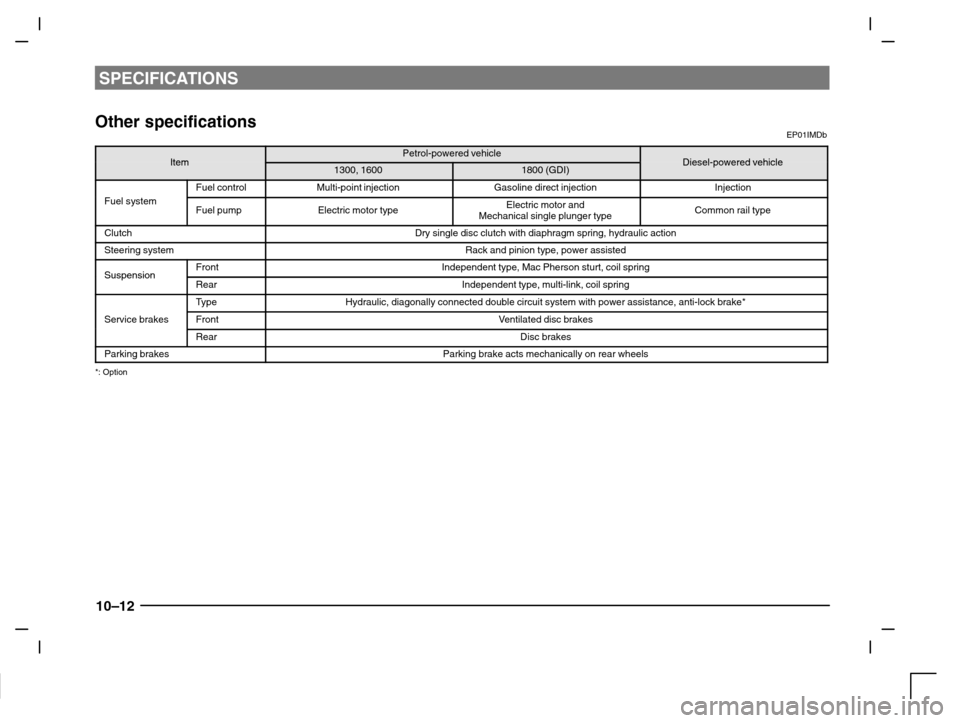

Other specificationsEP01IMDb
ItemPetrol-powered vehicleDiesel powered vehicleItem1300, 16001800 (GDI)Diesel-powered vehicle
Fuel controlMulti-point injectionGasoline direct injectionInjectionFuel systemFuel pumpElectric motor typeElectric motor and
Mechanical single plunger typeCommon rail type
ClutchDry single disc clutch with diaphragm spring, hydraulic action
Steering systemRack and pinion type, power assisted
SuspensionFrontIndependent type, Mac Pherson sturt, coil springSuspensionRearIndependent type, multi-link, coil spring
TypeHydraulic, diagonally connected double circuit system with power assistance, anti-lock brake*
Service brakesFrontVentilated disc brakes
RearDisc brakes
Parking brakesParking brake acts mechanically on rear wheels
*: Option

SPECIFICATIONS
10–13

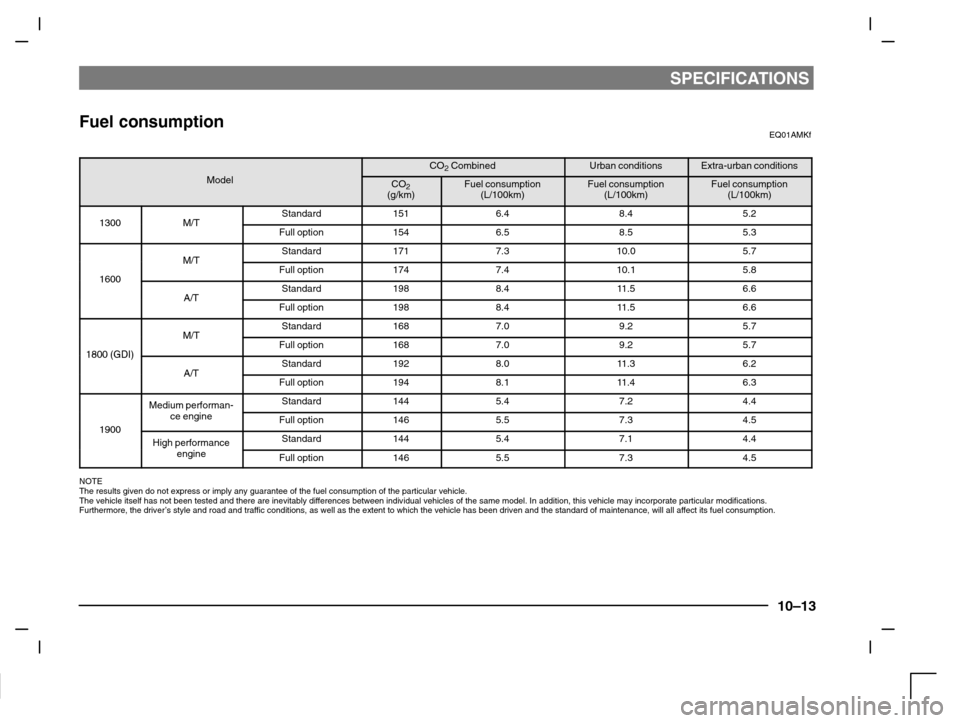

Fuel consumptionEQ01AMKf
CO2 CombinedUrban conditionsExtra-urban conditions
ModelCO2(g/km)Fuel consumption
(L/100km)Fuel consumption
(L/100km)Fuel consumption
(L/100km)
1300M/TStandard1516.48.45.21300M/TFull option1546.58.55.3
M/TStandard1717.310.05.7
1600
M/TFull option1747.410.15.81600
A/TStandard1988.411.56.6A/TFull option1988.411.56.6
M/TStandard1687.09.25.7
1800 (GDI)
M/TFull option1687.09.25.71800 (GDI)
A/TStandard1928.011.36.2A/TFull option1948.111.46.3
Medium performan-Standard1445.47.24.4
1900
pce engineFull option1465.57.34.51900High performanceStandard1445.47.14.4gpengineFull option1465.57.34.5
NOTE
The results given do not express or imply any guarantee of the fuel consumption of the particular vehicle.
The vehicle itself has not been tested and there are inevitably differences between individual vehicles of the same model. In addition, this vehicle may incorporate particular modifications.
Furthermore, the driver’s style and road and traffic conditions, as well as the extent to which the vehicle has been driven and the standard of maintenance, will all affect its fuel consumption.

SPECIFICATIONS
10–14

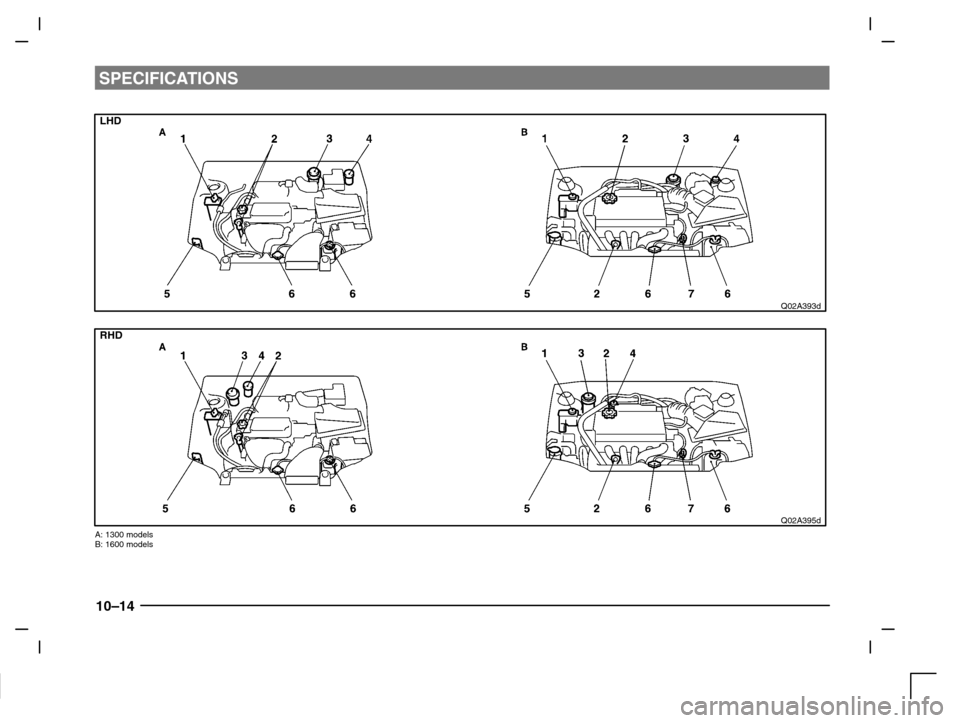

LHD
Q02A393d
RHD
Q02A395d
A: 1300 models
B: 1600 models
