MAINTENANCE
9–19
L05A002a
3. Attach retainers (C) to a new wiper
blade.
4. Insert the wiper blade into the arm,
starting with the opposite end of the
blade from the stopper. Make sure the
hook (B) is fitted correctly in the
grooves in the blade.
NOTE
If retainers (C) are not supplied with the
new wiper blade, use the retainers from the
old blade.
L05A003a
5. Push the wiper blade until the hook (B)
engages securely with the stopper
(A).
Ventilation slotsEL06A-A
The ventilation slots in front of the wind-
screen should be brushed clear after a
heavy snowfall so that the operation of the
heating and ventilation systems will not be
impaired.
WeatherstrippingEL10A-Aa
To prevent freezing of the weatherstripping
on the doors, bonnet, etc., they should be
treated with silicone grease.
Additional equipment
(For regions where snow is
encountered)
EL14A-Ac
It is a good idea to carry a shovel or a
short - handled spade in the vehicle during
the winter so that you can clear away snow
if you get stranded. A small hand - brush for
sweeping snow off the vehicle and a plastic
scraper for the windscreen, side and rear
window are also useful.

GENERAL INFORMATION
1 - 20

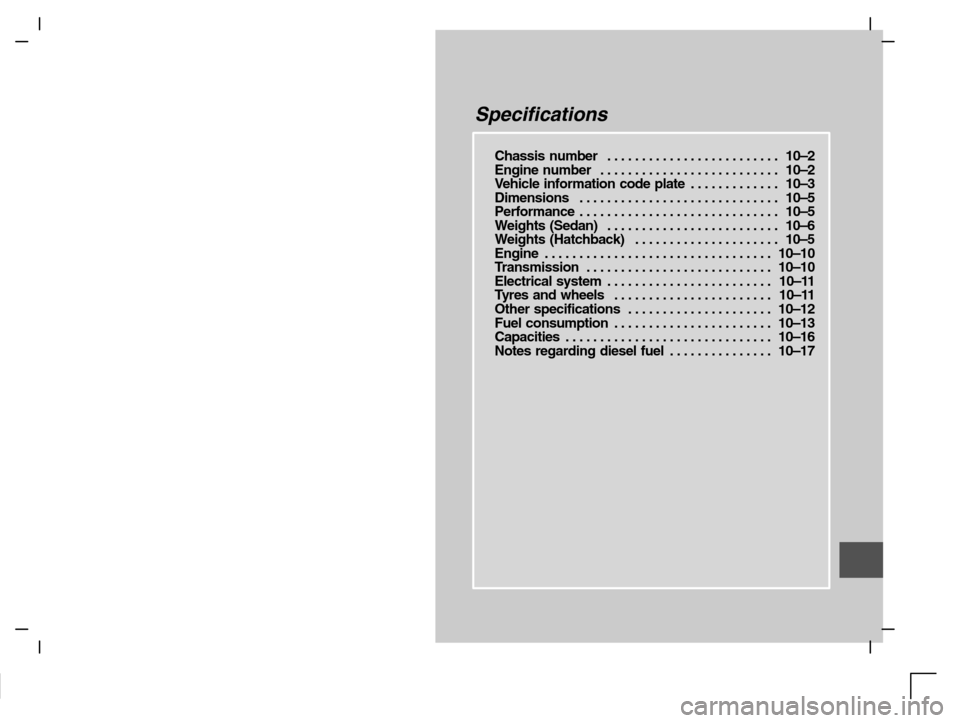

Specifications
Chassis number 10–2. . . . . . . . . . . . . . . . . . . . . . . . .
Engine number 10–2. . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle information code plate 10–3. . . . . . . . . . . . .
Dimensions 10–5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Performance 10–5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Weights (Sedan) 10–6. . . . . . . . . . . . . . . . . . . . . . . . .
Weights (Hatchback) 10–5. . . . . . . . . . . . . . . . . . . . .
Engine 10–10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transmission 10–10. . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical system 10–11. . . . . . . . . . . . . . . . . . . . . . . .
Tyres and wheels 10–11. . . . . . . . . . . . . . . . . . . . . . .
Other specifications 10–12. . . . . . . . . . . . . . . . . . . . .
Fuel consumption 10–13. . . . . . . . . . . . . . . . . . . . . . .
Capacities 10–16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Notes regarding diesel fuel 10–17. . . . . . . . . . . . . . .

SPECIFICATIONS
10–2
B02A005a

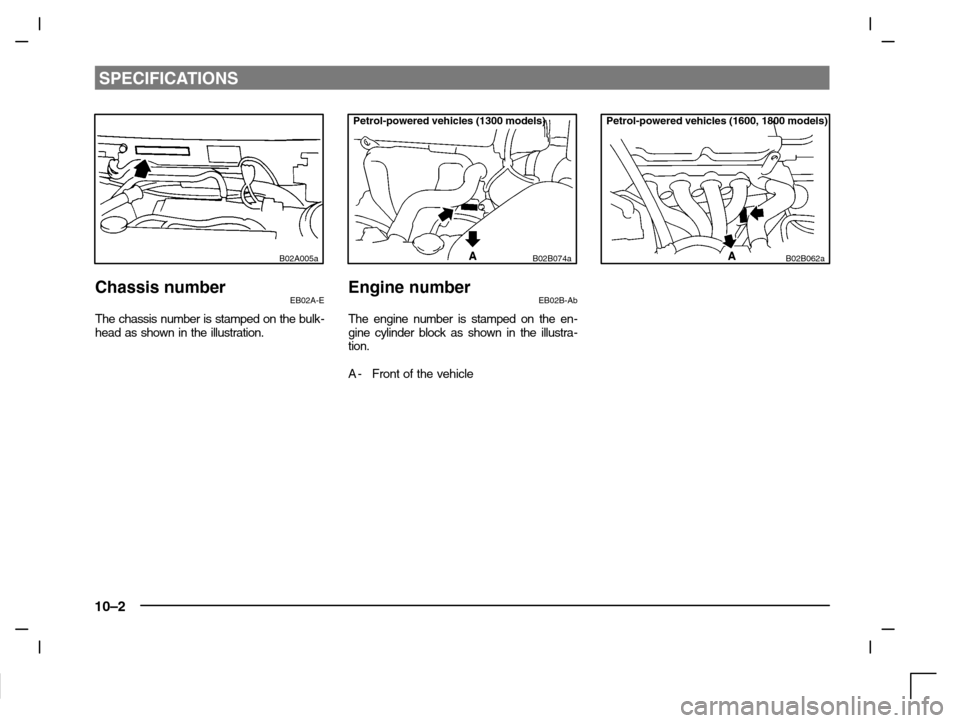

Chassis numberEB02A-E
The chassis number is stamped on the bulk-
head as shown in the illustration.
Petrol-powered vehicles (1300 models)
B02B074a
Engine numberEB02B-Ab
The engine number is stamped on the en-
gine cylinder block as shown in the illustra-
tion.
A- Front of the vehicle
Petrol-powered vehicles (1600, 1800 models)
B02B062a

SPECIFICATIONS
10–3

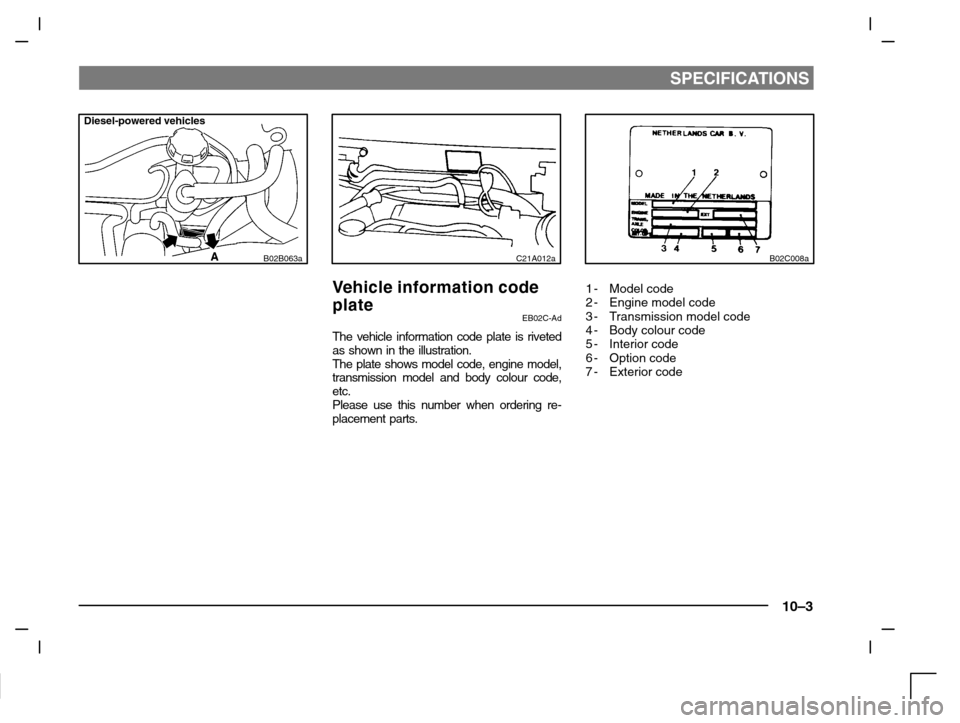

Diesel-powered vehicles
B02B063aC21A012a
Ve h i c l e i n f ormation code
plate
EB02C-Ad
The vehicle information code plate is riveted
as shown in the illustration.
The plate shows model code, engine model,
transmission model and body colour code,
etc.
Please use this number when ordering re-
placement parts.
B02C008a
1-Model code
2-Engine model code
3-Transmission model code
4-Body colour code
5-Interior code
6-Option code
7-Exterior code

SPECIFICATIONS
10–4

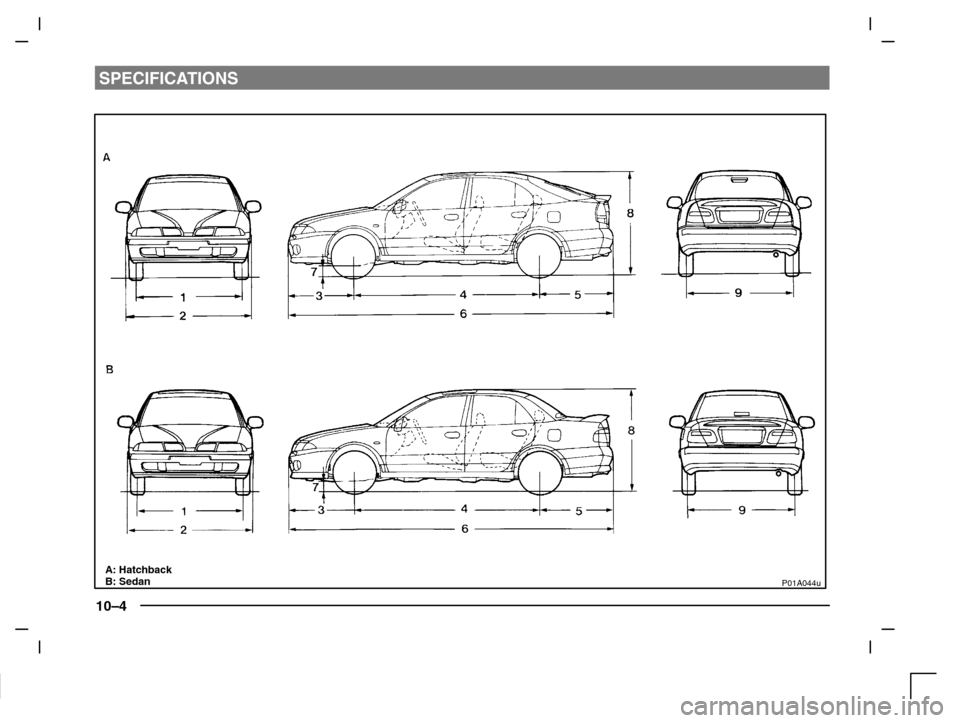

A: Hatchback
B: SedanP01A044u

SPECIFICATIONS
10–5
DimensionsEP01BMDb
ItPetrol–powered vehicleDi l d hi lItem130016001800 (GDI)Diesel–powered vehicle
1Front track1,475 mm
2Overall width1,710 mm
3Front overhang905 mm
4Wheel base2,550 mm
5Rear overhang1,020 mm
6Overall length4,475 mm
7Gdl (ld)M/T155 mm, 170 mm*150 mm, 165 mm*145 mm, 160 mm*7Ground clearance (unladen)A/T–150 mm, 165 mm*–
8Overall height (unladen)1,405 mm, 1,420 mm*
9Rear track1,470 mm
*Vehicles with high ground clearance suspension
PerformanceEP01CMDa
Petrol-powered vehicleDiesel-powered vehicle
Item130016001800 (GDI)Medium perform-High performance1300M/TA/T1800 (GDI)ance enginegpengine
Maximum speed175 km/h185 km/h180 km/h200 km/h190 km/h195 km/h
Minimum turning radiusBody5.55 mMinimum turning radiusWheel5.20 m

SPECIFICATIONS
10–6

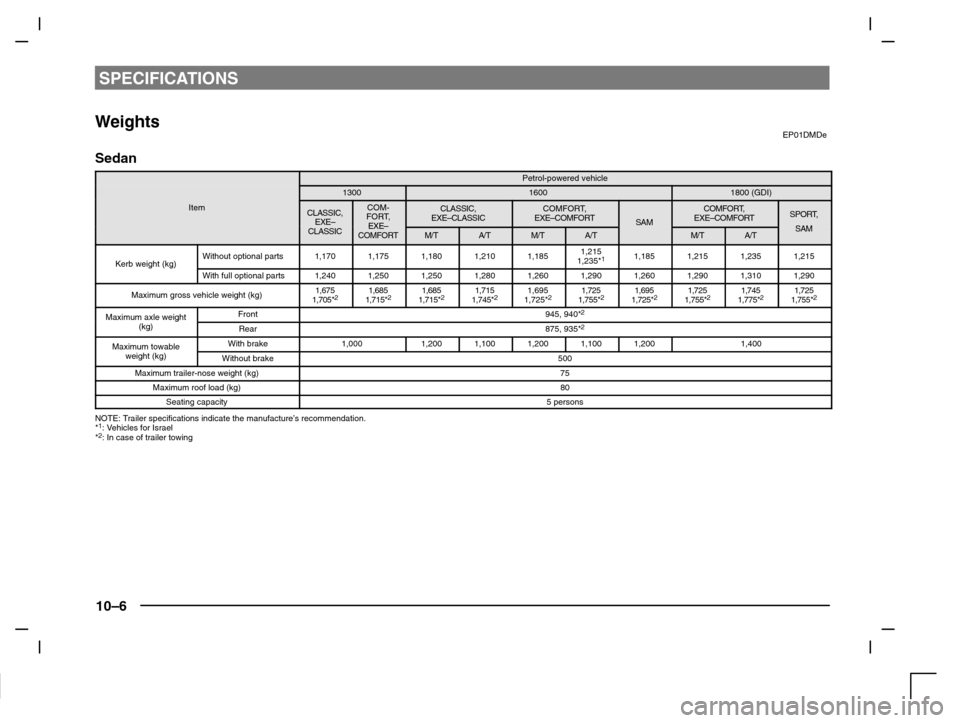

Weights EP01DMDe
Sedan
Petrol-powered vehicle
130016001800 (GDI)
ItemCLASSIC,
EXE–COM-
FORT,
EXE–
CLASSIC,
EXE–CLASSICCOMFORT,
EXE–COMFORTSAMCOMFORT,
EXE–COMFORTSPORT,
SAMCLASSICEXE–
COMFORTM/TA/TM/TA/TM/TA/TSAM
Kerb weight (kg)Without optional parts1,1701,1751,1801,2101,1851,215
1,235*11,1851,2151,2351,215g(g)With full optional parts1,2401,2501,2501,2801,2601,2901,2601,2901,3101,290
Maximum gross vehicle weight (kg)1,675
1,705*21,685
1,715*21,685
1,715*21,715
1,745*21,695
1,725*21,725
1,755*21,695
1,725*21,725
1,755*21,745
1,775*21,725
1,755*2
Maximum axle weightFront945, 940*2g(kg)Rear875, 935*2
Maximum towableWith brake1,0001,2001,1001,2001,1001,2001,400weight (kg)Without brake500
Maximum trailer-nose weight (kg)75
Maximum roof load (kg)80
Seating capacity5 persons
NOTE: Trailer specifications indicate the manufacture’s recommendation.
*1: Vehicles for Israel
*2: In case of trailer towing
