2000 MITSUBISHI CARISMA Owners Manual

INSTRUMENTS AND CONTROLS
4–31
Type 1
D92G002a
To r e s e t the display, push the “DISP” button
for about 2 seconds or more.
Type 2
D92G003aD92J005a
Display brightness adjustment /
Display unit selection
ED92L-Ab
Display brightness adjustment
1. Press the “H” button while pressing
the button (A) to activate the display
brightness selection function.

INSTRUMENTS AND CONTROLS
4–32
D92J006a
2. Adjust the brightness by moving the
cursor with the “H” or “M” button.
H- Decrease brightness
M- Increase brightness
D92J004a
3. Press the “SET” button to determine
the setting. The display will return to
the original display item.
NOTE
(1) To cancel the brightness adjusting pro-
cedure before completion, press the
button (A).
(2) If the “SET” button is not pressed for
about 15 seconds or longer in the
middle of the adjustment, the currently
selected brightness is set automatically.
Then, the display returns to the original
display item.
D92J001a
Display unit selectionED92J-Ab
Originally, km/h and L/100 km are selected.
When you want to select the unit “mile”, fol-
low this procedure.
NOTE
For vehicles without MITSUBISHI genuine
audio system, only the unit of average fuel
consumption can be changed to km or miles
as you like.
1. Press the “M” button while pressing
the button (A) to activate the display
unit selection function. The currently
selected unit will appear.

INSTRUMENTS AND CONTROLS
4–33
D92J002a
2. Use the “H” or “M” button to select the
desired speed unit, then press the
“SET” button to enter the setting.
H- km
M- mile
D92J003a
3. If the km unit was selected in step 2,
the fuel consumption unit must be se-
lected continuously using the “H” or
“M” button. The currently selected unit
will appear.
Use the “H” or “M” button to select the
desired fuel consumption unit, then
press the “SET” button to enter the set-
ting.
H- L/100 km
M- km/L
D92J004a
4. Press the “SET” button to determine
the setting. The display will return to
the original display item.
NOTE
(1) For vehicles without a MITSUBISHI
genuine audio system, only the unit of
fuel consumption can be changed to km
or miles as you like.
(2) If you select “M” (mile) unit in step 2, fuel
consumption is automatically shown in
“mpg (mile per gallon)”.
(3) To cancel the unit setting procedure be-
fore completion, press the button (A).
(4) The outside temperature and clock are
not shown during the unit selecting pro-
cedure.
(5) If the “SET” button is not pressed for
about 15 seconds or longer in the
middle of the selection, the currently se-
lected unit is set automatically. Then, the
display returns to the original display
item.

GENERAL INFORMATION
1 - 34

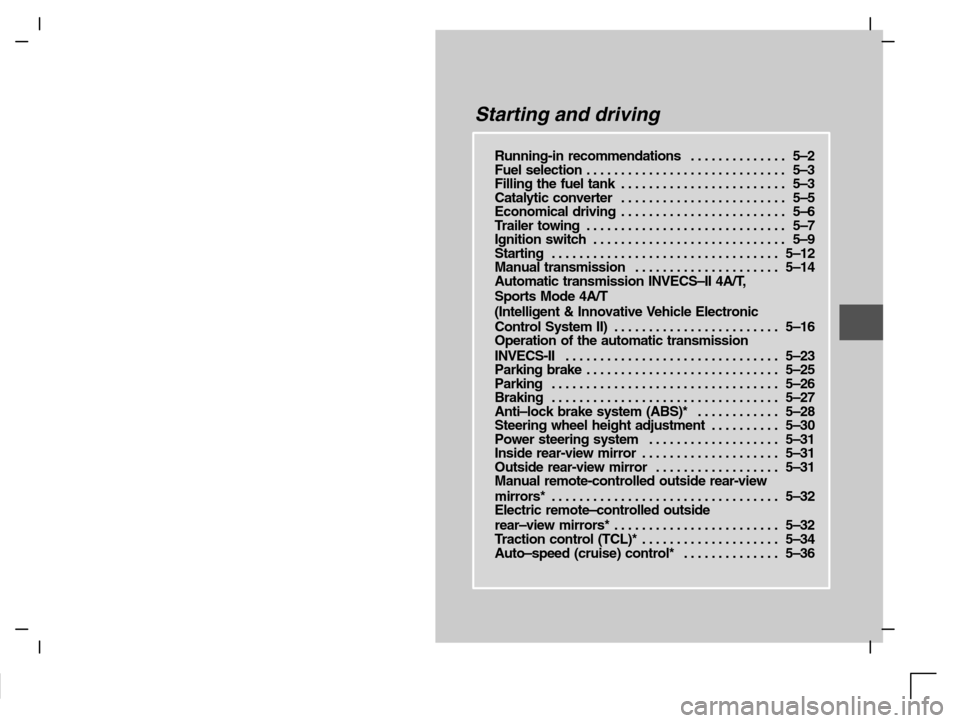

Starting and driving
Running-in recommendations 5–2. . . . . . . . . . . . . .
Fuel selection 5–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Filling the fuel tank 5–3. . . . . . . . . . . . . . . . . . . . . . . .
Catalytic converter 5–5. . . . . . . . . . . . . . . . . . . . . . . .
Economical driving 5–6. . . . . . . . . . . . . . . . . . . . . . . .
Tr ailer towing 5–7. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch 5–9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting 5–12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manual transmission 5–14. . . . . . . . . . . . . . . . . . . . .
Automatic transmission INVECS–II 4A/T,
Sports Mode 4A/T
(Intelligent & Innovative Vehicle Electronic
Control System II) 5–16. . . . . . . . . . . . . . . . . . . . . . . .
Operation of the automatic transmission
INVECS-II 5–23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking brake 5–25. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking 5–26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Braking 5–27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti–lock brake system (ABS)* 5–28. . . . . . . . . . . .
Steering wheel height adjustment 5–30. . . . . . . . . .
Power steering system 5–31. . . . . . . . . . . . . . . . . . .
Inside rear-view mirror 5–31. . . . . . . . . . . . . . . . . . . .
Outside rear-view mirror 5–31. . . . . . . . . . . . . . . . . .
Manual remote-controlled outside rear-view
mirrors* 5–32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric remote–controlled outside
rear–view mirrors* 5–32. . . . . . . . . . . . . . . . . . . . . . . .
Traction control (TCL)* 5–34. . . . . . . . . . . . . . . . . . . .
Auto–speed (cruise) control* 5–36. . . . . . . . . . . . . .

STARTING AND DRIVING
5–2
Running-in
recommendations
EA01AMKi
During the running-in period for the first
1,000 km, it is advisable to drive your new
vehicle using the following precautions as a
guideline to aid long life as well as future
economy and performance.
(1) Do not race the engine at high speeds.
(2) Avoid rapid starting, accelerating, brak-
ing and prolonged high-speed running.
(3) Keep to the running-in speed limit
shown below.
Please note that the legal speed limits
displayed must be adhered to.
(4) Do not exceed loading limits.
(5) Refrain from towing a trailer.
Ve h i c les with manual transmissionkm/h
Speed limit
DrivePetrol-powered vehicleDiesel-range
130016001800
(GDI)powered
vehicle
1st25353025
2nd50606045
3rd80909070
4th105120120100
5th130150155135
Vehicles with automatic trans-
mission INVECS-II 4A/T
km/h
Drive rangeSpeed limitDrive range1600
“L” (LOW)30
“2” (SECOND)70
“3” (THIRD)105
“D” (DRIVE)120
Ve h i c les with automatic trans-
mission INVECS-II
Sport Mode 4A/T
km/h
Drive rangeSpeed limit
1st30
2nd80
3rd120
4th130

STARTING AND DRIVING
5–3
Fuel selectionEC20AMFe
Recommended
fuel
Petrol-powered vehicles
Unleaded petrol
octane rating (DIN 51607)
95 RON or higher (Super)
Diesel-powered vehicles
Cetane rating (DIN 51601)
45 or higher
NOTE
The petrol-powered vehicles have the oc-
tane number automatic change device so
that you can use unleaded normal petrol 91
RON as an emergency measure in case un-
leaded premium petrol 95 RON or higher is
not available on journey, etc. In such a case,
you don’t need to adjust the engine specially.
In case of using unleaded normal petrol 91
RON, the engine performance will suffer a
little degradation.
Filling the fuel tankEC20DMA
WARNING
Gasoline is highly flammable and ex-
plosive.
Yo u could be burned or seriously in-
jured when handling it. When refuel-
ing your vehicle, always turn the en-
gine off and keep away from flames,
sparks, and smoking materials. Al-
ways handle fuel in well–ventilated
outdoor areas.
Fuel tank capacity
60 litres
LHD
C20A131a
Refueling
1. Before filling with fuel, stop the engine.
2. The fuel tank filler is located on the left
side of your vehicle.
The fuel tank filler door can be opened
from inside the vehicle with the fuel
tank filler door release lever located
beside the driver’s seat.

STARTING AND DRIVING
5–4
C20A132a
RHD
C20A162a
A- Remove
B- Close
3. Open the fuel tank filler tube by slowly
turning the cap anticlockwise.
NOTE
Put the fuel tank cap on the cap holder (C)
while refueling.
CAUTION
Since the fuel system may be under
pressure, remove the fuel tank filler
tube cap slowly. This relieves any
pressure or vacuum that might have
built up in the fuel tank. If the cap is
venting vapor or if you hear a hissing
sound, wait until it stops before re-
moving the cap. Otherwise, fuel may
spray out, injuring you or others.
4. To fill with fuel correctly depends main-
ly on correct handling of the fuel filler
gun. Do not tilt the gun. Insert the gun
in the tank port as far as it goes.
CAUTION
Petrol–powered vehicles have a label
located on the fuel tank filler lid that
states, ”UNLEADED FUEL ONLY”.
The vehicle also has a fuel tank filler
tube especially designed to accept
the smaller diameter unleaded petrol
dispensing nozzles only.
If the tank cap must be replaced, use
only a MITSUBISHI original part
specified for your vehicle.
