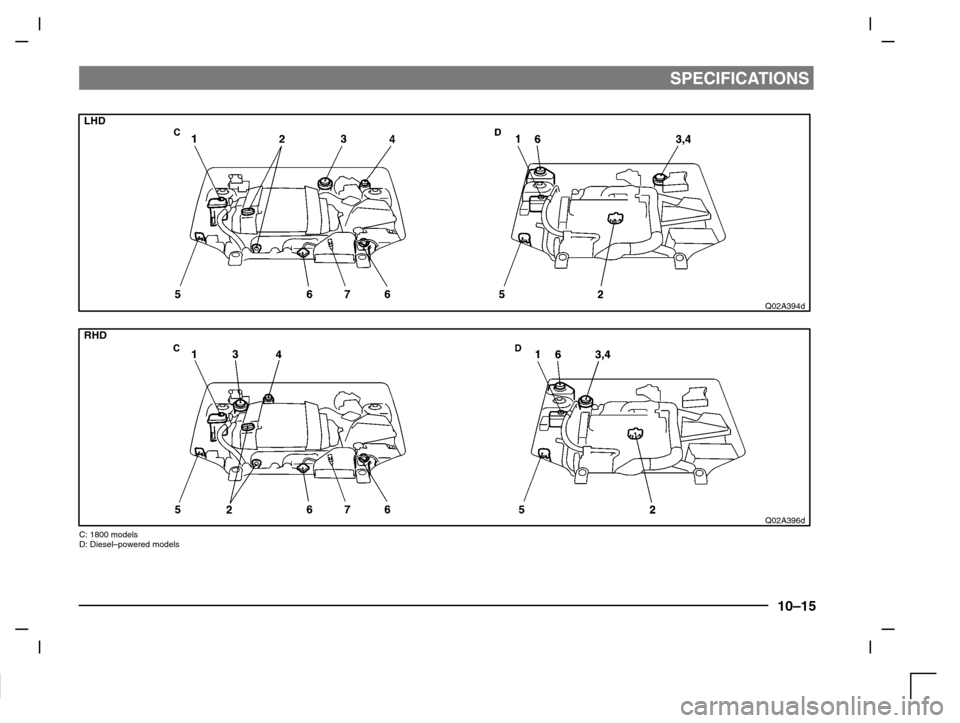

SPECIFICATIONS
10–15
LHD
Q02A394d
RHD
Q02A396d
C: 1800 models
D: Diesel–powered models

SPECIFICATIONS
10–16

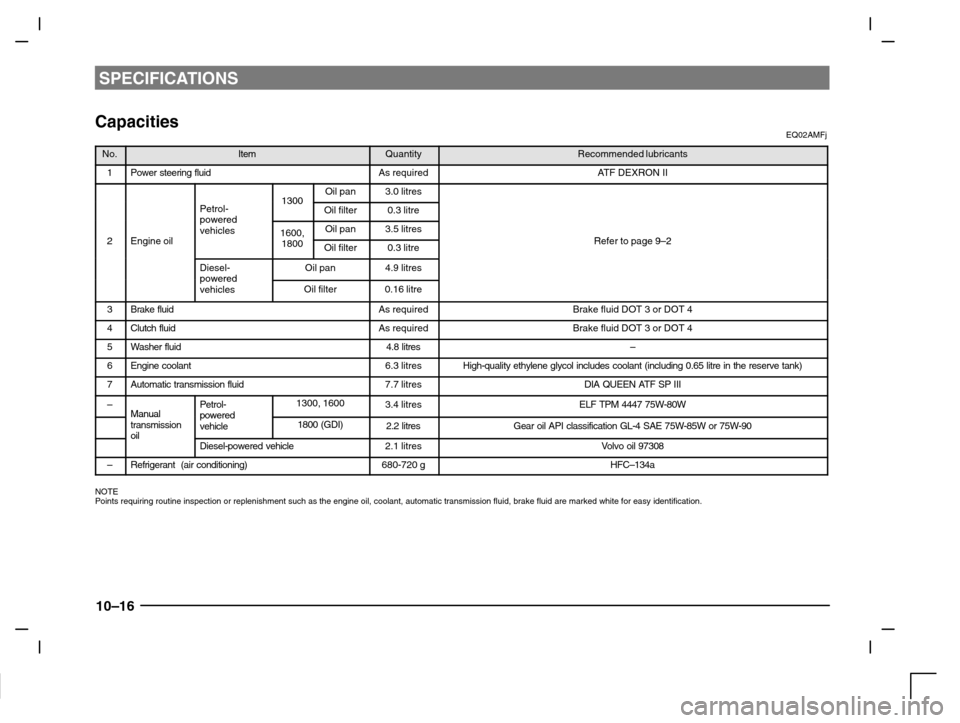

CapacitiesEQ02AMFj
No.ItemQuantityRecommended lubricants
1Power steering fluidAs requiredATF DEXRON II
1300Oil pan3.0 litres
Petrol-powered
1300Oil filter0.3 litre
2Engine oil
powered
vehicles1600,Oil pan3.5 litresRefer to page 9 22Engine oil1800Oil filter0.3 litreRefer to page 9–2
Diesel-poweredOil pan4.9 litrespowered
vehiclesOil filter0.16 litre
3Brake fluidAs requiredBrake fluid DOT 3 or DOT 4
4Clutch fluidAs requiredBrake fluid DOT 3 or DOT 4
5Washer fluid4.8 litres–
6Engine coolant6.3 litresHigh-quality ethylene glycol includes coolant (including 0.65 litre in the reserve tank)
7Automatic transmission fluid7.7 litresDIA QUEEN ATF SP III
–ManualPetrol-powered1300, 16003.4 litresELF TPM 4447 75W-80WManual
transmission
oil
powered
vehicle1800 (GDI)2.2 litresGear oil API classification GL-4 SAE 75W-85W or 75W-90oilDiesel-powered vehicle2.1 litresVolvo oil 97308
–Refrigerant (air conditioning)680-720 gHFC–134a
NOTE
Points requiring routine inspection or replenishment such as the engine oil, coolant, automatic transmission fluid, brake fluid are marked white for easy identification.

SPECIFICATIONS
10–17

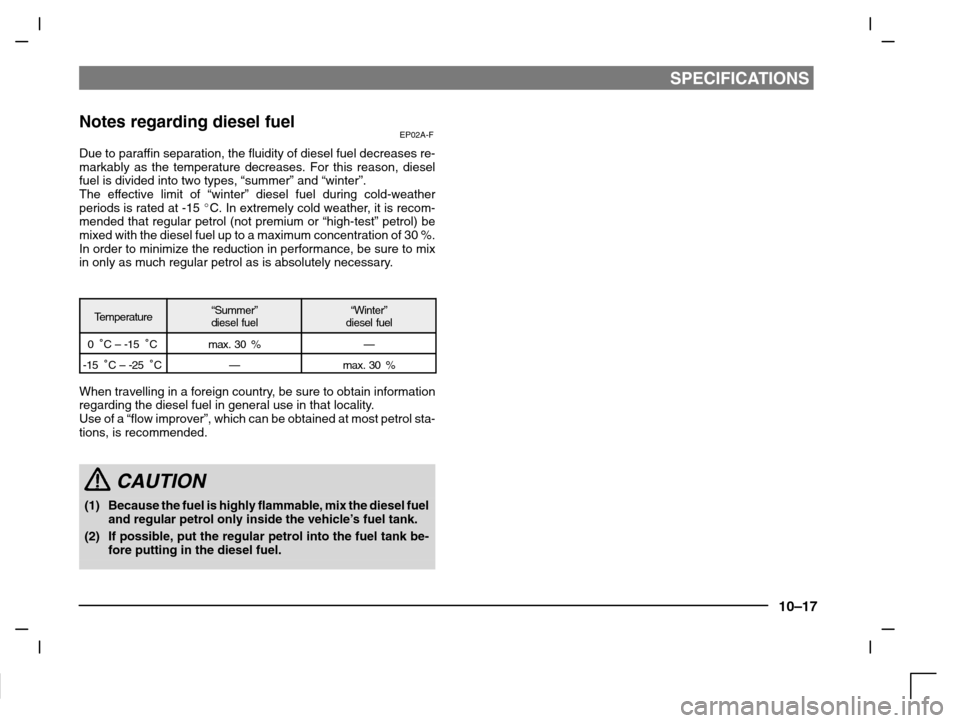

Notes regarding diesel fuelEP02A-F
Due to paraffin separation, the fluidity of diesel fuel decreases re-
markably as the temperature decreases. For this reason, diesel
fuel is divided into two types, “summer” and “winter”.
The effective limit of “winter” diesel fuel during cold-weather
periods is rated at -15
C. In extremely cold weather, it is recom-
mended that regular petrol (not premium or “high-test” petrol) be
mixed with the diesel fuel up to a maximum concentration of 30 %.
In order to minimize the reduction in performance, be sure to mix
in only as much regular petrol as is absolutely necessary.
Te mperature“Summer”
diesel fuel“Winter”
diesel fuel
0
C – -15
Cmax. 30 %—
-15
C – -25
C—max. 30 %
When travelling in a foreign country, be sure to obtain information
regarding the diesel fuel in general use in that locality.
Use of a “flow improver”, which can be obtained at most petrol sta-
tions, is recommended.
CAUTION
(1) Because the fuel is highly flammable, mix the diesel fuel
and regular petrol only inside the vehicle’s fuel tank.
(2) If possible, put the regular petrol into the fuel tank be-
fore putting in the diesel fuel.

10–18
