1999 NISSAN PRIMERA Control

YEL958C
HARNESS LAYOUT
Engine Control Harness (Cont’d)
EL-371

SR20DE ENGINE
YEL959C
HARNESS LAYOUT
Engine Control Harness (Cont’d)
EL-372

YEL960C
HARNESS LAYOUT
Engine Control Harness (Cont’d)
EL-373

CD20T ENGINE
Body ground
RHD modelsLHD models
Be sure to connect and lock the connectors securely after repair work.
Failure to do so may cause the ECM to have diagnostic trouble codes.
Do not disconnect these connectors except in the case of working
according to WORK FLOW of TROUBLE DIAGNOSES in EC and AT sections. Engine ground
YEL243C
HARNESS LAYOUT
Engine Control Harness (Cont’d)
EL-374

YEL962C
HARNESS LAYOUT
Engine Control Harness (Cont’d)
EL-375

YEL254C
Body harnessA3
B3
W/24 : To
M13
A2
B4
W/6 : To
M14
A1
B5
W/12 : To
D2
B2
B8
BR/16 : Fuse block (J/B)
A1
B11
W/8 : Time control unit
A1
B12
W/20 : Time control unit
D1
B15
W/6 : Ultra sonic sub-sensor
E1
B16
W/8 : To
D22
E2
B17
W/4 : Seat belt pre-tensioner (Passenger side)
E1
B18
—: Body ground
D2
B19
BR/1 : Front door switch (Passenger side)
B3
B20
B/3 : Front door switch (Driver’s side)
B4
B21
W/3 : Heated seat LH
C4
B22
W/2 : Power seat
C2
B24
B/1 : Parking brake switch
B4
B26
W/4 : Seat belt pre-tensioner (Driver’s side)
B2
B27
—: Body ground
B2
B28
W/8 : To
D18
B3
B29
W/8 : Ultra sonic sensor
D4
B30
GY/2 : Fuel pump
D4

B31
GY/3 : Fuel level sensor unit
E3
B32
GY/2 : Rear wheel sensor RH
D4
B33
BR/2 : Rear wheel sensor LH
E1
B34
BR/1 : Rear door switch RH
F2
B37
B/2 : Rear speaker RH
D3
B38
BR/1 : Rear door switch LH
E2
B40
B/2 : Rear speaker LH
D2
B47
W/16 : CD auto changer
F2
B50
B/1 : High mounted stop lamp
F3
B51
W/2 : Trunk room lamp
F3
B52
W/4 : Rear wiper motor
E3
B53
W/8 : To
T1
E3
B54
W/8 : To
T14
C1
B56
W/10 : To
D11
C1
B57
W/16 : To
E115
C2
B58
W/12 : To
B101
D1
B59
B/1 : Rear window defogger
D3
B61
W/3 : Heated seat RH
B3
B65
—: Body ground
C3
B66
Y/12 : Diagnosis sensor unit
C3
B67
Y/12 : Diagnosis sensor unit
B4
B68
Y/2 : Side air bag module LH
D3
B69
Y/2 : Side air bag module RH
B4
B70
OR/2 : Satellite sensor LHD2
B71
Y/2 : Satellite sensor RH
D2
B72
—: Body ground
B1
B97
B/2 : Fuse block (J/B)
A3
B98
L/4 : Theft warning horn relay
A3
B99
GY/2 : Circuit breaker-2
A1
B121
W/6 : Central unlock/trunk release switch
C3
B122
W/3 : To
B130
C2
B123
W/12 : Auto level control unit
C4
B124
W/3 : To
B132
C4
B130
W/3 : To
B122
B2
B131
/3 : Front sensor
D4
B132
W/3 : To
B124
F3
B133
/3 : Rear sensor
Console harnessC2
B101
W/12 : To
B58
C2
B102
W/6 : Ultrasonic cancel switch
B3
B104
L/4 : Heated seat switch LH
C2
B105
W/4 : Heated seat switch RH
C2
B106
W/4 : Headlamp aiming switch
Tail harnessE3
T1
W/8 : To
B53
F4
T2
W/4 : Rear combination lamp LH
F3
T3
—: Body ground
G3
T4
—: Body ground
G3
T5
W/4 : Rear combination lamp RH
G2
T6
B/1 : Theft warning horn
F4
T9
BR/2 : License plate lamp LH
D4
T17
BR/4 : Not used (To trailer tow connection)
E4
T18
BR/4 : Link
F3
T19
BR/2 : License plate lamp RH
Tail harness No. 2F3
T7
W/8 : To
T16
F4
T8
W/2 : Rear fog lamp
G3
T10
B/2 : Trunk room lamp switch
G2
T12
W/4 : Door unlock actuator assembly (Trunk)
G2
T13
W/2 : Back-up lamp
G3
T20
W/3 : External trunk release switch
Tail sub-harnessE4
T14
W/8 : To
B54
E4
T16
W/8 : To
T7
HARNESS LAYOUT
Body Harness (Cont’d)
EL-387

YEL256C
Body harnessG3
B3
W/24 : To
M13
G3
B4
W/6 : To
M14
G2
B5
W/12 : To
D2
F1
B8
BR/16 : Fuse block (J/B)
F1
B11
W/8 : Time control unit
G1
B12
W/20 : Time control unit
F3
B15
W/6 : Ultra sonic sub-sensor
F2
B16
W/8 : To
D22
E4
B17
W/4 : Seat belt pre-tensioner (Driver’s side)
F2
B18
—: Body ground
D1
B19
BR/1 : Front door switch (Passenger side)
F3
B20
B/3 : Front door switch (Driver’s side)
C3
B21
W/3 : Heated seat LH
E3
B22
W/2 : Power seat
E3
B24
B/1 : Parking brake switch
C1
B26
W/4 : Seat belt pre-tensioner (Passenger side)
C2
B27
—: Body ground
D1
B28
W/8 : To
D18
C1
B29
W/8 : Ultra sonic sensor
D4
B30
GY/2 : Fuel pump
D3
B31
GY/3 : Fuel level sensor unit
E4
B32
GY/2 : Rear wheel sensor RH
C2
B33
BR/2 : Rear wheel sensor LH
D1
B34
BR/1 : Rear door switch RH
C1
B37
B/2 : Rear speaker RH
C1
B38
BR/1 : Rear door switch LH
B1
B40
B/2 : Rear speaker LH
A1
B47
W/16 : CD auto changer
B1
B50
B/1 : High mounted stop lamp
B2
B51
W/2 : Trunk room lamp
C1
B52
W/4 : Rear wiper motor
A2
B53
W/8 : To
T1
A2
B54
W/8 : To
T14
E1
B56
W/10 : To
D11
E1
B57
W/16 : To
E115
E2
B58
W/12 : To
B101
B1
B59
B/1 : Rear window defogger
E3
B61
W/3 : Heated seat RH
C2
B65
—: Body ground
D3
B66
Y/12 : Diagnosis sensor unit
E3
B67
Y/12 : Diagnosis sensor unit
C3
B68
Y/2 : Side air bag module LH
E3
B69
Y/2 : Side air bag module RH
C2
B70
OR/2 : Satellite sensor LHF4
B71
Y/2 : Satellite sensor RH
F3
B72
—: Body ground
F1
B97
B/2 : Fuse block (J/B)
G3
B98
L/4 : Theft warning horn relay
G3
B99
GY/2 : Circuit breaker-2
G1
B121
W/6 : Central unlock/trunk release switch
D3
B122
W/3 : To
B130
E1
B123
W/12 : Auto level control unit
B2
B124
W/3 : To
B132
D3
B130
W/3 : To
B122
F2
B131
—/3 : Front sensor
B2
B132
W/3 : To
B124
B3
B133
—/3 : Rear sensor
Console harnessE2
B101
W/12 : To
B58
D2
B102
W/6 : Ultrasonic cancel switch
D2
B104
L/4 : Heated seat switch LH
E2
B105
W/4 : Heated seat switch RH
E2
B106
W/4 : Headlamp aiming switch
Tail harnessA2
T1
W/8 : To
B53
A3
T2
W/4 : Rear combination lamp LH
B4
T3
—: Body ground
B4
T4
—: Body ground
B4
T5
W/4 : Rear combination lamp RH
C4
T6
B/1 : Theft warning horn
A3
T9
BR/2 : License plate lamp LH
A3
T17
BR/4 : Not used (To trailer tow connection)
A3
T18
BR/4 : Link
A3
T19
BR/2 : License plate lamp RH
Tail harness No. 2A3
T7
W/8 : To
T16
A3
T8
W/2 : Back-up lamp
B3
T10
B/2 : Trunk room lamp switch
C3
T12
W/4 : Door unlock actuator assembly (Trunk)
B3
T13
W/2 : Rear fog lamp
B3
T20
W/3 : External trunk release switch
Tail sub-harnessA2
T14
W/8 : To
B54
A2
T16
W/8 : To
T7
HARNESS LAYOUT
Body Harness (Cont’d)
EL-391

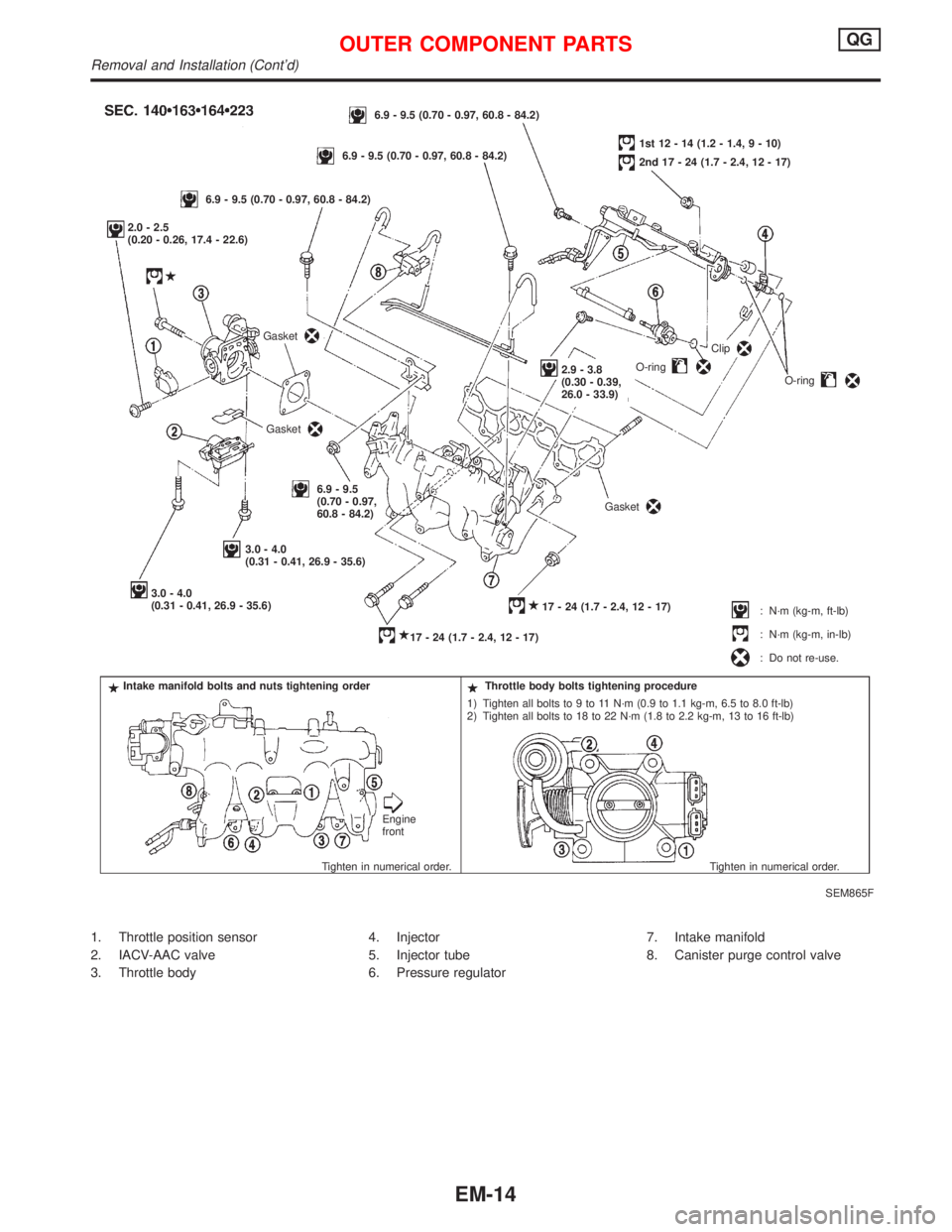

1. Throttle position sensor
2. IACV-AAC valve
3. Throttle body4. Injector
5. Injector tube
6. Pressure regulator7. Intake manifold
8. Canister purge control valve
SEM865F
6.9 - 9.5 (0.70 - 0.97, 60.8 - 84.2)
.6.9 - 9.5 (0.70 - 0.97, 60.8 - 84.2)
6.9 - 9.5 (0.70 - 0.97, 60.8 - 84.2)
6.9 - 9.5
(0.70 - 0.97,
60.8 - 84.2) 2.0 - 2.5
(0.20 - 0.26, 17.4 - 22.6)1st 12 - 14 (1.2 - 1.4, 9 - 10)
2nd 17 - 24 (1.7 - 2.4, 12 - 17)
Clip
.O-ringO-ring2.9 - 3.8
(0.30 - 0.39,
26.0 - 33.9) Gasket
Gasket
Gasket
3.0 - 4.0
(0.31 - 0.41, 26.9 - 35.6)
3.0 - 4.0
(0.31 - 0.41, 26.9 - 35.6)
17 - 24 (1.7 - 2.4, 12 - 17)17 - 24 (1.7 - 2.4, 12 - 17)
: N´m (kg-m, ft-lb)
: N´m (kg-m, in-lb)
: Do not re-use.
Intake manifold bolts and nuts tightening order Throttle body bolts tightening procedure
1) Tighten all bolts to 9 to 11 N´m (0.9 to 1.1 kg-m, 6.5 to 8.0 ft-lb)
2) Tighten all bolts to 18 to 22 N´m (1.8 to 2.2 kg-m, 13 to 16 ft-lb)
Engine
front
Tighten in numerical order.
Tighten in numerical order.
OUTER COMPONENT PARTSQG
Removal and Installation (Cont'd)
EM-14
