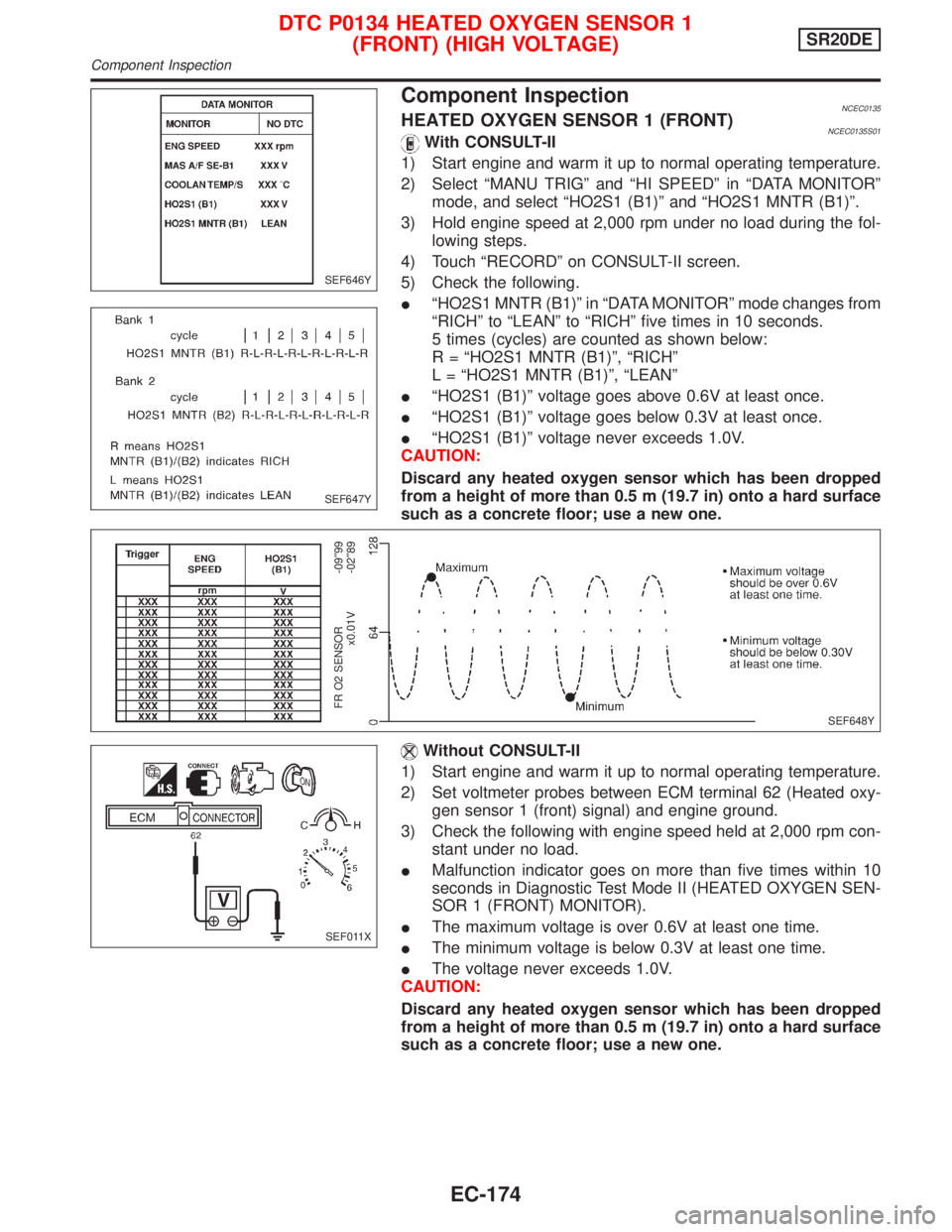

Component InspectionNCEC0135HEATED OXYGEN SENSOR 1 (FRONT)NCEC0135S01With CONSULT-II
1) Start engine and warm it up to normal operating temperature.
2) Select ªMANU TRIGº and ªHI SPEEDº in ªDATA MONITORº
mode, and select ªHO2S1 (B1)º and ªHO2S1 MNTR (B1)º.
3) Hold engine speed at 2,000 rpm under no load during the fol-
lowing steps.
4) Touch ªRECORDº on CONSULT-II screen.
5) Check the following.
IªHO2S1 MNTR (B1)º in ªDATA MONITORº mode changes from
ªRICHº to ªLEANº to ªRICHº five times in 10 seconds.
5 times (cycles) are counted as shown below:
R = ªHO2S1 MNTR (B1)º, ªRICHº
L = ªHO2S1 MNTR (B1)º, ªLEANº
IªHO2S1 (B1)º voltage goes above 0.6V at least once.
IªHO2S1 (B1)º voltage goes below 0.3V at least once.
IªHO2S1 (B1)º voltage never exceeds 1.0V.
CAUTION:
Discard any heated oxygen sensor which has been dropped
from a height of more than 0.5 m (19.7 in) onto a hard surface
such as a concrete floor; use a new one.
Without CONSULT-II
1) Start engine and warm it up to normal operating temperature.
2) Set voltmeter probes between ECM terminal 62 (Heated oxy-
gen sensor 1 (front) signal) and engine ground.
3) Check the following with engine speed held at 2,000 rpm con-
stant under no load.
IMalfunction indicator goes on more than five times within 10
seconds in Diagnostic Test Mode II (HEATED OXYGEN SEN-
SOR 1 (FRONT) MONITOR).
IThe maximum voltage is over 0.6V at least one time.
IThe minimum voltage is below 0.3V at least one time.
IThe voltage never exceeds 1.0V.
CAUTION:
Discard any heated oxygen sensor which has been dropped
from a height of more than 0.5 m (19.7 in) onto a hard surface
such as a concrete floor; use a new one.
SEF646Y
SEF647Y
SEF648Y
FR O2 SENSOR
x0.01V-09²99
-02²89
SEF011X
DTC P0134 HEATED OXYGEN SENSOR 1
(FRONT) (HIGH VOLTAGE)SR20DE
Component Inspection
EC-174

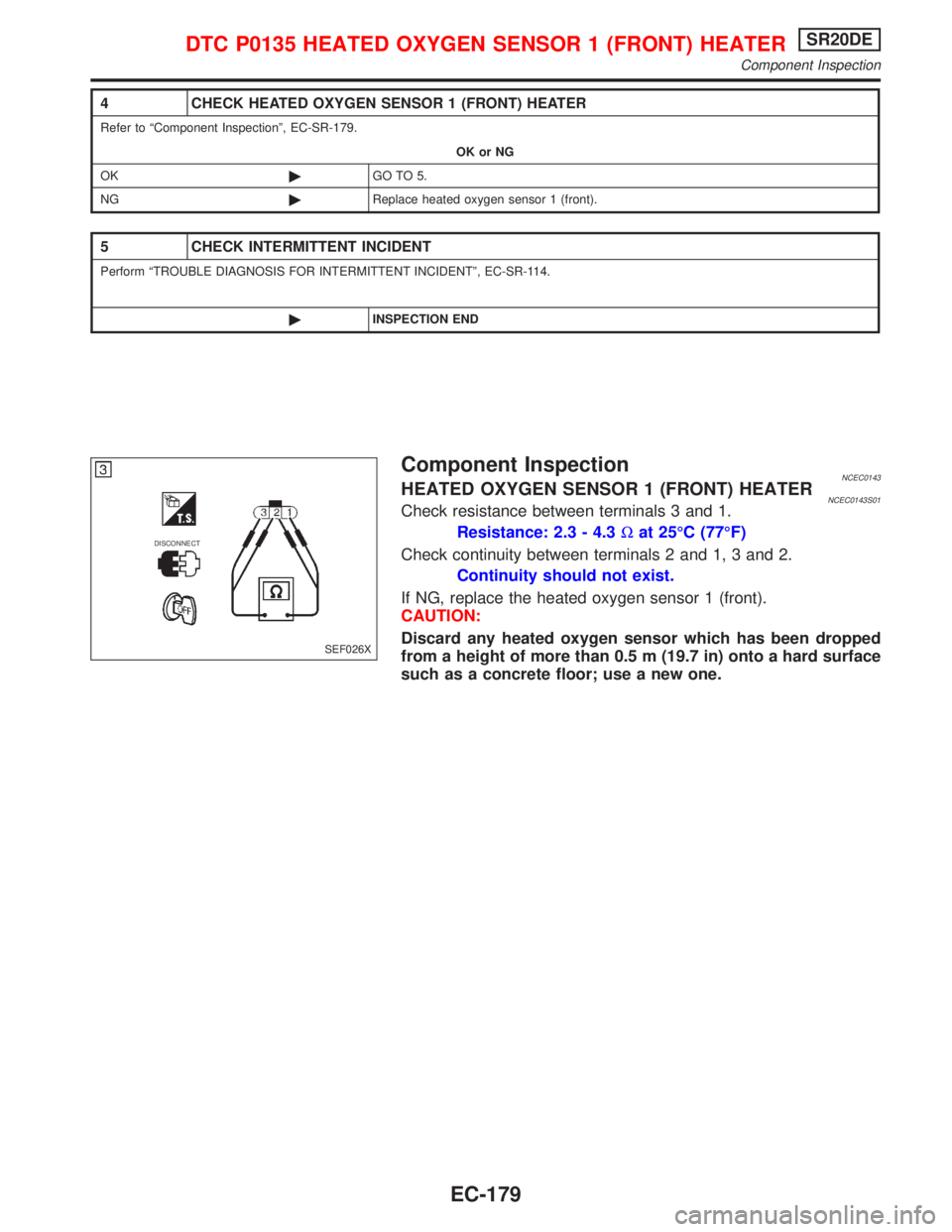

Component InspectionNCEC0143HEATED OXYGEN SENSOR 1 (FRONT) HEATERNCEC0143S01Check resistance between terminals 3 and 1.
Resistance: 2.3 - 4.3Wat 25ÉC (77ÉF)
Check continuity between terminals 2 and 1, 3 and 2.
Continuity should not exist.
If NG, replace the heated oxygen sensor 1 (front).
CAUTION:
Discard any heated oxygen sensor which has been dropped
from a height of more than 0.5 m (19.7 in) onto a hard surface
such as a concrete floor; use a new one.
4 CHECK HEATED OXYGEN SENSOR 1 (FRONT) HEATER
Refer to ªComponent Inspectionº, EC-SR-179.
OK or NG
OK©GO TO 5.
NG©Replace heated oxygen sensor 1 (front).
5 CHECK INTERMITTENT INCIDENT
Perform ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-SR-114.
©INSPECTION END
SEF026X
DISCONNECT
DTC P0135 HEATED OXYGEN SENSOR 1 (FRONT) HEATERSR20DE
Component Inspection
EC-179

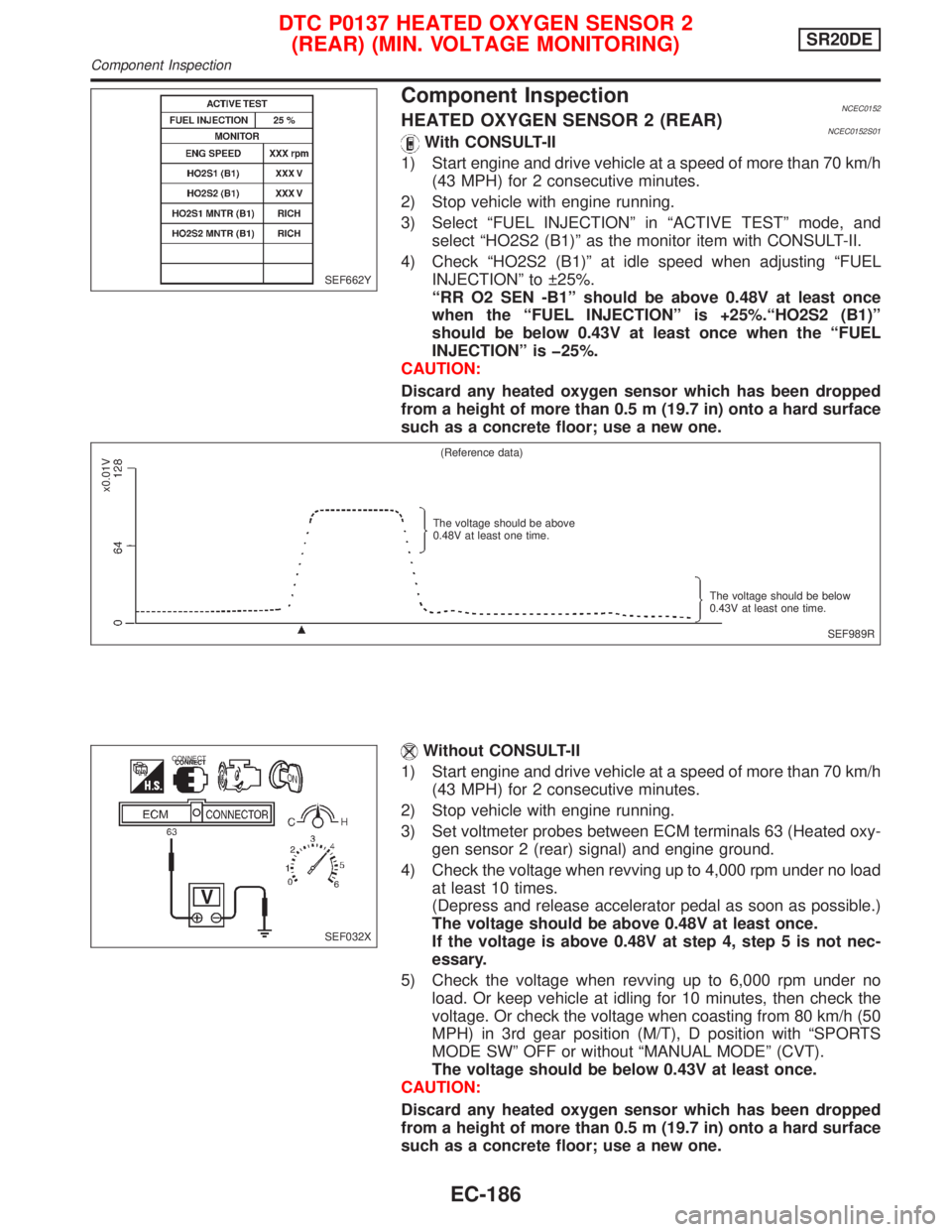

Component InspectionNCEC0152HEATED OXYGEN SENSOR 2 (REAR)NCEC0152S01With CONSULT-II
1) Start engine and drive vehicle at a speed of more than 70 km/h
(43 MPH) for 2 consecutive minutes.
2) Stop vehicle with engine running.
3) Select ªFUEL INJECTIONº in ªACTIVE TESTº mode, and
select ªHO2S2 (B1)º as the monitor item with CONSULT-II.
4) Check ªHO2S2 (B1)º at idle speed when adjusting ªFUEL
INJECTIONº to  25%.
ªRR O2 SEN -B1º should be above 0.48V at least once
when the ªFUEL INJECTIONº is +25%.ªHO2S2 (B1)º
should be below 0.43V at least once when the ªFUEL
INJECTIONº is þ25%.
CAUTION:
Discard any heated oxygen sensor which has been dropped
from a height of more than 0.5 m (19.7 in) onto a hard surface
such as a concrete floor; use a new one.
Without CONSULT-II
1) Start engine and drive vehicle at a speed of more than 70 km/h
(43 MPH) for 2 consecutive minutes.
2) Stop vehicle with engine running.
3) Set voltmeter probes between ECM terminals 63 (Heated oxy-
gen sensor 2 (rear) signal) and engine ground.
4) Check the voltage when revving up to 4,000 rpm under no load
at least 10 times.
(Depress and release accelerator pedal as soon as possible.)
The voltage should be above 0.48V at least once.
If the voltage is above 0.48V at step 4, step 5 is not nec-
essary.
5) Check the voltage when revving up to 6,000 rpm under no
load. Or keep vehicle at idling for 10 minutes, then check the
voltage. Or check the voltage when coasting from 80 km/h (50
MPH) in 3rd gear position (M/T), D position with ªSPORTS
MODE SWº OFF or without ªMANUAL MODEº (CVT).
The voltage should be below 0.43V at least once.
CAUTION:
Discard any heated oxygen sensor which has been dropped
from a height of more than 0.5 m (19.7 in) onto a hard surface
such as a concrete floor; use a new one.
SEF662Y
SEF989R (Reference data)
The voltage should be above
0.48V at least one time.
The voltage should be below
0.43V at least one time.
x0.01V
SEF032X
CONNECT
DTC P0137 HEATED OXYGEN SENSOR 2
(REAR) (MIN. VOLTAGE MONITORING)SR20DE
Component Inspection
EC-186

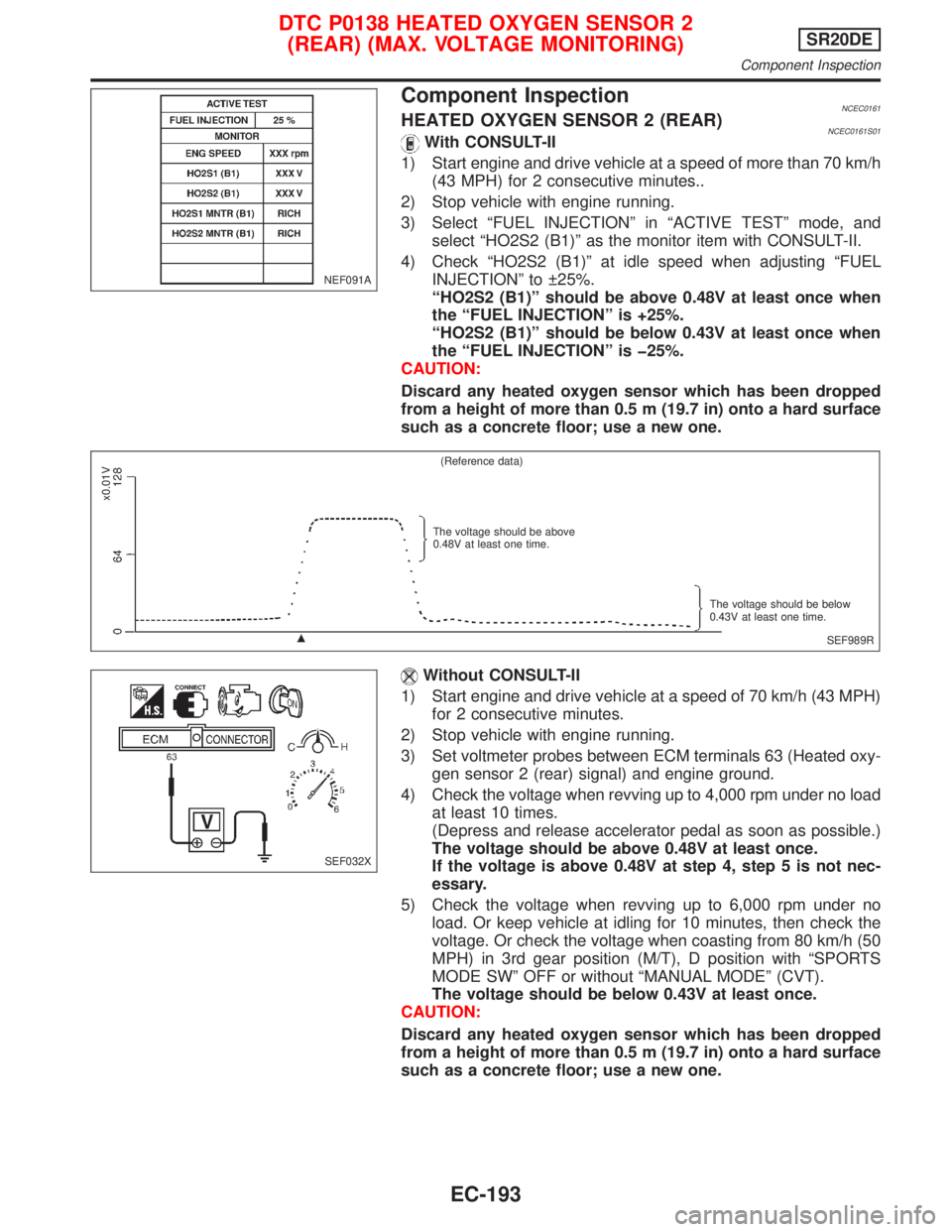

Component InspectionNCEC0161HEATED OXYGEN SENSOR 2 (REAR)NCEC0161S01With CONSULT-II
1) Start engine and drive vehicle at a speed of more than 70 km/h
(43 MPH) for 2 consecutive minutes..
2) Stop vehicle with engine running.
3) Select ªFUEL INJECTIONº in ªACTIVE TESTº mode, and
select ªHO2S2 (B1)º as the monitor item with CONSULT-II.
4) Check ªHO2S2 (B1)º at idle speed when adjusting ªFUEL
INJECTIONº to  25%.
ªHO2S2 (B1)º should be above 0.48V at least once when
the ªFUEL INJECTIONº is +25%.
ªHO2S2 (B1)º should be below 0.43V at least once when
the ªFUEL INJECTIONº is þ25%.
CAUTION:
Discard any heated oxygen sensor which has been dropped
from a height of more than 0.5 m (19.7 in) onto a hard surface
such as a concrete floor; use a new one.
Without CONSULT-II
1) Start engine and drive vehicle at a speed of 70 km/h (43 MPH)
for 2 consecutive minutes.
2) Stop vehicle with engine running.
3) Set voltmeter probes between ECM terminals 63 (Heated oxy-
gen sensor 2 (rear) signal) and engine ground.
4) Check the voltage when revving up to 4,000 rpm under no load
at least 10 times.
(Depress and release accelerator pedal as soon as possible.)
The voltage should be above 0.48V at least once.
If the voltage is above 0.48V at step 4, step 5 is not nec-
essary.
5) Check the voltage when revving up to 6,000 rpm under no
load. Or keep vehicle at idling for 10 minutes, then check the
voltage. Or check the voltage when coasting from 80 km/h (50
MPH) in 3rd gear position (M/T), D position with ªSPORTS
MODE SWº OFF or without ªMANUAL MODEº (CVT).
The voltage should be below 0.43V at least once.
CAUTION:
Discard any heated oxygen sensor which has been dropped
from a height of more than 0.5 m (19.7 in) onto a hard surface
such as a concrete floor; use a new one.
NEF091A
SEF989R (Reference data)
The voltage should be above
0.48V at least one time.
The voltage should be below
0.43V at least one time.
x0.01V
SEF032X
DTC P0138 HEATED OXYGEN SENSOR 2
(REAR) (MAX. VOLTAGE MONITORING)SR20DE
Component Inspection
EC-193

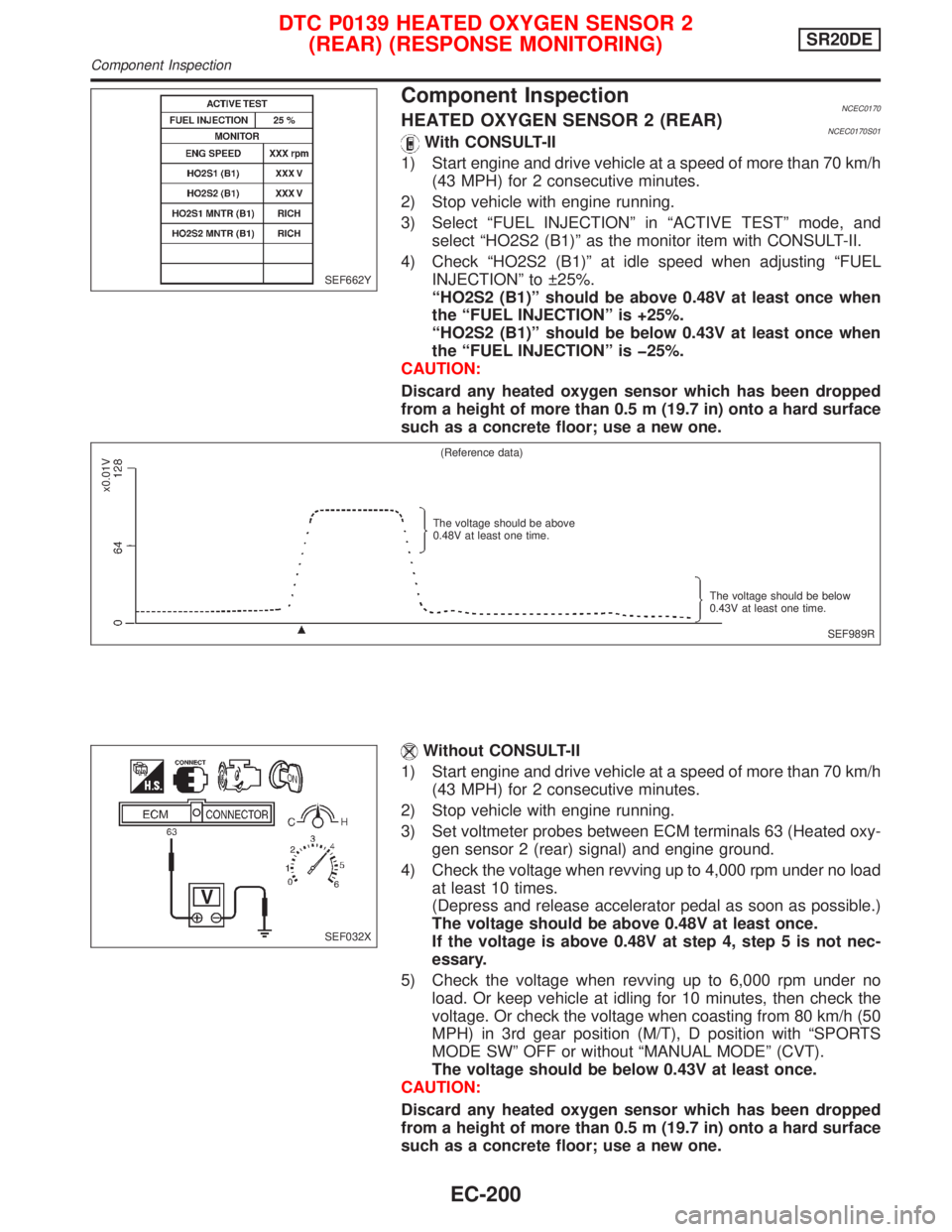

Component InspectionNCEC0170HEATED OXYGEN SENSOR 2 (REAR)NCEC0170S01With CONSULT-II
1) Start engine and drive vehicle at a speed of more than 70 km/h
(43 MPH) for 2 consecutive minutes.
2) Stop vehicle with engine running.
3) Select ªFUEL INJECTIONº in ªACTIVE TESTº mode, and
select ªHO2S2 (B1)º as the monitor item with CONSULT-II.
4) Check ªHO2S2 (B1)º at idle speed when adjusting ªFUEL
INJECTIONº to  25%.
ªHO2S2 (B1)º should be above 0.48V at least once when
the ªFUEL INJECTIONº is +25%.
ªHO2S2 (B1)º should be below 0.43V at least once when
the ªFUEL INJECTIONº is þ25%.
CAUTION:
Discard any heated oxygen sensor which has been dropped
from a height of more than 0.5 m (19.7 in) onto a hard surface
such as a concrete floor; use a new one.
Without CONSULT-II
1) Start engine and drive vehicle at a speed of more than 70 km/h
(43 MPH) for 2 consecutive minutes.
2) Stop vehicle with engine running.
3) Set voltmeter probes between ECM terminals 63 (Heated oxy-
gen sensor 2 (rear) signal) and engine ground.
4) Check the voltage when revving up to 4,000 rpm under no load
at least 10 times.
(Depress and release accelerator pedal as soon as possible.)
The voltage should be above 0.48V at least once.
If the voltage is above 0.48V at step 4, step 5 is not nec-
essary.
5) Check the voltage when revving up to 6,000 rpm under no
load. Or keep vehicle at idling for 10 minutes, then check the
voltage. Or check the voltage when coasting from 80 km/h (50
MPH) in 3rd gear position (M/T), D position with ªSPORTS
MODE SWº OFF or without ªMANUAL MODEº (CVT).
The voltage should be below 0.43V at least once.
CAUTION:
Discard any heated oxygen sensor which has been dropped
from a height of more than 0.5 m (19.7 in) onto a hard surface
such as a concrete floor; use a new one.
SEF662Y
SEF989R (Reference data)
The voltage should be above
0.48V at least one time.
The voltage should be below
0.43V at least one time.
x0.01V
SEF032X
DTC P0139 HEATED OXYGEN SENSOR 2
(REAR) (RESPONSE MONITORING)SR20DE
Component Inspection
EC-200

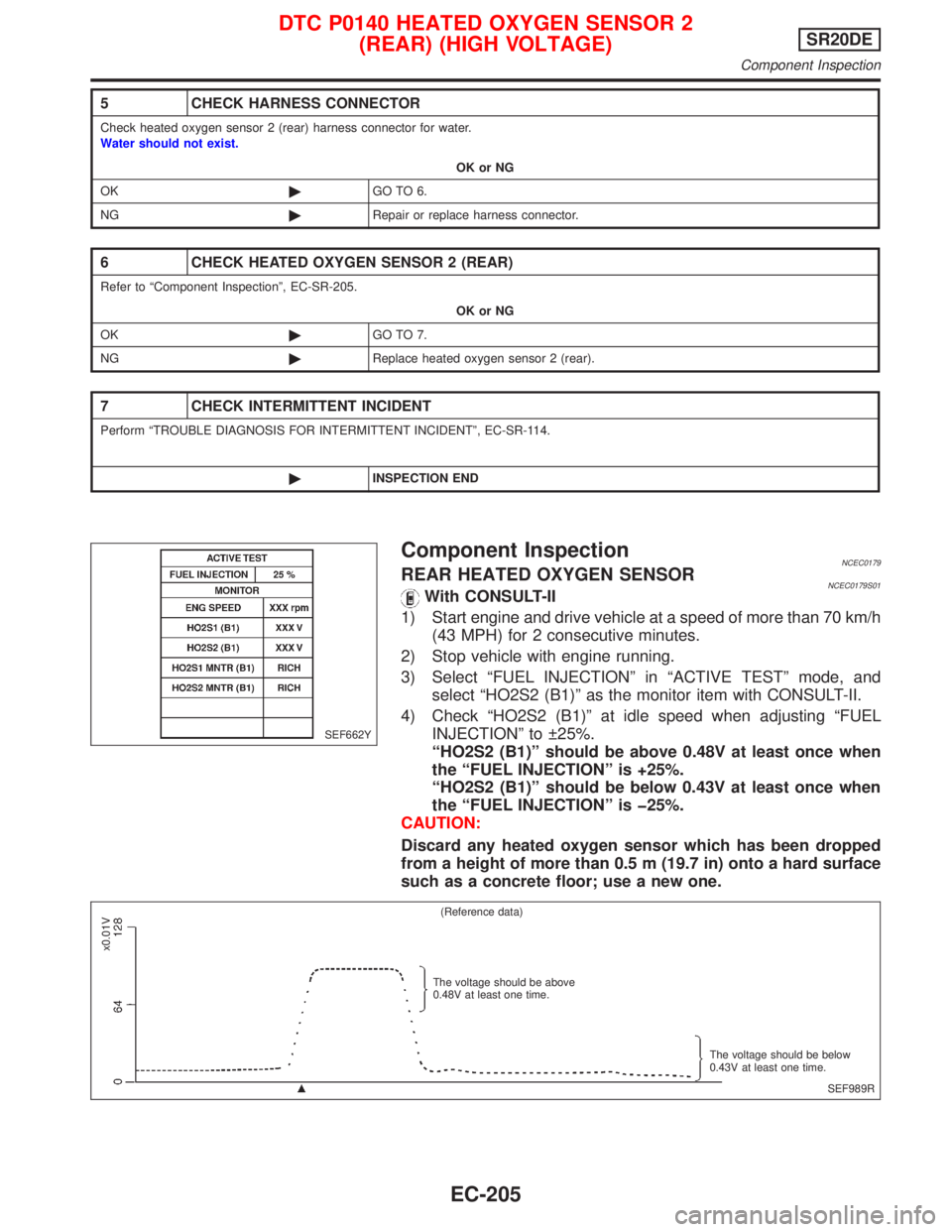

Component InspectionNCEC0179REAR HEATED OXYGEN SENSORNCEC0179S01With CONSULT-II
1) Start engine and drive vehicle at a speed of more than 70 km/h
(43 MPH) for 2 consecutive minutes.
2) Stop vehicle with engine running.
3) Select ªFUEL INJECTIONº in ªACTIVE TESTº mode, and
select ªHO2S2 (B1)º as the monitor item with CONSULT-II.
4) Check ªHO2S2 (B1)º at idle speed when adjusting ªFUEL
INJECTIONº to  25%.
ªHO2S2 (B1)º should be above 0.48V at least once when
the ªFUEL INJECTIONº is +25%.
ªHO2S2 (B1)º should be below 0.43V at least once when
the ªFUEL INJECTIONº is þ25%.
CAUTION:
Discard any heated oxygen sensor which has been dropped
from a height of more than 0.5 m (19.7 in) onto a hard surface
such as a concrete floor; use a new one.
5 CHECK HARNESS CONNECTOR
Check heated oxygen sensor 2 (rear) harness connector for water.
Water should not exist.
OK or NG
OK©GO TO 6.
NG©Repair or replace harness connector.
6 CHECK HEATED OXYGEN SENSOR 2 (REAR)
Refer to ªComponent Inspectionº, EC-SR-205.
OK or NG
OK©GO TO 7.
NG©Replace heated oxygen sensor 2 (rear).
7 CHECK INTERMITTENT INCIDENT
Perform ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-SR-114.
©INSPECTION END
SEF662Y
SEF989R (Reference data)
The voltage should be above
0.48V at least one time.
The voltage should be below
0.43V at least one time.
x0.01V
DTC P0140 HEATED OXYGEN SENSOR 2
(REAR) (HIGH VOLTAGE)SR20DE
Component Inspection
EC-205

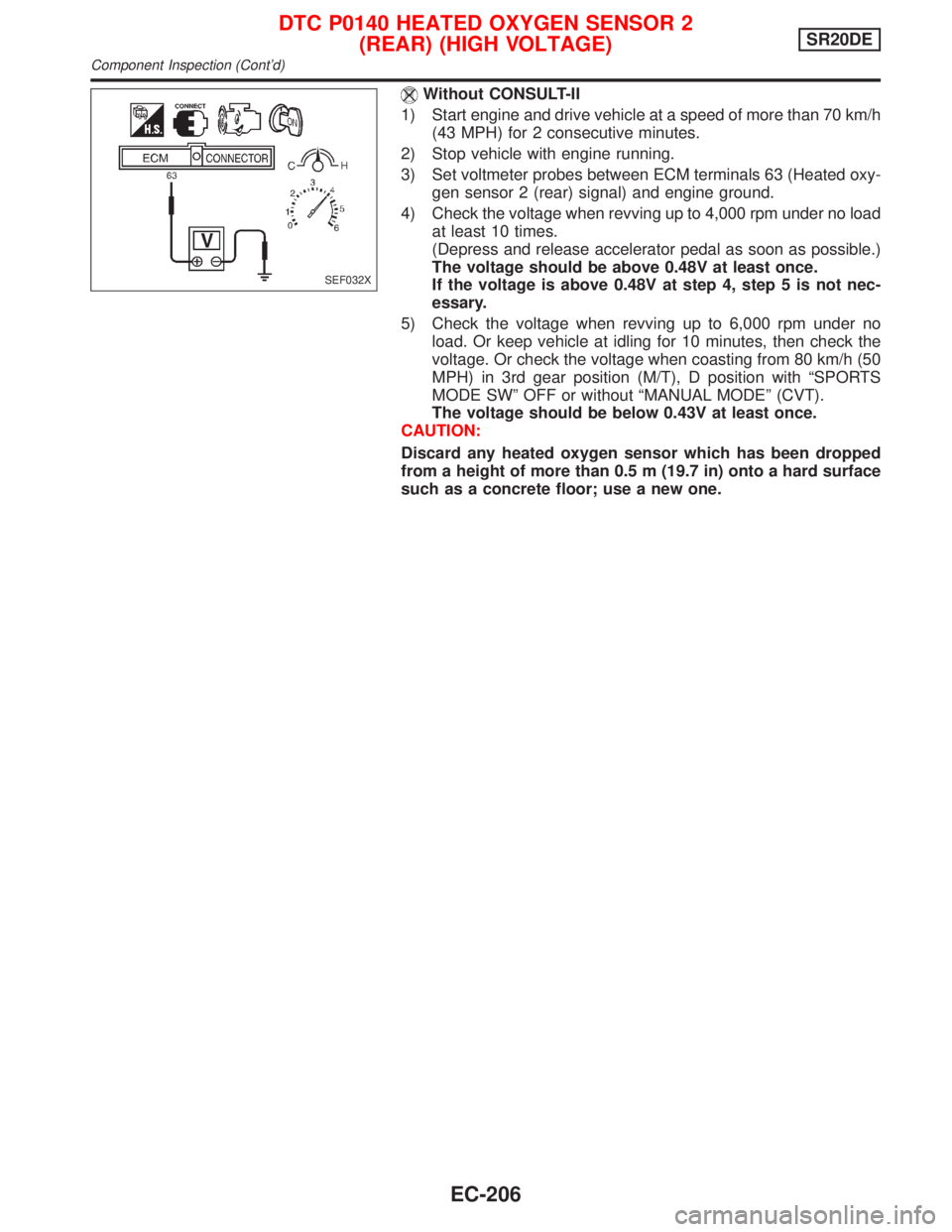

Without CONSULT-II
1) Start engine and drive vehicle at a speed of more than 70 km/h
(43 MPH) for 2 consecutive minutes.
2) Stop vehicle with engine running.
3) Set voltmeter probes between ECM terminals 63 (Heated oxy-
gen sensor 2 (rear) signal) and engine ground.
4) Check the voltage when revving up to 4,000 rpm under no load
at least 10 times.
(Depress and release accelerator pedal as soon as possible.)
The voltage should be above 0.48V at least once.
If the voltage is above 0.48V at step 4, step 5 is not nec-
essary.
5) Check the voltage when revving up to 6,000 rpm under no
load. Or keep vehicle at idling for 10 minutes, then check the
voltage. Or check the voltage when coasting from 80 km/h (50
MPH) in 3rd gear position (M/T), D position with ªSPORTS
MODE SWº OFF or without ªMANUAL MODEº (CVT).
The voltage should be below 0.43V at least once.
CAUTION:
Discard any heated oxygen sensor which has been dropped
from a height of more than 0.5 m (19.7 in) onto a hard surface
such as a concrete floor; use a new one.
SEF032X
DTC P0140 HEATED OXYGEN SENSOR 2
(REAR) (HIGH VOLTAGE)SR20DE
Component Inspection (Cont'd)
EC-206

Component InspectionNCEC0187HEATED OXYGEN SENSOR 2 (REAR) HEATERNCEC0187S01Check the following.
1. Check resistance between terminals 1 and 4.
Resistance: 2.3 - 4.3Wat 25ÉC (77ÉF)
2. Check continuity.
Terminal No. Continuity
2 and 1, 3, 4
No
3 and 1, 2, 4
If NG, replace the heated oxygen sensor 2 (rear).
CAUTION:
Discard any heated oxygen sensor which has been dropped
from a height of more than 0.5 m (19.7 in) onto a hard surface
such as a concrete floor; use a new one.
5 CHECK HEATED OXYGEN SENSOR 2 (REAR) HEATER
Refer to ªComponent Inspectionº, EC-SR-211.
OK or NG
OK©GO TO 6.
NG©Replace heated oxygen sensor 2 (rear).
6 CHECK INTERMITTENT INCIDENT
Perform ªTROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENTº, EC-SR-114.
©INSPECTION END
SEF048X

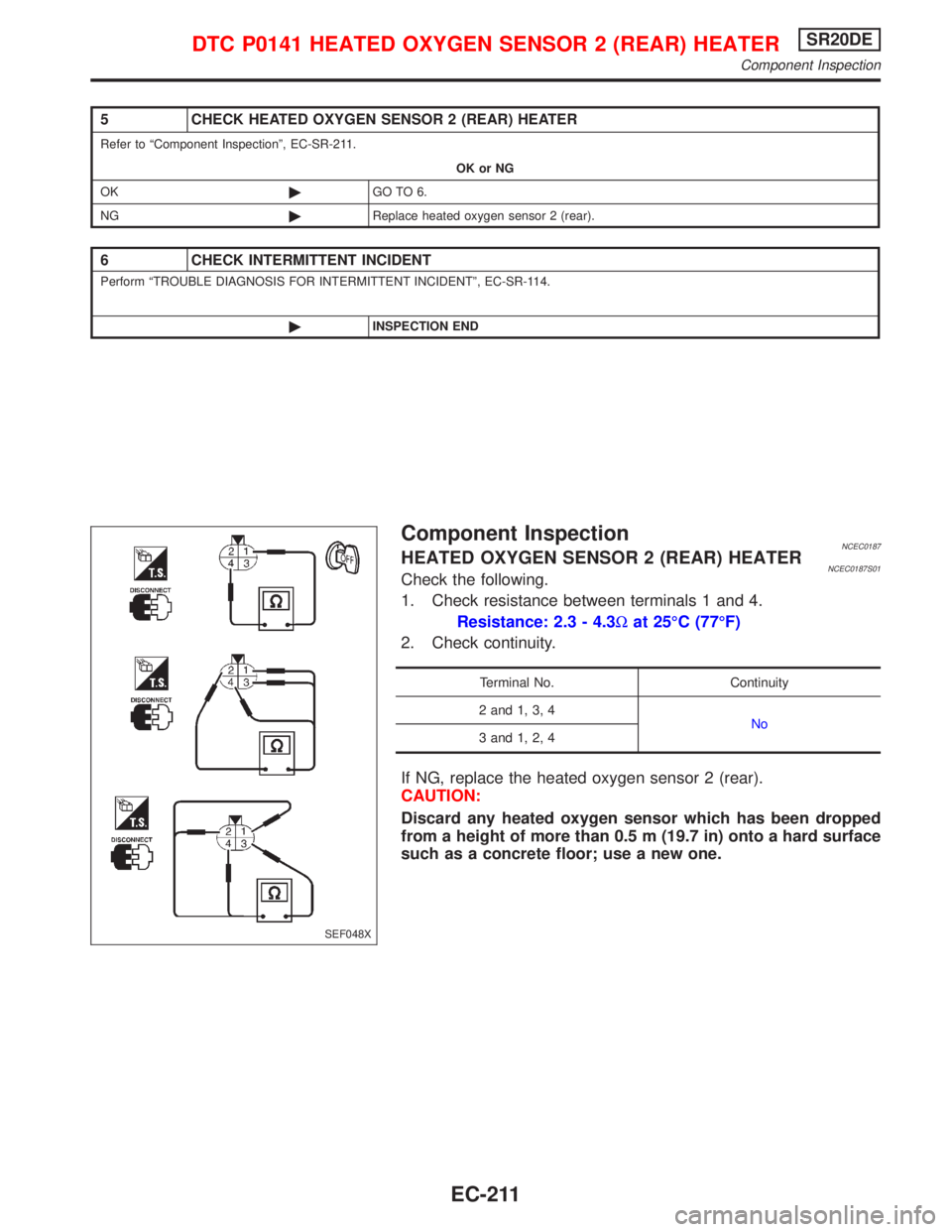

DTC P0141 HEATED OXYGEN SENSOR 2 (REAR) HEATERSR20DE
Component Inspection
EC-211
