1997 SUBARU LEGACY sensor

B2M0917A

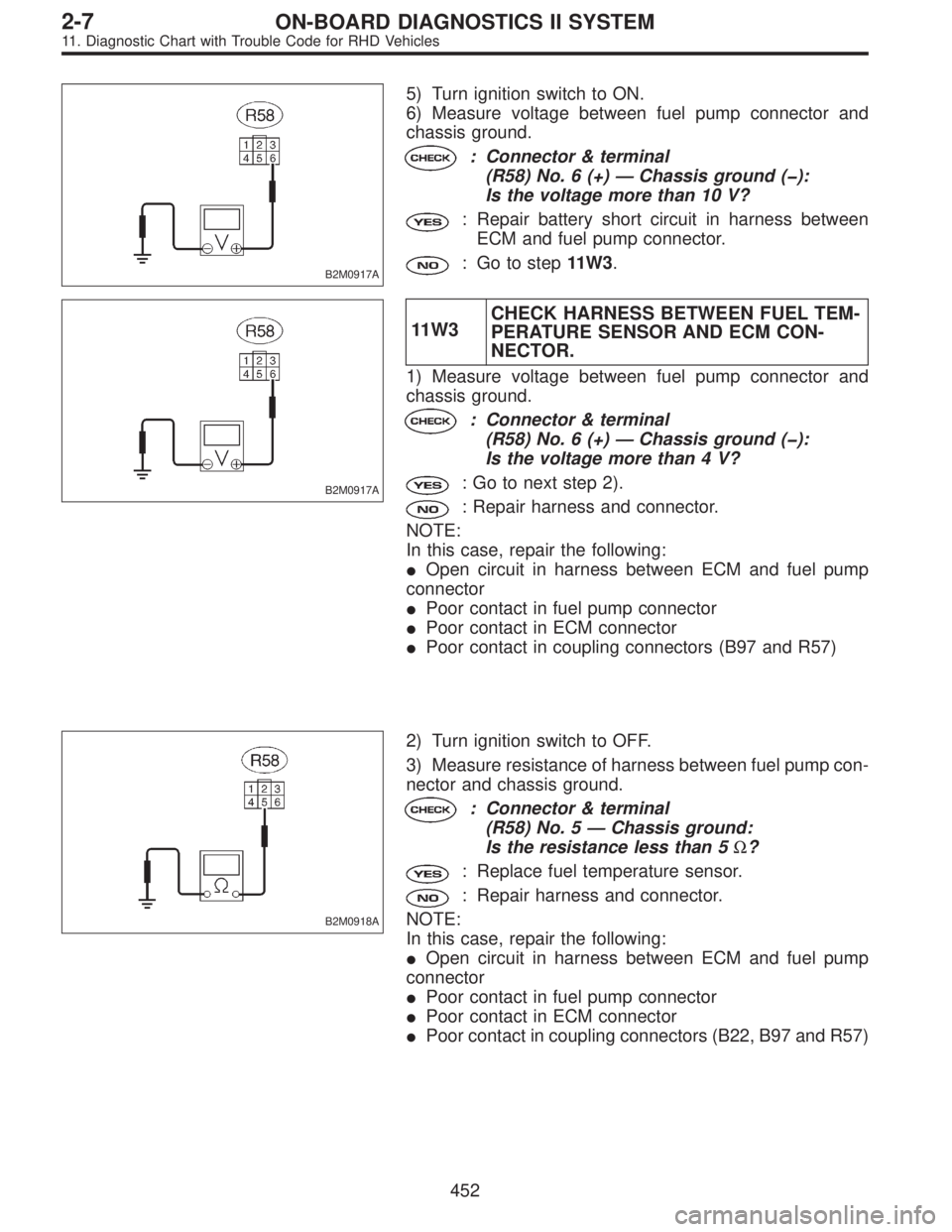

5) Turn ignition switch to ON.
6) Measure voltage between fuel pump connector and
chassis ground.
: Connector & terminal
(R58) No. 6 (+)—Chassis ground ():
Is the voltage more than 10 V?
: Repair battery short circuit in harness between
ECM and fuel pump connector.
: Go to step11W3.
B2M0917A
11W3CHECK HARNESS BETWEEN FUEL TEM-
PERATURE SENSOR AND ECM CON-
NECTOR.
1) Measure voltage between fuel pump connector and
chassis ground.
: Connector & terminal
(R58) No. 6 (+)—Chassis ground ():
Is the voltage more than 4 V?
: Go to next step 2).
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open circuit in harness between ECM and fuel pump
connector

Poor contact in fuel pump connector

Poor contact in ECM connector

Poor contact in coupling connectors (B97 and R57)
B2M0918A
2) Turn ignition switch to OFF.
3) Measure resistance of harness between fuel pump con-
nector and chassis ground.
: Connector & terminal
(R58) No. 5—Chassis ground:
Is the resistance less than 5Ω?
: Replace fuel temperature sensor.
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open circuit in harness between ECM and fuel pump
connector

Poor contact in fuel pump connector

Poor contact in ECM connector

Poor contact in coupling connectors (B22, B97 and R57)
452
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

OBD0283

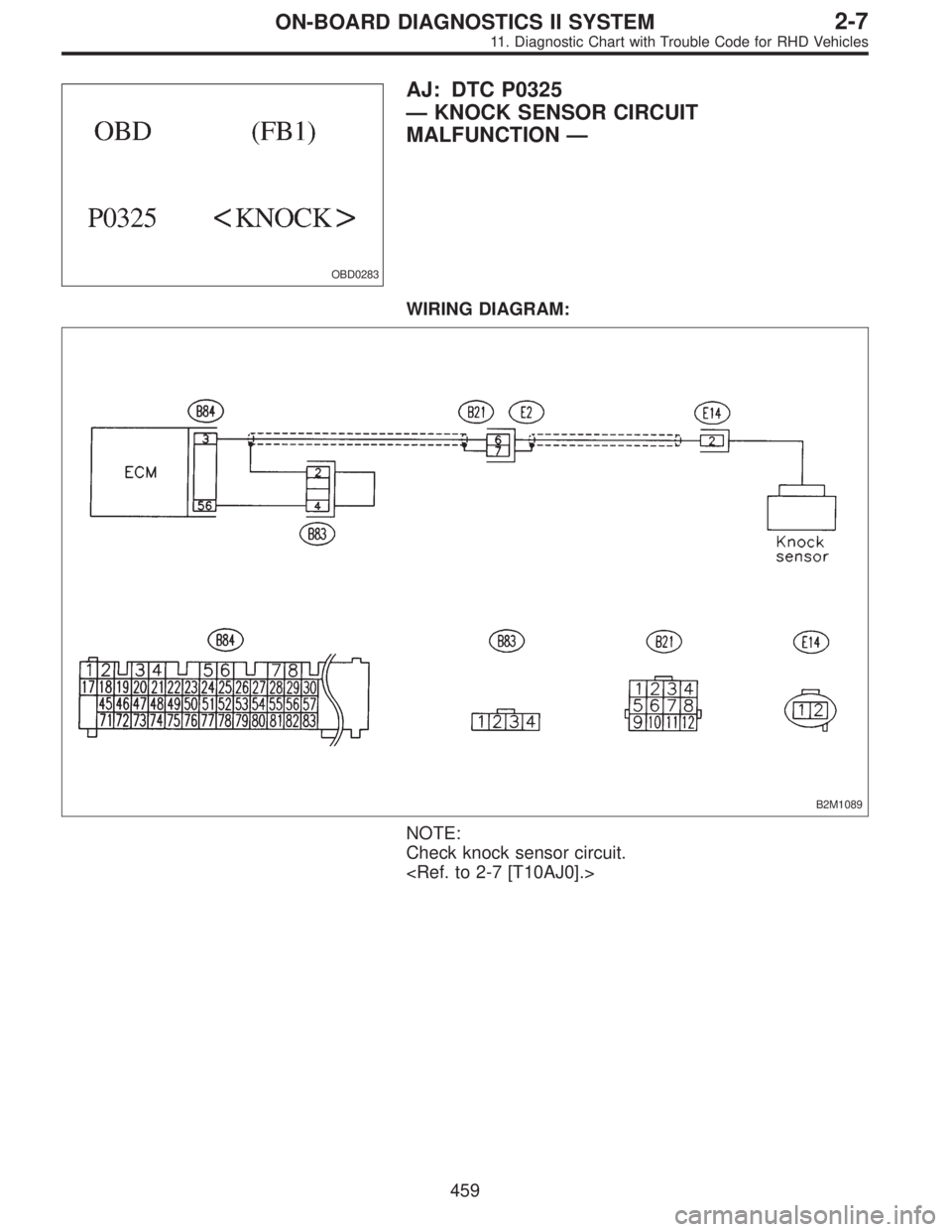

AJ: DTC P0325
—KNOCK SENSOR CIRCUIT
MALFUNCTION—
WIRING DIAGRAM:
B2M1089
NOTE:
Check knock sensor circuit.

459
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

OBD0292
AK: DTC P0335
—CRANKSHAFT POSITION SENSOR
CIRCUIT MALFUNCTION—
WIRING DIAGRAM:
B2M1294
NOTE:
Check crankshaft position sensor circuit.

460
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

B2M1091

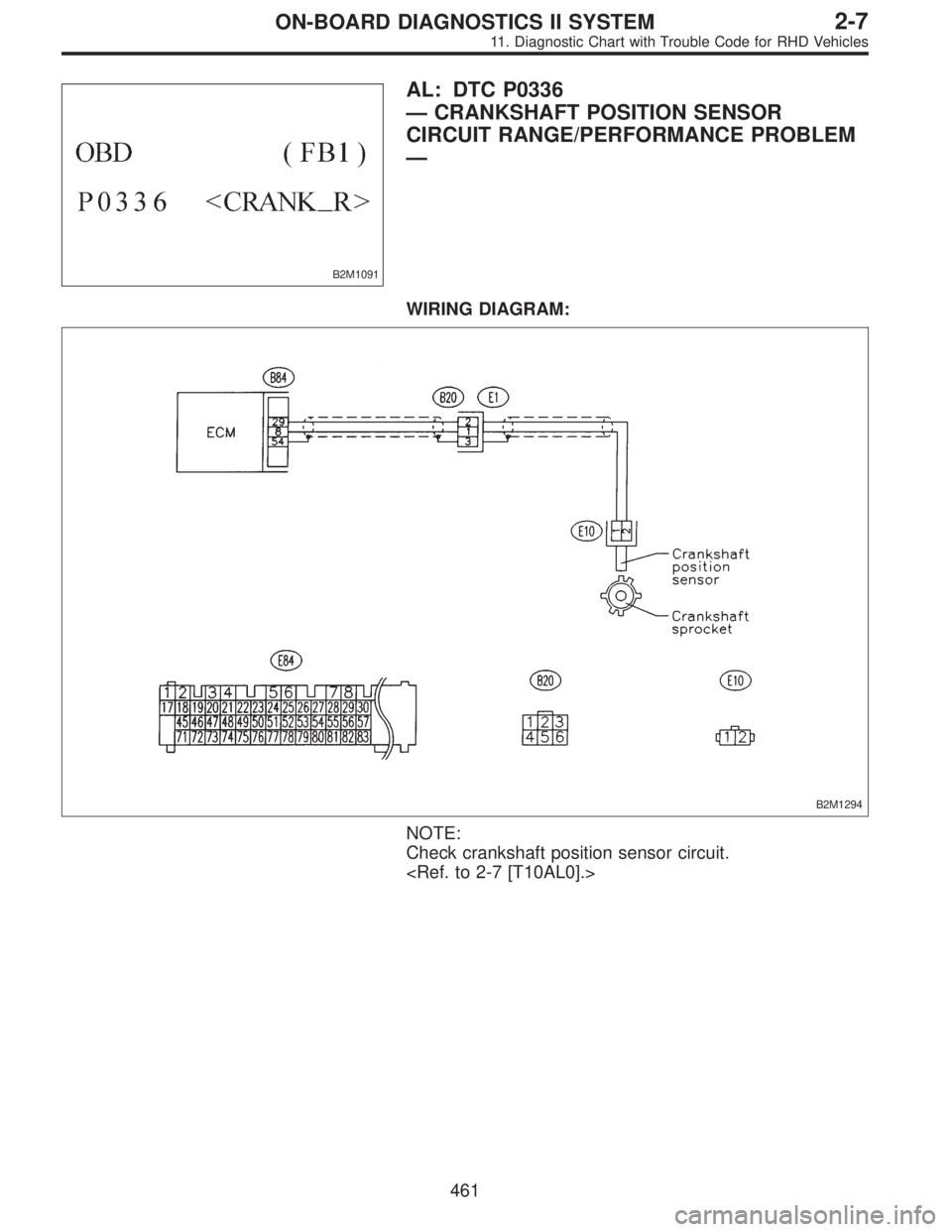

AL: DTC P0336
—CRANKSHAFT POSITION SENSOR
CIRCUIT RANGE/PERFORMANCE PROBLEM
—
WIRING DIAGRAM:
B2M1294
NOTE:
Check crankshaft position sensor circuit.

461
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

OBD0304

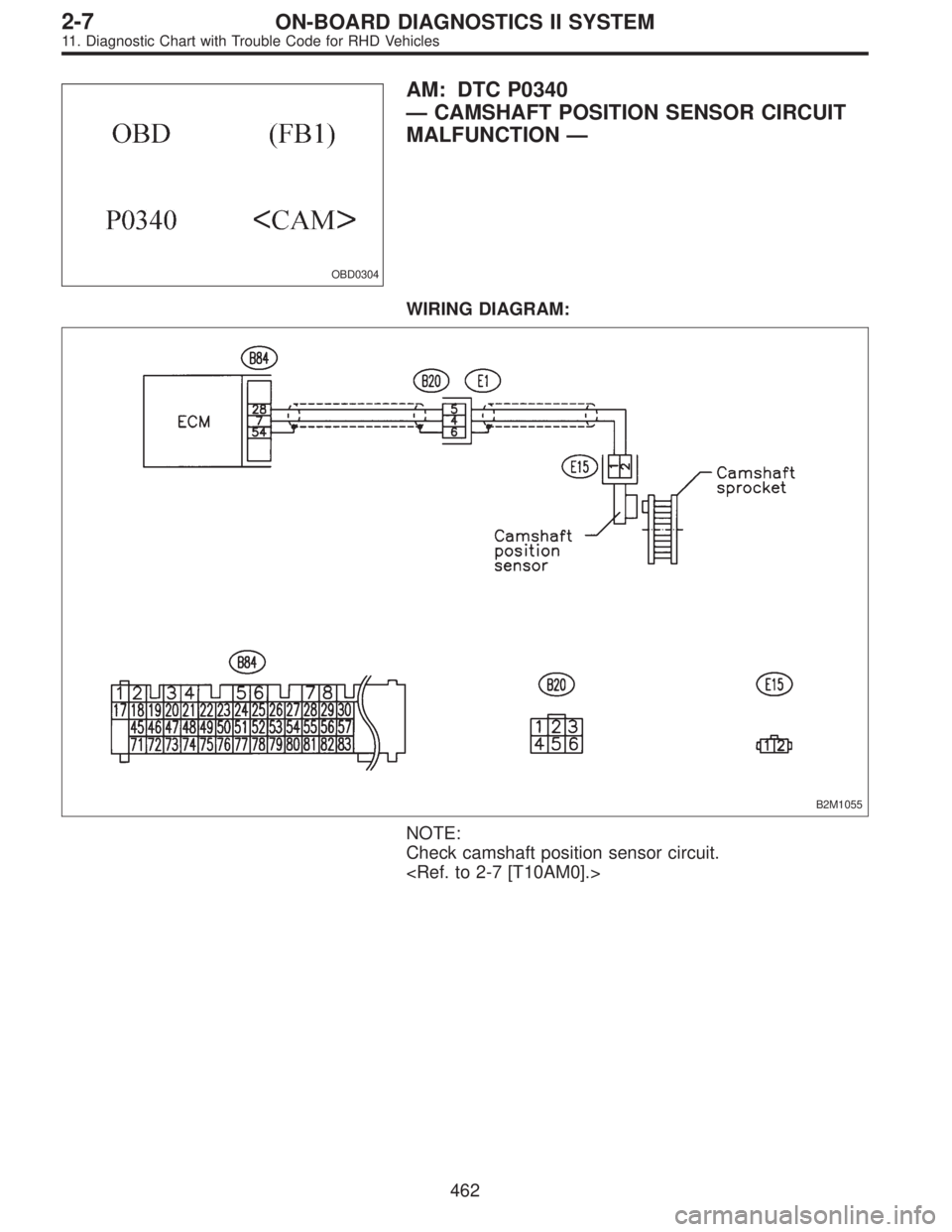

AM: DTC P0340
—CAMSHAFT POSITION SENSOR CIRCUIT
MALFUNCTION—
WIRING DIAGRAM:
B2M1055
NOTE:
Check camshaft position sensor circuit.

462
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

B2M1092

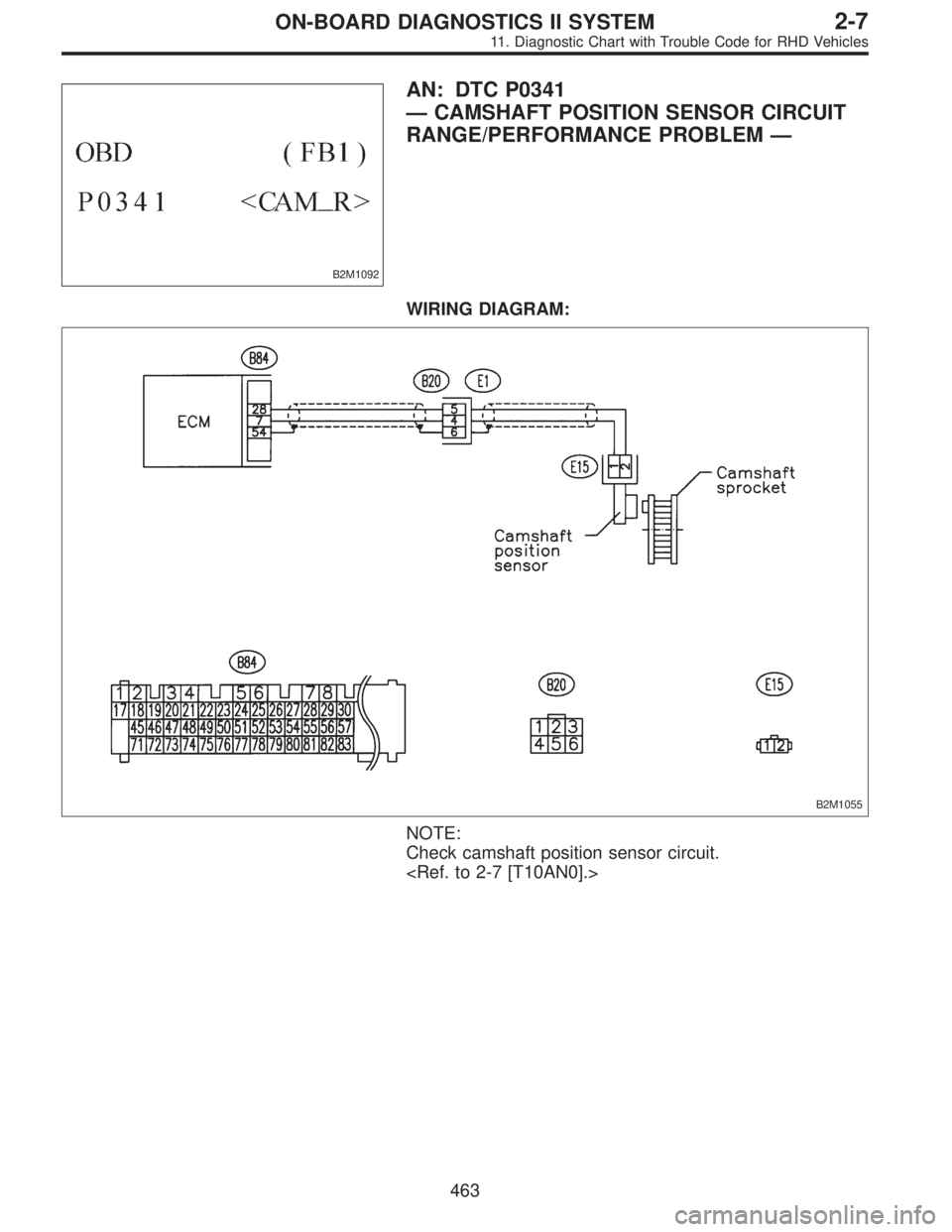

AN: DTC P0341
—CAMSHAFT POSITION SENSOR CIRCUIT
RANGE/PERFORMANCE PROBLEM—
WIRING DIAGRAM:
B2M1055
NOTE:
Check camshaft position sensor circuit.

463
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

H2M1377

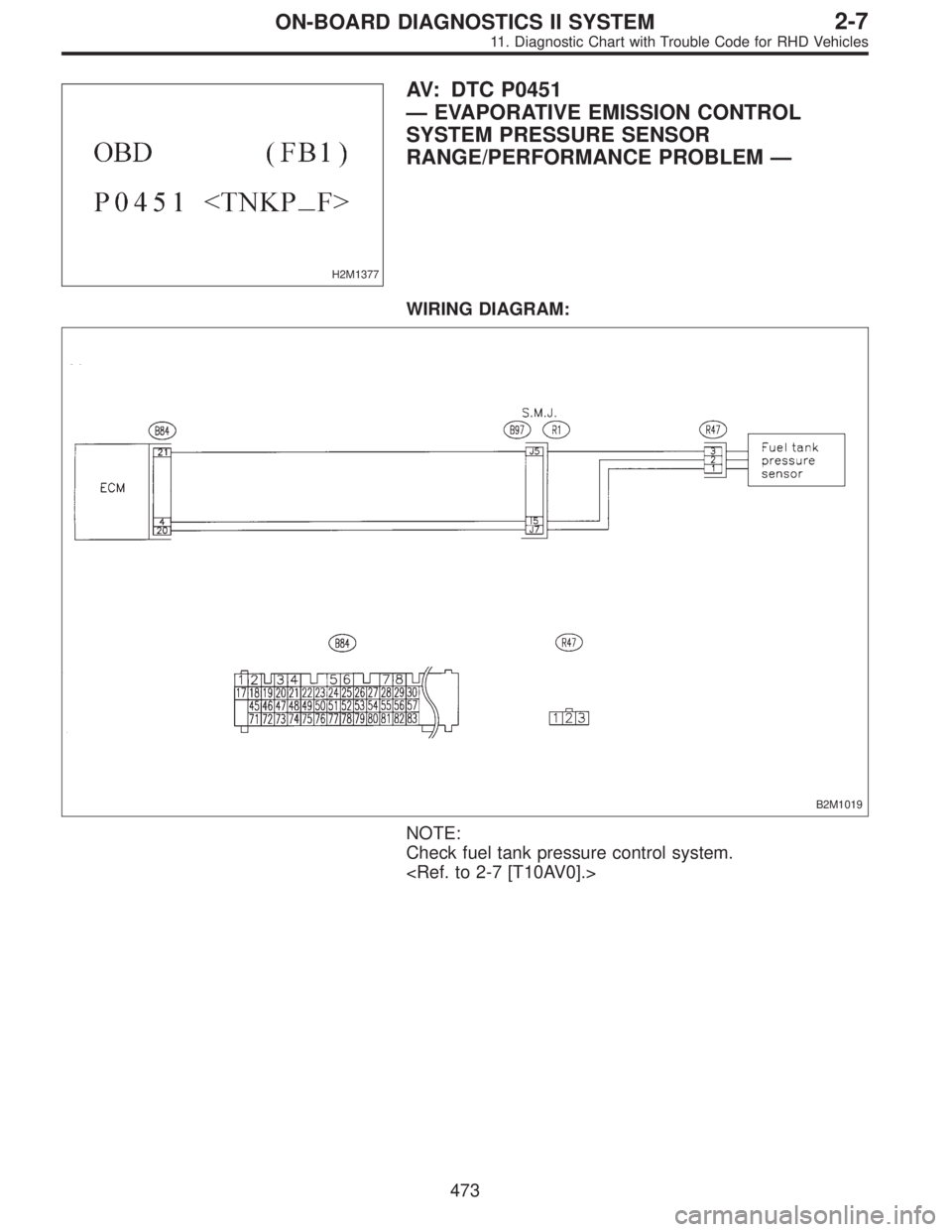

AV: DTC P0451
—EVAPORATIVE EMISSION CONTROL
SYSTEM PRESSURE SENSOR
RANGE/PERFORMANCE PROBLEM—
WIRING DIAGRAM:
B2M1019
NOTE:
Check fuel tank pressure control system.

473
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

B2M1099

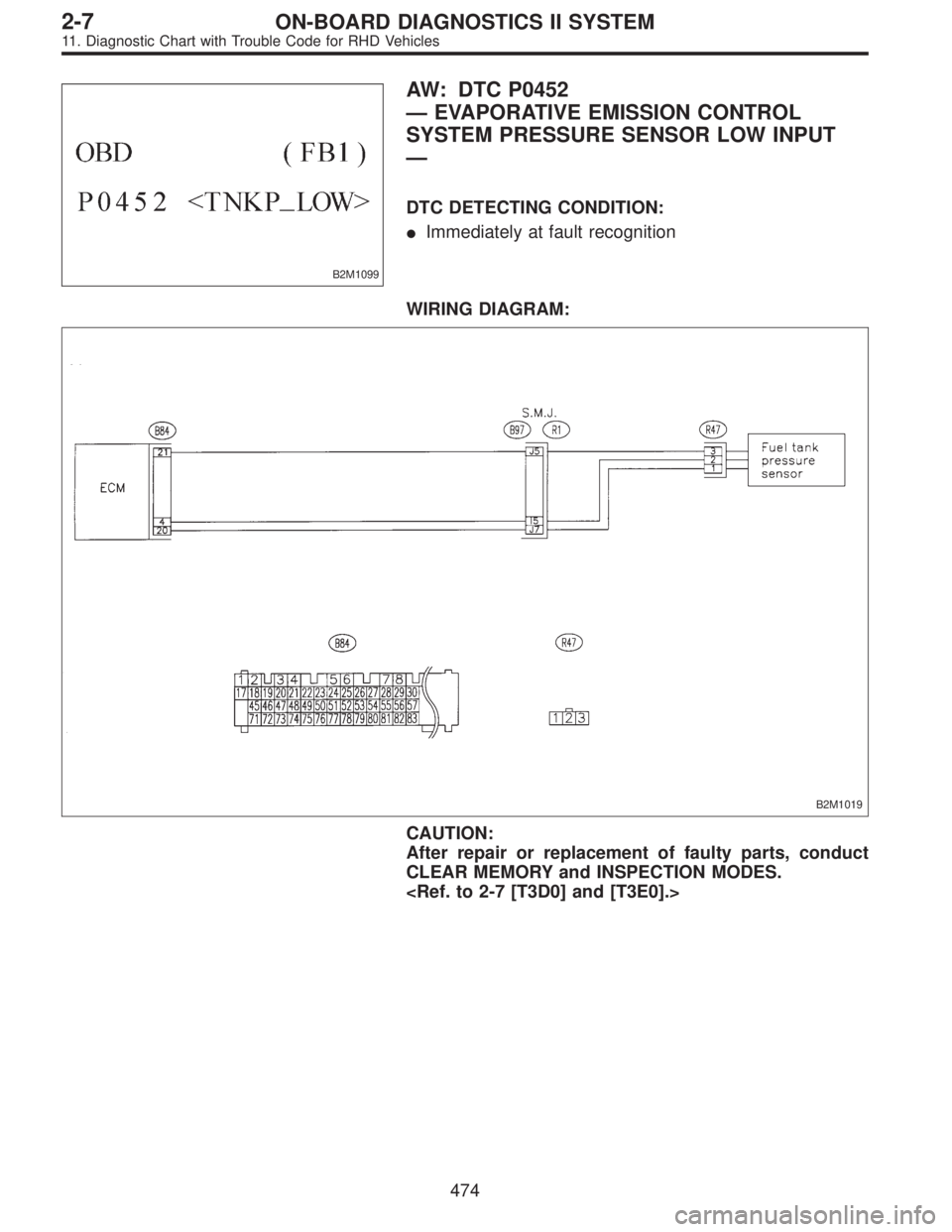

AW: DTC P0452
—EVAPORATIVE EMISSION CONTROL
SYSTEM PRESSURE SENSOR LOW INPUT
—
DTC DETECTING CONDITION:

Immediately at fault recognition
WIRING DIAGRAM:
B2M1019
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

474
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles
