1997 SUBARU LEGACY sensor

OBD0232

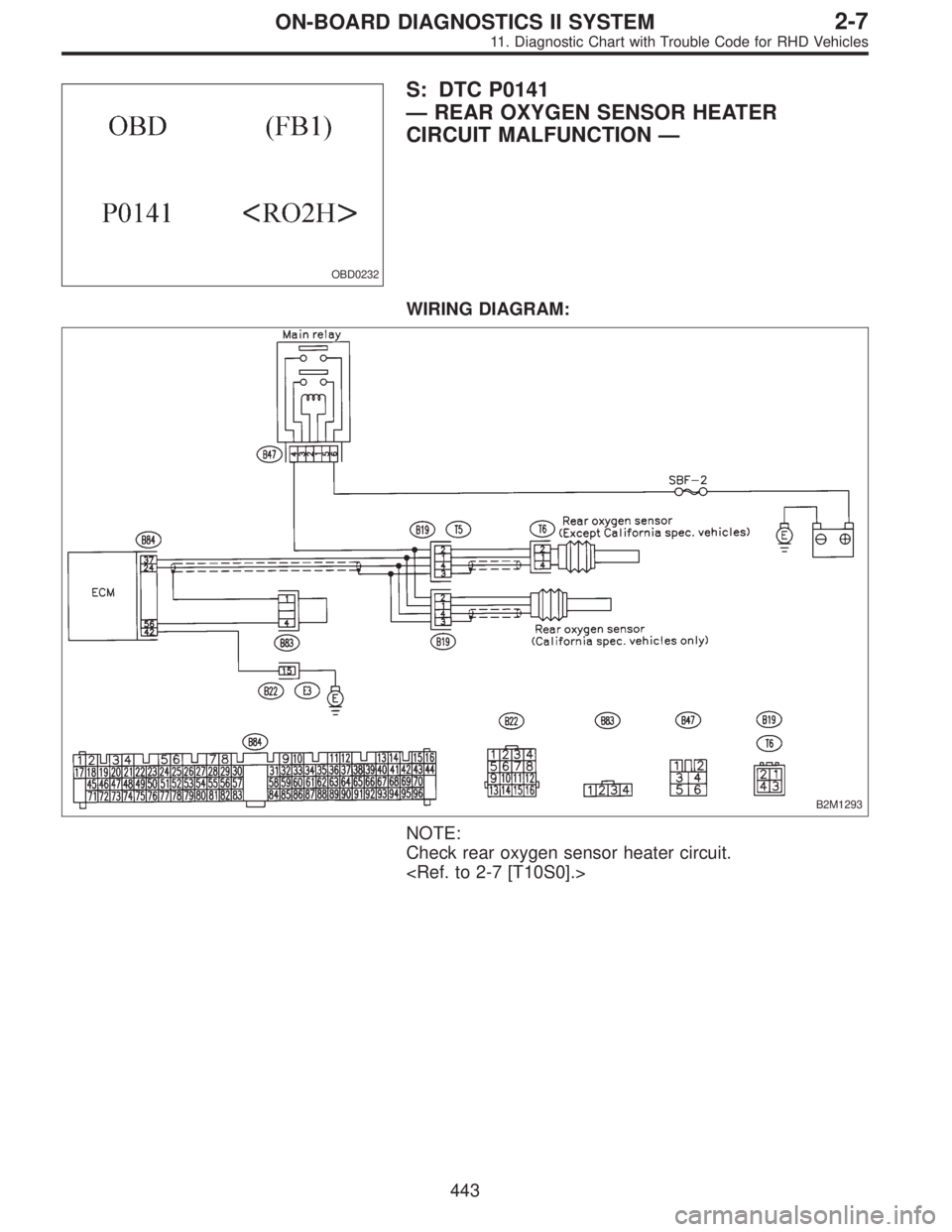

S: DTC P0141
—REAR OXYGEN SENSOR HEATER
CIRCUIT MALFUNCTION—
WIRING DIAGRAM:
B2M1293
NOTE:
Check rear oxygen sensor heater circuit.

443
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

H2M1350

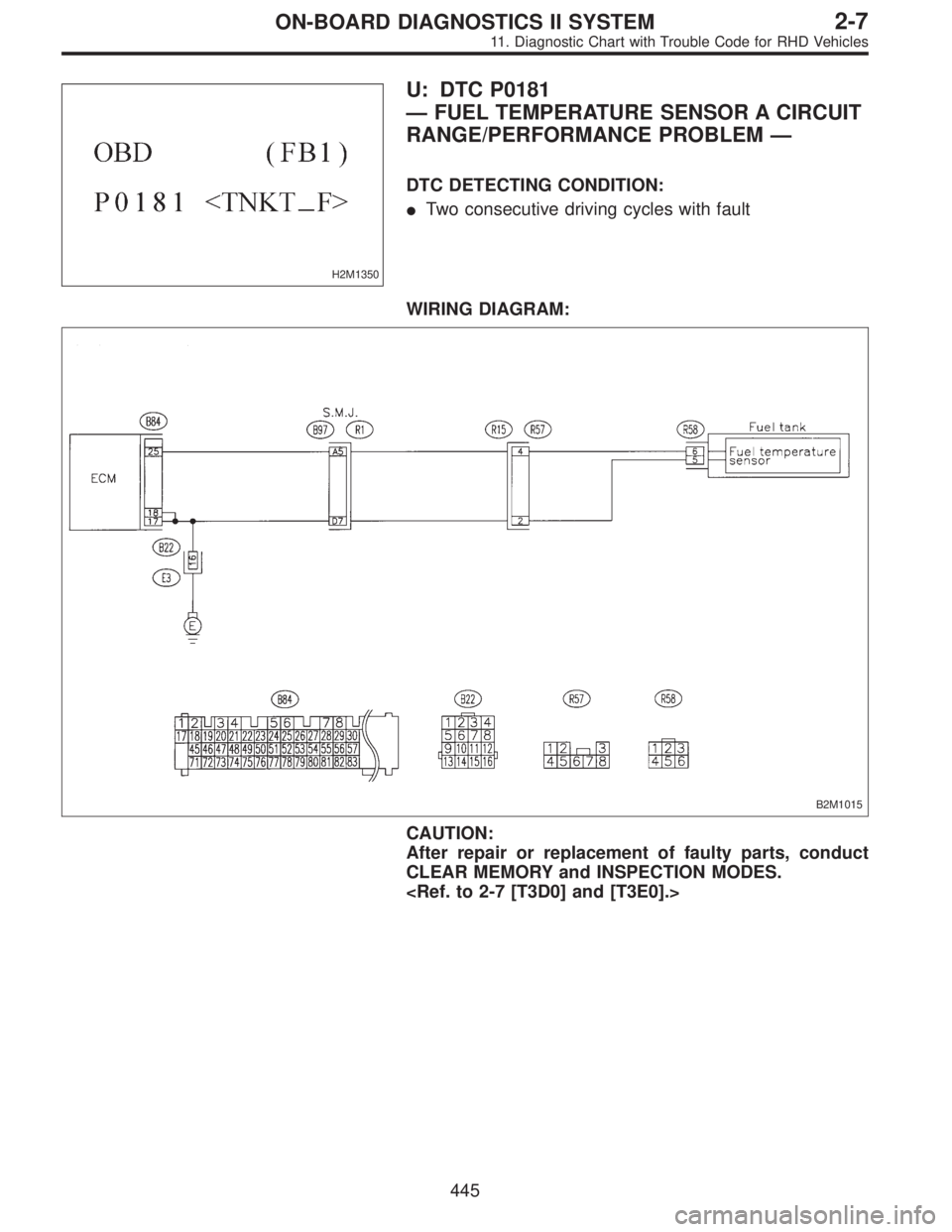

U: DTC P0181
—FUEL TEMPERATURE SENSOR A CIRCUIT
RANGE/PERFORMANCE PROBLEM—
DTC DETECTING CONDITION:

Two consecutive driving cycles with fault
WIRING DIAGRAM:
B2M1015
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

445
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

11U1CHECK DTC P0182 OR P0183 ON DIS-
PLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0182 or
P0183?
: Inspect DTC P0182 or P0183 using“11. Diagnos-
tics Chart with Trouble Code”. [T11A0].>
NOTE:
In this case, it is not necessary to inspect DTC P0181.
: Replace fuel temperature sensor.
446
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

B2M1079

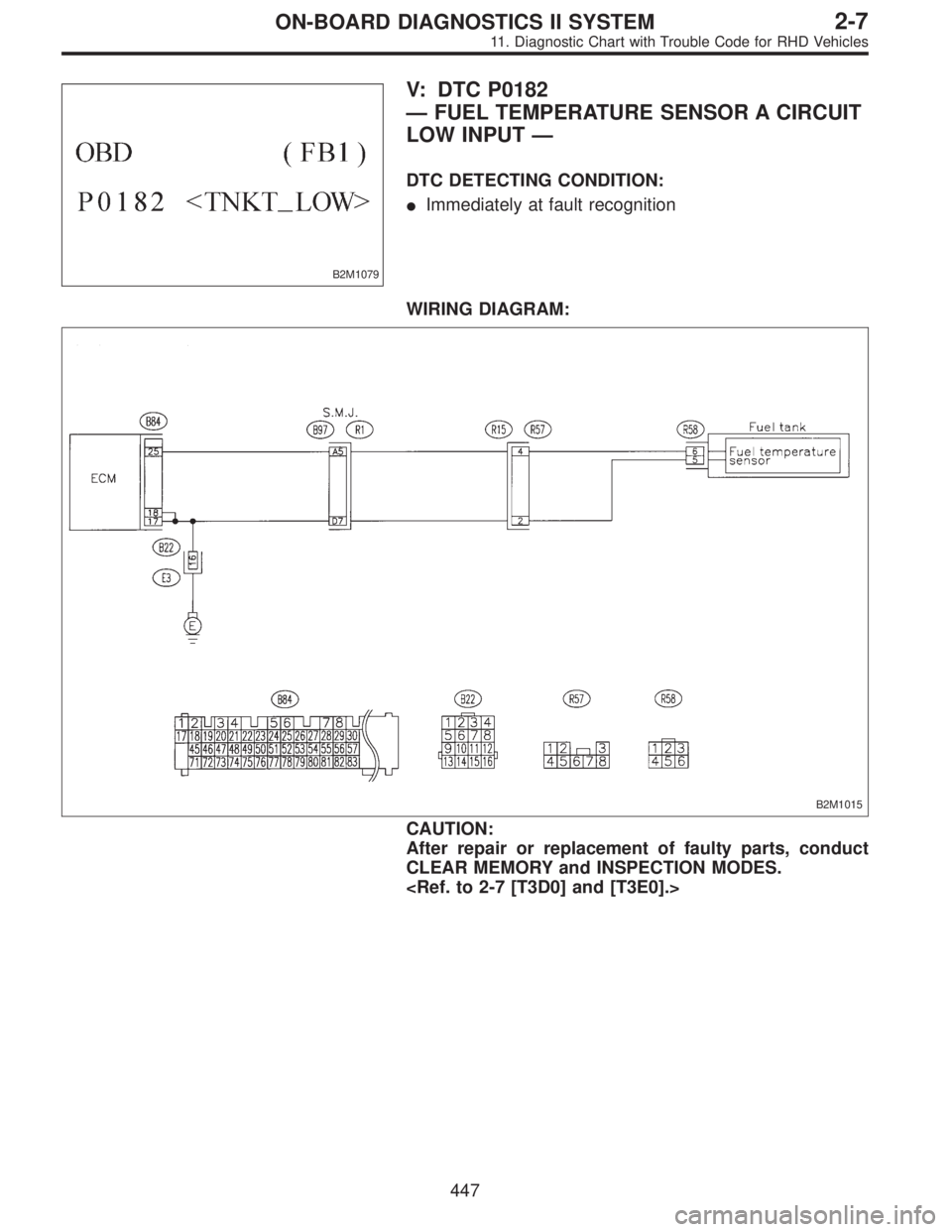

V: DTC P0182
—FUEL TEMPERATURE SENSOR A CIRCUIT
LOW INPUT—
DTC DETECTING CONDITION:

Immediately at fault recognition
WIRING DIAGRAM:
B2M1015
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

447
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

B2M1016A
11V1CONNECT SUBARU SELECT MONITOR
OR THE OBD-II GENERAL SCAN TOOL,
AND READ DATA.
1) Turn ignition switch to OFF.
2) Connect Subaru Select Monitor or the OBD-II general
scan tool to data link connector.
3) Turn ignition switch to ON and Subaru Select Monitor or
OBD-II general scan tool switch to ON.
4) Start engine.
H2M1308
5) Read data on Subaru Select Monitor or OBD-II general
scan tool.

Subaru Select Monitor
Designate mode using function key.
Function mode: F44

F44: Fuel temperature is indicated in“°C”and“°F”.
: Is the value greater than 150°Cor300°Fin
function mode F44?
: Go to step11V2.
: Even if MIL lights up, the circuit has returned to a
normal condition at this time.

OBD-II general scan tool
For detailed operation procedures, refer to the OBD-II Gen-
eral Scan Tool Instruction Manual.
G2M0340
11V2CHECK HARNESS BETWEEN FUEL TEM-
PERATURE SENSOR AND ECM CON-
NECTOR.
1) Turn ignition switch to OFF.
2) Remove access hole lid.
3) Disconnect connector from fuel pump.
B2M1016A
4) Connect Subaru Select Monitor or the OBD-II general
scan tool to data link connector.
5) Turn ignition switch and Subaru Select Monitor or
OBD-II general scan tool switch to ON.
448
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

H2M1308

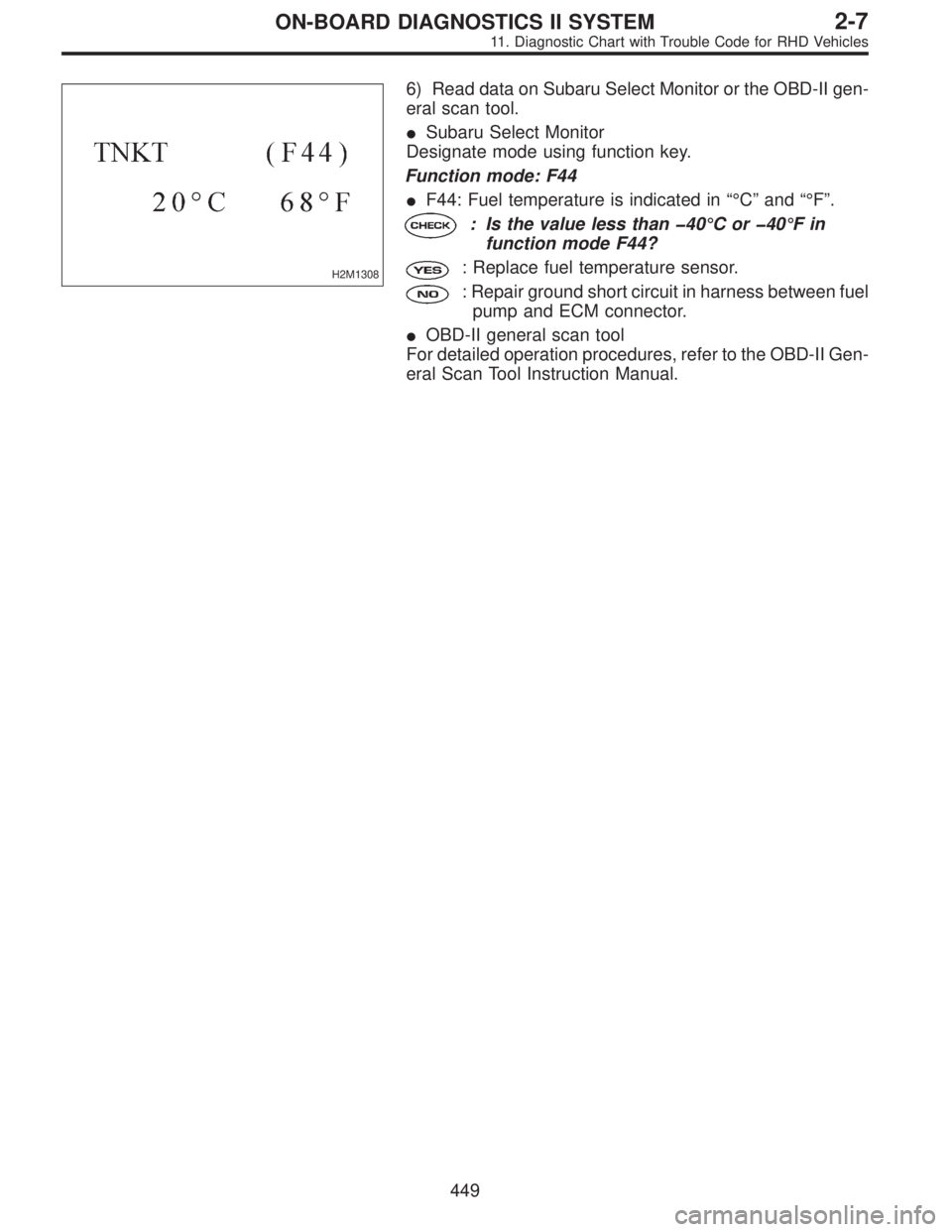

6) Read data on Subaru Select Monitor or the OBD-II gen-
eral scan tool.

Subaru Select Monitor
Designate mode using function key.
Function mode: F44

F44: Fuel temperature is indicated in“°C”and“°F”.
: Is the value less than40°Cor40°Fin
function mode F44?
: Replace fuel temperature sensor.
: Repair ground short circuit in harness between fuel
pump and ECM connector.

OBD-II general scan tool
For detailed operation procedures, refer to the OBD-II Gen-
eral Scan Tool Instruction Manual.
449
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

B2M1080

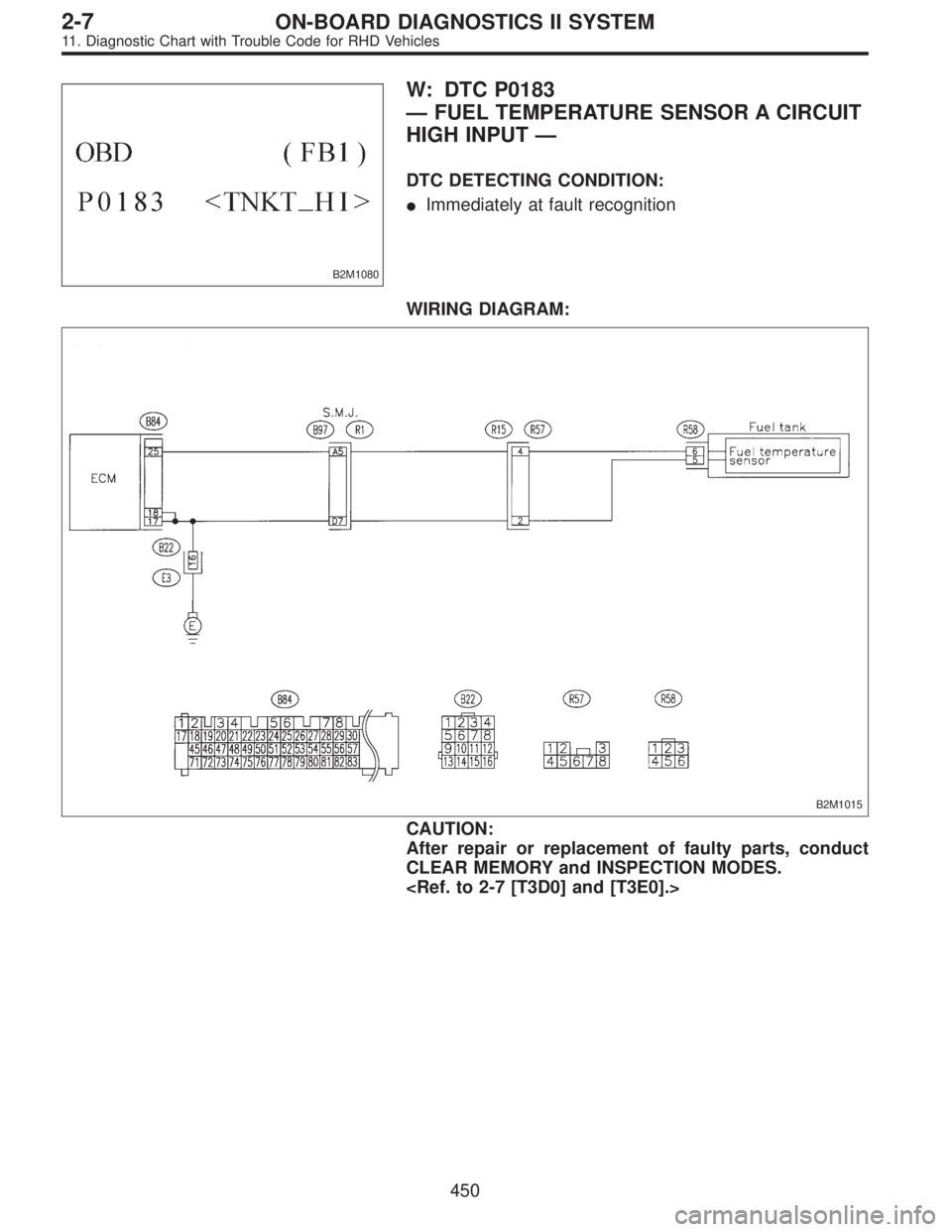

W: DTC P0183
—FUEL TEMPERATURE SENSOR A CIRCUIT
HIGH INPUT—
DTC DETECTING CONDITION:

Immediately at fault recognition
WIRING DIAGRAM:
B2M1015
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

450
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

B2M1016A
11W1CONNECT SUBARU SELECT MONITOR
OR THE OBD-II GENERAL SCAN TOOL,
AND READ DATA.
1) Turn ignition switch to OFF.
2) Connect Subaru Select Monitor or the OBD-II general
scan tool to data link connector.
3) Turn ignition switch to ON and Subaru Select Monitor or
OBD-II general scan tool switch to ON.
4) Start engine.
H2M1308
5) Read data on Subaru Select Monitor or OBD-II general
scan tool.

Subaru Select Monitor
Designate mode using function key.
Function mode: F44

F44: Fuel temperature is indicated in“°C”and“°F”.
: Is the value less than40°Cor40°Fin
function mode F44?
: Go to step11W2.
: Repair poor contact.
NOTE:
In this case, repair the following:

Poor contact in fuel pump connector

Poor contact in ECM connector

Poor contact in coupling connector (B22, B97 and R57)

OBD-II general scan tool
For detailed operation procedures, refer to the OBD-II Gen-
eral Scan Tool Instruction Manual.
G2M0340
11W2CHECK HARNESS BETWEEN FUEL TEM-
PERATURE SENSOR AND ECM CON-
NECTOR.
1) Turn ignition switch to OFF.
2) Remove access hole lid.
3) Disconnect connector from fuel pump.
B2M0917A
4) Measure voltage between fuel pump connector and
chassis ground.
: Connector & terminal
(R58) No. 6 (+)—Chassis ground ():
Is the voltage more than 10 V?
: Repair battery short circuit in harness between
ECM and fuel pump connector.
: Go to next step 5).
451
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles
