1997 SUBARU LEGACY sensor

B2M1056

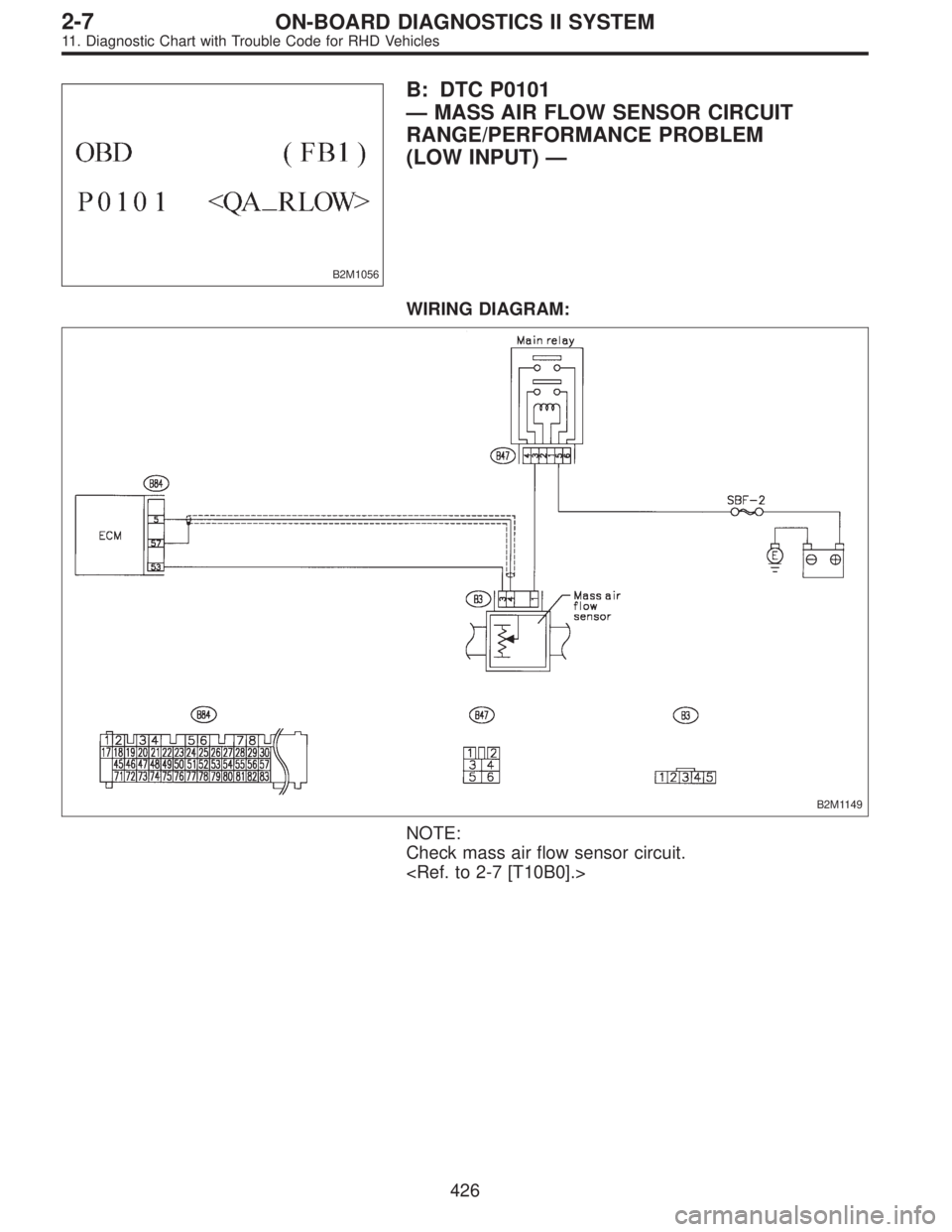

B: DTC P0101
—MASS AIR FLOW SENSOR CIRCUIT
RANGE/PERFORMANCE PROBLEM
(LOW INPUT)—
WIRING DIAGRAM:
B2M1149
NOTE:
Check mass air flow sensor circuit.

426
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

B2M1058

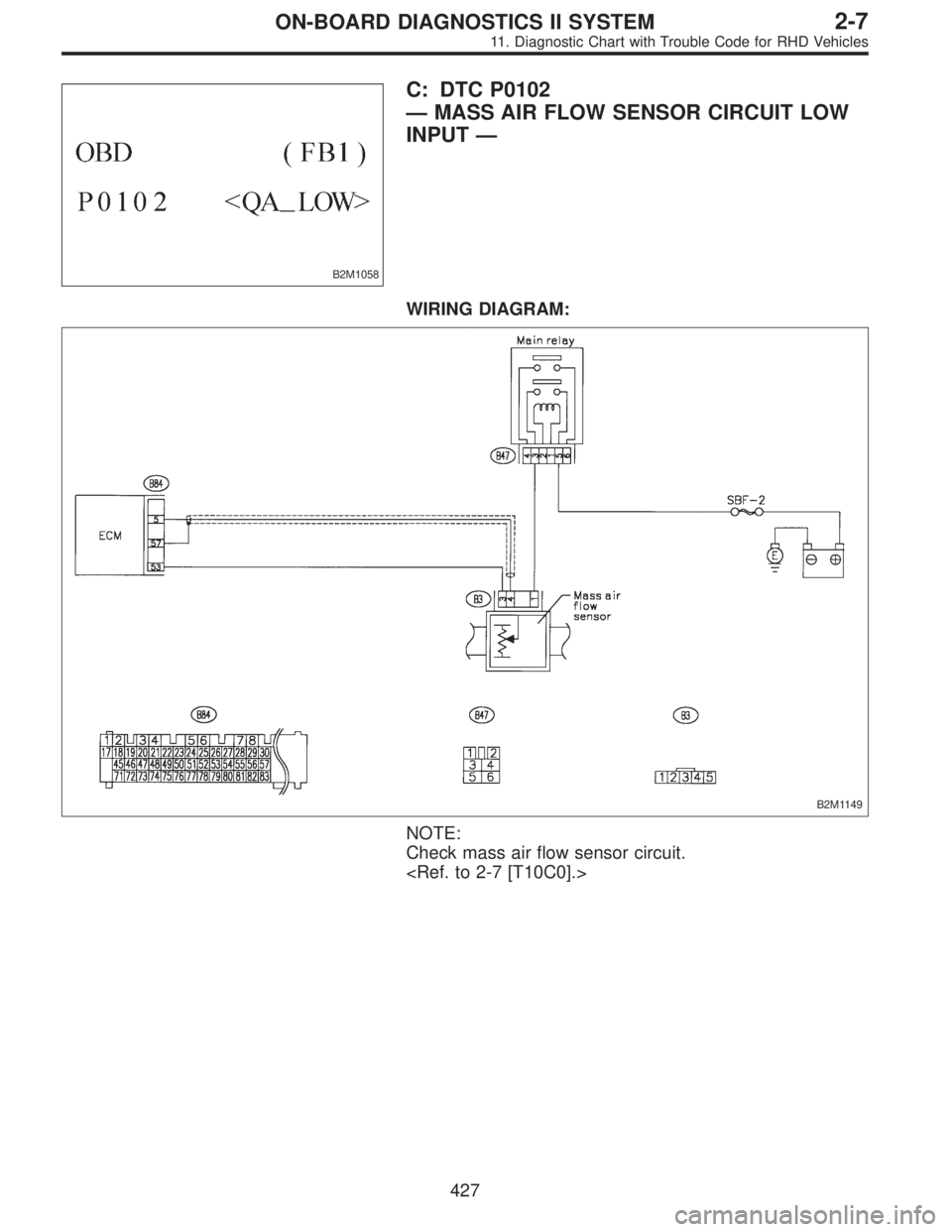

C: DTC P0102
—MASS AIR FLOW SENSOR CIRCUIT LOW
INPUT—
WIRING DIAGRAM:
B2M1149
NOTE:
Check mass air flow sensor circuit.

427
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

B2M1061

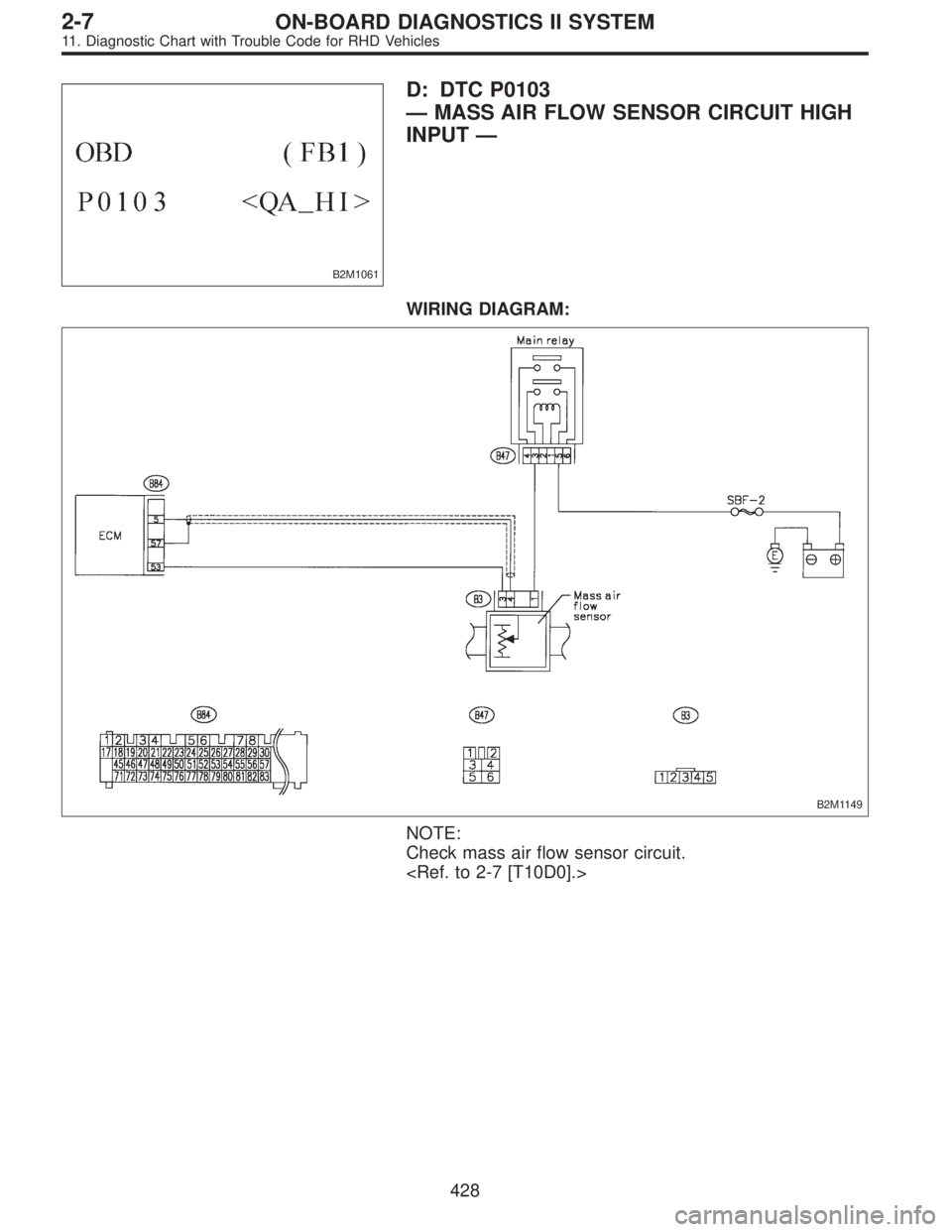

D: DTC P0103
—MASS AIR FLOW SENSOR CIRCUIT HIGH
INPUT—
WIRING DIAGRAM:
B2M1149
NOTE:
Check mass air flow sensor circuit.

428
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

B2M1062

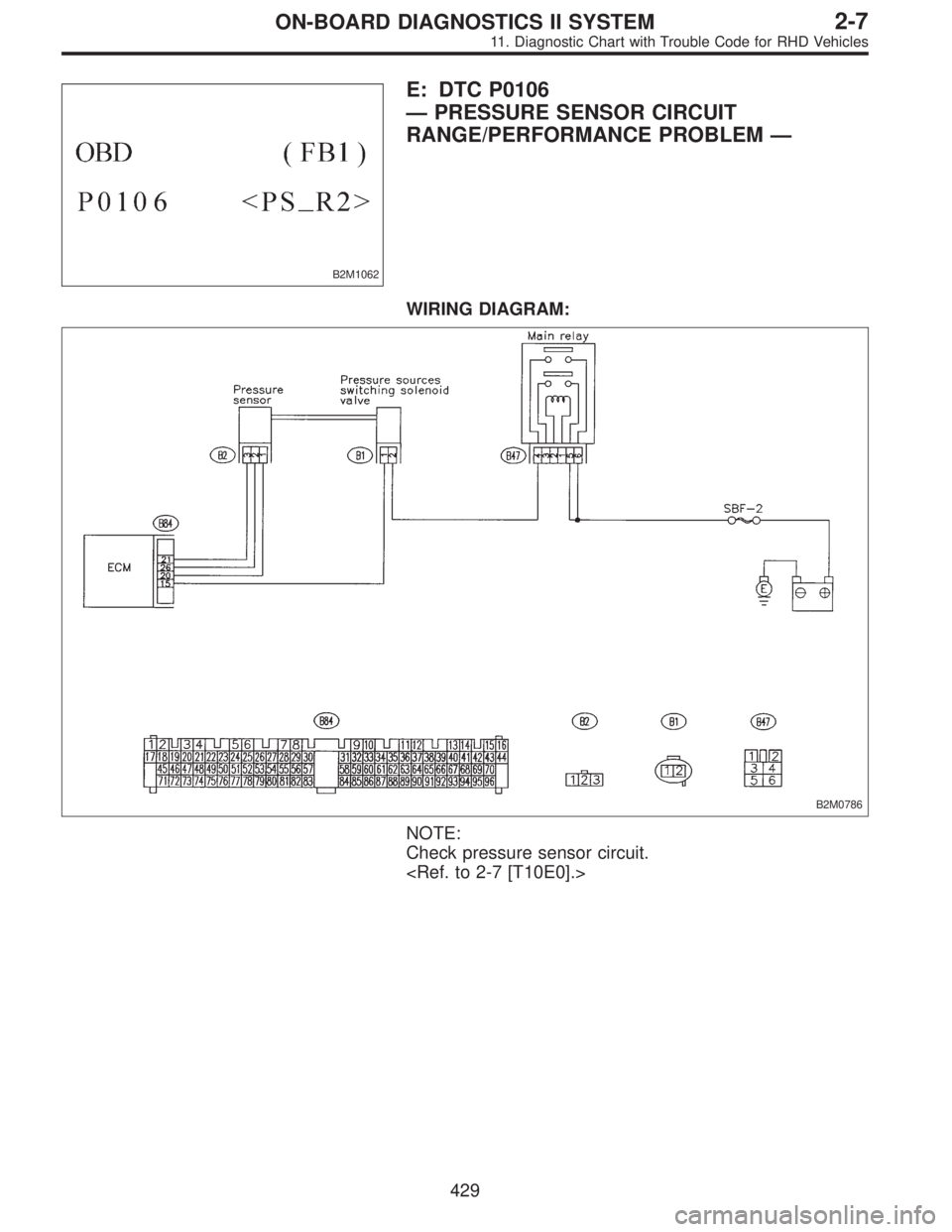

E: DTC P0106
—PRESSURE SENSOR CIRCUIT
RANGE/PERFORMANCE PROBLEM—
WIRING DIAGRAM:
B2M0786
NOTE:
Check pressure sensor circuit.

429
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

B2M1064

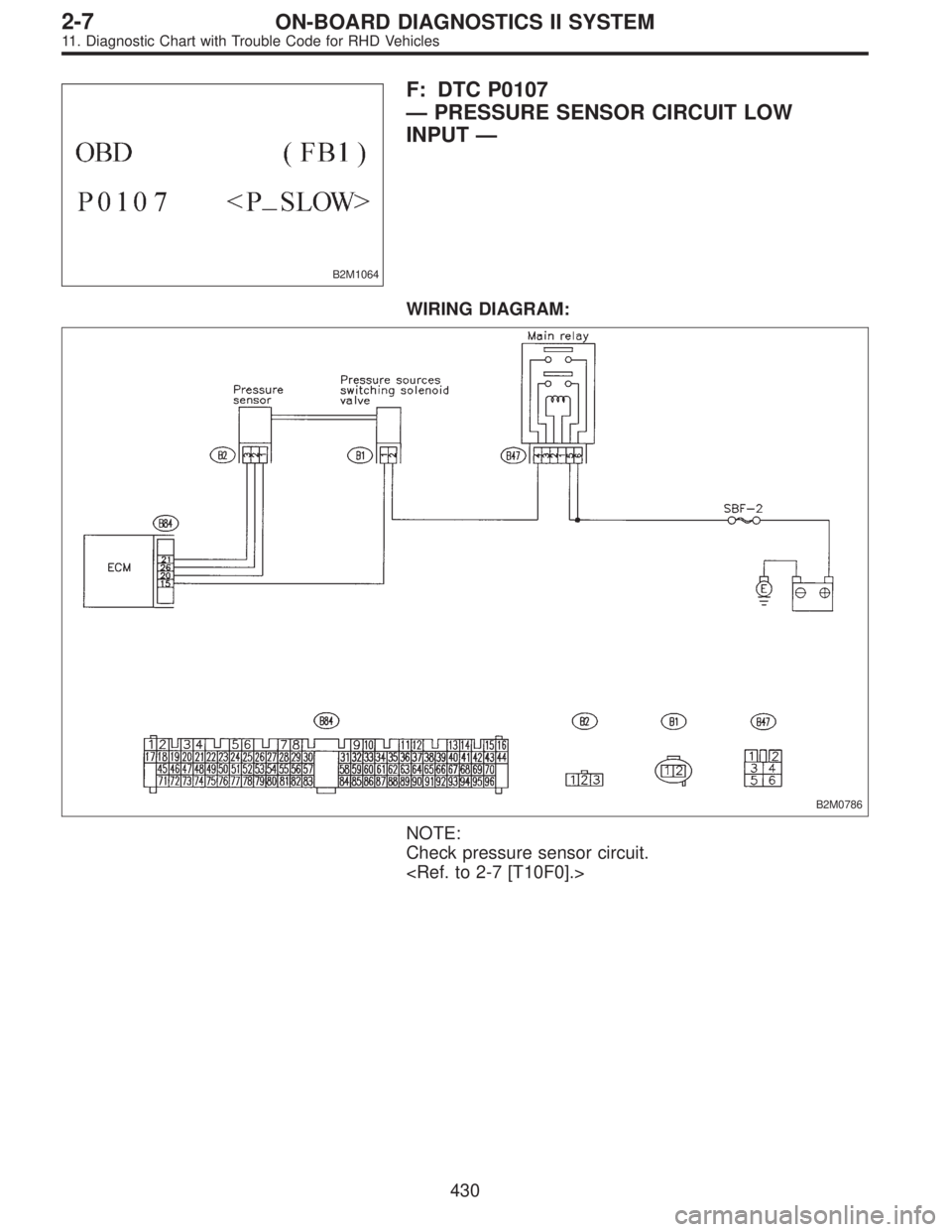

F: DTC P0107
—PRESSURE SENSOR CIRCUIT LOW
INPUT—
WIRING DIAGRAM:
B2M0786
NOTE:
Check pressure sensor circuit.

430
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

B2M1066

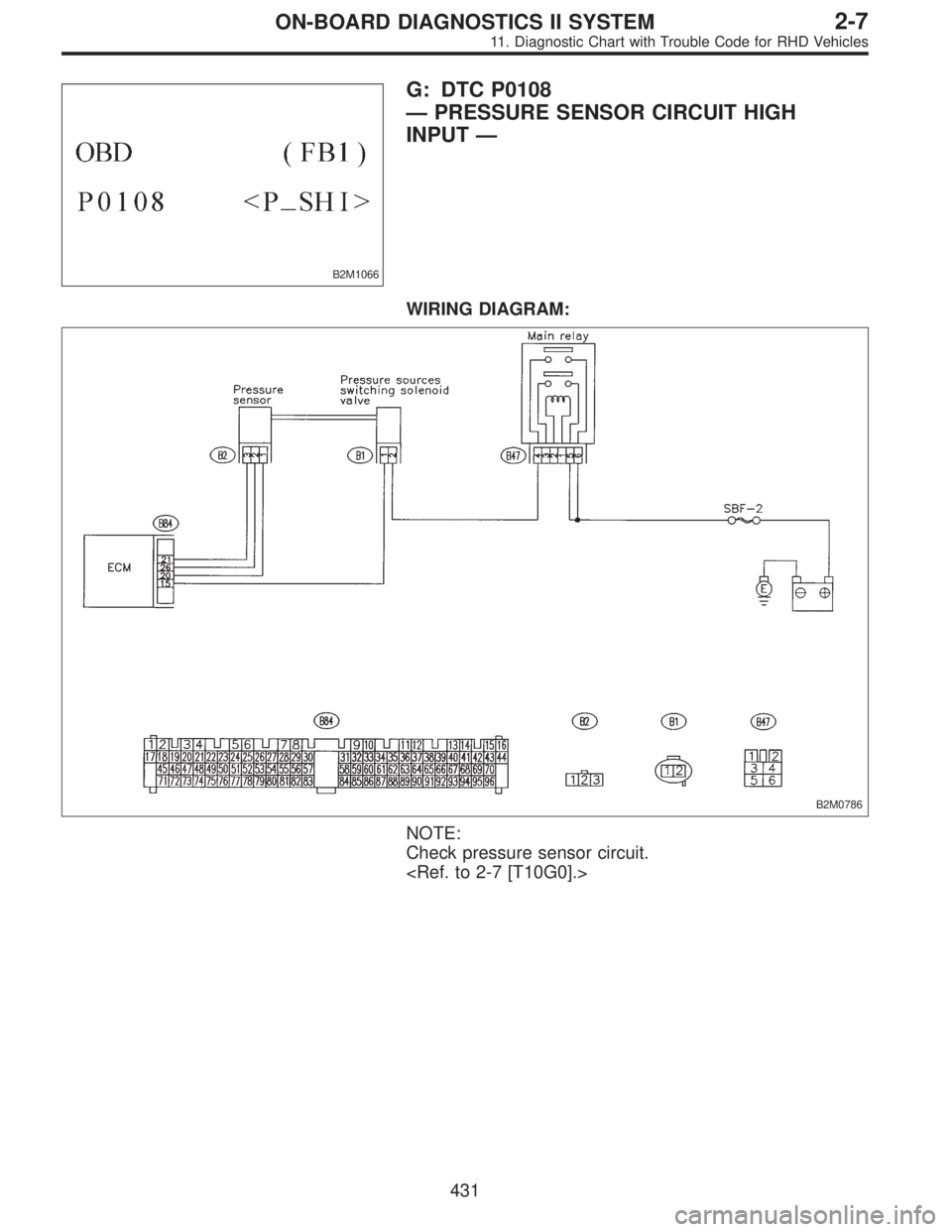

G: DTC P0108
—PRESSURE SENSOR CIRCUIT HIGH
INPUT—
WIRING DIAGRAM:
B2M0786
NOTE:
Check pressure sensor circuit.

431
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

B2M1067
H: DTC P0116
—ENGINE COOLANT TEMPERATURE
SENSOR CIRCUIT LOW INPUT—
WIRING DIAGRAM:
B2M0539
NOTE:
Check engine coolant temperature sensor circuit.

432
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles

B2M1068
I: DTC P0117
—ENGINE COOLANT TEMPERATURE
SENSOR CIRCUIT HIGH INPUT—
WIRING DIAGRAM:
B2M0539
NOTE:
Check engine coolant temperature sensor circuit.

433
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostic Chart with Trouble Code for RHD Vehicles
