1997 SUBARU LEGACY sensor

OBD0380
BJ: DTC P0710
—TRANSMISSION FLUID TEMPERATURE
SENSOR CIRCUIT MALFUNCTION—
DTC DETECTING CONDITION:

Two consecutive driving cycles with fault
TROUBLE SYMPTOM:

No shift up to 4th speed (after engine warm-up)

No lock-up (after engine warm-up)

Excessive shift shock
WIRING DIAGRAM:
OBD0383
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

10BJ1
CHECK DTC P0710 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0710?
: Check ATF temperature sensor circuit. 3-2 [T7F0].>
: It is not necessary to inspect DTC P0710.
311
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

OBD0392

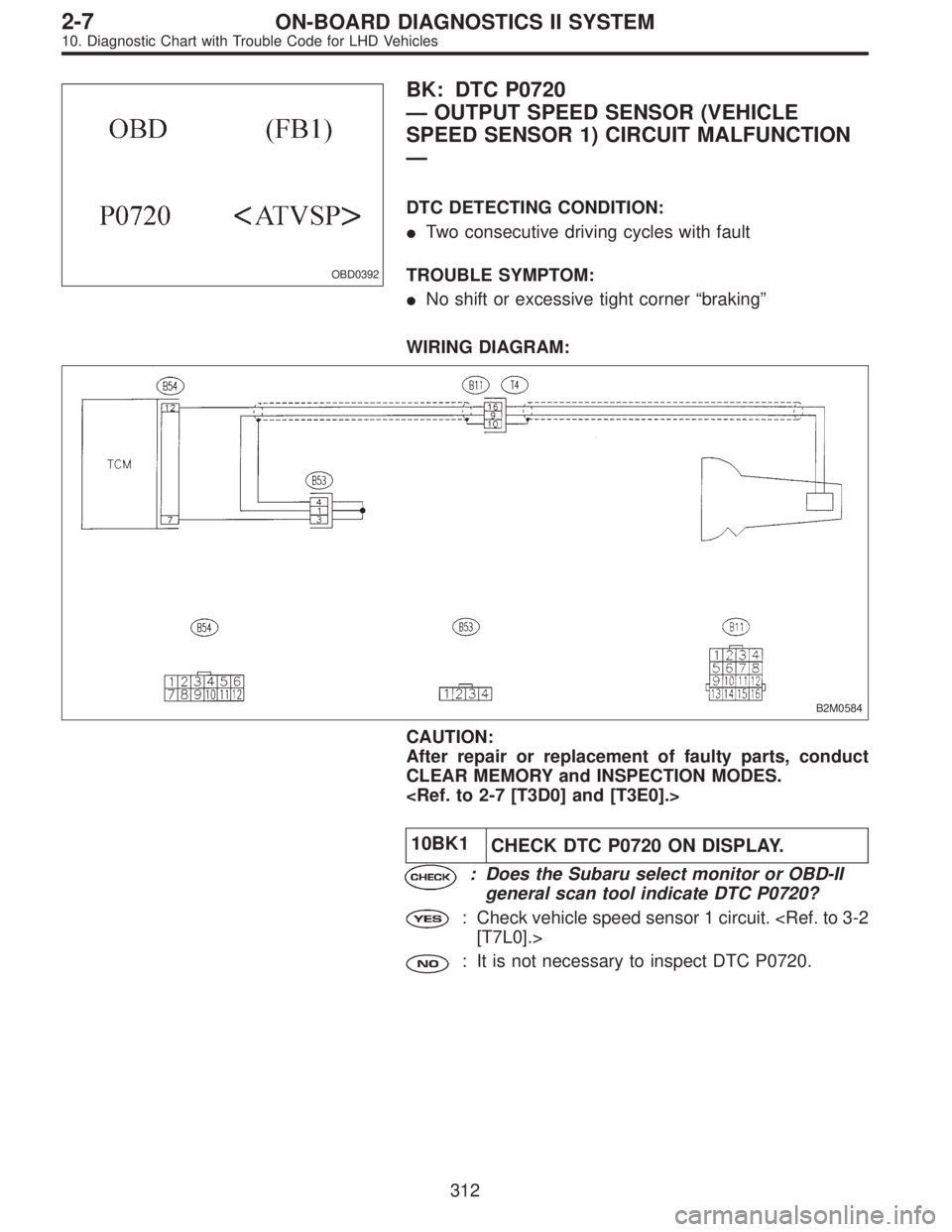

BK: DTC P0720
—OUTPUT SPEED SENSOR (VEHICLE
SPEED SENSOR 1) CIRCUIT MALFUNCTION
—
DTC DETECTING CONDITION:

Two consecutive driving cycles with fault
TROUBLE SYMPTOM:

No shift or excessive tight corner“braking”
WIRING DIAGRAM:
B2M0584
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

10BK1
CHECK DTC P0720 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0720?
: Check vehicle speed sensor 1 circuit. [T7L0].>
: It is not necessary to inspect DTC P0720.
312
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

10BP2CHECK THROTTLE POSITION SENSOR
CIRCUIT.
Check throttle position sensor circuit.
: Is there any trouble in throttle position sen-
sor circuit?
: Repair or replace throttle position sensor circuit.
: Go to step10BP3.
10BP3CHECK VEHICLE SPEED SENSOR 1 CIR-
CUIT.
Check vehicle speed sensor 1 circuit.
: Is there any trouble in vehicle speed sensor
1 circuit?
: Repair or replace vehicle speed sensor 1 circuit.
: Go to step10BP4.
10BP4CHECK VEHICLE SPEED SENSOR 2 CIR-
CUIT.
Check vehicle speed sensor 2 circuit.
: Is there any trouble in vehicle speed sensor
2 circuit?
: Repair or replace vehicle speed sensor 2 circuit.
: Go to step10BP5.
10BP5
CHECK ENGINE SPEED INPUT CIRCUIT.
Check engine speed input circuit.
: Is there any trouble in engine speed input
circuit?
: Repair or replace engine speed input circuit.
: Go to next.
: Is there poor contact in TCM connector?
: Repair poor contact in TCM connector.
: Go to next.
: Is there any mechanical trouble in automatic
transmission?
: Repair or replace automatic transmission.
: Replace TCM.
316
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

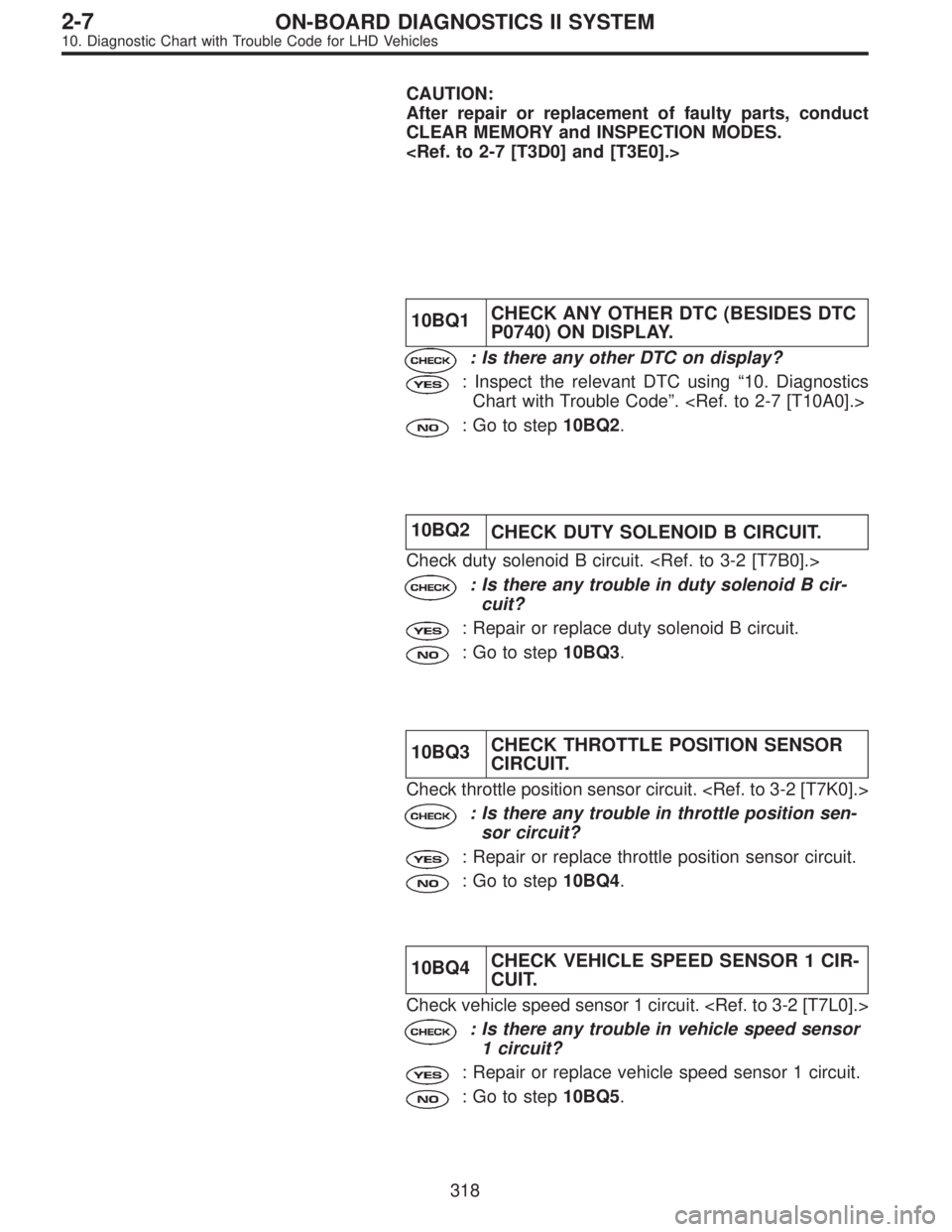

CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

10BQ1CHECK ANY OTHER DTC (BESIDES DTC
P0740) ON DISPLAY.
: Is there any other DTC on display?
: Inspect the relevant DTC using“10. Diagnostics
Chart with Trouble Code”.
: Go to step10BQ2.
10BQ2
CHECK DUTY SOLENOID B CIRCUIT.
Check duty solenoid B circuit.
: Is there any trouble in duty solenoid B cir-
cuit?
: Repair or replace duty solenoid B circuit.
: Go to step10BQ3.
10BQ3CHECK THROTTLE POSITION SENSOR
CIRCUIT.
Check throttle position sensor circuit.
: Is there any trouble in throttle position sen-
sor circuit?
: Repair or replace throttle position sensor circuit.
: Go to step10BQ4.
10BQ4CHECK VEHICLE SPEED SENSOR 1 CIR-
CUIT.
Check vehicle speed sensor 1 circuit.
: Is there any trouble in vehicle speed sensor
1 circuit?
: Repair or replace vehicle speed sensor 1 circuit.
: Go to step10BQ5.
318
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

10BQ5CHECK VEHICLE SPEED SENSOR 2 CIR-
CUIT.
Check vehicle speed sensor 2 circuit.
: Is there any trouble in vehicle speed sensor
2 circuit?
: Repair or replace vehicle speed sensor 2 circuit.
: Go to step10BQ6.
10BQ6
CHECK ENGINE SPEED INPUT CIRCUIT.
Check engine speed input circuit.
: Is there any trouble in engine speed input
circuit?
: Repair or replace engine speed input circuit.
: Go to step10BQ7.
10BQ7
CHECK INHIBITOR SWITCH CIRCUIT.
Check inhibitor switch circuit.
: Is there any trouble in inhibitor switch cir-
cuit?
: Repair or replace inhibitor switch circuit.
: Go to step10BQ8.
10BQ8
CHECK BRAKE LIGHT SWITCH CIRCUIT.
Check brake light switch circuit.
: Is there any trouble in brake light switch cir-
cuit?
: Repair or replace brake light switch circuit.
: Go to step10BQ9.
319
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

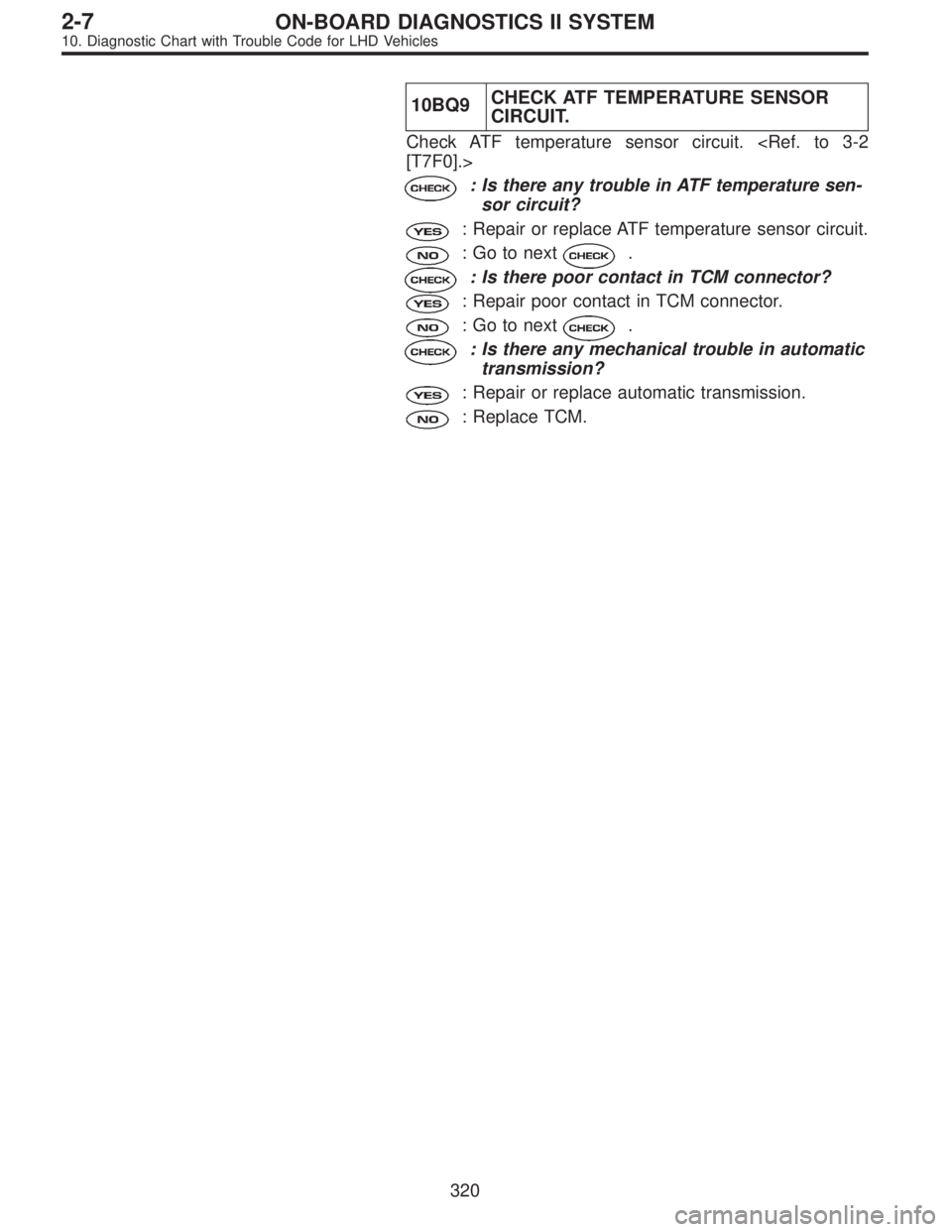

10BQ9CHECK ATF TEMPERATURE SENSOR
CIRCUIT.
Check ATF temperature sensor circuit. [T7F0].>
: Is there any trouble in ATF temperature sen-
sor circuit?
: Repair or replace ATF temperature sensor circuit.
: Go to next.
: Is there poor contact in TCM connector?
: Repair poor contact in TCM connector.
: Go to next.
: Is there any mechanical trouble in automatic
transmission?
: Repair or replace automatic transmission.
: Replace TCM.
320
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

B2M1126

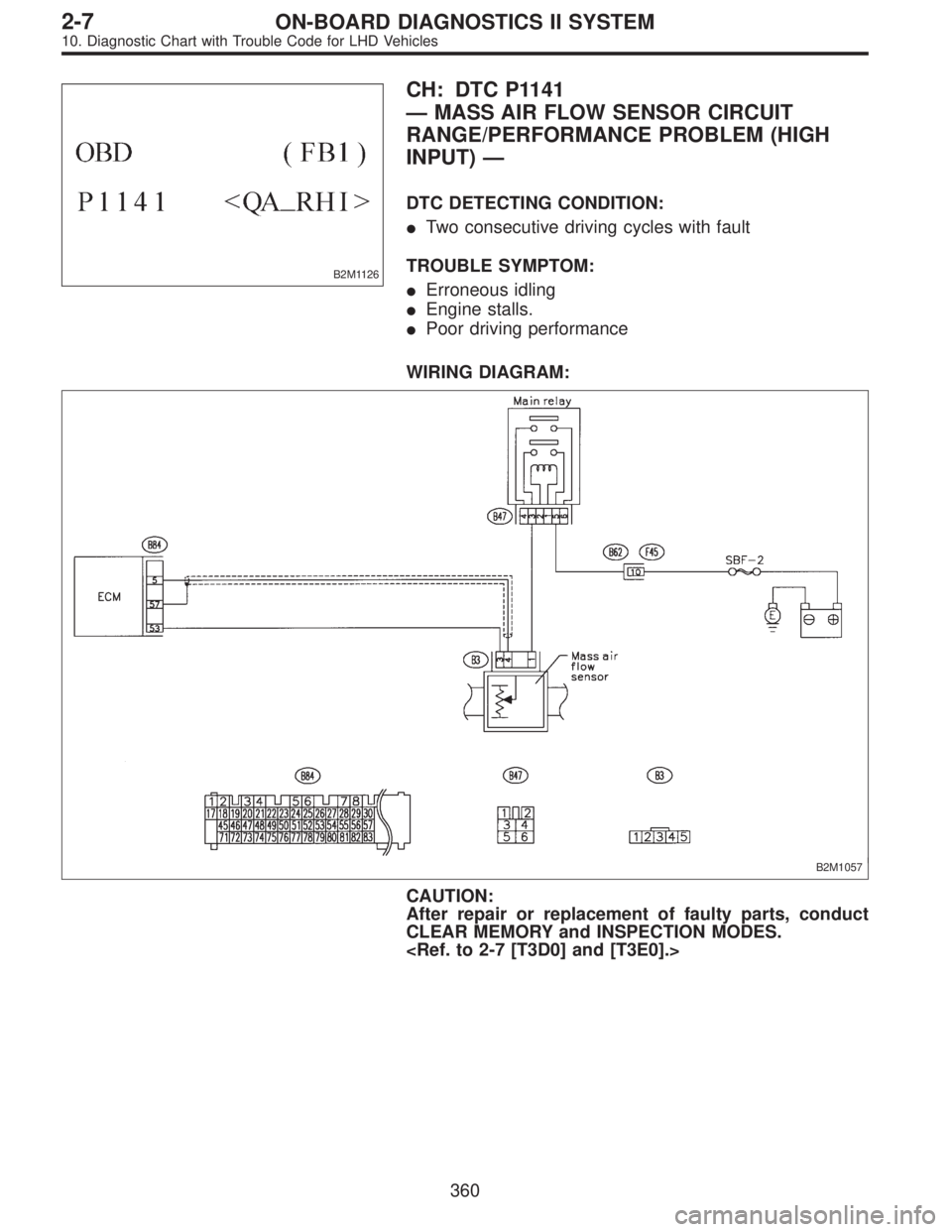

CH: DTC P1141
—MASS AIR FLOW SENSOR CIRCUIT
RANGE/PERFORMANCE PROBLEM (HIGH
INPUT)—
DTC DETECTING CONDITION:

Two consecutive driving cycles with fault
TROUBLE SYMPTOM:

Erroneous idling

Engine stalls.

Poor driving performance
WIRING DIAGRAM:
B2M1057
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

360
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

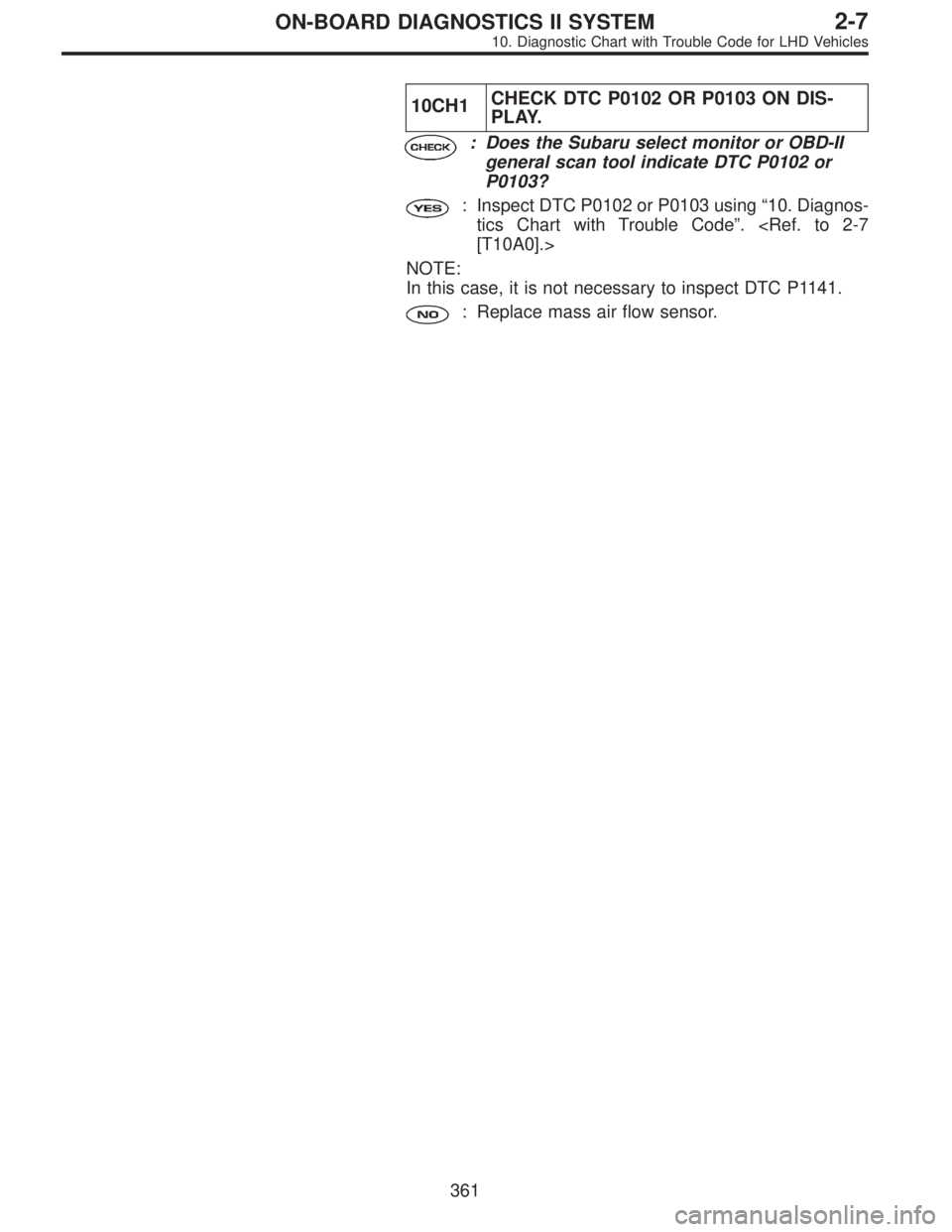

10CH1CHECK DTC P0102 OR P0103 ON DIS-
PLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0102 or
P0103?
: Inspect DTC P0102 or P0103 using“10. Diagnos-
tics Chart with Trouble Code”. [T10A0].>
NOTE:
In this case, it is not necessary to inspect DTC P1141.
: Replace mass air flow sensor.
361
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles
