B2M1092

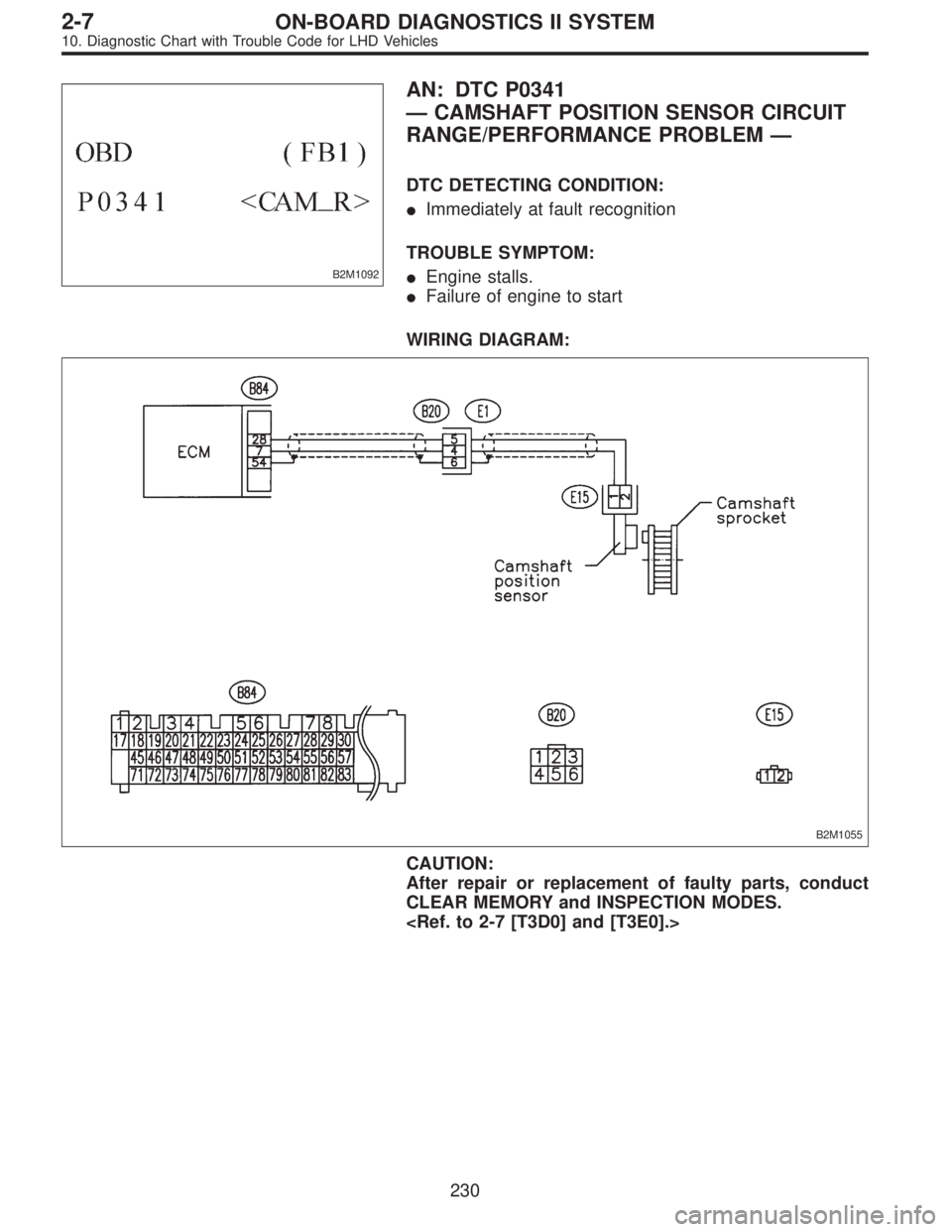

AN: DTC P0341
—CAMSHAFT POSITION SENSOR CIRCUIT
RANGE/PERFORMANCE PROBLEM—
DTC DETECTING CONDITION:

Immediately at fault recognition
TROUBLE SYMPTOM:

Engine stalls.

Failure of engine to start
WIRING DIAGRAM:
B2M1055
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

230
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

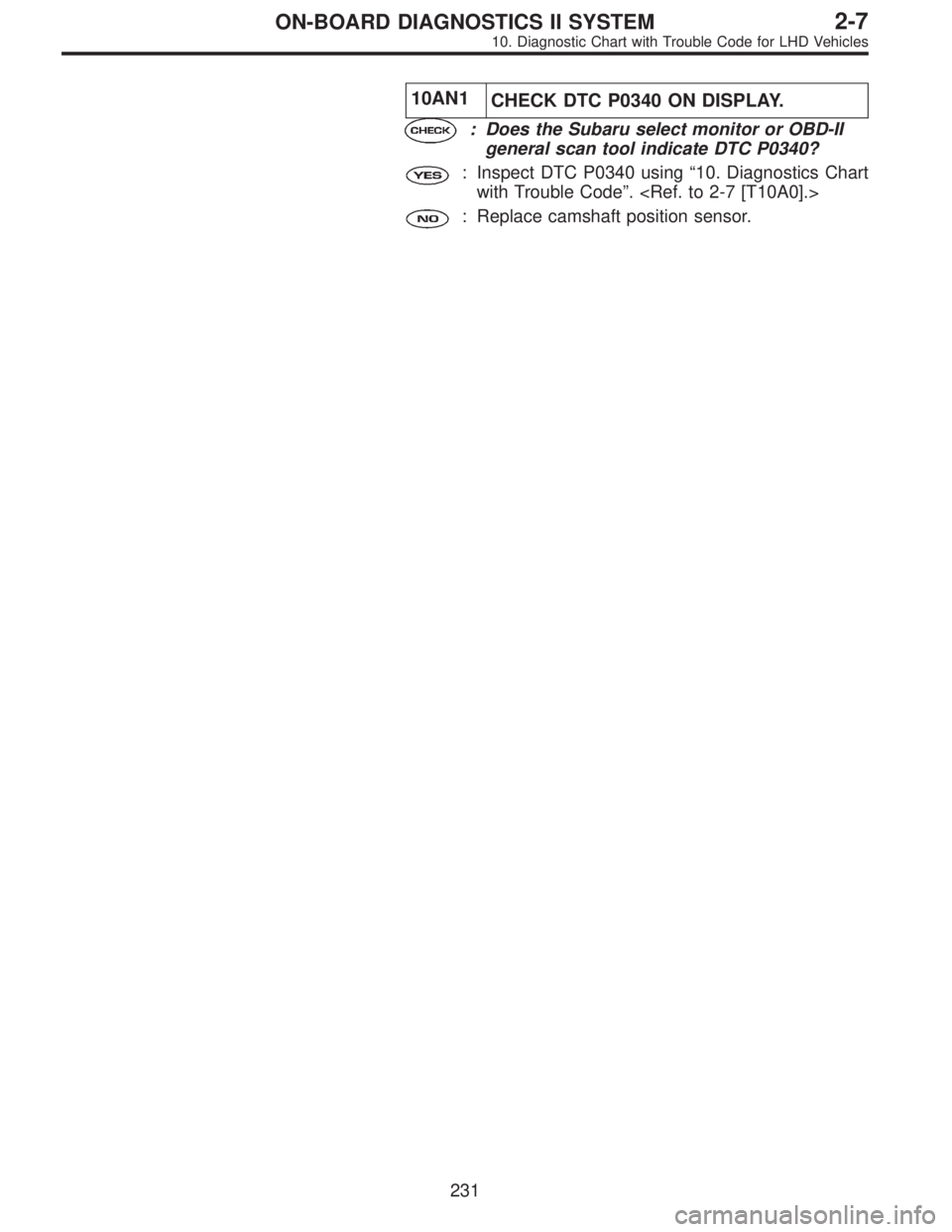

10AN1
CHECK DTC P0340 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0340?
: Inspect DTC P0340 using“10. Diagnostics Chart
with Trouble Code”.
: Replace camshaft position sensor.
231
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

H2M1377

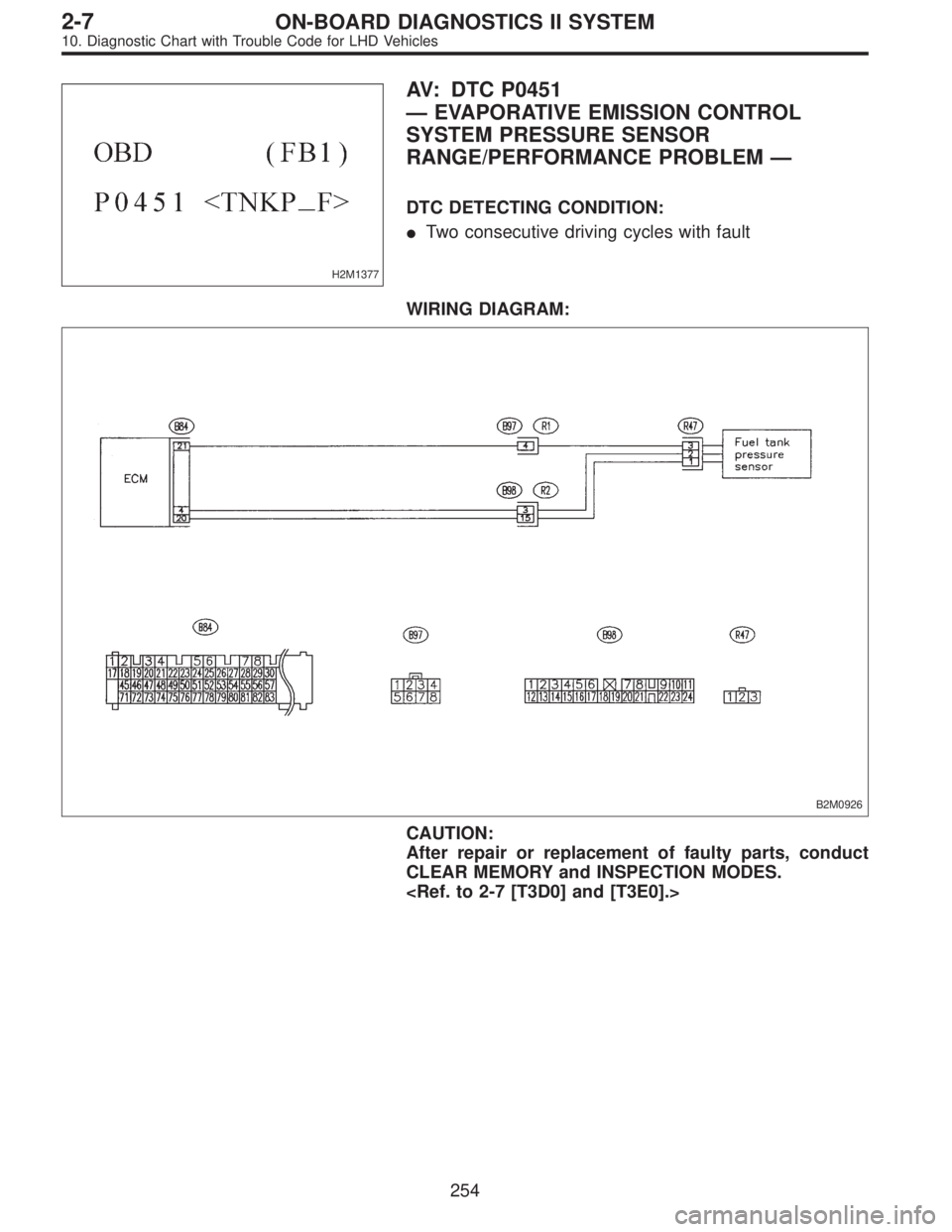

AV: DTC P0451
—EVAPORATIVE EMISSION CONTROL
SYSTEM PRESSURE SENSOR
RANGE/PERFORMANCE PROBLEM—
DTC DETECTING CONDITION:

Two consecutive driving cycles with fault
WIRING DIAGRAM:
B2M0926
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

254
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

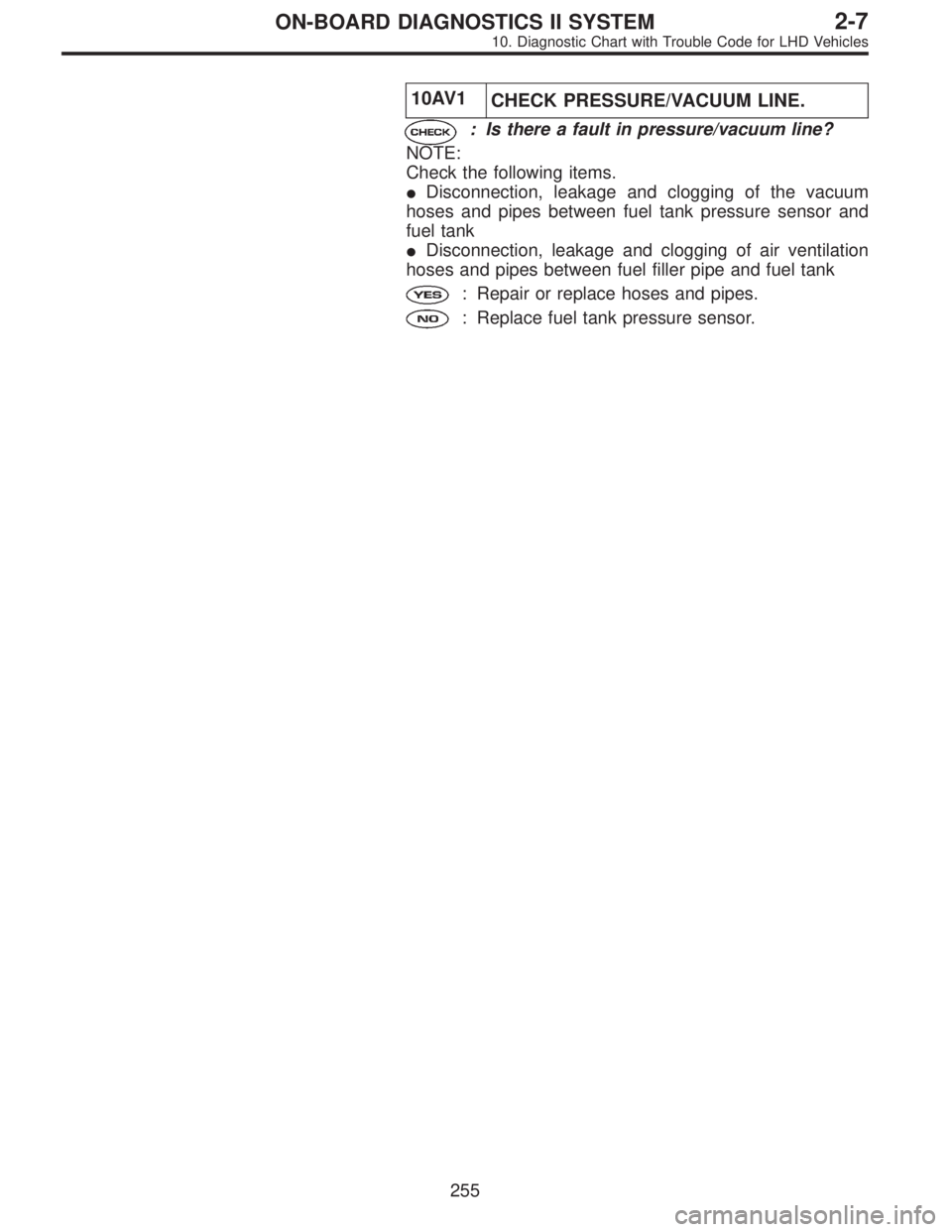

10AV1
CHECK PRESSURE/VACUUM LINE.
: Is there a fault in pressure/vacuum line?
NOTE:
Check the following items.

Disconnection, leakage and clogging of the vacuum
hoses and pipes between fuel tank pressure sensor and
fuel tank

Disconnection, leakage and clogging of air ventilation
hoses and pipes between fuel filler pipe and fuel tank
: Repair or replace hoses and pipes.
: Replace fuel tank pressure sensor.
255
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

B2M1099

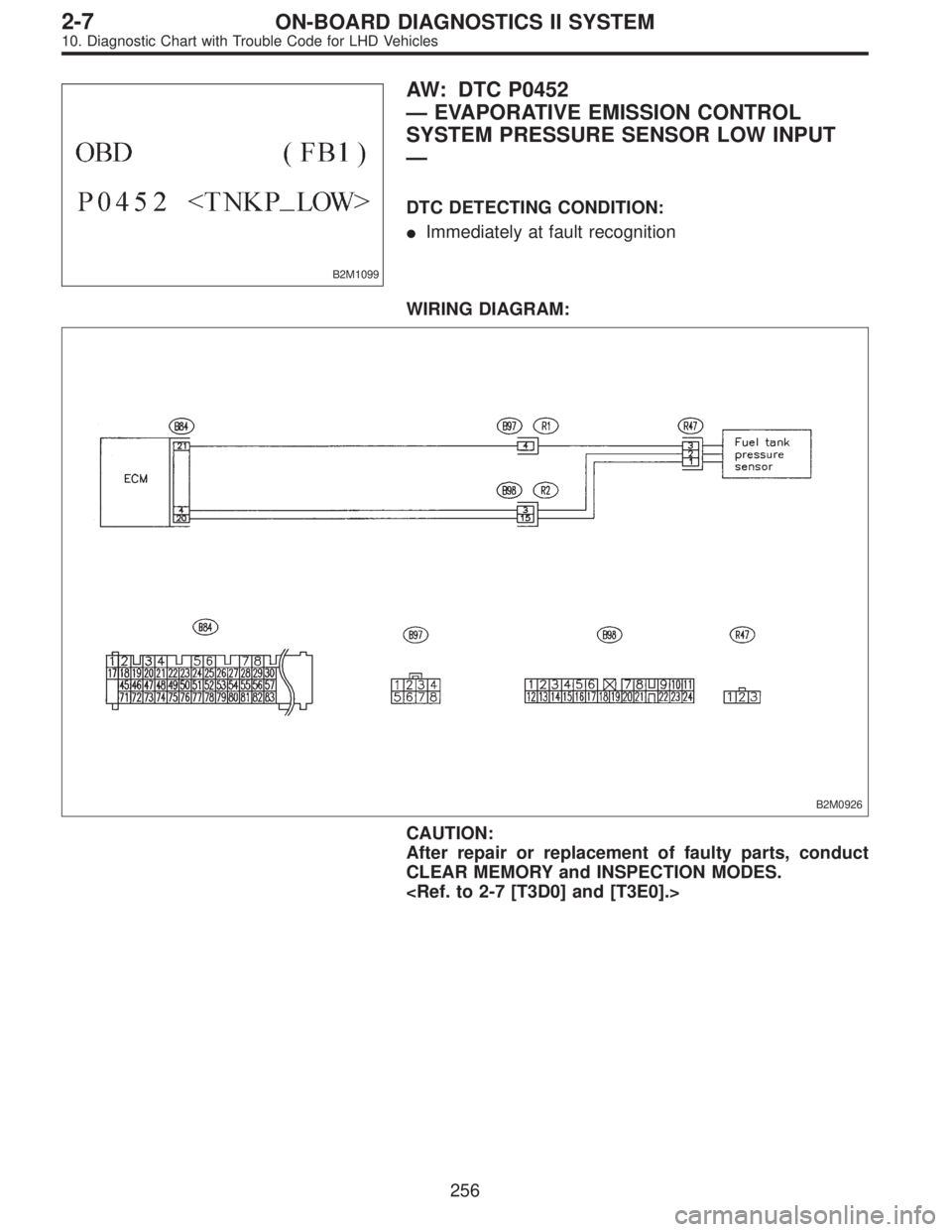

AW: DTC P0452
—EVAPORATIVE EMISSION CONTROL
SYSTEM PRESSURE SENSOR LOW INPUT
—
DTC DETECTING CONDITION:

Immediately at fault recognition
WIRING DIAGRAM:
B2M0926
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

256
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

OBD0145A

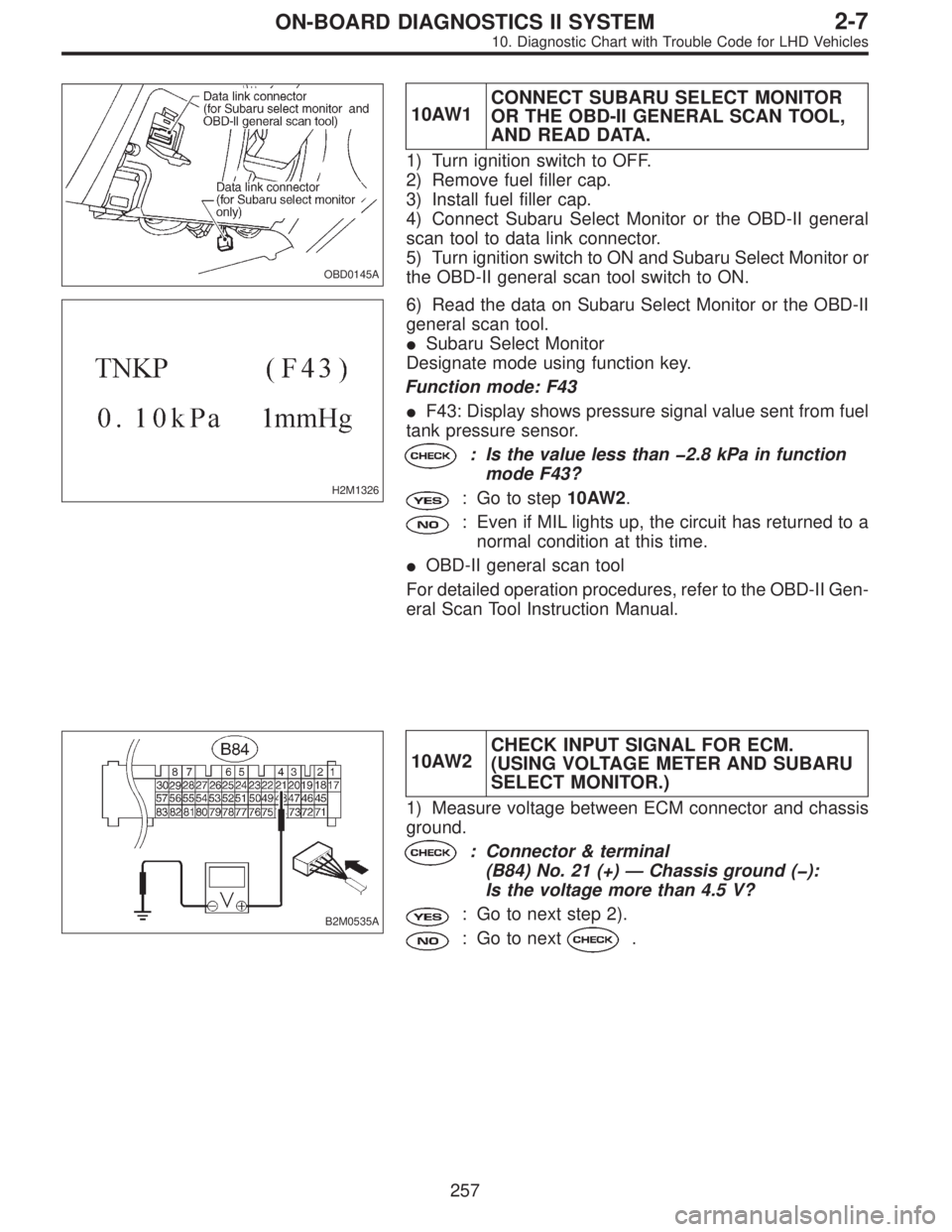

10AW1CONNECT SUBARU SELECT MONITOR
OR THE OBD-II GENERAL SCAN TOOL,
AND READ DATA.
1) Turn ignition switch to OFF.
2) Remove fuel filler cap.
3) Install fuel filler cap.
4) Connect Subaru Select Monitor or the OBD-II general
scan tool to data link connector.
5) Turn ignition switch to ON and Subaru Select Monitor or
the OBD-II general scan tool switch to ON.
H2M1326
6) Read the data on Subaru Select Monitor or the OBD-II
general scan tool.

Subaru Select Monitor
Designate mode using function key.
Function mode: F43

F43: Display shows pressure signal value sent from fuel
tank pressure sensor.
: Is the value less than2.8 kPa in function
mode F43?
: Go to step10AW2.
: Even if MIL lights up, the circuit has returned to a
normal condition at this time.

OBD-II general scan tool
For detailed operation procedures, refer to the OBD-II Gen-
eral Scan Tool Instruction Manual.
B2M0535A
10AW2CHECK INPUT SIGNAL FOR ECM.
(USING VOLTAGE METER AND SUBARU
SELECT MONITOR.)
1) Measure voltage between ECM connector and chassis
ground.
: Connector & terminal
(B84) No. 21 (+)—Chassis ground ():
Is the voltage more than 4.5 V?
: Go to next step 2).
: Go to next.
257
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

B2M0535A

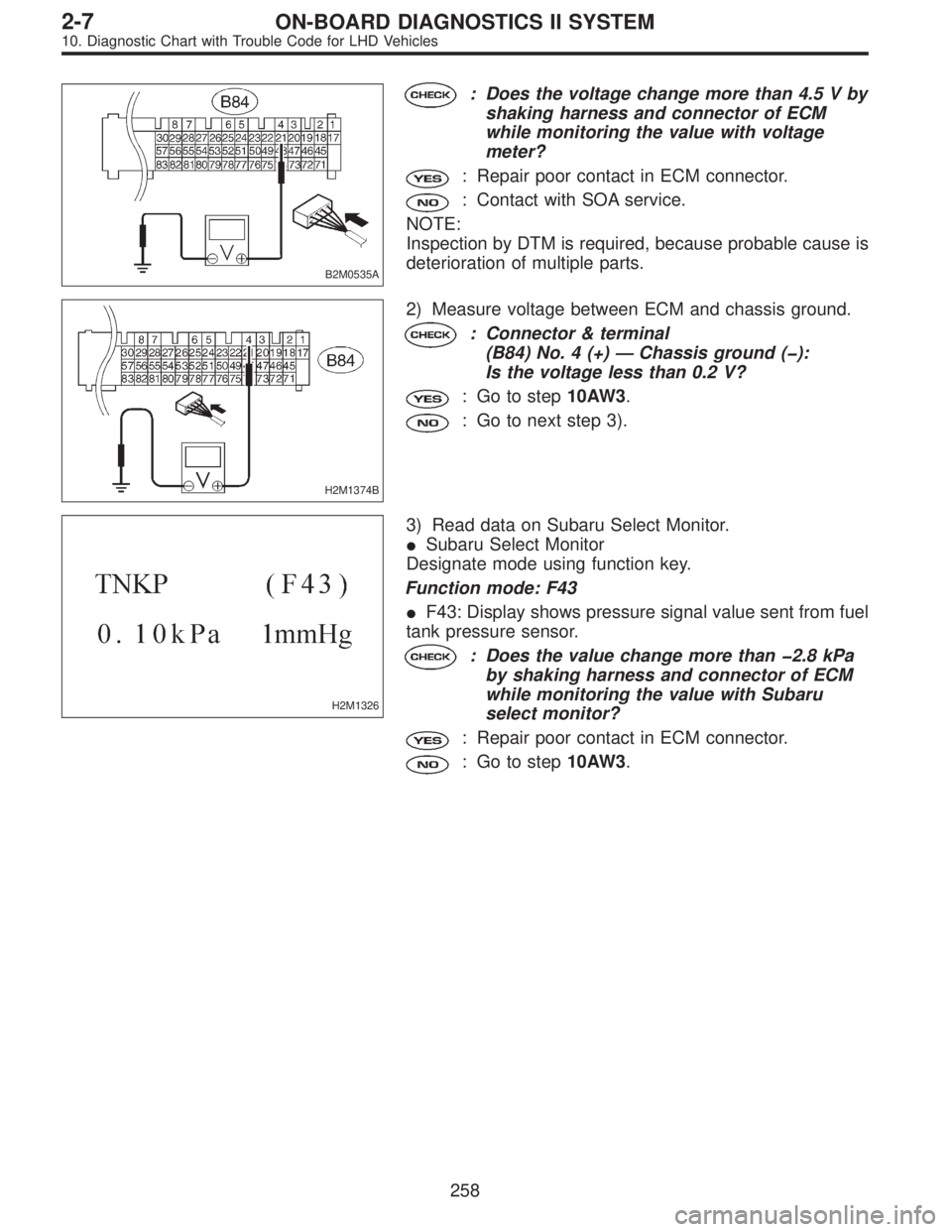

: Does the voltage change more than 4.5 V by
shaking harness and connector of ECM
while monitoring the value with voltage
meter?
: Repair poor contact in ECM connector.
: Contact with SOA service.
NOTE:
Inspection by DTM is required, because probable cause is
deterioration of multiple parts.
H2M1374B
2) Measure voltage between ECM and chassis ground.
: Connector & terminal
(B84) No. 4 (+)—Chassis ground ():
Is the voltage less than 0.2 V?
: Go to step10AW3.
: Go to next step 3).
H2M1326
3) Read data on Subaru Select Monitor.

Subaru Select Monitor
Designate mode using function key.
Function mode: F43

F43: Display shows pressure signal value sent from fuel
tank pressure sensor.
: Does the value change more than2.8 kPa
by shaking harness and connector of ECM
while monitoring the value with Subaru
select monitor?
: Repair poor contact in ECM connector.
: Go to step10AW3.
258
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

B2M0927

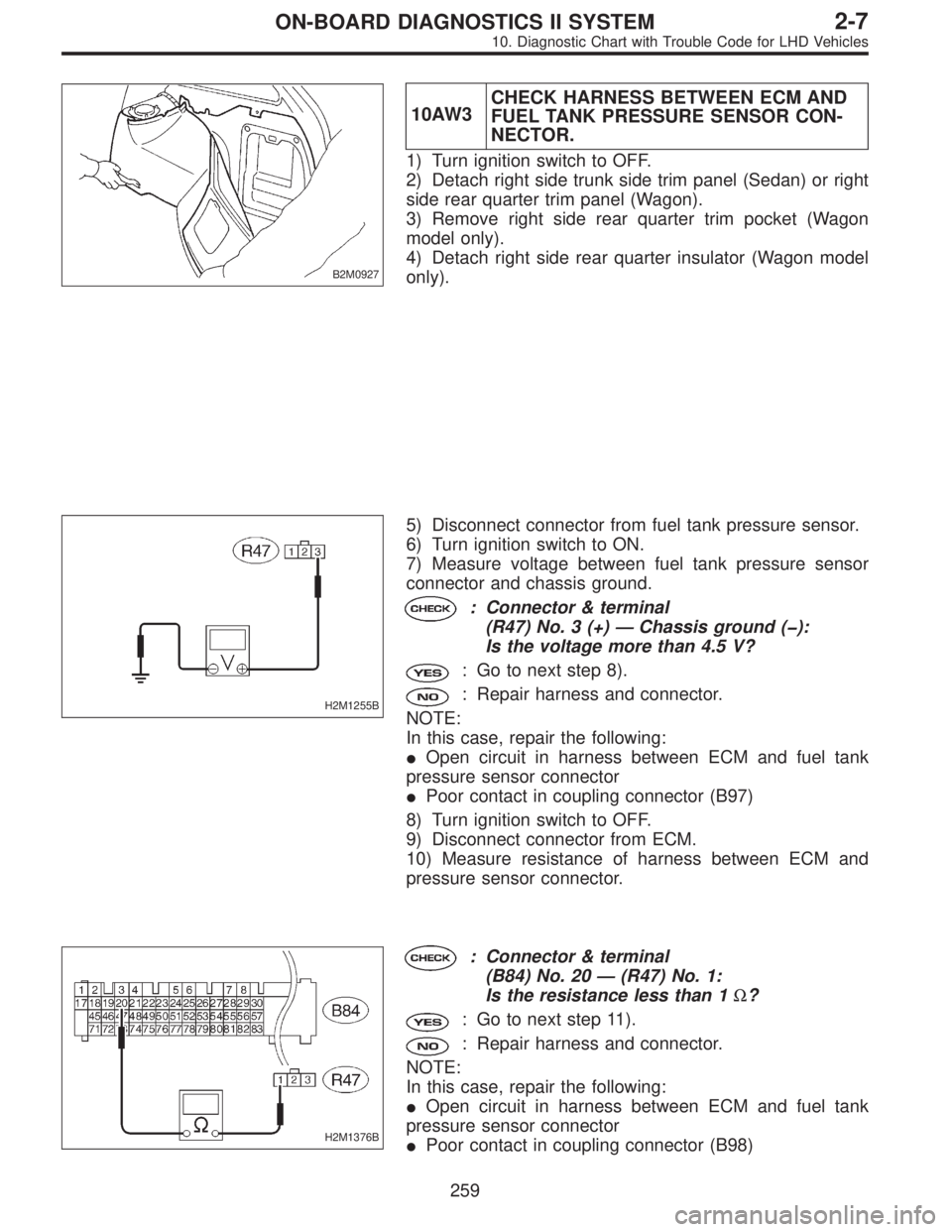

10AW3CHECK HARNESS BETWEEN ECM AND
FUEL TANK PRESSURE SENSOR CON-
NECTOR.
1) Turn ignition switch to OFF.
2) Detach right side trunk side trim panel (Sedan) or right
side rear quarter trim panel (Wagon).
3) Remove right side rear quarter trim pocket (Wagon
model only).
4) Detach right side rear quarter insulator (Wagon model
only).
H2M1255B
5) Disconnect connector from fuel tank pressure sensor.
6) Turn ignition switch to ON.
7) Measure voltage between fuel tank pressure sensor
connector and chassis ground.
: Connector & terminal
(R47) No. 3 (+)—Chassis ground ():
Is the voltage more than 4.5 V?
: Go to next step 8).
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open circuit in harness between ECM and fuel tank
pressure sensor connector

Poor contact in coupling connector (B97)
8) Turn ignition switch to OFF.
9) Disconnect connector from ECM.
10) Measure resistance of harness between ECM and
pressure sensor connector.
H2M1376B
: Connector & terminal
(B84) No. 20—(R47) No. 1:
Is the resistance less than 1Ω?
: Go to next step 11).
: Repair harness and connector.
NOTE:
In this case, repair the following:

Open circuit in harness between ECM and fuel tank
pressure sensor connector

Poor contact in coupling connector (B98)
