1997 SUBARU LEGACY display

10BE1
CHECK DTC P0505 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0505?
: Inspect DTC P0505 using“10. Diagnostics Chart
with Trouble Code”.
NOTE:
In this case, it is not necessary to inspect DTC P0507.
: Go to step10BE2.
10BE2
CHECK AIR INTAKE SYSTEM.
1) Turn ignition switch to ON.
2) Start engine, and idle it.
: Is there a fault in air intake system?
NOTE:
Check the following items.

Loose installation of intake manifold, idle air control sole-
noid valve and throttle body

Cracks of intake manifold gasket, idle air control sole-
noid valve gasket and throttle body gasket

Loose connections and cracks of idle air control solenoid
valve by-pass hoses

Disconnections of vacuum hoses
: Repair air suction and leaks.
: Replace idle air control solenoid valve.
292
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

OBD0376
BG: DTC P0601
—INTERNAL CONTROL MODULE MEMORY
CHECK SUM ERROR—
DTC DETECTING CONDITION:

Two consecutive driving cycles with fault
TROUBLE SYMPTOM:

Engine does not start.

Engine stalls.
WIRING DIAGRAM:
B2M0519
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

10BG1
CHECK DTC P0601 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0601?
: Replace ECM.
: It is not necessary to inspect DTC P0601.
295
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

OBD0380
BJ: DTC P0710
—TRANSMISSION FLUID TEMPERATURE
SENSOR CIRCUIT MALFUNCTION—
DTC DETECTING CONDITION:

Two consecutive driving cycles with fault
TROUBLE SYMPTOM:

No shift up to 4th speed (after engine warm-up)

No lock-up (after engine warm-up)

Excessive shift shock
WIRING DIAGRAM:
OBD0383
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

10BJ1
CHECK DTC P0710 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0710?
: Check ATF temperature sensor circuit. 3-2 [T7F0].>
: It is not necessary to inspect DTC P0710.
311
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

OBD0392
BK: DTC P0720
—OUTPUT SPEED SENSOR (VEHICLE
SPEED SENSOR 1) CIRCUIT MALFUNCTION
—
DTC DETECTING CONDITION:

Two consecutive driving cycles with fault
TROUBLE SYMPTOM:

No shift or excessive tight corner“braking”
WIRING DIAGRAM:
B2M0584
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

10BK1
CHECK DTC P0720 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0720?
: Check vehicle speed sensor 1 circuit. [T7L0].>
: It is not necessary to inspect DTC P0720.
312
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

OBD0404
BL: DTC P0725
—ENGINE SPEED INPUT CIRCUIT
MALFUNCTION—
DTC DETECTING CONDITION:

Two consecutive driving cycles with fault
TROUBLE SYMPTOM:

No lock-up (after engine warm-up)

AT diagnostic indicator light (AT OIL TEMP indicator
light) remains on when vehicle speed is“0”.
WIRING DIAGRAM:
B2M0585
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

10BL1
CHECK DTC P0725 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0725?
: Check engine speed input signal circuit. 3-2 [T7H0].>
: It is not necessary to inspect DTC P0725.
313
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

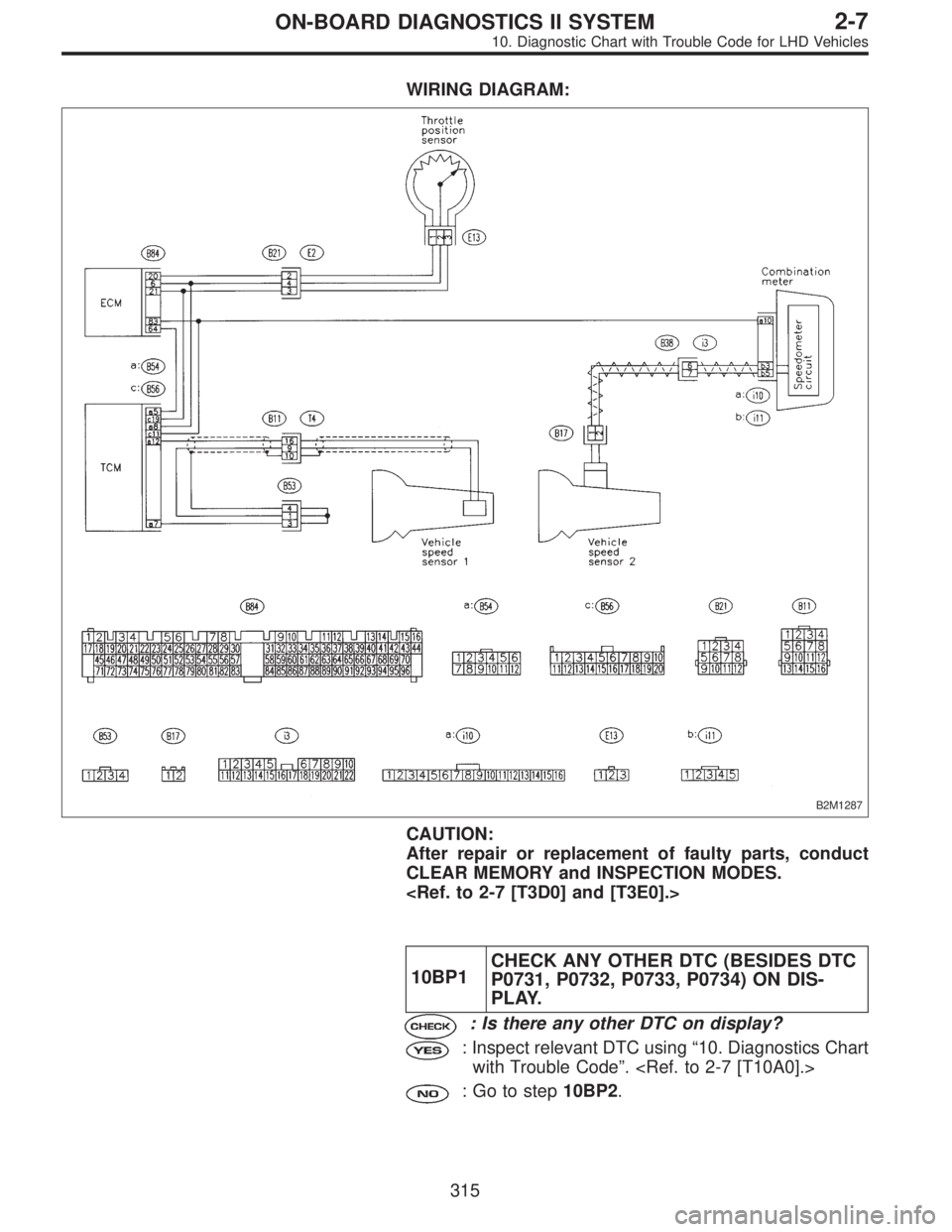

WIRING DIAGRAM:
B2M1287
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

10BP1CHECK ANY OTHER DTC (BESIDES DTC
P0731, P0732, P0733, P0734) ON DIS-
PLAY.
: Is there any other DTC on display?
: Inspect relevant DTC using“10. Diagnostics Chart
with Trouble Code”.
: Go to step10BP2.
315
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

10BQ1CHECK ANY OTHER DTC (BESIDES DTC
P0740) ON DISPLAY.
: Is there any other DTC on display?
: Inspect the relevant DTC using“10. Diagnostics
Chart with Trouble Code”.
: Go to step10BQ2.
10BQ2
CHECK DUTY SOLENOID B CIRCUIT.
Check duty solenoid B circuit.
: Is there any trouble in duty solenoid B cir-
cuit?
: Repair or replace duty solenoid B circuit.
: Go to step10BQ3.
10BQ3CHECK THROTTLE POSITION SENSOR
CIRCUIT.
Check throttle position sensor circuit.
: Is there any trouble in throttle position sen-
sor circuit?
: Repair or replace throttle position sensor circuit.
: Go to step10BQ4.
10BQ4CHECK VEHICLE SPEED SENSOR 1 CIR-
CUIT.
Check vehicle speed sensor 1 circuit.
: Is there any trouble in vehicle speed sensor
1 circuit?
: Repair or replace vehicle speed sensor 1 circuit.
: Go to step10BQ5.
318
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

B2M0662
BR: DTC P0743
—TORQUE CONVERTER CLUTCH SYSTEM
(DUTY SOLENOID B) ELECTRICAL—
DTC DETECTING CONDITION:

Two consecutive driving cycles with fault
TROUBLE SYMPTOM:

No lock-up (after engine warm-up)
WIRING DIAGRAM:
OBD0413
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.

10BR1
CHECK DTC P0743 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0743?
: Check duty solenoid B circuit. [T7B0].>
: It is not necessary to inspect DTC P0743.
321
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles
