1997 SUBARU LEGACY display

DISPLAY
LED No. Signal name Symbol
1 FWD switch FF
2 Kick-down switch KD
3——
4——
5 Brake BR
6 ABS switch AB
7 Cruise control set CR
8 Power switch PW
9——
10——
FF KD—— ——BR
AB CR PW—— ——
1
2345
678910
P: MODE FA0
—SWITCH 1 (SW1)—
Reference values

Lights up when the fuse is installed in FWD switch (No. 1).

Light up when the brake pedal is depressed (No. 5).

Light up when the ABS signal is entered (No. 6).

Lights up when the cruise control is set (No. 7).
NOTE:
LED Nos. 2 and 8 do not come on.
DISPLAY
LED No. Signal name Symbol
1 N/P range switch NP
2 R range switch RR
3 D range switch RD
4 3 range switch R3
5 2 range switch R2
6 1 range switch R1
7 Diagnosis switch SS
8——
9——
10——
NP RR RD R3 R2
R1 SS—— —— ——
1
2345
678910
Q: MODE FA1
—SWITCH 2 (SW2)—
Reference values

Lights up when the N or P range is selected (No. 1).

Lights up when the R range is selected (No. 2).

Lights up when the D range is selected (No. 3).

Lights up when the 3 range is selected (No. 4).

Lights up when the 2 range is selected (No. 5).

Lights up when the 1 range is selected (No. 6).

Lights up when the diagnosis switch is connected
(No. 7).
NOTE:
If each LED does not illuminate in the above conditions,
inhibitor switch malfunction may occur. Perform diagnostics
on inhibitor switch.
65
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
8. Diagnostic Chart with Select Monitor

B: ELECTRICAL INSPECTION
1. WARNING LAMP ILLUMINATION PATTERN
B4M0372A
2. DISPLAY SYSTEM TYPE AND LIGHTING
CONDITIONS
: Illuminated
Mode
ABS warning
TCS warning
TCS OFF
TCS operating
Lighting conditions
Bulb checkIlluminated with IGN. ON, extinguished with E/G RUN
Illuminated with IGN. ON, extinguished after a few seconds.
Illuminated with IGN. ON, extinguished after 1 second.
ABS failureIlluminated during ABS failure (ABS and TCS functions stop)
TCS failureIlluminated during TCS failure (Only TCS functions stop)
TCS OFF
Illuminated when TCS operation is prohibited by E/G (low temperature, high
temperature, etc.); illuminated during TCS OFF conditions resulting from operation
of TCS OFF SW.
TCS operationIlluminated during TCS operation
Pad temperature warning
Illuminated when pad temperature reaches 400°C (752°F) or more when TCS is
functioning, and extinguished when temperature drops below 350°C (662°F).
3
4-4bBRAKES
2. Pre-inspection

3. LIST OF ABS/TCS ON-BOARD DIAGNOSTICS
FUNCTIONS
Trouble codeDiagnostic items
Detection timingIndicator
light ON
Parts concerned
At initial checking
Under no control
Under ABS control
Under TCS control
In diagnostic mode
ABS warning light
TCS warning light
TCS OFF indicator light
21 FR
23 FL
25 RR
27 RLDetection of fault in ABS sensor hardware

 —ABS sensor (ABS/TCS C/M)
22 FR
24 FL
26 RR
28 RLDetection of fault in ABS sensor software
 —ABS sensor (ABS/TCS C/M)
 —ABS sensor harness circuit (ABS/TCS C/M)
Detection of fault in ABS sensor software
—ABS sensor and solenoid valve (ABS/TCS C/M)
—ABS sensor (ABS/TCS C/M)
Detection of fault in sensor software
 —ABS sensor (ABS/TCS C/M)
31 FRI
32 FRO
33 FLI
34 FLO
35 RRI
36 RRO
37 RLI
38 RLO
61 TCS1
62 TCS2Abnormal valve

*
—Solenoid valve (ABS/TCS C/M)
41 Abnormal ABS/TCS C/M
 —ABS/TCS C/M
42 Abnormal line voltage
—Power source operating environment (ABS/TCS C/M)
—Power source voltage drop
 —
—
*: Except when trouble code is being displayed.
10
4-4bBRAKES

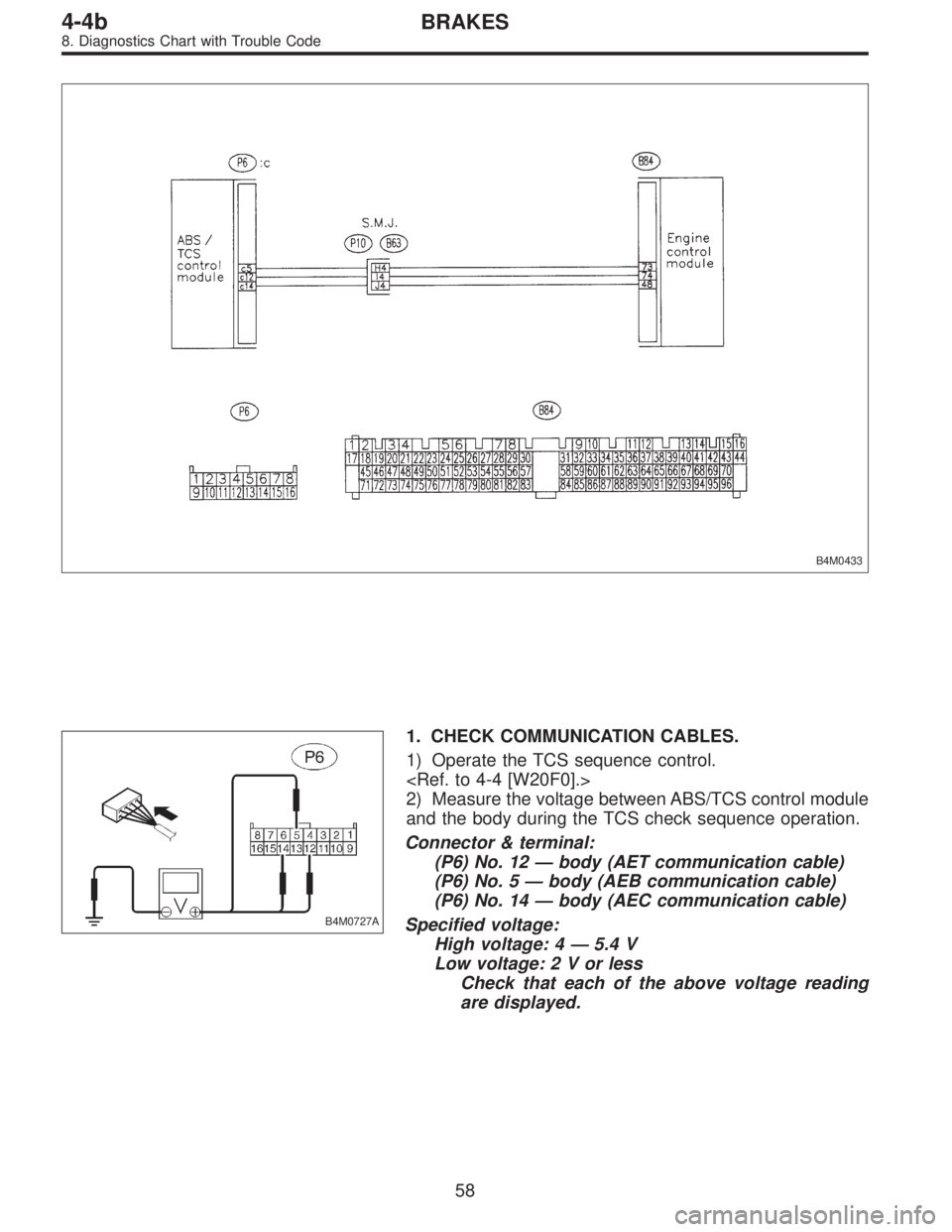

5. Control Module I/O Signal

B4M0433
B4M0727A
1. CHECK COMMUNICATION CABLES.
1) Operate the TCS sequence control.

2) Measure the voltage between ABS/TCS control module
and the body during the TCS check sequence operation.
Connector & terminal:
(P6) No. 12—body (AET communication cable)
(P6) No. 5—body (AEB communication cable)
(P6) No. 14—body (AEC communication cable)
Specified voltage:
High voltage: 4—5.4 V
Low voltage:2Vorless
Check that each of the above voltage reading
are displayed.
58
4-4bBRAKES
8. Diagnostics Chart with Trouble Code

G2M0096
9. Select Monitor Function Mode
Applicable cartridge of select monitor: No. 498349601
A: LIST OF FUNCTION MODE
1. F MODE (ROM ID, ANALOG DATA ARE
DISPLAYED.)
Function code
Measuring
itemsContents to be monitored Scroll Ref. to 4-4b
Code Abbreviation
F00 ROMECM identifi-
cationROM ID number of ECM is read and enabled com-
munication state is displayed.Possible [T9B0]
F01 FRFR wheel
speed (mile/h)Wheel speed detected by the FR wheel speed sen-
sor is displayed in mile/h.Possible [T9C0]
F02 FLFL wheel
speed (mile/h)Wheel speed detected by the FL wheel speed sen-
sor is displayed in mile/h.Possible [T9D0]
F03 RRRR wheel
speed (mile/h)Wheel speed detected by the RR wheel speed sen-
sor is displayed in mile/h.Possible [T9E0]
F04 RLRL wheel
speed (mile/h)Wheel speed detected by the RL wheel speed sen-
sor is displayed in mile/h.Possible [T9F0]
F05 FRFR wheel
speed (km/h)Wheel speed detected by the FR wheel speed sen-
sor is displayed in km/h.Possible [T9C0]
F06 FLFL wheel
speed (km/h)Wheel speed detected by the FL wheel speed sen-
sor is displayed in km/h.Possible [T9D0]
F07 RRRR wheel
speed (km/h)Wheel speed detected by the RR wheel speed sen-
sor is displayed in km/h.Possible [T9E0]
F08 RLRL wheel
speed (km/h)Wheel speed detected by the RL wheel speed sen-
sor is displayed in km/h.Possible [T9F0]
F09 PSSPedal stroke
sensor outputThe number of output steps of the pedal stroke
sensor is displayed.Possible[T9G0]
85
4-4bBRAKES
9. Select Monitor Function Mode

2. FA MODE (ON/OFF DATA ARE DISPLAYED.)
If the system is in normal condition with the engine run at
idle speed (when the brake pedal is off), the LED of EC
(AEC signal) of FA2 will come on, the LED of EM (EAM
signal) blink and all other LED’s go out.
Function code
Measuring
itemsContents to be monitored Scroll Ref. to 4-4b
Code Abbreviation
FA 0OF OFF.SW LED 1 comes on with the OFF switch on.
Possible [T9H0] B1Stop light
switchLED 2 comes on with the switch on (with the brake
pedal down).
VRValve relay
signalLED 3 comes on with the valve relay off.
VMValve relay
monitorLED 4 comes on with the valve relay off.
MRMotor relay
signalLED 5 comes on with the motor on.
MS Motor sensor LED 6 comes on with the motor on.
FSFluid level
sensorLED 7 comes on with the sensor on (the fluid level
is lowered).
FA 1FI FR.IN valveLED 1 comes on when the FR.IN valve is operat-
ing.
Possible [T9I0] RO FR.OUT valveLED 2 comes on when the FR.OUT valve is operat-
ing.
FL FL.IN valve LED 3 comes on when the FL.IN valve is operating.
LO FL.OUT valveLED 4 comes on when the FL.OUT valve is operat-
ing.
T1 TCS1 valve LED 5 comes on when the TCS1 valve is operating.
RI RR.IN valveLED 6 comes on when the RR.IN valve is operat-
ing.
RO RR.OUT valveLED 7 comes on when the RR.OUT valve is operat-
ing.
RI RL.IN valve LED 8 comes on when the RL.IN valve is operating.
LO RL.OUT valveLED 9 comes on when the RL.OUT valve is operat-
ing.
T2 TCS2 valveLED 10 comes on when the TCS2 valve is operat-
ing.
FA 2AWABS warning
lightLED 1 comes on when the warning light is on.
Possible [T9J0] TWTCS warning
lightLED 2 comes on when the warning light is on.
TOTCS OFF
indicator lightLED 3 comes on when the indicator light is on.
TITCS operation
indicator lightLED 4 comes on when the indicator light is on.
EC AEC signalWith the engine run at idle speed, LED 6 (AEC)
comes on and LED 7 (AEB) goes out (They go on
and off depending on the behavior of a vehicle.) EB AEB signal
ET AET signal LED 8 comes on with the TCS control on.
EM EAM signalLED 9 comes on or blinks when the engine control
is enabled.
AT AAT signal LED 10 comes on when ABS control is on.
86
4-4bBRAKES
9. Select Monitor Function Mode

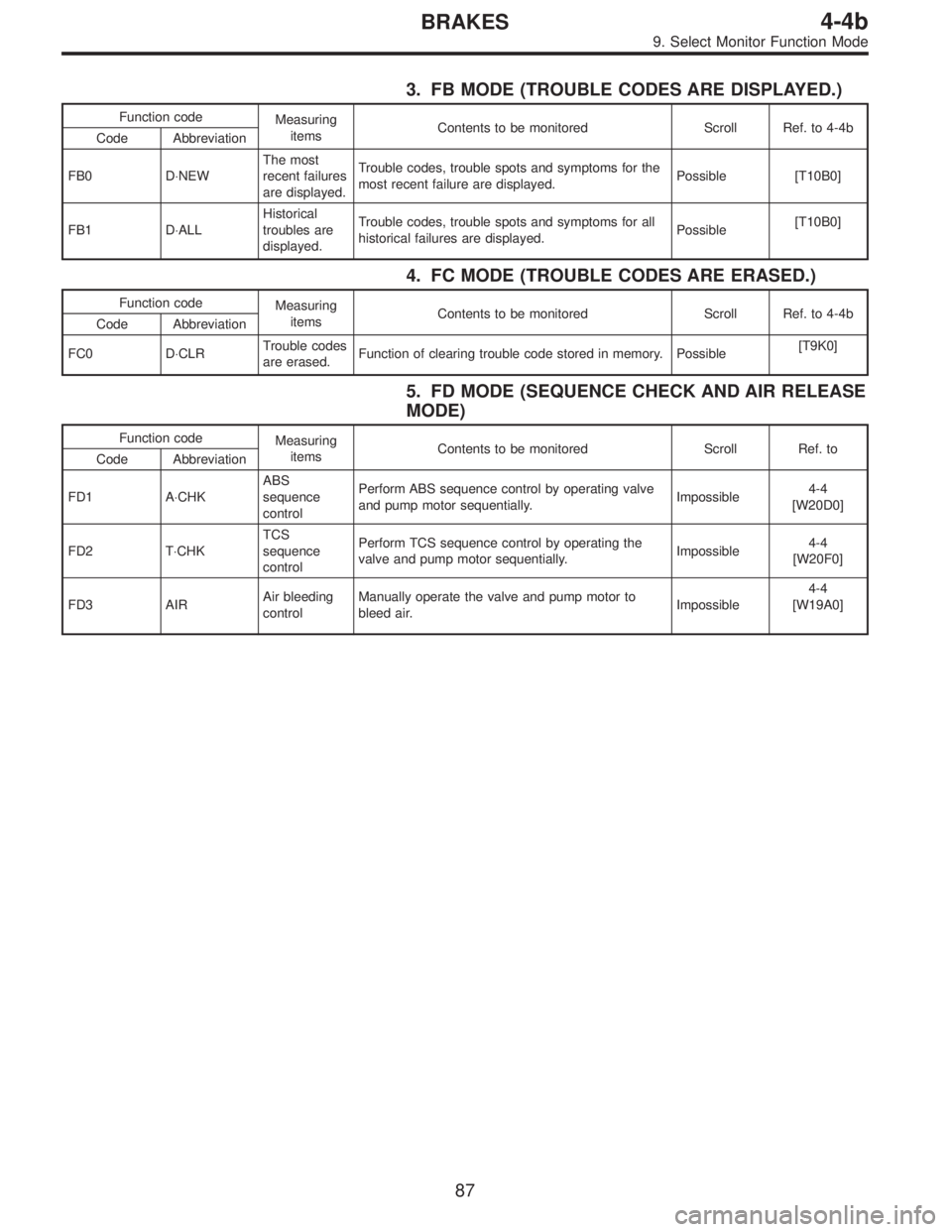

3. FB MODE (TROUBLE CODES ARE DISPLAYED.)
Function code
Measuring
itemsContents to be monitored Scroll Ref. to 4-4b
Code Abbreviation
FB0 D⋅NEWThe most
recent failures
are displayed.Trouble codes, trouble spots and symptoms for the
most recent failure are displayed.Possible [T10B0]
FB1 D⋅ALLHistorical
troubles are
displayed.Trouble codes, trouble spots and symptoms for all
historical failures are displayed.Possible[T10B0]
4. FC MODE (TROUBLE CODES ARE ERASED.)
Function code
Measuring
itemsContents to be monitored Scroll Ref. to 4-4b
Code Abbreviation
FC0 D⋅CLRTrouble codes
are erased.Function of clearing trouble code stored in memory. Possible[T9K0]
5. FD MODE (SEQUENCE CHECK AND AIR RELEASE
MODE)
Function code
Measuring
itemsContents to be monitored Scroll Ref. to
Code Abbreviation
FD1 A⋅CHKABS
sequence
controlPerform ABS sequence control by operating valve
and pump motor sequentially.Impossible4-4
[W20D0]
FD2 T⋅CHKTCS
sequence
controlPerform TCS sequence control by operating the
valve and pump motor sequentially.Impossible4-4
[W20F0]
FD3 AIRAir bleeding
controlManually operate the valve and pump motor to
bleed air.Impossible4-4
[W19A0]
87
4-4bBRAKES
9. Select Monitor Function Mode

B4M0479

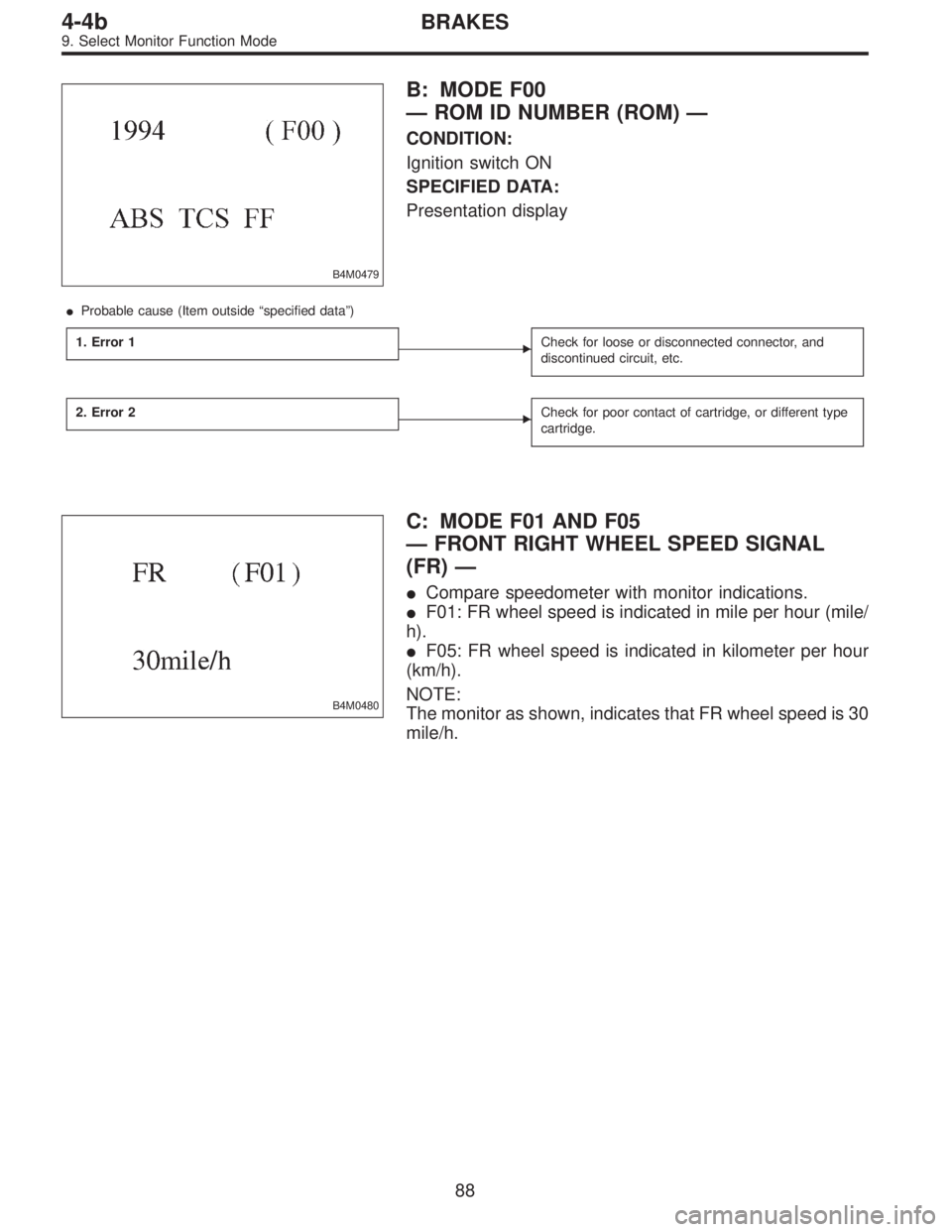

B: MODE F00
—ROM ID NUMBER (ROM)—
CONDITION:
Ignition switch ON
SPECIFIED DATA:
Presentation display

Probable cause (Item outside“specified data”)
1. Error 1
Check for loose or disconnected connector, and
discontinued circuit, etc.
2. Error 2Check for poor contact of cartridge, or different type
cartridge.
B4M0480
C: MODE F01 AND F05
—FRONT RIGHT WHEEL SPEED SIGNAL
(FR)—

Compare speedometer with monitor indications.

F01: FR wheel speed is indicated in mile per hour (mile/
h).

F05: FR wheel speed is indicated in kilometer per hour
(km/h).
NOTE:
The monitor as shown, indicates that FR wheel speed is 30
mile/h.
88
4-4bBRAKES
9. Select Monitor Function Mode
