1997 SUBARU LEGACY display

10AO1
CHECK ENGINE/TRANSMISSION TYPE.
: Is engine/transmission type 2200 cc/MT?
: Check AT/MT identification circuit. [T10DD0].>
: Go to step10AO2.
10AO2CHECK DTC P0106, P0107, P0108, P0403,
P1102, P1122 OR P1421 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0106,
P0107, P0108, P0403, P1102, P1122 or
P1421?
:
Inspect DTC P0106, P0107, P0108, P0403,
P1102, P1122 or P1421 using“10. Diagnostics
Chart with Trouble Code”.

Manually check that EGR valve diaphragm is
not stuck.
WARNING:
Be careful when checking EGR valve, since it may be
extremely hot.
NOTE:
In this case, it is not necessary to inspect DTC P0400.
After checking the above item, go to
CONFIRMATION
OF ACTUAL DRIVING PATTERN.
: Go to step10AO3.
233
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

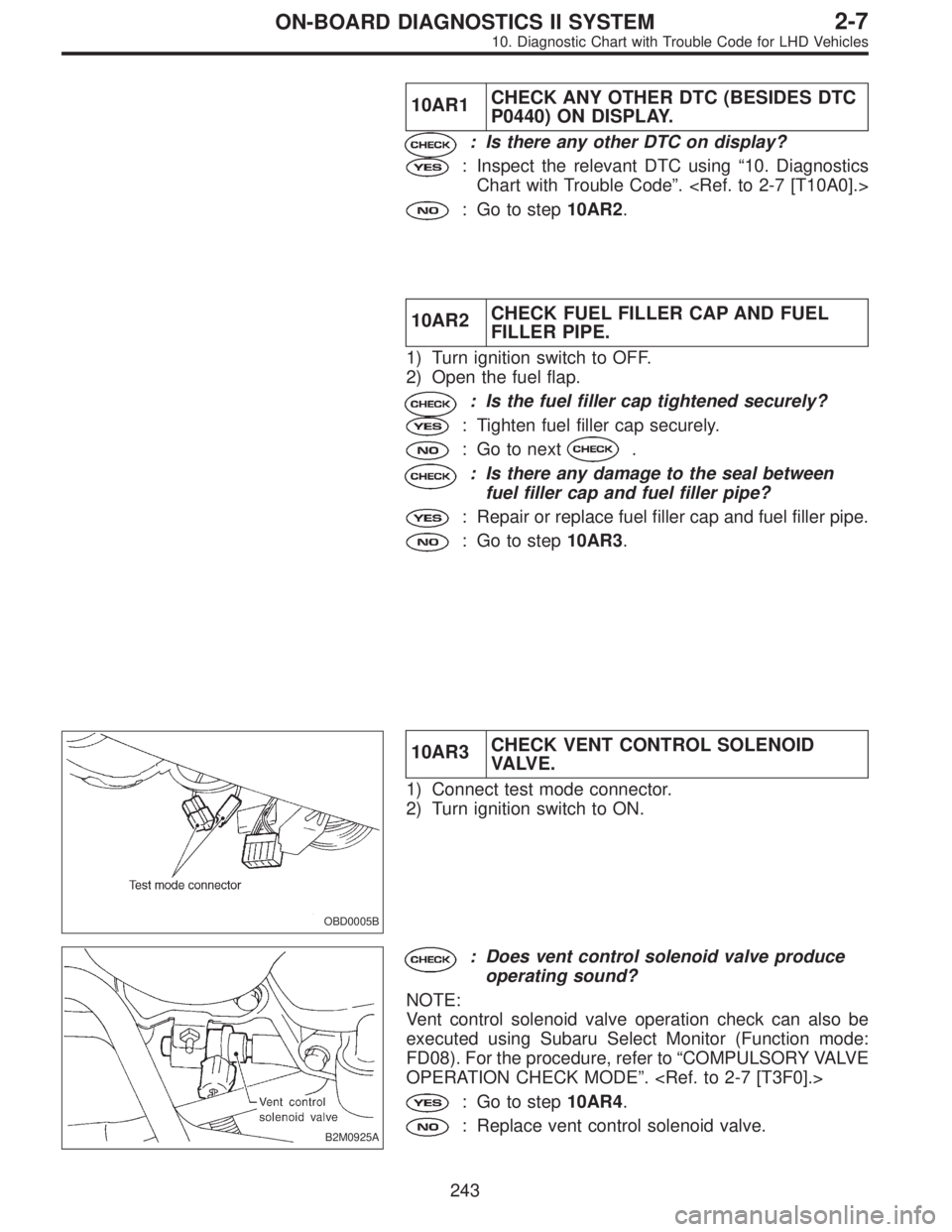

10AR1CHECK ANY OTHER DTC (BESIDES DTC
P0440) ON DISPLAY.
: Is there any other DTC on display?
: Inspect the relevant DTC using“10. Diagnostics
Chart with Trouble Code”.
: Go to step10AR2.
10AR2CHECK FUEL FILLER CAP AND FUEL
FILLER PIPE.
1) Turn ignition switch to OFF.
2) Open the fuel flap.
: Is the fuel filler cap tightened securely?
: Tighten fuel filler cap securely.
: Go to next.
: Is there any damage to the seal between
fuel filler cap and fuel filler pipe?
: Repair or replace fuel filler cap and fuel filler pipe.
: Go to step10AR3.
OBD0005B
10AR3CHECK VENT CONTROL SOLENOID
VA LV E .
1) Connect test mode connector.
2) Turn ignition switch to ON.
B2M0925A
: Does vent control solenoid valve produce
operating sound?
NOTE:
Vent control solenoid valve operation check can also be
executed using Subaru Select Monitor (Function mode:
FD08). For the procedure, refer to“COMPULSORY VALVE
OPERATION CHECK MODE”.
: Go to step10AR4.
: Replace vent control solenoid valve.
243
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

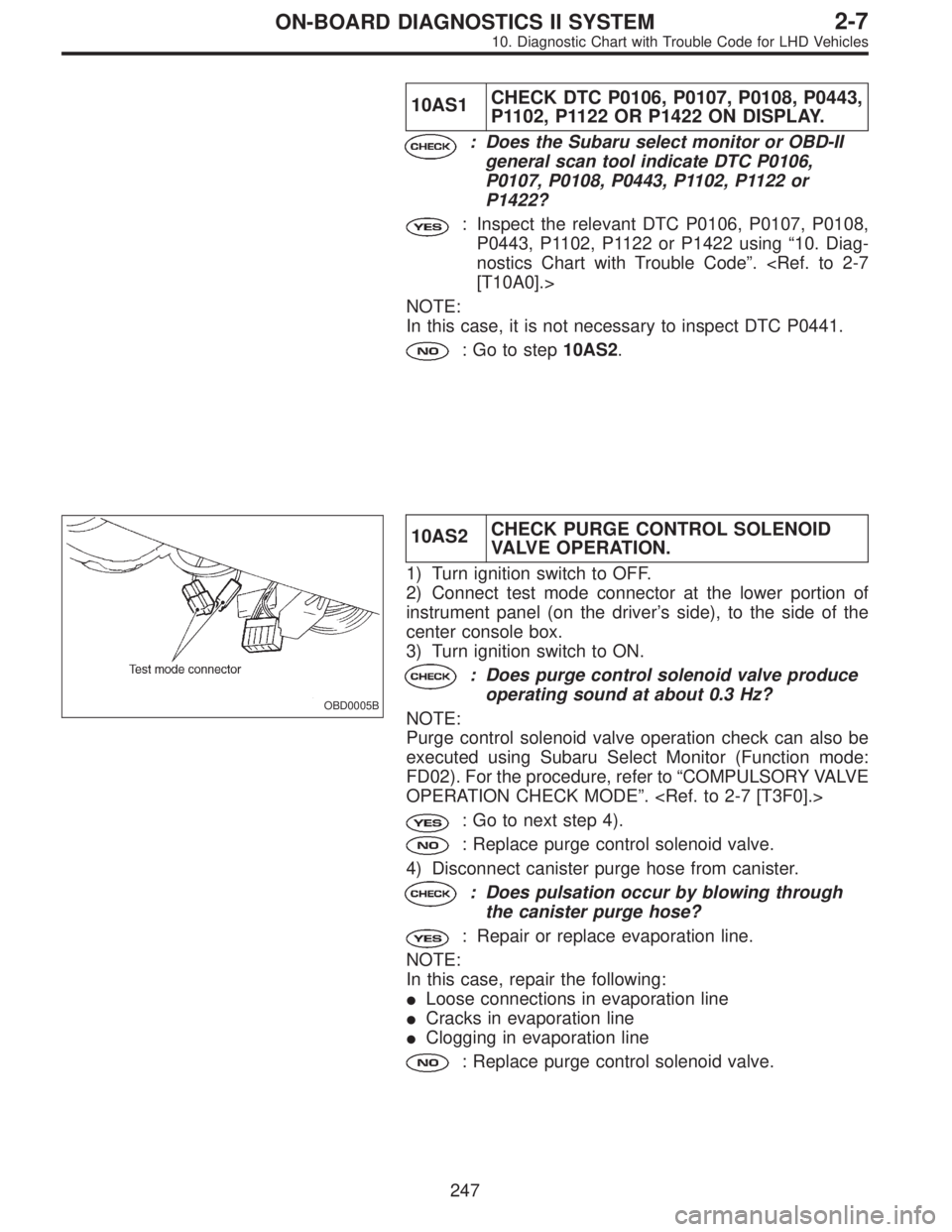

10AS1CHECK DTC P0106, P0107, P0108, P0443,
P1102, P1122 OR P1422 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0106,
P0107, P0108, P0443, P1102, P1122 or
P1422?
: Inspect the relevant DTC P0106, P0107, P0108,
P0443, P1102, P1122 or P1422 using“10. Diag-
nostics Chart with Trouble Code”. [T10A0].>
NOTE:
In this case, it is not necessary to inspect DTC P0441.
: Go to step10AS2.
OBD0005B
10AS2CHECK PURGE CONTROL SOLENOID
VALVE OPERATION.
1) Turn ignition switch to OFF.
2) Connect test mode connector at the lower portion of
instrument panel (on the driver’s side), to the side of the
center console box.
3) Turn ignition switch to ON.
: Does purge control solenoid valve produce
operating sound at about 0.3 Hz?
NOTE:
Purge control solenoid valve operation check can also be
executed using Subaru Select Monitor (Function mode:
FD02). For the procedure, refer to“COMPULSORY VALVE
OPERATION CHECK MODE”.
: Go to next step 4).
: Replace purge control solenoid valve.
4) Disconnect canister purge hose from canister.
: Does pulsation occur by blowing through
the canister purge hose?
: Repair or replace evaporation line.
NOTE:
In this case, repair the following:

Loose connections in evaporation line

Cracks in evaporation line

Clogging in evaporation line
: Replace purge control solenoid valve.
247
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

OBD0145A
10AW1CONNECT SUBARU SELECT MONITOR
OR THE OBD-II GENERAL SCAN TOOL,
AND READ DATA.
1) Turn ignition switch to OFF.
2) Remove fuel filler cap.
3) Install fuel filler cap.
4) Connect Subaru Select Monitor or the OBD-II general
scan tool to data link connector.
5) Turn ignition switch to ON and Subaru Select Monitor or
the OBD-II general scan tool switch to ON.
H2M1326
6) Read the data on Subaru Select Monitor or the OBD-II
general scan tool.

Subaru Select Monitor
Designate mode using function key.
Function mode: F43

F43: Display shows pressure signal value sent from fuel
tank pressure sensor.
: Is the value less than2.8 kPa in function
mode F43?
: Go to step10AW2.
: Even if MIL lights up, the circuit has returned to a
normal condition at this time.

OBD-II general scan tool
For detailed operation procedures, refer to the OBD-II Gen-
eral Scan Tool Instruction Manual.
B2M0535A
10AW2CHECK INPUT SIGNAL FOR ECM.
(USING VOLTAGE METER AND SUBARU
SELECT MONITOR.)
1) Measure voltage between ECM connector and chassis
ground.
: Connector & terminal
(B84) No. 21 (+)—Chassis ground ():
Is the voltage more than 4.5 V?
: Go to next step 2).
: Go to next.
257
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

B2M0535A
: Does the voltage change more than 4.5 V by
shaking harness and connector of ECM
while monitoring the value with voltage
meter?
: Repair poor contact in ECM connector.
: Contact with SOA service.
NOTE:
Inspection by DTM is required, because probable cause is
deterioration of multiple parts.
H2M1374B
2) Measure voltage between ECM and chassis ground.
: Connector & terminal
(B84) No. 4 (+)—Chassis ground ():
Is the voltage less than 0.2 V?
: Go to step10AW3.
: Go to next step 3).
H2M1326
3) Read data on Subaru Select Monitor.

Subaru Select Monitor
Designate mode using function key.
Function mode: F43

F43: Display shows pressure signal value sent from fuel
tank pressure sensor.
: Does the value change more than2.8 kPa
by shaking harness and connector of ECM
while monitoring the value with Subaru
select monitor?
: Repair poor contact in ECM connector.
: Go to step10AW3.
258
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

OBD0145A
10AX1CONNECT SUBARU SELECT MONITOR
OR THE OBD-II GENERAL SCAN TOOL,
AND READ DATA.
1) Turn ignition switch to OFF.
2) Remove fuel filler cap.
3) Install fuel filler cap.
4) Connect Subaru Select Monitor or the OBD-II general
scan tool to data link connector.
5) Turn ignition switch to ON and Subaru Select Monitor or
the OBD-II general scan tool switch to ON.
H2M1326
6) Read the data on Subaru Select Monitor or the OBD-II
general scan tool.

Subaru Select Monitor
Designate mode using function key.
Function mode: F43

F43: Display shows pressure signal value sent from fuel
tank pressure sensor.
: Is the value more than 2.8 kPa in function
mode F43?
: Go to step10AX4.
: Go to step10AX2.

OBD-II general scan tool
For detailed operation procedures, refer to the OBD-II Gen-
eral Scan Tool Instruction Manual.
B2M0535A
10AX2CHECK INPUT SIGNAL FOR ECM.
(USING VOLTAGE METER AND SUBARU
SELECT MONITOR.)
1) Measure voltage between ECM connector and chassis
ground.
: Connector & terminal
(B84) No. 21 (+)—Chassis ground ():
Is the voltage more than 4.5 V?
: Go to next step 2).
: Go to next.
262
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

B2M0535A
: Does the voltage change more than 4.5 V by
shaking harness and connector of ECM
while monitoring the value with voltage
meter?
: Repair poor contact in ECM connector.
: Replace ECM.
H2M1374B
2) Measure voltage between ECM and chassis ground.
: Connector & terminal
(B84) No. 4 (+)—Chassis ground ():
Is the voltage less than 0.2 V?
: Go to step10AX3.
: Go to next step 3).
H2M1326
3) Read data on Subaru Select Monitor.

Subaru Select Monitor
Designate mode using function key.
Function mode: F43

F43: Display shows pressure signal value sent from fuel
tank pressure sensor.
: Does the value change more than2.8 kPa
by shaking harness and connector of ECM
while monitoring the value with Subaru
select monitor?
: Repair poor contact in ECM connector.
: Go to step10AX3.
263
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

10BD1
CHECK DTC P0505 ON DISPLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0505?
: Inspect DTC P0505 using“10. Diagnostics Chart
with Trouble Code”.
NOTE:
In this case, it is not necessary to inspect DTC P0506.
: Go to step10BD2.
10BD2
CHECK AIR INTAKE SYSTEM.
1) Turn ignition switch to ON.
2) Start engine, and idle it.
: Is clogging the by-pass line between by-
pass hose and intake duct?
: Repair the by-pass line.
: Replace idle air control solenoid valve.
290
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles
