1997 SSANGYONG KORANDO display

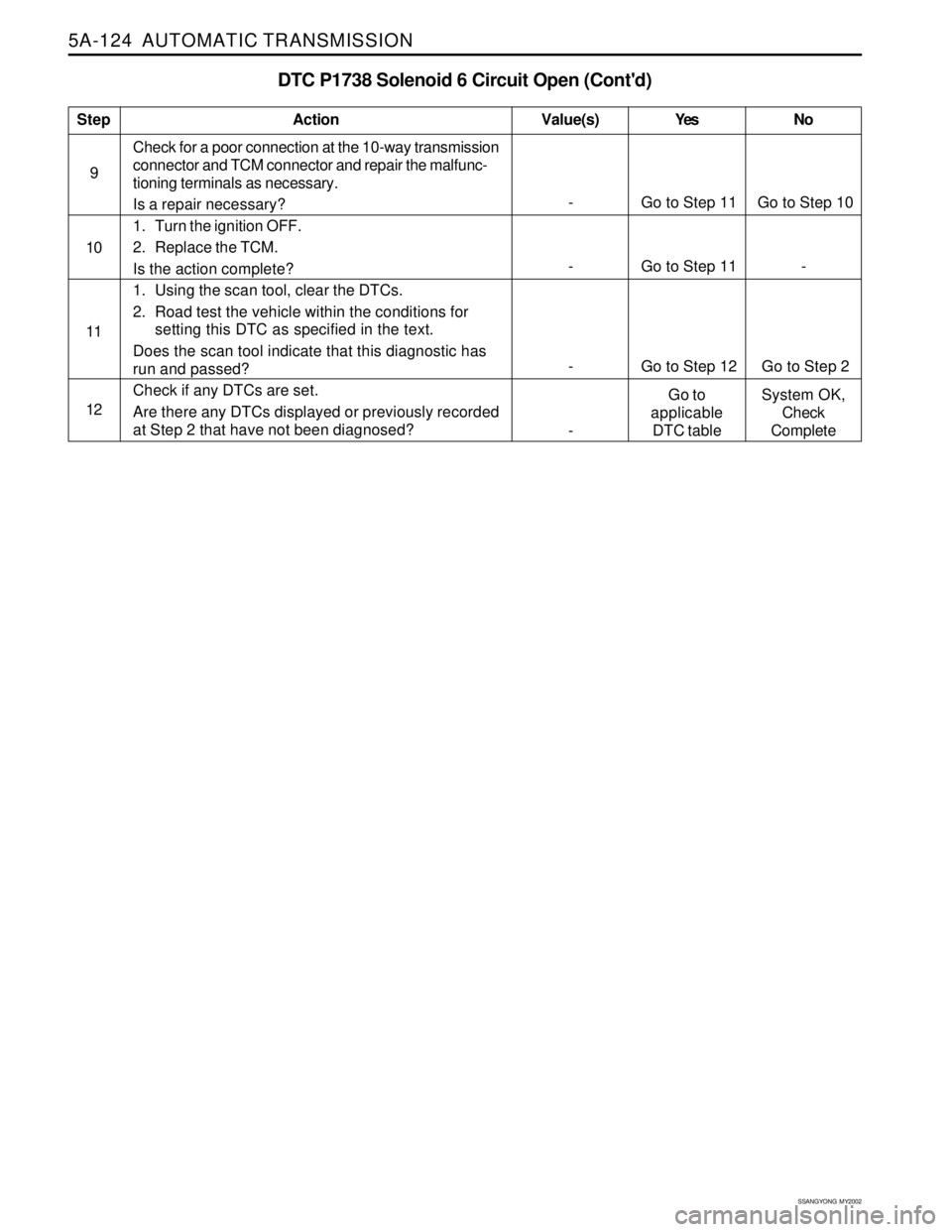

5A-124 AUTOMATIC TRANSMISSION
SSANGYONG MY2002
DTC P1738 Solenoid 6 Circuit Open (Cont'd)
Check for a poor connection at the 10-way transmission
connector and TCM connector and repair the malfunc-
tioning terminals as necessary.
Is a repair necessary?
1. Turn the ignition OFF.
2. Replace the TCM.
Is the action complete?
1. Using the scan tool, clear the DTCs.
2. Road test the vehicle within the conditions for
setting this DTC as specified in the text.
Does the scan tool indicate that this diagnostic has
run and passed?
Check if any DTCs are set.
Are there any DTCs displayed or previously recorded
at Step 2 that have not been diagnosed?
StepAction Value(s) Yes No
- Go to Step 12 Go to Step 2 11
12 10
- Go to Step 11 -
-Go to
applicable
DTC tableSystem OK,
Check
Complete
- Go to Step 11 Go to Step 10 9

AUTOMATIC TRANSMISSION 5A-127
SSANGYONG MY2002
DTC P1739 Solenoid 7 Circuit Open
Look for possible bent, backed out, deformed or
damaged terminals. Check for weak terminal
tension as well. Also check for chafed wires that
could short to bare metal or other wiring. Inspect
for broken wire inside the insulation.
If diagnosing for a possible intermittent short or
open condition, move or massage the wiring
harness while observing test equipment for a
change.
Test Description
The number(s) below refer to the step number(s) on
the Diagnostic Table.3. Checks if the S7 circuit in the transmission is mal-
functioning.
4. Check cable in the transmission for open / short.
If the problem is found in the wiring harness from
10-way transmission connector to contact point
attached onto the transmission case, repair it with
removing the valve cover. Refer to the
Transmission in this section.
7. Check resistance between S7 terminal A and B.
Standard value is 22 - 30 Ω.
10. Check connections of other connectors.
- Go to Step 12 Go to Step 7 1Perform a Transmission Control Module (TCM) System
Check.
Is the check performed?
1. Install the scan tool.
2. Turn the ignition ON, with the engine OFF.
3. Record and then clear DTCs.
4. Operate the vehicle within the conditions for
setting this DTC as specified in the text.
Does the scan tool display P1739?
1. Turn the ignition OFF.
2. Disconnect the 10-way transmission connector.
(additional DTCs will set)
3. Connect Solenoid/Thermistor Electrical Tester
(STET) to the 10-way transmission connector of
transmission side and to the good ground.
4. Turn the mode knob of STET to 7 and push the red
button.
Does the bulb of open circuit on the solenoids side of
STET illuminate?
1. Remove the pump assembly. Refer to the Pump in
this section.
2. Check the wiring harness from 10-way transmission
connector to contact point attached onto the
transmission case for an open or short to positive
and repair as necessary.
Is a repair necessary?
Check the wiring harness from contact point attached
onto the transmission case to S7 for an open or short
to positive and repair as necessary.
Is a repair necessary?
Check the S7 ground circuit for an open and repair as
necessary.
Is a repair necessary?
Using a Digital Volt Meter (DVM), measure the resis-
tance between S7 terminal A and B.
Is the resistance within the specified value?
Replace the S7.
Is the action complete?
StepAction Value(s) Yes No
2
3
-
Go to Step 2 Go to “TCM
Diagnostic
System Check”
- Go to Step 4 Go to Step 9
5
6 4
- Go to Step 12 Go to Step 5
- Go to Step 12 Go to Step 6
7
8
- Go to Step 12 -
- Go to Step 3 Go to
“Diagnostic
Aids”
22 - 30 ΩGo to
“Diagnostic
Aids” Go to Step 8

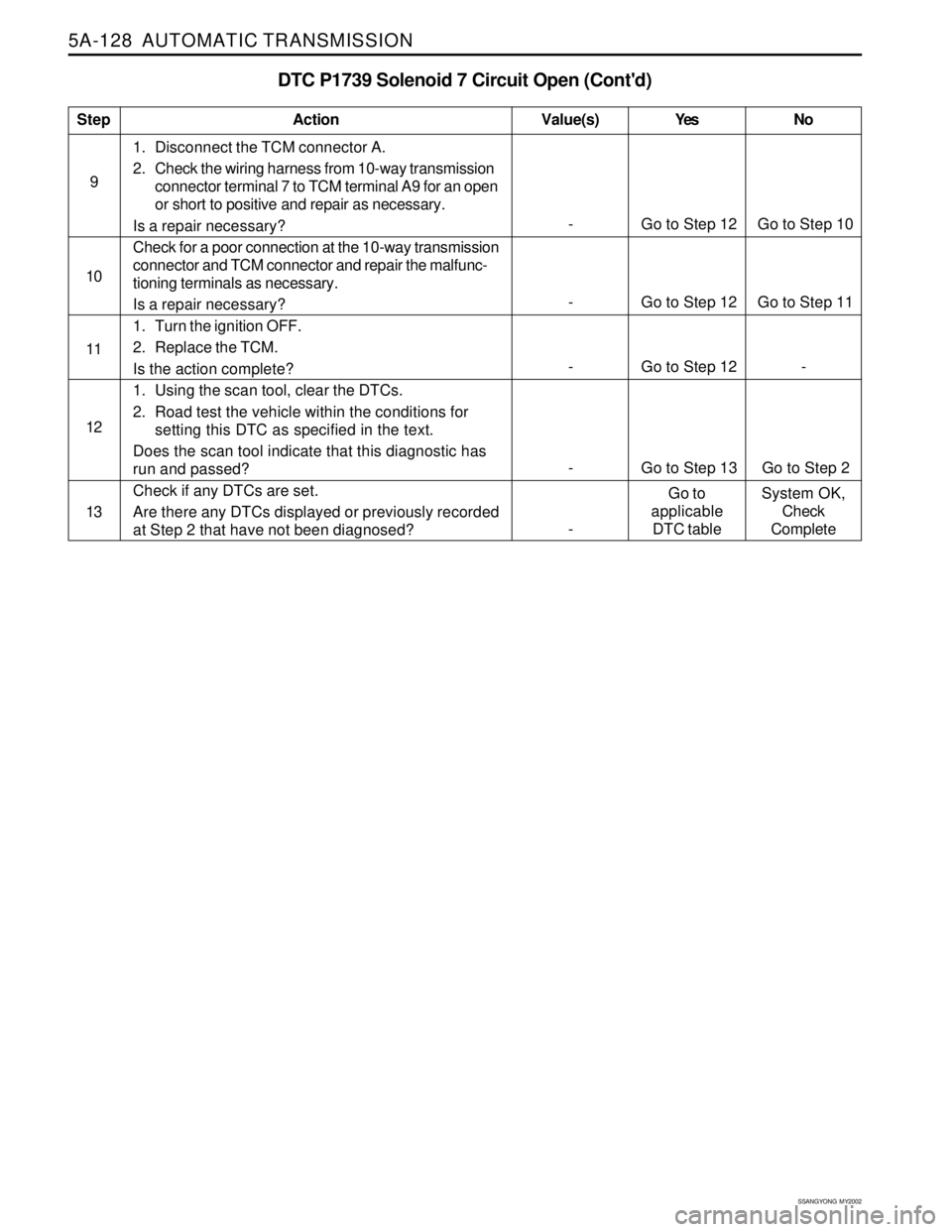

5A-128 AUTOMATIC TRANSMISSION
SSANGYONG MY2002
DTC P1739 Solenoid 7 Circuit Open (Cont'd)
1. Disconnect the TCM connector A.
2. Check the wiring harness from 10-way transmission
connector terminal 7 to TCM terminal A9 for an open
or short to positive and repair as necessary.
Is a repair necessary?
Check for a poor connection at the 10-way transmission
connector and TCM connector and repair the malfunc-
tioning terminals as necessary.
Is a repair necessary?
1. Turn the ignition OFF.
2. Replace the TCM.
Is the action complete?
1. Using the scan tool, clear the DTCs.
2. Road test the vehicle within the conditions for
setting this DTC as specified in the text.
Does the scan tool indicate that this diagnostic has
run and passed?
Check if any DTCs are set.
Are there any DTCs displayed or previously recorded
at Step 2 that have not been diagnosed?
StepAction Value(s) Yes No
- Go to Step 13 Go to Step 2 11
12 10
- Go to Step 12 - 9
13
- Go to Step 12 Go to Step 11
- Go to Step 12 Go to Step 10
-Go to
applicable
DTC tableSystem OK,
Check
Complete

AUTOMATIC TRANSMISSION 5A-131
SSANGYONG MY2002
DTC P1741 Solenoid 1 Circuit Short
Test Description
The number(s) below refer to the step number(s) on
the Diagnostic Table.
3. Checks if the S1 circuit in the transmission is mal-
functioning.
4. Check cable in the transmission for short to
ground.
6. Check resistance between S1 terminal A and B.
Standard value is 22 - 30 Ω .
9. Check connections of other connectors.If diagnosing for a possible intermittent short or
open condition, move or massage the wiring
harness while observing test equipment for a
change.
Solenoid Logic for Static Gear States
Gear
1st
2nd
3rd
4th
Reverse
Neutral
ParkS1
ON
OFF
OFF
ON
OFF
OFF
OFFS2
ON
ON
OFF
OFF
OFF
OFF
OFF
1Perform a Transmission Control Module (TCM) System
Check.
Is the check performed?
1. Install the scan tool.
2. Turn the ignition ON, with the engine OFF.
3. Record and then clear DTCs.
4. Operate the vehicle within the conditions for
setting this DTC as specified in the text.
Does the scan tool display
1. Turn the ignition OFF.
2. Disconnect the 10-way transmission connector.
(additional DTCs will set)
3. Connect Solenoid/Thermistor Electrical Tester
(STET) to the 10-way transmission connector of
transmission side and to the good ground.
4. Turn the mode knob of STET to 1 and push the red
button.
Does the bulb of close circuit on the solenoids side of
STET illuminate?
1. Remove the valve cover. Refer to the Transmission
in this section.
2. With a test light connected to B+, probe the wiring
harness from 10-way transmission connector to
Solenoid 1 (S1) on the valve body.
Does the test light illuminate?
Repair the short to ground in the wiring harness.
Is the repair complete?
Using a Digital Volt Meter (DVM), measure the
resistance between S1 terminal A and B.
Is the resistance within the specified value?
Replace the S1.
Is the action complete?
StepAction Value(s) Yes No
2
3
- Go to Step 2 Go to “TCM
Diagnostic
System Check”
- Go to Step 4 Go to Step 8
5
6 4
- Go to Step 5 Go to Step 6
- Go to Step 11 -
7
- Go to Step 11 -
- Go to Step 3Go to
“Diagnostic
Aids”
20 - 30 ΩGo to
“Diagnostic
Aids” Go to Step 7

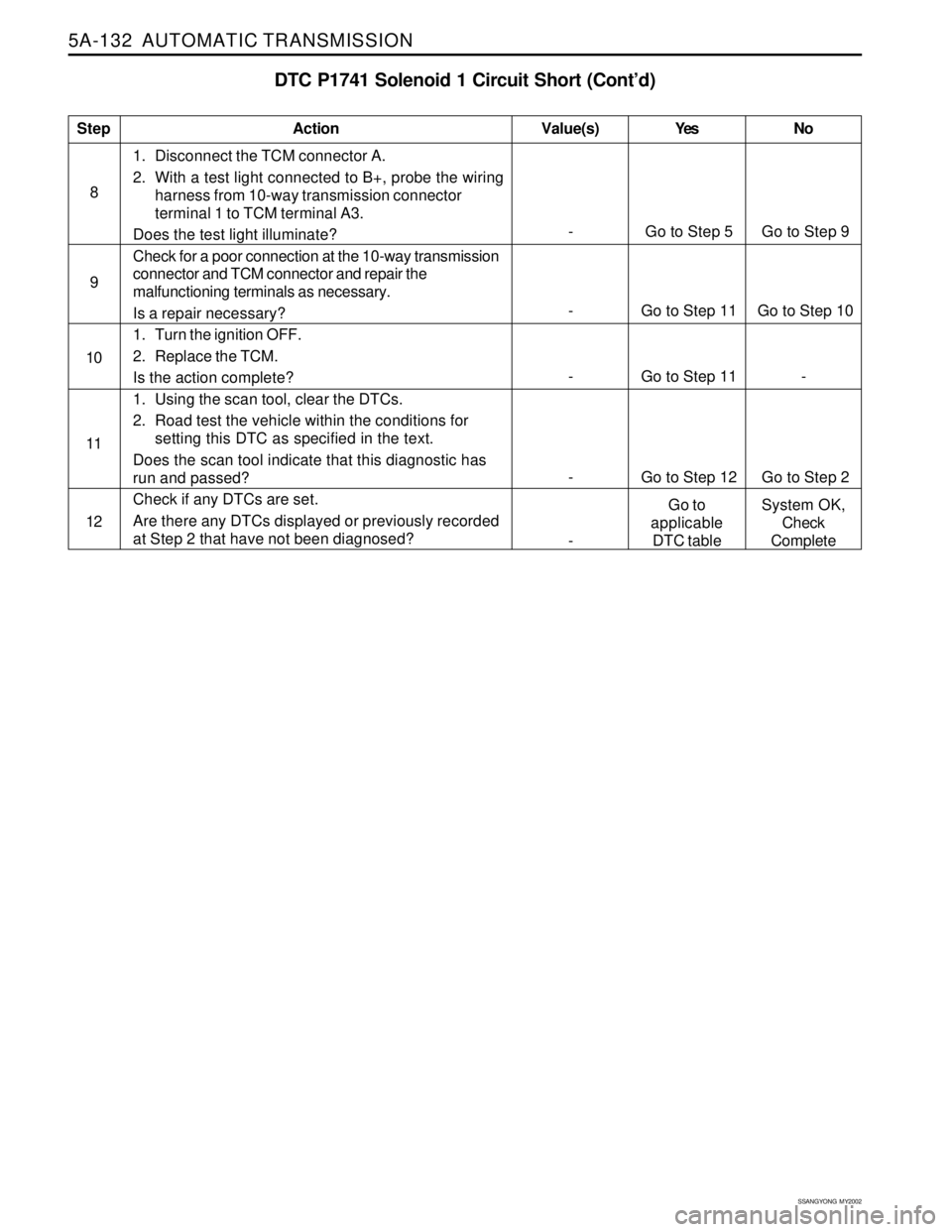

5A-132 AUTOMATIC TRANSMISSION
SSANGYONG MY2002
DTC P1741 Solenoid 1 Circuit Short (Cont’d)
81. Disconnect the TCM connector A.
2. With a test light connected to B+, probe the wiring
harness from 10-way transmission connector
terminal 1 to TCM terminal A3.
Does the test light illuminate?
Check for a poor connection at the 10-way transmission
connector and TCM connector and repair the
malfunctioning terminals as necessary.
Is a repair necessary?
1. Turn the ignition OFF.
2. Replace the TCM.
Is the action complete?
1. Using the scan tool, clear the DTCs.
2. Road test the vehicle within the conditions for
setting this DTC as specified in the text.
Does the scan tool indicate that this diagnostic has
run and passed?
Check if any DTCs are set.
Are there any DTCs displayed or previously recorded
at Step 2 that have not been diagnosed?
StepAction Value(s) Yes No
9
10
- Go to Step 5 Go to Step 9
- Go to Step 11 Go to Step 10
- Go to Step 11 -
- Go to Step 12 Go to Step 2 11
12
-Go to
applicable
DTC tableSystem OK,
Check
Complete

AUTOMATIC TRANSMISSION 5A-135
SSANGYONG MY2002
DTC P1742 Solenoid 2 Circuit Short
Test Description
The number(s) below refer to the step number(s) on
the Diagnostic Table.
3. Checks if the S2 circuit in the transmission is
malfunctioning.
4. Check cable in the transmission for short to
ground.
6. Check resistance between S2 terminal A and B.
Standard value is 22 - 30 Ω.
9. Check connections of other connectors.If diagnosing for a possible intermittent short or
open condition, move or massage the wiring
harness while observing test equipment for a
change.
Solenoid Logic for Static Gear States
Gear
1st
2nd
3rd
4th
Reverse
Neutral
ParkS1
ON
OFF
OFF
ON
OFF
OFF
OFFS2
ON
ON
OFF
OFF
OFF
OFF
OFF
1Perform a Transmission Control Module (TCM) System
Check.
Is the check performed?
1. Install the scan tool.
2. Turn the ignition ON, with the engine OFF.
3. Record and then clear DTCs.
4. Operate the vehicle within the conditions for
setting this DTC as specified in the text.
Does the scan tool display P1742?
1. Turn the ignition OFF.
2. Disconnect the 10-way transmission connector.
(additional DTCs will set)
3. Connect Solenoid/Thermistor Electrical Tester
(STET) to the 10-way transmission connector of
transmission side and to the good ground.
4. Turn the mode knob of STET to 2 and push the red
button.
Does the bulb of close circuit on the solenoids side of
STET illuminate?
1. Remove the valve cover. Refer to the Transmission
in this section.
2. With a test light connected to B+, probe the wiring
harness from 10-way transmission connector to
Solenoid 2 (S2) on the valve body.
Does the test light illuminate?
Repair the short to ground in the wiring harness.
Is the repair complete?
Using a Digital Volt Meter (DVM), measure the
resistance between S2 terminal A and B.
Is the resistance within the specified value?
Replace the S2.
Is the action complete?
StepAction Value(s) Yes No
2
3
- Go to Step 2 Go to “TCM
Diagnostic
System Check”
- Go to Step 4 Go to Step 8
5
6 4
- Go to Step 5 Go to Step 6
- Go to Step 11 -
7
- Go to Step 11 -
20 - 30 ΩGo to
“Diagnostic
Aids”
Go to Step 7
- Go to Step 3Go to
“Diagnostic
Aids”

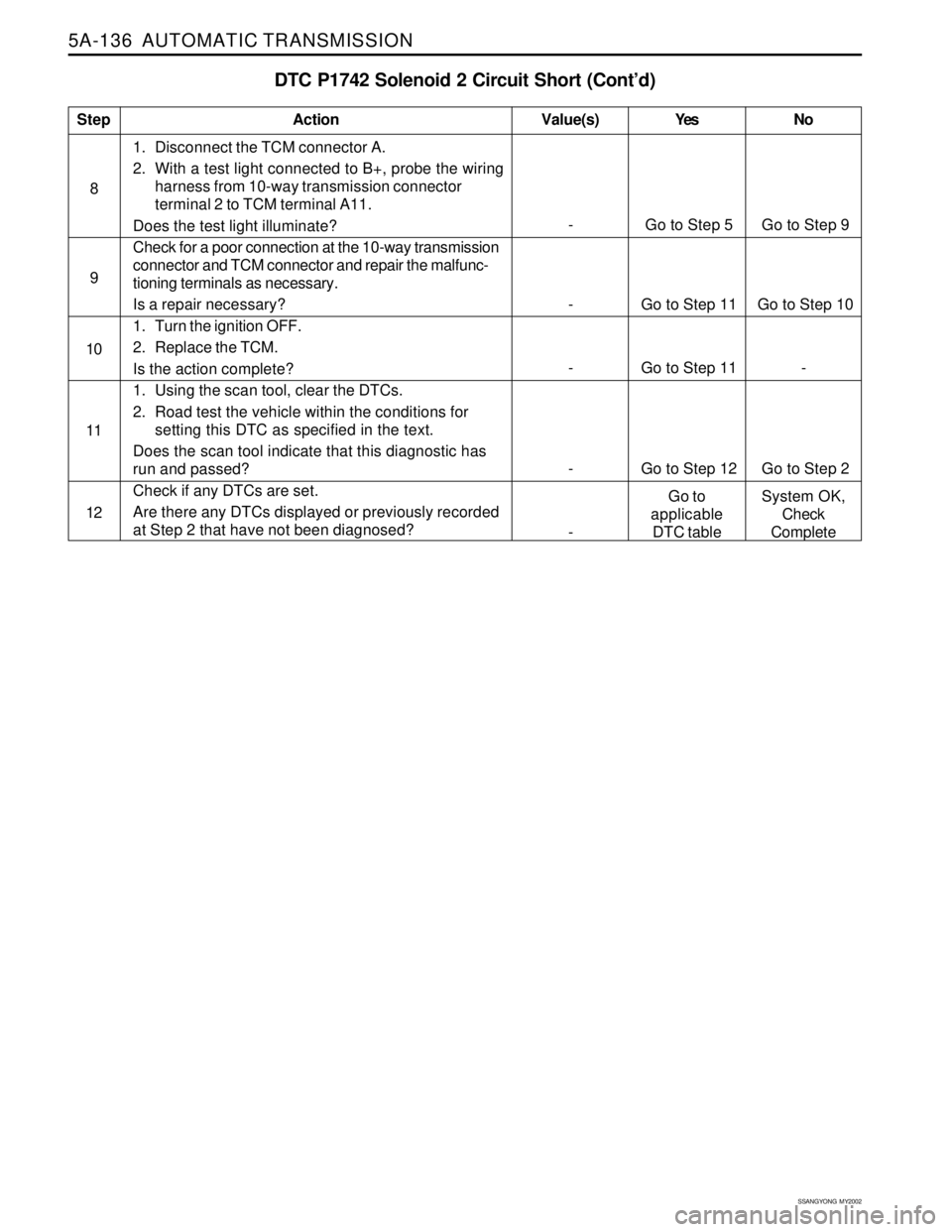

5A-136 AUTOMATIC TRANSMISSION
SSANGYONG MY2002
DTC P1742 Solenoid 2 Circuit Short (Cont’d)
81. Disconnect the TCM connector A.
2. With a test light connected to B+, probe the wiring
harness from 10-way transmission connector
terminal 2 to TCM terminal A11.
Does the test light illuminate?
Check for a poor connection at the 10-way transmission
connector and TCM connector and repair the malfunc-
tioning terminals as necessary.
Is a repair necessary?
1. Turn the ignition OFF.
2. Replace the TCM.
Is the action complete?
1. Using the scan tool, clear the DTCs.
2. Road test the vehicle within the conditions for
setting this DTC as specified in the text.
Does the scan tool indicate that this diagnostic has
run and passed?
Check if any DTCs are set.
Are there any DTCs displayed or previously recorded
at Step 2 that have not been diagnosed?
StepAction Value(s) Yes No
9
10
- Go to Step 5 Go to Step 9
- Go to Step 11 Go to Step 10
- Go to Step 11 -
- Go to Step 12 Go to Step 2 11
12
-Go to
applicable
DTC tableSystem OK,
Check
Complete

AUTOMATIC TRANSMISSION 5A-139
SSANGYONG MY2002
DTC P1743 Solenoid 3 Circuit Short
If diagnosing for a possible intermittent short or
open condition, move or massage the wiring
harness while observing test equipment for a
change.
Test Description
The number(s) below refer to the step number(s) on
the Diagnostic Table.3. Checks if the S3 circuit in the transmission is mal-
functioning.
4. Check cable in the transmission for short to
ground.
6. Check resistance between S3 terminal A and B.
Standard value is 22 - 30 Ω.
9. Check connections of other connectors.
- Go to Step 11 - 1Perform a Transmission Control Module (TCM) System
Check.
Is the check performed?
1. Install the scan tool.
2. Turn the ignition ON, with the engine OFF.
3. Record and then clear DTCs.
4. Operate the vehicle within the conditions for
setting this DTC as specified in the text.
Does the scan tool display P1743?
1. Turn the ignition OFF.
2. Disconnect the 10-way transmission connector.
(additional DTCs will set)
3. Connect Solenoid/Thermistor Electrical Tester
(STET) to the 10-way transmission connector of
transmission side and to the good ground.
4. Turn the mode knob of STET to 3 and push the red
button.
Does the bulb of close circuit on the solenoids side of
STET illuminate?
1. Remove the valve cover. Refer to the Transmission
in this section.
2. With a test light connected to B+, probe the wiring
harness from 10-way transmission connector to
Solenoid 3 (S3) on the valve body.
Does the test light illuminate?
Repair the short to ground in the wiring harness.
Is the repair complete?
Using a Digital Volt Meter (DVM), measure the resis-
tance between S3 terminal A and B.
Is the resistance within the specified value?
Replace the S3.
Is the action complete?
1. Disconnect the TCM connector A.
2. With a test light connected to B+, probe the wiring
harness from 10-way transmission connector
terminal 3 to TCM terminal A10.
Does the test light illuminate?
Check for a poor connection at the 10-way transmission
connector and TCM connector and repair the malfunc-
tioning terminals as necessary.
Is a repair necessary?
StepAction Value(s) Yes No
2
3
- Go to Step 2 Go to “TCM
Diagnostic
System Check”
- Go to Step 4 Go to Step 8
5
6 4
- Go to Step 11 -
7
8
9
- Go to Step 5 Go to Step 9
- Go to Step 11 Go to Step 10
- Go to Step 3Go to
“Diagnostic
Aids”
20 - 30 ΩGo to
“Diagnostic
Aids” Go to Step 7
- Go to Step 5 Go to Step 6
