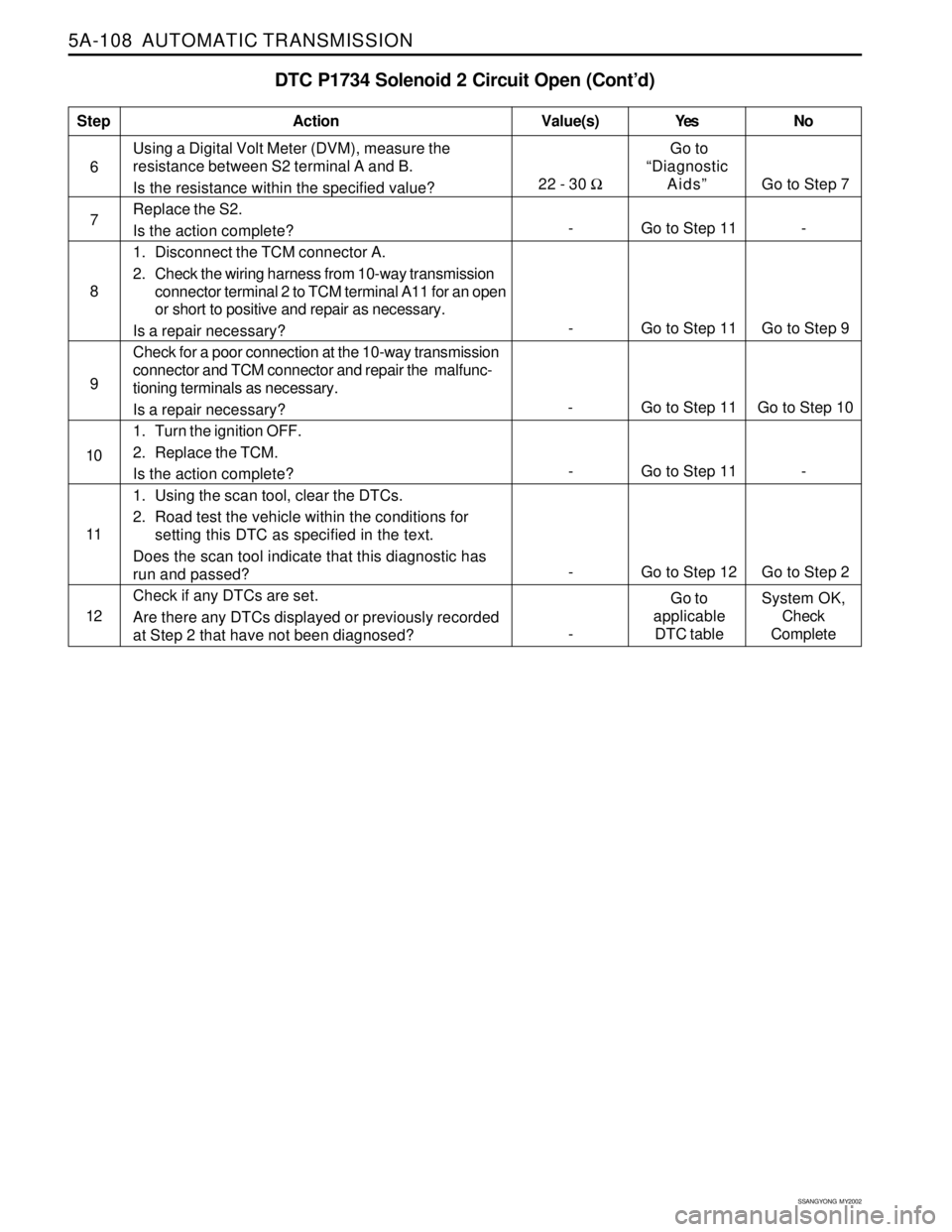

5A-108 AUTOMATIC TRANSMISSION
SSANGYONG MY2002
DTC P1734 Solenoid 2 Circuit Open (Cont’d)
22 - 30 Ω Go to Step 7 Go to
“Diagnostic
Aids” Using a Digital Volt Meter (DVM), measure the
resistance between S2 terminal A and B.
Is the resistance within the specified value?
Replace the S2.
Is the action complete?
1. Disconnect the TCM connector A.
2. Check the wiring harness from 10-way transmission
connector terminal 2 to TCM terminal A11 for an open
or short to positive and repair as necessary.
Is a repair necessary?
Check for a poor connection at the 10-way transmission
connector and TCM connector and repair the malfunc-
tioning terminals as necessary.
Is a repair necessary?
1. Turn the ignition OFF.
2. Replace the TCM.
Is the action complete?
1. Using the scan tool, clear the DTCs.
2. Road test the vehicle within the conditions for
setting this DTC as specified in the text.
Does the scan tool indicate that this diagnostic has
run and passed?
Check if any DTCs are set.
Are there any DTCs displayed or previously recorded
at Step 2 that have not been diagnosed?
StepAction Value(s) Yes No
8
9
- Go to Step 11 -
11
- Go to Step 11 -
10
12
-Go to
applicable
DTC tableSystem OK,
Check
Complete
Go to Step 11 Go to Step 10 -
- Go to Step 12 Go to Step 2 7 6
- Go to Step 11 Go to Step 9

AUTOMATIC TRANSMISSION 5A-111
SSANGYONG MY2002
DTC P1735 Solenoid 3 Circuit Open
Inspect the wiring for poor electrical connections
at the TCM and at the 10-way transmission
connector. Look for possible bent, backed out,
deformed or damaged terminals. Check for weak
terminal tension as well. Also check for chafed wires
that could short to bare metal or other wiring.
Inspect for broken wire in-side the insulation.
If diagnosing for a possible intermittent short or
open condition, move or massage the wiring
harness while observing test equipment for a
change.Test Description
The number(s) below refer to the step number(s) on
the Diagnostic Table.
3. Checks if the S3 circuit in the transmission is mal-
functioning.
4. Check cable in the transmission for open / short.
6. Check resistance between S3 terminal A and B.
Standard value is 22 - 30 Ω.
9. Check connections of other connectors
1Perform a Transmission Control Module (TCM) Diag-
nostic System Check.
Is the check performed?
1. Install the scan tool.
2. Turn the ignition ON, with the engine OFF.
3. Record and then clear DTCs.
4. Operate the vehicle within the conditions for
setting this DTC as specified in the text.
Does the scan tool display P1735?
1. Turn the ignition OFF.
2. Disconnect the 10-way transmission connector.
(additional DTCs will set)
3. Connect Solenoid/Thermistor Electrical Tester
(STET) to the 10-way transmission connector of
transmission side and to the good ground.
4. Turn the mode knob of STET to 3 and push the red
button.
Does the bulb of open circuit on the solenoids side of
STET illuminate?
1. Remove the valve cover. Refer to the Transmission
in this section.
2. Check the wiring harness from 10-way transmission
connector to Solenoid 3 (S3) on the valve body for an
open or short to positive and repair as necessary.
Is a repair necessary?
Check the S3 ground circuit for an open and repair as
necessary.
Is a repair necessary?
Using a Digital Volt Meter (DVM), measure the
resistance between S3 terminal A and B.
Is the resistance within the specified value?
Replace the S3.
Is the action necessary?
1. Disconnect the TCM connector A.
2. Check the wiring harness from 10-way transmission
connector terminal 3 to TCM terminal A10 for an open
or short to positive and repair as necessary.
Is a repair necessary?
StepAction Value(s) Yes No
2
3
- Go to Step 4 Go to Step 8
4
5
- Go to Step 2Go to “TCM
Diagnostic
System Check”
- Go to Step 3 Go to
“Diagnostic
Aids”
- Go to Step 11 Go to Step 9
- Go to Step 11 Go to Step 5
22 - 30 Ω Go to Step 7 Go to
“Diagnostic
Aids”
- Go to Step 11 -
- Go to Step 11 Go to Step 6
6
7
8

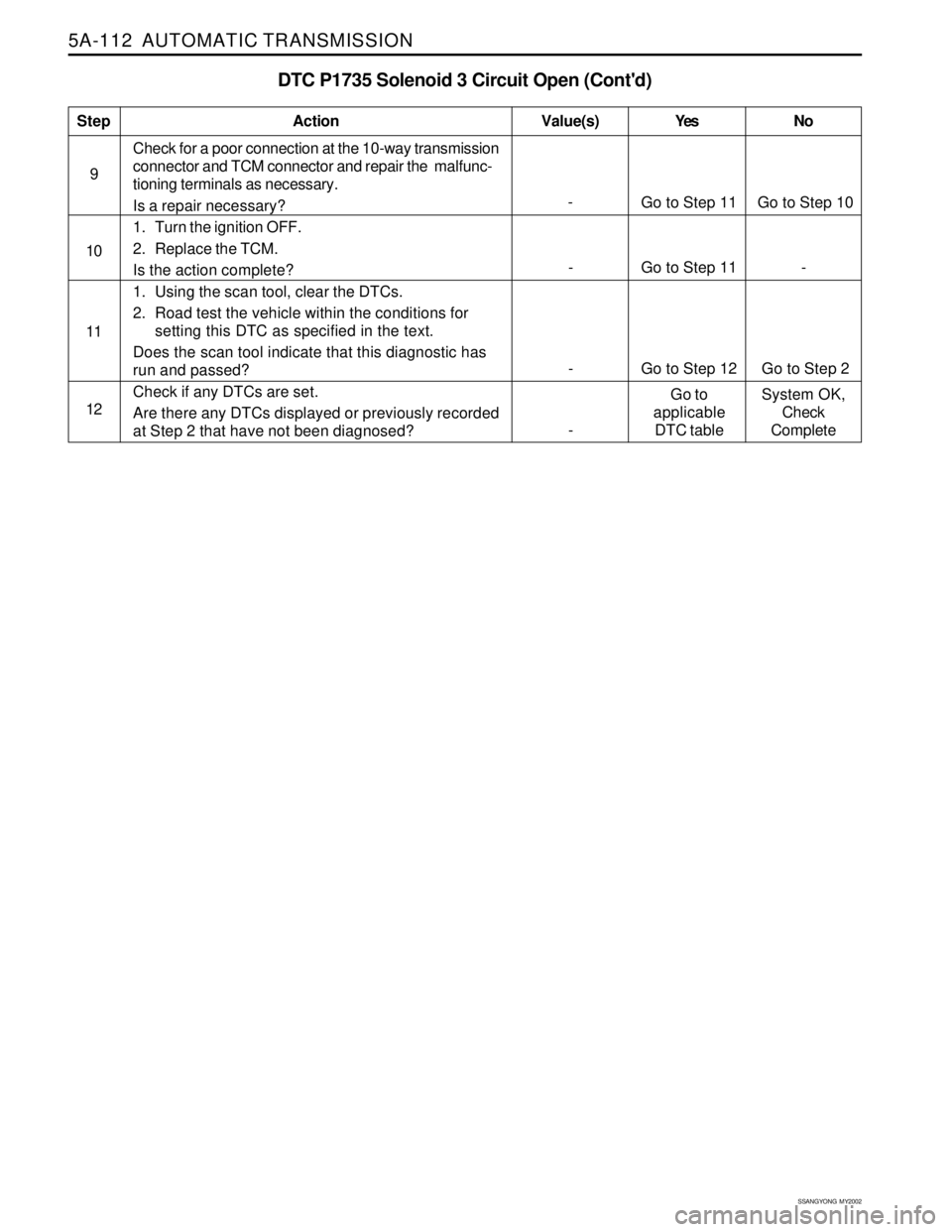

5A-112 AUTOMATIC TRANSMISSION
SSANGYONG MY2002
DTC P1735 Solenoid 3 Circuit Open (Cont'd)
Check for a poor connection at the 10-way transmission
connector and TCM connector and repair the malfunc-
tioning terminals as necessary.
Is a repair necessary?
1. Turn the ignition OFF.
2. Replace the TCM.
Is the action complete?
1. Using the scan tool, clear the DTCs.
2. Road test the vehicle within the conditions for
setting this DTC as specified in the text.
Does the scan tool indicate that this diagnostic has
run and passed?
Check if any DTCs are set.
Are there any DTCs displayed or previously recorded
at Step 2 that have not been diagnosed?
StepAction Value(s) Yes No
9
- Go to Step 11 -
11 10
12
-Go to
applicable
DTC tableSystem OK,
Check
Complete
Go to Step 11 Go to Step 10 -
- Go to Step 12 Go to Step 2

AUTOMATIC TRANSMISSION 5A-115
SSANGYONG MY2002
DTC P1736 Solenoid 4 Circuit Open
Inspect the wiring for poor electrical connections
at the TCM and at the 10-way transmission
connector. Look for possible bent, backed out,
deformed or damaged terminals. Check for weak
terminal tension as well. Also check for chafed wires
that could short to bare metal or other wiring.
Inspect for broken wire inside the insulation.
If diagnosing for a possible intermittent short or
open condition, move or massage the wiring
harness while observing test equipment for a
change.Test Description
The number(s) below refer to the step number(s) on
the Diagnostic Table.
3. Checks if the S4 circuit in the transmission is mal-
functioning.
4. Check cable in the transmission for open / short.
6. Check resistance between S4 terminal A and B.
Standard value is 22 - 30 Ω.
9. Check connections of other connectors
1Perform a Transmission Control Module (TCM) Diag-
nostic System Check.
Is the check performed?
1. Install the scan tool.
2. Turn the ignition ON, with the engine OFF.
3. Record and then clear DTCs.
4. Operate the vehicle within the conditions for
setting this DTC as specified in the text.
Does the scan tool display P1736?
1. Turn the ignition OFF.
2. Disconnect the 10-way transmission connector.
(additional DTCs will set)
3. Connect Solenoid/Thermistor Electrical Tester
(STET) to the 10-way transmission connector of
transmission side and to the good ground.
4. Turn the mode knob of STET to 4 and push the red
button.
Does the bulb of open circuit on the solenoids side of
STET illuminate?
1. Remove the valve cover. Refer to the Transmission
in this section.
2. Check the wiring harness from 10-way transmission
connector to Solenoid 4 (S4) on the valve body for an
open or short to positive and repair as necessary.
Is a repair necessary?
Check the S4 ground circuit for an open and repair as
necessary.
Is a repair necessary?
Using a Digital Volt Meter (DVM), measure the
resistance between S4 terminal A and B.
Is the resistance within the specified value?
Replace the S4.
Is the action necessary?
1. Disconnect the TCM connector A.
2. Check the wiring harness from 10-way transmission
connector terminal 4 to TCM terminal A4 for an open
or short to positive and repair as necessary.
Is a repair necessary?
StepAction Value(s) Yes No
2
3
- Go to Step 4 Go to Step 8
4
5
- Go to Step 2Go to “TCM
Diagnostic
System Check”
- Go to Step 3 Go to
“Diagnostic
Aids”
- Go to Step 11 Go to Step 9
- Go to Step 11 Go to Step 5
22 - 30 Ω
Go to Step 7 Go to
“Diagnostic
Aids”
- Go to Step 11 -
- Go to Step 11 Go to Step 6
6
7
8

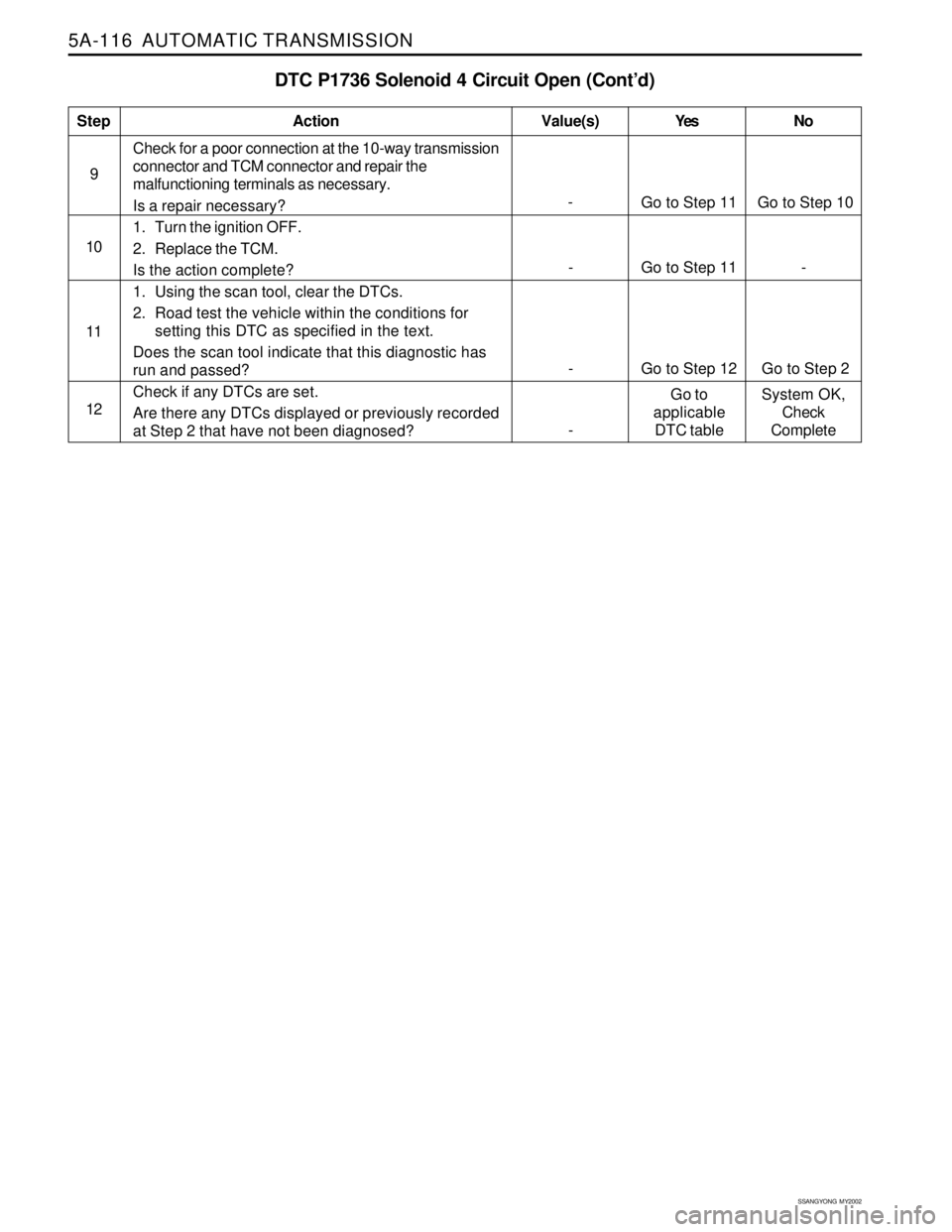

5A-116 AUTOMATIC TRANSMISSION
SSANGYONG MY2002
DTC P1736 Solenoid 4 Circuit Open (Cont’d)
Check for a poor connection at the 10-way transmission
connector and TCM connector and repair the
malfunctioning terminals as necessary.
Is a repair necessary?
1. Turn the ignition OFF.
2. Replace the TCM.
Is the action complete?
1. Using the scan tool, clear the DTCs.
2. Road test the vehicle within the conditions for
setting this DTC as specified in the text.
Does the scan tool indicate that this diagnostic has
run and passed?
Check if any DTCs are set.
Are there any DTCs displayed or previously recorded
at Step 2 that have not been diagnosed?
StepAction Value(s) Yes No
9
- Go to Step 11 -
11 10
12
-Go to
applicable
DTC tableSystem OK,
Check
Complete
Go to Step 11 Go to Step 10 -
- Go to Step 12 Go to Step 2

AUTOMATIC TRANSMISSION 5A-119
SSANGYONG MY2002
DTC P1737 Solenoid 5 Circuit Open
If diagnosing for a possible intermittent short or
open condition, move or massage the wiring
harness while observing test equipment for a
change.
Test Description
The number(s) below refer to the step number(s) on
the Diagnostic Table.3. Checks if the S5 circuit in the transmission is mal-
functioning.
4. Check cable in the transmission for open / short.
6. Check resistance between S5 terminal A and B.
Standard value is 3.6 - 5.5 Ω.
9. Check connections of other connectors
1Perform a Transmission Control Module (TCM) System
Check.
Is the check performed?
1. Install the scan tool.
2. Turn the ignition ON, with the engine OFF.
3. Record and then clear DTCs.
4. Operate the vehicle within the conditions for
setting this DTC as specified in the text.
Does the scan tool display P1737?
1. Turn the ignition OFF.
2. Disconnect the 10-way transmission connector.
(additional DTCs will set)
3. Connect Solenoid/Thermistor Electrical Tester
(STET) to the 10-way transmission connector of
transmission side.
4. Turn the mode knob of STET to 5 and push the red
button.
Does the bulb of open circuit on the solenoids side of
STET illuminate?
1. Remove the valve cover. Refer to the Transmission
in this section.
2. Check the wiring harnesses from 10-way trans
mission connector to Solenoid 5 (S5) on the valve
body for an open or short to positive and repair as
necessary.
Is a repair complete?
Using a Digital Volt Meter (DVM), measure the
resistance between S5 terminal A and B.
Is the resistance within the specified value?
Replace the S5.
Is the action complete?
1. Disconnect the TCM connector A.
2. Check the wiring harness from 10-way transmis-
sion connector terminal 5 to TCM terminal A1 for an
open or short to battery and repair as necessary.
Is a repair necessary?
Check the wiring harness from 10-way transmission
connector terminal 8 to TCM terminal A7 for an open
and repair as necessary.
Is a repair necessary?
StepAction Value(s) Yes No
2
3
- Go to Step 2 Go to “TCM
Diagnostic
System Check”
- Go to Step 4 Go to Step 7
5 4
- Go to Step 11 Go to Step 5
- Go to Step 3Go to
“Diagnostic
Aids”
- Go to Step 11 Go to Step 8 6
- Go to Step 11 -
7
8
- Go to Step 11 Go to Step 9
3.6 - 5.5 ΩGo to
“Diagnostic
Aids” Go to Step 6

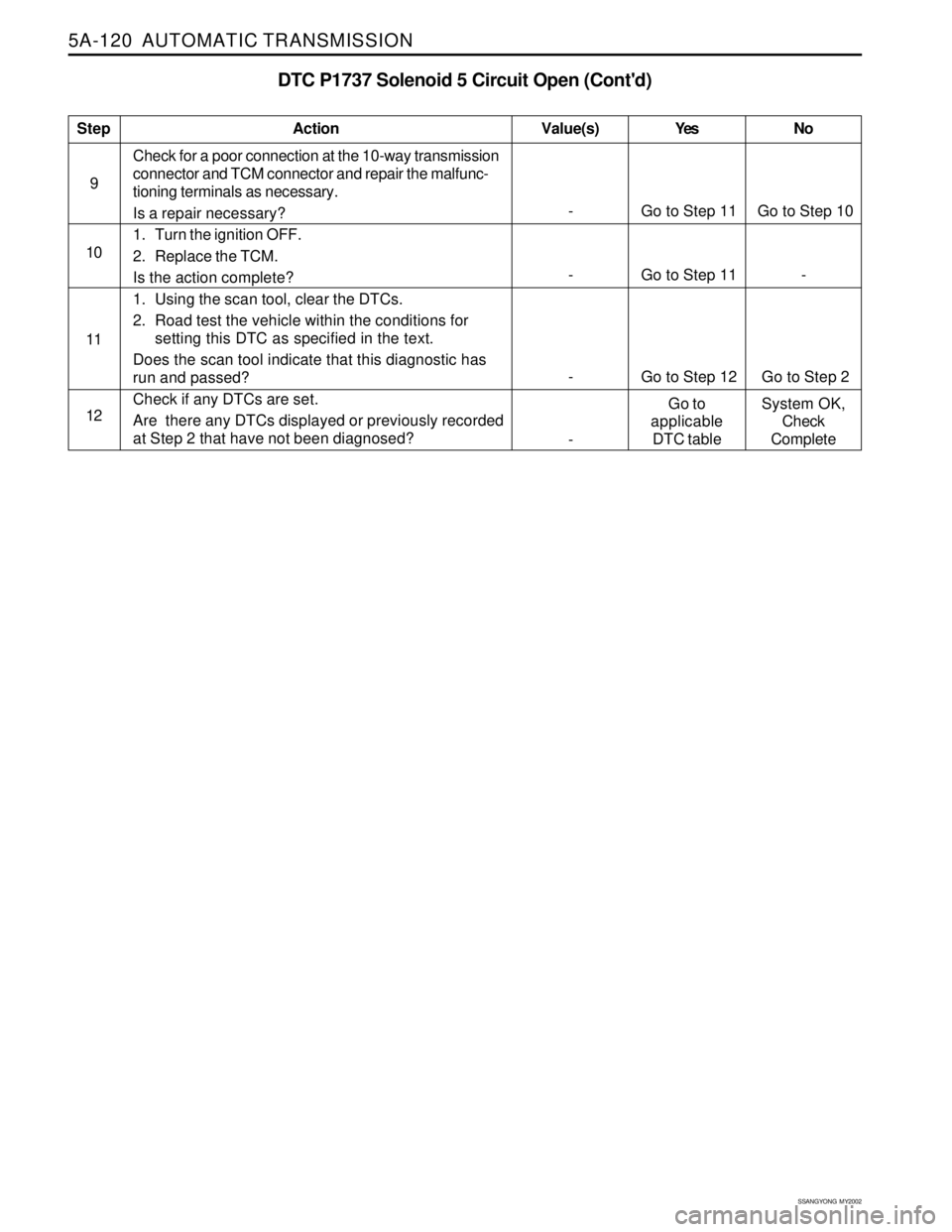

5A-120 AUTOMATIC TRANSMISSION
SSANGYONG MY2002
DTC P1737 Solenoid 5 Circuit Open (Cont'd)
Check for a poor connection at the 10-way transmission
connector and TCM connector and repair the malfunc-
tioning terminals as necessary.
Is a repair necessary?
1. Turn the ignition OFF.
2. Replace the TCM.
Is the action complete?
1. Using the scan tool, clear the DTCs.
2. Road test the vehicle within the conditions for
setting this DTC as specified in the text.
Does the scan tool indicate that this diagnostic has
run and passed?
Check if any DTCs are set.
Are there any DTCs displayed or previously recorded
at Step 2 that have not been diagnosed?
StepAction Value(s) Yes No
- Go to Step 12 Go to Step 2 11
12
-Go to
applicable
DTC tableSystem OK,
Check
Complete 9
- Go to Step 11 Go to Step 10
10
- Go to Step 11 -

AUTOMATIC TRANSMISSION 5A-123
SSANGYONG MY2002
Inspect the wiring for poor electrical connections
at the TCM and at the 10-way transmission
connector. Look for possible bent, backed out,
deformed or damaged terminals. Check for weak
terminal tension as well. Also check for chafed wires
that could short to bare metal or other wiring.
Inspect for broken wire inside the insulation.
If diagnosing for a possible intermittent short or
open condition, move or massage the wiring
harness while observing test equipment for a
change.Test Description
The number(s) below refer to the step number(s) on
the Diagnostic Table.
3. Checks if the S6 circuit in the transmission is mal-
functioning.
4. Check cable in the transmission for open / short.
6. Check resistance between S6 terminal A and B.
Standard value is 22 - 30 Ω.
9. Check connections of other connectors
DTC P1738 Solenoid 6 Circuit Open
- Go to Step 11 - 1Perform a Transmission Control Module (TCM) System
Check.
Is the check performed?
1. Install the scan tool.
2. Turn the ignition ON, with the engine OFF.
3. Record and then clear DTCs.
4. Operate the vehicle within the conditions for
setting this DTC as specified in the text.
Does the scan tool display P1738?
1. Turn the ignition OFF.
2. Disconnect the 10-way transmission connector.
(additional DTCs will set)
3. Connect Solenoid/Thermistor Electrical Tester
(STET) to the 10-way transmission connector of
transmission side and to the good ground.
4. Turn the mode knob of STET to 6 and push the red
button.
Does the bulb of open circuit on the solenoids side of
STET illuminate?
1. Remove the valve cover. Refer to the Transmission
in this section.
2. Check the wiring harness from 10-way transmission
connector to Solenoid 6 (S6) on the valve body for an
open or short to positive and repair as necessary.
Is a repair necessary?
Check the S6 ground circuit for an open and repair as
necessary.
Is a repair necessary?
Using a Digital Volt Meter (DVM), measure the resis-
tance between S6 terminal A and B.
Is the resistance within the specified value?
Replace the S6.
Is the action complete?
1. Disconnect the TCM connector A.
2. Check the wiring harness from 10-way transmission
connector terminal 6 to TCM terminal A12 for an open
and repair as necessary.
Is a repair necessary?
StepAction Value(s) Yes No
2
3
-
Go to Step 2 Go to “TCM
Diagnostic
System Check”
- Go to Step 4 Go to Step 8
5
6 4
- Go to Step 11 Go to Step 5
- Go to Step 11 Go to Step 6
7
8
- Go to Step 11 Go to Step 9
- Go to Step 3Go to
“Diagnostic
Aids”
22 - 30 ΩGo to
“Diagnostic
Aids” Go to Step 7
