1997 FORD F250 Owners Manual

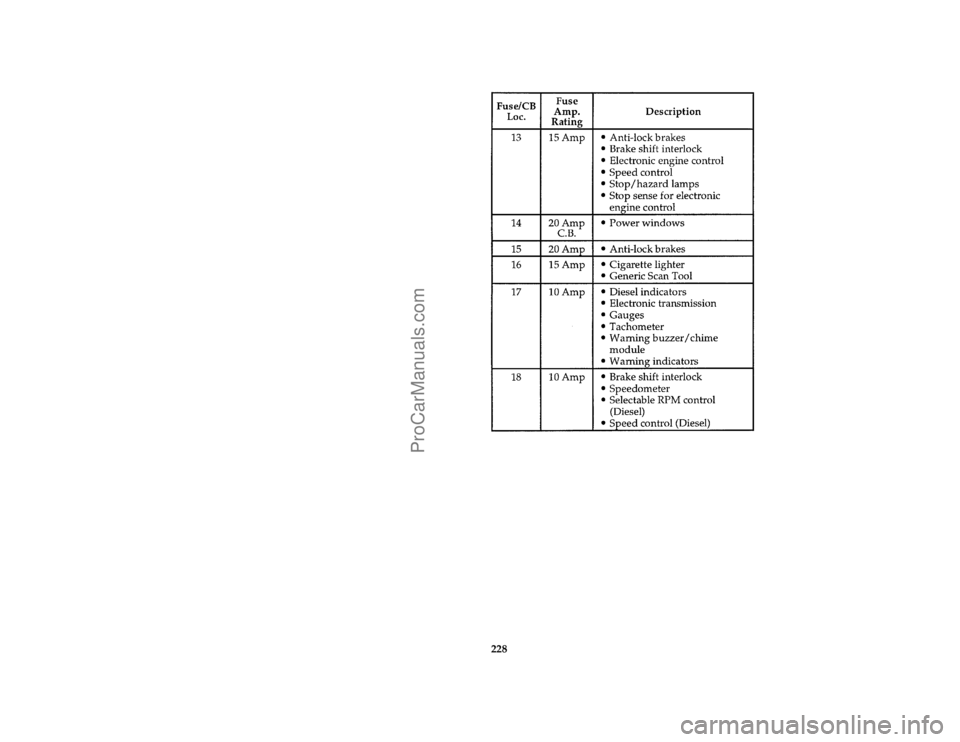

226 % [ER00600(F )04/96]

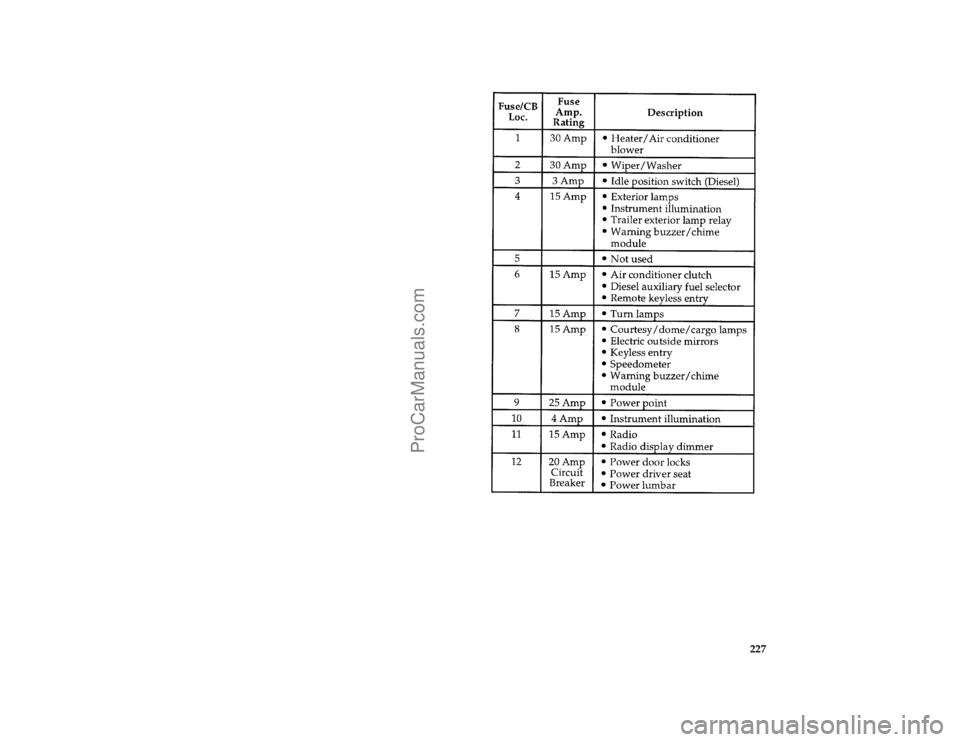

full page art:0020390-LFuses and their location
File:10lterf.ex
Update:Tue May 28 08:49:52 1996
ProCarManuals.com

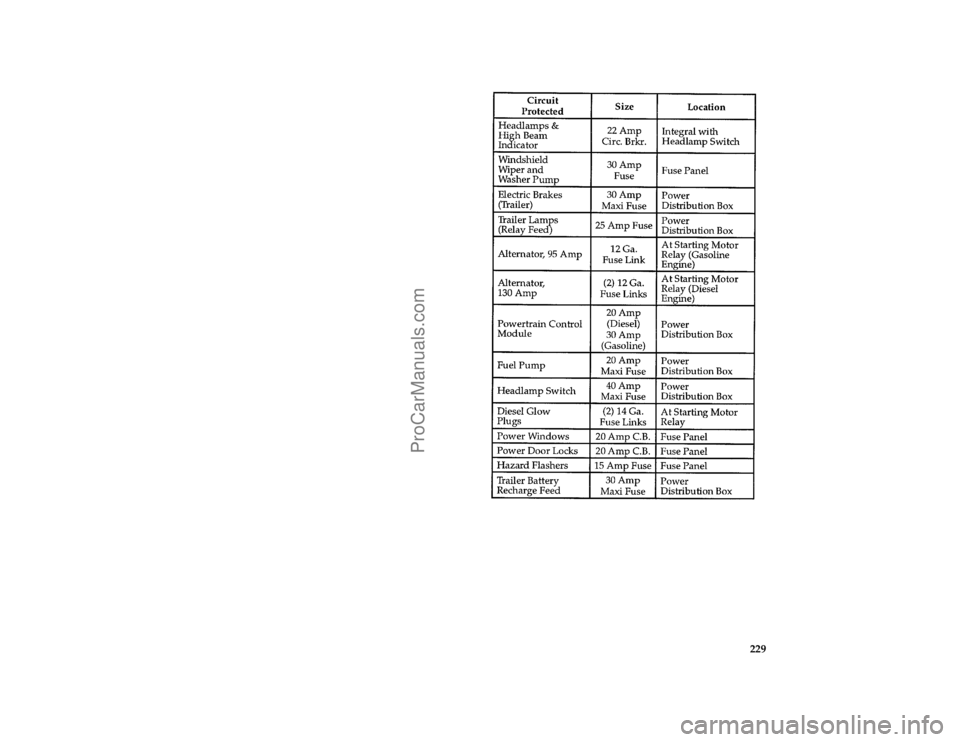

227 [ER00750(F )05/96]
thirty-four pica chart:0020995-H
File:10lterf.ex
Update:Tue May 28 08:49:52 1996
ProCarManuals.com

228
File:10lterf.ex
ProCarManuals.com

229 [ER01200(F )05/96]
thirty pica chart:0020400-K
File:10lterf.ex
Update:Tue May 28 08:49:52 1996
ProCarManuals.com

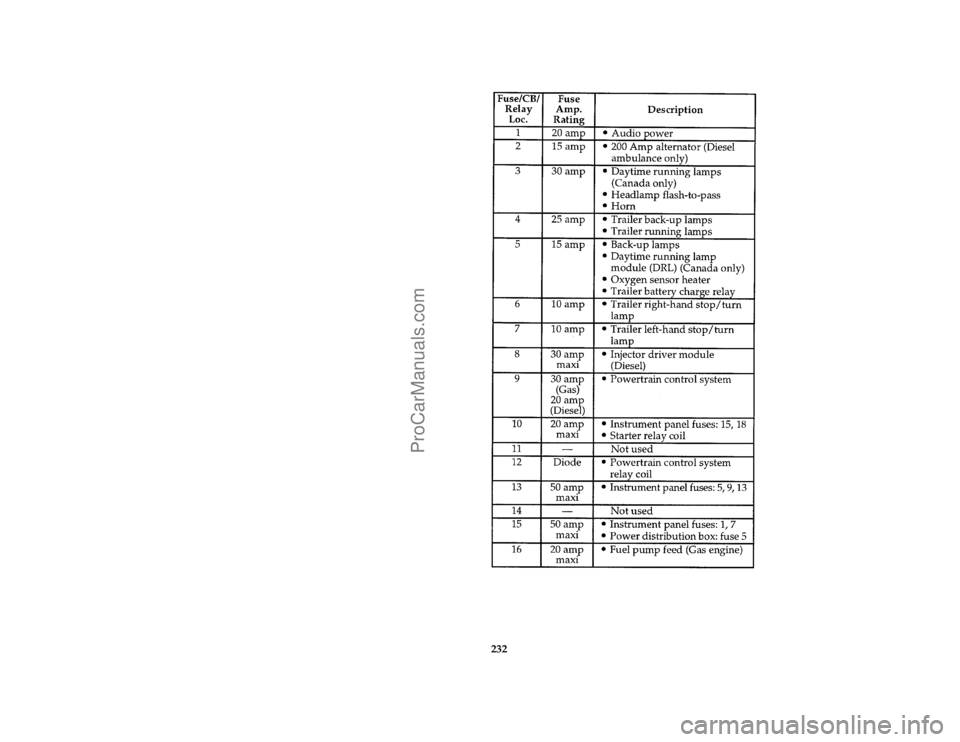

230 [ER01300(FM)01/96]Power Distribution Box
*
[ER01350(FM)01/96]
The high current fuses contained in the Power
Distribution Box protect your vehicle's main
electrical systems from overloads; these fuses
provide the connection between the battery and
your vehicle's electrical systems.
*
[ER01400(FM)03/96]
The high current fuses are coded as follows: 30
amp Ð light green, 40 amp Ð orange, 50 amp
Ð red, 60 amp Ð blue.
*
[ER01450(FM)01/96]
RWARNING
Always disconnect the battery before
servicing high current fuses.
*
[ER01500(FM)01/96]
Ford recommends that high current fuses be
replaced by a qualified technician.
*
[ER01550(FM)01/96]
RWARNING
Always replace the cover to the Power
Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
*
[ER01600(FM)01/96]
A blown high current fuse may be replaced but
will continue to blow until the cause of the
overload condition is corrected.
*
[ER01650(FM)01/96]
RWARNING
Always replace a fuse with one that has
the specified amperage rating. Using a
fuse with a higher amperage rating can
cause severe wire damage and could start
a fire.
File:10lterf.ex
Update:Tue May 28 08:49:52 1996
ProCarManuals.com

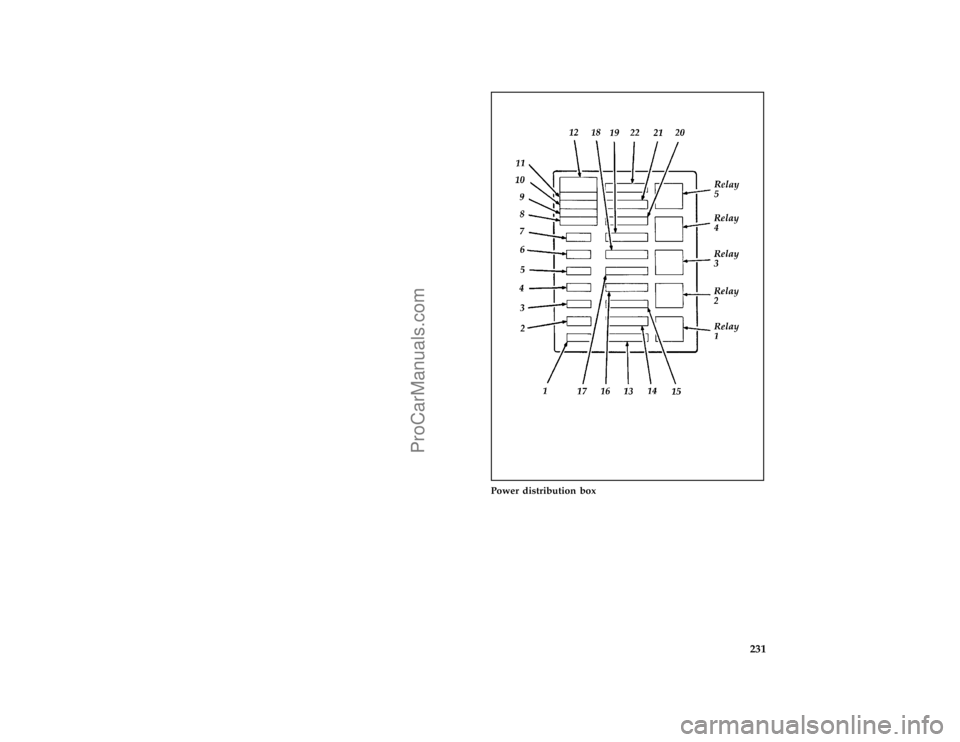

231 [ER01700(F )04/96]
three fourths page art:0020840-F
Power distribution box
File:10lterf.ex
Update:Tue May 28 08:49:52 1996
ProCarManuals.com

232 [ER01850(F )05/96]
thirty-six pica chart:0021005-G
File:10lterf.ex
Update:Tue May 28 08:49:52 1996
ProCarManuals.com

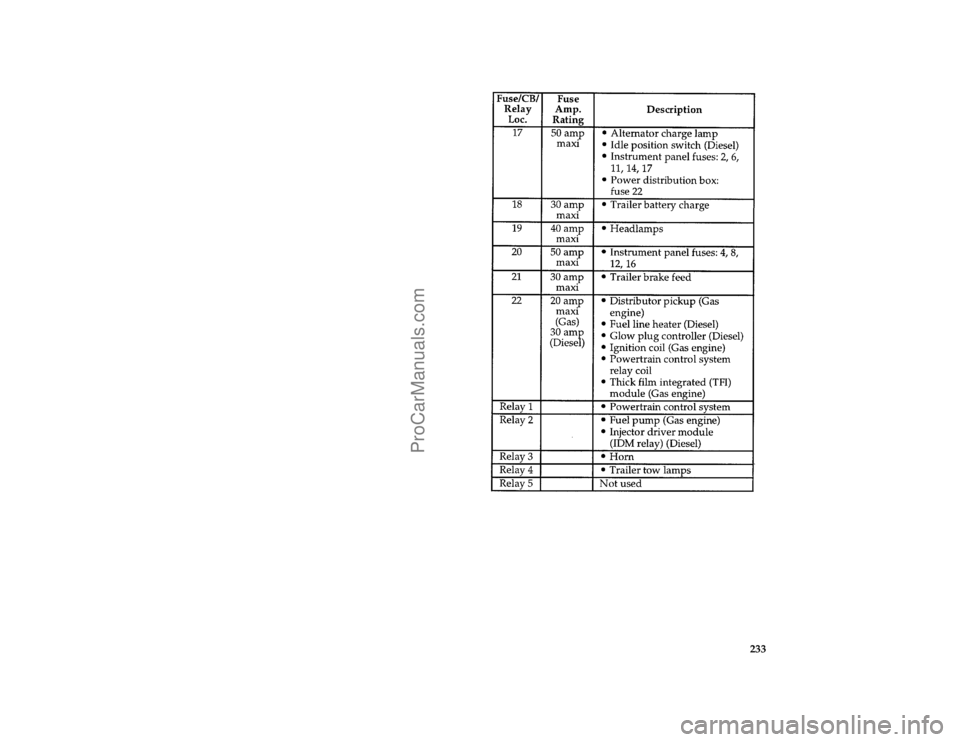

233 [ER01900(F )05/96]
