Weigh your vehicle as you customarily
operate the vehicle (without cargo).
*
[GF21270(FM)01/96]
q
Subtract the total weight of passengers, driver
and optional equipment added by the factory,
dealer or aftermarket supplier to determine
how much cargo weight you can carry.
*
[GF21280(FM)01/96]
half page art:0020837-B
Sample label
File:09ltgff.ex
Update:Thu May 30 15:25:49 1996
ProCarManuals.com

186
*
[GF21300(FM)01/96]
If you suspect that your payload is excessive,
have your vehicle weighed at a highway weigh
station or appropriate commercial facility. Weigh
the total vehicle and trailer (if applicable), then
separately weigh the vehicle at the front and
rear wheels. And finally, weigh the trailer
separately if applicable.
*
[GF21310(FM)01/96]
Use this chart to perform your calculations.
*
[GF21320(FM)01/96]

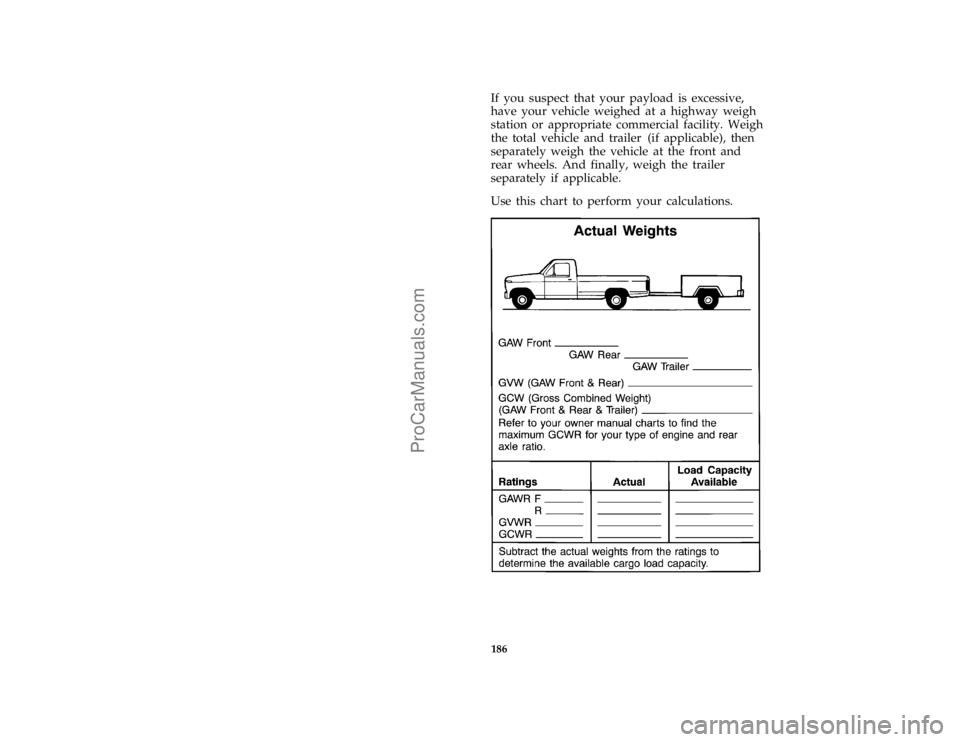

twenty-six pica chart:0020838-D
File:09ltgff.ex
Update:Thu May 30 15:25:49 1996
ProCarManuals.com

187
*
[GF21340(FM)01/96]
NOTE: The Truck Safety Compliance
Certification Label has two weight
related entries that sometimes cause
confusion.
*
[GF21350(FM)01/96]
Front Axle Reserve Capacity in Pounds (kgs): If
this value is given as 83 pounds (38 kgs) on the
label, does this mean that you are limited to
adding only 83 pounds (38 kgs) of accessories to
the front end capacity? Not exactly. This says
that you can load 83 pounds (38 kgs) of options
on the front axle, add 150 pound (68 kgs)
passengers to all seating positions, and add
evenly distributed cargo in the box without
exceeding the GAWR F.
*
[GF21360(FM)01/96]
It is possible to hang heavier equipment on the
front as long as the vehicle owner/operator
compensates. This can be accomplished, if
necessary, by carrying fewer passengers, less
cargo or positioning cargo more toward the rear,
which has the effect of reducing the load on the
front. Keep in mind that the GAWR F, GAWR
R, nor the GVWR should ever be exceeded.
*
[GF21370(FM)01/96]
Total Accessory Reserve Capacity in Pounds
(kgs): If, for example, this value is given as 112
pounds (51 kgs), does this mean that you are
limited to adding 112 pounds (51 kgs) of
accessories to your vehicle? Yes that is correct
for permanently installed accessories. This is a
number that is related to government crash test
standards. Therefore, no more than this weight
should be permanently installed on your vehicle.
*
[GF21380(FM)01/96]
In the case of both these numbers (83 and 112
pounds) (38 and 51 kgs), the important thing to
remember is that for safe operation, an
owner/operator should calculate the amount and
the distribution of all weights (passengers,
accessory equipment and cargo). These combined
weights should fall below the vehicle's GVWR
and GAWR.
File:09ltgff.ex
Update:Thu May 30 15:25:49 1996
ProCarManuals.com

188
*
[GF21390(F )01/96]
Camper Bodies
[GF21400(F )04/96]
Many truck owners carry camper bodies during
at least part of the year. A camper body is a
load just like any other. It is important for the
owner to match the camper body to the truck's
load carrying capability. It is also important to
take into account the weight of food, clothing
and equipment that may be carried in the
camper.
*
[GF21410(FM)01/96]
Trailers
*
[GF21420(FM)01/96]
Towing a trailer safely means having the proper
weight on the tongue (usually 10% of the trailer
weight). Load-equalizing hitches on large rigs
may transfer weight to each of the vehicle's
axles. This weight must be included in capacity
calculations when determining if the vehicle is
loaded within safe limits.
*
[GF21430(FM)01/96]
If your vehicle exceeds the GVWR, remove cargo
from your vehicle accordingly. If your vehicle
exceeds the GAWR for either axle, shift the load
or remove cargo accordingly.
File:09ltgff.ex
Update:Thu May 30 15:25:49 1996
ProCarManuals.com

189
*
[GF21440(FM)01/96]
RWARNING
Do not exceed the GVWR or the GAWR
specified on the Safety Compliance
Certification Label.
*
[GF21450(FM)05/96]
RWARNING
Towing trailers beyond the maximum
recommended gross trailer weight could
result in engine damage, transmission/axle
damage, structural damage, loss of control,
and personal injury.
*
[GF21460(FM)01/96]

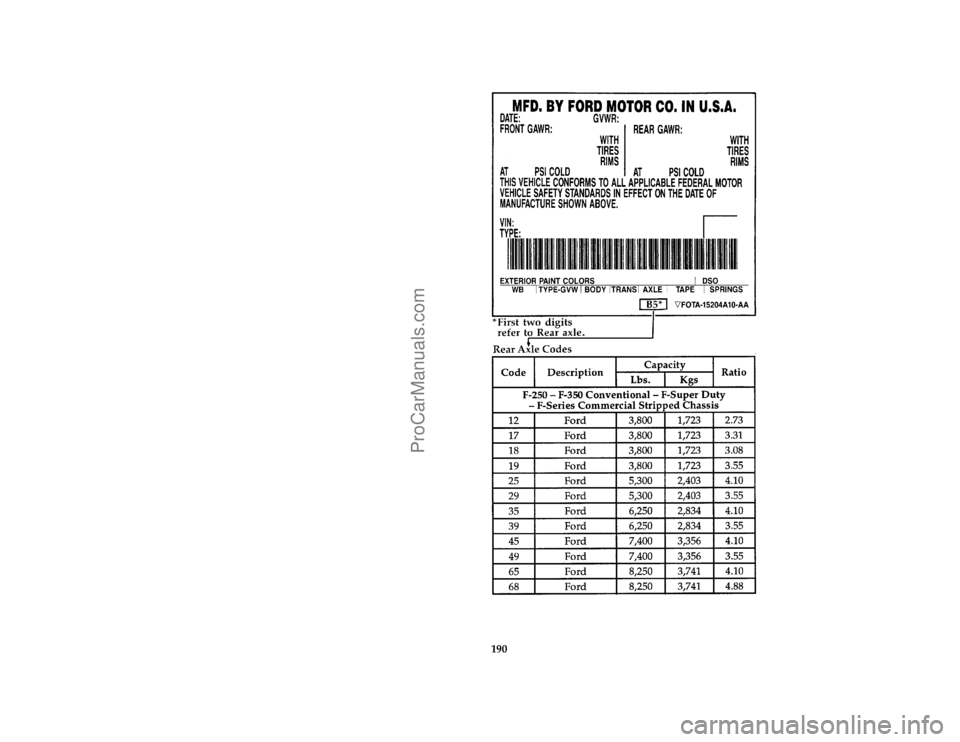

Use the Safety Compliance Certification Label to
find the axle code number and the engine type
for your vehicle.
*
[GF21470(FM)01/96]
Use the appropriate Maximum Gross Combined
Weight Rating (GCWR) chart to find the
Maximum GCWR for your type engine and rear
axle ratio.
*
[GF21480(FM)01/96]
Subtract your Loaded Vehicle Weight from the
Maximum GCWR found in the chart. This is the
maximum trailer weight your vehicle can tow
and must fall below the maximum shown under
Trailer Weight on the chart.
File:09ltgff.ex
Update:Thu May 30 15:25:49 1996
ProCarManuals.com

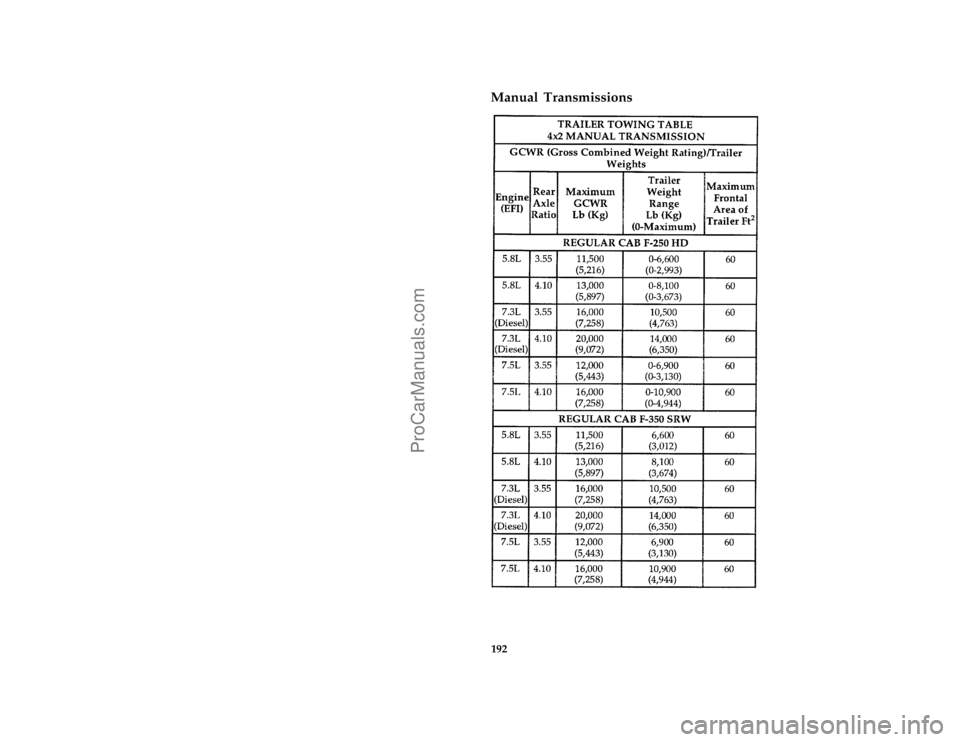

190 [GF21640(F )03/96]
