1997 FORD F250 Owners Manual

88 [CF46500(F )04/96]

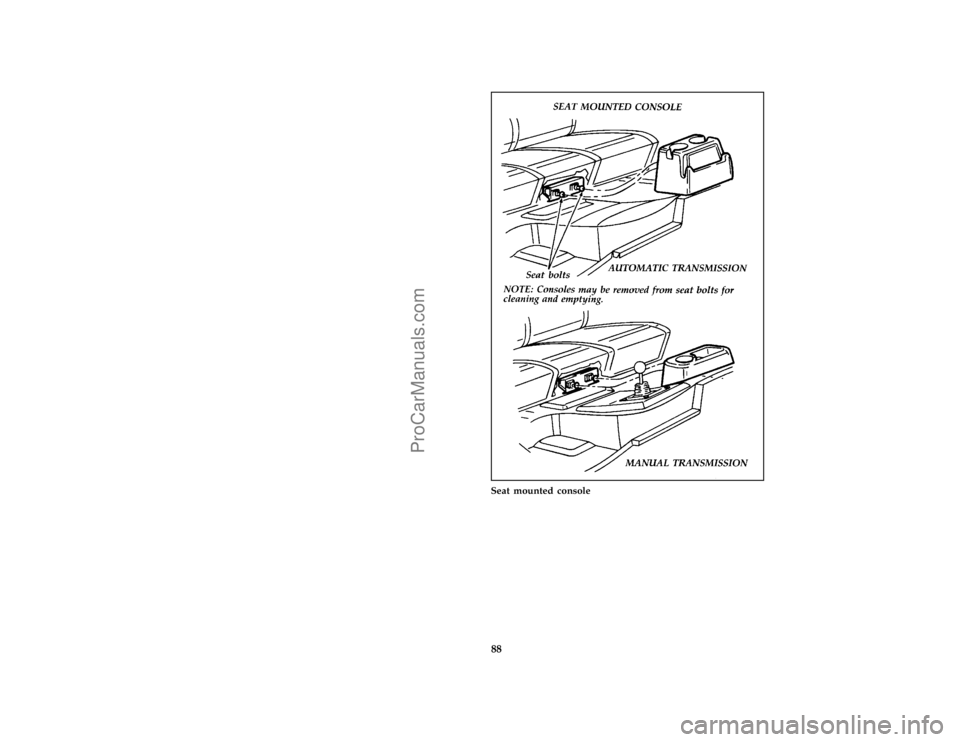

three fourths page art:0020909-ASeat mounted console
File:05ltcff.ex
Update:Tue May 28 08:42:43 1996
ProCarManuals.com

89
*
[CF65000(F )05/96]
Remote Entry System
(If equipped)
[CF65100(F )04/96]
If your vehicle has the remote entry system, you
can lock or unlock the vehicle doors without
using a key. The remote also has a personal
alarm feature. The buttons for the system are
located on the two hand held transmitters that
came with your vehicle.
*
[CF65200(F )01/96]
The system will work with up to four
transmitters. Your vehicle came with two
transmitters. Additional transmitters can be
ordered from your dealer.
*
[CF65300(F )01/96]
The remote entry features only operate with the
ignition in the OFF position.
[CF65400(F )05/96]
quarter page art:0020788-B
The remote entry transmitter
%*
[CF65500(F )01/96]
Unlocking the doors with the remote entry
system
*
[CF65600(F )04/96]
To unlock the driver's door, press the UNLOCK
control.
*
[CF65700(F )01/96]
To unlock the other doors, press the UNLOCK
button a second time within five (5) seconds of
unlocking the driver's door.
File:05ltcff.ex
Update:Tue May 28 08:42:43 1996
ProCarManuals.com

90
*
[CF65800(F )01/96]
Locking the doors with the remote entry
system
*
[CF66000(F )04/96]
To lock all the doors, press the LOCK control.
[CF66100(F )04/96]
If you would like a signal that the doors are
being locked, press the LOCK button again
within five seconds. The door will lock again,
the horn will beep, and the external lamps will
flash.
%*
[CF66200(F )01/96]
Remote entry personal alarm
*
[CF66300(F )01/96]
If you wish to activate the remote entry system
personal alarm, press the PANIC button. This
will honk the horn and flash the lights for
approximately 2 minutes 45 seconds. You can
turn it OFF by pressing the PANIC button again
from the same transmitter or by turning the
ignition to the ON or ACCESSORY position.
*
[CF66400(F )01/96]
When you use the remote entry UNLOCK or
PANIC buttons, the illuminated entry system
turns on the vehicle's interior lights for 25
seconds. You can turn these lights off with the
remote entry LOCK button or by turning the
ignition to the ON or ACCESSORY position.
*
[CF66500(F )01/96]
quarter page art:0060566-B
File:05ltcff.ex
Update:Tue May 28 08:42:43 1996
ProCarManuals.com

91 %
*
[CF66900(F )03/96]
Replacing the Batteries
*
[CF67000(F )01/96]
The remote entry transmitter is powered by two
coin type three-volt lithium 2016
batteries (included) that should last for several
years of normal use. If you notice a significant
decrease in operating range, the batteries should
be replaced. Replacement batteries can be
purchased at most pharmacies, watch stores or
at your Ford or Lincoln-Mercury dealer.
*
[CF67100(F )01/96]
NOTE: The operating range of the remote
entry system can also be affected by
weather conditions (such as very cold
temperatures) or structures around the
vehicle (buildings, other vehicles, radio
and TV towers, etc.). Typical operating
range will allow you to be up to 33
feet (10 meters) away from your
vehicle.
[CF67200(F )05/96]

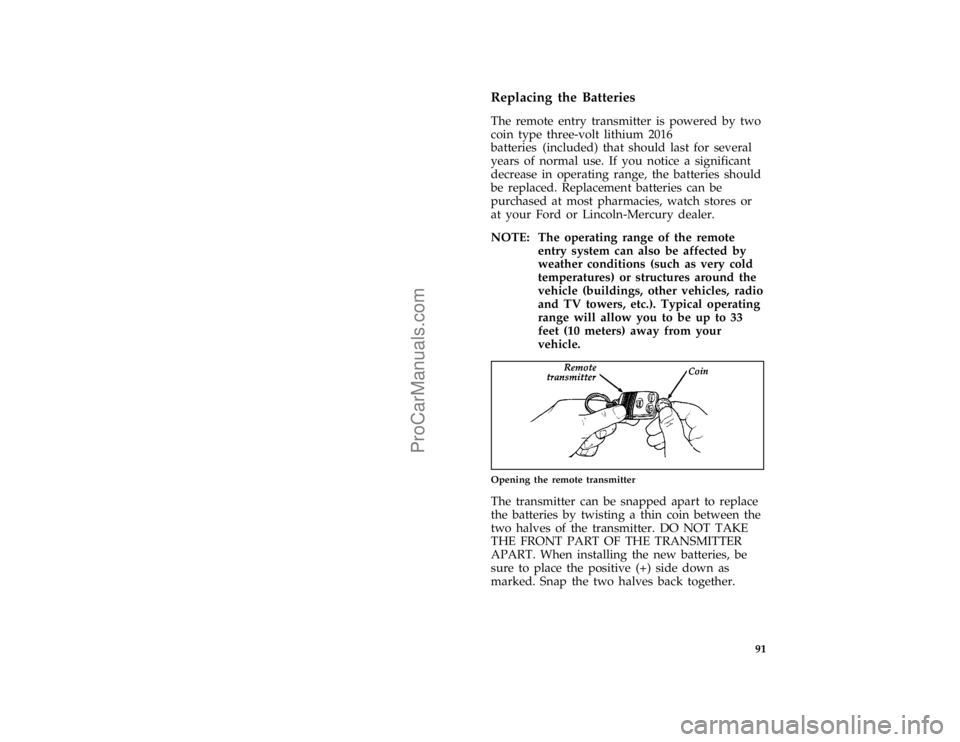

quarter page art:0020789-B
Opening the remote transmitter
*
[CF67300(F )01/96]
The transmitter can be snapped apart to replace
the batteries by twisting a thin coin between the
two halves of the transmitter. DO NOT TAKE
THE FRONT PART OF THE TRANSMITTER
APART. When installing the new batteries, be
sure to place the positive (+) side down as
marked. Snap the two halves back together.
File:05ltcff.ex
Update:Tue May 28 08:42:43 1996
ProCarManuals.com

92
*
[CF67400(F )01/96]
quarter page art:0020790-A
Replacing the batteries
%*
[CF67500(F )01/96]
Replacing lost transmitters
*
[CF67600(F )01/96]
In the event a transmitter is lost, you should
take all your vehicle's transmitters to your
dealer to have the remote entry system
deprogrammed for the lost transmitter. This is
necessary to prevent further unauthorized use of
the lost transmitter.
*
[CF67700(F )01/96]
You can also purchase additional transmitters
(up to 4 transmitters can be used) from your
dealer. You will need to take all your
transmitters to the dealer so they can program
them to the remote entry system all at the same
time.
%*
[CF68000(F )01/96]
Illuminated Entry System (If equipped)
[CF68100(F )01/96]
This system will provide illumination of the
vehicle's interior courtesy lamps when either
outside front door handle is pulled or when the
Remote Entry System is used to unlock the door
or sound the Personal Alarm. The system will
automatically turn off after approximately 25
seconds or when the ignition is turned to the
START or ACCESSORY position.
[CF68200(F )04/96]
NOTE: The inside lights will not turn off if
you have turned them on with the
dimmer knob or if any door is open.
File:05ltcff.ex
Update:Tue May 28 08:42:43 1996
ProCarManuals.com

93 % [CF68300(F )04/96]
Battery Saver (with Remote Entry Ð If
equipped)
[CF68400(F )04/96]
When the ignition is turned off, the vehicle will
turn off battery voltage to all of these lights after
45 minutes: glove box, engine compartment,
overhead console, mirror, courtesy and
interior (including cargo) lamps.
*
[CF68500(F )01/96]
This will prevent draining of the battery if these
lights have been left on inadvertently or if a
door is not completely closed. Battery voltage to
these lamps will be restored when the remote
entry transmitter is used, any door is opened, or
the ignition key is turned on again.
File:05ltcff.ex
Update:Tue May 28 08:42:43 1996
ProCarManuals.com

95
Seating and Safety
Restraints
%*
[SS00200(F )05/96]
Seats
%*
[SS00300(F )01/96]
Adjusting the Front Seat Manually
*
[SS00400(F )01/96]
To move the front seat forward or rearward:
[SS00450(F )05/96]
1. Find the adjustment lever at the lower left
corner of the front seat.
[SS00500(F )04/96]
2. Push the lever to the left to unlatch the seat.
*
[SS00700(F )01/96]
3. Move the seat to the desired position.
*
[SS00800(F )01/96]
4. Release the lever to latch the seat in its new
position. Make sure the seat locks securely in
place.
[SS00900(F )04/96]

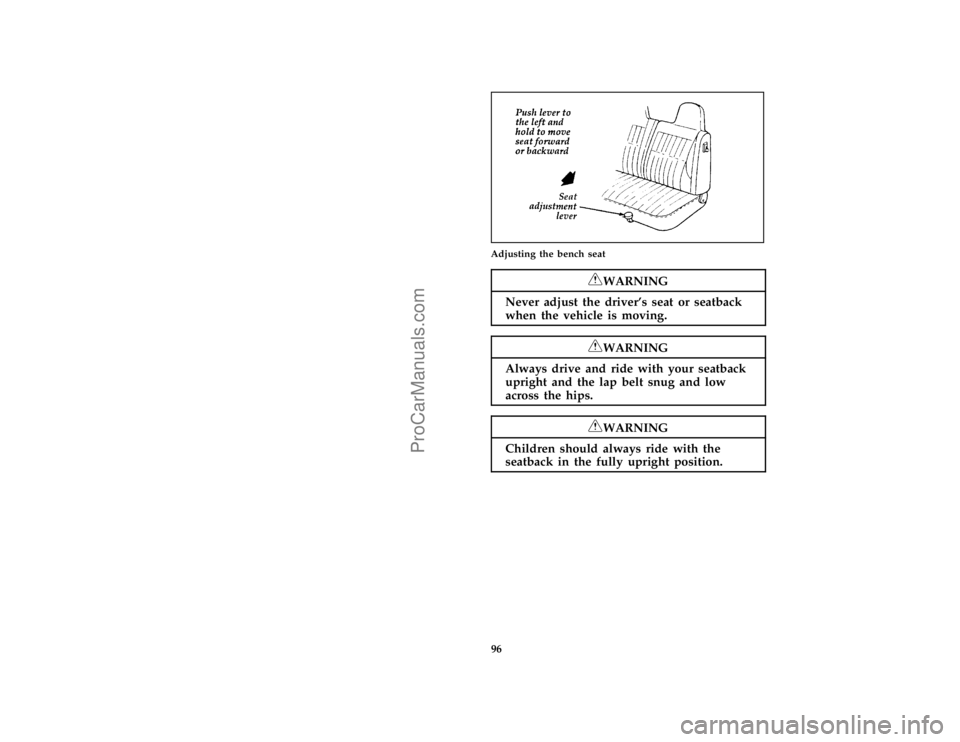

one third page art:0020218-B
Adjusting bucket seat
File:06ltssf.ex
Update:Tue May 28 08:44:33 1996
ProCarManuals.com

96 [SS01000(F )04/96]
one third page art:0020220-EAdjusting the bench seat
*
[SS01100(F )01/96]
RWARNING
Never adjust the driver's seat or seatback
when the vehicle is moving.
*
[SS01300(F )02/96]
RWARNING
Always drive and ride with your seatback
upright and the lap belt snug and low
across the hips.
*
[SS01400(F )02/96]
RWARNING
Children should always ride with the
seatback in the fully upright position.
File:06ltssf.ex
Update:Tue May 28 08:44:33 1996
ProCarManuals.com
