1997 CADILLAC SEVILLE Owners Manual

Downloaded from www.Manualslib.com manuals search engine 3. Tune in the desired station.

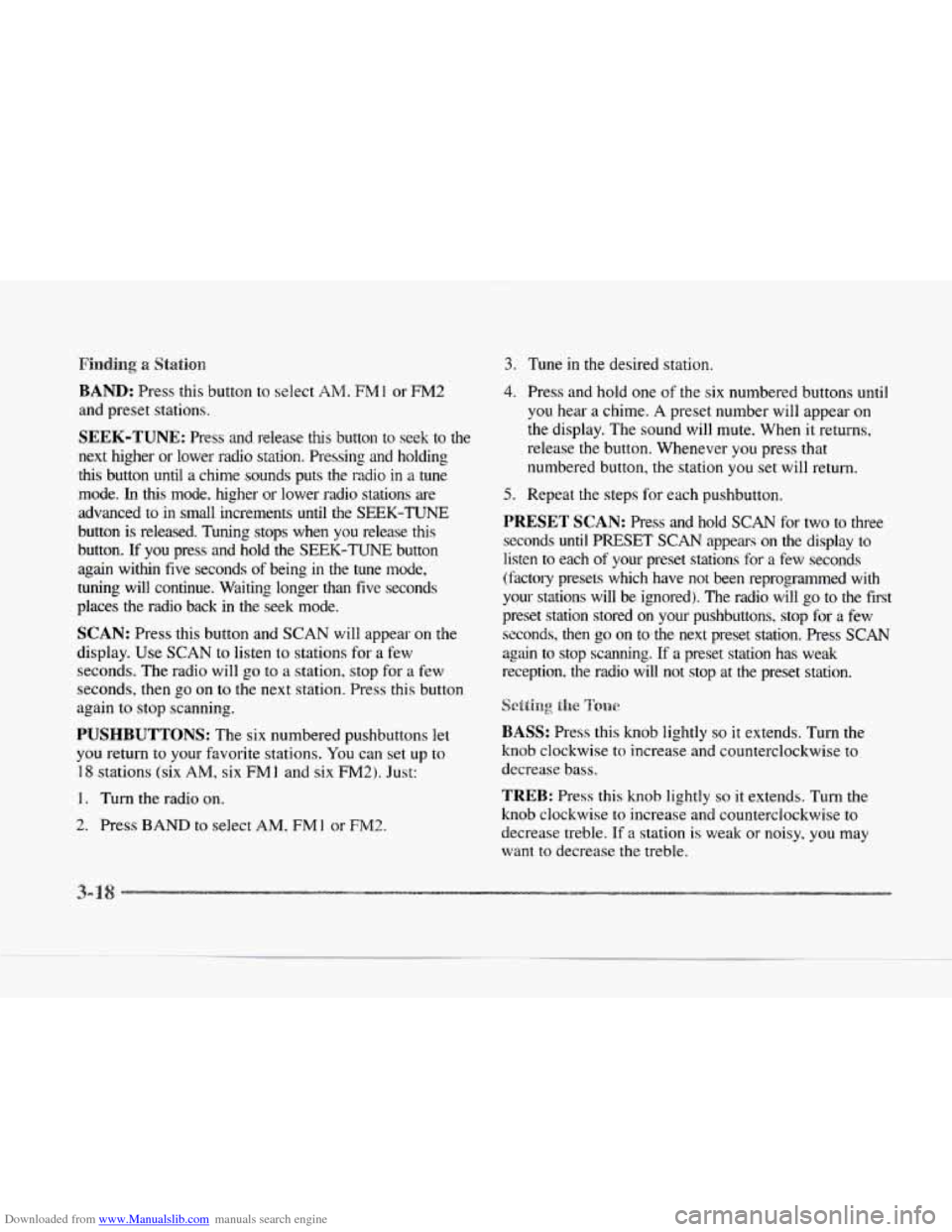

BAND: Press this button to select Ah4. FM1 or FM2
and preset stations.
SEEK-TUNE: Press and release this button to seek to the
next higher or lower radio station. Pressing and holding
this button until a chime sounds puts the radio in a tune
mode. In this mode. higher or lower radio stations are
advanced
to in small increments until the SEEK-TUNE
button is released. Tuning stops when you release this
button. If
you press and hold the SEEK-TUNE button
again within five seconds of being in the tune mode,
tuning will continue. Waiting longer than five seconds
places the radio back in the seek mode.
SCAN: Press this button and SCAN will appear on the
display.
Use SCAN to listen to stations for a few
seconds. The radio will
go to a station, stop for a few
seconds, then
go on to the next station. Press this button
again to stop scanning.
PUSHBUTTONS: The six numbered pushbuttons let
you return
to your favorite stations. You can set up to
I8 stations (six AM, six FM1 and six FM2). Just:
1. Turn the radio on.
2. Press BAND to select AM, FMl or FM2.
4. Press and hold one of the six numbered buttons until
you hear a chime.
A preset number will appear on
the display. The sound will mute. When it returns,
release
the button. Whenever you press that
numbered button,
the station you set will return.
5. Repeat the steps for each pushbutton.
PRESET SCAN: Press and hoId SCAN for two to three
seconds
until PRESET SCAN appears on the display to
listen to each of your prcset stations for a few seconds
(factoly presets which have
not been reprogrammed with
your stations will be ignored).
The radio will go to the first
preset station stored
on your pushbuttons, stop for a few
scconds,
then go on to.the next preset station. Press SCAN
again to stop scanning. If a preset station has weak
reception. the radio will not stop at the preset station.
Settirag
the Torre
BASS: Press this knob lightly so it extends. Turn the
knob clockwise to increase and counterclockwise to
decrease bass.
TREB: Press this knob lightly so it extends. Turn the
knob clockwise
to increase and counterclockwise to
decrease treble. If
a station is weak or noisy, you may
want to decrease the treble.

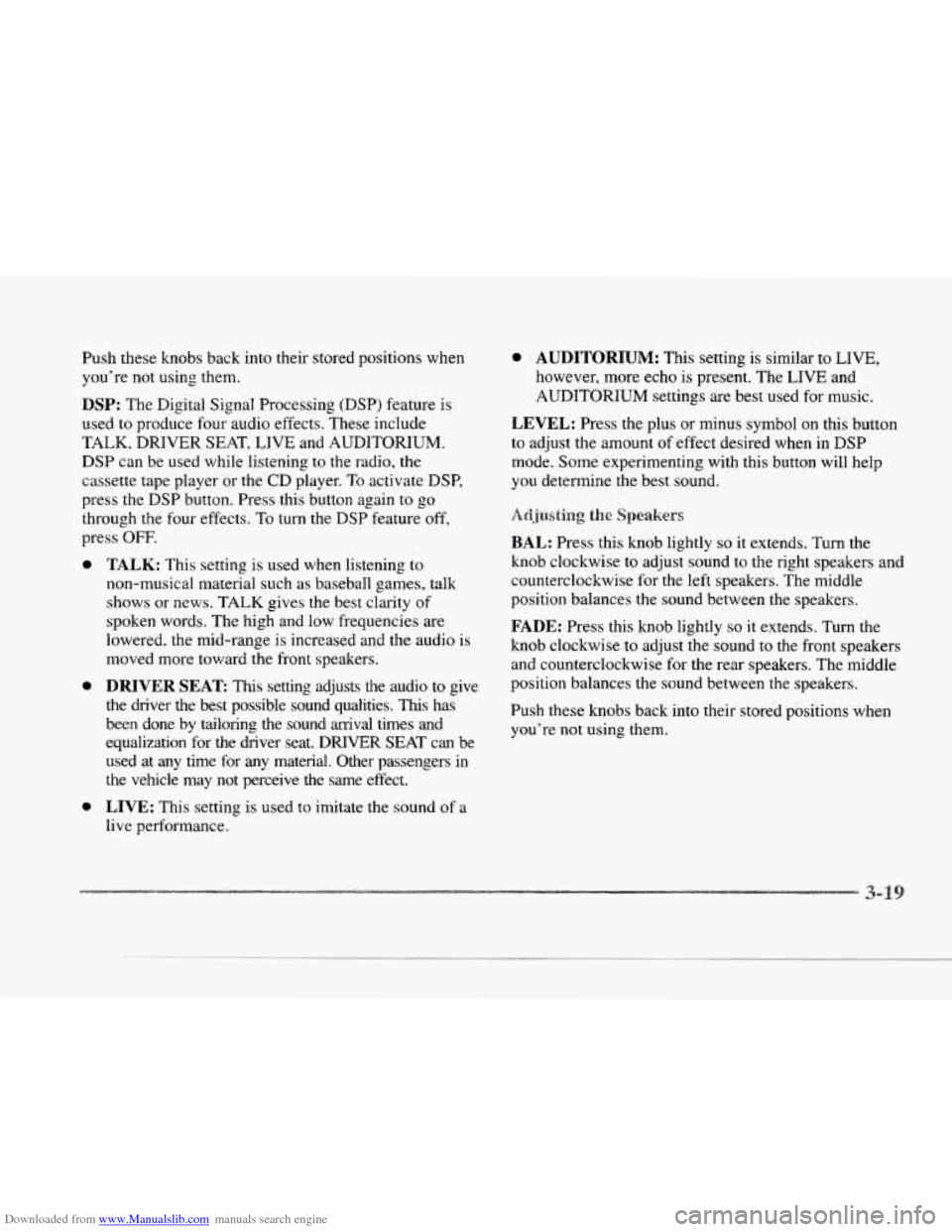

Downloaded from www.Manualslib.com manuals search engine Push these knobs back into their stored positions when
you're not using them.
DSP: The Digital Signal Processing (DSP) feature is
used to produce four audio effects. These include
TALK, DRIVER SEAT, LIVE and AUDITORIUM.
DSP can be used while listening to the radio, the
cassette tape player or the CD player. To activate DSP,
press the
DSP button. Press this button again to go
through the
four effects. To turn the DSP feature off,
press
OFF.
0
c
0
0
TALK: This setting is used when listening to
non-musical material such
as baseball games, talk
shows or news. TALK gives the best clarity of
spoken words. The high and low frequencies are
lowered, the mid-range is increased and the audio is
moved more toward the front speakers.
DRIVER SEAT This setting adjusts the audio to give
the driver the best possible sound qualities.
This has
been done by tailoring the sound
arrival times and
equalization for the driver seat. DFWER SEAT can be
used at any time for
any material. Other passengers in
the vehicle may not perceive the same effect.
LIVE: This setting is used to imitate the sound of a
live performance.
0 AUDITORIUM: This setting is similar to LIVE,
however, more echo is present. The LIVE and
AUDITORIUM settings are best used for music.
LEVEL: Press the plus or minus symbol on this button
to adjust the amount of effect desired when
in DSP
mode. Some experimenting with this button will help
you determine the best sound.
Adjusting the Speakers
BAL: Press this knob lightly so it extends. Turn the
knob clockwise to adjust sound to the right speakers and
counterclockwise for the left speakers. The middle
position balances the sound between the speakers.
FADE: Press this knob lightly so it extends. Turn the
knob clockwise to adjust the sound to the front speakers
and counterclockwise for the rear speakers. The middle
position balances the sound between the speakers.
Push these knobs back into their stored positions when
you're not using them.

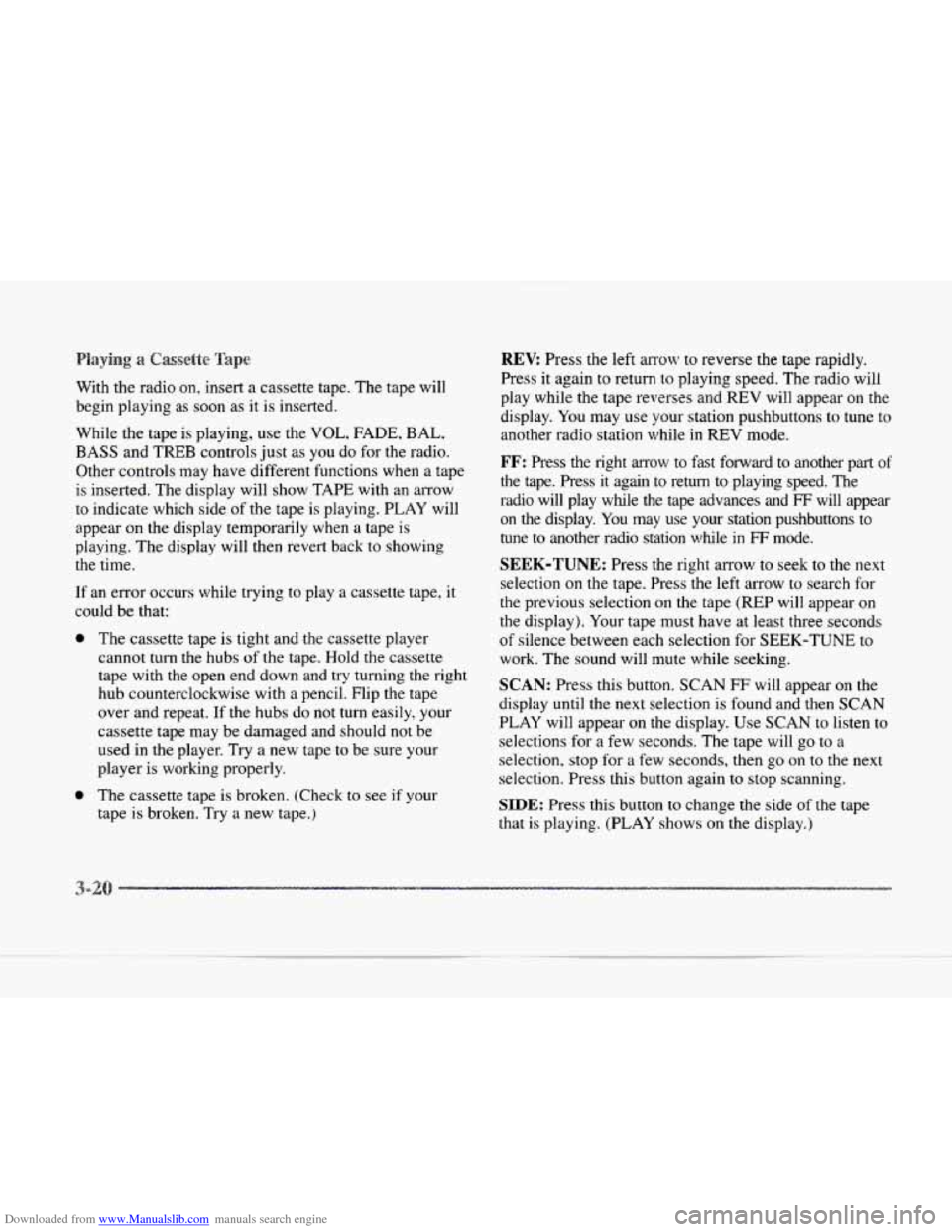

Downloaded from www.Manualslib.com manuals search engine With the radio on, insert a cassette tape. The tape will
begin playing as soon as it is inserted.
While the tape is playing, use the
VOL, FADE, BAL,
BASS and TREB controls just as you do for the radio.
Other controls may have different functions when a tape
is inserted. The display will show TAPE with an arrow
to indicate which side of the tape is playing. PLAY will
appear on the display temporarily when
a tape is
playing. The display will then revert back to showing
the time.
If an error occurs while trying to play a cassette tape, it
could be that:
e
0
The cassette tape is tight and the cassette player
cannot turn the hubs
of the tape. Hold the cassette
tape with the open end down and try turning the right
hub counterclockwise with a pencil. Flip the tape
over and repeat.
If the hubs do not turn easily, your
cassette tape may be damaged and should not be
used in the player. Try
a new tape to be sure your
player is working properly.
The cassette tape is broken. (Check to see
if your
tape is broken. Try a new tape.)
REV: Press the left ITO OW to reverse the tape rapidly.
Press
it again to return to playing speed. The radio will
play while the tape reverses and
REV will appear on the
display. You may use your station pushbuttons to tune to
another radio station while in
REV mode.
FF: Press the right arrow to fast forward to another part of
the tape. Press it again to return to playing speed. The
radio will play while the tape advances and
FF will appear
on
the display. You may use your station pushbuttons to
tune
to another radio station while in FF mode.
SEEK-TUNE: Press the right arrow to seek to the next
selection on the tape. Press the left at-row to search for
the previous selection on the tape (REP will appear on
the display). Your tape must have at least three seconds
of silence between each selection for SEEK-TUNE to
work. The sound will mute while seeking.
SCAN: Press this button. SCAN FF will appear on the
display until the next selection is found and then SCAN
PLAY will appear on the display. Use
SCAN to listen to
selections for
a few seconds. The tape will go to a
selection, stop for a few seconds, then go on to the next
selection. Press this button again
to stop scanning.
SIDE: Press this button to change the side of the tape
that
is playing. (PLAY shows on the display.)
I
.4
-2

Downloaded from www.Manualslib.com manuals search engine c
k
c
SOURCE: Press this button to switch from radio to
cassette tape play.
If no cassette tape is in the tape
player,
CASS appears on the display and then the radio
station appears briefly. The display then reverts back to
showing the time of day. Press this button again or
BAND to switch back to the radio.
A EJECT Press the upward triangle button to remove
a tape. The radio will play. Eject may be activated with the
radio
off if the ignition is on. Cassette tapes may be loaded
with
the radio off but they will not start playing until the
PWR button is pressed. Press
PWR or turn the ignition
key
off to stop the cassette tape player. The tape will stay
in the player and resume play at the point where it
stopped.
If you leave a cassette tape in the player while
listening to the radio,
it may become warm.
CLN: If this message appears on the display, the
cassette tape player needs to be cleaned.
It will still play
tapes, but
you should clean it as soon as possible to
prevent damage to the tapes and player. See “Care of
Your Cassette Tape Player’’ in the Index. After you clean
the player, press and hold
EJECT for five seconds to
reset the
CLN indicator. The radio will display --- to
show the indicator was reset.
Dolby@ Noise Reduction
is manufxtured under a
license from Dolby Laboratories Licensing Corporation.
Dolby and
the double-D symbol are trademarks of
Dolby Laboratories Licensing Corporation. With the compact disc changer,
you can play up to
12 discs continuously. Normal size discs may be played
using the trays supplied in the magazine. The small discs
(8 cm) can be played only with specially designed trays.
NOTICE:
Objects in the trunk which mag shift or slide
during driving could damage your
CD changer.
Protect your
CD changer by using the
convenience net whenever possible. Place large
objects in the trunk appropriately
so that they
will not come into contact with the
CD changer.
,

Downloaded from www.Manualslib.com manuals search engine You must first load the magazine with discs before you
can play a compact disc. Each
of the 12 trays holds one
disc. Press the button on the back of the magazine and
pull gently on
one of the trays. Load the trays from
bottom to top, placing a disc on the tray label side down.
If you load a disc label side up, the disc will not play
and an
error will occur. Gently push the tray back into
the magazine slot. Repeat this procedure for loading up
to
12 discs in the magazine. Once you have loaded' the
discs in the magazine, slide
open the door
of the compact disc (CD) changer. Push
the magazine into the changer in the direction
of the
arrow marked
on top of the magazine.
3-22

Downloaded from www.Manualslib.com manuals search engine c

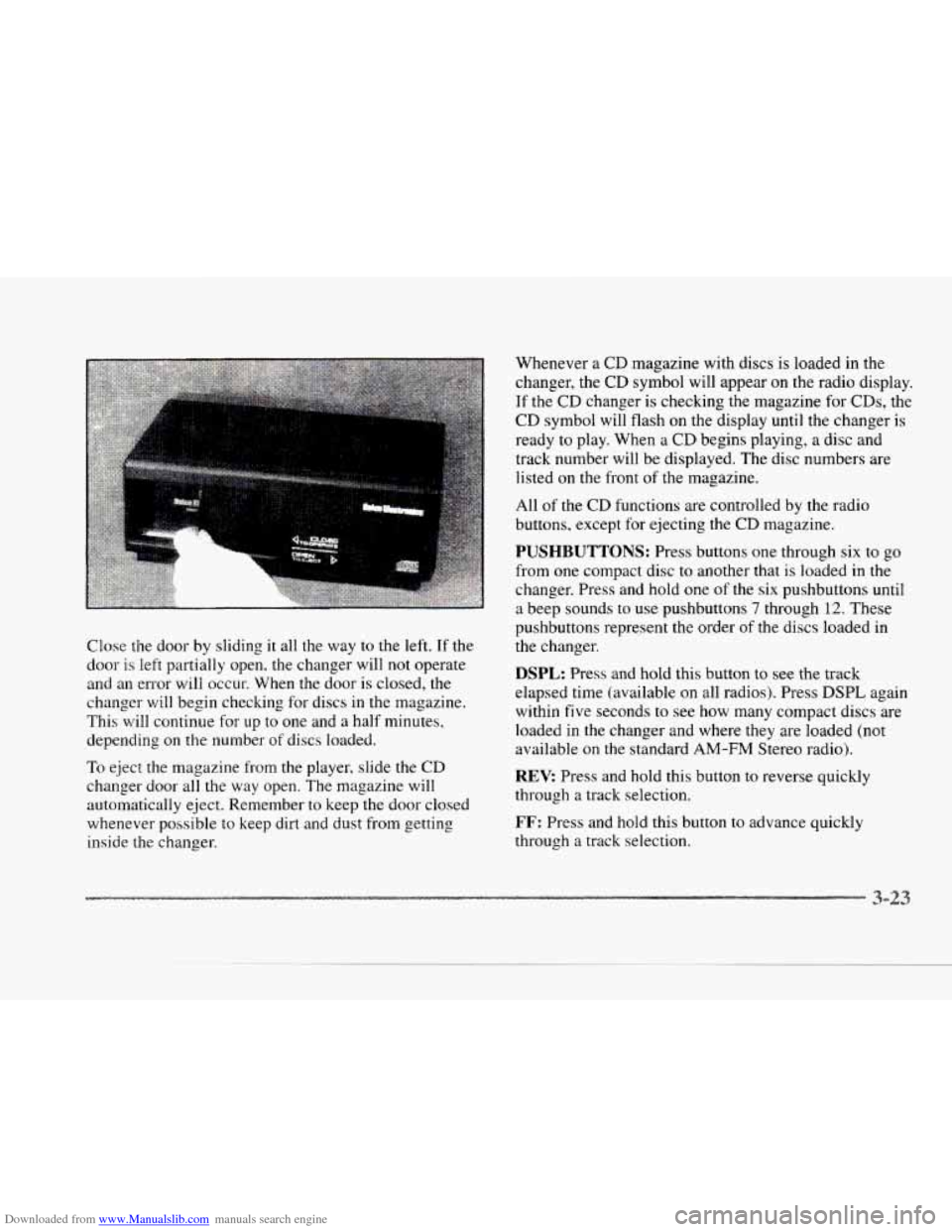

Close the door by sliding it all the way to the left. If the
door is left partially open? the changer will not operate
and an error will occur. When the door
is closed, the
changer
will begin checking for discs in the magazine.
This will continue for
up to one and a half minutes,
depending
on the number of discs loaded.
To eject the magazine from the player, slide the CD
changer door
all the way open. The magazine will
automatically eject. Remember to keep the door closed
whenever possible to keep dirt and dust from getting
inside the changer. Whenever
a CD
magazine with discs is loaded in the
changer, the CD symbol will appear
on the radio display.
If the CD changer is checking the magazine
for CDs, the
CD symbol will flash on the display until the changer
is
ready to play. When a CD begins playing, a disc and
track number will be displayed. The disc numbers are
listed on the front
of the magazine.
All of the CD functions are controlled by the radio
buttons, except for ejecting the CD magazine.
PUSHBUTTONS: Press buttons one through six to go
from one compact disc to another that is loaded in the
changer. Press and hold one
of the six pushbuttons until
a beep sounds to
use pushbuttons 7 through 12. These
pushbuttons represent the order of the discs loaded in
the changer.
DSPL: Press and hold this button to see the track
elapsed time (available on all radios). Press DSPL again
within five seconds
to see how many compact discs are
loaded in the changer and where they are loaded
(not
available on the standard AM-FM Stereo radio).
REV: Press and hold this button to reverse quickly
through a track selection.
FF: Press and hold this button to advance quickly
through a track selection.
3-23

Downloaded from www.Manualslib.com manuals search engine Y

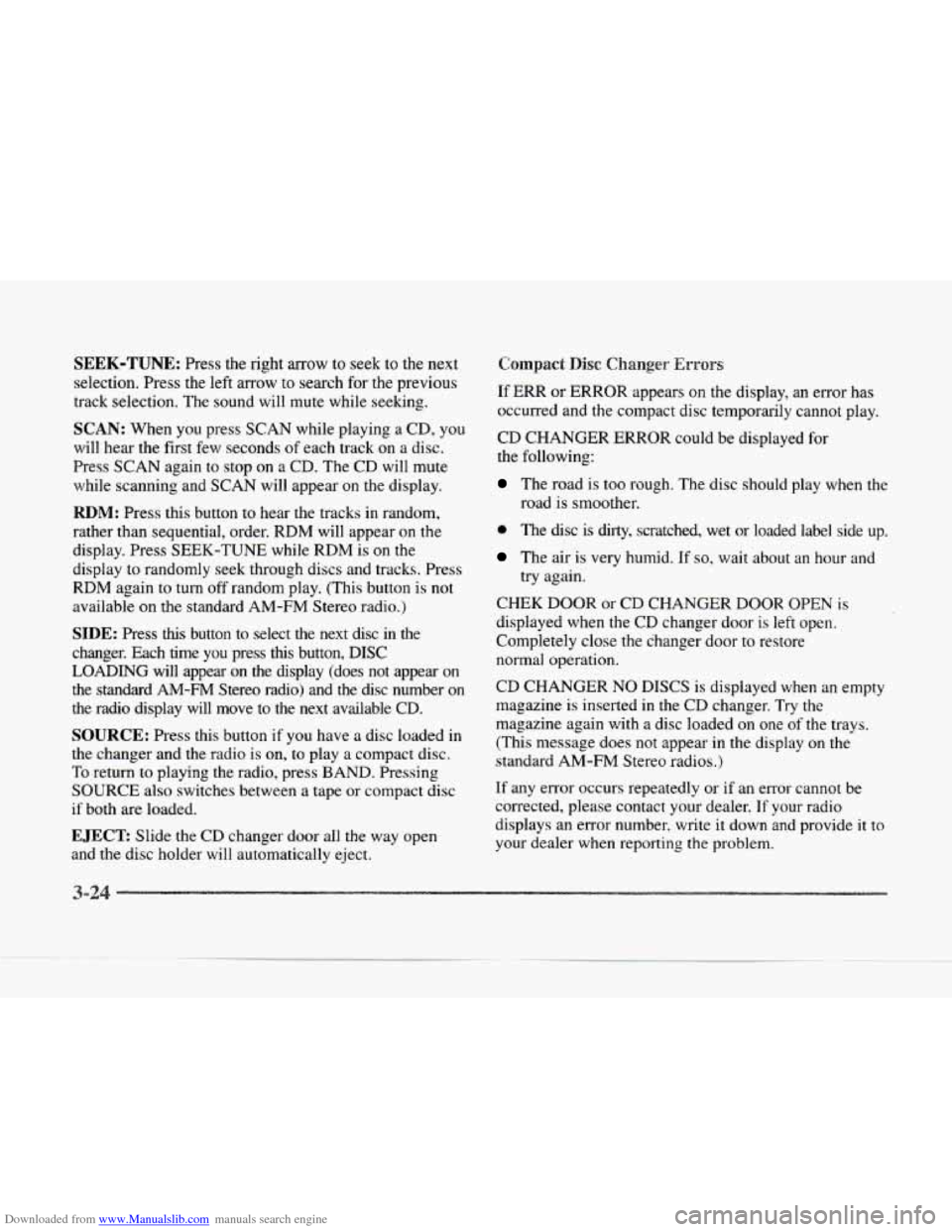

SEEK-TUNE: Press the right arrow to seek to the next
selection. Press the left arrow to search
for the previous
track selection. The sound will mute while seeking.
SCAN: When you press SCAN while playing a CD, you
will hear the first few seconds of each track on a disc.
Press SCAN again to stop on
a CD. The CD will mute
while scanning and SCAN will appear on the display.
RDM: Press this button to hear the tracks in random,
rather than sequential, order.
RDM will appear on the
display.
Press SEEK-TUNE while RDM is on the
display to randomly seek through discs and tracks. Press
RDM again to turn off random play. (This button is not
available on the standard AM-FM Stereo radio.)
SIDE: Press this button to select the next disc in the
changer. Each time you press this button, DISC
LOADING will appear on the display (does not appear on
the standard AM-FM Stereo radio) and the disc number on
the radio display will move to the next available CD.
SOURCE: Press this button if you have a disc loaded in
the changer and the radio is
on, to play a compact disc.
To return to playing the radio, press BAND. Pressing
SOURCE also switches between a tape or compact disc
if both are loaded.
EJECT Slide the CD changer door all the way open
and the disc holder will automatically eject. If ERR
or ERROR appears
on the display, an error has
occurred and the compact disc temporarily cannot play.
CD
CHANGER ERROR could be displayed for
the following:
The road is too rough. The disc should play when the
road is smoother.
0 The disc is dirty, scratched, wet or loaded label side up.
The air is very humid. If so, wait about an hour and
try again.
CHEK DOOR or CD CHANGER
DOOR OPEN is
displayed when the CD changer door is left open.
Completely close the changer door to restore
normal operation.
CD CHANGER NO DISCS
is displayed when an empty
magazine is inserted in
the CD changer. Try the
magazine again with a disc loaded
on one of the trays.
(This message does not appear in the display
on the
standard AM-FM Stereo radios.)
If any error occurs repeatedly or
if an error cannot be
corrected, please contact your dealer.
If your radio
displays an error number? write
it down and provide it to
your dealer when reporting the problem.

Downloaded from www.Manualslib.com manuals search engine c
c1
c
P

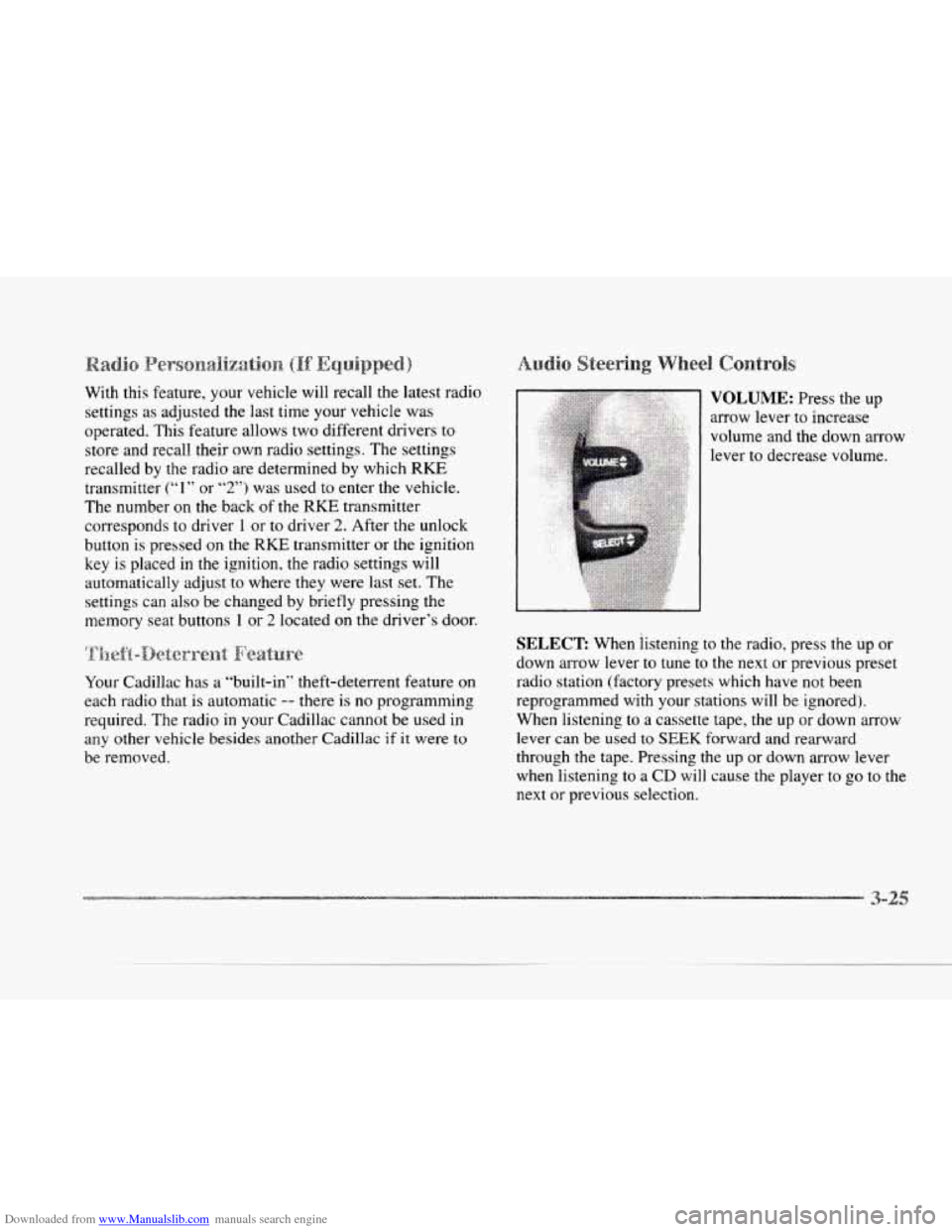

With this feature, your vehicle will recall the latest radio
settings as adjusted the last time your vehicle was
operated. This feature allows two different drivers
to
store and recall their own radio settings. The settings
recalled by the radio are determined by which
RKE
transmitter (“1” or “2’’) was used to enter the vehicle.
The number on the back
of the RKE transmitter
corresponds
to driver 1 or to driver 2. After the unlock
button is pressed
on the RKE transmitter or the ignition
key
is placed in the ignition, the radio settings will
automatically adjust to where they were last
set. The
settings can also be changed
by briefly pressing the
memory seat buttons 1 or
2 located on the driver’s door.
Your Cadillac has
a “built-in“ theft-deterrent feature on
each radio that is automatic -- there is no programming
required. The radio in your Cadillac cannot be used in
any other vehicle besides another Cadillac if it were to
be removed.
VOLUME: Press the up
arrow lever to increase
volume and the down arrow
lever to decrease volume.
SELECT: When listening to the radio, press the up or
down arrow lever
to tune to the next or previous preset
radio station (factory presets which have not been
reprogrammed with your stations will be ignored).
When listening to a cassette tape, the up
or clown arrow
lever
can be used to SEEK forward and rearward
through the tape. Pressing the up or down arrow lever
when listening to a
CD will cause the player to go to the
next or previous selection.
3-2
