1997 CADILLAC SEVILLE Owners Manual

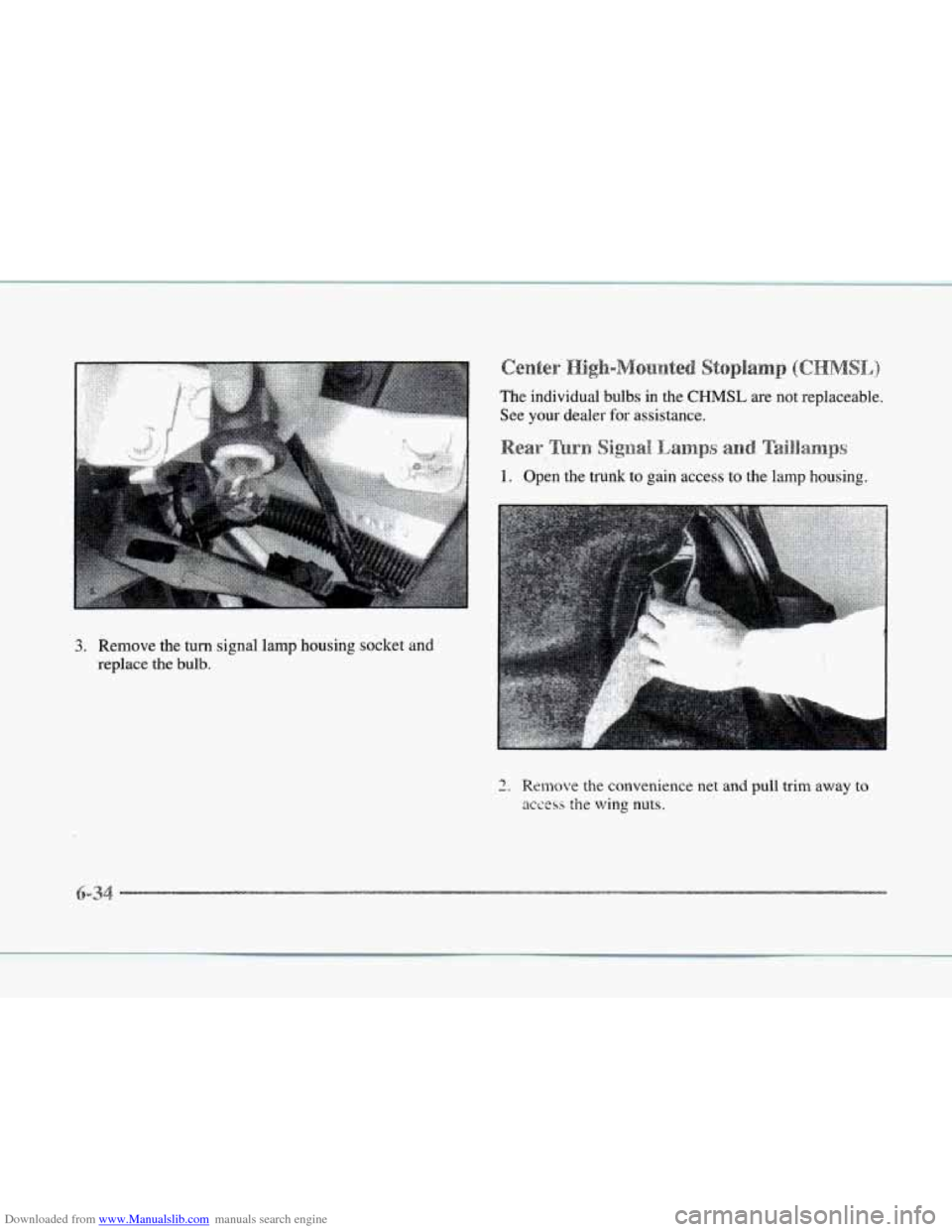

Downloaded from www.Manualslib.com manuals search engine 3. Remove the turn signal lamp housing socket and
replace the bulb.
4
The individual bulbs in the CHMSL are not replaceable.
See
your dealer for assistance.
1. Open the trunk to gain access to the lamp housing.
I
2. Remove the convenience net and pull trim away to
access the wing nuts.
-3

Downloaded from www.Manualslib.com manuals search engine r
r
r
r
r
r
i

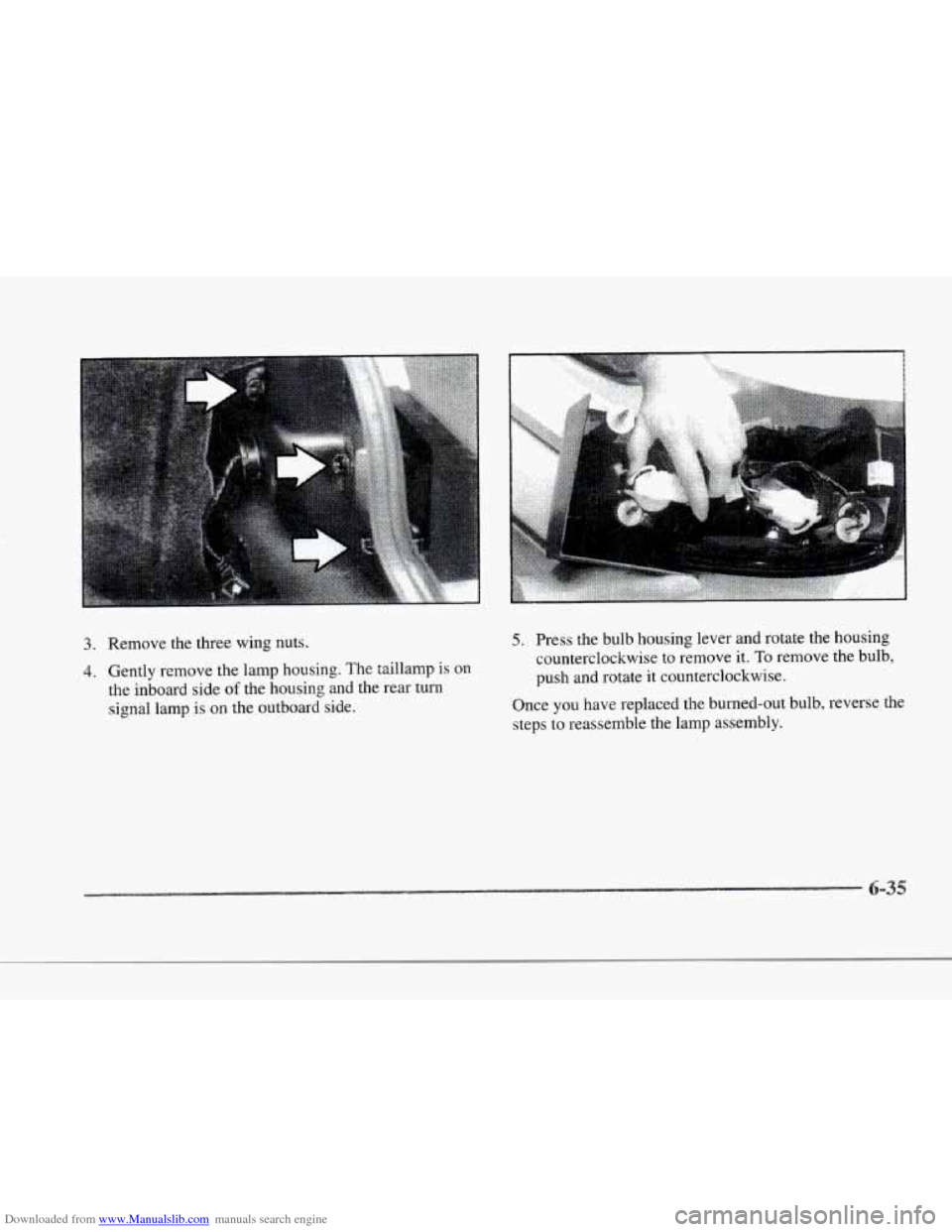

3. Remove the three wing nuts.
4. Gently remove the lamp housing. The taillamp is on
the inboard side of the housing and the rear turn
signal lamp is
on the outboard side.
5. Press the bulb'housing lever and rotate the housing
counterclockwise to remove it.
To remove the bulb,
push and rotate it counterclockwise.
Once you have replaced the burned-out bulb, reverse the steps to reassemble the
lamp assembly.

Downloaded from www.Manualslib.com manuals search engine It’s a good idea to clean or replace the wiper blade
assembly on a regular basis or when
worn. For proper
windshield wiper blade length and type,
see “Normal
Maintenance Replacement Parts” later
in this section. To
replace the wiper blade assembly: .I. c +*.
1. Turn the ignition key to ACCESSORY and turn the
wipers on. Position the wipers
on the windshield in
the “mid” wipe position. Then with the door open,
tum the key to
OFF.
2. Insert a screwdriver into the slot as shown and press
down to release the wiper blade assembly.
3. Align the wiper arm pin with the hole on the wiper
blade assembly and snap
it into place to install.

Downloaded from www.Manualslib.com manuals search engine r
f 1;
I?
r
r
r
r
F

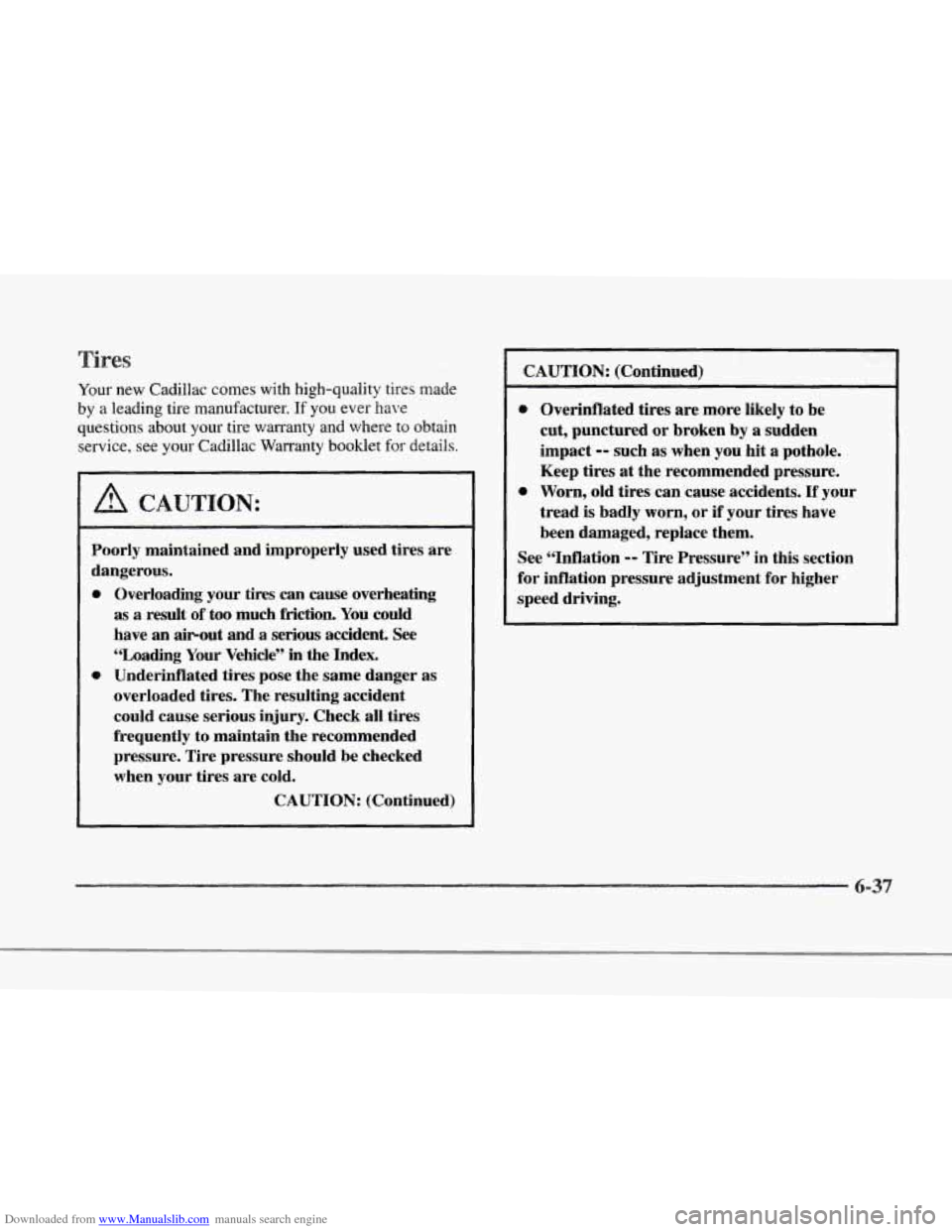

Your new Cadillac comes with high-quality tires made
by a leading tire manufacturer.
If you ever have
questions about your tire warranty and where
to obtain
service, see your Cadillac Warranty booklet
for details.
A CAUTION:
Poorly maintained and improperly used tires are
dangerous.
0 Overloading your tires can cause overheating
as a
result of too much friction. You could
have
an airout and a serious accident. See
‘Zoading Your Vehicle”
in the Index.
0 Underinflated tires pose the same danger as
overloaded tires. The resulting accident
could cause serious injury. Check all tires
frequently to maintain the recommended
pressure. Tire pressure should be checked
when your tires are cold.
CAUTION: (Continued)
CAUTION: (Continued)
0 Overinflated tires are more likely to be
cut, punctured
or broken by a sudden
impact
-- such as when you hit a pothole.
Keep tires at the recommended pressure.
0 Worn, old tires can cause accidents. If your
tread
is badly worn, or if your tires have
been damaged, replace them.
See “Inflation
-- Tire Pressure” in this section
for inflation pressure adjustment for higher
speed driving.

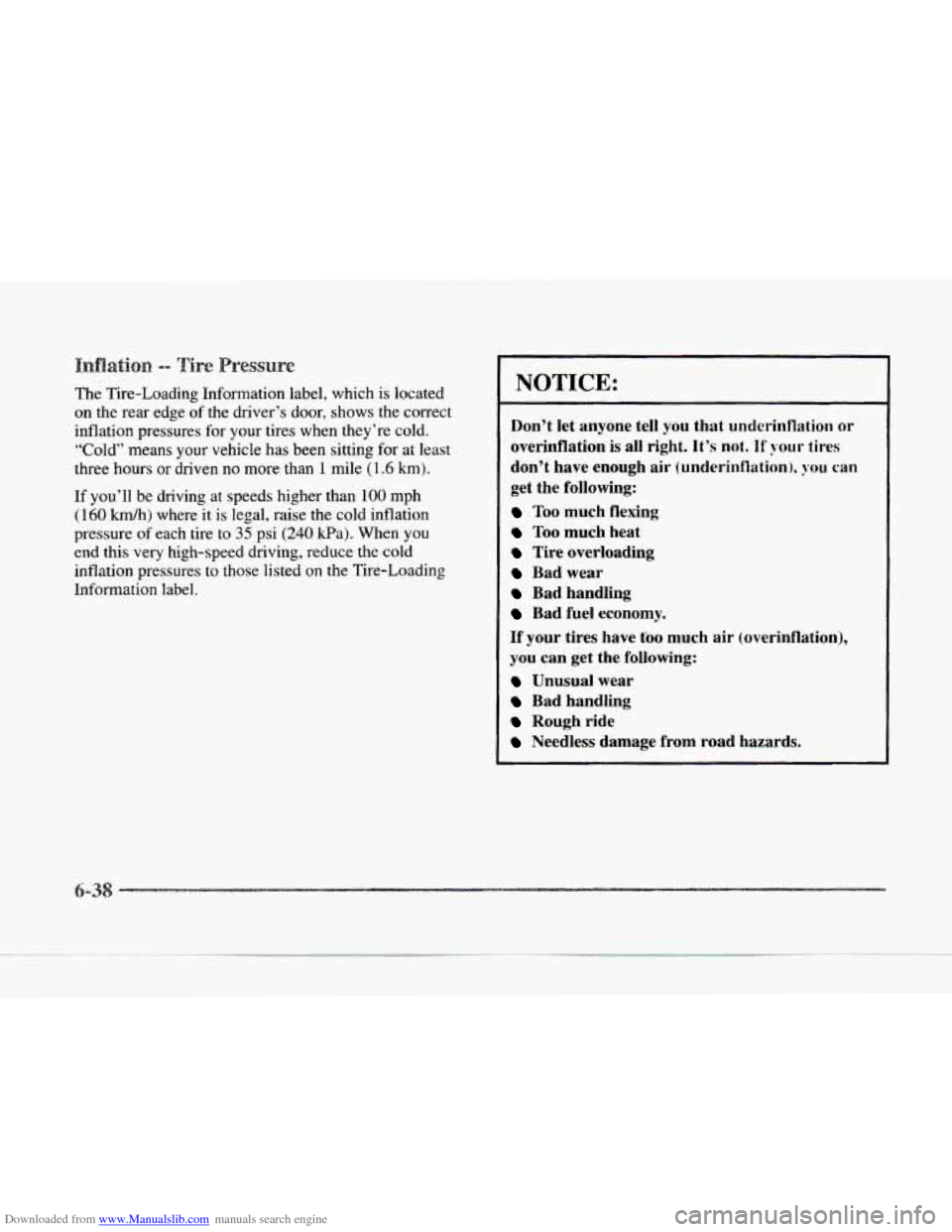

Downloaded from www.Manualslib.com manuals search engine The Tire-Loading Information label, which is located
on the rear edge of the driver’s door, shows the correct
inflation pressures for your tires when they’re
cold.
“Cold” means your vehicle has been sitting for at least
three hours or driven no more than
1 mile (1.6 km).
If you’ll
be driving at speeds higher than 100 mph
(160 Wh) where it is legal, raise the cold inflation
pressure of each tire
to 35 psi (240 Pa). When you
end this very high-speed driving, reduce the cold
inflation pressures
to those listed on the Tire-Loading
Information label.
NOTICE:
Don’t let anyone tell you that underinflation or
overinflation is all right.
it’s not. If‘ your tires
don’t have enough air (underinflation),
you can
get the following:
Too much flexing
Too much heat
Tire overloading
Bad wear
Bad handling
Bad fuel economy.
If your tires have too much air (overinflation),
you can get the following:
Unusual wear
Bad handling
Rough ride
Needless damage from road hazards.
1

Downloaded from www.Manualslib.com manuals search engine 1.
c

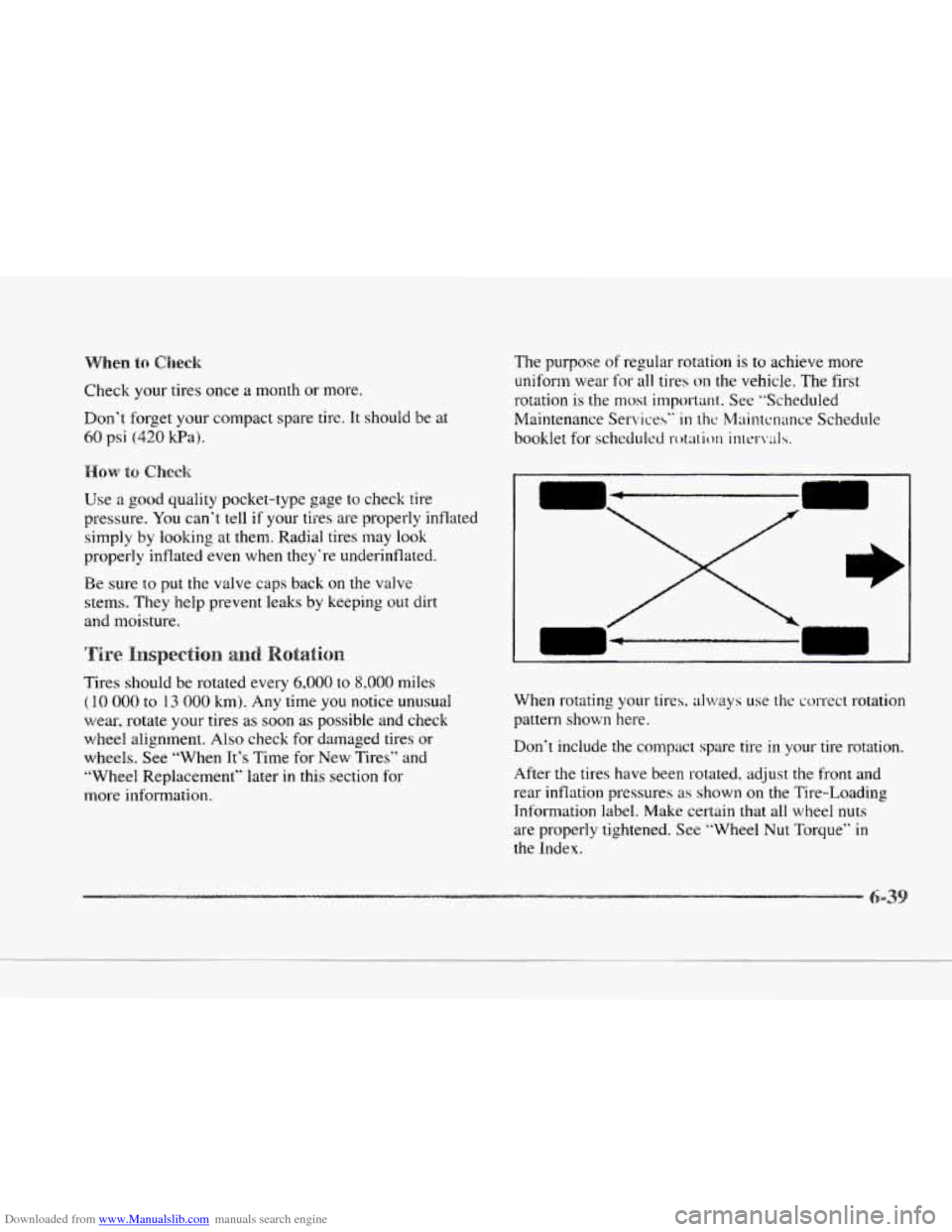

Check your tires once a month or more.
Don’t forget your compact spare tire. It should be at
60 psi (420 kPa).
Use a good quality pocket-type gage to check tire
pressure.
You can’t tell if your tires are properly inflated
simply by looking at them. Radial tires may look
properly inflated even when they‘re underinflated.
Be sure
to put the valve caps back on the valve
stems. They help prevent leaks by keeping out dirt
and moisture.
Tires should be rotated every
4,000 to 8,000 miles
( IO 000 to 13 000 km). Any time you notice unusual
wear, rotate your tires
as soon as possible and check
wheel alignment. Also check
for damaged tires or
wheels.
See “When It’s Time for New Tires” and
”Wheel Replacement” later
in this section for
more information. The purpose
of regular rotation is to achieve more
uniform wear for
all tires on the vehicle. The first
rotation
is the most important. See “Scheduled
Maintenance Services’‘
in thc Maintcnance Schedule
booklet for
schedulcd rota~io~~ inttwals.
When rotating your tires. al\vays use the con-t‘ct rotation
pattern
shown here.
Don’t include the compact spare tire
in your tire rotation.
After the tires have been rotated, adjust
the front and
rear inflation pressures
as show on the Tire-Loading
Information label. Make certain that all wheel
nuts
are properly tightened. See “Wheel Nut Torque” in
the Index.
6-3

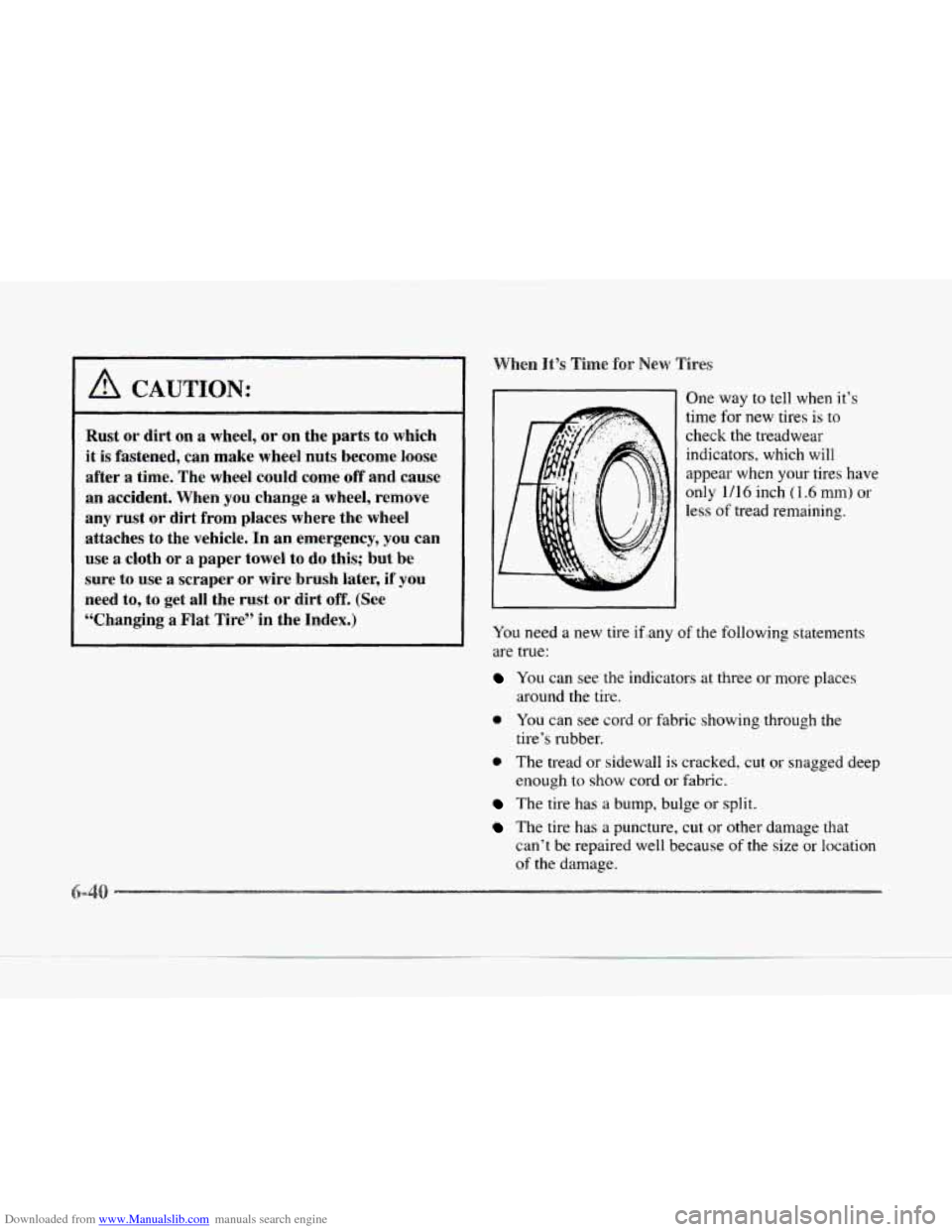

Downloaded from www.Manualslib.com manuals search engine A CAUTION:
I
Rust or dirt on a wheel, or on the parts to which
it
is fastened, can make wheel nuts become loose
after a time. The wheel could come off and cause
an accident. When you change a wheel, remove
any rust or dirt from places where the wheel
attaches to the vehicle.
In an emergency, you can
use a cloth
or a paper towel to do this; but be
sure to use a scraper
or wire brush later, if you
need to, to get all the
rust or dirt off. (See
“Changing a Flat Tire” in the Index.)
One way to tell when it’s
time for new tires
is to
check the treadwear
indicators, which will
appear when
your tires have
only
1/16 inch (1.6 mm) or
less
of tread remaining.
.-
You need a new tire ifzany of the following statements
are true:
You can see the indicators at three or more places
a You can see cord or fabric showing through the
0 The tread or sidewall is cracked, cut or snagged deep
enough
to show cord or fabric.
The tire has a bump, bulge or split.
The tire has a puncture, cut or other damage that
around the tire.
tire’s rubber.
can’t
be repaired well because of the size or location
of the damage.

Downloaded from www.Manualslib.com manuals search engine LI
c
Y

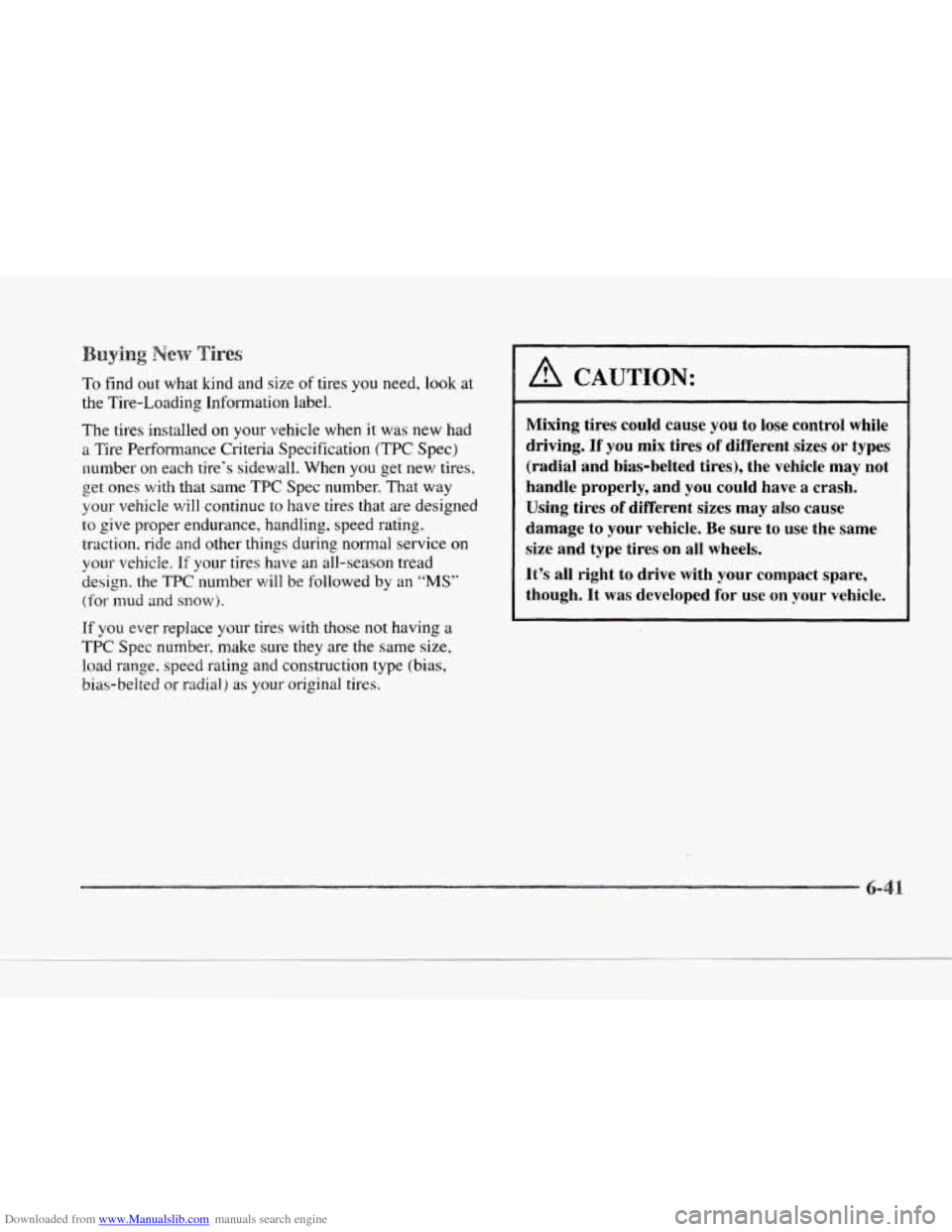

To find out what kind and size of tires you need, look at
the Tire-Loading Information label.
The tires installed on your vehicle when
it was new had
a Tire Performance Criteria Specification (TPC Spec)
number
on each tire's sidewall. When you get new tires,
your vehicle will continue to have tires that are designed
to give proper endurance: handling, speed rating.
traction. ride and other things during normal service
on
your vehicle. If your tires have an all-season tread
design. the
TPC number will be followed by an "MS"
(for mud and snow).
e oet ones with that same TPC Spec number. That way
If you ever replace your tires with those not having a
TBC Spec number, make sure they are the same size,
load range. speed rating and construction type (bias,
bias-belted or radial)
as your original tires.
I A CAUTION:
Mixing tires could cause you to lose control while
driving.
If you mix tires of different sizes or types
(radial and bias-belted tires), the vehicle may not
handle properly, and you could have a crash.
Using tires
of different sizes may also cause
damage to your vehicle. Be sure
to use the same
size and type tires on
all wheels.
It's all right to drive with
your compact spare,
though. It was developed for use
on your vehicle.
