1997 CADILLAC SEVILLE Owners Manual

Downloaded from www.Manualslib.com manuals search engine The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses and circuit
breakers. This greatly reduces the chance of fires
caused by electrical problems.
Look at the silver-colored band inside the fuse.
If the
band is broken or melted, replace the fuse.
Be sure you
replace a bad fuse with a new one of the identical size
and rating.
If you ever have a problem on the road and don’t have a
spare fuse, you can “borrow” one that has the same
amperage. Pick some feature
of your vehicle that you
can get along without -- like the radio or cigarette
lighter
-- and use its fuse, if it is the correct amperage.
Replace it as soon
as you can.
There are two fuse blocks in your vehicle: the engine
compartment fuse block and the rear compartment
fuse block. The fuse
block is located next
to the air cleaner on the
driver’s side of the engine. Lift the cover to gain access.

Downloaded from www.Manualslib.com manuals search engine r
Ir
f
r
r
r
r
r
r
r
F, DRL , , COR LFS I I INT LPS I I CG LTRl I I GIG LTR2
L HDLP LO R HDLP LO L HDLP HI R HDLP HI
, HDLPS7 ~ HAZARD I I STOP I , MIRROR I , DRL
iGN OiENG; I I , ABS I I IGN 1 , I WIPERS ~
---
FUEL PUMP OXY SEN1 OXY SEN2 1 I RELAY
I- --- /
Fuse I Usage
and Left Cornering Lamps
INT LPS Trunk Lamp, Courtesy Lamps,
Front Vanity Lamps. Glove Box
Lamp, Garage Door Opener, Courtesy Lamp Relay
Fuse
CIG LTRl
CIG LTR2
L HDLP LO
R HDLP LO
L HDLP HI
R HDLP HI
FOG
HDLPS
HAZARD
-
Usage
Front and Rear Cigarette Lighters
(Full Console Only)
Right and Left Rear
Cigarette Lighters
Left Low-Beam Headlamp
~~~
Right Low-Beam Headlamp
Left High-Beam Headlamp
Right High-Beam Headlamp
Right and Left Front Fog
Lamp Relay
Headlamp Relay, High/Low Beam
Control Relay, Right and Left
Low/High Beam Fuses
Electronic Flasher Module, TudHazard Switch, Right and
Left Front Turn Lamps, Right
and Left Rear Turn Lamps,
Right and Left Repeater Lamps
(Export), Cluster

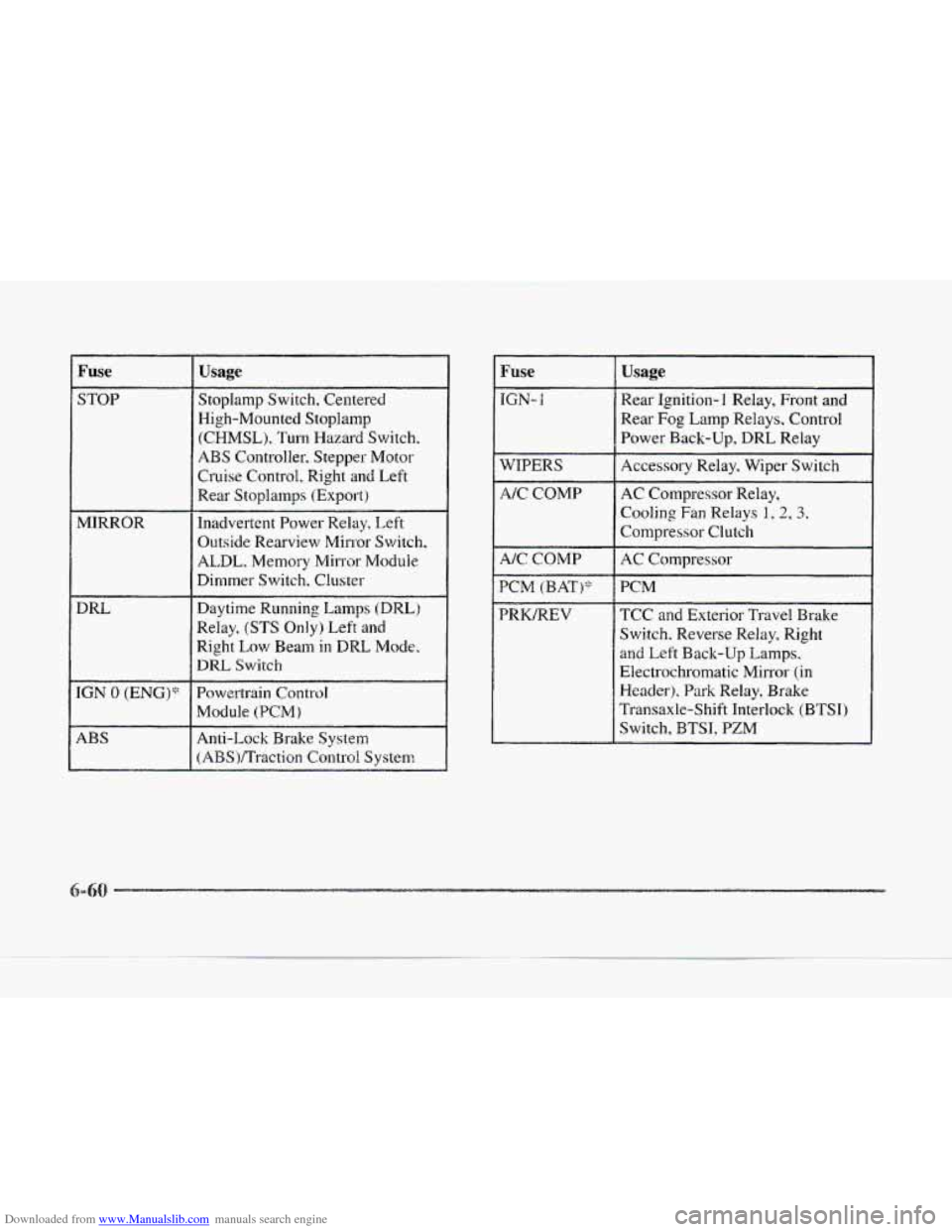

Downloaded from www.Manualslib.com manuals search engine I Fuse Usage
Stoplamp Switch, Centered
High-Mounted Stoplamp
(CHMSL), 'I"urn Hazard Switch,
ABS Controller. Stepper Motor
Cruise Control, Right and Left
Rear Stoplamps (Export)
Inadvertent Power Relay, Left
Outside Rearview Minor Switch,
ALDL. Menloly Mirror Module
Dimmer Switch, Cluster
Daytime Running Lamps (DRL:
Relay,
(STS Only) Left and
Right
Low Beam in DRL Mode,
DRL Switch
Powertrain Control
Module (PCM)
Anti-Lock Brake System
(ABS)/Traction
Control System
IGN- I
I WIPERS
A/C COMP
PRK/REV
Usage
Rear Ignition- 1 Relay, Front and
Rear
Fog Lamp Relays, Control
Power Back-up,
DRL Relay
Accessory Relay, Wiper Switch
AC Compressor Relay,
Cooling Fan Relays
1, 2,3,
Compressor Clutch
AC Compressor
PCM
TCC and Exterior Travel Brake
Switch, Reverse Relay, Right
and Left Back-up Lamps.
Electrochromatic Mirror
(in
Header), Park Relay, Brake
Transaxle-Shift Interlock (BTSI)
Switch, BTSI, PZM

Downloaded from www.Manualslib.com manuals search engine LI.
c
c
1 DISTR'::
f CRUISE
I
Usage

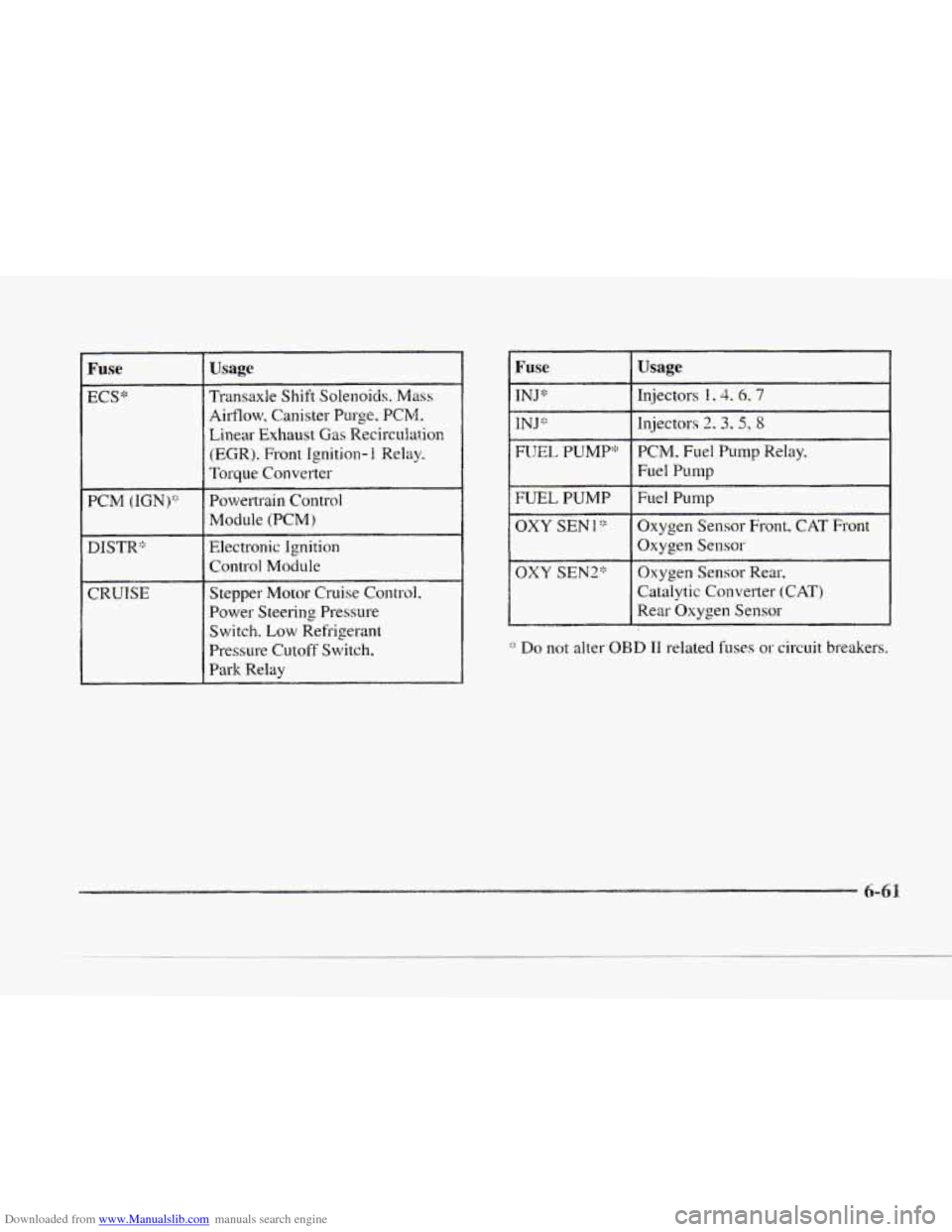

Transaxle Shift Solenoids. Mass
Airflow, Canister Purge. PCM,
Linear Exhaust Gas Recirculation
(EGR). Front Ignition- 1 Relay.
Torque Converter
Powertrain Control
Module (PCM)
Electronic Ignition
Control Module
Stepper. Motor
Cruise Control,
Power Steering Pressure
Switch. Low Refrigerant
Pressure Cutoff Switch.
Park Relay
Fuse
FITEL PUMP"'
FUEL, PUMP
Usage
Injectors I. 46. 7
Injectors 2.3,5, 8
PCM. Fuel Pump Relay.
Fuel Pump -.
Fuel Pump
Oxygen Sensor Front, CAT Front
_-
Oxygen Sensor
Oxygen Sensor Rear.
Catalytic Converter (CAT)
Rear
Oxygen Sensor
::: Do not alter OBD I1 related fuses or circuit breakers.

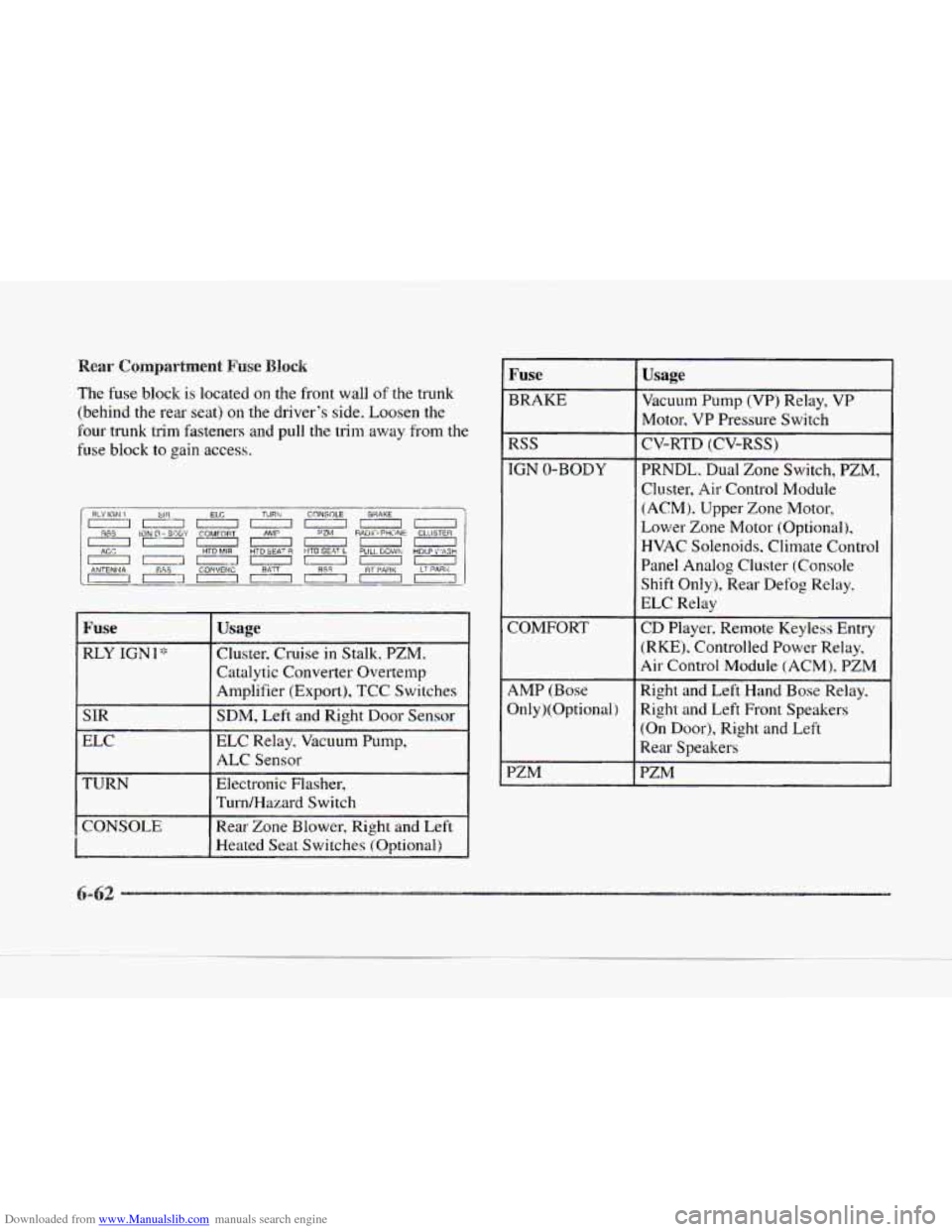

Downloaded from www.Manualslib.com manuals search engine Rear Compartment 9?1156? Block
The fuse block is located on the front wall of the trunk
(behind the rear seat) on the driver’s side. Loosen the
four trunk
trim fasteners and pull the trim away from the
fuse
block to gain access.
RLY IGN 1 luster, Cruise in Stalk, PZM.
Fuse
BRAKE
RSS
IGN 0-BODY
COMFOF
AMP (Bose
Only)(Optional.)
PZM
Usage
Vacuum Pump (VP) Relay, VP
Motor,
VP Pressure Switch
CV-RTD (CV-RSS)
PRNDL. Dual Zone Switch, PZM,
Cluster,
Air Control Module
(ACM), Upper Zone
Motor,
Lower Zone Motor (Optional),
HVAC Solenoids. Climate Control
Panel Analog Cluster (Console
Shift Only), Rear Defog Relay.
ELC Relay
CD Player. Remote
Keyless Entry
(RKE). Controlled Power Relay,
Air Control Module (ACM). PZM
Right and Left Hand Boss Relay.
Right and Left Front Speakers
(On Door), Right and Left
Rear Speakers
PZM

Downloaded from www.Manualslib.com manuals search engine r
f
c
r
!
I
r
r
r

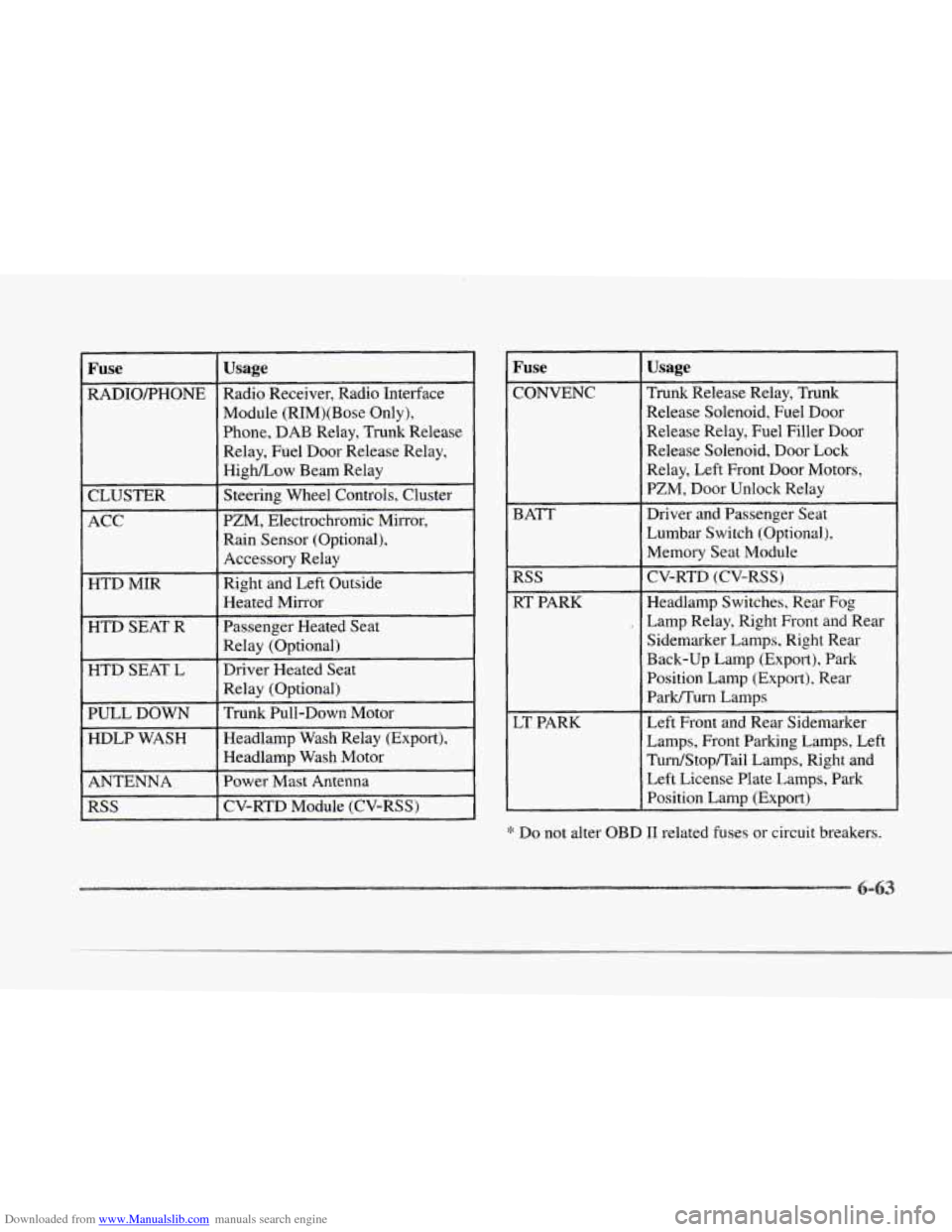

Fuse
RADIOPHONE
CLUSTER
ACC
~
HTD MIR
HTD SEAT R
HTD SEAT L
~~
PULL DOWN
HDLP WASH
ANTENNA
RSS
Usage
Radio Receiver, Radio Interface
Module (RIM)(,Bose Only),
Phone,
DAB Relay, Trunk Release
Relay, Fuel Door Release Relay,
High/Low Beam Relay
Steering Wheel Controls, Cluster
PZM, Electrochromic Mirror,
Rain Sensor (Optional),
Accessory Relay
Right and Left Outside
Heated Mirror
Passenger Heated Seat
Relay (Optional)
Driver Heated Seat Relay (Optional)
Trunk Pull-Down Motor
Headlamp Wash Relay (Export),
Headlamp Wash Motor
Power Mast Antenna
CV-RTD Module
(CV-RSS)
Fuse
CONVENC
BATT
RSS RT PARK
LT PARK
Usage
Trunk Release Relay, Trunk
Release Solenoid, Fuel Door
Release Relay, Fuel Filler
Door
Release Solenoid, Door Lock
Relay, Left Front Door Motors,
PZM, Door Unlock Relay
Driver and Passenger Seat
Lumbar Switch (Optional),
Memory Seat Module
CV-RTD (CV-RSS)
Headlamp Switches, Rear Fog
Lamp Relay, Right Front and Rear
Sidemarker Lamps, Right Rear
Back-up Lamp (Export), Park
Position Lamp (Export), Rear
Park/Turn Lamps
. ~.
Left Front and Rear Sidemarker
Lamps, Front Parking Lamps, Left
Turn/Stop/Tail Lamps, Right and
Left License Plate Lamps, Park
Position Lamp (Export)
* Do not alter OBD I1 related fuses or circuit breakers.

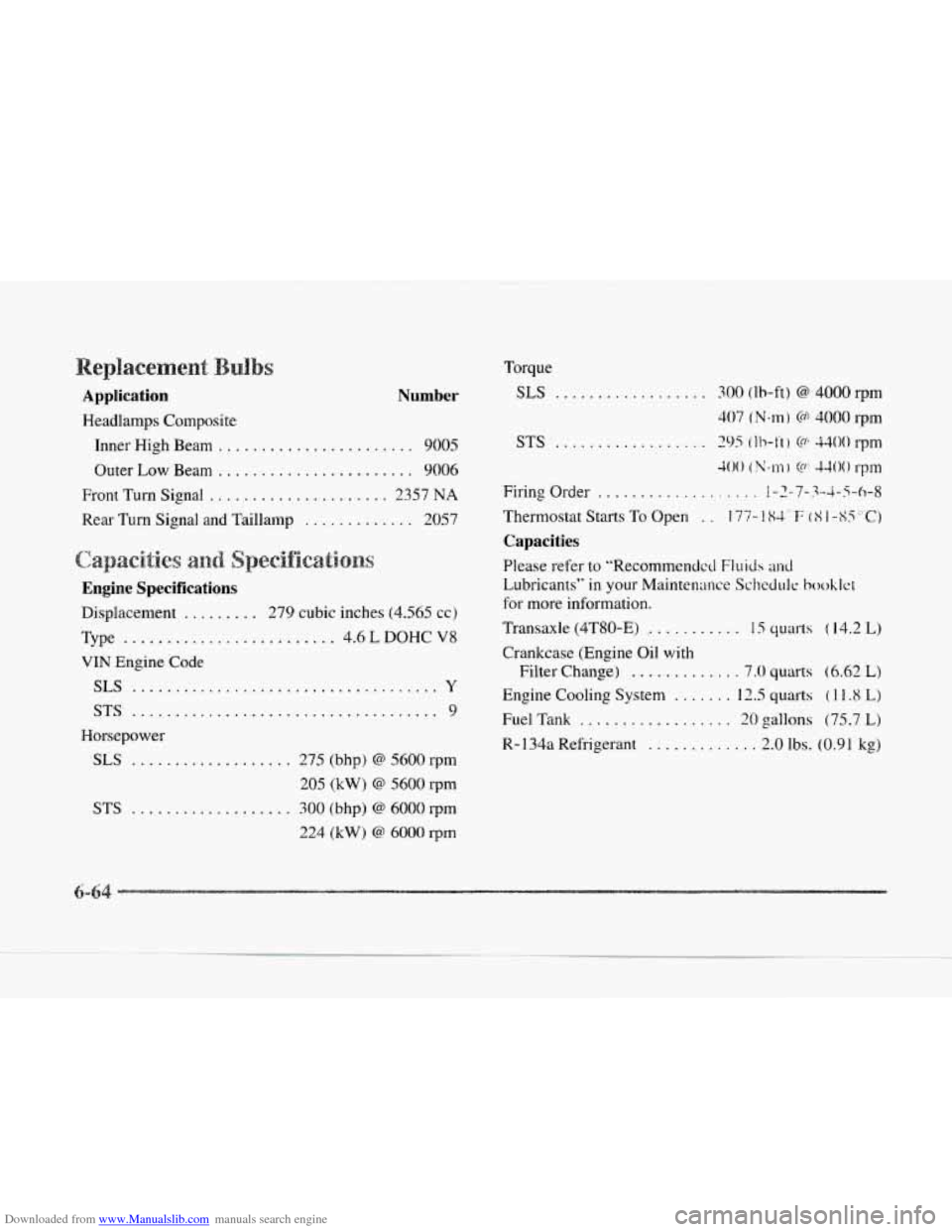

Downloaded from www.Manualslib.com manuals search engine Number Application
Headlamps Composite Inner High Beam
....................... 9005
Outer
Low Beam ....................... 9006
Front Turn Signal
..................... 2357 NA
Rear Turn Signal and Taillamp ............. 2057
Engine Specifications
Displacement ......... 279 cubic inches (,4.565 cc)
Type
......................... 4.6 L DOHC V8
VIN Engine Code
SLS .................................... Y
STS .................................... 9
Horsepower
SLS ................... 275 (bhp) 0 5600 rpm
205 (kW) 0 5600 rpm
STS .................... 300 (bhp) @ 6000 rprn
224 (kW) 0 6000 rpm Torque
SLS .................. 300 (lb-ft) @ 4000 rpm
407 (N-rn) (n., 4000 rpm
STS .................. 29.5 ( 113-f’t I Cfa 4300 rprn
400 ( N.m 1 Cl: 4400 rpm
Firing Order ................... j...~..7-.~.-~-~-(~-fj -
Thermostat
Starts To Open . . 177- I8-tc F (8 1 -SS:’Cj
Capacities
Please refer to “Recommended F1 LI ids and
Lubricants” in your Maintenance Sched~rle bookie1
for more information.
Transaxle
(4T80-E) ............ 15 quarts ( 14.2 L)
Crankcase (Engine Oil with
Filter Change)
............. 7.0 quarts (6.62 L)
Engine Cooling System ....... 12.5 quarts ( 1 1.8 L)
Fuel Tank .................. 20 gallons (75.7 L)
R- 134a Refrigerant
............. 2.0 lbs. (0.9 1 kg)
6-64
-_

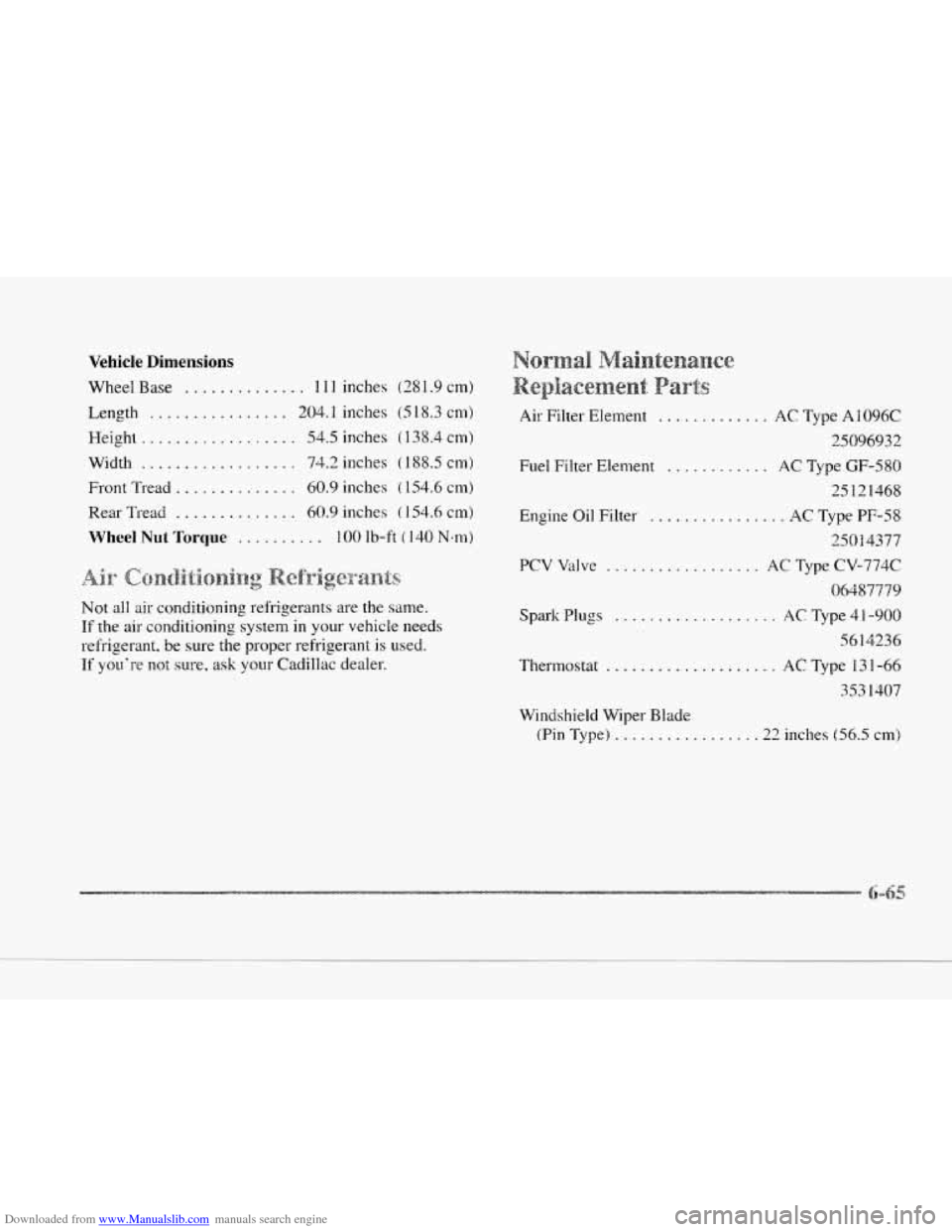

Downloaded from www.Manualslib.com manuals search engine c
c
Vehicle Dimensions
Wheel Base .............. 111 inches (281.9 cm)
Length ................ 203. I inches (,5 18.3 cm)
Height .................. 54.5 inches (138.4 cm)
Width
.................. 74.2 inches ( 188.5 cm)
Front Tread
.............. 60.9 inches ( 154.6 cm)
Rear Tread
.............. 60.9 inches ( 154.6 cm)
Wbeel Nut Torque .......... 100 lb-ft ( I40 Nan>)
Not a11 air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant.
be sure the proper refrigerant is used.
If you’re no: sure, ask your Cadillac dealer.
c
Air Filter Element ............. AC Type A1096C
25096932
Fuel Filter Element ............ AC Type GF-580
25121468
Engine Oil Filter ................ AC Type PF-58
250 14377
PCV Valve .................. AC Type CV-774C
06487779
Spark Plugs ................... AC Type 4 1-900
56 14236
Thermostat
.................... AC Type 13 1-66
3531407
Windshield Wiper Blade
(Pin Type) ................ -22 inches (56.5 cm)
