1996 FORD RANGER Owners Manual

Features
105
*
[FV17400(ALL)04/95]
The remote entry system may not arm and disarm non-factory
installed anti-theft systems.
%*
[FV17551(ALL)02/95]
Replacing the batteries
*
[FV17601(ALL)02/95]
The remote entry transmitter is powered by two coin type
three-volt lithium 2016 batteries (included) that should last for
several years of normal use. If you notice a significant decrease
in operating range, the batteries should be replaced.
Replacement batteries can be purchased at most pharmacies,
watch stores or at your Ford or Lincoln-Mercury dealer.
*
[FV17701(ALL)02/95]
NOTE: The operating range of the remote entry system can
also be affected by weather conditions (such as very
cold temperatures) or structures around the vehicle
(buildings, other vehicles, radio and TV towers, etc.).
Typical operating range will allow you to be up to 33
feet (10 meters) away from your vehicle.
[FV17801(ALL)04/94]
7-1/2 pica art:0021161-A
Opening the remote transmitter
*
[FV17901(ALL)02/95]
The transmitter can be snapped apart to replace the batteries by
twisting a thin coin between the two halves of the transmitter.
DO NOT TAKE THE FRONT PART OF THE TRANSMITTER
APART. When installing the new batteries, be sure to place the
positive (+) side down as marked. Snap the two halves back
together.
File:08unfvr.ex
Update:Wed May 1 13:48:36 1996

106
[FV18001(ALL)04/94]
7-1/2 pica art:0021162-A
Replacing the batteries
%*
[FV18101(ALL)02/95]
Replacing lost transmitters
[FV18200(ALL)07/95]
In the event a transmitter is lost, you should take your vehicle's
transmitters to your dealer to have the remote entry system
deprogrammed for the lost transmitter. This is necessary to
prevent further unauthorized use of the lost transmitter.
*
[FV18301(ALL)02/95]
You can also purchase additional transmitters (up to 4
transmitters can be used) from your dealer. You will need to
take all your transmitters to the dealer so they can program
them to the remote entry system all at the same time.
%*
[FV18601(ALL)04/95]
Illuminated Entry System (If equipped)
*
[FV18701(ALL)10/95]
This system will provide illumination of the vehicle's interior
courtesy lamps when either outside front door handle is pulled
or when the remote entry system is used to unlock the door or
sound the personal alarm. The system will automatically turn
off after approximately 25 seconds or when the ignition is
turned to the RUN or ACC position.
*
[FV18801(ALL)09/95]
NOTE: The inside lights will not turn off if you have turned
them on with the dimmer thumbwheel or if any door
is open.
File:08unfvr.ex
Update:Wed May 1 13:48:36 1996

Features
107
%*
[FV18900(ALL)08/94]
Battery Saver
*
[FV19000(ALL)03/95]
When the ignition is turned off, the vehicle will turn off battery
voltage to all of these lights after 40 minutes: glove box, engine
compartment, overhead console, mirror, courtesy and
interior (including cargo) lamps.
*
[FV19102(R )03/95]
This will prevent draining of the battery if these lights have
been left on inadvertently or if a door is not completely closed.
Battery voltage to these lamps will be restored when the remote
entry transmitter is used, any door is opened, or the ignition
key is turned on again.
%*
[FV19104(ALL)09/95]
Anti-Theft Alarm System (If equipped)
*
[FV19106(ALL)05/95]
When armed, this system helps protect your vehicle against
break-ins or theft.
%*
[FV19109(ALL)05/95]
When an unauthorized entry occurs, the system triggers and
will:
[FV19113(R )08/94]
n
flash the parking lamps and theft indicator lamp
*
[FV19115(ALL)06/95]
n
honk the horn
*
[FV19118(ALL)05/95]
n
disable the starting circuit to prevent the vehicle from being
started
% [FV19121(ALL)02/95]
Arming the System
*
[FV19124(ALL)04/95]
The system is ready to arm any time the ignition switch is
turned OFF and the alarm is not triggered or sounding. Any of
the following events will prearm the anti-theft system:
[FV19130(ALL)04/95]
n
Pressing the remote entry transmitter LOCK button to lock
the doors (with the doors open or closed),
*
[FV19136(ALL)04/95]
n
Opening a door and pressing the power door lock button to
lock the doors.
File:08unfvr.ex
Update:Wed May 1 13:48:36 1996

108
[FV19142(R )03/95]
If a door is open, the anti-theft system is prearmed and waiting
for all doors to close. The THEFT indicator in the instrument
panel will light continuously while the system is prearmed.
[FV19148(R )08/94]
n
Close all doors
[FV19151(R )03/95]
Once all doors are closed, if any were open, the system will
begin a 30 second countdown to become armed. The 30 second
countdown allows people who may still be in the vehicle time
to exit without triggering the alarm. The THEFT indicator will
glow steadily until the system is armed. When the system is
armed, the THEFT indicator will begin to flash with short
flashes every 2 seconds until the system is triggered or
disarmed.
[FV19154(R )03/95]
Remember, all doors must be fully closed for the anti-theft
system to arm. If a door has been left open or ajar, and you
press the remote entry transmitter twice to confirm the doors
are locked, two short horn chirps will warn you that the
anti-theft system is not arming.
*
[FV19155(ALL)02/95]
When you get a single horn chirp by pressing the LOCK button
twice within 5 seconds on your remote entry transmitter, you
can be assured that all doors are locked and the anti-theft
system is arming.
% [FV19157(ALL)02/95]
Disarming the System
*
[FV19160(ALL)10/95]
An armed or activated system can be disarmed if you:
*
[FV19162(ALL)04/95]
n
Unlock the doors by pressing the remote entry transmitter
UNLOCK button.
[FV19166(R )08/94]
n
Unlock any door with a key.
*
[FV19190(ALL)02/95]
n
Turn ignition to the ON or ACC position.
*
[FV19196(ALL)04/95]
n
Pressing the remote entry PANIC button will disarm the
anti-theft system only when the anti-theft alarm is triggered
and sounding.
File:08unfvr.ex
Update:Wed May 1 13:48:36 1996

Features
109
*
[FV19200(ALL)02/95]
When unlocking the vehicle with a key, turn the key all the
way to the end of its travel or the system may not disarm.
*
[FV19202(ALL)09/95]
NOTE: The flashing lights and honking horn will shut off
automatically within 2 minutes 45 seconds after the
system is triggered. It will trigger again if another
intrusion occurs. However, the starter circuit remains
disabled until the system is disarmed.
*
[FV19205(ALL)05/95]
The anti-theft system is designed to work with the factory
installed remote entry system. It may not work with other
remote entry systems.
%*
[FV19250(ALL)02/95]
Windows
*
[FV19300(ALL)08/95]
Operating the Windows Manually
*
[FV19400(ALL)08/95]
The door windows are opened and closed by turning the handle
crank.
[FV19600(ALL)04/94]
7-1/2 pica art:0021163-A
Manual window operation
[FV21200(R )03/95]
Sliding rear window (If equipped)
[FV21500(R )06/94]
The sliding rear window has only one sliding portion. Follow
the operating instructions shown in the following illustration.
File:08unfvr.ex
Update:Wed May 1 13:48:36 1996

110
[FV21601(R )06/94]
10-1/2 pica
art:0020210-B
Sliding rear window operation
[FV21701(R )10/94]
SuperCab quarter windows (if equipped)
[FV21801(R )03/95]
To open the optional flip quarter windows on the Ranger
SuperCab models, follow the operating instructions shown in
the following illustration.
[FV21900(R )03/95]
10-1/2 pica
art:0020209-B
SuperCab flip open quarter window
File:08unfvr.ex
Update:Wed May 1 13:48:36 1996

Features
111
%*
[FV22901(ALL)03/91]
Using the Power Windows (If equipped)
[FV23001(ALL)08/94]
Each door has a power control that opens and closes the
window on that door. The driver's door has a master control
switch that operates all door windows. You must place the
ignition switch in the ON or ACC position to use your power
window controls.
*
[FV23501(ALL)08/95]
RWARNING
Do not let children play with the power windows. They
may seriously hurt themselves. Make sure occupants are
clear of the window(s) before closing.
[FV23601(R )06/94]

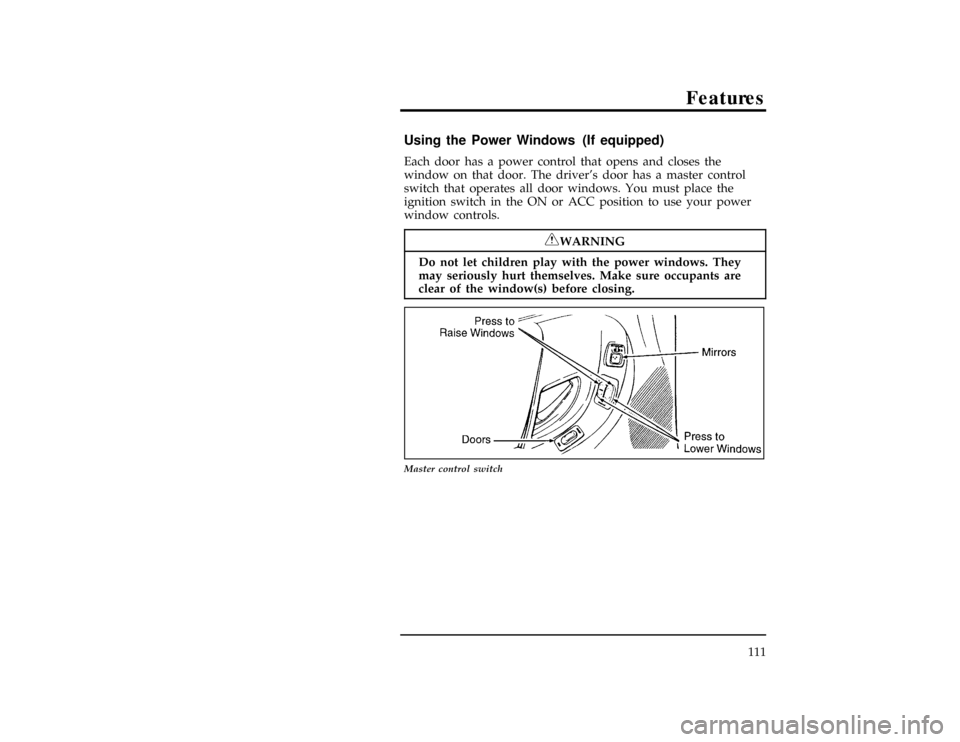

10-1/2 pica
art:0020211-H
Master control switch
File:08unfvr.ex
Update:Wed May 1 13:48:36 1996

112
%*
[FV24101(ALL)01/95]
Seats
%*
[FV24201(R )04/95]
Head Restraints
*
[FV24301(R )02/95]
If you use them properly, head restraints are intended to help
protect your head and neck in a collision.
[FV24325(ALL)06/94]
Adjust the head restraints so that the cushion contacts the back
of your head when you move your head rearward.
[FV24401(R )08/94]
If you have a front bench seat, you can adjust the front seat
head restraints for your comfort and protection. The head
restraints on other seats are not adjustable.
[FV24601(R )10/94]

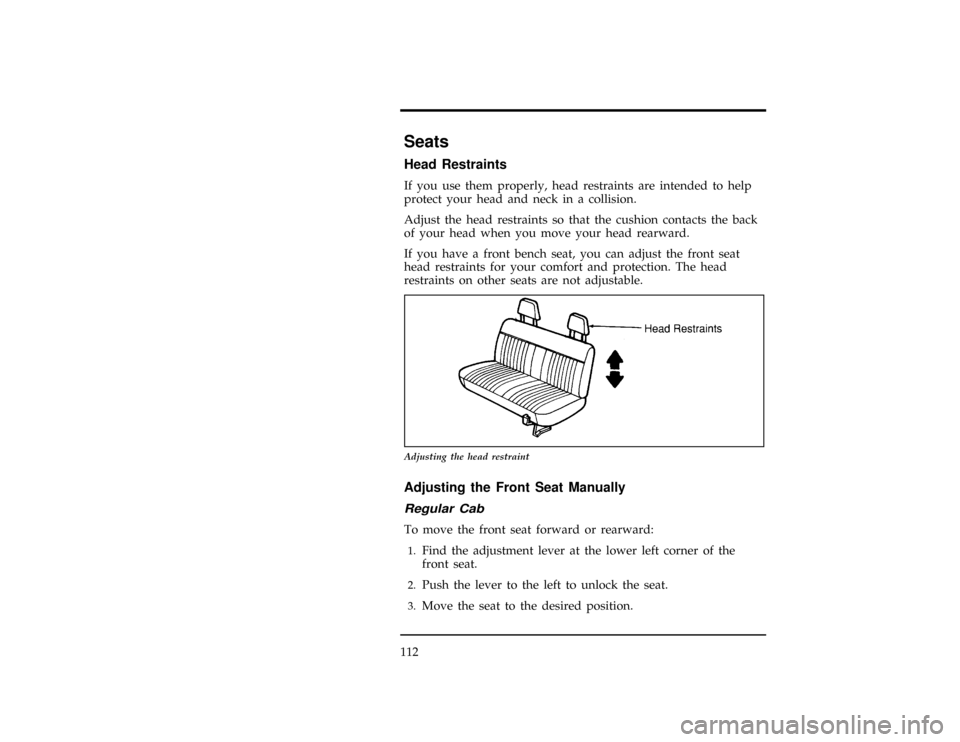

10-1/2 pica
art:0020882-D
Adjusting the head restraint
%*
[FV24801(ALL)05/90]
Adjusting the Front Seat Manually
[FV24851(R )08/94]
Regular Cab
*
[FV24901(R )06/95]
To move the front seat forward or rearward:
*
[FV25001(R )06/95]1.
Find the adjustment lever at the lower left corner of the
front seat.
*
[FV25101(R )08/94]2.
Push the lever to the left to unlock the seat.
*
[FV25201(R )08/95]3.
Move the seat to the desired position.
File:08unfvr.ex
