1996 FORD RANGER Owners Manual

Starting Your Ranger
47
%*
[ST07300(ALL)10/95]
A computer system controls the engine's idle speed. When you
start your vehicle, the engine's idle speed normally runs high.
These faster engine speeds will make your vehicle coast slightly
faster than its normal idle speed. It should, however, slow down
after a short time. If it does not, have the idle speed checked.
*
[ST07390(ALL)07/95]
If the engine idle speed does not slow down automatically, do
not allow your vehicle to idle for more than 10 minutes. Have
the vehicle checked.
*
[ST07400(ALL)05/95]
RWARNING
Extended idling at high engine speeds can produce very
high temperatures in the engine and exhaust system,
creating the risk of fire or other damage.
*
[ST07450(ALL)05/95]
RWARNING
Do not park, idle, or drive your vehicle in dry grass or
other dry ground cover. The emission system heats up
the engine compartment and exhaust system, which can
start a fire.
*
[ST07500(ALL)03/95]
If you consistently start your vehicle in subzero temperatures,
use an engine block heater (if your vehicle has this option).
%*
[ST07600(ALL)06/95]
Engine Block Heater (If equipped)
*
[ST07700(ALL)03/95]
Engine block heaters are strongly recommended if you live in a
region where temperatures reachs20ÊF (s29ÊC) orbelow
consistently during the winter months. An engine block heater
warms the engine coolant, which improves starting, warms up
the engine faster, and allows the heater-defrost system to
respond quickly.
File:04unstr.ex
Update:Wed May 1 13:44:22 1996

48
*
[ST08000(ALL)05/95]
RWARNING
To prevent electrical shock, do not use your heater with
ungrounded electrical systems or two-pronged (cheater)
adapters.
*
[ST08100(ALL)03/95]
For best results, plug the heater in at least three hours before
you start your vehicle. Using the heater for longer than three
hours will not damage the engine, so you can plug it in at night
to start your vehicle the following morning.
*
[ST08150(ALL)12/91]
NOTE: Be sure to disconnect the engine block heater before
driving your vehicle.
%*
[ST08175(ALL)03/95]
If the Engine Cranks but Does Not Start or
Does Not Start After a Collision
*
[ST08200(ALL)07/95]
The Fuel Pump Shut-off Switch
*
[ST08210(ALL)10/95]
If the engine cranks but does not start or does not start after a
collision, the fuel pump shut-off switch may have been
triggered. The shut-off switch is a device intended to stop the
fuel pump when your vehicle has been involved in a major jolt.
*
[ST08215(ALL)03/95]
Once the shut-off switch is triggered, you must reset the switch
by hand before you can start your vehicle.
File:04unstr.ex
Update:Wed May 1 13:44:22 1996

Starting Your Ranger
49
[ST08225(ALL)03/95]
10-1/2 pica
art:0090157-A
Fuel pump shut-off switch location
*
[ST08250(ALL)05/95]
RWARNING
If you see or smell fuel, do not reset the switch or try to
start your vehicle. Have all the passengers get out of the
vehicle and call the local fire department or a towing
service.
*
[ST08275(ALL)03/95]
If your engine cranks but does not start after a collision or
substantial jolt:
*
[ST08290(ALL)03/95]1.
Turn the key in the ignition to OFF.
*
[ST08300(ALL)03/95]2.
Check under the vehicle for leaking fuel.
*
[ST08325(ALL)03/95]3.
If you do not see or smell fuel, push the red reset button
down. If the button is already set, you may have a different
mechanical problem.
*
[ST08350(ALL)01/95]4.
Turn the ignition key ON for a few seconds, then turn it
OFF.
*
[ST08375(ALL)03/95]5.
Check under the vehicle again for leaking fuel.If you see or
smell fuel, do not start your vehicle again.If you do not
see or smell fuel, you can try to start your vehicle again.
File:04unstr.ex
Update:Wed May 1 13:44:22 1996

50
*
[ST08400(ALL)03/95]6.
Check all vehicle warning lights before driving your vehicle.
[ST08450(ALL)01/95]
7-1/2 pica art:0021144-A
Reset button for fuel pump shut-off switch
%*
[ST09300(ALL)05/95]
Guarding Against Exhaust Fumes
*
[ST09400(ALL)02/95]
Carbon monoxide, although colorless and odorless, is present in
exhaust fumes. Take precautions to avoid its dangerous effects.
*
[ST09500(ALL)09/95]
RWARNING
Never let your vehicle idle in an enclosed area, and do
not sit in a parked vehicle, (with the engine running) for
more than a short period of time. Exhaust fumes,
particularly carbon monoxide, might build up. These
fumes are harmful and could kill you.
*
[ST09600(ALL)05/95]
RWARNING
If you smell exhaust fumes inside your vehicle, have
your dealer inspect your vehicle immediately. Do not
drive if you smell exhaust fumes.
File:04unstr.ex
Update:Wed May 1 13:44:22 1996

Starting Your Ranger
51
*
[ST09900(ALL)01/95]
Have the exhaust and body ventilation systems checked
whenever:
*
[ST10000(ALL)02/95]
n
your vehicle is raised for service
*
[ST10100(ALL)02/95]
n
the sound of the exhaust system changes
*
[ST10200(ALL)01/95]
n
your vehicle has been damaged in a collision
*
[ST10300(ALL)01/95]
Improve your ventilation by keeping all air inlet vents clear of
snow, leaves, and other debris.
*
[ST10400(ALL)08/95]
If the engine is idling while you are stopped in an open area
for long periods of time, open the windows at least one inch
(2.5 cm). Also, adjust the heating or air conditioning system to
bring in outside air.
[ST10650(ALL)03/95]
n
HEATING Ð Set fan speed to medium or high, the function
control knob on any position except OFF and the
temperature control knob on any desired position.
[ST10700(ALL)03/95]
n
AIR CONDITIONING Ð Set fan speed to medium or high
with the function control knob on any position (except OFF
or MAX A/C) and the temperature control knob at a
comfortable level.
File:04unstr.ex
Update:Wed May 1 13:44:22 1996

53
Warning Lights and Gauges
%*
[LG00400(ALL)01/95]
The instrument panel (dashboard) on your vehicle is divided
into several different sections. The illustrations on the following
pages show the major parts of the instrument panel that are
described in this chapter. Some items shown may not be on all
vehicles.
*
[LG00500(R )02/95]
Your vehicle has one of the following clusters:
*
[LG00600(R )11/89]
n
A mechanical cluster
*
[LG00700(R )11/89]
n
A mechanical cluster with tachometer
*
[LG00900(R )05/95]
If you are not sure which cluster your vehicle has, check the
diagrams on the following pages of this section.
File:05unlgr.ex
Update:Wed May 1 13:45:37 1996

54
[LG02500(R )09/95]
33-1/2 pica
art:0090106-B

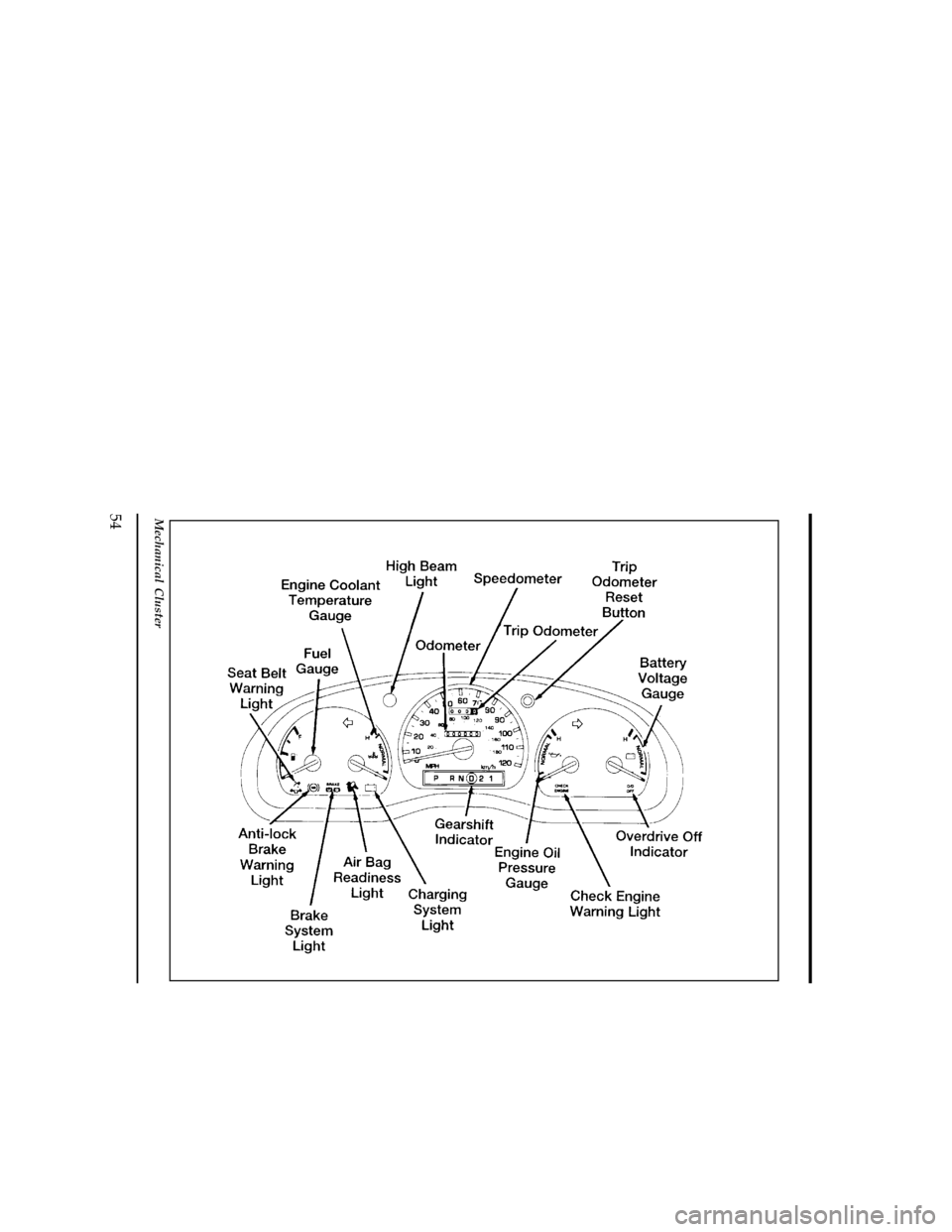

Mechanical Cluster
File:05unlgr.ex
Update:Wed May 1 13:45:37 1996

Warning Lights and Gauges
55
[LG02600(ALL)03/95]
33-1/2 pica
art:0090107-C

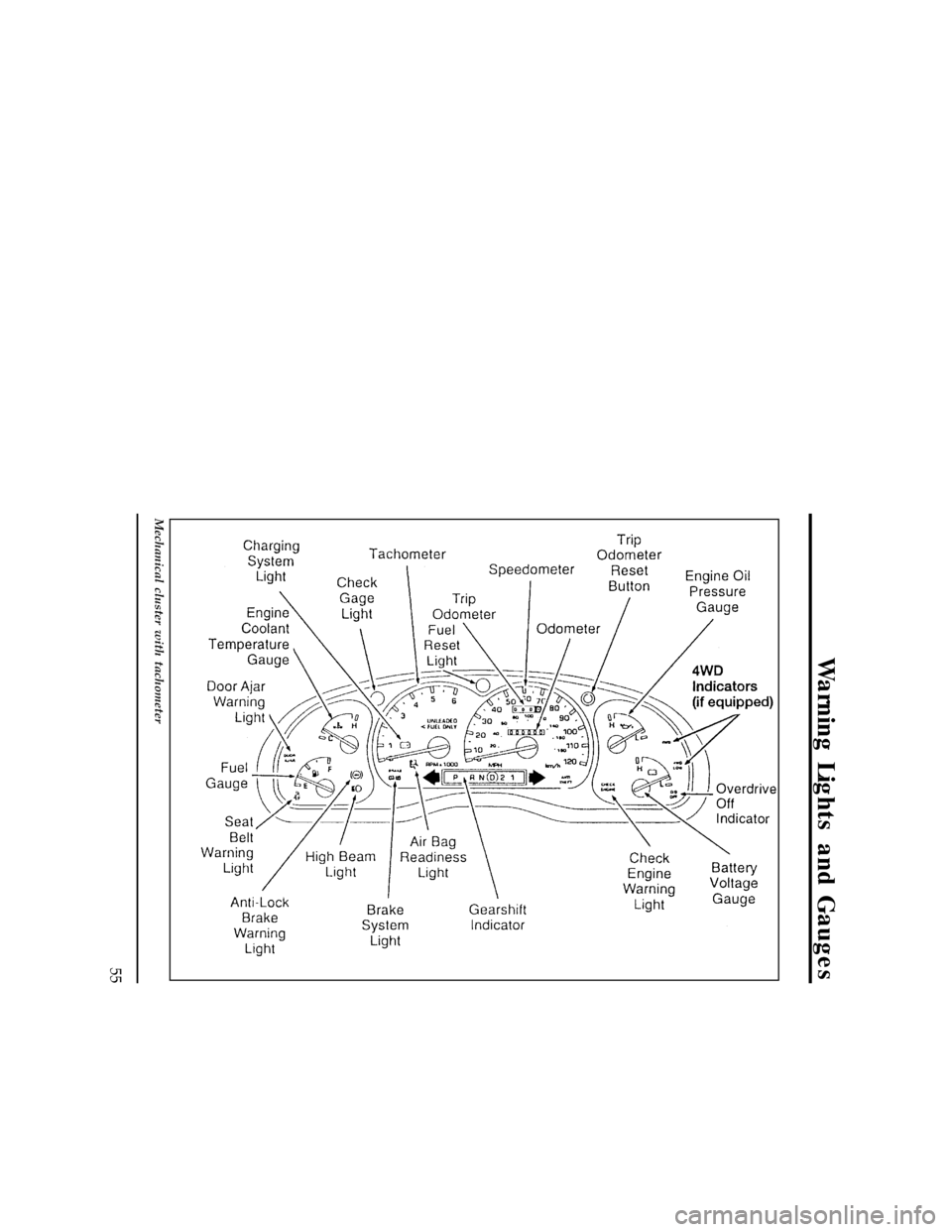

Mechanical cluster with tachometer
