1996 FORD RANGER Owners Manual

Safety Restraints
23
%*
[SR09600(ALL)08/95]
Safety Belt Extension Assembly
*
[SR09700(ALL)07/95]
For some people, the safety belt may be too short even when it
is fully extended. You can add about eight inches (20 cm) to the
belt length with a safety belt extension assembly (part number
611C22). Safety belt extensions are available at no cost from
your dealer.
*
[SR09790(ALL)08/95]
Use only extensions manufactured by the same supplier as the
safety belt. Manufacturer identification is located at the end of
the webbing on the label. Also, use the safety belt extension
only if the safety belt is too short for you when fully extended.
Do not use extension to change the fit of the shoulder belt
across the torso.
*
[SR09800(ALL)08/95]
RWARNING
Failure to follow these instructions will affect the
performance of the safety belts and increase the risk of
personal injury.
%*
[SR09900(ALL)08/95]
Safety Belt Maintenance
*
[SR10000(ALL)09/95]
Check the safety belt systems periodically to make sure that
they work properly and are not damaged.
[SR10030(R )06/95]

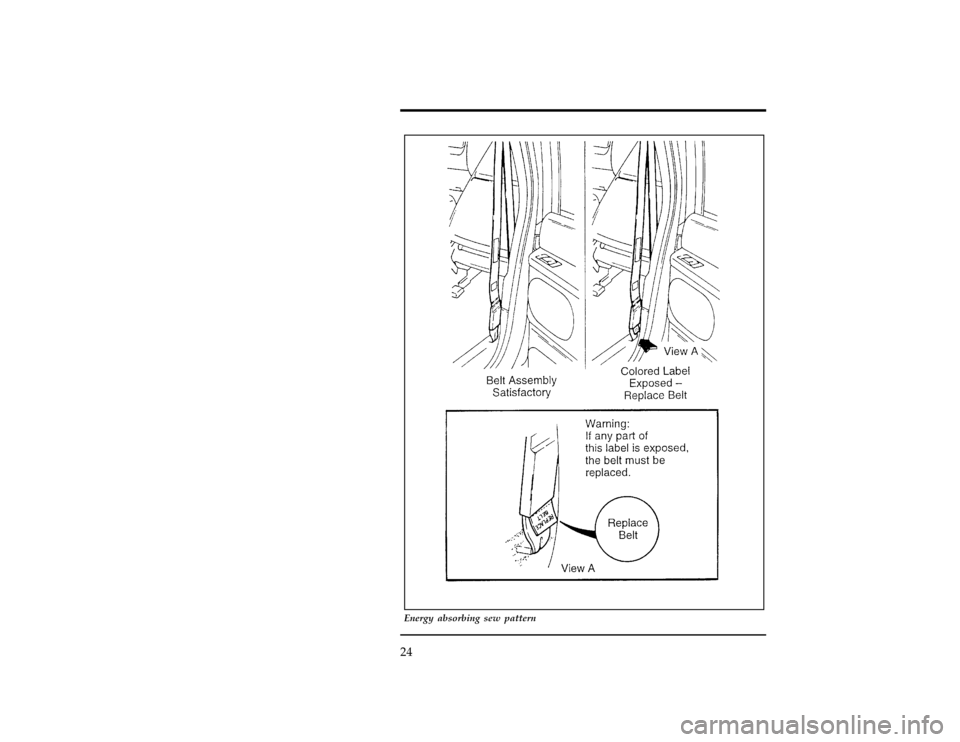

The short plastic boot on the front safety belt at the outboard
anchor location (Regular Cab, driver; SuperCab, driver and
passenger) covers an energy absorbing sew pattern on the safety
belt. In the event of an accident, the sew pattern may release,
and the colored label (REPLACE BELT) may become visible. If
this occurs,the safety belt must be replaced.
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996

24
[SR10035(ALL)06/95]
33-1/2 pica
art:0021286-B
Energy absorbing sew pattern
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996

Safety Restraints
25
[SR10040(ALL)06/95]
RWARNING
FAILURE TO REPLACE THE SAFETY BELT ASSEMBLY
UNDER THE ABOVE CONDITIONS COULD RESULT
IN SEVERE PERSONAL INJURIES IN THE EVENT OF
A COLLISION.
%*
[SR10200(ALL)08/95]
All safety belt assemblies, including retractors, buckles, front
seat belt buckle support assemblies (slide bar) (if equipped),
child safety seat tether bracket assemblies (if equipped), and
attaching hardware, should be inspected after any collision. Ford
recommends that all safety belt assemblies used in vehicles
involved in a collision be replaced. However, if the collision was
minor and a qualified technician finds that the belts do not
show damage and continue to operate properly, they do not
need to be replaced. Safety belt assemblies not in use during a
collision should also be inspected and replaced if either damage
or improper operation is noted.
%*
[SR10250(ALL)06/95]
Cleaning the Safety Belts
*
[SR10275(ALL)06/95]
Clean the safety belts with any mild soap solution that is
recommended for cleaning upholstery or carpets. Do not bleach
or dye the belt webbing because this may weaken it.
%*
[SR10300(ALL)06/95]
Air Bag Supplemental Restraint System
(SRS)
*
[SR10800(ALL)05/95]
The driver and right front passenger air bags are Supplemental
Restraint Systems (SRS), provided at these seating positions in
addition to the lap/shoulder belt, and are designed to
supplement the protection provided to properly belted
occupants in moderate to severe frontal collisions. The
supplemental air bag system does not provide restraint to the
lower body.
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996

26
%*
[SR10900(ALL)05/95]
The Importance of Wearing Safety Belts
*
[SR11000(ALL)06/95]
RWARNING
Safety belts must be worn by all vehicle occupants to be
properly restrained and help reduce the risk of injury in
a collision.
*
[SR11050(ALL)05/95]
RWARNING
All occupants of the vehicle, including the driver, should
always wear their safety belts, even when an air bag
Supplemental Restraint System is provided.
*
[SR11100(ALL)01/95]
There are four very important reasons to use safety belts even
with an air bag system. Use your safety belts to:
*
[SR11200(ALL)01/95]
n
help keep you in the proper position (away from the air bag)
when it inflates
*
[SR11300(ALL)01/95]
n
reduce the risk of harm in rollover, side or rear impact
collisions, because an air bag is not designed to inflate in
such situations
*
[SR11350(ALL)01/95]
n
reduce the risk of harm in frontal collisions that are not
severe enough to activate the supplemental air bag
*
[SR11400(ALL)01/95]
n
reduce the risk of being thrown from your vehicle
[SR11500(ALL)06/95]
RWARNING
The right front passenger air bag is not designed to
restrain occupants in the center front seating position.
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996

Safety Restraints
27
%*
[SR11600(ALL)01/95]
The Importance of Being Properly Seated
*
[SR11700(ALL)05/95]
In a collision, the air bag must inflate extremely fast to help
provide additional protection for you. In order to do this, the
air bag must inflate with considerable force. If you are not
seated in a normal riding position with your back against the
seatback, the air bag may not protect you properly and could
possibly hurt you as it inflates.
[SR11850(R )05/95]
Important Information About the Right Front Passenger
Air Bag (If equipped)
[SR11900(ALL)05/95]
It is important for the front seat passengers' safety that they
remain properly seated whenever the vehicle is moving. This
means that small children should be secured in appropriate
child safety seats or infant seats, and all other occupants should
sit upright, with their backs against the seatback, and restrained
by lap and shoulder belts. No passenger should sit toward the
front edge of the seat, or stand or lean near the air bag cover
(which is near the glove box).
[SR12150(R )05/95]
RWARNING
Rear-facing infant seats should not be placed in the front
seat unless the passenger air bag deactivate switch is
turned to OFF. In rear-facing infant seats, the infant's
head is closer to the passenger air bag. The force of the
rapidly inflating air bag could push the top of the
rear-facing seat against the vehicle seatback. Turning the
passenger air bag deactivate switch to OFF will prevent
the passenger air bag from deploying, avoiding any
interaction between the passenger air bag and the
rear-facing infant seat.
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996

28
[SR12605(R )05/95]
Passenger Air Bag Deactivate Switch
[SR12610(R )05/95]
If your vehicle is equipped with the passenger air bag option, it
also has a passenger air bag deactivate switch. The switch is
located at the lower center of the instrument panel, next to the
ashtray. The switch must be used to turn off the passenger air
bag when a rear-facing infant seat is installed in the right front
or center front passenger seat position. To turn the passenger air
bag off:
[SR12615(R )05/95]
NOTE: If the yellow peel-off label is still on the switch, pull
the tab to remove it, and discard it.
[SR12620(R )05/95]1.
Insert the ignition key into the switch.
[SR12625(R )05/95]2.
Rotate the ignition key clockwise until the key points to the
word OFF printed on the instrument panel.
[SR12630(R )05/95]3.
Remove the ignition key.
[SR12635(R )05/95]
RWARNING
In order to avoid inadvertent deployment of the
passenger air bag, always remove the ignition key from
the passenger air bag deactivate switch.
[SR12640(R )05/95]4.
Check that the amber OFF light illuminates when the
ignition switch is placed in ON.
[SR12645(R )05/95]
RWARNING
If the light fails to illuminate when the passenger air bag
switch is in the OFF position and the ignition switch is
in ON, have the passenger air bag switch serviced at
your Ford or Lincoln-Mercury dealer immediately.
[SR12650(R )05/95]
The passenger air bag will remain off until it is turned on.
When the infant seat is removed, turn the air bag on. To turn
the passenger air bag on:
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996

Safety Restraints
29
[SR12655(R )05/95]1.
Insert the ignition key into the switch.
[SR12660(R )05/95]2.
Rotate the ignition key counterclockwise until it points to the
ON printed on the instrument panel.
[SR12665(R )05/95]3.
Remove the ignition key from the switch.
[SR12670(R )05/95]4.
Check that the amber OFF light is not illuminated when the
ignition switch is placed in ON.
[SR12675(R )05/95]
RWARNING
If the light is illuminated when the passenger air bag
switch is in the ON position and the ignition switch is in
ON, have the passenger air bag switch serviced at your
Ford or Lincoln-Mercury dealer immediately.
[SR12680(R )05/95]
The amber OFF light warns the driver and any passengers that
the passenger air bag is turned off. The passenger air bag
should be turned off ONLY when the rear-facing infant seat is
installed at the right front or center front seats.
[SR12685(R )05/95]
RWARNING
Keep the passenger air bag turned on unless there is a
rear-facing infant seat installed in the front seat. When
the passenger air bag switch is turned off, the passenger
air bag will not inflate in a collision.
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996

30
%*
[SR12700(ALL)01/95]
How the Air Bag Supplemental Restraint System
Operates
[SR12750(R )06/95]
The Air Bag Supplemental Restraint System consists of the
driver air bag, passenger air bag (if equipped), impact sensors, a
system diagnostic module, a readiness light and tone, and the
electrical wiring which connects the components.
[SR12775(R )09/95]
24 pica art:0090169-B
The location of the air bags and warning labels
