Page 17 of 369
Safety Restraints
15
[SR03552(R )06/95]
17-1/2 pica
art:0090166-B

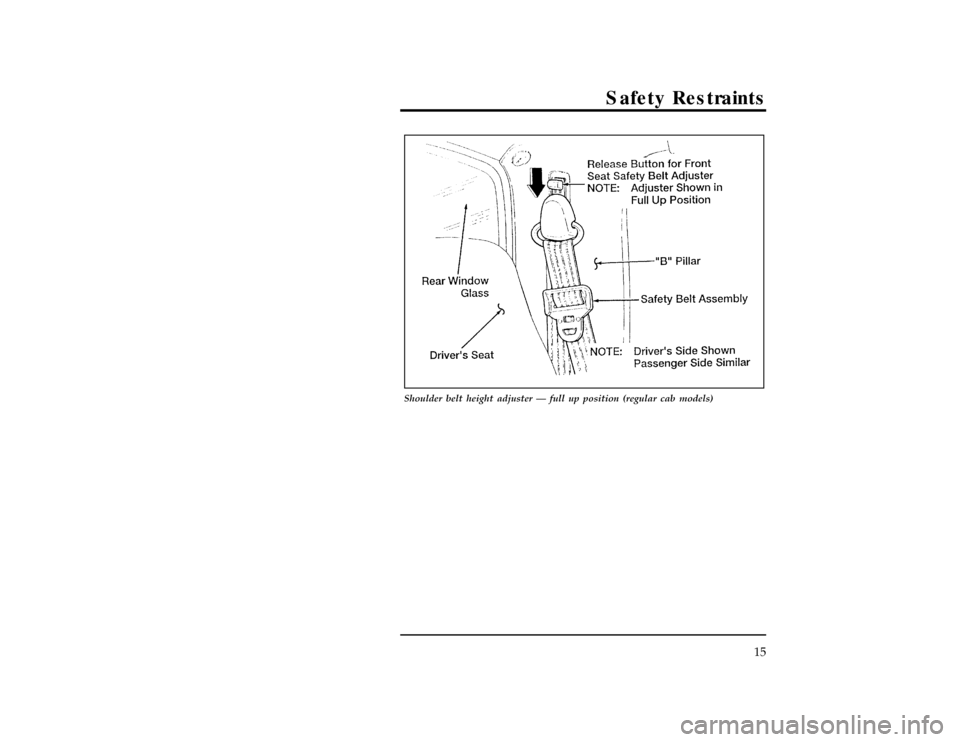

Shoulder belt height adjuster Ð full up position (regular cab models)
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996
Page 18 of 369
16
[SR03554(R )06/95]
17-1/2 pica
art:0021277-A
Adjusting shoulder belt height (regular cab models)
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996
Page 19 of 369
Safety Restraints
17
[SR03556(R )06/95]
17-1/2 pica
art:0021278-A
Shoulder belt height adjuster Ð full down position (regular cab models)
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996
Page 20 of 369
18
[SR03558(R )06/95]
17-1/2 pica
art:0021279-B

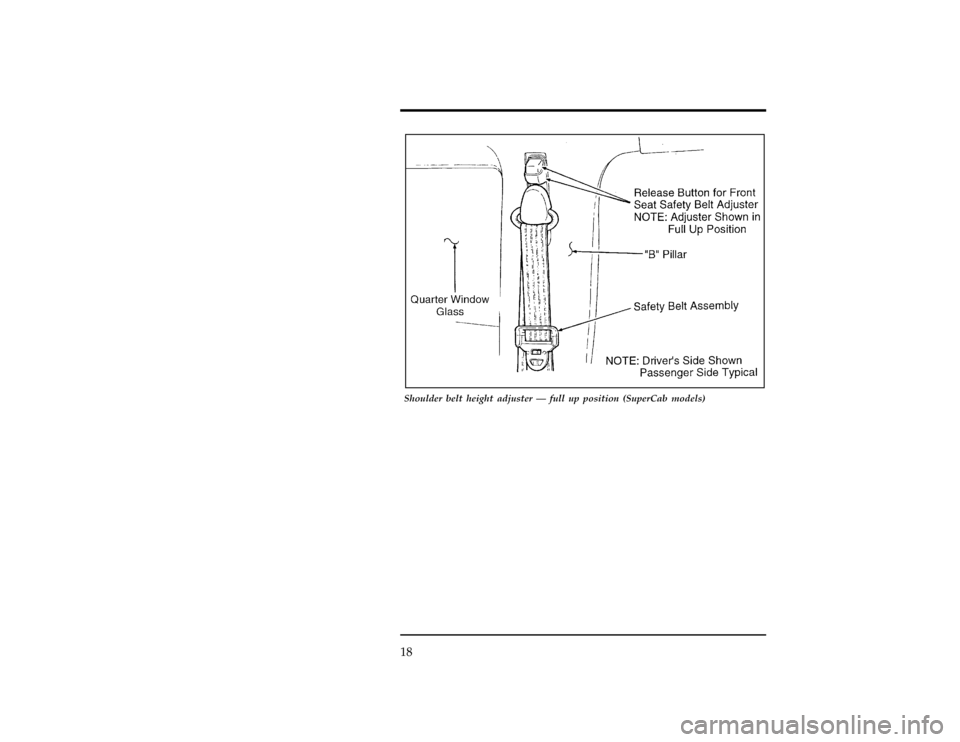

Shoulder belt height adjuster Ð full up position (SuperCab models)
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996
Page 21 of 369
Safety Restraints
19
[SR03560(R )05/95]
17-1/2 pica
art:0090167-A

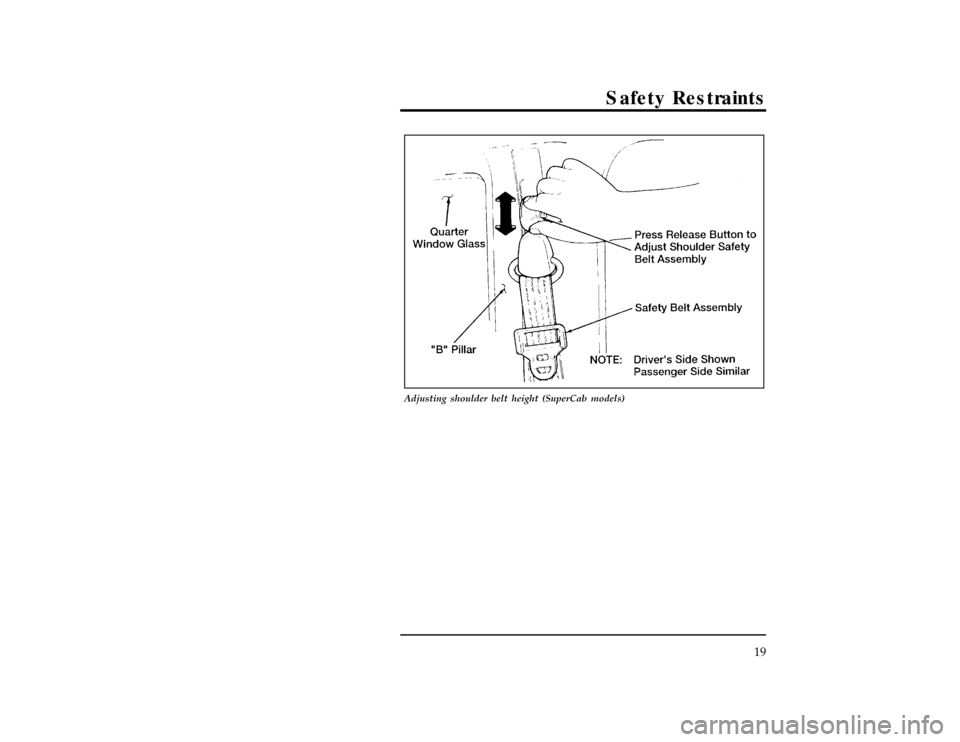

Adjusting shoulder belt height (SuperCab models)
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996
Page 22 of 369
20
[SR03562(R )06/95]
17-1/2 pica
art:0021281-B

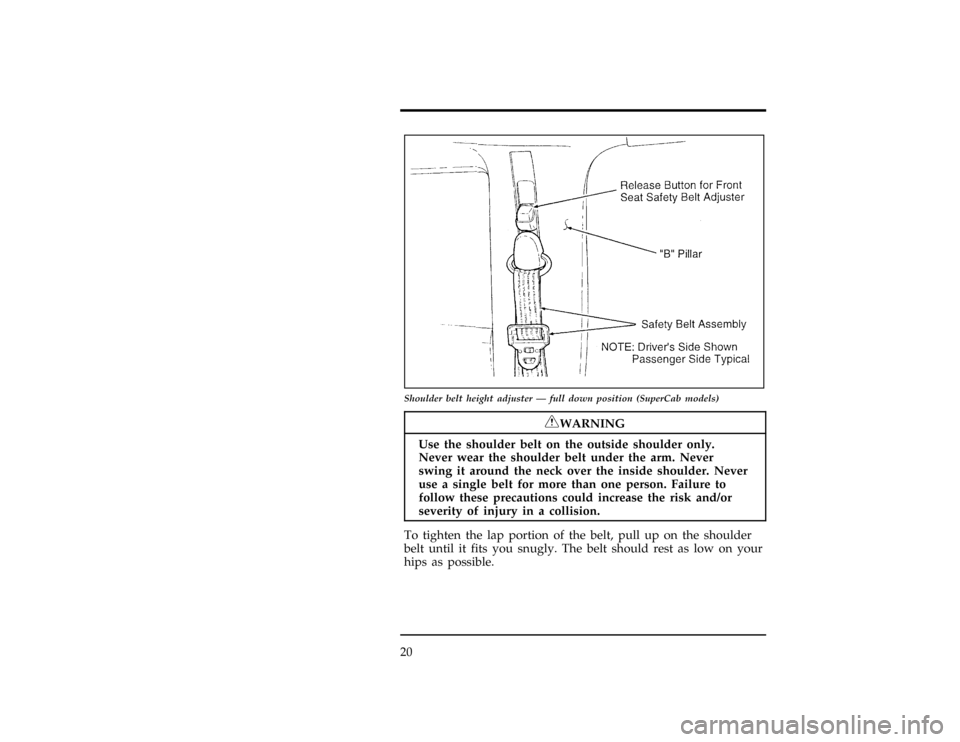

Shoulder belt height adjuster Ð full down position (SuperCab models)
*
[SR03600(ALL)05/95]
RWARNING
Use the shoulder belt on the outside shoulder only.
Never wear the shoulder belt under the arm. Never
swing it around the neck over the inside shoulder. Never
use a single belt for more than one person. Failure to
follow these precautions could increase the risk and/or
severity of injury in a collision.
*
[SR03700(ALL)05/95]
To tighten the lap portion of the belt, pull up on the shoulder
belt until it fits you snugly. The belt should rest as low on your
hips as possible.
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996
Page 23 of 369
![FORD RANGER 1996 2.G Owners Manual Safety Restraints
21
[SR03800(ALL)06/95]
10-1/2 pica
art:0021301-A

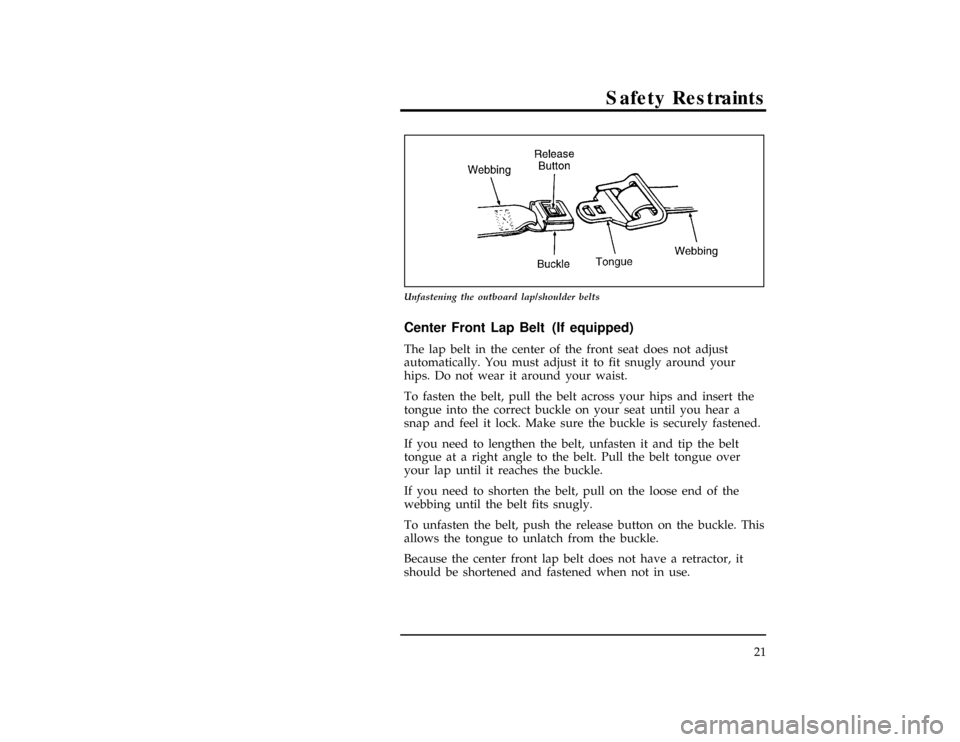

Unfastening the outboard lap/shoulder belts
[SR05800(ALL)08/94]
Center Front Lap Belt (If equipped)
[SR05900(ALL)10/90]
The lap belt FORD RANGER 1996 2.G Owners Manual Safety Restraints
21
[SR03800(ALL)06/95]
10-1/2 pica
art:0021301-A
Unfastening the outboard lap/shoulder belts
[SR05800(ALL)08/94]
Center Front Lap Belt (If equipped)
[SR05900(ALL)10/90]
The lap belt](/manual-img/11/5330/w960_5330-22.png)
Safety Restraints
21
[SR03800(ALL)06/95]
10-1/2 pica
art:0021301-A
Unfastening the outboard lap/shoulder belts
[SR05800(ALL)08/94]
Center Front Lap Belt (If equipped)
[SR05900(ALL)10/90]
The lap belt in the center of the front seat does not adjust
automatically. You must adjust it to fit snugly around your
hips. Do not wear it around your waist.
*
[SR05950(ALL)06/95]
To fasten the belt, pull the belt across your hips and insert the
tongue into the correct buckle on your seat until you hear a
snap and feel it lock. Make sure the buckle is securely fastened.
%*
[SR06100(ALL)06/95]
If you need to lengthen the belt, unfasten it and tip the belt
tongue at a right angle to the belt. Pull the belt tongue over
your lap until it reaches the buckle.
*
[SR06400(ALL)06/95]
If you need to shorten the belt, pull on the loose end of the
webbing until the belt fits snugly.
[SR06500(ALL)10/90]
To unfasten the belt, push the release button on the buckle. This
allows the tongue to unlatch from the buckle.
[SR06600(ALL)06/95]
Because the center front lap belt does not have a retractor, it
should be shortened and fastened when not in use.
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996
Page 24 of 369
22
[SR06700(ALL)05/94]
10-1/2 pica
art:0021123-A
Fastening and unfastening the front center safety belt
*
[SR06800(ALL)07/95]
RWARNING
The lap belts should fit snugly and as low as possible
around the hips, not around the waist.
[SR07900(ALL)10/90]
Rear Lap Belt with Retractor
[SR08000(ALL)12/89]
Pull the belt out of the retractor with a steady motion and insert
the tongue into the proper buckle until you hear a snap and
feel the latch engage.
*
[SR08500(ALL)05/95]
To Unfasten the Safety Belts with Retractors:
*
[SR08600(ALL)08/95]1.
Push the release button on the buckle. This allows the
tongue to unlatch from the buckle.
*
[SR08700(ALL)03/95]2.
While the belt retracts, guide the tongue to its stowed
position. If you do not guide the tongue, it may strike you
or part of the vehicle.
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996
