1996 FORD RANGER Owners Manual

Features
121
[FV48000(ALL)10/94]
To inflate the lumbar support pad, push the ª+º end of the rear
rocker switch. To deflate the lumbar support pad, push the ªsº
end of the switch.
[FV48300(ALL)08/94]
10-1/2 pica
art:0021169-C

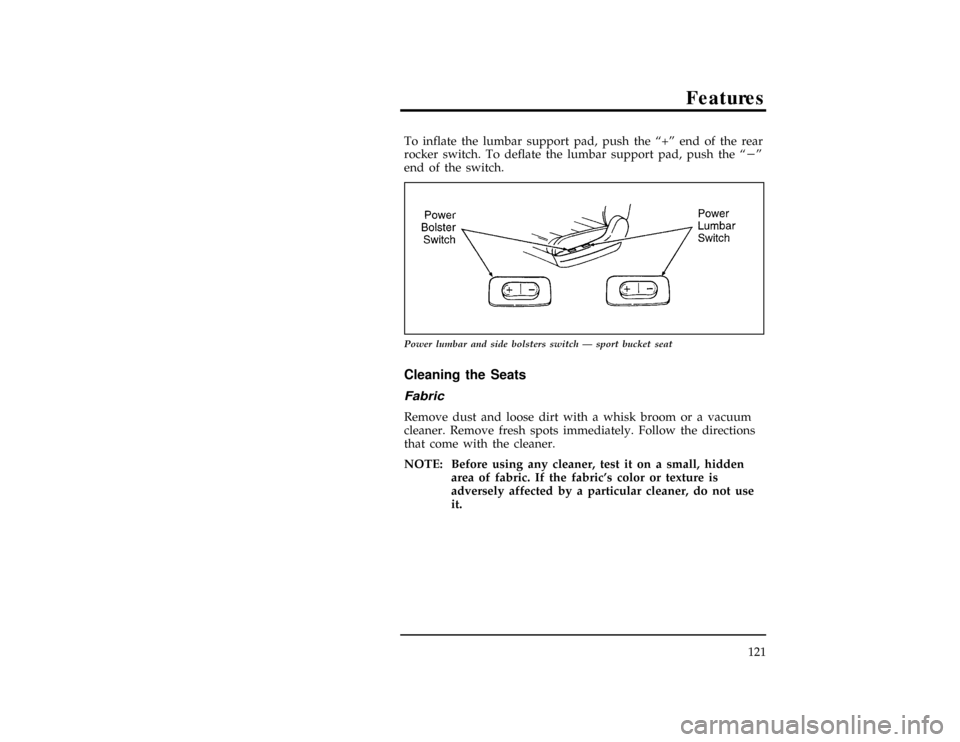

Power lumbar and side bolsters switch Ð sport bucket seat
%*
[FV48310(ALL)04/95]
Cleaning the Seats
%*
[FV48315(ALL)04/95]
Fabric
*
[FV48320(ALL)05/95]
Remove dust and loose dirt with a whisk broom or a vacuum
cleaner. Remove fresh spots immediately. Follow the directions
that come with the cleaner.
*
[FV48325(ALL)09/95]
NOTE: Before using any cleaner, test it on a small, hidden
area of fabric. If the fabric's color or texture is
adversely affected by a particular cleaner, do not use
it.
File:08unfvr.ex
Update:Wed May 1 13:48:36 1996

122
%*
[FV50000(ALL)01/95]
Mirrors
%*
[FV54500(ALL)08/91]
Dual Electric Remote Control Mirrors (If equipped)
*
[FV54600(ALL)08/91]
To adjust the remote controlled side mirrors:
*
[FV54800(ALL)01/95]1.
Find the control switch in the driver's door panel.
[FV55000(ALL)10/94]2.
Select the right or left mirror by moving the selector switch
to the right or left.
*
[FV55200(ALL)01/89]3.
Move the control knob in the direction you want to move
the mirror.
*
[FV55400(ALL)06/94]4.
Return the selector switch to the middle position to keep the
mirror in place.
[FV55500(ALL)04/95]
7-1/2 pica art:0090159-A

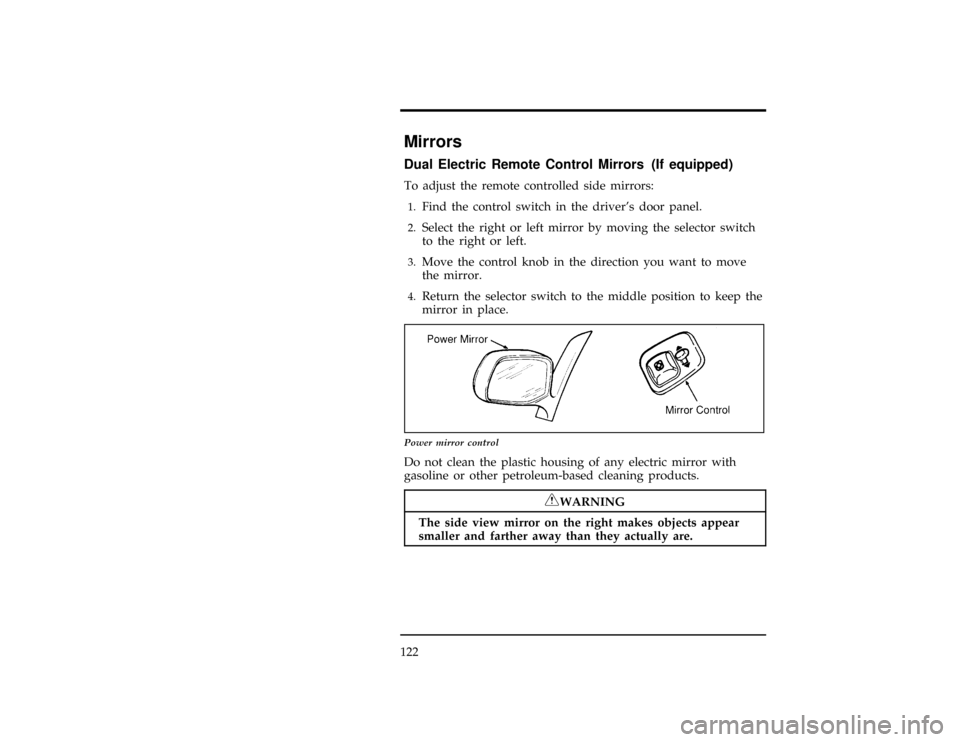

Power mirror control
*
[FV55900(ALL)12/91]
Do not clean the plastic housing of any electric mirror with
gasoline or other petroleum-based cleaning products.
*
[FV55950(ALL)05/95]
RWARNING
The side view mirror on the right makes objects appear
smaller and farther away than they actually are.
File:08unfvr.ex
Update:Wed May 1 13:48:36 1996

Features
123
[FV59400(ALL)08/94]
Console (If equipped)
*
[FV59500(ALL)12/91]
Your vehicle may have a full console. The full console has the
features shown in the illustration below.
[FV59700(ALL)07/95]
17-1/2 pica
art:0090211-A

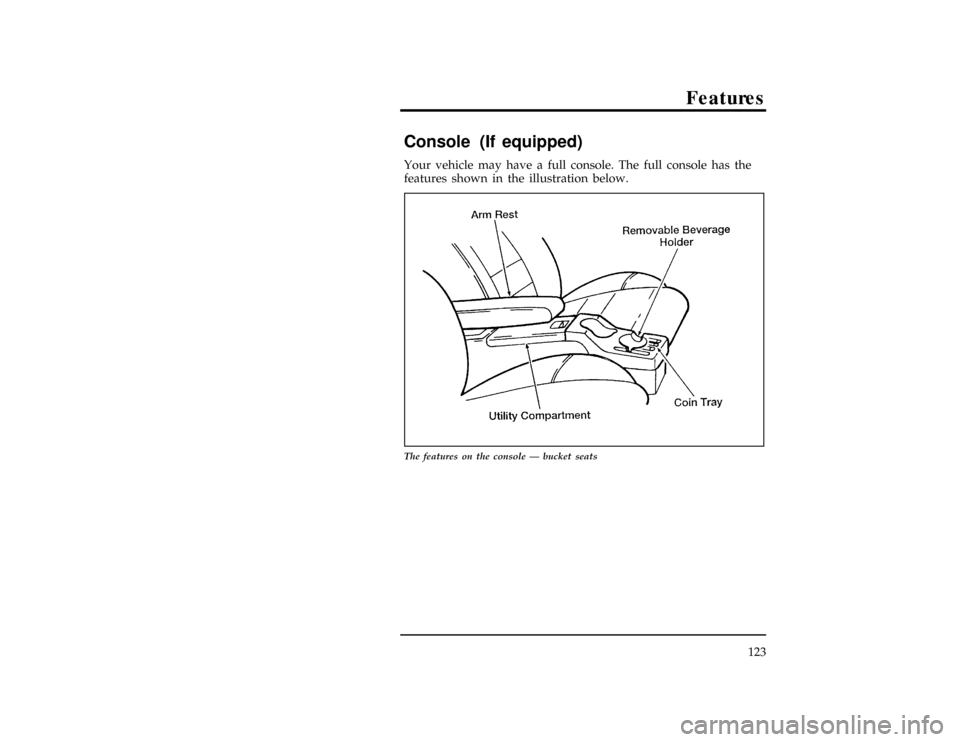

The features on the console Ð bucket seats
File:08unfvr.ex
Update:Wed May 1 13:48:36 1996

124
[FV59800(ALL)04/94]
17-1/2 pica
art:0020896-C

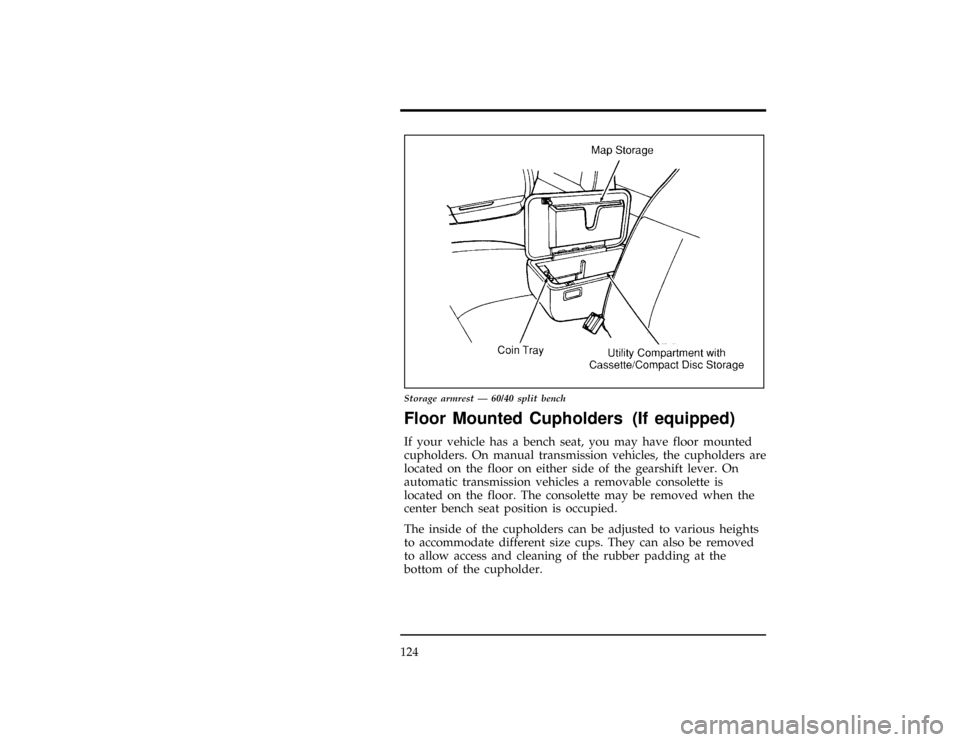

Storage armrest Ð 60/40 split bench
[FV66700(R )08/95]
Floor Mounted Cupholders (If equipped)
[FV66900(R )08/94]
If your vehicle has a bench seat, you may have floor mounted
cupholders. On manual transmission vehicles, the cupholders are
located on the floor on either side of the gearshift lever. On
automatic transmission vehicles a removable consolette is
located on the floor. The consolette may be removed when the
center bench seat position is occupied.
[FV67000(R )09/92]
The inside of the cupholders can be adjusted to various heights
to accommodate different size cups. They can also be removed
to allow access and cleaning of the rubber padding at the
bottom of the cupholder.
File:08unfvr.ex
Update:Wed May 1 13:48:36 1996

Features
125
[FV67200(R )10/94]
10-1/2 pica
art:0020897-D

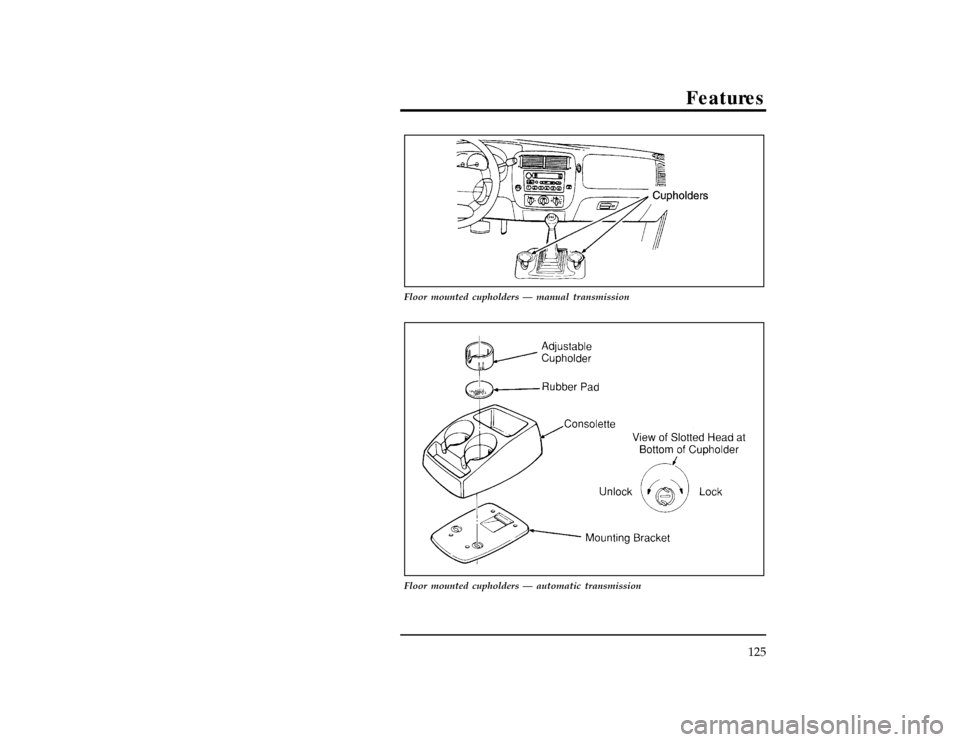

Floor mounted cupholders Ð manual transmission
[FV67300(R )04/94]
17-1/2 pica
art:0020962-B
Floor mounted cupholders Ð automatic transmission
File:08unfvr.ex
Update:Wed May 1 13:48:36 1996

126
[FV67400(R )06/94]
To remove the automatic transmission consolette:
[FV67500(R )09/92]1.
Pull the adjustable portion of each cupholder from the
consolette.
[FV67600(R )09/92]2.
Remove the rubber pad at the bottom of each cupholder.
[FV67700(R )09/92]3.
Using a quarter, turn the slotted head at the bottom of each
cupholder 90Ê (one quarter turn).
[FV67800(R )09/92]4.
Lift the consolette from the floor and secure it in a safe
place.
%*
[FV69900(ALL)03/95]
Power Point Electrical Outlet
[FV70000(ALL)08/94]
The power point outlet should be used in place of the cigarette
lighter for optional electrical accessories.
[FV70100(ALL)09/95]
NOTE: Do not plug optional electrical accessories into the
cigarette lighter. Use the power point.
[FV70200(ALL)10/94]
7-1/2 pica art:0020260-E

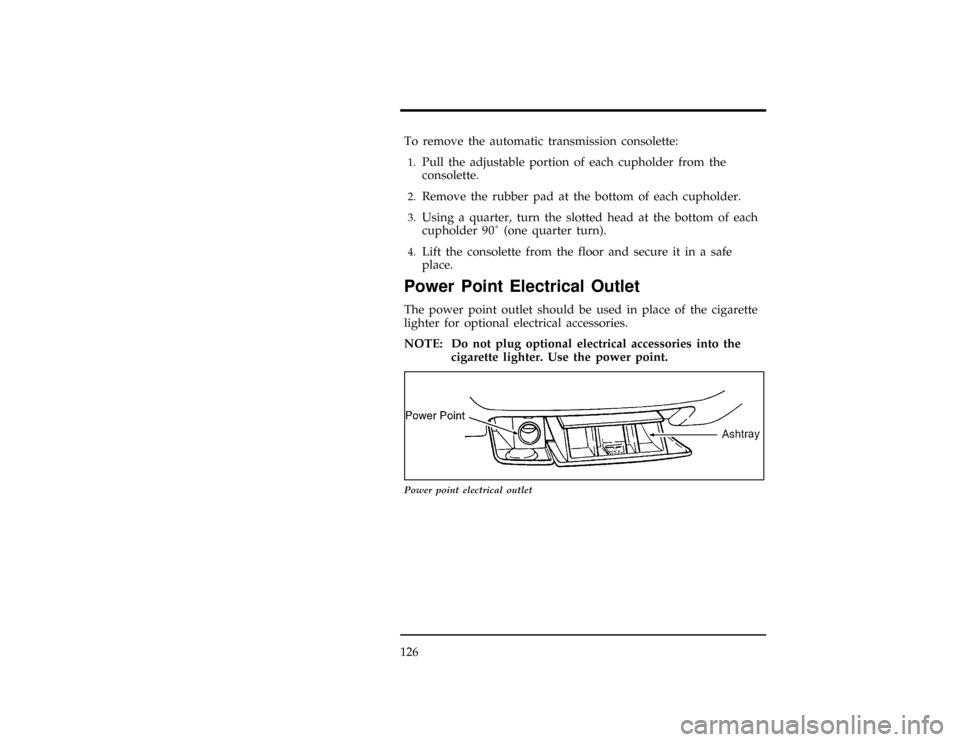

Power point electrical outlet
File:08unfvr.ex
Update:Wed May 1 13:48:36 1996

127
Electronic Sound Systems
[AS29210(ALL)05/95]
33-1/2 pica
art:0060681-A

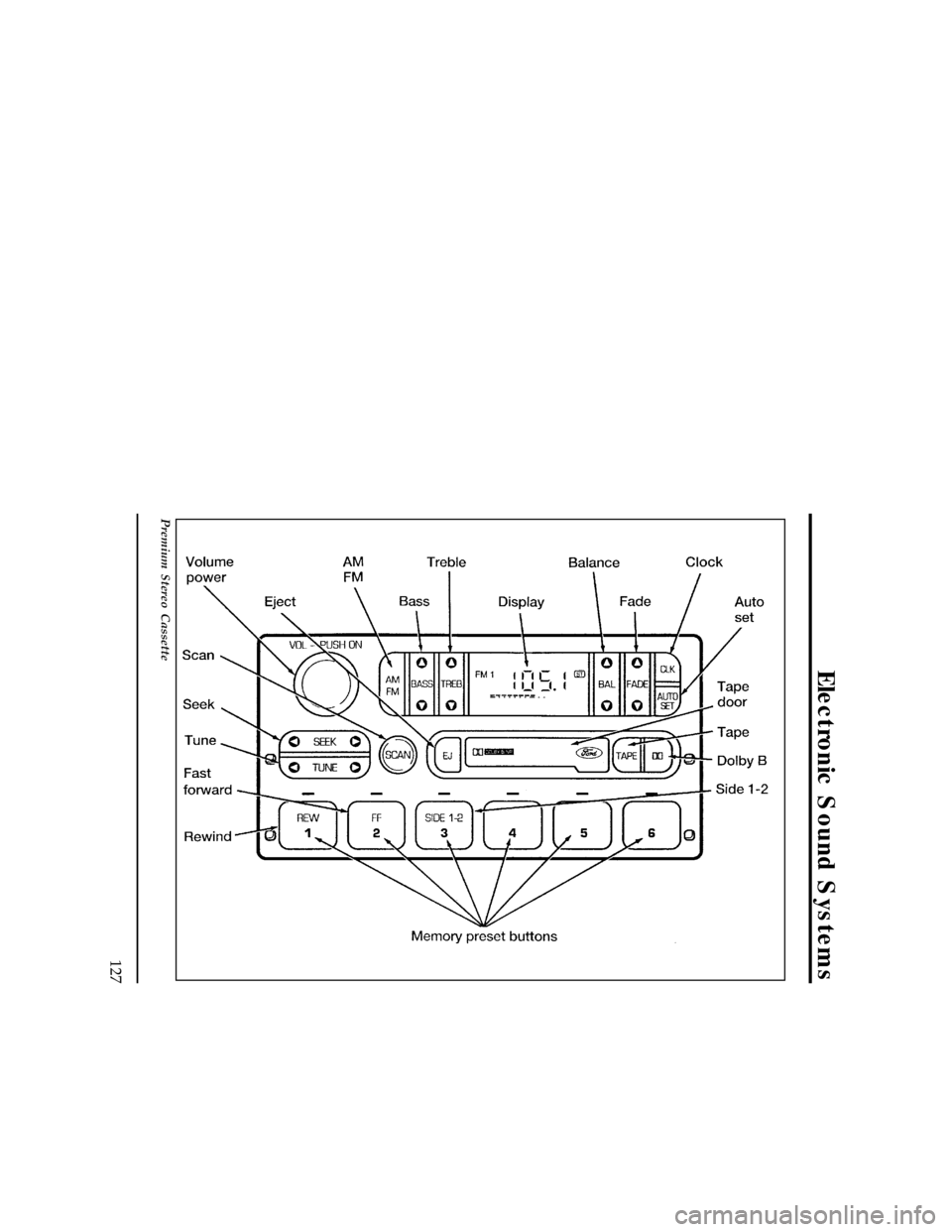

Premium Stereo Cassette
File:09unasr.ex
Update:Wed May 1 13:49:43 1996

128
[AS29215(ALL)09/94]
33-1/2 pica
art:0060682-A

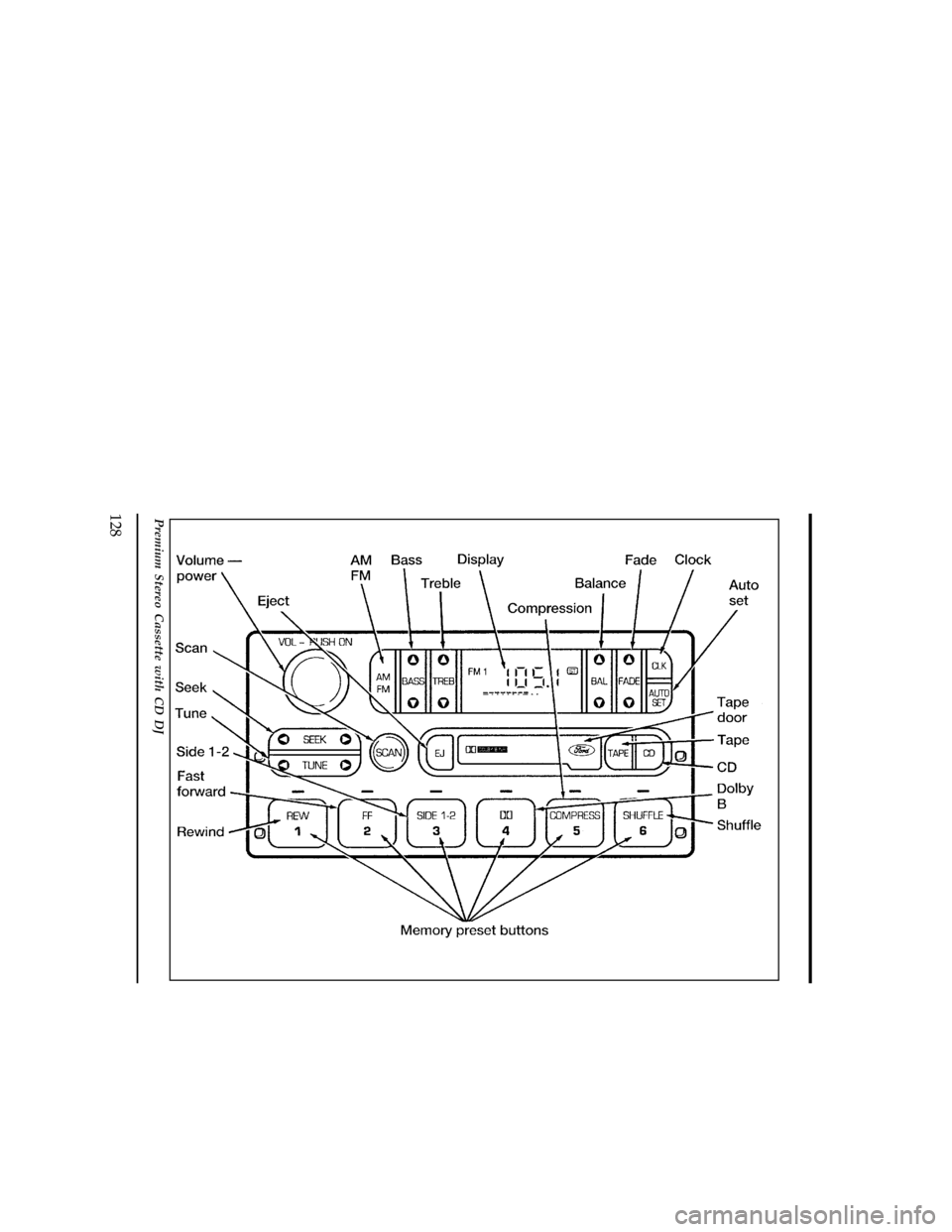

Premium Stereo Cassette with CD DJ
