226 [SV41200(ALL)07/93]7. Carefully remove the bulb assembly from its
socket by gently pulling the assembly
rearward without turning.
[SV41300(ALL)07/95]
half page art:0032238-B
Headlamp bulb assembly location
[SV41400(ALL)05/93]
one third page art:0032239-A
Headlamp bulb assembly removal
File:15icsvf.ex
Update:Wed Jan 24 14:56:41 1996

227
*
[SV41500(ALL)03/95]
Installing the headlamp bulb
[SV41600(ALL)07/93]
1. Insert the glass end of the bulb assembly
into the socket.
[SV41650(ALL)05/93]
2. Secure the bulb assembly in place with the
metal retaining clip.
[SV41675(ALL)05/93]
3. Attach the rubber boot over the bulb
assembly.
[SV41700(ALL)05/93]
4. Slip the bulb retaining ring over the boot
and bulb assembly. Lock the ring into the
socket by rotating it clockwise until you feel
a ªstopº.
[SV41800(ALL)05/93]
5. Push the electrical connector into the rear of
the bulb assembly until it locks into position.
[SV41900(ALL)02/95]
6. Turn the headlamps on and make sure they
work properly. If the headlamp was
correctly aligned before you changed the
bulb, you should not need to align it again.
*
[SV42000(ALL)02/95]
High-Mount Brakelamp Bulbs
[SV42100(ALL)02/95]
To replace the high-mount brakelamp bulb, refer
to the instructions below or take your vehicle to
your Ford dealer or a qualified technician.
[SV42200(ALL)05/94]
To remove the high-mount brakelamp:
[SV42300(ALL)05/93]
1. Disconnect the negative battery cable.
[SV42400(ALL)05/94]
2. Raise the hatchback.
[SV42450(ALL)05/94]
3. Use a Phillips screwdriver to remove three
attaching screws from the rear wiper motor
cover (if equipped). Lay the cover aside.
[SV42600(ALL)05/94]
4. Gently pull the hatchback trim panel away
from the hatchback.
[SV42700(ALL)05/94]
5. Disconnect the luggage compartment lamp
electrical connector (if equipped) and lay the
trim panel aside.
File:15icsvf.ex
Update:Wed Jan 24 14:56:41 1996

228 [SV42800(ALL)05/94]6. Rotate the high-mount lamp socket
counterclockwise and remove it from the
housing.
[SV42900(ALL)05/94]
7. Carefully remove the bulb by gently pulling
it straight from the socket.
*
[SV43000(ALL)03/95]
To install a bulb:
[SV43100(ALL)05/94]
1. Firmly install the replacement bulb into the
socket.
[SV43200(ALL)05/94]
2. Place the socket assembly in the high-mount
stoplamp housing and turn clockwise to lock
into position.
[SV43300(ALL)05/94]
3. Position the hatchback trim panel and
connect the luggage compartment lamp
electrical connector (if equipped).
[SV43400(ALL)05/94]
4. Insert the trim panel retaining clips into the
locating holes in the hatchback and push
each clip firmly into position.
[SV43500(ALL)05/94]
5. Install the rear wiper motor cover (if
equipped).
[SV43600(ALL)05/94]
6. Close the hatchback and reconnect the
negative battery cable.
File:15icsvf.ex
Update:Wed Jan 24 14:56:41 1996

229
*
[SV47200(ALL)03/95]

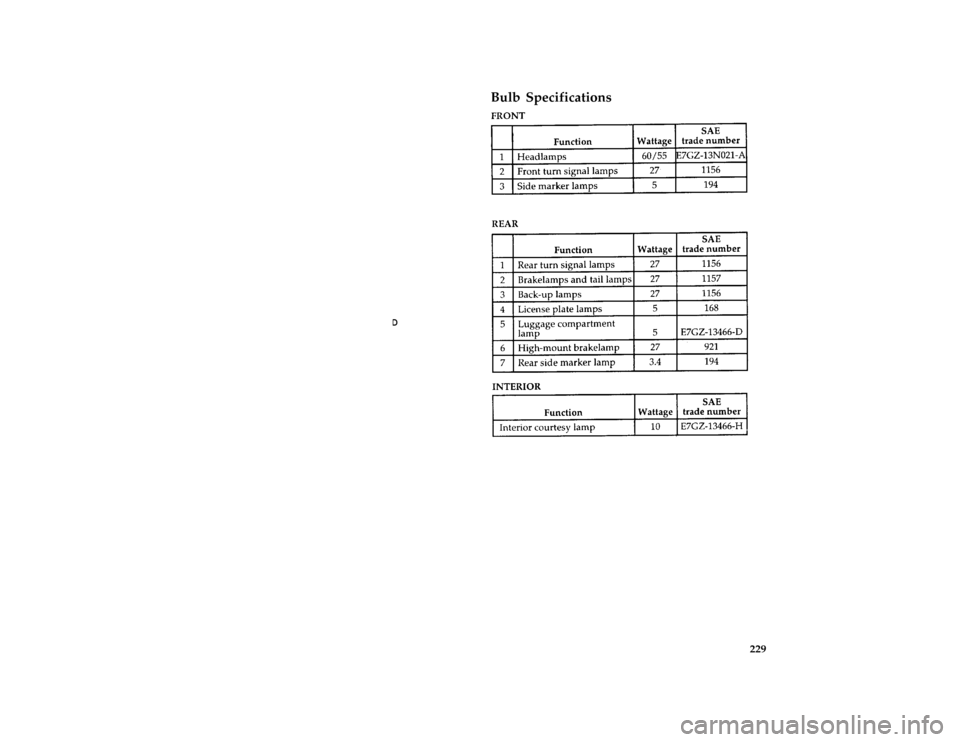

Bulb Specifications
[SV47500(ALL)04/95]
twenty-eight pica chart:0032221-DFile:15icsvf.ex
Update:Wed Jan 24 14:56:41 1996

230
*
[SV47600(ALL)03/95]
Emission Control System
*
[SV47700(ALL)05/95]
Your vehicle is equipped with a catalytic
converter which enables your vehicle to comply
with applicable exhaust emission requirements.
*
[SV47750(ALL)06/95]
RWARNING
Exhaust leaks may result in the entry of
harmful and potentially lethal fumes into
the passenger compartment. Under
extreme conditions excessive exhaust
temperatures could damage the fuel
system, the interior floor covering, or
other vehicle components, possibly
causing a fire.
*
[SV47800(ALL)05/95]
To make sure that the catalytic converter and the
other emission control parts continue to work
properly:
*
[SV47900(ALL)01/95]
q
Use only unleaded fuel.
*
[SV48000(ALL)01/95]
q
Avoid running out of fuel.
*
[SV48100(ALL)01/95]
q
Do not turn off the ignition while your
vehicle is moving, especially at high speeds.
*
[SV48200(ALL)03/95]
q
Have the services listed in yourMaintenance
Schedule and Recordbooklet performed
according to the specified schedule.
*
[SV48300(ALL)05/95]
RWARNING
Do not park, idle, or drive your vehicle in
dry grass or other dry ground cover. The
emission system heats up the engine
compartment and exhaust system, which
can start a fire.
File:15icsvf.ex
Update:Wed Jan 24 14:56:41 1996

231
*
[SV48400(ALL)05/95]
Watch for fluid leaks, strange odors, smoke, loss
of oil pressure, the charge warning light, the
check engine light, or the temperature warning
light. These sometimes indicate that the emission
system is not working properly.
*
[SV48500(ALL)01/95]
Do not make any unauthorized changes to your
vehicle or engine. Changes that cause more
unburned fuel to reach the exhaust system can
increase the temperature of the engine or
exhaust system.
*
[SV48550(ALL)03/95]
In general, maintenance, replacement, or service
of the emissions control devices or systems in
your new Ford Motor Company vehicle or
engine may be performed at your expense by
any automotive repair establishment or
individual using automotive parts equivalent to
those which your vehicle or engine was
originally equipped.
*
[SV48575(ALL)05/95]
If other than Ford or Motorcraft or Ford
authorized remanufactured parts are used for
maintenance, replacement, or for the service of
components affecting emissions control, the
owner should be assured that such parts are
warranted by their manufacturer to be
equivalent to genuine Ford Motor Company
parts in performance and durability. Please
consult your warranty information booklet for
complete warranty information.
*
[SV48600(ALL)01/95]
By law, anyone who manufactures, repairs,
services, sells, leases, trades vehicles, or
supervises a fleet of vehicles is not permitted to
intentionally remove an emission control device
or prevent it from working. In some of the
United States and in Canada, vehicle owners
may be liable if their emission control device is
removed or is prevented from working.
File:15icsvf.ex
Update:Wed Jan 24 14:56:41 1996

232
*
[SV48700(ALL)02/92]
Never use a metal exhaust collector when you
service your vehicle. If the metal collector
contacts any of your vehicle's plastic trim or
bumper parts they could melt or deform.
*
[SV48800(ALL)01/95]
Do not drive your vehicle if it does not operate
properly. See your dealer if the engine runs on
for more than five seconds after you shut it off
or if it misfires, surges, stalls, or backfires.
%*
[SV48900(ALL)05/95]
Information about your vehicle's emission
control system is on the Vehicle Emission
Control Information decal located on or near the
engine. This decal identifies engine displacement
and gives some tune-up specifications.
%*
[SV48910(ALL)07/95]
Readiness for Inspection/Maintenance
Testing
*
[SV48920(ALL)07/95]
In some localities it may become a legal
requirement to pass an Inspection/
Maintenance (I/M) test of the On-Board
Diagnostic (OBD) II system. If the vehicle's
powertrain system or its battery has just been
serviced, the OBD II system is reset to a not
ready for I/M testing condition. To prepare for
I/M testing, the law specifies a ªneed for
additional mixed city and highway driving to
complete the checkº of the OBD II system. As
soon as all of the OBD II system checks are
successfully completed, the OBD II system is set
to the ready condition. The amount of driving
required to reach the ready condition varies with
individual driving patterns. To complete this
requirement in the minimum amount of time,
refer to the OBD II Drive Cycle defined below. If
the vehicle owner cannot or does not want to do
the additional driving required by law, a service
center can perform this drive cycle as it would
any other type of repair work.
File:15icsvf.ex
Update:Wed Jan 24 14:56:41 1996

233
*
[SV48930(ALL)07/95]
OBD II Drive Cycle
[SV48932(ALL)07/95]
The following steps must be run in the order
shown. If any steps are interrupted, repeat the
preceding step. Any safe driving mode is
acceptable between steps.
[SV48934(ALL)07/95]
Always drive vehicle in safe manner according
to traffic conditions and obey all traffic laws.
*
[SV48940(ALL)07/95]
The engine must be warmed up and at
operating temperature before proceeding with
the drive modes of the following OBD II Drive
Cycle.
*
[SV48950(ALL)07/95]
1. Start the engine. Drive or idle in N (neutral)
the vehicle for 4 minutes.
[SV48960(ALL)07/95]
2. Idle the vehicle in D (drive) or N (neutral)
for manual transaxle for 40 seconds.
*
[SV48970(ALL)07/95]
3. Accelerate the vehicle to 45 mph (70 km/h)
at 1/4 to 1/2 throttle for 10 seconds.
*
[SV48980(ALL)07/95]
4. Drive the vehicle with a steady throttle at
45 mph (70 km/h) for 30 seconds.
*
[SV48990(ALL)07/95]
5. Idle the vehicle in Drive (Neutral for manual
transmissions) for 40 seconds.
*
[SV49000(ALL)07/95]
6. Continue to drive the vehicle in city traffic at
speeds between 25 and 40 mph
(40-60 km/h) for 15 minutes. During the 15
minute drive cycle the following modes must
be achieved:
*
[SV49010(ALL)07/95]
a. at least 5 stop and idle modes at 10
seconds each
*
[SV49020(ALL)07/95]
b. acceleration from idles at 1/4 to 1/2
throttle position, and
*
[SV49030(ALL)07/95]
c. choose 3 different speeds to do 1.5
minute steady state throttle drives.
File:15icsvf.ex
