1996 FORD ASPIRE Owners Manual

234
*
[SV49040(ALL)07/95]
7. Accelerate the vehicle up to between 45 and
60 mph (70-100 km/h). This should take
approximately 5 minutes.
*
[SV49050(ALL)07/95]
8. Drive vehicle and hold the throttle steady at
the selected speed between 45 and 60 mph
(70-100 km/h) for approximately 5 minutes.
*
[SV49060(ALL)07/95]
9. Drive the vehicle for 5 minutes at varying
speeds between 45 and 60 mph
(70-100 km/h).
*
[SV49070(ALL)07/95]
10. Bring the vehicle back to idle. Idle in Drive
for 40 seconds.
*
[SV49080(ALL)07/95]
11. OBD II drive cycle has been completed.
Vehicle can be turned off when convenient.
*
[SV49090(ALL)07/95]
Refill Capacities, Motorcraft Parts,
and Lubricant Specifications
*
[SV49100(ALL)01/89]

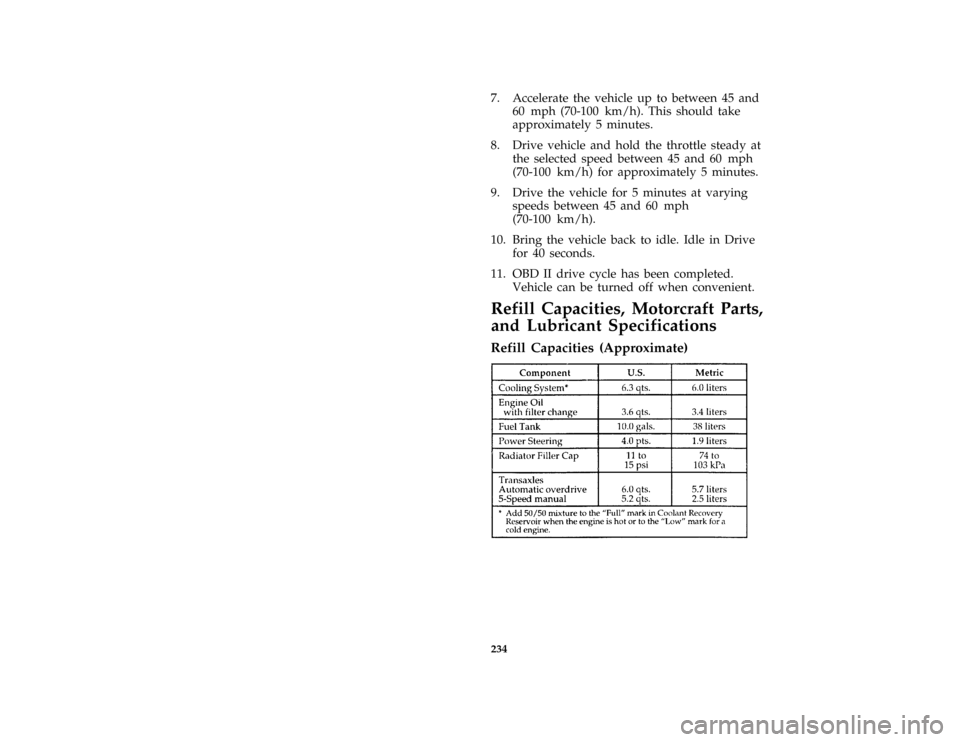

Refill Capacities (Approximate)
[SV49400(ALL)07/95]
fourteen pica chart:0032222-HFile:15icsvf.ex
Update:Wed Jan 24 14:56:41 1996

235
*
[SV49500(ALL)05/95]

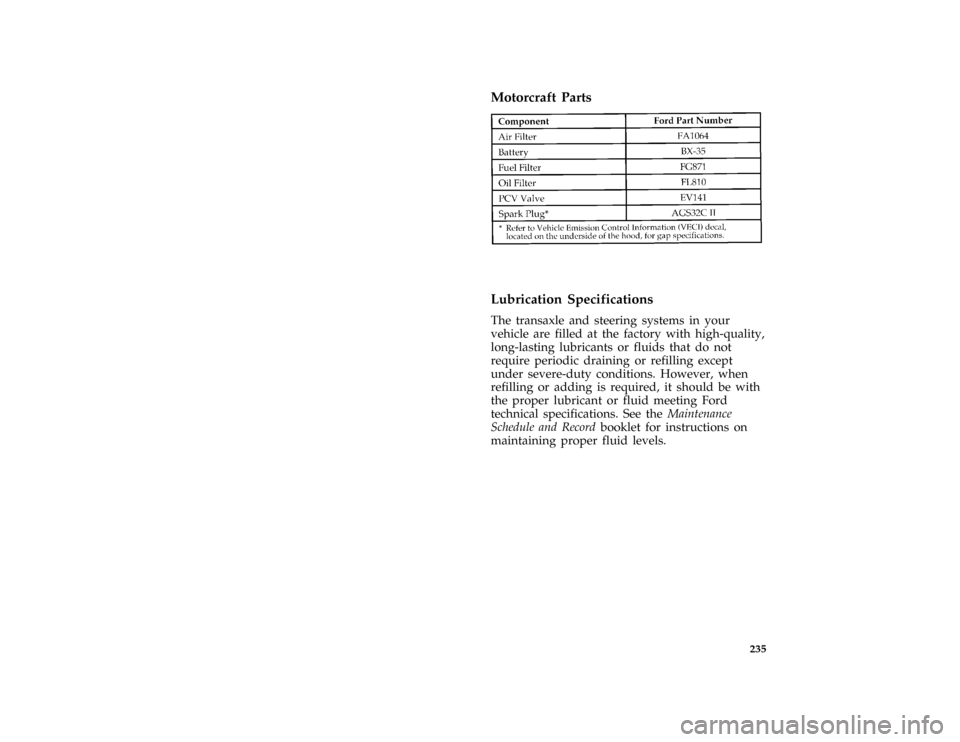

Motorcraft Parts
[SV49800(ALL)05/94]
twelve pica chart:0030288-H*
[SV49900(ALL)01/89]
Lubrication Specifications
*
[SV50000(ALL)07/93]
The transaxle and steering systems in your
vehicle are filled at the factory with high-quality,
long-lasting lubricants or fluids that do not
require periodic draining or refilling except
under severe-duty conditions. However, when
refilling or adding is required, it should be with
the proper lubricant or fluid meeting Ford
technical specifications. See theMaintenance
Schedule and Recordbooklet for instructions on
maintaining proper fluid levels.
File:15icsvf.ex
Update:Wed Jan 24 14:56:41 1996

236
*
[SV50025(ALL)03/95]

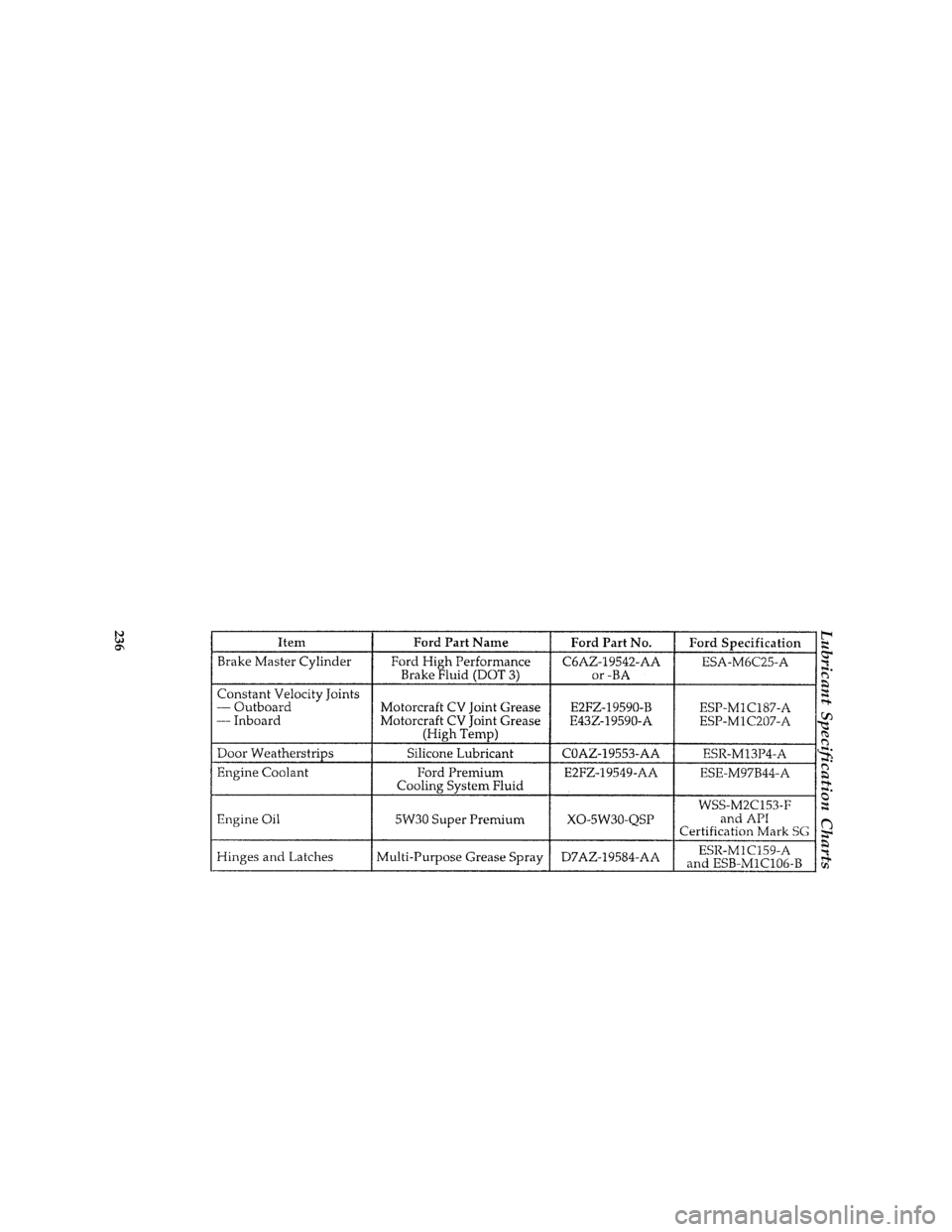

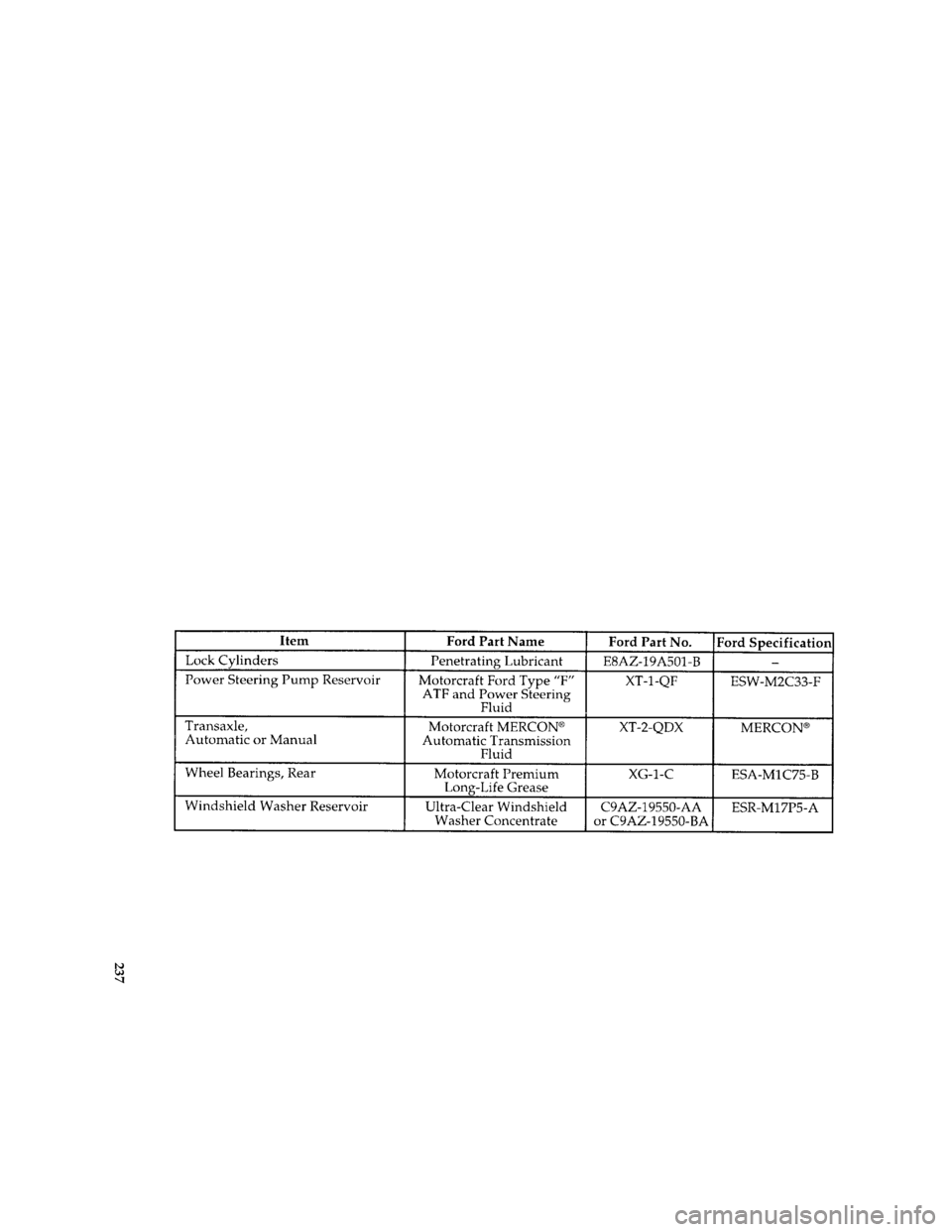

Lubricant Specification Charts
[SV50500(ALL)09/95]
thirty-six pica chart:0030293-IFile:15icsvf.ex
Update:Wed Jan 24 14:56:41 1996

237 [SV50600(ALL)04/95]
thirty-six pica chart:0030294-F
File:15icsvf.ex
Update:Wed Jan 24 14:56:41 1996

238
*
[SV50700(ALL)01/95]
Vehicle Storage
*
[SV50800(ALL)01/95]
Maintenance Tips
*
[SV50900(ALL)01/95]
If you plan on storing your vehicle for an
extended period of time (60 days or more), refer
to the following maintenance recommendations
to ensure your vehicle stays in good operating
condition.
*
[SV51000(ALL)01/95]
General
*
[SV51100(ALL)01/95]
q
Store all vehicles in a dry, ventilated place.
*
[SV51200(ALL)01/95]
q
Protect from sunlight, if possible.
*
[SV51300(ALL)01/95]
q
If vehicles are stored outside, they require
regular maintenance to protect against rust
and damage.
*
[SV51400(ALL)01/95]
Body
*
[SV51500(ALL)01/95]
q
Wash vehicle thoroughly to remove dirt,
grease, oil, tar or mud from exterior surfaces,
rear wheel housing and underside of front
fenders.
*
[SV51600(ALL)01/95]
q
Periodically wash vehicles stored in exposed
locations.
*
[SV51700(ALL)01/95]
q
Touch-up raw or primed metal to prevent
rust.
*
[SV51800(ALL)01/95]
q
Cover chrome and stainless steel parts with a
thick coat of auto wax to prevent
discoloration. Re-wax as necessary when the
vehicle is washed.
*
[SV51900(ALL)04/95]
q
Lubricate all hood, door and trunk lid hinges
and latches with a light grade oil.
*
[SV52000(ALL)01/95]
q
Cover interior soft trim to prevent fading.
*
[SV52100(ALL)01/95]
q
Keep all rubber parts free from oil and
solvents.
File:15icsvf.ex
Update:Wed Jan 24 14:56:41 1996

239 %
*
[SV52200(ALL)01/95]
Engine
*
[SV52300(ALL)01/95]
q
Start engine every 15 days. Run at fast idle
until it reaches normal operating temperature.
*
[SV52400(ALL)01/95]
q
With your foot on the brake, shift through all
the gears while the engine is running.
%*
[SV52500(ALL)01/95]
Fuel system
%*
[SV52600(ALL)07/94]
q
Fill fuel tank with high-quality unleaded fuel
until the first automatic shutoff of the fuel
pump nozzle.
*
[SV52800(ALL)03/95]
NOTE: During extended periods of vehicle
storage (60 days or more), fuel may
deteriorate due to oxidation. This can
damage rubber and other polymers in
the fuel system and may also clog
small orifices.
*
[SV52900(ALL)01/95]
Ford Gas Stabilizer should be added whenever
actual or expected storage periods exceed 60
days. Follow the instructions on the label. The
vehicle should then be operated at idle speed to
circulate the additive throughout the fuel system.
*
[SV53000(ALL)01/95]
A volatile corrosion inhibitor added to the fuel
system will protect the fuel system's inner
surfaces from corrosion. Follow the instructions
packaged with the product.
%*
[SV53100(ALL)01/95]
Cooling system
*
[SV53200(ALL)01/95]
q
Protect against freezing temperatures.
%*
[SV53300(ALL)01/95]
Battery
*
[SV53400(ALL)01/95]
q
Check and recharge as necessary.
*
[SV53500(ALL)01/95]
q
Keep connections clean and covered with a
light coat of grease.
File:15icsvf.ex
Update:Wed Jan 24 14:56:41 1996

240 %
*
[SV53600(ALL)01/95]
Brakes
*
[SV53700(ALL)01/95]
q
Make sure brakes and parking brake are fully
released.
%*
[SV53800(ALL)01/95]
Tires
*
[SV53900(ALL)05/95]
q
Maintain recommended air pressure.
*
[SV54000(ALL)01/95]
Miscellaneous
*
[SV54100(ALL)01/95]
q
Make sure all linkages, cables, levers and
clevis pins under vehicle are covered with
grease to prevent rust.
*
[SV54200(ALL)05/95]
q
Move vehicles at least 25 feet (10 m) every 15
days to lubricate working parts to prevent
corrosion.
File:15icsvf.ex
Update:Wed Jan 24 14:56:41 1996

241
*
[SV99900(ALL)05/95]
thirty-six pica chart:FORDADPLN
File:15icsvf.ex
Update:Wed Jan 24 14:56:41 1996
