1996 FORD ASPIRE Owners Manual

96
*
[FV09450(ALL)01/95]
Seatback Recline
*
[FV09500(ALL)01/92]
To recline the seatback:
[FV09600(ALL)01/92]
1. Find the seatback recline lever located on the
outside of the seat, toward the rear.
[FV09700(ALL)01/89]
2. Lean forward slightly and lift up on the
lever.
[FV09800(ALL)01/89]
3. Lean back on the seat and adjust the back of
the seat to the position you desire.
[FV09900(ALL)01/92]
4. Release the lever and make sure the seatback
is locked in place. (The lever MUST return
to its original position for the seatback to
lock.)
[FV09920(ALL)05/93]
one third page art:0032184-B
The lever used to recline the back of the seat
[FV12250(ALL)07/93]
Rear Seat Access
[FV12300(ALL)05/93]
To gain access to the rear seat:
[FV12400(ALL)01/92]
1. Locate the seatback recline lever. The lever is
located on the outside of the seat cushion.
[FV12600(ALL)05/93]
2. Raise the seatback recline lever to tilt the
seatback forward. Raise the seat slide
adjustment lever and move the seat forward
if extra room is needed. The seatback should
automatically lock when returned to its
upright position. Make sure the seatback is
locked in place.
File:08icfvf.ex
Update:Wed Jan 24 14:51:07 1996

97
*
[FV12605(ALL)06/95]
RWARNING
A seatback which is folded forward even
a small degree may not lock properly in
the event of a sudden stop or collision.
% [FV16700(ALL)07/93]
Using the Folding Rear Seat (If equipped)
[FV16800(ALL)05/94]
Your vehicle may be equipped with a
full-folding or split-folding rear seat. In either
case, you can fold down the seatback (or
seatbacks) to provide extra cargo space. If you
have the rear safety belts routed through the
rear safety belt guides on either side of the seats,
the safety belts will not be trapped when the
seats are returned to their upright positions.
*
[FV16900(ALL)01/92]
To fold down the rear seatback:
[FV17000(ALL)07/93]
1. Pull up on the release knob(s) located in the
upper corner(s) of the seatback. The
split-folding rear seat has one knob for each
seatback. The full-folding rear seat has two
knobs, which must both be raised at the
same time to lower the entire seatback.
[FV17100(ALL)03/94]
2. Pull the seatback forward until it is flat.
File:08icfvf.ex
Update:Wed Jan 24 14:51:07 1996

98
*
[FV17200(ALL)12/93]
To raise the rear seatback:
*
[FV17250(ALL)12/93]
1. Push the seatback upward until it locks in
place.
[FV17300(ALL)01/92]
2. Make sure the seatback is firmly locked by
pushing forward and backward on it.
[FV17400(ALL)09/93]
one third page art:0032192-C
Folding down the full-folding rear seatback
[FV17500(ALL)07/93]
one third page art:0032242-A
Folding down the split-folding rear seatback
File:08icfvf.ex
Update:Wed Jan 24 14:51:07 1996

99 [FV17600(ALL)05/93]
Fold-up rear seat cushion (if equipped)
[FV17700(ALL)05/94]
If your vehicle is equipped with the fold-up rear
seat cushion, the rear seat cushion can also be
raised after you fold down the seatback(s) to
provide even more cargo space. After you pull
up the release knobs and fold the seatback(s)
forward, lift up the entire seat and push it
forward. When you return the seat cushion to its
unfolded position, reposition the rear safety belts
so that they can be used by rear seat passengers.
[FV17800(ALL)05/93]
half page art:0030104-C
Folding up the rear seat cushion
*
[FV17900(ALL)05/95]
RWARNING
Securely latch the seatback in the upright
position to prevent the seatback or objects
from being thrown forward during a
sudden stop or collision.
File:08icfvf.ex
Update:Wed Jan 24 14:51:07 1996

100
*
[FV18000(ALL)05/95]
RWARNING
Do not pile cargo higher than the
seatbacks to avoid injuring people in a
collision or sudden stop.
*
[FV18100(ALL)05/95]
RWARNING
Do not remove the floor carpet in your
vehicle. Emission controls cause high
exhaust temperatures under the floor.
[FV18150(ALL)05/93]
NOTE: When returning the folding seats to the
upright position, remember to return
rear shoulder belts to their proper
position. Routing the safety belt
webbing through the rear safety belt
guides will help keep belts from being
trapped behind or under the seats.
*
[FV18160(ALL)04/95]
Cleaning the Seats
[FV18165(ALL)07/95]
Vinyl
*
[FV18170(ALL)04/95]
Wipe the surface with a damp, soft cloth, then
dry and buff with a dry, soft cloth.
%*
[FV18175(ALL)04/95]
Fabric
*
[FV18180(ALL)05/95]
Remove dust and loose dirt with a whisk broom
or a vacuum cleaner. Remove fresh spots
immediately. Follow the directions that come
with the cleaner.
*
[FV18185(ALL)04/95]
NOTE: Before using any cleaner, test it on a
small, hidden area of fabric. If the
fabric's color or texture is adversely
affected by a particular cleaner, do not
use it.
File:08icfvf.ex
Update:Wed Jan 24 14:51:07 1996

101
*
[FV18200(ALL)01/95]
Mirrors
[FV18250(ALL)07/95]
Rearview Mirror
[FV18400(ALL)05/95]
You can adjust your rearview mirror in any
direction. The special swivel bracket lets you
move the mirror up or down and from side to
side.
*
[FV18500(ALL)07/95]
You can tilt the mirror from day to night
position to reduce the glare from the headlamps
of vehicles behind you. Move the tab toward
you for the night position and away from you
for the day position.
[FV18900(ALL)12/93]
one third page art:0030106-B

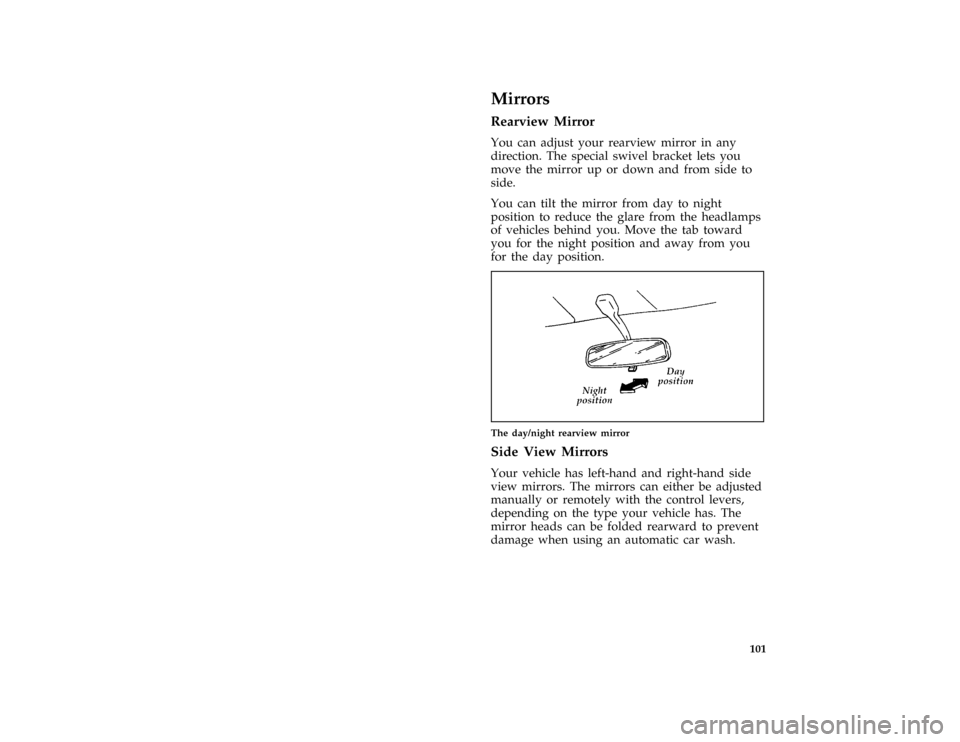

The day/night rearview mirror
*
[FV19100(ALL)05/95]
Side View Mirrors
[FV19150(ALL)02/95]
Your vehicle has left-hand and right-hand side
view mirrors. The mirrors can either be adjusted
manually or remotely with the control levers,
depending on the type your vehicle has. The
mirror heads can be folded rearward to prevent
damage when using an automatic car wash.
File:08icfvf.ex
Update:Wed Jan 24 14:51:07 1996

102 [FV19200(ALL)05/93]
one third page art:0032211-AManual side view mirror
[FV19500(ALL)02/95]
Some models come with a convex side view
mirror on the right-hand side. This mirror gives
you a wider view of the lanes on your right and
behind you.
*
[FV19600(ALL)05/95]
RWARNING
The side view mirror on the right makes
objects appear smaller and farther away
than they actually are.
*
[FV21200(ALL)05/95]
Sun Visors
[FV21300(ALL)05/95]
To block bright sunlight shining through your
windshield, simply pull the sun visor down. The
sun visor can also be pivoted to the side
window to block sunlight from that direction.
File:08icfvf.ex
Update:Wed Jan 24 14:51:07 1996

103
[FV24450(ALL)07/93]
Cupholders
[FV24550(ALL)03/94]
Your vehicle has cupholders located just above
the ashtray in the center of the instrument panel.
[FV24570(ALL)03/94]
one third page art:0032210-A
Cupholders
[FV24590(ALL)05/93]
NOTE: Do not place heavy objects in the
cupholders.
*
[FV24650(ALL)01/95]
Storage Compartments
*
[FV24700(ALL)01/95]
Your vehicle may have several small storage
compartments:
*
[FV24800(ALL)09/93]
q
two map pockets on the door panels (if
equipped)
[FV25400(ALL)08/91]
q
a glove compartment (non-locking)
*
[FV25550(ALL)11/91]
q
a storage bin in the center console
*
[FV25600(ALL)05/95]
RWARNING
Do not put objects on the ledge between
the back seat and the rear window, as
they can become dangerous projectiles and
injure someone.
File:08icfvf.ex
Update:Wed Jan 24 14:51:07 1996
