1996 FORD ASPIRE wiper fluid

86 [SC04000(ALL)05/93]

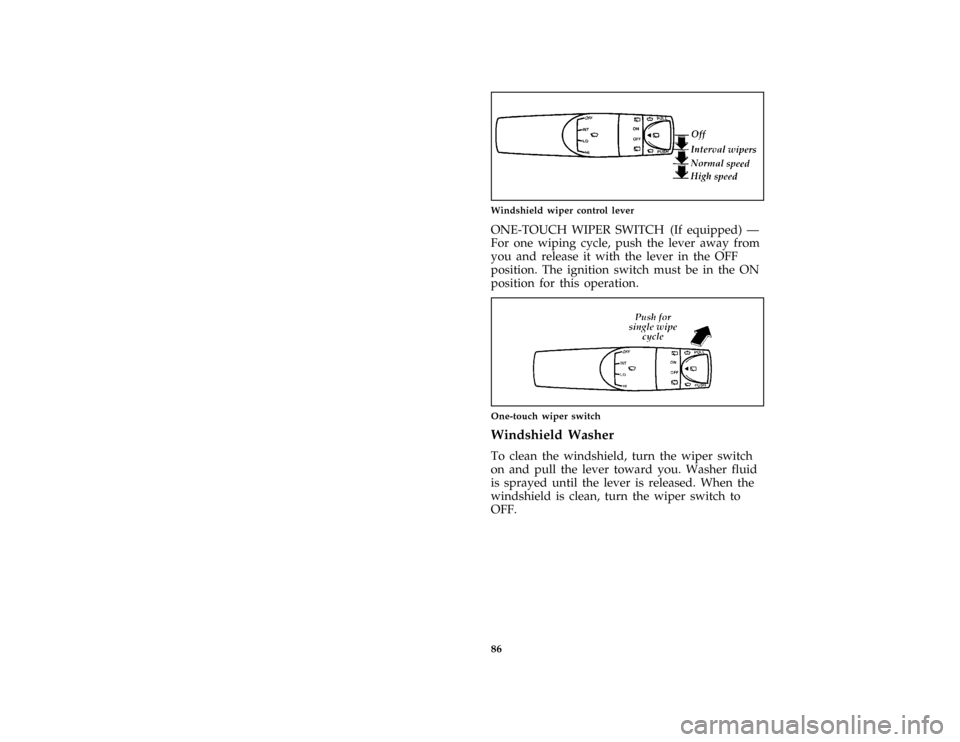

quarter page art:0032176-BWindshield wiper control lever
[SC04100(ALL)07/93]
ONE-TOUCH WIPER SWITCH (If equipped) Ð
For one wiping cycle, push the lever away from
you and release it with the lever in the OFF
position. The ignition switch must be in the ON
position for this operation.
[SC04200(ALL)03/94]
quarter page art:0032177-B
One-touch wiper switch
*
[SC04300(ALL)05/95]
Windshield Washer
[SC04400(ALL)11/91]
To clean the windshield, turn the wiper switch
on and pull the lever toward you. Washer fluid
is sprayed until the lever is released. When the
windshield is clean, turn the wiper switch to
OFF.
File:07icscf.ex
Update:Wed Jan 24 14:50:00 1996

87 [SC04500(ALL)05/93]

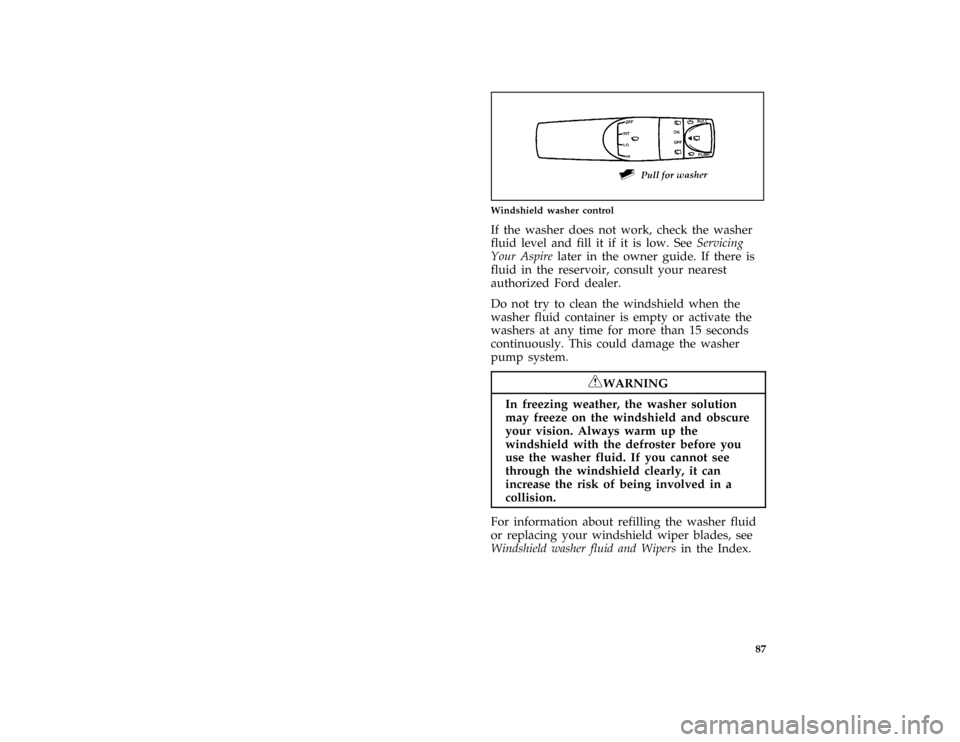

quarter page art:0032178-A
Windshield washer control
[SC04600(ALL)07/93]
If the washer does not work, check the washer
fluid level and fill it if it is low. SeeServicing
Your Aspirelater in the owner guide. If there is
fluid in the reservoir, consult your nearest
authorized Ford dealer.
*
[SC04700(ALL)01/95]
Do not try to clean the windshield when the
washer fluid container is empty or activate the
washers at any time for more than 15 seconds
continuously. This could damage the washer
pump system.
*
[SC04800(ALL)01/93]
RWARNING
In freezing weather, the washer solution
may freeze on the windshield and obscure
your vision. Always warm up the
windshield with the defroster before you
use the washer fluid. If you cannot see
through the windshield clearly, it can
increase the risk of being involved in a
collision.
*
[SC04900(ALL)04/95]
For information about refilling the washer fluid
or replacing your windshield wiper blades, see
Windshield washer fluid and Wipersin the Index.
File:07icscf.ex
Update:Wed Jan 24 14:50:00 1996

195
*
[SV21400(ALL)02/95]
Engine coolant refill procedure
*
[SV21500(ALL)03/95]
When the entire engine cooling system is to be
drained and refilled, use the following
procedure:
*
[SV21600(ALL)01/89]
1. Remove the radiator cap.
*
[SV21700(ALL)06/89]
2. With the engine off and cool, add a 50/50
mixture of recommended engine cooling
system fluid and water until the radiator is
full.
*
[SV21800(ALL)07/93]
3. Replace and fully tighten the radiator cap,
then unscrew the cap to the first stop.
*
[SV21900(ALL)06/89]
4. Start and idle the engine until the radiator
upper hose is warm (this indicates the
thermostat is open and engine coolant is
flowing through the entire system).
[SV22000(ALL)03/94]
5. When you are done, stop the engine and
tighten the cap completely.
%*
[SV22100(ALL)11/94]
Checking hoses
*
[SV22200(ALL)01/89]
Check all engine and heater system hoses and
hose connections for deterioration, leaks, and
loose hose clamps as specified in the
maintenance schedule. Repair or replace with
Motorcraft hoses or equivalent as necessary.
*
[SV22300(ALL)03/95]
Windshield Washer Fluid and
Wipers
*
[SV22350(ALL)03/95]
Washer Fluid
*
[SV22500(ALL)01/95]
Check the level of the windshield washer fluid
every time you stop for fuel. The reservoir for
the windshield washer fluid is located in the
engine compartment.
[SV22600(ALL)05/93]
To check the washer fluid level, place your
finger over the hole in the reservoir cap and pull
out the dipstick.
File:15icsvf.ex
Update:Wed Jan 24 14:56:41 1996

197
(VOC's) may restrict use of the most common
antifreeze, methanol. Washer fluids containing
non-methanol antifreeze agents should be used
only if they provide cold weather protection
without damaging the vehicle's paint finish,
wiper blades, and windshield washer system.
[SV23200(ALL)04/95]
Rear window wiper (If equipped)
[SV23300(ALL)07/93]
Your Aspire may have a rear wiper/washer
system. The washer fluid reservoir is located in
the right side of the luggage compartment. To
open the reservoir compartment cover, pull out
the knob and pull the door open.
[SV23400(ALL)07/93]
two third page art:0032212-A
Rear washer fluid reservoir
