1995 CHEVROLET TRACKER Owners Manual

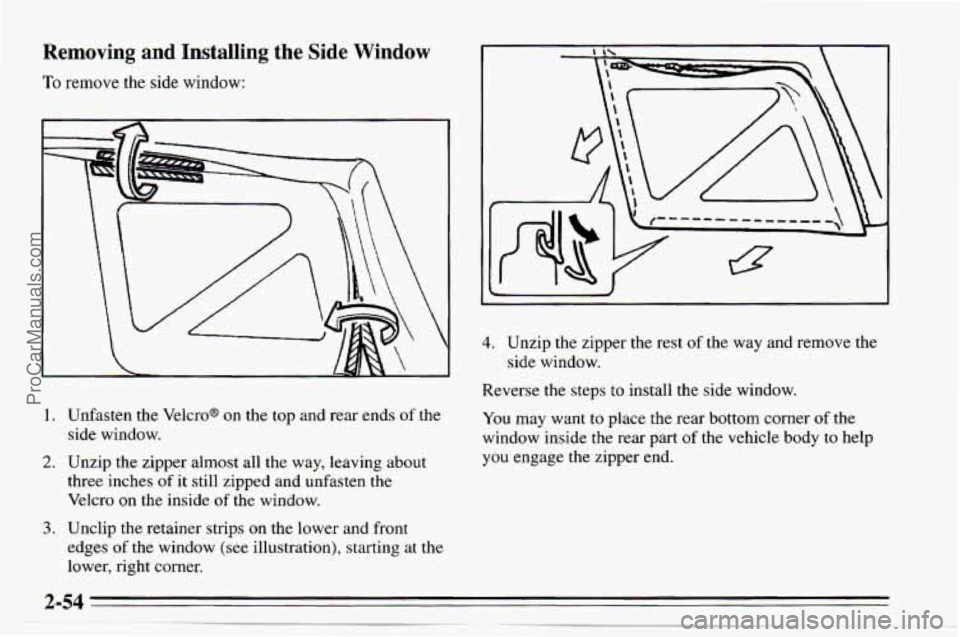

Removing and Installing the Side Window
To remove the side window:
1. Unfasten the Velcro@ on the top and rear ends of the
side window.
2. Unzip the zipper almost all the way, leaving about
three inches
of it still zipped and unfasten the
Velcro on the inside
of the window.
3. Unclip the retainer strips on the lower and front
edges
of the window (see illustration), starting at the
lower, right corner.
4. Unzip the zipper the rest of the way and remove the
side window.
Reverse the steps to install the side window.
You may want to place the rear bottom corner of the
window inside the rear part
of the vehicle body to help
you engage the zipper end.
ProCarManuals.com

I

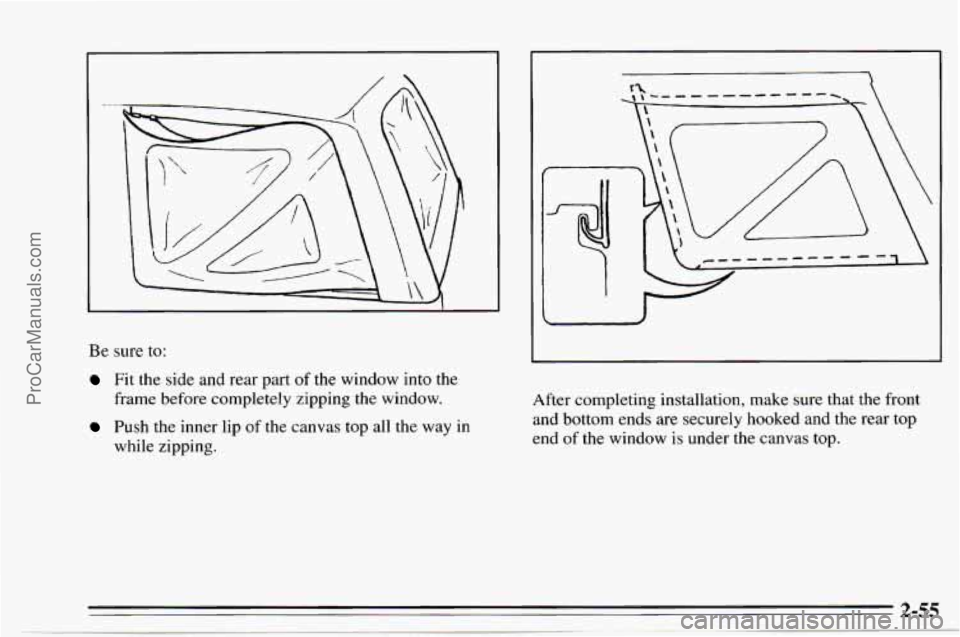

Be sure to:
Fit the side and rear part of the window into the
frame before completely zipping the window.
Push the inner lip of the canvas top all the way in
7 ile zipping. After
completing installation, make sure that the front
and bottom ends are securely hooked and the rear top
end of the window is under the canvas top.
ProCarManuals.com

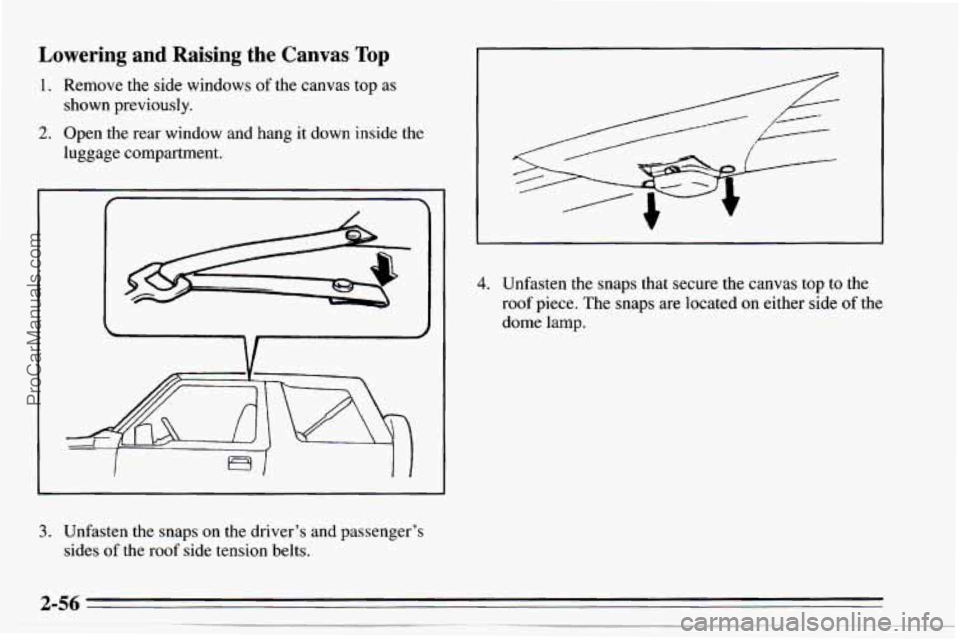

Lowering and Raising the Canvas Top
1. Remove the side windows of the canvas top as
shown previously.
2. Open the rear window and hang it down inside the
luggage compartment.
3. Unfasten the snaps on the driver’s and passenger’s
sides of the roof side tension belts.
4. Unfasten the snaps that secure the canvas top to the
roof piece. The snaps are located on either side of the
dome lamp.
ProCarManuals.com

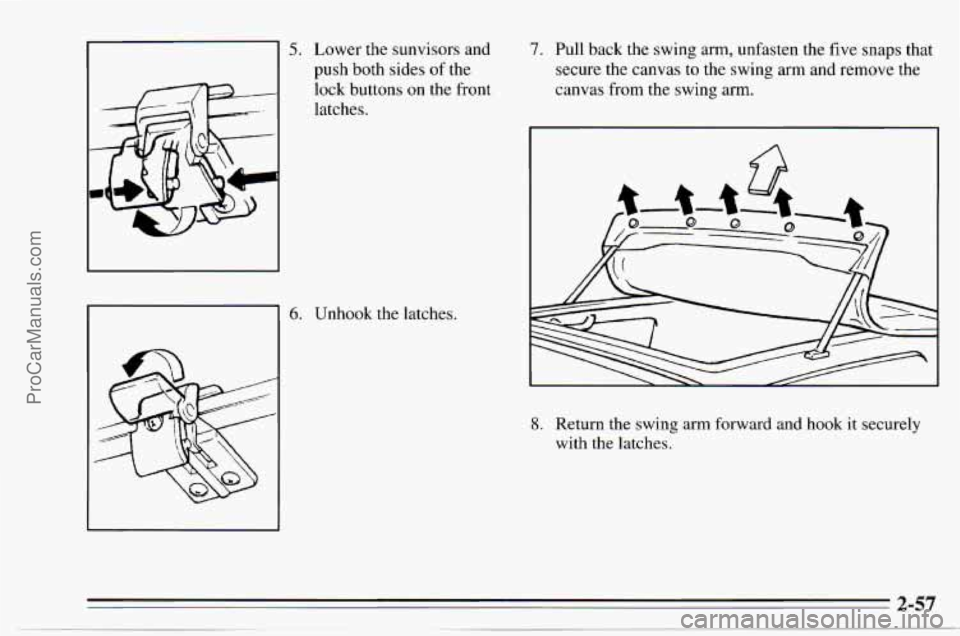

-1 push both sides of the
5. Lower the sunvisors and
-
lock buttons on the front
latches.
6. Unhook the latches.
7. Pull back the swing arm, unfasten the five snaps that
secure the canvas to the swing arm and remove the
canvas from the swing
arm.
8. Return the swing arm forward and hook it securely
with the latches.
2-57
ProCarManuals.com

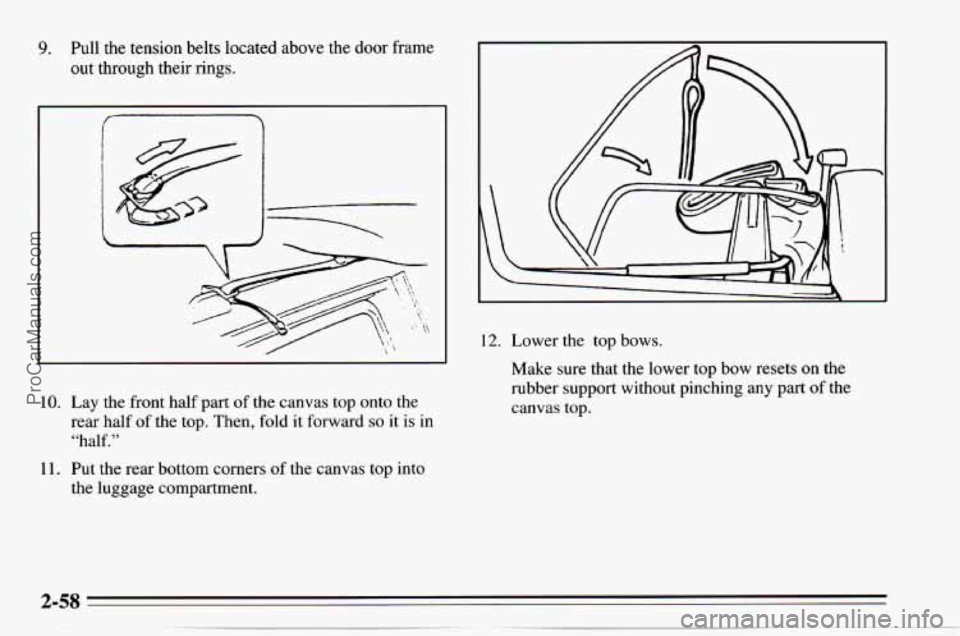

9. Pull the tension belts located above the door frame
out through their rings.
10. Lay the front half part of the canvas top onto the
rear half of the top. Then, fold
it forward so it is in
“half.”
11. Put the rear bottom corners of the canvas top into
the luggage compartment.
12. Lower the top bows.
Make sure that the lower top bow resets on the
rubber support without pinching any part of the
canvas top.
ProCarManuals.com

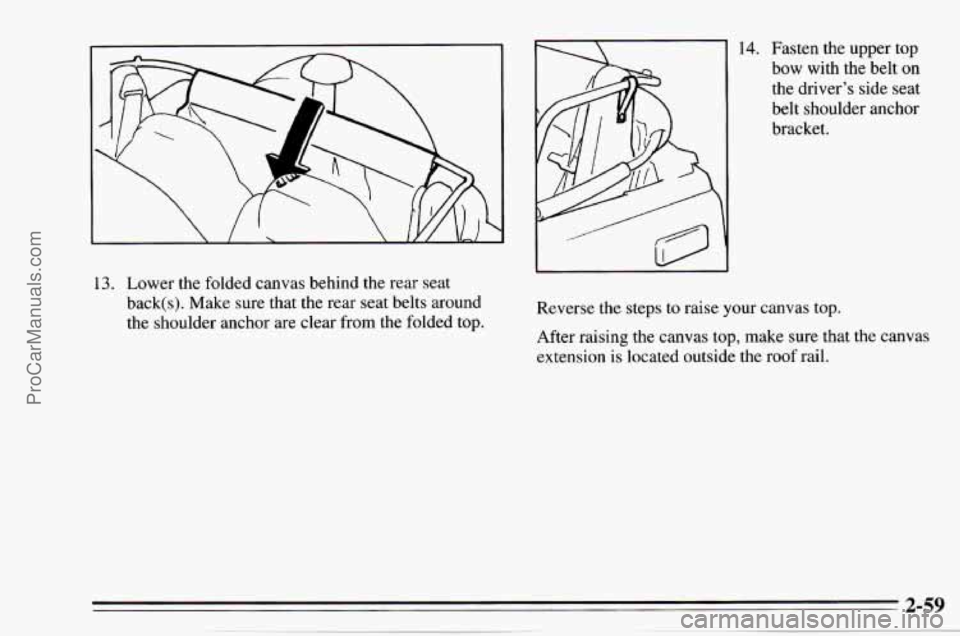

14. Fasten the upper top
bow with the belt
on
the driver’s side seat
belt shoulder anchor
bracket.
13. Lower the folded canvas behind the rear seat
back(s). Make sure that the rear seat belts around
the shoulder anchor are clear from the folded top. Reverse the
steps to raise your canvas top.
After raising the canvas top, make sure that the canvas
extension is located outside the
roof rail.
ProCarManuals.com

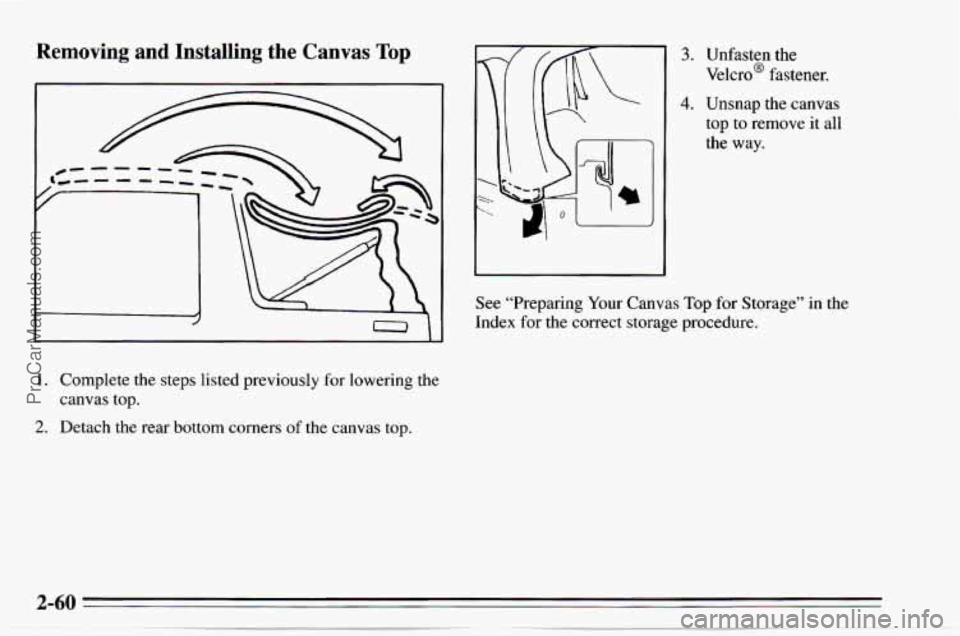

Removing and Installing the Canvas Top
1. Complete the steps listed previously for lowering the
canvas top.
2. Detach the rear bottom corners of the canvas top.
3. Unfasten the
VelcroB fastener.
4. Unsnap the canvas
top
to remove it all
the way.
See “Preparing Your Canvas
Top for Storage” in the
Index
for the correct storage procedure.
ProCarManuals.com

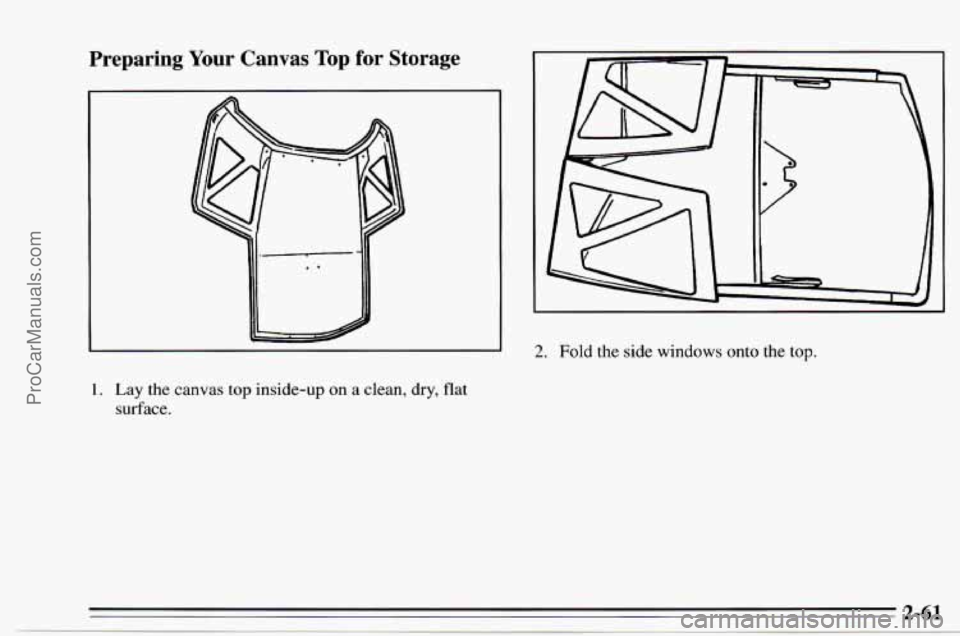

Preparing Your Canvas Top for Storage
2. Fold the side windows onto the top.
1. Lay the canvas top inside-up on a clean, dry, flat
surface.
