1995 CHEVROLET TRACKER Owners Manual

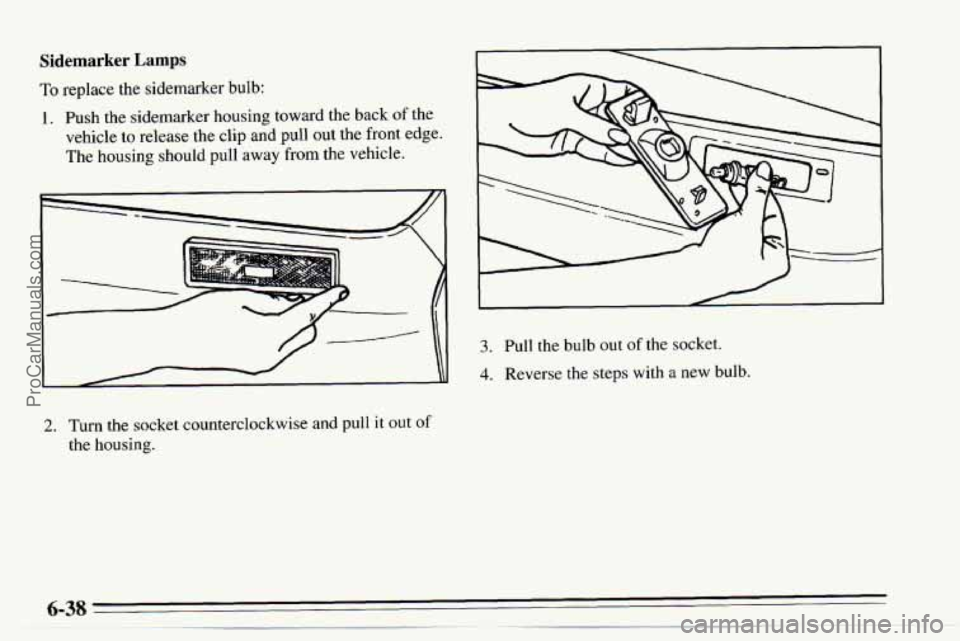

Sidemarker Lamps
To replace the sidemarker bulb:
1. Push the sidemarker housing toward the back of the
vehicle to release the clip and pull out the front edge.
The housing should pull away
from the vehicle.
2. Turn the socket counterclockwise and pull it out of
the housing.
3. Pull the bulb out of the socket.
4. Reverse the steps with a new bulb.
6-38 -
ProCarManuals.com

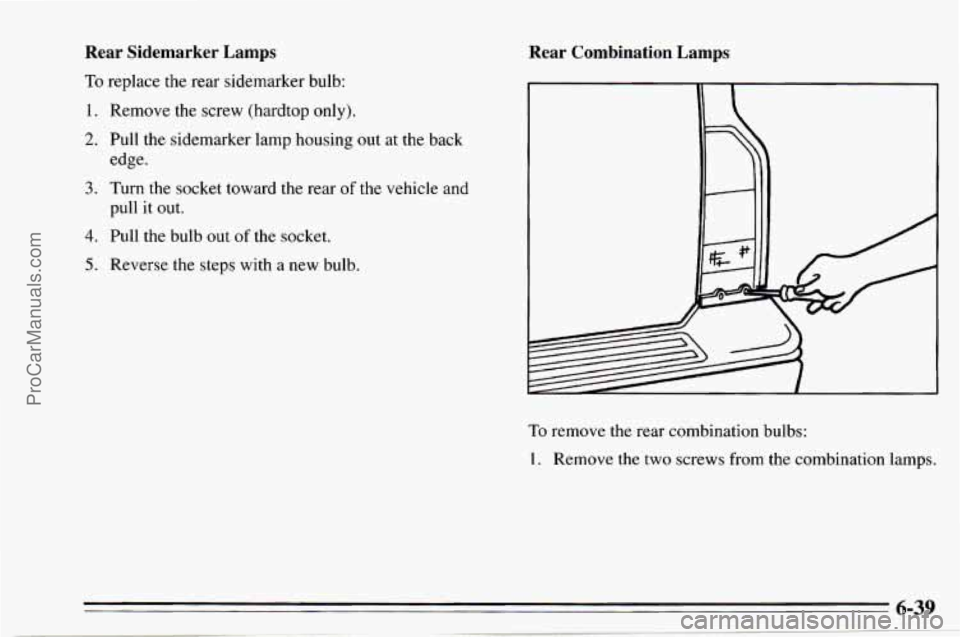

Rear Sidemarker Lamps
To replace the rear sidemarker bulb:
1.
2.
3.
4.
5.
Remove the screw (hardtop only).
Pull the sidemarker lamp housing out at the back
edge.
Turn the socket toward the rear
of the vehicle and
pull it out.
Pull the bulb out
of the socket.
Reverse the steps with a new bulb.
Rear Combination Lamps
To remove the rear combination bulbs:
1. Remove the two screws from the combination lamps.
ProCarManuals.com

A

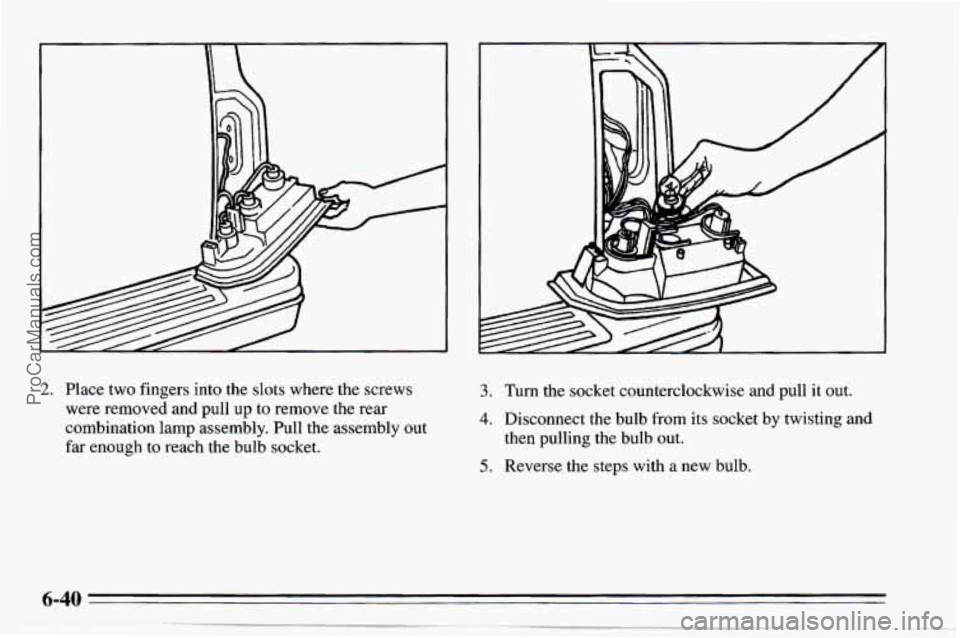

2. Place two fingers into the slots where the screws
were removed and pull up to remove the rear
combination lamp assembly. Pull the assembly out
far enough to reach the bulb socket. 3. Turn the socket counterclockwise and pull it out.
4. Disconnect the bulb from its socket by twisting and
then pulling the bulb out.
5. Reverse the steps with a new bulb.
6-40
ProCarManuals.com

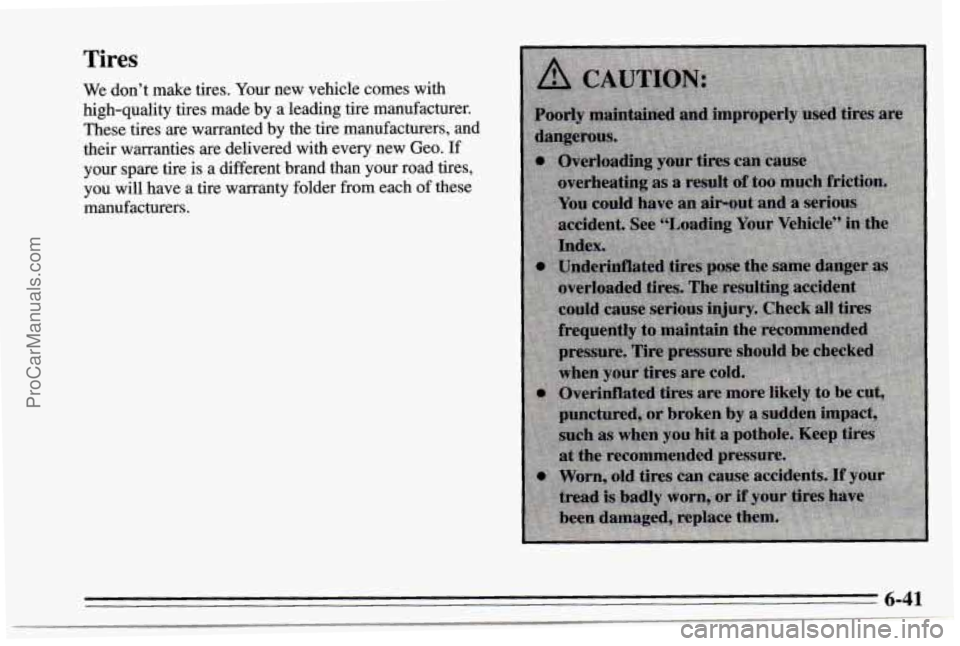

Tires
We don’t make tires. Your new vehicle comes with
high-quality tires made by a leading tire manufacturer.
These tires are warranted by the tire manufacturers, and
their warranties are delivered with every new Geo.
If
your spare tire is a different brand than your road tires,
you will have a tire warranty folder from each of these
manufacturers.
6-41
ProCarManuals.com

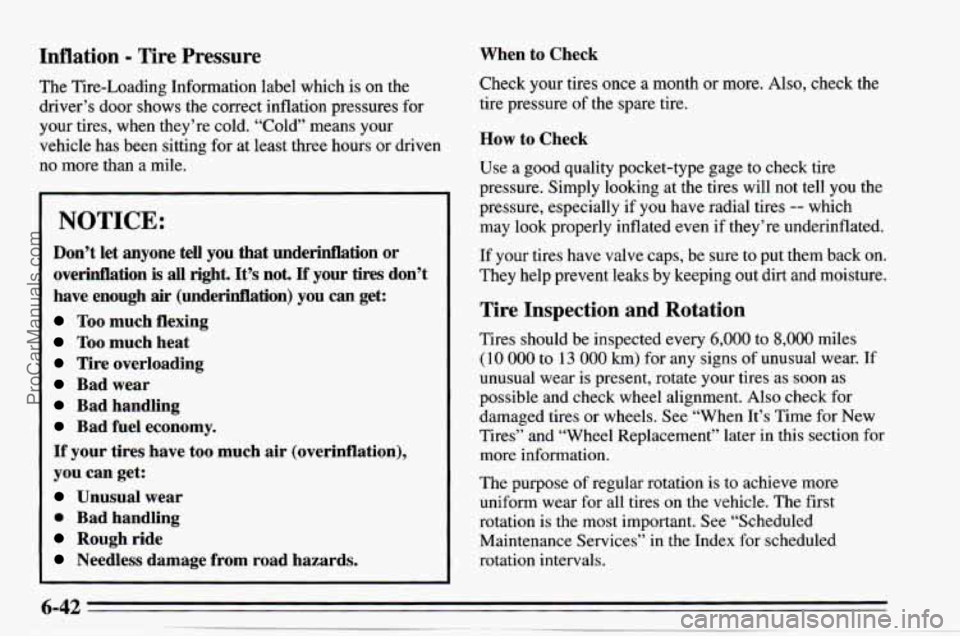

Inflation - Tire Pressure
The Tire-Loading Information label which is on the
driver’s door shows the correct inflation pressures for
your tires, when they’re cold.
“Cold” means your
vehicle has been sitting for at least three hours or driven
no more than
a mile.
I
’ NOTICE:
Don’t let anyone tell you that underidation or
~ overinflation is all right. It’s not. If your tires don’t
~ have enough air (underinflation) you can get:
Too much flexing
Too much heat
Tire overloading
Bad wear
Bad handling
Bad fuel economy.
If your tires have too much air (overinflation),
you can get:
Unusual wear
0 Bad handling
Rough ride
Needless damage from road hazards. When to Check
Check your
tires once a month or more. Also, check the
tire pressure of
the spare tire.
How to Check
Use a good quality pocket-type gage to check tire
pressure. Simply looking at the tires will
not tell you the
pressure, especially if you have radial tires
-- which
may look properly inflated even
if they’re underinflated.
If your tires have valve caps, be sure to put them back on.
They help prevent leaks by keeping out dirt and moisture.
Tire Inspection and Rotation
Tires should be inspected every 6,000 to 8,000 miles
(10 000 to 13 000 km) for any signs of unusual wear. If
unusual wear is present, rotate your tires as
soon as
possible and check wheel alignment. Also check for
damaged tires or wheels. See “When It’s Time for New
Tires” and “Wheel Replacement” later in this section for
more information.
The purpose
of regular rotation is to achieve more
uniform wear for all tires on the vehicle. The first
rotation is the most important. See “Scheduled
Maintenance Services” in
the Index for scheduled
rotation intervals.
ProCarManuals.com

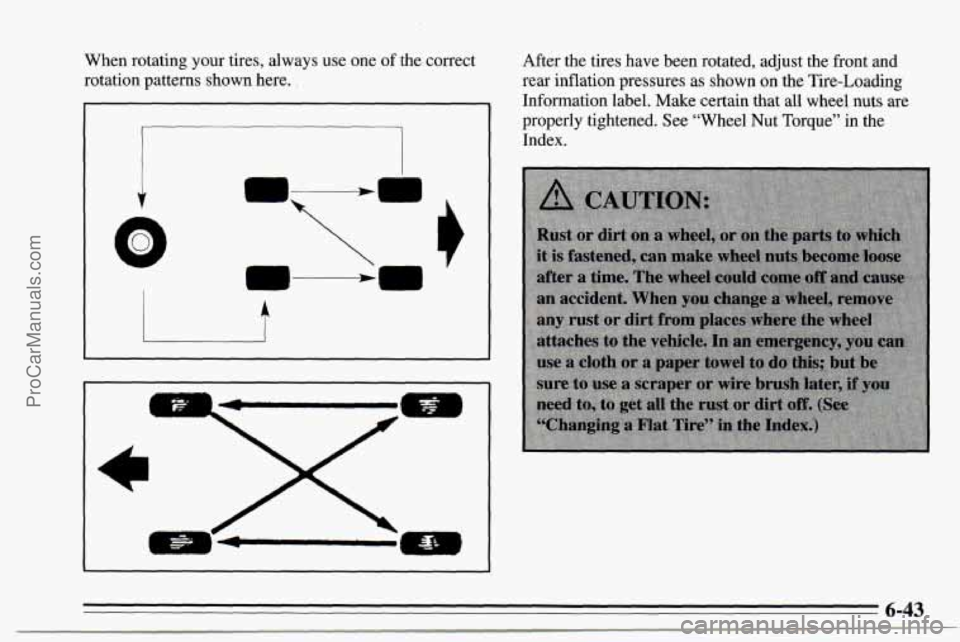

When rotating your tires, always use one of the correct
rotation patterns shown here.
,
c
t
ri . e1
After the tires have Deen rotated, adjust the front and
rear inflation pressures as shown on the Tire-Loading
Information label. Make certain that all wheel nuts are
properly tightened. See “Wheel
Nut Torque” in the
Index.
6-43
ProCarManuals.com

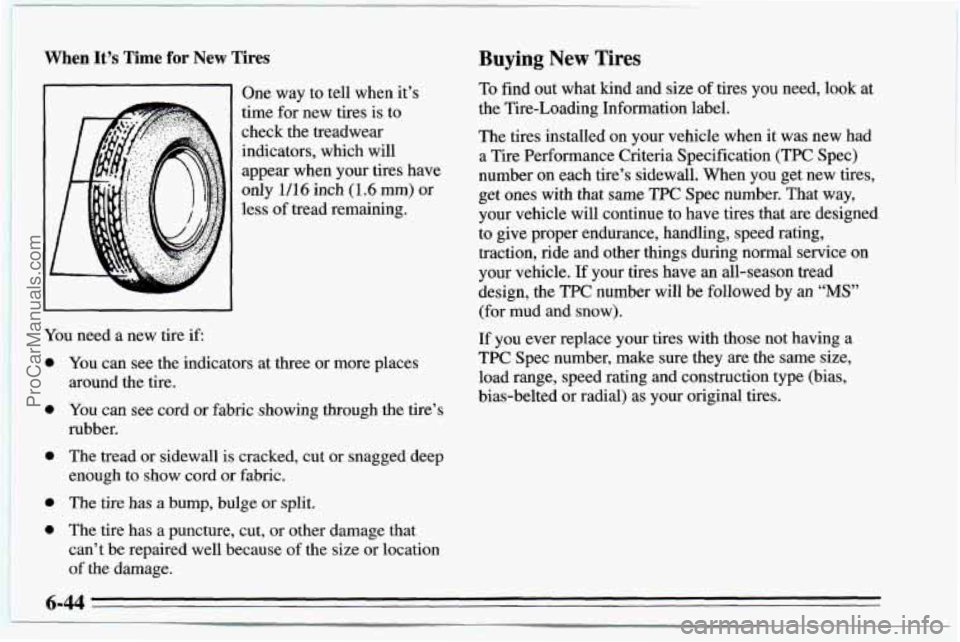

When It’s Time for New Tires
One way to tell when it’s
time for new tires is to
check the treadwear
indicators, which will
appear when your tires have
only
1/16 inch (1.6 rnm) or
less of tread remaining.
You need a new tire
if
0 You can see the indicators at three or more places
0 You can see cord or fabric showing through the tire’s
0 The tread or sidewall is cracked, cut or snagged deep
around the tire.
rubber.
enough to show cord
or fabric.
0 The tire has a bump, bulge or split.
0 The tire has a puncture, cut, or other damage that
can’t be repaired well because of the size or location
of the damage.
Buying New Tires
To find out what kind and size of tires you need, look at
the Tire-Loading Information label.
The tires installed on your vehicle when it was new had
a Tire Performance Criteria Specification (TPC Spec)
number on each tire’s sidewall. When you get new tires,
get ones with that same TPC Spec number. That way,
your vehicle will continue to have tires
that are designed
to give proper endurance, handling, speed rating,
traction, ride and other things during norrnal service on
your vehicle.
If your tires have an all-season tread
design, the TPC number will
be followed by an “MS”
(for mud and snow).
If you ever replace your tires with those not having a
TPC Spec number, make sure they
are the same size,
load range, speed rating and construction type (bias,
bias-belted or radial) as your original tires.
6-44
ProCarManuals.com

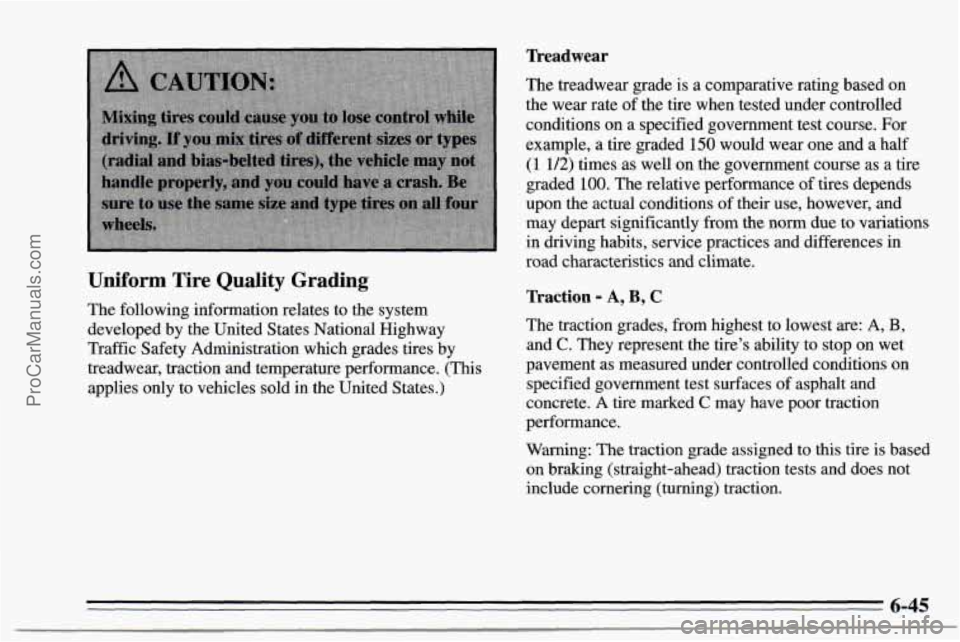

Treadwear
Uniform Tire Quality Grading
The following information relates to the system
developed by the United States National Highway
Traffic Safety Administration which grades tires by
treadwear, traction and temperature performance. (This
applies only to vehicles sold in the United States.) The
treadwear grade is a comparative rating based on
the wear rate
of the tire when tested under controlled
conditions on a specified government test course. For
example, a tire graded
150 would wear one and a half
(1 1/2) times as well on the government course as a tire
graded
100. The relative performance of tires depends
upon the actual conditions of their use, however, and
may depart significantly from the norm due to variations
in driving habits, service practices and differences in
road characteristics and climate.
Traction - A, B, C
The traction grades, from highest to lowest are: A, B,
and C. They represent the tire’s ability to stop on wet
pavement as measured under controlled conditions on
specified government test surfaces of asphalt and
concrete.
A tire marked C may have poor traction
performance.
Warning: The traction grade assigned to this tire is basea
on braking (straight-ahead) traction tests and does not
include cornering (turning) traction.
6-45
