1995 ACURA TL light

Dash Lights Brightness Controller

Controller Input Test

NOTE: The control unit is built into the dash lights brightness controller.

1. Carefully pry the controller out of the dashboard, then disconnect the 3P connector from the controller.

2. Inspect the connector terminals to be sure they are all making good contact.

If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.

If the terminals look OK, make the following input tests at the connector.

— If any test indicates a problem, find and correct the cause, then recheck the system.

— If all the input tests prove OK, the controller must be faulty; replace it.

WIRE SIDE OF FEMALE TERMINALS

3P CONNECTOR
DRIVER'S

SWITCH

PANEL

DASH LIGHTS

BRIGHTNESS

CONTROLLER

Trml Wire
Test condition

Test: Desired result
Possible cause if result is not obtainedProCarManuals.com

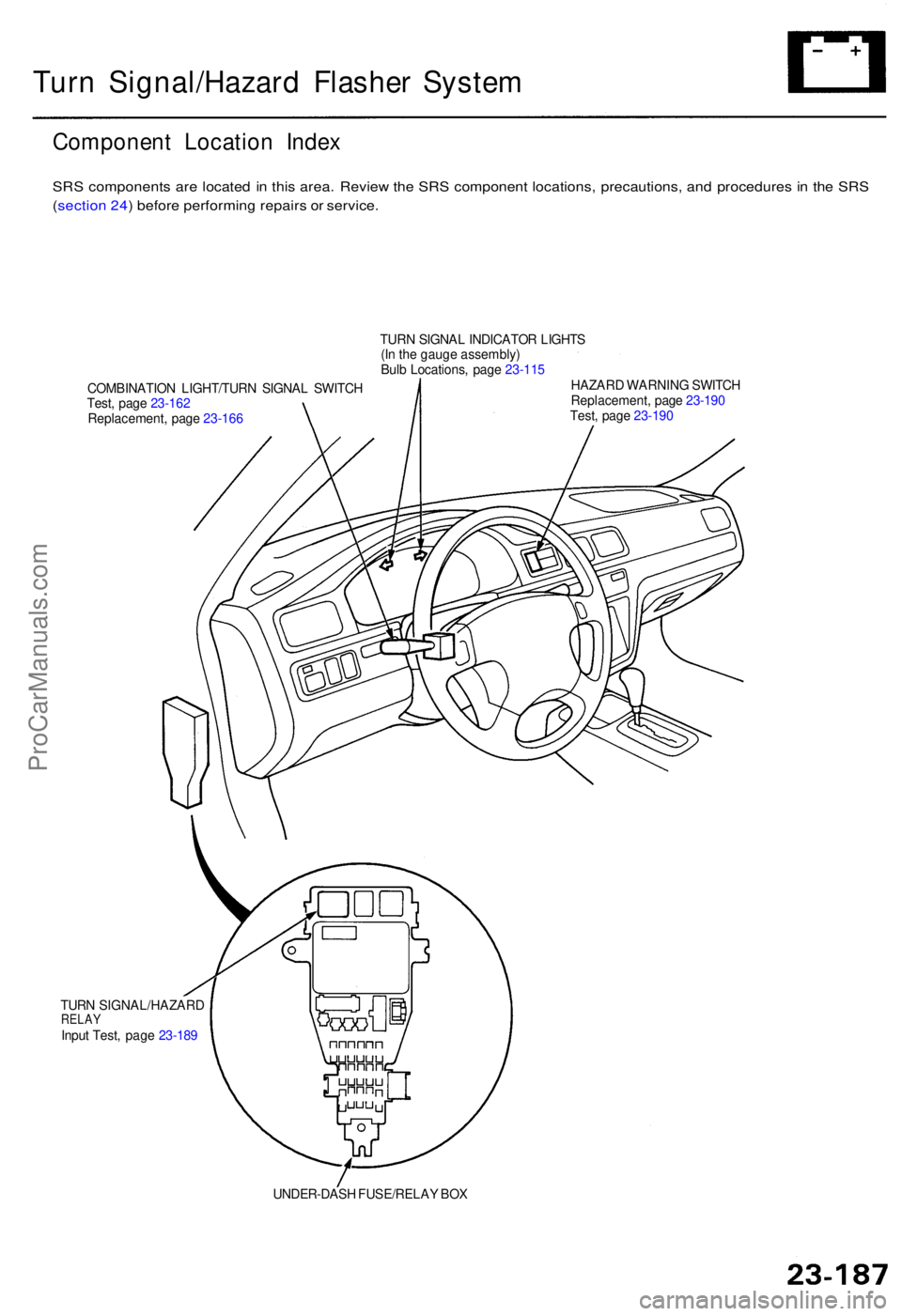

Turn Signal/Hazar d Flashe r Syste m
Componen t Locatio n Inde x
SRS component s ar e locate d i n thi s area . Revie w th e SR S componen t locations , precautions , an d procedure s i n th e SR S
( sectio n 24 ) befor e performin g repair s o r service .
COMBINATIO N LIGHT/TUR N SIGNA L SWITC H
Test , pag e 23-16 2
Replacement , pag e 23-16 6 TUR
N SIGNA L INDICATO R LIGHT S
(I n th e gaug e assembly )
Bul b Locations , pag e 23-11 5
HAZAR D WARNIN G SWITC H
Replacement , pag e 23-19 0
Test , pag e 23-19 0
TUR N SIGNAL/HAZAR D
RELAYInput Test , pag e 23-18 9
UNDER-DASH FUSE/RELA Y BO X
ProCarManuals.com

Window Antenn a Wir e Tes t
1. Wra p aluminu m foi l aroun d th e ti p of the teste r
prob e a s shown .
ALUMINU M FOI L
TESTE R PROB E
2.Touc h on e teste r prob e t o th e windo w antenn a ter -
minal , an d mov e th e othe r teste r prob e alon g th e
antenn a wire s t o chec k tha t continuit y exists .
WINDO W ANTENN ATERMINA L
Window Antenn a Wir e Repai r
NOTE: T o mak e a n effectiv e repair , th e broke n sectio n
mus t b e n o longe r tha n on e inch .
1 . Lightl y ru b th e are a aroun d th e broke n sectio n wit h
fin e stee l wool , the n clea n i t wit h alcohol .
2 . Carefull y mas k abov e an d belo w th e broke n portio n
o f th e windo w antenn a wir e wit h cellophan e tape .
OPEN
BROKE N WIR E
CELLOPHANE
TAPE
3.Usin g a smal l brush , appl y a heav y coa t of silve r
conductiv e pain t extendin g abou t 1/8 " o n bot h
side s o f th e break . Allo w 3 0 minute s t o dry .
NOTE : Thoroughl y mi x th e pain t befor e use .
PAIN T
4. Chec k fo r continuit y i n th e repaire d wire .
5 . Appl y a secon d coa t o f pain t i n th e sam e way . Le t i t
dr y thre e hour s befor e removin g th e tape .
ProCarManuals.com

Rear Speake r Replacemen t
1. Remov e th e thre e screw s fro m th e trun k side , the n
remov e th e speake r cover .
2 . Remov e th e fou r screws , the n disconnec t th e con -
necto r fro m th e speaker , an d remov e th e speaker .
NOTE : Th e illustratio n show s th e lef t rea r speaker;
th e righ t rea r speake r i s symmetrical .
SPEAKERCOVER
LEFT REA RSPEAKE R
2P CONNECTO R
3. Instal l i n th e revers e orde r o f removal .
Tweeter Replacemen t
1. Carefull y pr y th e tweete r ou t o f th e dashboard , the n
disconnec t th e 2 P connector(s ) fro m th e speake r
(an d sunligh t sensor) .
NOTE : Th e illustratio n show s th e lef t tweeter ; th e
righ t tweete r i s similar , bu t ha s n o sunligh t sensor .
LEFT TWEETE R
SUNLIGHT
SENSO R
2 P CONNECTO R
2 P CONNECTO R
2. Instal l i n th e revers e orde r o f removal .
ProCarManuals.com

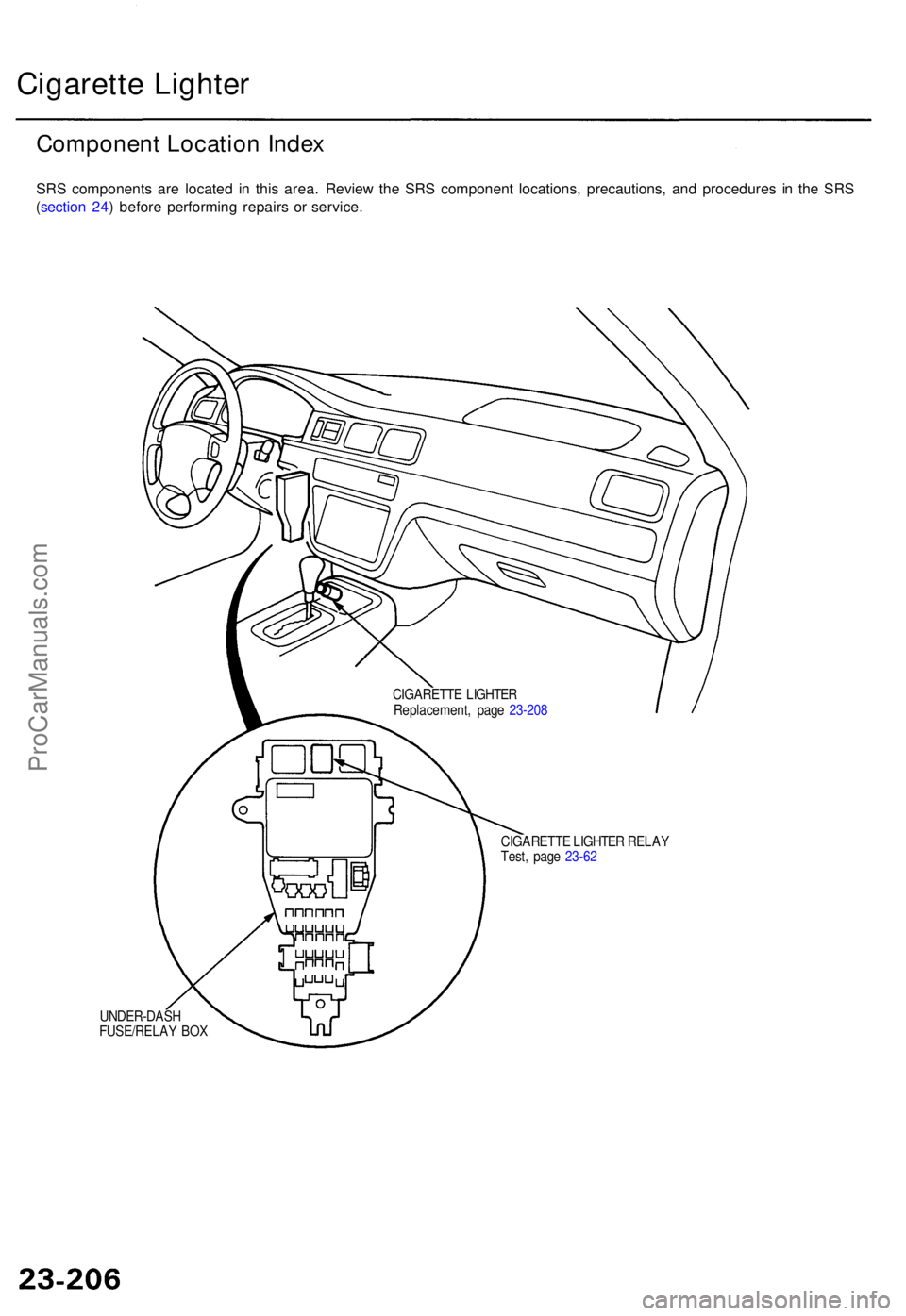

Cigarette Lighte r
Componen t Locatio n Inde x
SRS component s ar e locate d i n thi s area . Revie w th e SR S componen t locations , precautions , an d procedure s i n th e SR S
( sectio n 24 ) befor e performin g repair s o r service .
CIGARETT E LIGHTE R RELA Y
Test , pag e 23-6 2
UNDER-DAS H
FUSE/RELA Y BO X CIGARETT
E LIGHTE R
Replacement , pag e 23-20 8
ProCarManuals.com

Cigarette Lighte r
Test/Replacemen t
1. Remov e th e A/ T gea r positio n indicato r tri m ligh t
fro m th e A/ T gea r positio n indicato r tri m (se e pag e
23-173 ).
2 . Remov e th e cente r consol e (se e sectio n 20 ).
3 . Disconnec t th e 4 P connecto r fro m th e cigarett e
lighter .
4 . Inspec t th e connecto r terminal s t o b e sur e the y ar e
al l makin g goo d contact .
I f th e terminal s ar e bent , loos e o r corroded , repai r
the m as necessary , an d rechec k th e system .
If th e terminal s loo k OK , g o to ste p 5 .
4P CONNECTO R
WIRE SID E O F FEMAL ETERMINAL S
5. Tur n th e ignitio n switc h O N (II) . 6
. Chec k fo r voltag e betwee n th e No . 1 an d No . 4 ter -
minals .
Ther e shoul d b e batter y voltage .
I f ther e i s n o batter y voltage , chec k fo r
— blow n No . 3 7 (1 5 A ) fus e in th e under-hoo d fuse /
relay box .
— blow n No . 1 1 (1 0 A ) fus e in th e under-das h fuse /
rela y box .
— fault y cigarett e lighte r relay .
— poo r groun d (G401 , G404) .
— an ope n in th e wire .
7 . Tur n th e headligh t switc h ON , an d chec k fo r voltag e
betwee n th e No . 2 an d No . 3 terminal s wit h th e
combinatio n ligh t switc h ON .
Ther e shoul d b e batter y voltage .
I f ther e is n o voltage , chec k fo r
— blow n No . 2 1 (1 5 A ) fus e in th e under-hoo d fuse /
rela y box .
— fault y tailligh t relay .
— fault y combinatio n ligh t switch .
— an ope n in th e wire .
8 . I f al l test s prov e OK , replac e th e cigarett e lighter .
9 . Disconnec t th e terminal s fro m th e rin g nut .
CIGARETT ELIGHTERSOCKE T
THERMO FUS EHOUSIN GTHERMA LPROTECTO R
RING NU T
LIGH T
10. Remov e th e rin g nut , an d separat e th e cigarett e
lighter socke t fro m th e body .
11 . Whe n installin g th e cigarett e lighter , alig n eac h lu g
o n th e fac e panel , illuminatio n ring , an d cigarett e
lighte r socke t wit h th e groov e i n th e hole , the n posi -
tio n th e bul b o n th e bod y betwee n th e stop s i n th e
rea r console .
ASHTRAY LIGHT
ILLUMINATIO NRING
ProCarManuals.com

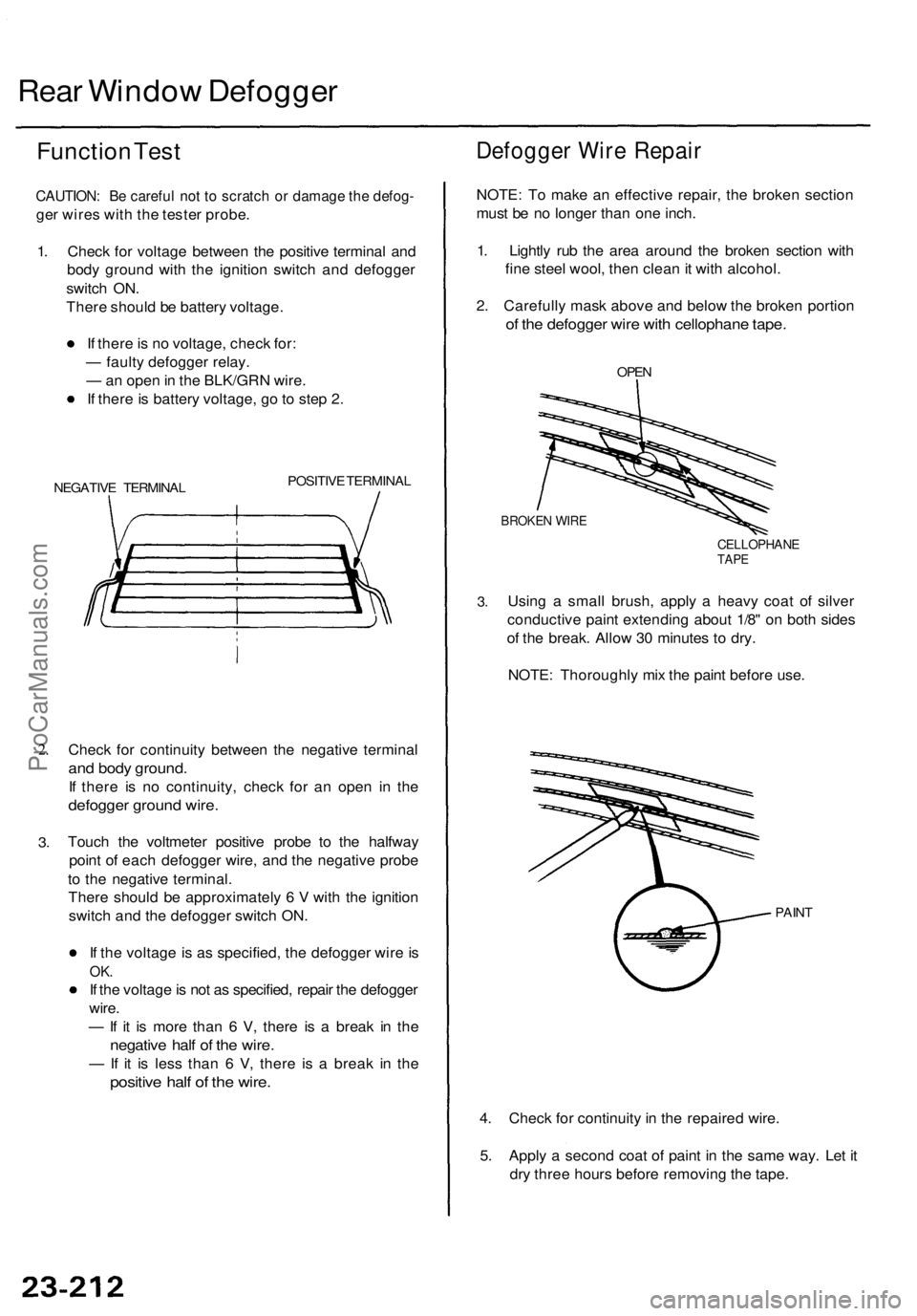

Rear Windo w Defogge r
Function Tes t
CAUTION : B e carefu l no t t o scratc h o r damag e th e defog -
ger wire s wit h th e teste r probe .
1 . Chec k fo r voltag e betwee n th e positiv e termina l an d
bod y groun d wit h th e ignitio n switc h an d defogge r
switc h ON .
Ther e shoul d b e batter y voltage .
I f ther e is n o voltage , chec k for :
— fault y defogge r relay .
— an ope n in th e BLK/GR N wire .
I f ther e is batter y voltage , g o to ste p 2 .
NEGATIV E TERMINA L POSITIV
E TERMINA L
2.
3 .
Chec k fo r continuit y betwee n th e negativ e termina l
and bod y ground .
If ther e i s n o continuity , chec k fo r a n ope n i n th e
defogge r groun d wire .
Touc h th e voltmete r positiv e prob e t o th e halfwa y
poin t o f eac h defogge r wire , an d th e negativ e prob e
t o th e negativ e terminal .
Ther e shoul d b e approximatel y 6 V with th e ignitio n
switc h an d th e defogge r switc h ON .
I f th e voltag e is a s specified , th e defogge r wir e is
OK .
If th e voltag e is no t a s specified , repai r th e defogge r
wire .
— If i t i s mor e tha n 6 V , ther e i s a brea k i n th e
negativ e hal f o f th e wire .
— If i t i s les s tha n 6 V , ther e i s a brea k i n th e
positiv e hal f o f th e wire .
Defogge r Wir e Repai r
NOTE: T o mak e a n effectiv e repair , th e broke n sectio n
mus t b e n o longe r tha n on e inch .
1 . Lightl y ru b th e are a aroun d th e broke n sectio n wit h
fin e stee l wool , the n clea n it wit h alcohol .
2 . Carefull y mas k abov e an d belo w th e broke n portio n
of th e defogge r wir e wit h cellophan e tape .
OPEN
BROKE N WIR E
CELLOPHAN ETAPE
3.Usin g a smal l brush , apply a heav y coa t o f silve r
conductiv e pain t extendin g abou t 1/8 " o n bot h side s
o f th e break . Allo w 3 0 minute s t o dry .
NOTE : Thoroughl y mi x th e pain t befor e use .
PAIN T
4. Chec k fo r continuit y in th e repaire d wire .
5 . Appl y a secon d coa t o f pain t i n th e sam e way . Le t i t
dr y thre e hour s befor e removin g th e tape .
ProCarManuals.com

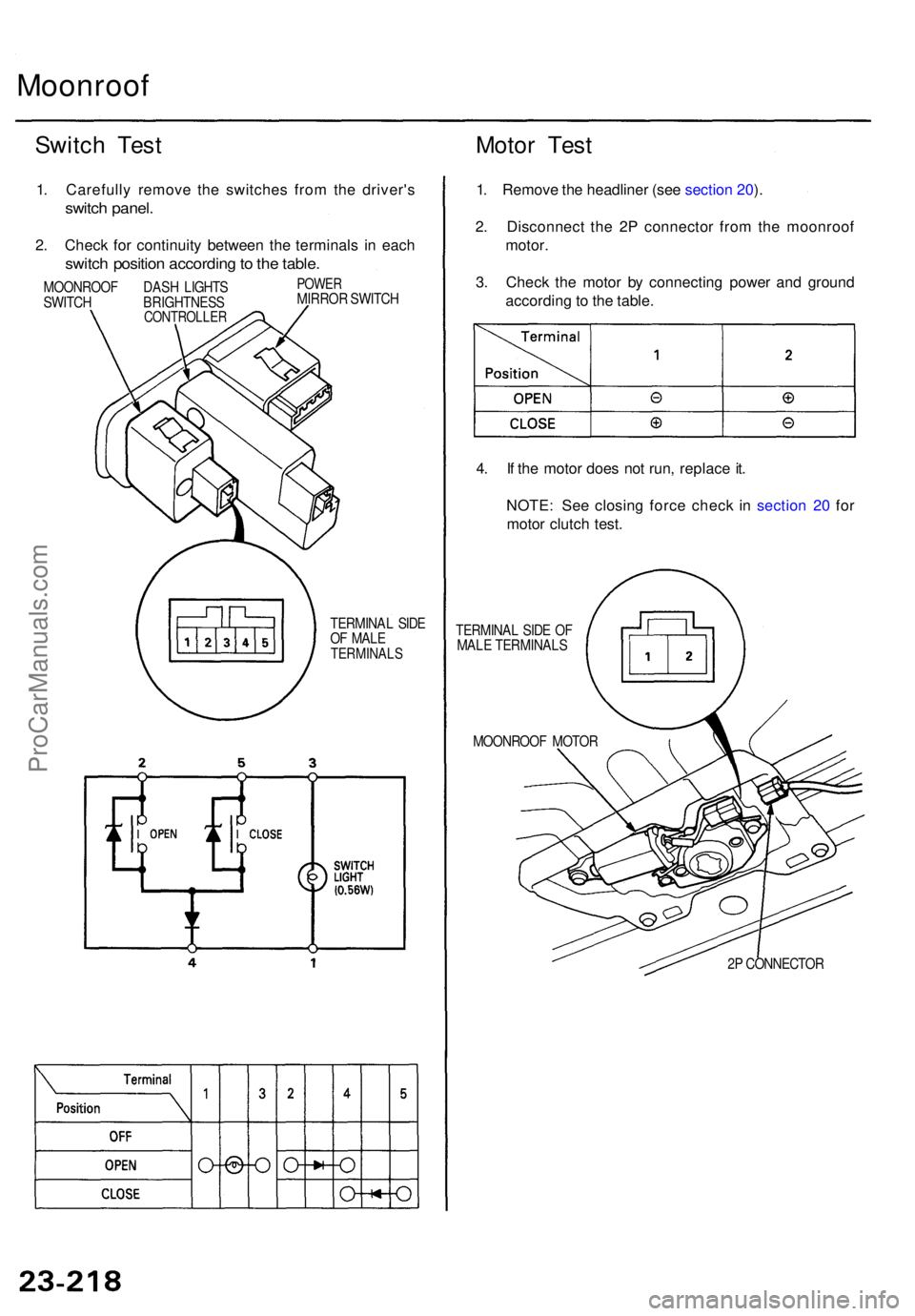

Moonroof
Switch Tes t Motor Tes t
1. Carefull y remov e th e switche s fro m th e driver' s
switch panel .
2. Chec k fo r continuit y betwee n th e terminal s i n eac h
switc h positio n accordin g to th e table .
MOONROO F DAS H LIGHT S
SWITC H BRIGHTNES S
CONTROLLER
POWERMIRRO R SWITC H
TERMINA L SID E
O F MAL E
TERMINAL S
1. Remov e th e headline r (se e sectio n 20 ).
2 . Disconnec t th e 2 P connecto r fro m th e moonroo f
motor .
3 . Chec k th e moto r b y connectin g powe r an d groun d
accordin g to th e table .
4 . I f th e moto r doe s no t run , replac e it .
NOTE : Se e closin g forc e chec k i n sectio n 2 0 fo r
moto r clutc h test .
TERMINA L SID E O F
MAL E TERMINAL S
MOONROO F MOTO R
2P CONNECTO R
