1995 ACURA TL window

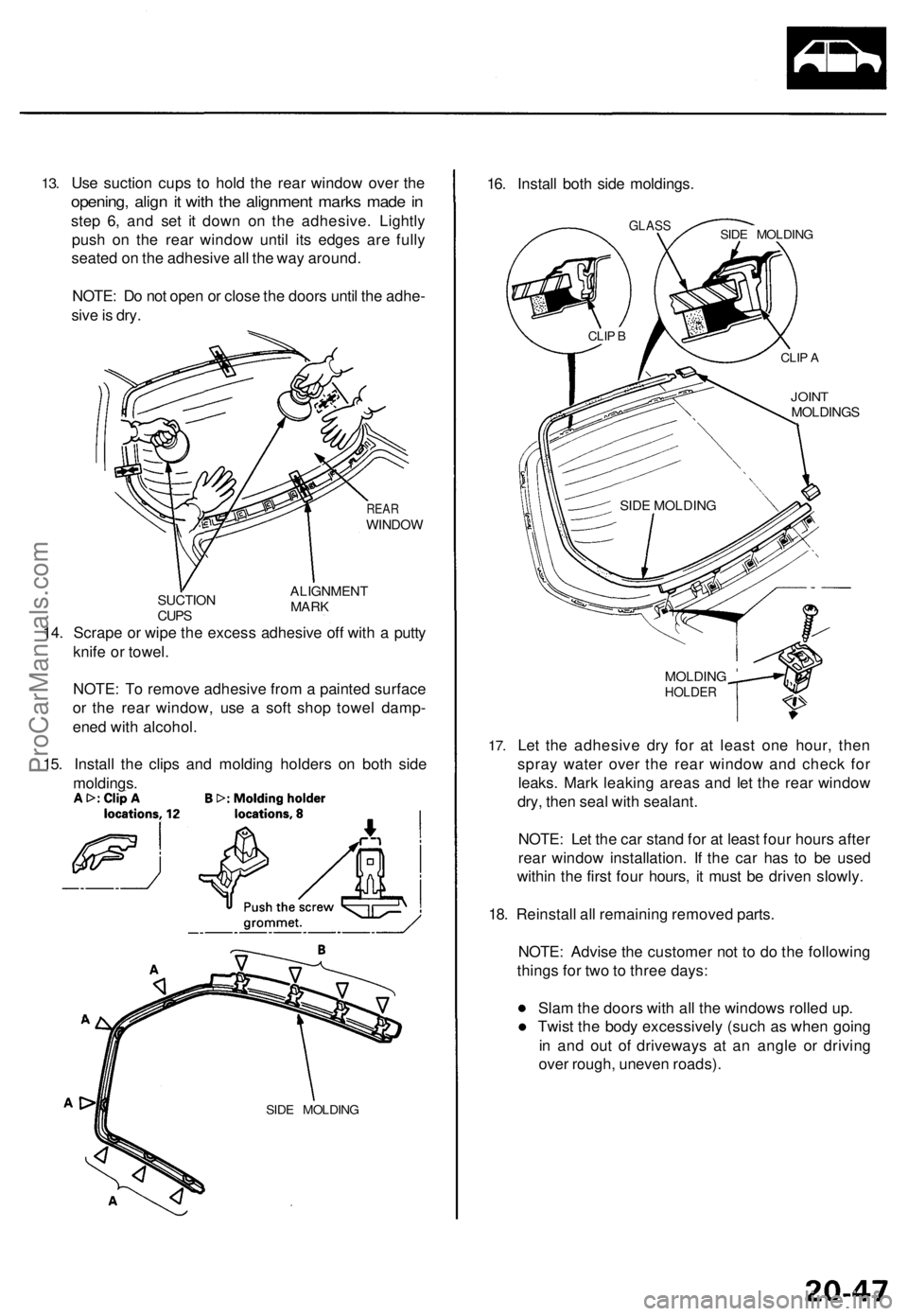

13.
Use suction cups to hold the rear window over the

opening, align it with the alignment marks made in

step 6, and set it down on the adhesive. Lightly

push on the rear window until its edges are fully

seated on the adhesive all the way around.

NOTE: Do not open or close the doors until the adhe-

sive is dry.

REAR

WINDOW

14. Scrape or wipe the excess adhesive off with a putty

knife or towel.

NOTE: To remove adhesive from a painted surface

or the rear window, use a soft shop towel damp-

ened with alcohol.

15. Install the clips and molding holders on both side

moldings.
16. Install both side moldings.

GLASS

JOINT

MOLDINGS

MOLDING

HOLDER

17.
Let the adhesive dry for at least one hour, then

spray water over the rear window and check for

leaks. Mark leaking areas and let the rear window

dry, then seal with sealant.

NOTE: Let the car stand for at least four hours after

rear window installation. If the car has to be used

within the first four hours, it must be driven slowly.

18. Reinstall all remaining removed parts.

NOTE: Advise the customer not to do the following

things for two to three days:

Slam the doors with all the windows rolled up.

Twist the body excessively (such as when going

in and out of driveways at an angle or driving

over rough, uneven roads).
SIDE MOLDING

CLIP A
CLIP B

SIDE MOLDING

SIDE MOLDING
ALIGNMENT

MARK
SUCTION

CUPSProCarManuals.com

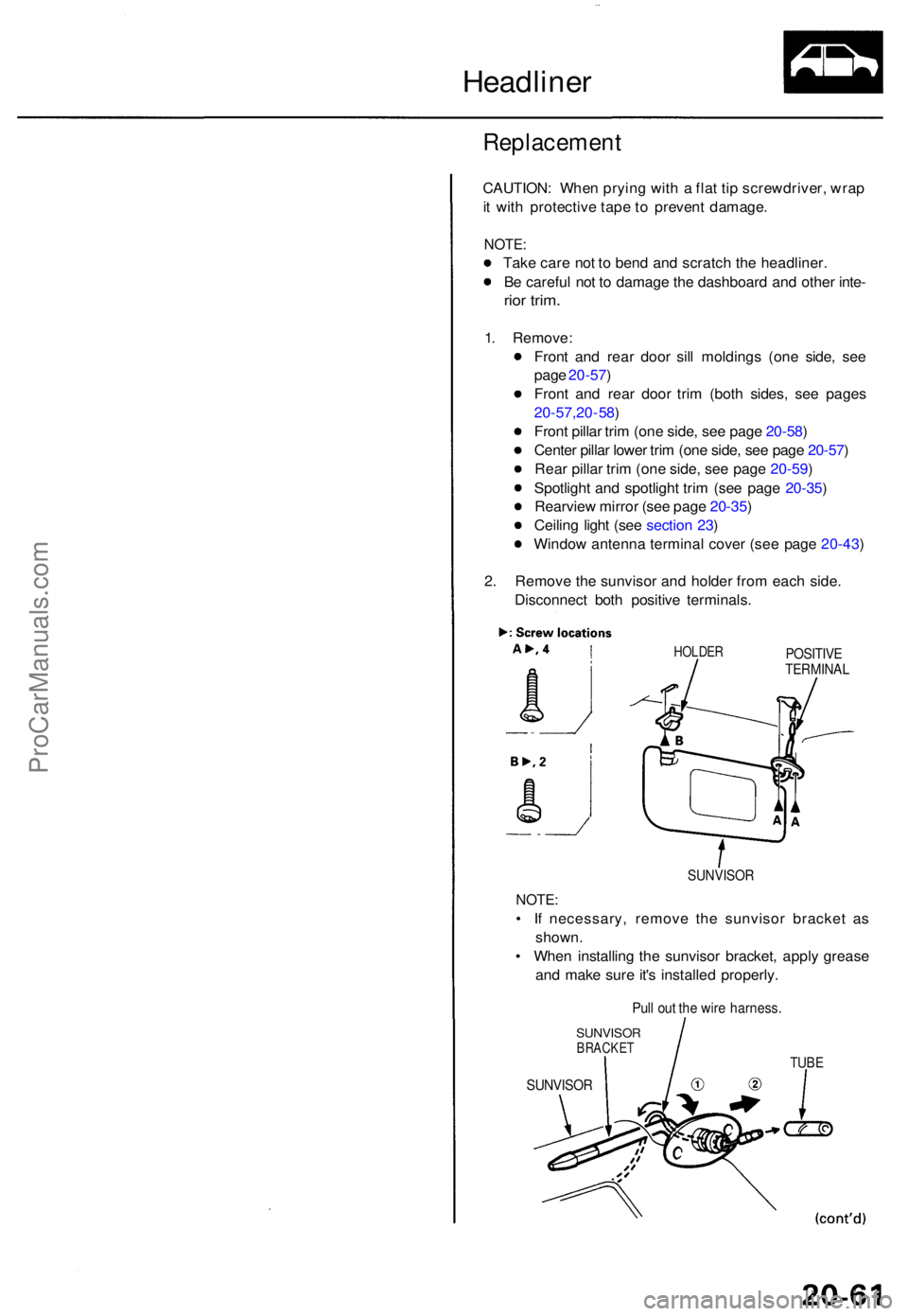

Headliner
Replacemen t
CAUTION: Whe n pryin g wit h a fla t ti p screwdriver , wra p
i t wit h protectiv e tap e t o preven t damage .
NOTE:
Take car e no t t o ben d an d scratc h th e headliner .
B e carefu l no t t o damag e th e dashboar d an d othe r inte -
rior trim .
1. Remove :
Fron t an d rea r doo r sil l molding s (on e side , se e
pag e 20-57 )
Fron t an d rea r doo r tri m (bot h sides , se e page s
20-57 ,20- 58)
Fron t pilla r tri m (on e side , se e pag e 20-58 )
Cente r pilla r lowe r tri m (on e side , se e pag e 20-57 )
Rea r pilla r tri m (on e side , se e pag e 20-59 )
Spotligh t an d spotligh t tri m (se e pag e 20-35 )
Rearvie w mirro r (se e pag e 20-35 )
Ceilin g ligh t (se e sectio n 23 )
Window antenna termina l cove r (se e pag e 20-43 )
2 . Remov e th e sunviso r an d holde r fro m eac h side .
Disconnec t bot h positiv e terminals .
HOLDERPOSITIV ETERMINA L
SUNVISOR
NOTE:
• I f necessary , remov e th e sunviso r bracke t a s
shown .
• Whe n installin g th e sunviso r bracket , appl y greas e
an d mak e sur e it' s installe d properly .
Pull ou t th e wir e harness .
SUNVISO RBRACKETTUBE
SUNVISO R
ProCarManuals.com

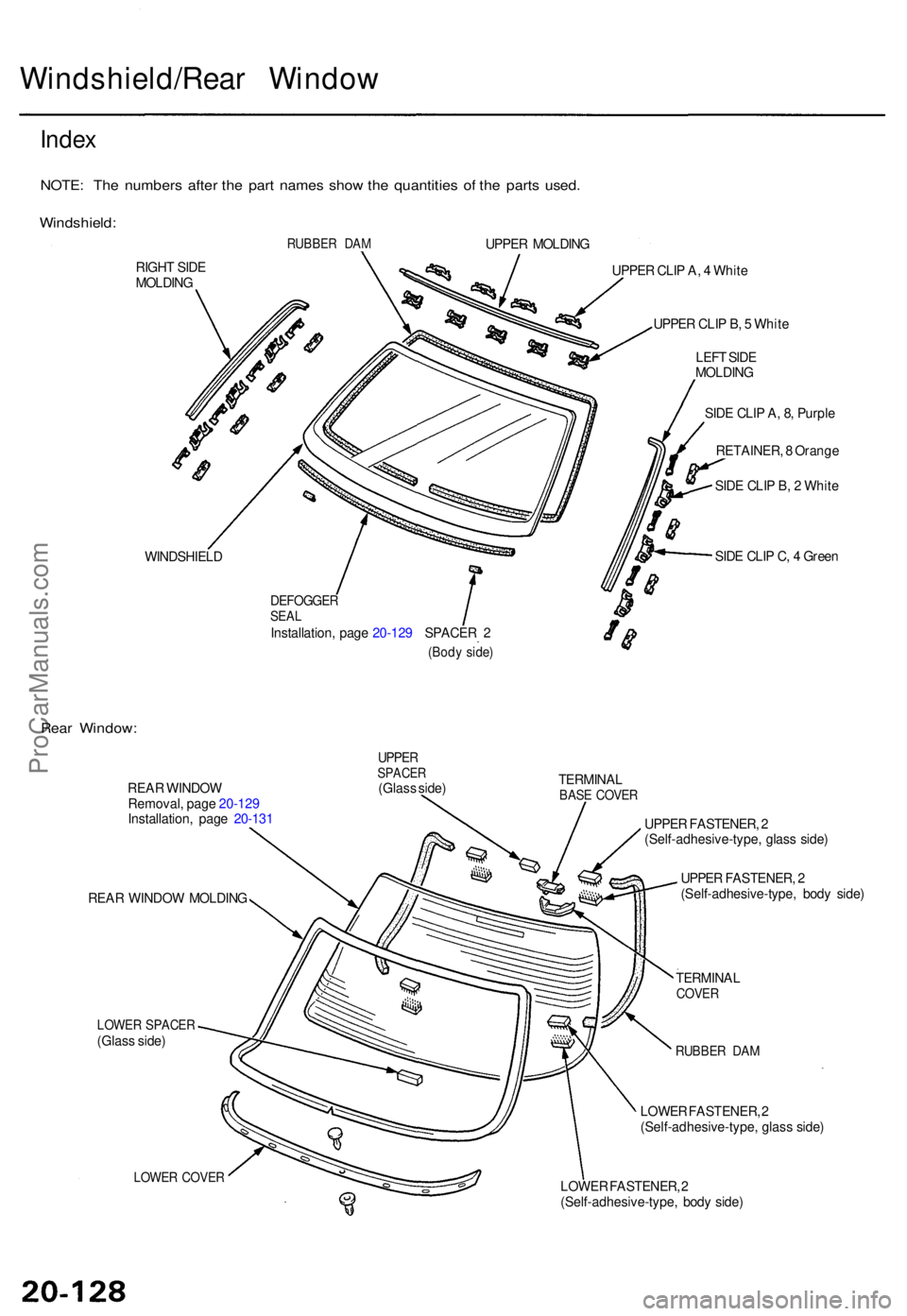

Windshield/Rear Windo w
Index
NOTE : Th e number s afte r th e par t name s sho w th e quantitie s o f th e part s used .
Windshield :
RUBBER DA MUPPE R MOLDIN G
RIGH T SID E
MOLDIN G
WINDSHIEL D
DEFOGGERSEALInstallation , pag e 20-12 9 SPACE R 2
(Bod y side )
UPPE R CLI P A , 4 Whit e
UPPE R CLI P B , 5 Whit e
LEF T SID E
MOLDIN G
SID E CLI P A , 8 , Purpl e
RETAINER , 8 Orang e
SID E CLI P B , 2 Whit e
SID E CLI P C , 4 Gree n
Rear Window :
REAR WINDO W
Removal , pag e 20-12 9
Installation , pag e 20-13 1
REA R WINDO W MOLDIN G
LOWER SPACE R(Glass side )
LOWE R COVE R
UPPERSPACE R(Glass side ) TERMINA
LBASE COVE R
UPPER FASTENER , 2
(Self-adhesive-type , glas s side )
UPPE R FASTENER , 2
(Self-adhesive-type , bod y side )
TERMINA L
COVER
RUBBE R DA M
LOWE R FASTENER , 2
(Self-adhesive-type , glas s side )
LOWE R FASTENER , 2
(Self-adhesive-type , bod y side )
ProCarManuals.com

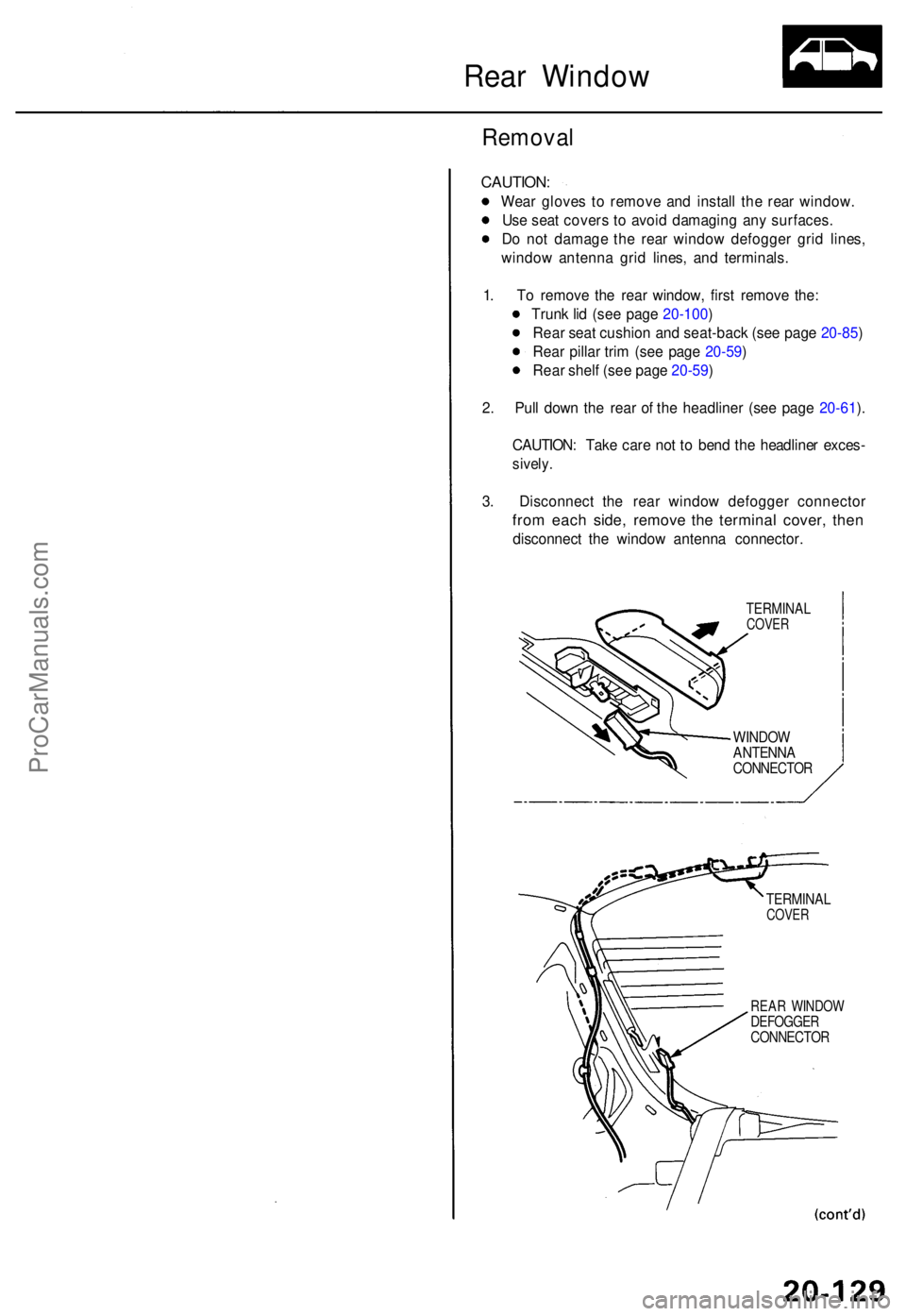

Rear Windo w
Remova l
CAUTION :
Wear glove s t o remov e an d instal l th e rea r window .
Us e sea t cover s t o avoi d damagin g an y surfaces .
D o no t damag e th e rea r windo w defogge r gri d lines ,
windo w antenn a gri d lines , an d terminals .
1 . T o remov e th e rea r window , firs t remov e the :
Trun k li d (se e pag e 20-100 )
Rea r sea t cushio n an d seat-bac k (se e pag e 20-85 )
Rea r pilla r tri m (se e pag e 20-59 )
Rea r shel f (se e pag e 20-59 )
2 . Pul l dow n th e rea r o f th e headline r (se e pag e 20-61 ).
CAUTION : Tak e car e no t t o ben d th e headline r exces -
sively.
3. Disconnec t th e rea r windo w defogge r connecto r
from eac h side , remov e th e termina l cover , the n
disconnec t th e windo w antenn a connector .
TERMINALCOVER
WINDO WANTENN ACONNECTO R
TERMINALCOVER
REAR WINDO WDEFOGGE RCONNECTO R
ProCarManuals.com

Rear Windo w
Remova l (cont'd )
4. Remov e th e clips , the n remov e th e lowe r cover .
NOTE : Us e a cli p remove r t o remov e th e clips .
REARWINDO W
CLIP
LOWE R COVE R
5. Remov e th e molding .
NOTE : I f th e moldin g remova l i s difficul t t o remove ,
cut i t wit h a knife .
MOLDIN G
REAR WINDO W
MOLDING
6. Appl y protectiv e tap e t o alon g th e edg e o f th e bod y
a s shown . Usin g a s awl , mak e a hol e throug h th e
rubbe r da m an d adhesiv e fro m insid e th e car . Pus h
a piec e o f pian o wir e throug h th e hole , an d wra p
eac h en d aroun d a piec e o f wood .
PIANO WIR E
ADHESIV E
REAR WINDO W
PROTECTIV ETAPE
PROTECTIV ETAPEPROTECTIV ETAPE
RUBBE RDAM
ADHESIV E
7.Wit h a helpe r o n th e outside , pul l th e pian o wir e
back an d fort h i n a sawin g motion , an d carefull y cu t
throug h th e rubbe r da m an d adhesiv e aroun d th e
entir e rea r window .
CAUTION : Hol d th e pian o wir e a s clos e t o th e rea r
windo w a s possibl e to preven t damag e to th e body .
REARWINDO W
8. Carefull y remov e th e rea r window .
PIANO WIR ESPACE R
GLASS
ADHESIV E
PIANOWIRE
ProCarManuals.com

Installation

1. Using a knife, scrape the old adhesive smooth with

a knife to a thickness of about 2 mm (0.08 in) on the

bonding surface around the entire rear window

opening flange.

NOTE:

Do not scrape down to the painted surface of the

body; damaged paint will interfere with proper

bonding

Mask off surrounding surfaces before painting.

Remove the upper spacer and rubber dam from

the body.

2. Clean the body bonding surface with a sponge

dampened in alcohol.

NOTE: After cleaning, keep oil, grease and water

from getting on the surface.

3. If the old rear window is to be reinstalled, use a putty

knife to scrape off all traces of old adhesive and the

rubber dam, then clean the rear window surface with

alcohol where new adhesive is to be applied.

NOTE: Make sure the bonding surface is kept free

of water, oil and grease.

CAUTION: Avoid setting the rear window on its

edges; small chips may later develop into cracks.

NOTE: Clean the shadowed area.

REAR WINDOW
4. Glue the molding around the edge of the rear win-

dow as shown.

REAR WINDOW

ALIGNMENT

MARK

MOLDING
GLASS

JOINT

5. Glue the upper fastener and lower fastener to the

body as shown.

A: Upper fastener

locations, 2
B: Lower fastener

locations, 2

CLEANING WIDTHProCarManuals.com

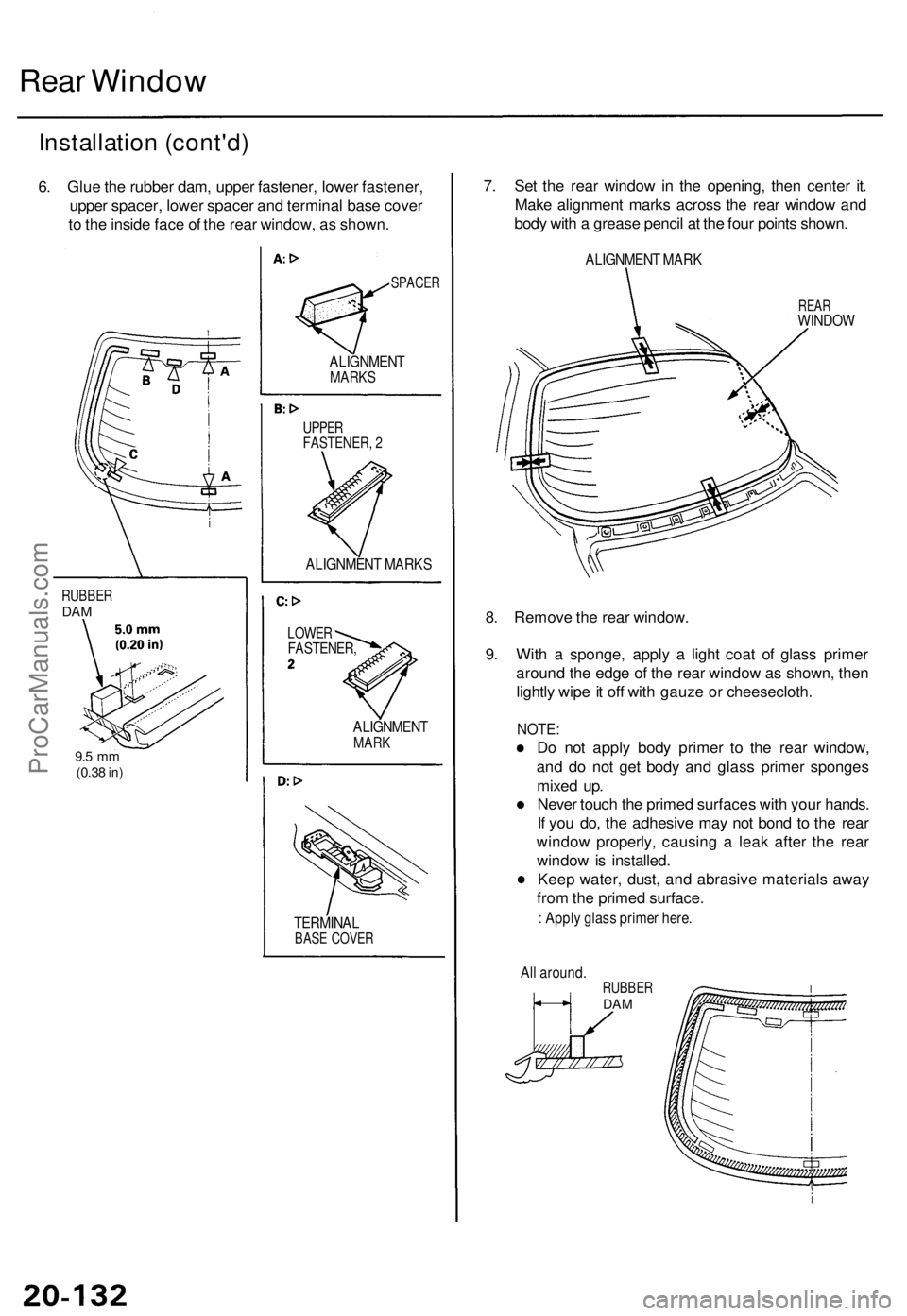

Rear Windo w
Installatio n (cont'd )
6. Glu e th e rubbe r dam , uppe r fastener , lowe r fastener ,
uppe r spacer , lowe r space r an d termina l bas e cove r
t o th e insid e fac e o f th e rea r window , a s shown .
RUBBE RDAM
9.5 m m(0.3 8 in)
SPACE R
ALIGNMEN TMARKS
UPPERFASTENER , 2
ALIGNMEN T MARK S
LOWERFASTENER ,
ALIGNMENTMARK
TERMINA LBASE COVE R
7. Se t th e rea r windo w in th e opening , the n cente r it .
Mak e alignmen t mark s acros s th e rea r windo w an d
bod y wit h a greas e penci l a t th e fou r point s shown .
ALIGNMEN T MAR K
REARWINDO W
8. Remov e th e rea r window .
9 . Wit h a sponge , appl y a ligh t coa t o f glas s prime r
aroun d th e edg e o f th e rea r windo w a s shown , the n
lightl y wip e it of f wit h gauz e o r cheesecloth .
NOTE:
Do no t appl y bod y prime r t o th e rea r window ,
an d d o no t ge t bod y an d glas s prime r sponge s
mixe d up .
Neve r touc h th e prime d surface s wit h you r hands .
I f yo u do , th e adhesiv e ma y no t bon d t o th e rea r
windo w properly , causin g a lea k afte r th e rea r
windo w is installed .
Kee p water , dust , an d abrasiv e material s awa y
fro m th e prime d surface .
: Appl y glas s prime r here .
Al l around .
RUBBERDAM
ProCarManuals.com

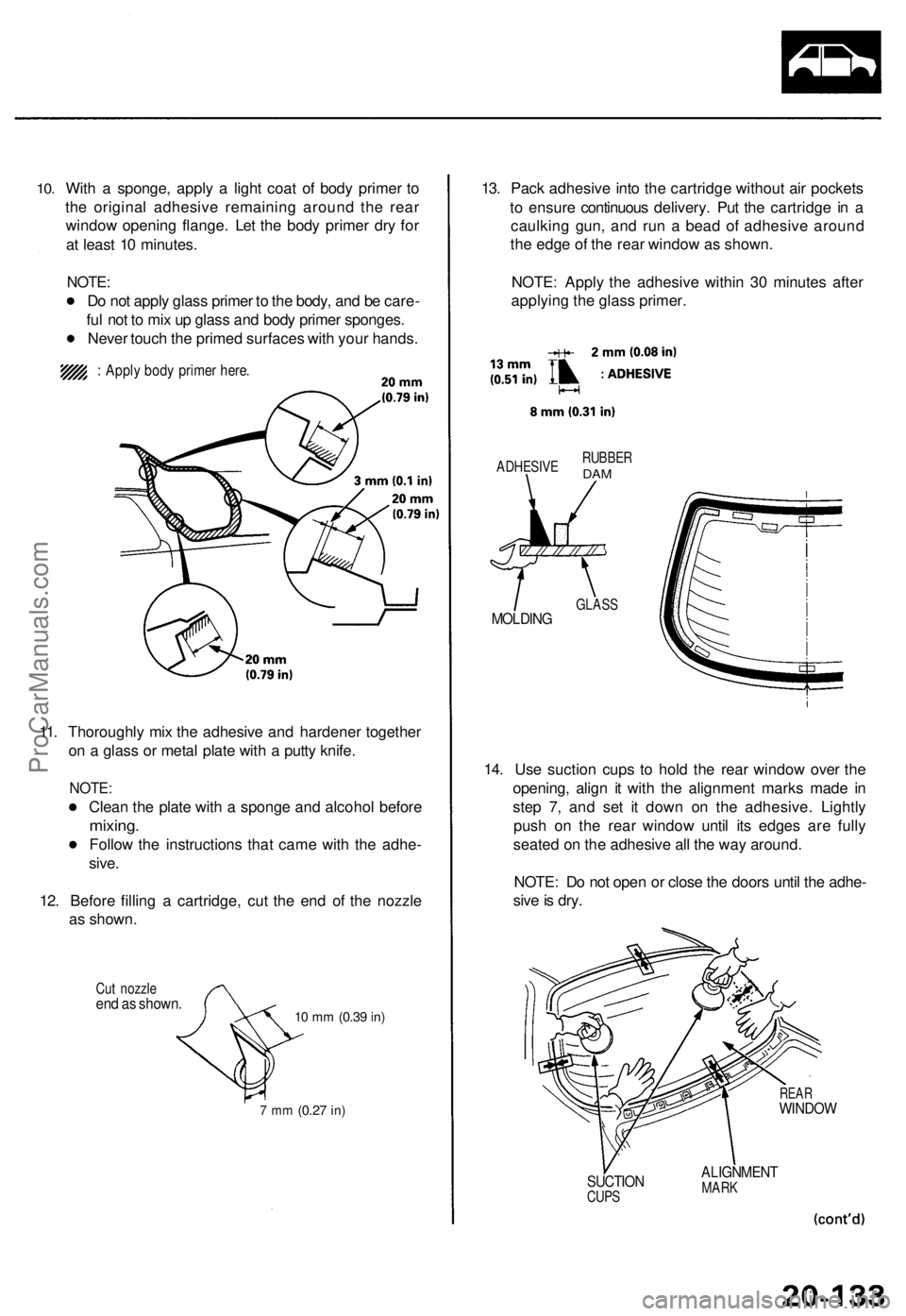

10.
With a sponge, apply a light coat of body primer to

the original adhesive remaining around the rear

window opening flange. Let the body primer dry for

at least 10 minutes.

NOTE:

Do not apply glass primer to the body, and be care-

ful not to mix up glass and body primer sponges.

Never touch the primed surfaces with your hands.

: Apply body primer here.

11. Thoroughly mix the adhesive and hardener together

on a glass or metal plate with a putty knife.

NOTE:

Clean the plate with a sponge and alcohol before

mixing.

Follow the instructions that came with the adhe-

sive.

12. Before filling a cartridge, cut the end of the nozzle

as shown.

Cut nozzle

end as shown.

10 mm
(0.39
in)

7 mm
(0.27
in)
13. Pack adhesive into the cartridge without air pockets

to ensure continuous delivery. Put the cartridge in a

caulking gun, and run a bead of adhesive around

the edge of the rear window as shown.

NOTE: Apply the adhesive within 30 minutes after

applying the glass primer.

ADHESIVE
RUBBER

DAM

MOLDING
GLASS

14. Use suction cups to hold the rear window over the

opening, align it with the alignment marks made in

step 7, and set it down on the adhesive. Lightly

push on the rear window until its edges are fully

seated on the adhesive all the way around.

NOTE: Do not open or close the doors until the adhe-

sive is dry.

REAR

WINDOW

SUCTION

CUPS
ALIGNMENT

MARKProCarManuals.com
