1995 ACURA TL window

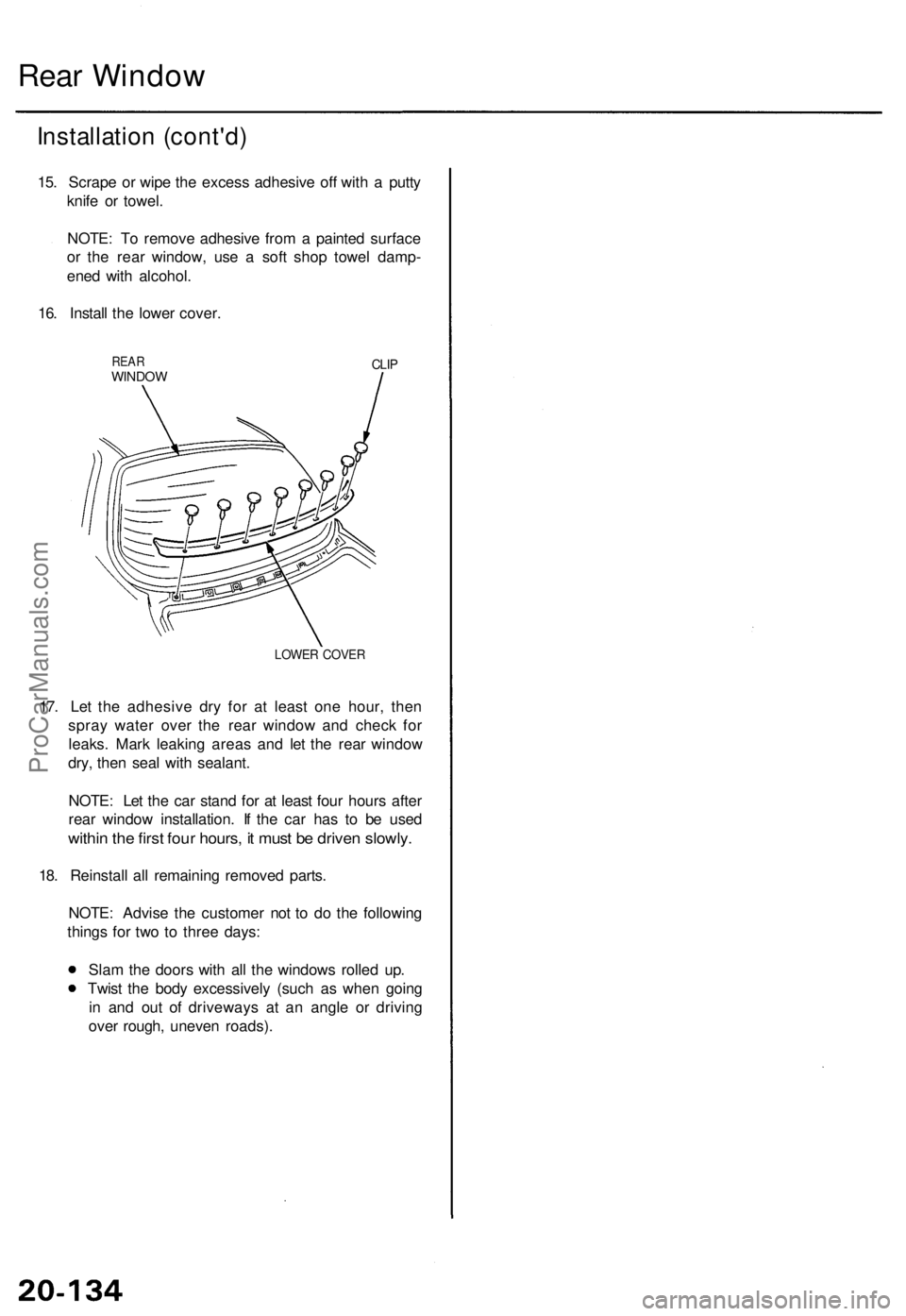

Rear Windo w
Installatio n (cont'd )
15. Scrap e o r wip e th e exces s adhesiv e of f wit h a putt y
knif e o r towel.
NOTE : T o remov e adhesiv e fro m a painte d surfac e
o r th e rea r window , us e a sof t sho p towe l damp -
ene d wit h alcohol .
16 . Instal l th e lowe r cover .
REARWINDO WCLIP
LOWE R COVE R
17. Le t th e adhesiv e dr y fo r a t leas t on e hour , the n
spra y wate r ove r th e rea r windo w an d chec k fo r
leaks . Mar k leakin g area s an d le t th e rea r windo w
dry , the n sea l wit h sealant .
NOTE : Le t th e ca r stan d fo r a t leas t fou r hour s afte r
rea r windo w installation . I f th e ca r ha s t o b e use d
within th e firs t fou r hours , i t mus t b e drive n slowly .
18. Reinstal l al l remainin g remove d parts .
NOTE : Advis e th e custome r no t t o d o th e followin g
thing s fo r tw o t o thre e days :
Sla m th e door s wit h al l th e window s rolle d up .
Twis t th e bod y excessivel y (suc h a s whe n goin g
i n an d ou t o f driveway s a t a n angl e o r drivin g
ove r rough , uneve n roads) .
ProCarManuals.com

Relay and Control Unit Locations

Engine Compartment

UNDER-HOOD ABS

FUSE/RELAY BOX

ABS PUMP MOTOR RELAY

HEADLIGHT

RELAY
DIMMER RELAY
TAILLIGHT

RELAY
POWER WINDOW

RELAY
UNDER-HOOD

FUSE/RELAY BOXProCarManuals.com

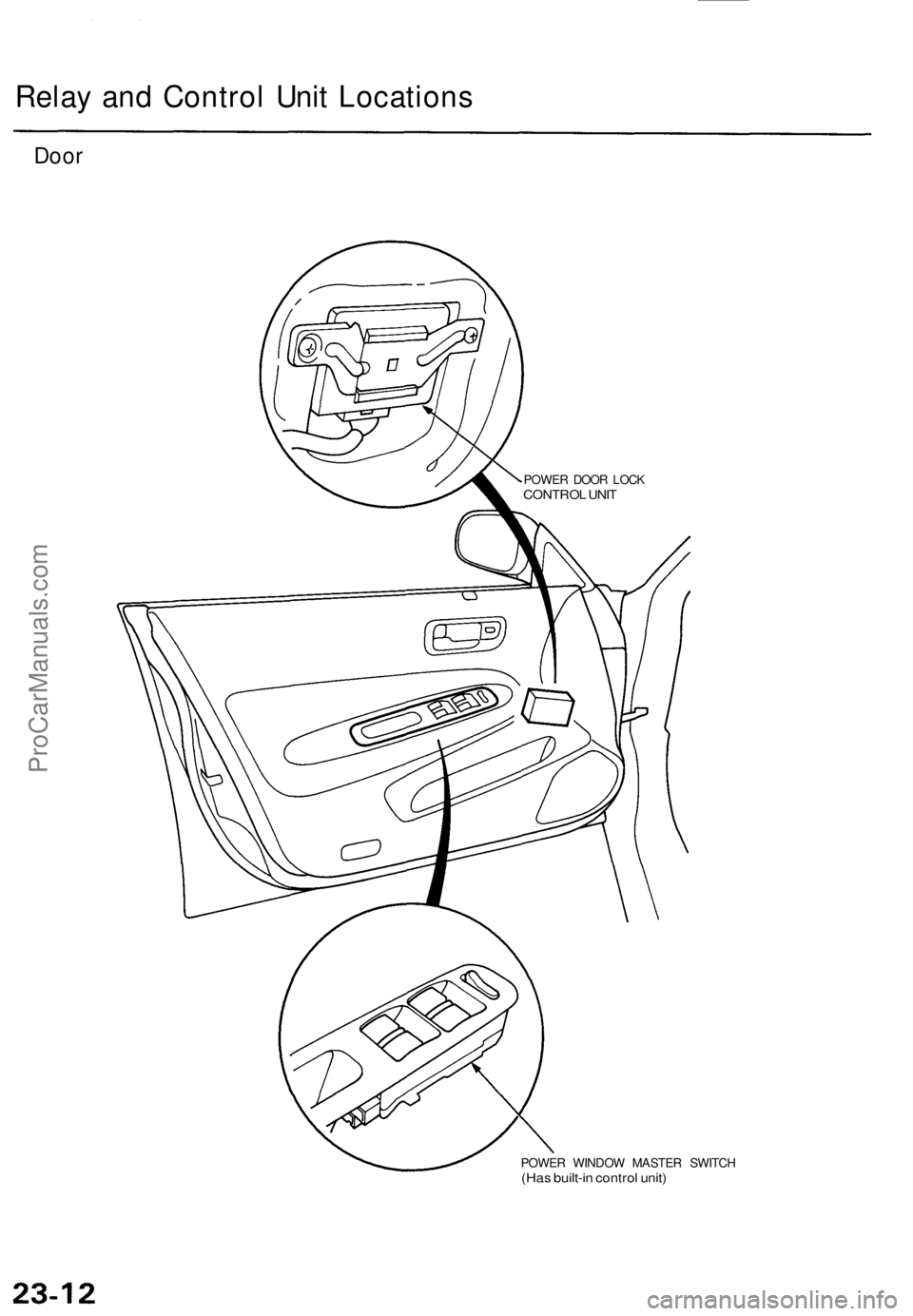

Relay and Control Unit Locations

Door

POWER WINDOW MASTER SWITCH

(Has built-in control unit)
POWER DOOR LOCK

CONTROL UNITProCarManuals.com

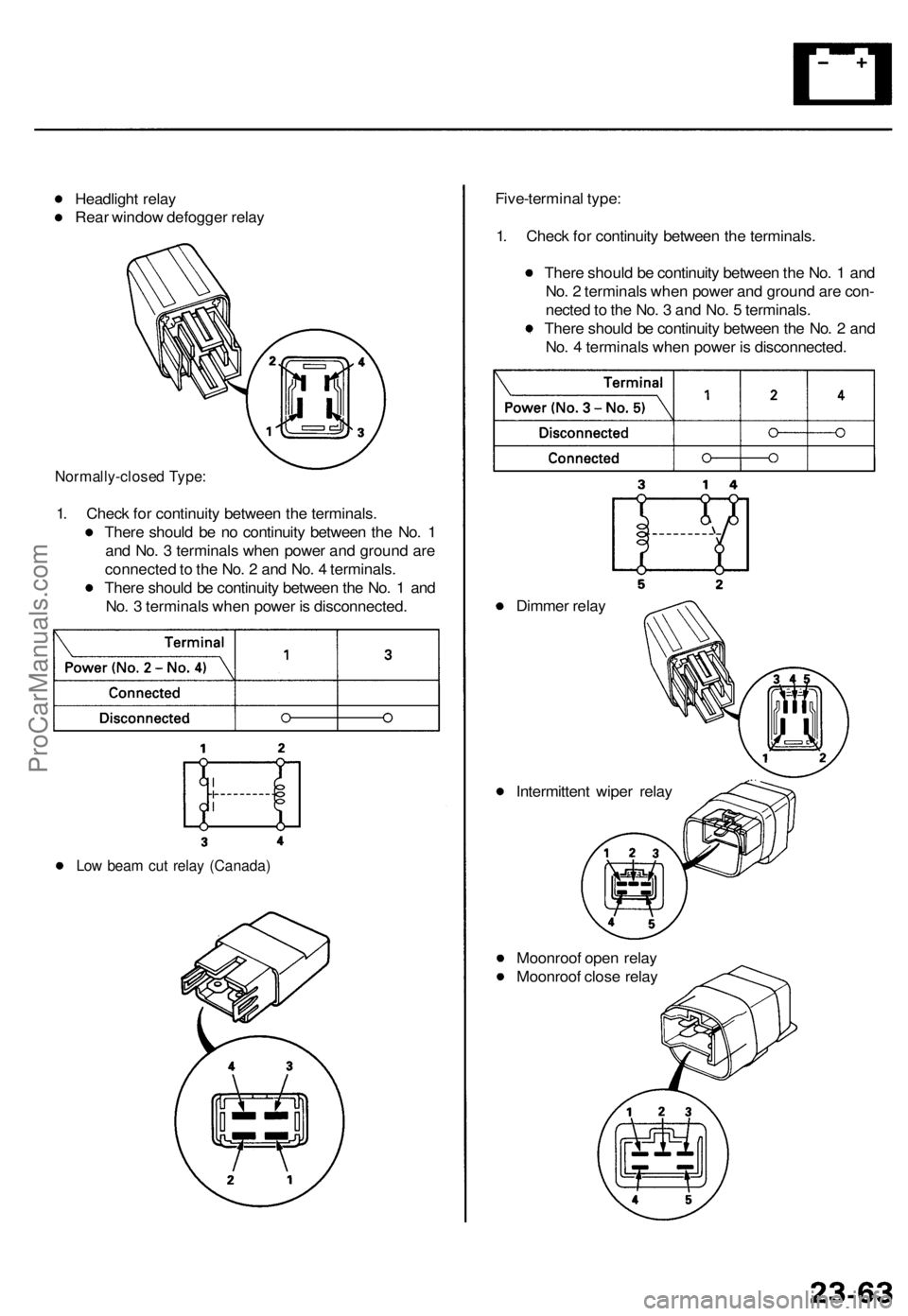

Headlight relay

Rear window defogger relay

Normally-closed Type:

1. Check for continuity between the terminals.

There should be no continuity between the No. 1

and No. 3 terminals when power and ground are

connected to the No. 2 and No. 4 terminals.

There should be continuity between the No. 1 and

No. 3 terminals when power is disconnected.

Low beam cut relay (Canada)
Five-terminal type:

1. Check for continuity between the terminals.

There should be continuity between the No. 1 and

No. 2 terminals when power and ground are con-

nected to the No. 3 and No. 5 terminals.

There should be continuity between the No. 2 and

No. 4 terminals when power is disconnected.

Dimmer relay

Intermittent wiper relay

Moonroof open relay

Moonroof close relayProCarManuals.com

Integrated Control Unit

Input Test (cont'd)

Seat Belt Reminder and Key-in Warning System:
WIRE SIDE OF FEMALE TERMINALS

*: '97 - 98 models

Trml Wire
Test condition
Test: Desired result
Possible cause if result is not obtained

Power Window Key-off Timer System:

Trml Wire
Test condition
Test: Desired result
Possible cause if result is not obtainedProCarManuals.com

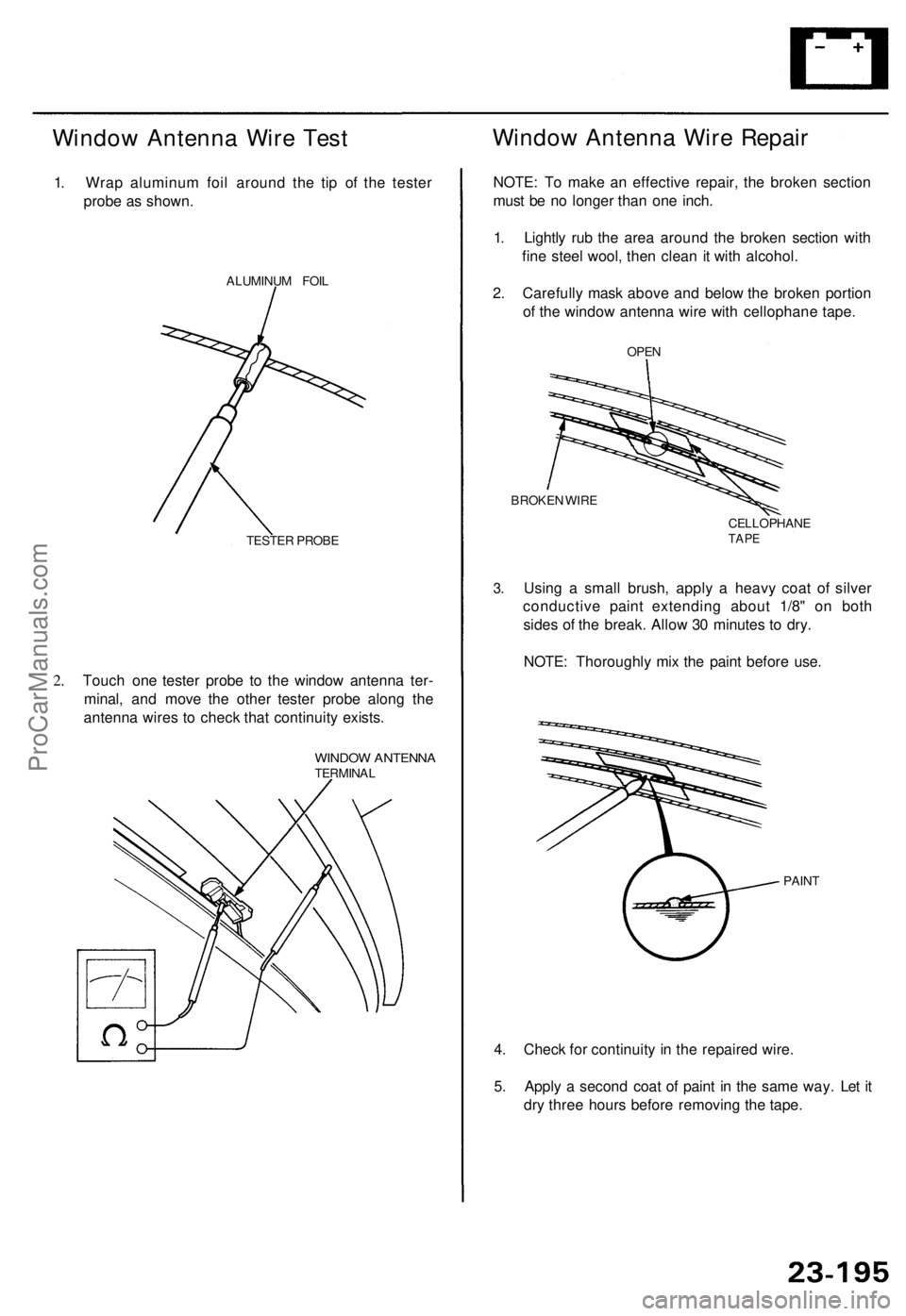

Window Antenn a Wir e Tes t
1. Wra p aluminu m foi l aroun d th e ti p of the teste r
prob e a s shown .
ALUMINU M FOI L
TESTE R PROB E
2.Touc h on e teste r prob e t o th e windo w antenn a ter -
minal , an d mov e th e othe r teste r prob e alon g th e
antenn a wire s t o chec k tha t continuit y exists .
WINDO W ANTENN ATERMINA L
Window Antenn a Wir e Repai r
NOTE: T o mak e a n effectiv e repair , th e broke n sectio n
mus t b e n o longe r tha n on e inch .
1 . Lightl y ru b th e are a aroun d th e broke n sectio n wit h
fin e stee l wool , the n clea n i t wit h alcohol .
2 . Carefull y mas k abov e an d belo w th e broke n portio n
o f th e windo w antenn a wir e wit h cellophan e tape .
OPEN
BROKE N WIR E
CELLOPHANE
TAPE
3.Usin g a smal l brush , appl y a heav y coa t of silve r
conductiv e pain t extendin g abou t 1/8 " o n bot h
side s o f th e break . Allo w 3 0 minute s t o dry .
NOTE : Thoroughl y mi x th e pain t befor e use .
PAIN T
4. Chec k fo r continuit y i n th e repaire d wire .
5 . Appl y a secon d coa t o f pain t i n th e sam e way . Le t i t
dr y thre e hour s befor e removin g th e tape .
ProCarManuals.com

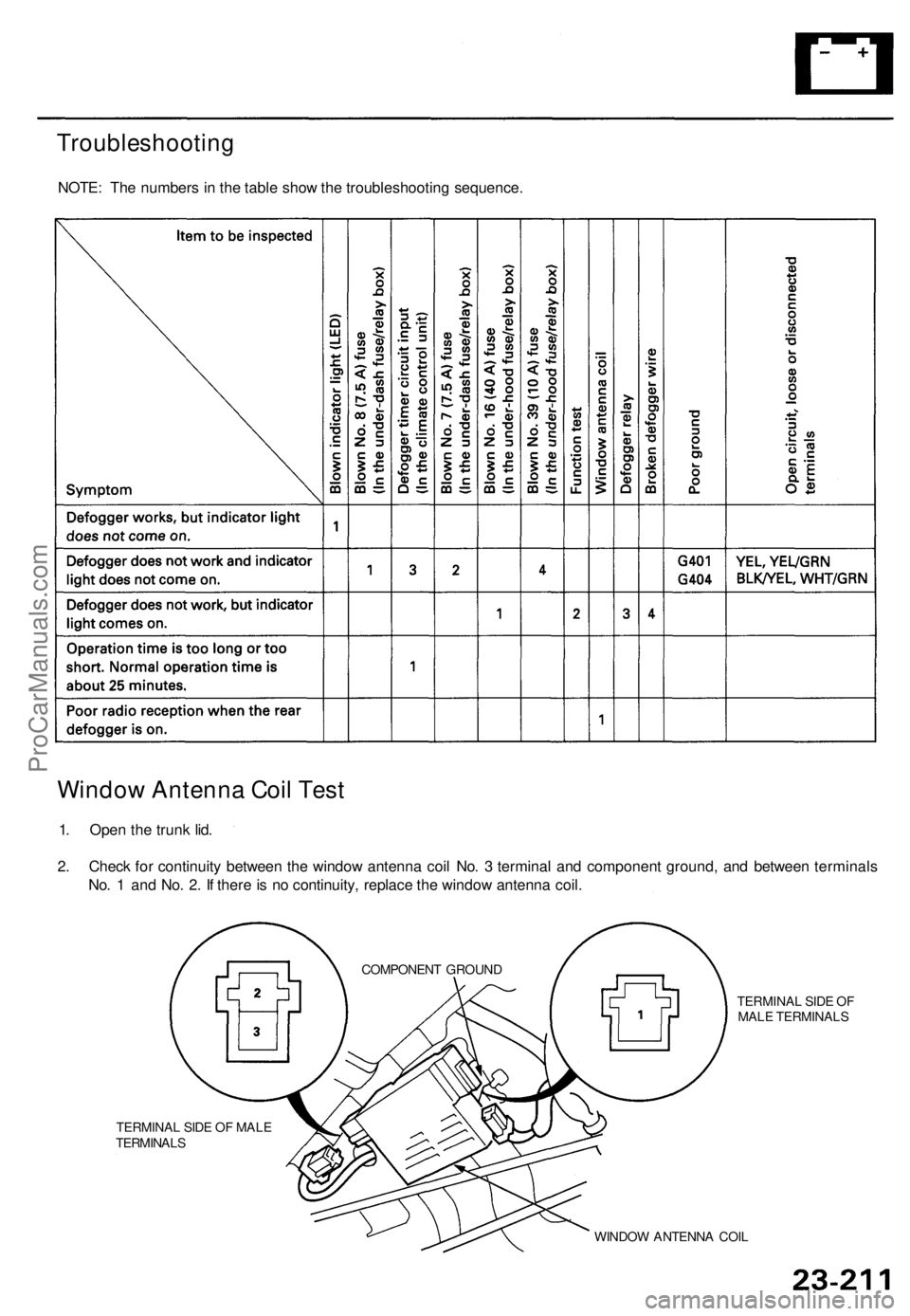

Troubleshooting
NOTE: Th e number s i n th e tabl e sho w th e troubleshootin g sequence .
Window Antenn a Coi l Tes t
1. Ope n th e trun k lid .
2 . Chec k fo r continuit y betwee n th e windo w antenn a coi l No . 3 termina l an d componen t ground , an d betwee n terminal s
No . 1 an d No . 2 . I f ther e is n o continuity , replac e th e windo w antenn a coil .
TERMINA L SID E O F
MAL E TERMINAL S
TERMINA L SID E O F MAL E
TERMINAL S
WINDOW ANTENN A COI L
COMPONEN
T GROUN D
ProCarManuals.com

Power Window s
Componen t Locatio n Inde x
UNDER-HOO DFUSE/RELAY BO X
POWE R WINDO WRELAYTest, pag e 23-6 2
POWE R WINDO W MASTE R
SWITC H
(Has built-i n contro l unit )Input Test , pag e 23-23 2
Test , pag e 23-23 1
Replacement , pag e 23-23 4
DRIVER' S WINDO W
MOTO R
Test , pag e 23-23 6 FRON
T PASSENGER' S WINDO W SWITC H
Test , pag e 23-23 5
Replacement , pag e 23-23 4
FRON T PASSENGER' S WINDO W MOTO R
Test , pag e 23-23 5
RIGH T REA R WINDO W SWITC H
Test , pag e 23-23 5
Replacement , pag e 23-23 4
RIGH T REA R WINDO W MOTO R
Test , pag e 23-23 5
LEF T REA R WINDO W
SWITC H
Test , pag e 23-23 5
Replacement , pag e 23-23 4
LEFT REA R WINDO W MOTO R
Test , pag e 23-23 5
INTEGRATE DCONTROL UNI T
(Ha s built-i n key-of f
timer circuit )Test, pag e 23-150
UNDER-DASH FUSE/RELA Y BO X
Descriptio n
Power Windo w Key-of f Time r Operation :
The powe r window s can stil l be operate d for abou t 10 minute s after the ignitio n switch is turne d from the "II " to th e "I " o r
"O " position , a s lon g a s neithe r o f th e fron t door s ha s bee n opened . Thi s provide s a convenienc e t o parke d occupant s
while offerin g a degre e o f securit y agains t unwante d o r accidenta l windo w operation .
