1995 ACURA TL window

Power Window s

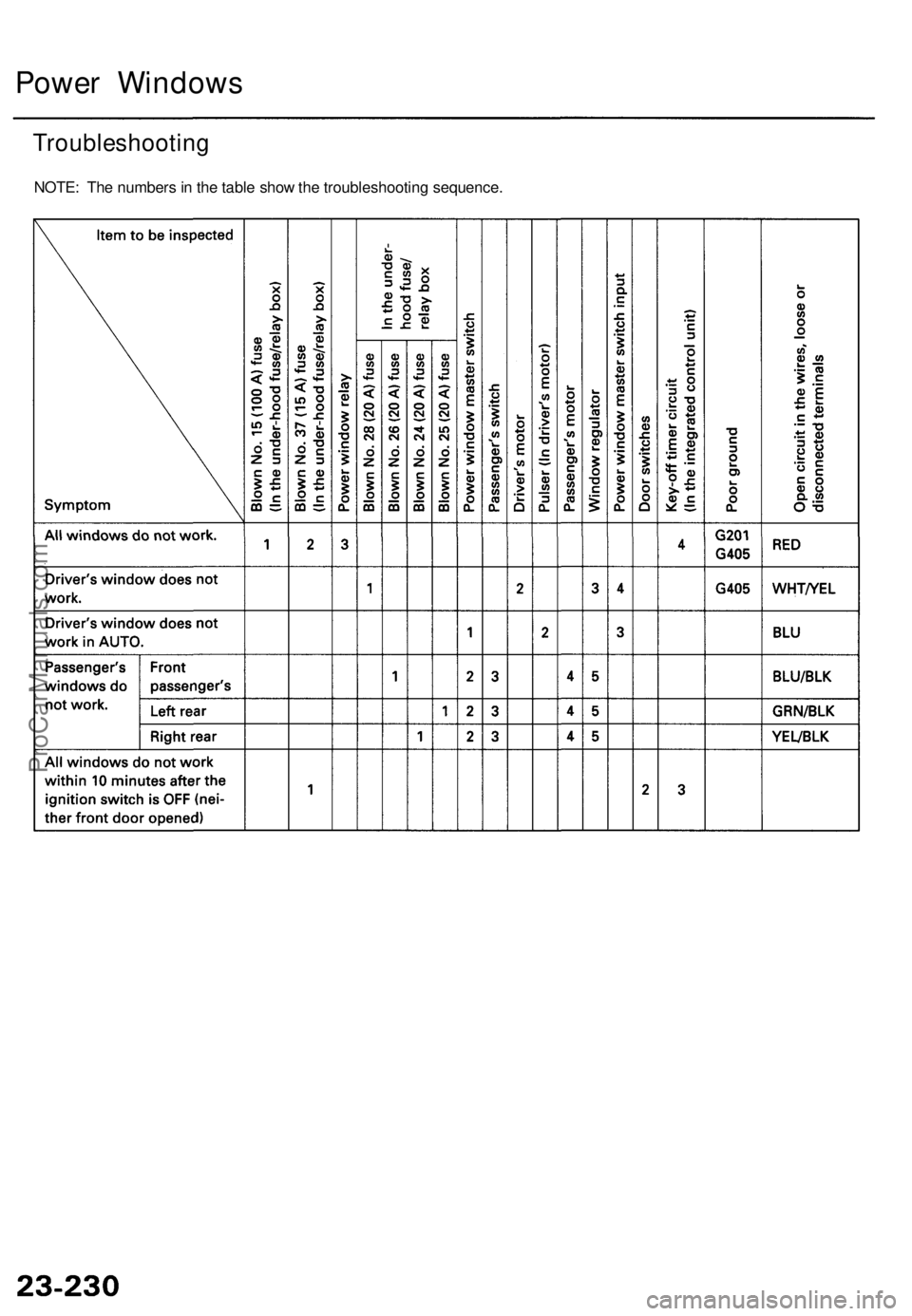

Troubleshootin g
NOTE: Th e number s in th e tabl e sho w th e troubleshootin g sequence .
ProCarManuals.com

Power Window s

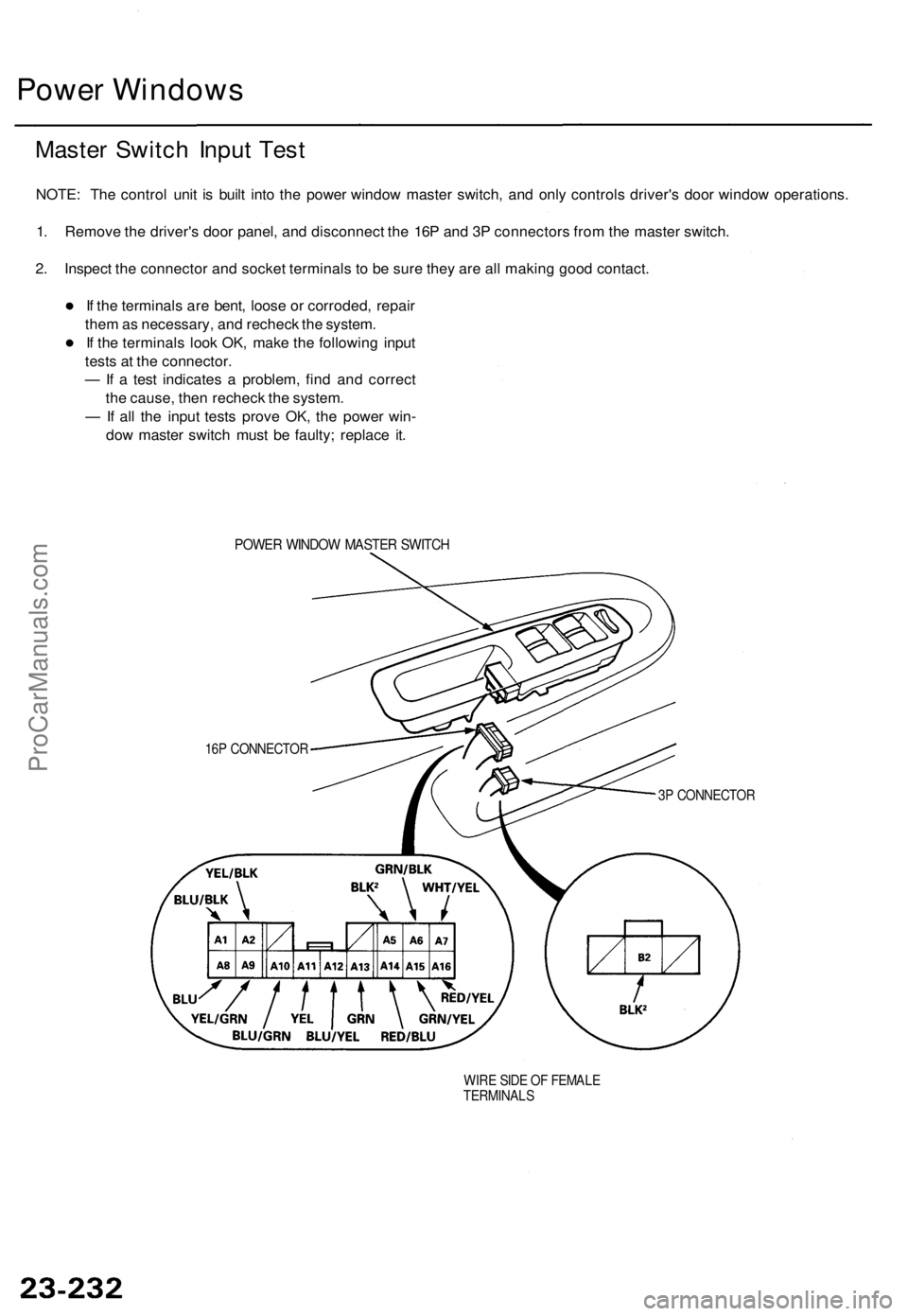

Master Switc h Inpu t Tes t
NOTE : Th e contro l uni t i s buil t int o th e powe r windo w maste r switch , an d onl y control s driver' s doo r windo w operations .
1 . Remov e th e driver' s doo r panel , an d disconnec t th e 16 P an d 3 P connector s fro m th e maste r switch .
2 . Inspec t th e connecto r an d socke t terminal s t o b e sur e the y ar e al l makin g goo d contact .
I f th e terminal s ar e bent , loos e o r corroded , repai r
the m as necessary , an d rechec k th e system .
I f th e terminal s loo k OK , mak e th e followin g inpu t
test s a t th e connector .
— If a tes t indicate s a problem , fin d an d correc t
th e cause , the n rechec k th e system .
— If al l th e inpu t test s prov e OK , th e powe r win -
do w maste r switc h mus t b e faulty ; replac e it .
POWE R WINDO W MASTE R SWITC H
16P CONNECTO R
3P CONNECTO R
WIR E SID E O F FEMAL E
TERMINAL S
ProCarManuals.com

Power Window s

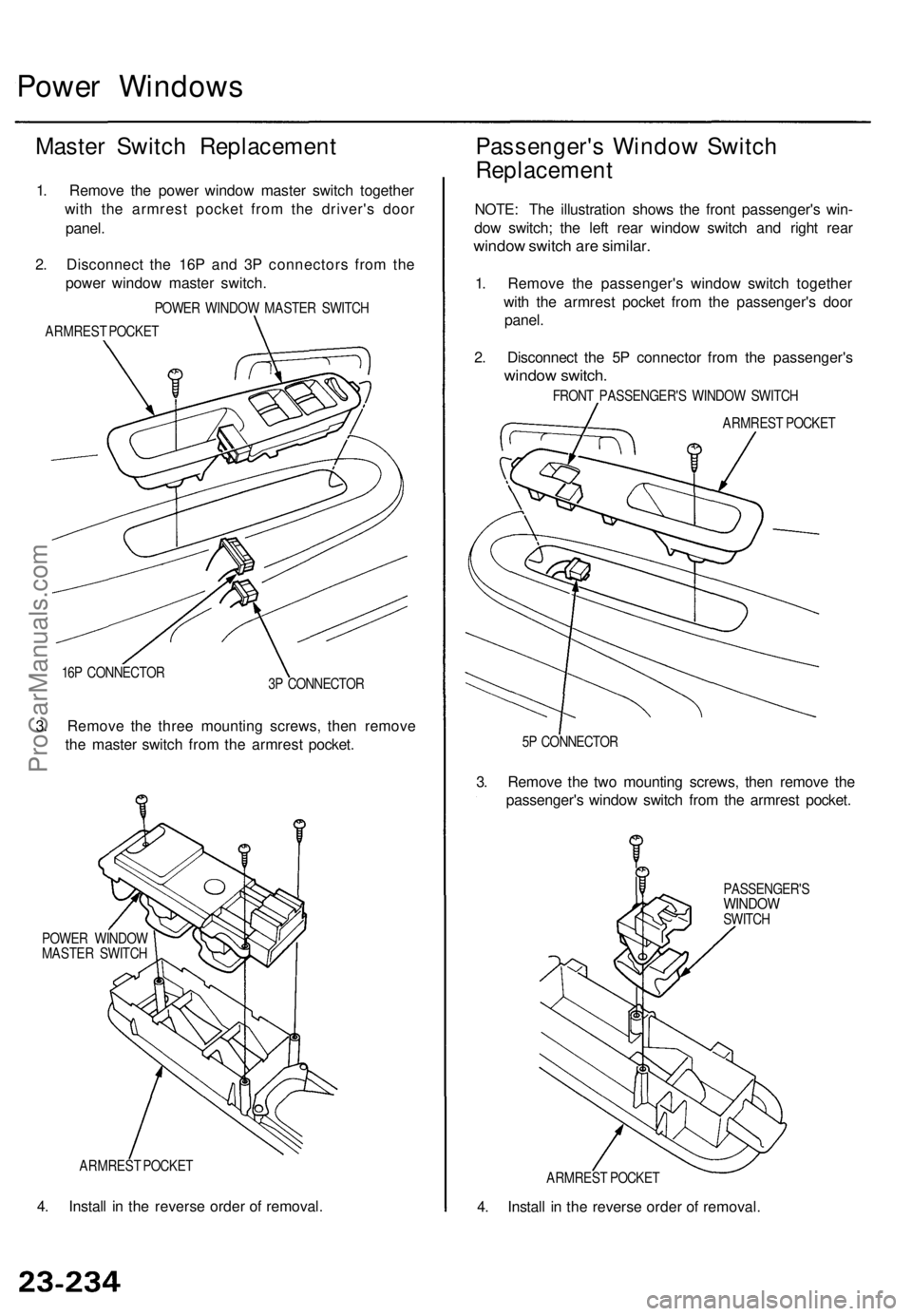

Master Switc h Replacemen t
1. Remov e th e powe r windo w maste r switc h togethe r
wit h th e armres t pocke t fro m th e driver' s doo r
panel .
2 . Disconnec t th e 16 P an d 3 P connector s fro m th e
powe r windo w maste r switch .
POWER WINDO W MASTE R SWITC H
ARMRES T POCKE T
16 P CONNECTO R
3P CONNECTO R
3. Remov e th e thre e mountin g screws , the n remov e
th e maste r switc h fro m th e armres t pocket .
POWER WINDO W
MASTE R SWITC H
ARMRES T POCKE T
4. Instal l i n th e revers e orde r o f removal .
Passenger' s Windo w Switc h
Replacemen t
NOTE: Th e illustratio n show s th e fron t passenger' s win -
do w switch ; th e lef t rea r windo w switc h an d righ t rea r
windo w switc h ar e similar .
1. Remov e th e passenger' s windo w switc h togethe r
wit h th e armres t pocke t fro m th e passenger' s doo r
panel .
2 . Disconnec t th e 5 P connecto r fro m th e passenger' s
window switch .
FRONT PASSENGER' S WINDO W SWITC H
ARMRES T POCKE T
5 P CONNECTO R
3. Remov e th e tw o mountin g screws , the n remov e th e
passenger' s windo w switc h fro m th e armres t pocket .
PASSENGER' SWINDOWSWITCH
ARMRES T POCKE T
4. Instal l i n th e revers e orde r o f removal .
ProCarManuals.com

Power Window s

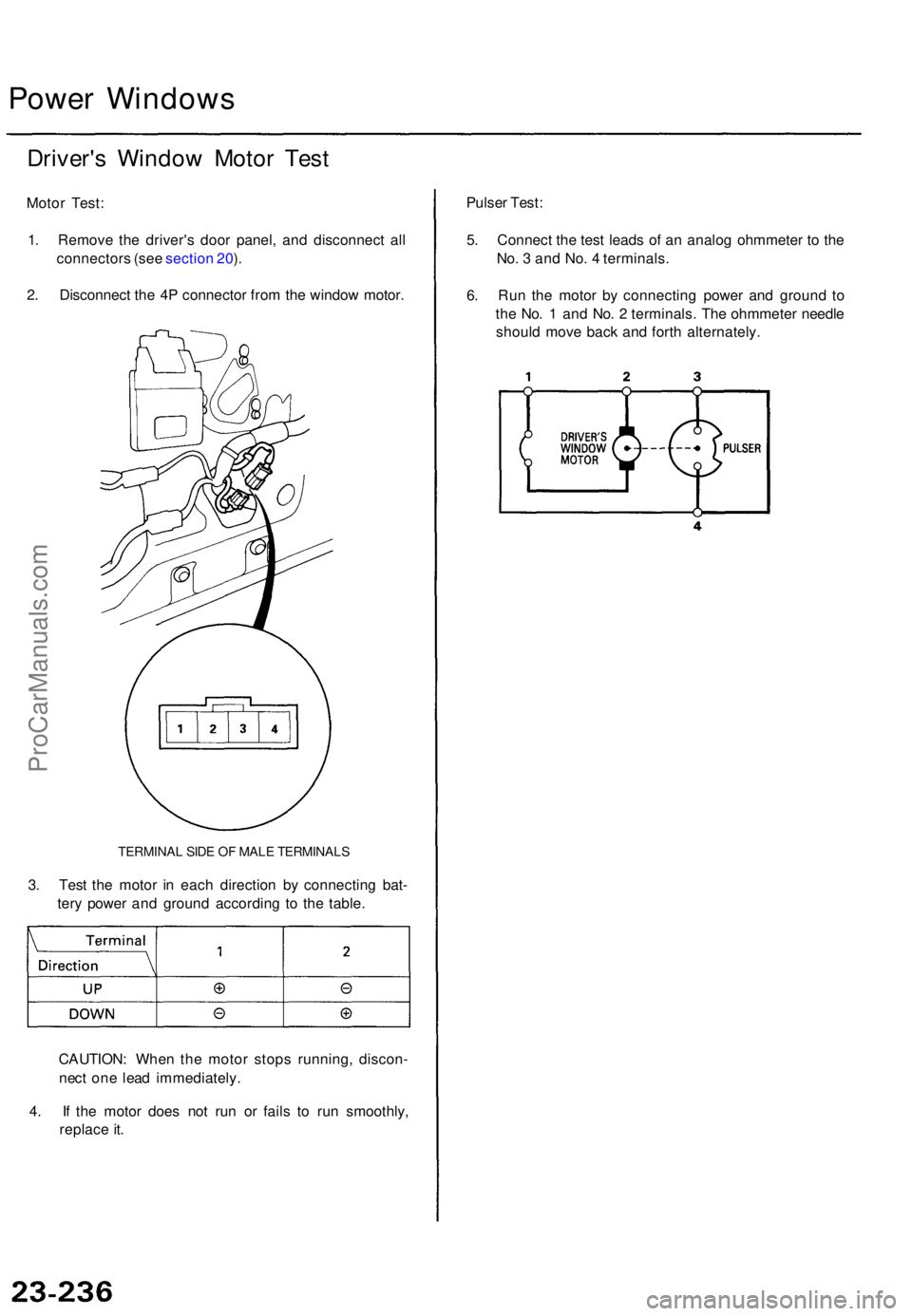

Driver's Windo w Moto r Tes t
Moto r Test :
1 . Remov e th e driver' s doo r panel , an d disconnec t al l
connector s (se e sectio n 20 ).
2 . Disconnec t th e 4 P connecto r fro m th e windo w motor .
TERMINA L SID E O F MAL E TERMINAL S
3. Tes t th e moto r i n eac h directio n b y connectin g bat -
ter y powe r an d groun d accordin g t o th e table .
CAUTION : Whe n th e moto r stop s running , discon -
nec t on e lea d immediately .
4 . I f th e moto r doe s no t ru n o r fail s t o ru n smoothly ,
replac e it . Pulse
r Test :
5 . Connec t th e tes t lead s o f a n analo g ohmmete r t o th e
No . 3 an d No . 4 terminals .
6 . Ru n th e moto r b y connectin g powe r an d groun d t o
th e No . 1 an d No . 2 terminals . Th e ohmmete r needl e
shoul d mov e bac k an d fort h alternately .
